Modified Gracilis Autograft Preparation for Arthroscopic Anterior Talofibular and Calcaneofibular Ligament Anatomic Reconstruction: Technical Tip

Introduction

Acute lateral ankle sprains are the most common sports injury. ⁸ Many of the injured patients recover with conservative treatment; however, up to 40% of them progress to chronic lateral ankle instability requiring surgical stabilization. ¹

Surgical treatment for chronic ankle instability is controversial regarding approach (open vs arthroscopic), technique (repair vs reconstruction), indications, and timing, yet the Broström-Gould procedure remains the gold standard and first-line surgical treatment.^1,8 New trends advocate arthroscopic repair of the anterior talofibular ligament (ATFL) when the ligament remnants are competent, showing satisfactory outcomes, and anatomic reconstruction with tendon autograft when ligament remnants are insufficient or in a combined calcaneofibular ligament (CFL) injury.^1,2,8

Recently, ATFL remnant quality has been the subject of study when defining the best approach, ² but the ideal graft and preparation technique is yet unknown. ⁵ Lopes et al ⁷ combined arthroscopic ATFL and CFL reconstruction technique implements a 10-cm gracilis autograft, harvested using a tendon stripper through a short oblique incision, in which both ends are threaded with FiberLoop No. 2 (Arthrex, Naples, FL) and placing one of them through a 4.75- × 15-mm Bio-Tenodesis Screw system (Arthrex) for fixation to the talus. This study aims to describe a modified gracilis autograft preparation for the arthroscopic ATFL and CFL reconstruction as described by Lopes et al. ⁷

Material and Methods

Operative Technique

Setup

The patient is placed supine with a pillow under the ipsilateral buttock to position the lower limb in internal rotation and allow access to the anterior and lateral ankle (Figure 1). The contralateral lower limb is abducted or lowered for accessible and comfortable arthroscopic instrument use. A lateral support is positioned at the level of the lateral thigh to hold the knee flexion for gracilis tendon harvesting.

OPEN IN VIEWER

Figure 1.

Patient setup for the arthroscopic ATFL and CFL reconstruction.

Gracilis tendon graft harvesting and preparation

After sterile draping, a 2- to 5-cm vertical incision centered on the distal hamstring insertion is performed for gracilis harvesting, preserving its distal attachment (Figure 2). Contrary to the original technique, only the proximal end of the gracilis tendon is sutured with Vycril 2 (Ethicon, Cincinnati, OH) in a whipstitch pattern before sharply detaching its distal end for a fast and easy graft preparation. Similar allograft preparation can be achieved if preferred.

OPEN IN VIEWER

Figure 2.

Gracilis autograft harvesting approach.

Arthroscopic portals, footprint preparation, and tunnel drilling

Arthroscopic portals, footprint preparation, and tunnel drilling follow the original technique. ⁷

Graft passage and tensioning

The distal end (thickest) of the gracilis tendon is secured to a 4.75-mm SwiveLock (Arthrex) Bio-Tenodesis Screw by substituting the default sutures for a FiberLink (Arthrex) (Figure 3) and fixed into the talar tunnel (Figure 4). The FiberLink (Arthrex) is then cut at its emergence from the talar tunnel, and the graft fixation is tested by pulling it. An UltraButton (Smith & Nephew) adjustable suture-button system is placed around the graft, and the distal end of the graft is routed between the peroneal tendons and the lateral calcaneus cortex, exiting through the retromalleolar calcaneal incision and then through the calcaneal tunnel with the aid of guiding sutures (Figure 5). Likewise, the UltraButton (Smith & Nephew) adjustable suture-button system is pulled into the fibular tunnel with a guiding suture.

OPEN IN VIEWER

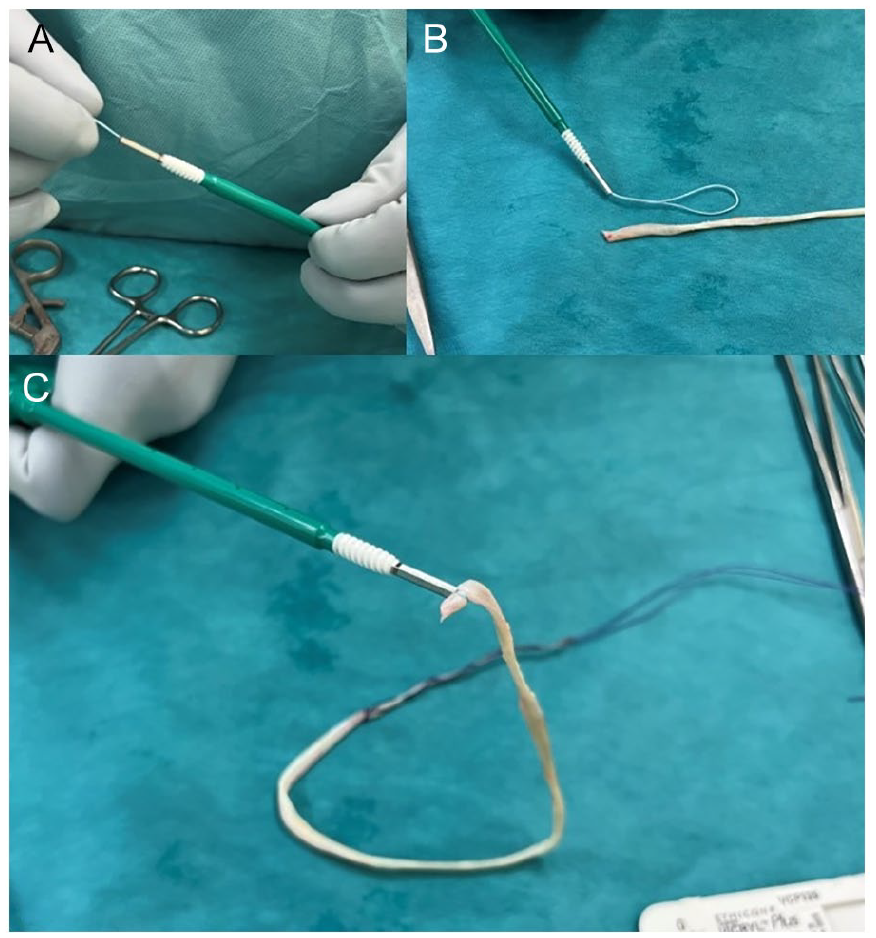

Figure 3.

(A) Progressing the suture loop inside the Bio-Tenodesis Screw System; (B) suture loop ready in the distal Bio-Tenodesis Screw System; and (C) the distal end (thickest) of the gracilis tendon is secured to the Bio-Tenodesis Screw System with the suture loop.

OPEN IN VIEWER

Figure 4.

Arthroscopic view of the talar fixation of the gracilis autograft using the SwiveLock (Arthrex) Bio-Tenodesis Screw.

OPEN IN VIEWER

Figure 5.

The proximal end of the gracilis autograft after exiting medially through the calcaneal tunnel. Note that only that end was whipstitched during graft preparation.

Under arthroscopic visualization from the anteromedial portal and plantigrade position, 1 cm of the graft is gradually progressed into the fibular tunnel. The graft is fixed in the calcaneal tunnel with a 6 × 20-mm interference screw while maintaining the foot plantigrade position, and additional tension tuning can be achieved by tightening the UltraButton (Smith & Nephew) adjustable suture-button system.

Discussion

Different ATFL and CFL graft alternatives have been implemented in the ATFL and CFL reconstruction with satisfactory outcomes. Wang and Xu, ⁹ in a retrospective case series of 25 patients undergoing a fluoroscopy-guided minimally invasive reconstruction with semitendinosus autograft, reported excellent satisfaction in 80% of patients and significant AOFAS score improvement (from 71.1 to 95.1) at a mean 32.3-month follow-up. Jung et al, ⁴ in a prospective study including 66 patients undergoing open reconstruction using semitendinosus allograft, reported a significant mean VAS pain score reduction (from 5.5 to 1.3) and AOFAS and Karlsson-Petersen score improvement (from 71.0 to 90.9, and 55.1 to 90.3, respectively) at a mean 22.1 months, and finding no clinical differences between pretensioning the graft or not. Similarly, Lopes et al, ⁶ in a prospective study including 171 patients undergoing arthroscopic reconstruction with gracilis autograft, reported high patient satisfaction and significant AOFAS and Karlsson score improvement (from 61.7 to 87.6 and 54.7 to 85.2, respectively) at a mean 9.6-month follow-up.

Anatomical studies have suggested that the semitendinosus tendon graft is closer to the ATFL diameter than the gracilis, ⁵ yet no graft option has been proven clinically superior. Moreover, several graft configurations, such as the Y configuration by Guillo et al ¹ and the triangular-shaped (ALC-triangle) by Higashiyama et al, ³ have been described as suitable alternatives for ATFL and CFL reconstruction.^4,7,9

The presented technique allows an easy and fast graft preparation by suturing the proximal end of the gracilis and leaving its thicker end for ATFL reconstruction with a Bio-Tenodesis Screw. This avoids the need to suture both graft ends, measure the graft, and/or make technically demanding graft configurations, potentially saving valuable time. The authors have performed this technique on 12 professional athletes participating in pivoting sports (10 males and 2 females), achieving excellent scores in “activities of daily living” and “sports” subscales in the Foot and Ankle Ability Measure (FAAM) at the 3-month follow-up and return to sports before the recommended time at a mean of 4 months after surgery.
