Abstract
Powder injection moulding is a maturing technology that has proven most useful for the production of complex metallic and ceramic components of modest sizes. Considering the inevitable demand for cost effectiveness in automotive applications, components manufactured from low cost sponge titanium (Ti) powder currently reflect the most advantageous economics among the available Ti powders. This paper describes the net shape fabrication of Ti components and considers the role of iron and zirconium powder additions. Sintering cycle optimisation relied on differential scanning calorimetry to identify a cycle in the 1275–1300°C range for 1–2 h. The sintered material was characterised using tensile and hardness testing and microscopic examinations. The influence of test conditions on densification, microstructure and mechanical properties was analysed.
Introduction
Titanium (Ti) is a highly useful material in the production of components for various applications ranging from biomedical implants to automotive fuel injectors. At the same time, the high strength to weight ratio and high resistance to corrosion make Ti and its alloys ideal materials for many of these same applications.1– 3 However, a difficulty occurs in fabricating components at a low cost from an expensive material. Considering powder metallurgical production routes, simple die compaction offers limited shape complexity, therefore compaction is not useful in many small component designs. For other fabrication routes, cost is a primary concern; casting followed by machining is prone to defects and suffers from a low productivity. 4 4,5 On the other hand, the powder injection moulding (PIM) process offers a viable solution to these problems, especially the problem of cost of production.6– 9
Powder injection moulding involves the injection moulding of a mixture of metal powder and polymer binder into a mould to produce a ‘green’ part, which is then debound and sintered into finished product.
Through much research since the late 1980s, it has been determined that the level of impurity elements, powder expenses, and mouldability of the powder all have an effect on the success of Ti PIM. Impurities such as oxygen can dramatically decrease the strength and density of Ti PIM products.10– 12 Powder costs vary based on the grade of powder used for PIM, with high purity powders costing significantly more. Furthermore, more easily moulded powders whose particles are smaller and more spherical become more expensive which consequently increases the cost of production. Thus, in an economic analysis the processing difficulties from lower cost powders must be balanced against the ease of processing possible using a spherical Ti powder.
There are several cost factors evident in Ti PIM. These include powder handling (Ti is pyrophoric), moulding issues from stiff mixtures and care during debinding and sintering to avoid interstitial contaminants, all factors beyond powder cost that influence production economics. The cost of injection equipment and associated power consumption is fairly modest, but equipment for debinding and sintering as well as the energy, atmosphere, and long cycles for these processes vary greatly between PIM technologies. Thus, it is important to minimise the necessary thermal cycle duration while maximising quality of the Ti product. One way of achieving this goal considered in this study is to adjust alloying to enable Ti PIM shapes at low cost, with rapid cycles, and mechanical strength comparable to automotive applications. In this case iron (Fe) and zirconium (Zr) are used as alloying elements,13– 15 as Fe has a tendency to stabilise the beta phase and form intermetallics while Zr has a tendency to promote chemical homogenisation. By optimising the sintering conditions and alloying it is possible to obtain nearly full density Ti structures via PIM.3
This article provides a comparison of different PIM Ti alloys made using hydride–dehydride (HDH) Ti powder mixed with varying proportions of Fe and Zr to manipulate phase formation. The metal powder mixtures were mixed into a common wax based binder feedstock and injected and debound under the same conditions, which were determined using thermogravimetric analysis (TGA). Differential scanning calorimetry (DSC) was employed to guide selection of the optimal sintering range. Sintering was conducted at two different peak temperatures for two different hold times for each alloy to determine optimal sintering conditions. The properties and microstructure were evaluated using standard tensile, hardness and scanning electron microscopy (SEM) tools.
Experimental
Characteristics of metal powder and binder
The Ti powder used in this work was HDH Ti sponge powder provided by Phelly Materials (Bergenfield, NJ, USA). The Zr powder was obtained from Alfa Aesar (Ward Hill, MA, USA) and the Fe powder was obtained from Atlantic Equipment Engineers (Bergenfield, NJ, USA). All powders were −325 mesh and laser scattering particle size analysis (Horiba Instruments Inc., CA, USA) was used to measure the size distribution; the mass based D10, D50 and D90 particle sizes give the 10, 50 and 90% points on the cumulative particle size distribution in Table 1.
Characteristics of powders used
The morphology of each powder was examined by SEM. To protect the powders from oxidation, all of the materials were stored in an argon atmosphere except when mixing and moulding.

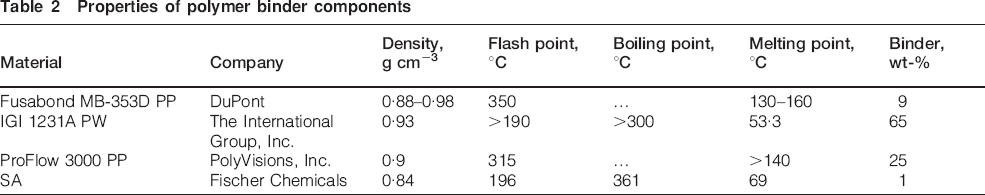

A standard binder system is employed, consisting of a paraffin wax (PW) and stearic acid (SA). High molecular weight polymer components used were polypropylene (PP) and polyethylene. A list of these binder components and their characteristics is given in Table 2.
Properties of polymer binder components
Feedstock preparation
Solids loading for this study was chosen to be 50 vol.-% to allow for easy flow of the feedstock during injection moulding. Mixing was done using an evacuated double planetary mixer with a thermally controlled mixing cup with a maximum volume of ∼1 L. Binder components were melted first at a temperature of 150°C and mixed together at a rate of 60 Hz until the binder mixture was homogenous. The desired proportions of Ti, Zr and Fe powders were manually mixed before being added to the melted binder mixture. The powder mixture was added in increments of 25% of the total metal powder volume to prevent unacceptable temperature loss and subsequent hardening of the binder material. The time allowed for thorough mixing after all powders were combined was 30 to 45 min. After mixing, the feedstock was manually granulated before injection moulding.
Thermal analysis
To determine optimal thermal debinding conditions, TGA–DSC analysis was performed (SetSys Setaram Instrumentation Technologies Inc., Caluire, France) on a sample of feedstock at a constant heating rate of 5 K min−1 in an argon atmosphere.
Powder injection moulding
Injection moulding was performed using a 20 t Arburg Allrounder 170 U injection moulding machine (Arburg Inc., Elgin, IL, USA). The injection pressure was 750 bar at a fill rate of 10 cm3 s−1. The injection temperature was set to 160°C and the mould temperature was held at 30°C. The hold time was 6 s at a pressure of 375 bar. These conditions were uniform for the production of all test samples.
Debinding
Solvent debinding
Solvent debinding was done using n-heptane at room temperature for periods of 10 min, then dried and weighed to produce a weight loss curve.
Thermal debinding and presintering
The debinding temperature of 550°C was selected and reached at a heating rate of 1 K min−1 in an argon atmosphere. This temperature was held for 1 h to allow for polymer evaporation. Then the samples were further heated using a heating rate of 5 K min−1 up to 900°C for a hold time of 1 h to improve the green strength of the injected parts.
Sintering
After removing the binder and presintering, the components were sintered. Two sintering temperatures (1275 and 1300°C) and two hold times (1 and 2 h) were selected for this study. The Materials Research Furnace vacuum system used was an all metal hot zone 0·1 m3 volume equipped with four sided heating (Materials Research Furnaces Inc., Suncook, NH, USA). At the peak temperature the furnace reached a vacuum of 6 kPa.
Sample characterisation
Density
The Archimedes water immersion method was used for both green and sintered samples.
Hardness
The hardness tests were performed using a LECO-LR at HRB scale (LECO Corporation, St. Joseph, MI, USA). At least ten measurements were made to ensure accuracy.
Tensile test
All tensile tests were performed using Instron 5569 (Instron Corporation, Norwood, MA, USA) mechanical tested at a constant crosshead speed of 1 mm min−1 (25 mm gauge length).
Microstructure
Metallographic mounts of the sintered alloy were prepared using standard metallographic techniques. Microstructural characterisation was carried out using a JEOL SEM (JEOL USA Inc., Peabody, MA, USA). To observe the microstructure of the fractured sintered Ti alloys, Kroll's reagent (3 mL HF, 6 mL HNO3 in 100 mL H2O) was used to etch the samples for microscopy investigations. Energy dispersive X-ray spectroscopy (EDS) attached to SEM analysed the phases present within the microstructure of the sample.
Results and discussion
The SEM images of the powders used are shown in Fig. 1. As seen in these images, both the Ti and Zr powders exhibit irregular shapes. Though this will reduce the packing density of the two metals, the irregular shape should confer higher green strength on the powder assemblies. The characteristics of powders and binders used in this study are tabulated in Tables 1 and 2. Figure 2 shows photographs of the injection moulded parts.

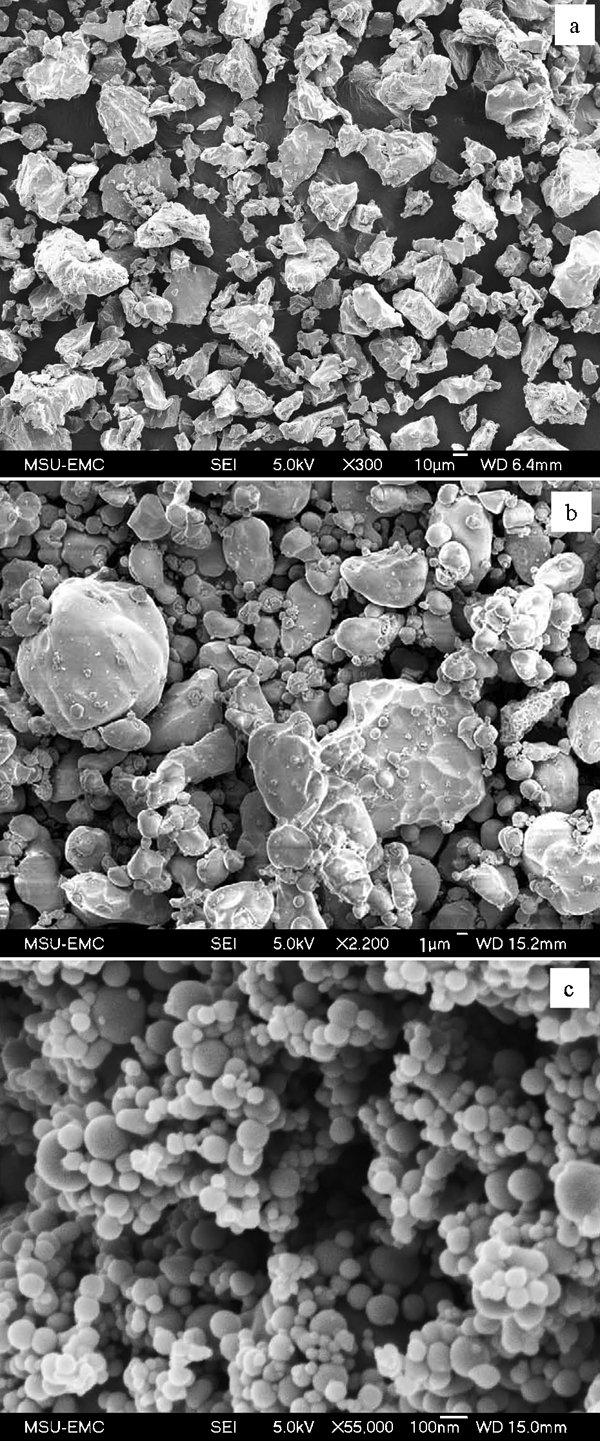

Images (SEM) of three metal powders used in this study

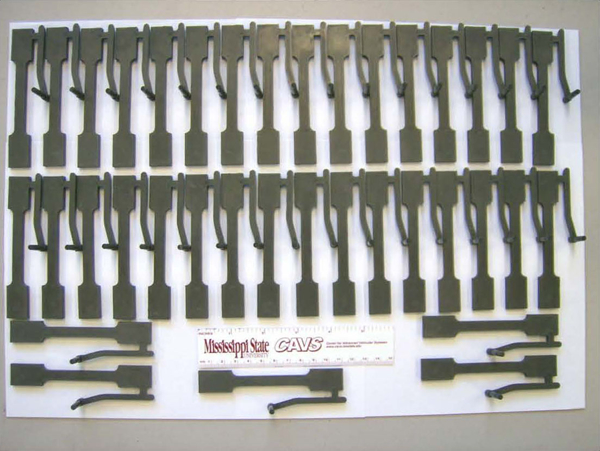

Injection moulded Ti–5Fe–2·5Zr parts

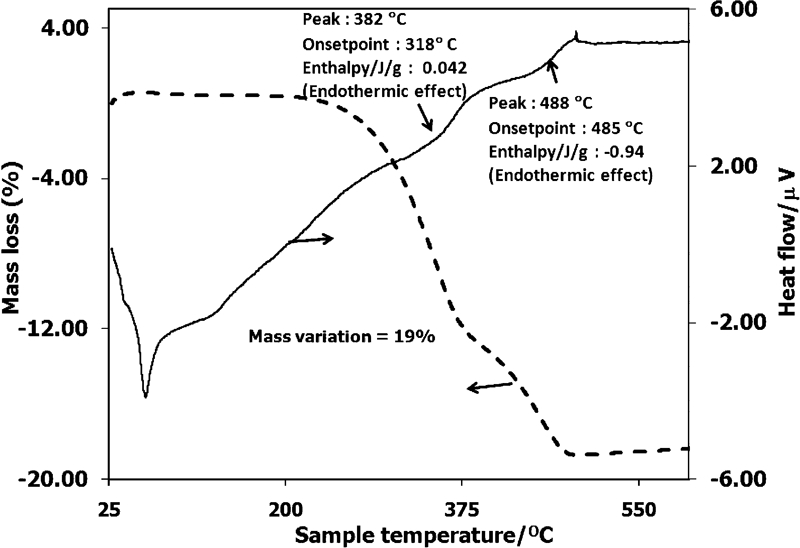

Thermogravimetric analysis and differential thermal analysis traces obtained during debinding of the rods (solvent debinding and thermal debinding) are shown in Fig. 3. The low melting point binders (PW and SA) are first to be removed from the parts completely in the temperature range of 230–370°C and show a characteristic endothermic peak with an enthalpy of 0·042 J g−1. High molecular weight binder material was removed thereafter up to 470°C and showed an endothermic peak with an enthalpy of 0·94 J g−1.
Differential scanning calorimetry experiments for binder removal evaluation
Figure 4 shows the binder removal in n-heptane (solvent debinding). The binder loss gradually increases with immersion time and temperature. A 90 min immersion at 60°C removed almost 95% of the soluble binders. At this stage a dynamic equilibrium is established between the diffusion–dissolution kinetics of solvent and soluble binder materials.

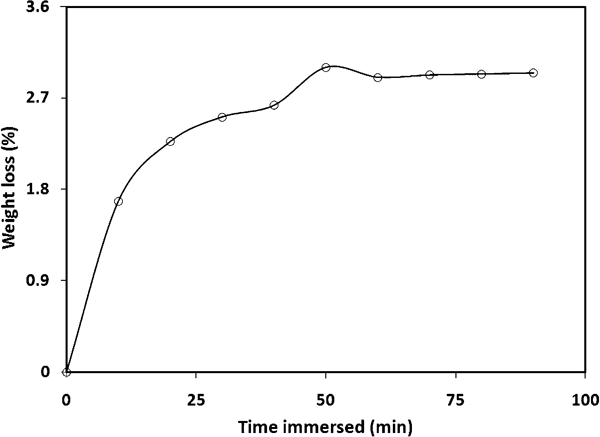

Binder removal rate in n-heptane
Figure 5 shows the optimum thermal debinding and presintering cycle. Initially a very low heating rate of 1 K min−1 up to 550°C was preferred to remove the remaining binders. These conditions are ideal for generating parts free from bubbling, defects and cracks. Thereafter the heating rate was raised to 5 K min−1 till 550°C with a hold time of 1 h to presinter the rods. This condition was intended to improve the strength of the rods. The sintering cycle for producing the final parts and photographs of the green and sintered parts are shown in Figure 6 Figs. 6 and 7 respectively.

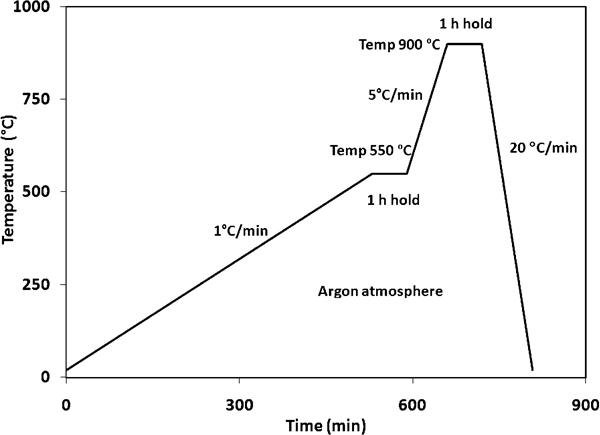

Optimum thermal debinding and presintering cycle

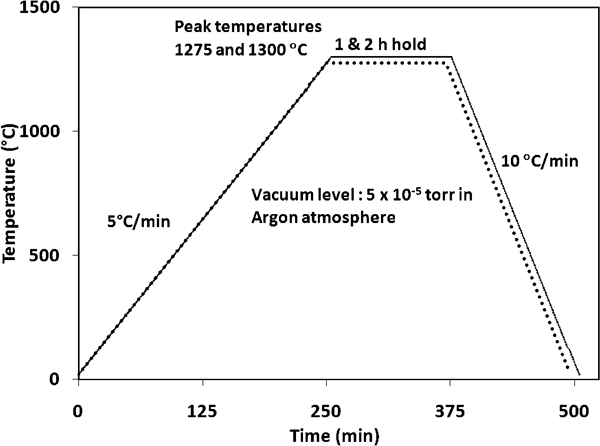

Sintering cycle for producing final part

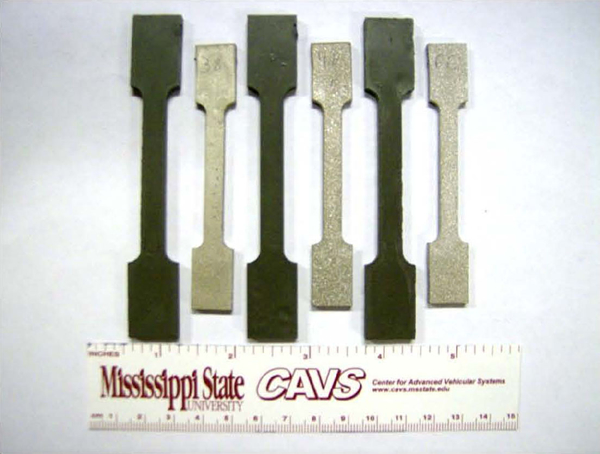

Green and sintered 90Ti–5Fe–5Zr parts arranged alternatively

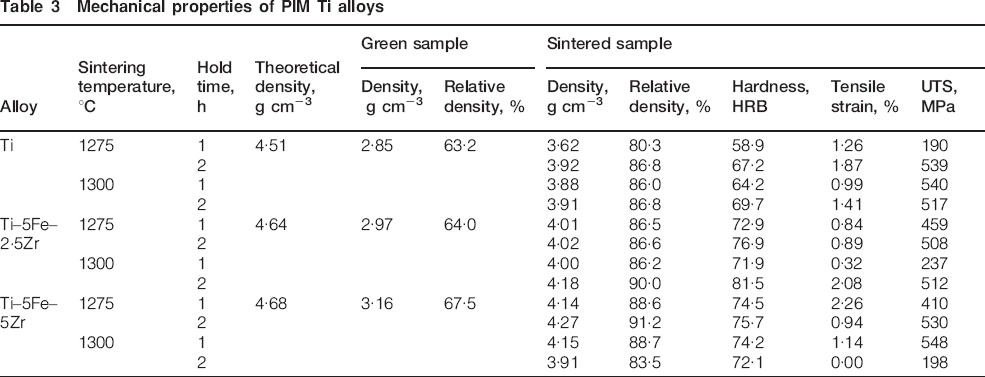

Table 3 shows the mechanical properties of PIM Ti and Ti–Fe–Zr alloy and Fig. 7 shows the photograph of green and sintered 90Ti–5Fe–5Zr alloy. As expected the green density of Ti increased with increased addition of Zr and Fe. This is due to the density differences for pure Ti and Ti–Fe–Zr powder mixtures. The green densities of Ti, 92·5Ti–5Fe–2·5Zr and 90Ti–5Fe–5Zr alloys were 2·85, 2·97 and 3·16 g cm−3 respectively. Also as expected, Ti samples without Fe and Zr additions resulted in a maximum theoretical density of 86% whereas the addition of Fe and Zr in 2·5 and 5·0 wt-% increased the theoretical density to 91%. The increase in theoretical density is accounted for by the formation of liquid phase in the temperature range of 980–1065°C which enhances the densification of the alloy owing to the diffusion in the liquid phase along the grain boundaries. Figure 8 shows endothermic peaks found in DSC traces of Ti alloy powder when mixed with Zr and Fe powders which provides evidence of liquid phase formation. The presence of Fe and Zr assists sintering by the formation of a liquid phase. The liquid phase remains as an almost continuous network between solid grains, favouring the classical phenomenon of the liquid phase sintering.5

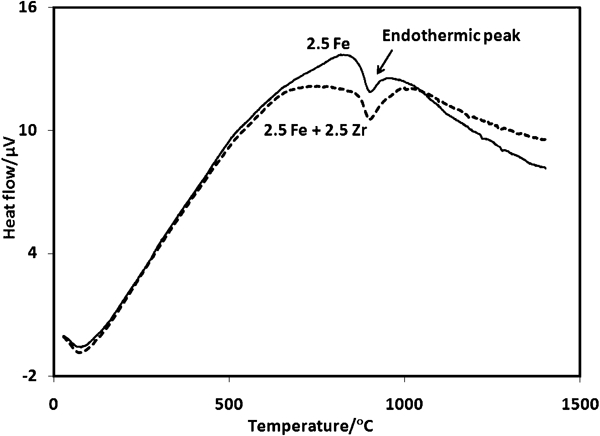

Differential scanning calorimetry experiment for low pressure sintering evaluation
Mechanical properties of PIM Ti alloys
The maximum tensile strength obtained in PIM Ti was in the range of 190–548 MPa. Because of the variability in residual porosity, a lot of scatter in the results was observed. In some cases interconnected porosity was observed which can cause significant reduction in tensile strength. Figures 9 and 10 illustrate the existence of pores, brittle fracture regions and other defect regions, caused by poor densification and sintering response. In addition, SEM–EDS results shown in Fig. 11 revealed the presence of oxide and calcium as impurities in the sintered Ti–5Fe–5Zr. The impurity levels in these cases were 30 wt-%O and 17 wt-%Ca.

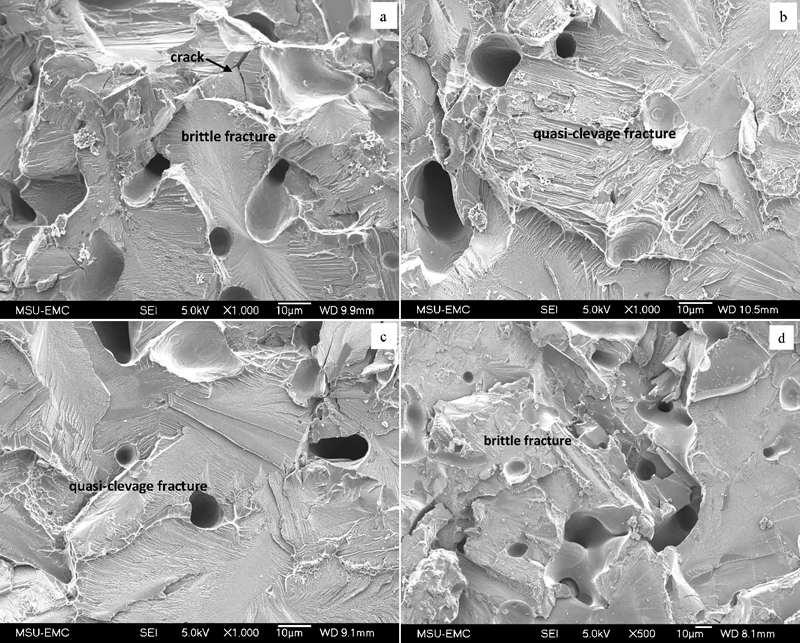

Fractographs of samples 90Ti–5Fe–5Zr sintered at different temperatures and hold times

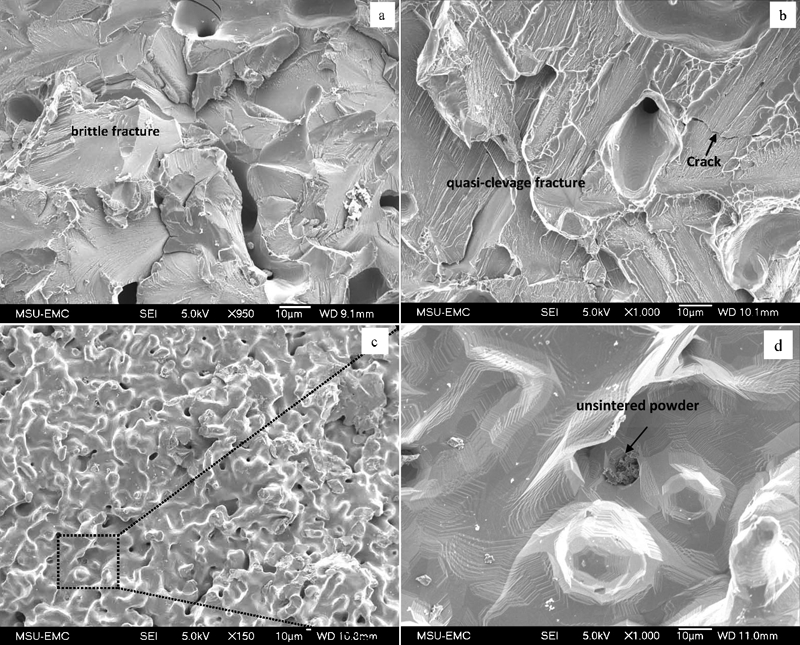

Fractographs of samples 90Ti–5Fe–2·5Zr sintered at different temperatures and hold times

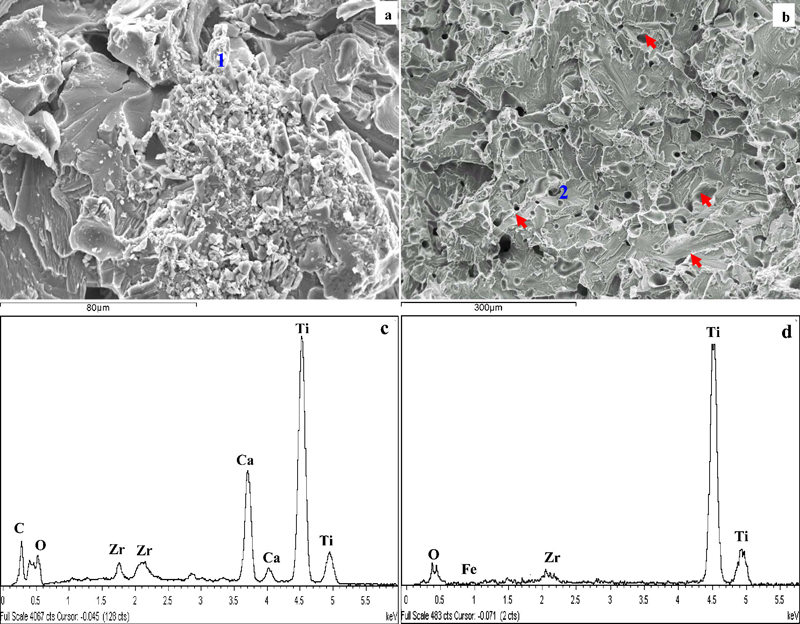

Images (SEM) and EDS analysis for Ti–5Fe–5Zr alloy: arrows indicate oxygen rich phases which are identified by EDS
Ductility change was more drastic with Fe and Zr addition. The highest hardness was obtained with the highest sintered density samples. A maximum hardness near 81 HRB was reached with 5Fe and 2·5Zr additions. The scanning electron micrographs of the sintered samples evidenced poor final stage densification. This might be corrected by a higher sintering temperature, but often grain growth and phase transformations offset the gains from densification, leading to a decrement in strength even though density increases.
Conclusions
The addition of Fe and Zr to a low cost Ti powder provided some benefit in terms of sintering densification and hardness, but did not produce significant improvements in strength or ductility. The maximum sintered density achieved in this study was 91% for a 90Ti–5Fe–5Zr alloy. The formation of liquid phase gives some densification and hardness gain, but the high residual porosity and brittle fracture associated with lower tensile properties.
