Strength and bonding in reduced ironsand

Abstract

In this investigation, the strength and bonding within reduced ironsand–coal compacts were studied, with the aim of better understanding the binding mechanisms in the reduced compacts and, based on this understanding, to improve their strength. Ironsand ore and sub-bituminous coal were mixed and pressed into compacts, which were reduced by heating in a thermogravimetric furnace to temperatures between 1273 and 1573 K under argon. The progress of the reaction was monitored by measuring the weight loss with time. The reduced compacts were found to have low strength in compression testing. The main form of bonding between the reduced ironsand particles in the compact was by the formation of a slag-like material. Increasing the final reduction temperature was found to have a profound effect on the strength of the compacts by promoting the formation of this slag-like material.

Introduction

Climate change and the emissions of gases such as carbon dioxide, as well as rising energy costs, are issues of increasing importance to the steel industry. With the greater pressures on the steel industry to reduce the consumption of carbon to provide a corresponding decrease in the emission of carbon dioxide, there has been increasing interest in the use of iron ore–coal compacts in ironmaking processes.

The interest in iron ore–coal compacts is due to their advantage of having the iron oxides and carbonaceous reductant in intimate contact. This close contact between the reactants generally has the effect of increasing the reduction rate.1 ^– 6 Iron ore–carbon compacts are being utilised in new ironmaking processes such as FASTMET, ITmk3 or HiQIP.7

Aside from the faster reduction kinetics, another advantage of using iron ore–carbon compacts for the reduction of iron ore is that a wide variety of iron sources and carbonaceous materials can be used. The use of iron ore–carbon compacts allows the use of different iron sources, such as iron ore fines, low grade iron ores,6 plant waste3, 8 or magnetite ores.9 The use of different carbon sources such as coal, coke,4 biomass10, 11 and plastic waste12 ^– 14 has also been investigated.

In this study, the focus is on the use of an ironsand, a titanomagnetite ore in the form of fairly uniformly sized grains. The ironsand ore is significantly different to conventional haematite iron ores, containing high amounts of titanium and with the iron contained in a magnetite–ulvöspinel (Fe₃O₄–Fe₂TiO₄) solid solution.15 This ore has significantly different reduction characteristics than haematite ores.16 ^– 25 The chemistry and morphology of ironsand have a large effect on its reduction behaviour. Previous studies have shown that carbothermal reduction of ironsand is slower than for a typical haematite ore.26

There have been few published studies into the strength of reduced iron ore–coal compacts. These compacts need sufficient strength to withstand discharge, storage and handling that may occur during transfer from the reduction unit to the melting furnace. Takano and Mourão27 studied the use of cement as a binder in iron ore–coal compacts and found that the strength of the compact after heating is related to the strength of the green compacts. They also reported that at higher reduction temperatures, above 1573 K, the sintering of the reduced iron begins to play an important role in the strength of the compacts. Murakami et al. 28 published microstructures of reduced compacts in which, at higher temperatures, the metallic iron is held together by a slag phase.

The effect of atypical raw materials in iron ore–coal compacts on the strength of the reduced compacts has not been extensively studied. Tanaka et al. 29 studied iron ore–coal compacts with high coal contents and found that the strength and density of the reduced compacts decreased with increasing coal content. Strength in these compacts was due to either a metal or a carbon matrix, depending on the composition of the compact.

The aim of this study is to develop an understanding of the reduction of ironsand–coal compacts and how the strength of the reduced compacts is generated. The kinetics of reduction of ironsand–coal compacts was assessed in the temperature range of 1273–1573 K, and the reduced compacts were characterised in terms of strength and microstructure. The effects of changing the coal blend and the use of rice husks were also tested with a view to understanding possible changes in the raw materials.

Experimental

Ironsand–coal compacts were prepared from three different mixtures of raw materials for use in reduction trials. The composition of the different compact types is given in Table 1. The different compacts were prepared to assess the effects of additions on the different types of bonding within the reduced compacts. Compact no. 1 was the base case, compact no. 2 tested the effect of the addition of a more fluid coking coal to the coal blend on the formation of a remnant carbon structure in the reduced compacts and compact no. 3 tested the effect of the addition of rice husks on the formation of an oxide phase in the reduced compacts. The composition of the ironsand is 59·12Fe–7·87TiO₂–3·77Al₂O₃–2·85MgO–1·97SiO₂–0·41CaO–0·63MnO–0·49V₂O₃–0·035P (wt-%) and that of the other raw materials is given in Table 2.

Table 1.

Constituents of compact types and their proportions (dry weights)

	Compact no. 1/wt-%	Compact no. 2/wt-%	Compact no. 3/wt-%
Ironsand	70·7	70·7	70·7
Sub-bituminous Coal	23·5	11·75	23·5
Coking coal	…	11·75	…
Lime (CaO)	2·1	2·1	2·1
Paper	1·5	1·5	0·75
Rice husks	…	…	0·75
Water	1·7	1·7	1·7
Molasses	1·5	1·5	1·5

Table 2.

Proximate and ash analyses of coal samples

Analysis	Component	Sub-bituminous coal	Coking coal
Analysis	Component	−75 μm/wt-%	−75 μm/wt-%
Proximate analysis	Inherent moisture	7·6	1·5
	Ash	5·2	10·5
	Volatile matter	40·8	30·6
Ash analysis	Silicon as SiO₂	34·8	53·9
	Aluminium as Al₂O₃	12·3	32
	Iron as Fe₂O₃	18·7	4·34
	Calcium as CaO	16·8	2·14
	Magnesium as MgO	3·23	0·89
	Sodium as Na₂O	1·34	0·59
	Potassium as K₂O	0·36	1·22
	Titanium as TiO₂	2·47	2·20
	Manganese as Mn₃O₄	0·24	0·044
	Sulphur as SO₃	8·8	1·39
	Phosphorus asP₂O₅	0·14	0·51
	Strontium as SrO	0·14	0·16
	Barium as BaO	0·13	0·12
	Zinc as ZnO	0·03	0·04

The compacts were prepared by initially mixing the dry ingredients together. The wet ingredients were then added to the dry mixture and then mixed. Molasses and water were added as binders. The molasses used was massecuite A. A nominal 25 g of the resulting mixture was pressed into 25 mm diameter cylinders using a pressure of 6·9 MPa for 30 s. After pressing, the compacts were dried and stored overnight in an oven at ∼383 K.

Reduction of the ironsand–coal compacts was conducted by heating the compacts under argon in a thermogravimetric analysis (TGA) system. A schematic of the experimental set-up is shown in Fig. 1. In the reduction experiments, both the effect of temperature and compact material on the reduction and strength and microstructure of the reduced compacts were evaluated. A base case was established, reducing compact no. 1 at 1573 K, against which the effect of the different variables could be compared. Details of the experimental plan are given in Table 3.

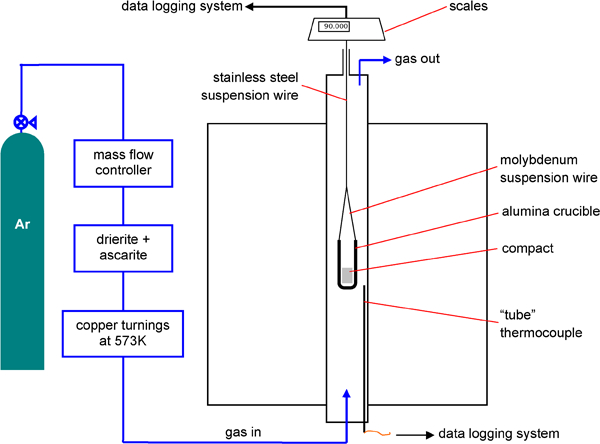

Figure 1.

Schematic of TGA set-up used for reduction of experimental compacts

Table 3.

Experimental plan

Variable	Compact type	Temperature/K
Base case	Compact no. 1	1573
Temperature	Compact no. 1	1273, 1373, 1473
Coking coal	Compact no. 2, replaces 50% of coal	1573
Rice husks	Compact no. 3, replaces 50% of paper fibre	1573

The ironsand–coal compacts were heated at 10 K min⁻¹ under high purity argon and then held at the maximum temperature for at least 30 min or until the weight of the sample changed <0·1 g over 5 min. The compacts were held inside an alumina crucible that had holes machined into the sides and bottom to allow the ingress and exit of gas. The initial weight of the compact was measured before placing it into the crucible. After the reduction at temperature, the sample was cooled to room temperature under argon. The crucible containing the compact was removed from the furnace, and the compact was carefully removed from the crucible. The weight of the reduced compact was measured. The reduced compacts were then used for strength measurements or for mounting for characterisation of the microstructures by SEM combined with energy dispersive spectroscopy (EDS) for elemental analysis.

The metallisation of the reduced compacts was calculated subject to the following assumptions:

volatiles were completely removed from the coal and played no part in the reduction

ii.

calcination of the hydrated lime was complete

iii.

the molasses was reacted from the compact.

These accounted for weight changes due to other processes other than the reactions between iron oxides and carbon. Metallic iron was formed from the ore by the reduction of magnetite or ulvöspinel, with the overall equations that do not represent the reduction mechanism shown in reactions (1) and (2) (1) (2) The metallisation of the compacts was calculated from the mass change of the sample after reaction, using equation (3). Metallisation of the direct reduced iron, as opposed to a degree of reduction, gives more information about its value as a product for subsequent steelmaking processes as it takes the form of the iron into account. (3) Where met is the metallisation, Δm _exp is the experimental weight change, m _vol is the mass of volatiles in the compact, m _lime is the mass change associated with the calcination of the hydrated lime, m _mol is the mass of molasses in the compact, is the total mass of TiO₂ in the compact calculated from the ironsand and compact composition, m _Fe,ironsand is the total mass of iron in the ironsand, m _Fe,ash is the total mass of iron in the coal ash and M _Fe, M _CO and are the molar masses of Fe, CO and TiO₂ respectively.

The strength of the reduced compacts was tested by compression testing using an Instron 5566 bench top unit. The load on the sample was increased at 1 N s⁻¹ until sample failure. The peak load reached was reported as the compressive strength of the sample. The load was measured by a 1 kN load cell.

Both unreduced and reduced ironsand–coal compacts were mounted in epoxy resin. These were sectioned approximately half way along the axis, then ground and polished to a 1 μm diamond finish. The polished samples were then examined under a Leica DMRM optical microscope and a JEOL JSM 6490LV SEM/EDS. Energy dispersive spectroscopy was used to provide semiquantitative elemental analyses of different points within the cross-sections of the samples and elemental mapping.

Results

Reduction of ironsand–coal compacts

The fractional weight change during reduction at 1273–1573 K is shown in Fig. 2 and is defined in equation (4) (4) where m _i is the initial mass of the sample and m _t is the mass of the sample at time t.

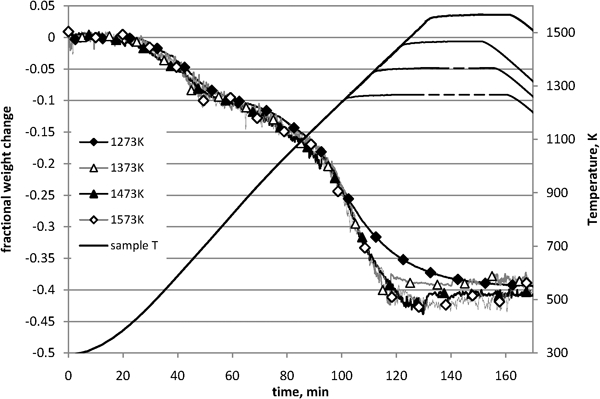

Figure 2.

Fractional weight change during reduction of compact no. 1 samples at different temperatures

It can be seen that there were two separate regions of decreasing weight occurring at different temperature ranges. The first occurred at lower temperatures and was due to devolatilisation of the coal and finished at a fractional weight change of ∼0·1. The second occurred at medium temperatures and continued until the plateau temperature was reached, corresponding to the reduction of the iron oxides, and gave a final fractional weight change of 0·41–0·42 at 1573 K.

The effect on the final temperature reached during reduction was examined by reducing compact no. 1 samples at 1273, 1373 and 1473 K and, compared to a compact no. 1 sample, was reduced at the baseline temperature of 1573 K. The fractional weight change during reduction at different temperatures is shown in Fig. 2. There was no real difference between the curves at lower temperatures. Changes occurred when the different maximum temperatures were reached. It will be noted that the sample reduced at 1273 K was reduced slightly more slowly than those reduced at higher temperatures. Both this sample and that reduced at 1373 K reached a lower final weight change than at 1473 and 1573 K.

The weight change curves for compacts prepared from different mixtures, reduced at 1573 K, are shown in Fig. 3. There was little difference in the curves for the different compact types, with all three types showing the same basic shape and only marginally different weight losses.

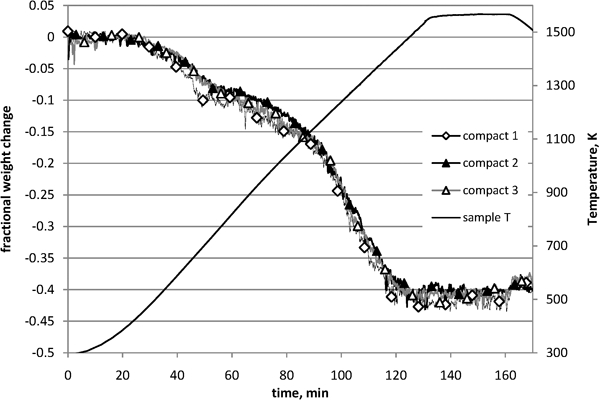

Figure 3.

Weight change curves for compacts of different types reduced at 1573 K

The metallisation of the reduced ironsand–coal compacts was calculated from the weight change of the compact after heating. The calculated metallisation from the weight change curves of compacts reduced under different conditions is given in Table 4.

Table 4.

Metallisation of reduced compacts

Sample	Final fractional weight change	Metallisation/%
Compact no. 1, 1573 K	0·420	97
Compact no. 1, 1573 K	0·415	96
Compact no. 1, 1573 K	0·424	99
Compact no. 1, 1273 K	0·393	89
Compact no. 1, 1373 K	0·388	87
Compact no. 1, 1473 K	0·408	94
Compact no. 2, 1573 K	0·402	97
Compact no. 3, 1573 K	0·409	94

Strength of ironsand–coal compacts

The compressive strength of ironsand–coal compacts was measured both before and after reduction. The peak strength data reported here should not be taken as any more than a representation of zero, low or some strength in a sample. In this study on the compact strength, only one sample of each type and reduction temperature was examined. The ironsand–coal compacts did not remain cylindrical after reduction. For these reasons, the strength values reported here are indicative only. The compressive strengths of the reduced compacts are summarised in Tables 5 and 6.

Table 5.

Compressive strength of samples of compact no. 1 reduced at varying temperatures

Sample	Strength/kPa	Notes
Compact no. 1, reduced 1273 K	…	Reduced compact crumbled into very small particles when removed from crucible. No strength.
Compact no. 1, reduced 1373 K	…	Reduced compact broke into small pieces during removal from crucible. No strength.
Compact no. 1, reduced 1473 K	18·3	Reduced compact fragile, handling with extreme care, easily abraded. Low strength.
Compact no. 1, reduced 1573 K	297	Reduced compact can be handled, but carefully, and can be abraded. Some strength.

Table 6.

Compressive strength of compacts of different types, reduced at 1573 K

Sample	Strength/kPa	Notes
Compact no. 1, reduced	297	Reduced compact can be handled, but carefully, and can be abraded. Some strength.
Compact no. 2, reduced	30·9	Reduced compact rather fragile, handling with care, easily abraded. Low strength.
Compact no. 3, reduced	686	Reduced compact can be handled, but carefully, and can be abraded. Some strength.

Photographs of the samples taken after reduction but before compressive testing are also shown in Tables 5 and 6. Some of the samples were too weak to be removed from the TGA crucible in one piece. Other samples also formed irregular shapes after reduction and were no longer the simple cylindrical shape of the green compacts. This distortion of the compacts during reduction had an effect on the results of the compression testing. The notes on abrasion indicated that material from the compacts could easily be removed by rubbing or sliding the sample, which was avoided as much as possible during handling.

Green compacts were found to exhibit a reasonable amount of strength, with 1310 kPa required to crush a representative sample. The green compacts were found to be robust and survived handling well.

The temperature of reduction is a significant factor in the strength of the reduced ironsand–coal compacts, as can be seen from Table 5. At low reduction temperatures, i.e. 1273–1373 K, the reduced compacts did not have enough strength to be removed from the crucible. At 1473 K, the sample had very little strength, requiring <1 kg to crush it. At 1573 K, the reduced compact displayed some strength, but not enough for survival in transportation within an industrial plant.

From Table 6, it can be seen that the compact type also played a large role in determining the strength of the reduced compacts. Replacement of half of the coal with the fluid coking coal in compact no. 2 was found to dramatically lower the strength of the reduced compact. Replacing half of the paper binder with the rice husks in compact no. 3 slightly increased the crush strength of the sample measured. Neither sample could be considered to be strong.

Characterisation of reduced ironsand–coal compacts

The microstructures of reduced ironsand–coal compacts were characterised by examining polished cross-sections by SEM. Semiquantitative elemental analysis was conducted on specific points in the samples by EDS along with qualitative analysis by elemental mapping of areas of interest. The microstructures of the reduced compacts were used to observe the way that the compacts were held together, as well as the effect of temperature and compact type on the bonding.

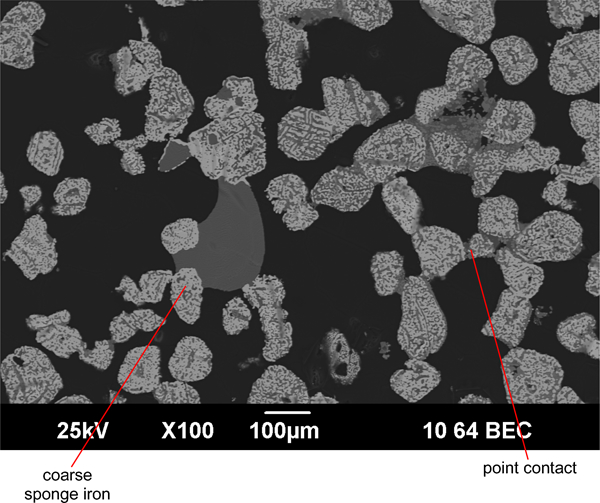

An SEM image of a type 1 compact reduced at 1573 K is shown in Fig. 4. The ironsand grains have been reduced, showing a sponge iron structure. There were varying levels of coarseness of iron sponge. Coarse sponge iron structures were associated with the slag-like material. Ironsand particles were joined together by a slag-like material, by point contact between particles, along an edge of a particle or by completely enveloping several particles. The slag-like material contained two different phases, represented by the two different shades of grey that can be seen. Semiquantitative elemental analysis was conducted on several points in the cross-section of the reduced compact no. 1, shown in Fig. 5, the majority being a silicon rich oxide phase and the other being predominantly a magnesium silicate. The silicon rich phase contained quite high levels of calcium oxides, and more of the other gangue elements, such as titanium, than the magnesium silicate. There was little evidence of metallic network formation, with only incipient metal phase bonds having formed. There was no carbonaceous phase bonding.

Figure 4.

Higher magnification SEM images of compact no. 1 reduced at 1573 K, showing sponge iron, slag-like material and remnants of coal

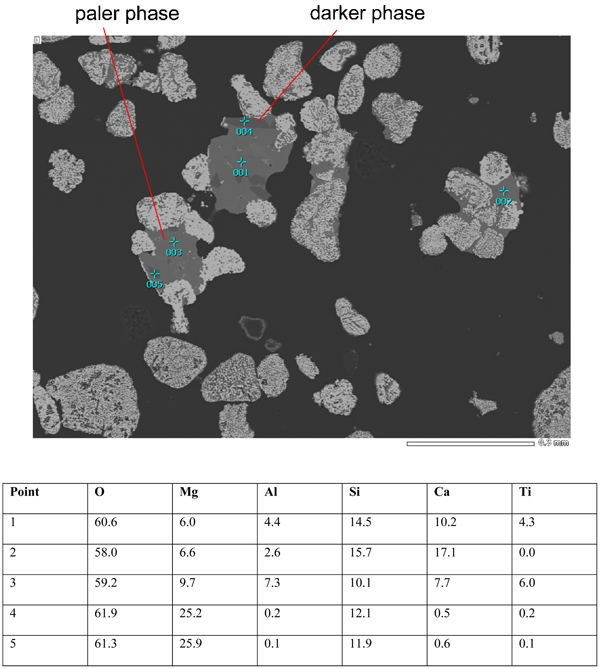

Figure 5.

Elemental analysis points within compact no. 1 sample reduced at 1573 K; semiquantitative analysis in atomic per cent

To examine the effect of temperature on the microstructure, compact no. 1 samples reduced at 1273, 1373 and 1473 K were cross-sectioned and their microstructures, compared to those of samples, were reduced at the baseline temperature of 1573 K. The samples reduced at 1273 and 1373 K, shown in Fig. 6, showed little of the slag-like material joining reduced ironsand particles, as seen in the compact reduced at 1573 K. An SEM image and EDS analysis of a compact reduced at 1473 K are shown in Fig. 7. The formation of the slag-like material had begun at this temperature, and it could be seen holding some ironsand grains together. Analysis of the bonding slag-like oxide phase shows that it was predominantly silicon rich.

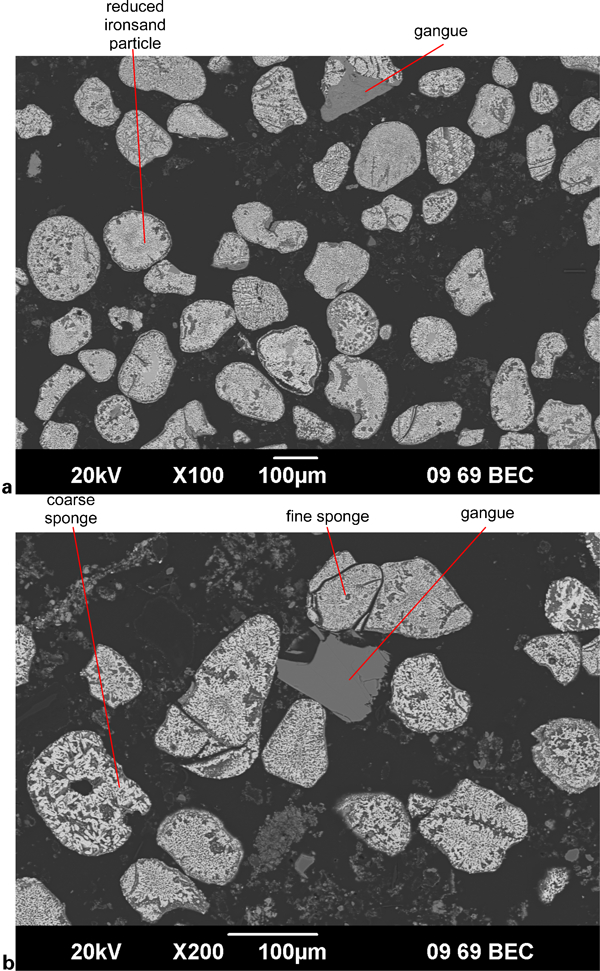

Figure 6.

Images (SEM) of reduced compact no. 1 sample

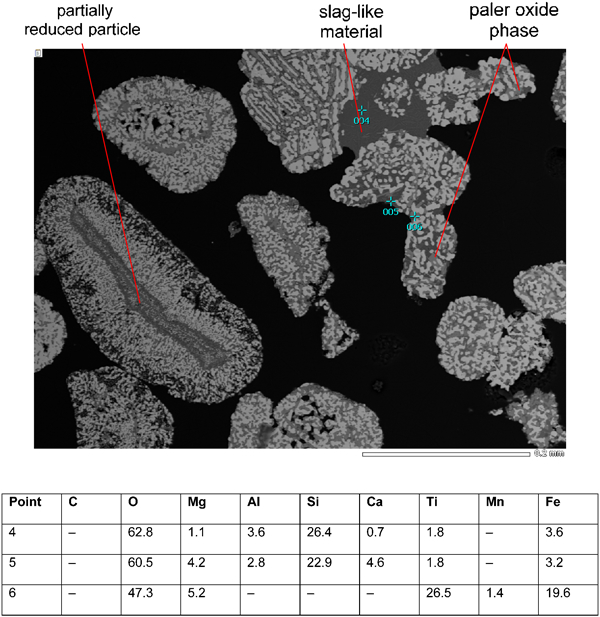

Figure 7.

Images (SEM) of compact no. 1 sample reduced at 1473 K; medium magnification showing sponge structure of reduced and partially reduced titanomagnetite

A compact no. 2 sample, containing 50% substitution by the fluid, coking coal, reduced at 1573 K is seen in Fig. 8. The slag-like material binding ironsand particles together was again present, but, in this case, mostly by point contact between particles. Again, there was no evidence of carbonaceous phase bonding, though there is some metallic bonding between ironsand particles.

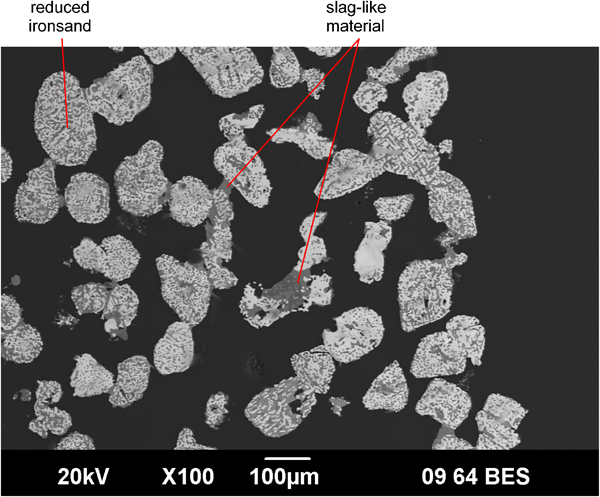

Figure 8.

Higher magnification SEM images of compact no. 2 sample reduced at 1573 K; medium magnification image showing slag-like material binding reduced titanomagnetite particles

An SEM image of a sample of compact no. 3 containing the rice husks as well as elemental analysis of different points within the image are shown in Fig. 9. The rice husks in this study were added as a mixture of large particles and fine dust. There was evidence of the slag-like material holding some ironsand particles together. This slag-like material enveloped several of the reduced ironsand particles, holding them together, as could be seen with the baseline type. The slag-like material in this image appeared to consist of three different oxide phases, one rich in silicon, one richer in magnesium and the other rich in calcium and titanium, which is likely to be high melting point perovskite (CaO.TiO₂).

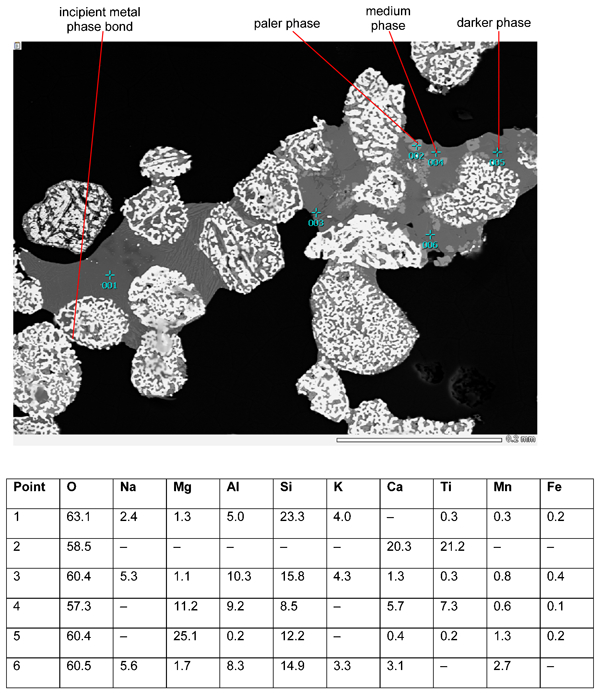

Figure 9.

Energy dispersive spectroscopy elemental analysis of points within compact no. 3 sample reduced at 1573 K; semiquantitative analysis given in atomic per cent

Discussion

The reduced ironsand–coal compacts that were produced during this study were not strong enough for use in industrial processes, for example, for transport to an electric arc furnace or melter unit. Some of the reduced samples had low strength, but others had very little or none. Any strength in the compacts was due to binding together of the individual particles and components of the compact. This was made more difficult by consumption of material within the compacts during reduction, increasing the distance between particles.

Baseline conditions

Under the baseline conditions of a compact no. 1 sample reduced at 1573 K, it was found that the sample had a low strength. The reduced ironsand particles were being held together by a slag-like material, which mainly consisted of two phases, one rich in silicon and the other rich in magnesium. The majority of this slag-like material was the paler, silicon rich phase. The mass ratio of SiO₂/MgO in the paler phase was measured to be ∼3, while for the darker phase it was ∼0·5.

The sources of oxides in the system, which could form the basis of the slag-like material, were the gangue in the ironsand and the ash from the coal. The majority (>90%) of the unreduced oxides in the compact originate from the ironsand. Overall, the ironsand gangue has a mass ratio of SiO₂/MgO of 0·69. The ash of the sub-bituminous coal has a mass ratio of SiO₂/MgO of 10·7. However, the presence of some individual grains and regions of ironsand grains (inclusions) that were rich in silicon was noted in the original ore. It is likely that the slag-like material has originated from this distinct phase in the original ore, before taking in the other oxides as the temperature and reduction duration increased. This is supported by the amount of oxide material that is trapped within the iron sponge structure that did not contribute to the bonding between the reduced ironsand particles.

Effect of temperature

The maximum temperature that was reached during reduction was a very important factor in determining the final strength of the reduced ironsand–coal compacts. At the lower end of the temperature range examined, i.e. 1273–1373 K, there was little evidence of bonding between the ironsand particles by either the formation of a slag-like material or carbonaceous material. The temperatures seen by these samples during reduction may not have been high enough to form a liquid or for coalescence of the oxide material. At temperatures of 1473 K and above, the slag-like material was found.

There are significant uncertainties in the solidus and liquidus temperatures in the CaO–MgO–SiO₂–Al₂O₃–TiO_x systems. It is known that for slags containing relatively high amounts of titanium, the liquidus temperature is strongly dependent on the oxidation state of the slag.30, 31

To assess the liquidus temperatures without titania in the slag-like materials seen in the compacts, the phase diagram for the CaO–MgO–SiO₂ ternary system was examined. For the composition of the slag-like material (simplified to ∼32 wt-%CaO, 16%MgO, 52%SiO₂), the liquidus temperature was ∼1623 K.32

To assess the effect of titania on the liquidus temperature, the literature was examined. Ratchev and Belton30 report liquidus temperatures in the range of 1823–1973 K for slags with 21·6%Ti, increasing with higher proportions of Ti³⁺. Reduction of the titanium from Ti⁴⁺ to Ti³⁺ was reported to increase the liquidus temperatures by 140 K. However, their titania containing slag compositions are not the same as those seen in the slag-like material found in this study. For titania containing slag compositions similar to those found in this study, Zhao et al. 33 report a liquidus temperature of ∼1763 K, measured under argon. These are significantly higher than the experimental temperatures used in this study. While it is likely that the slag-like material was formed at temperatures between the solidus and the liquidus, it is also likely that for the compositions and oxidation state of the slag-like material, the liquidus temperatures are lower than those reported in the literature.

Effect of compact composition

Changes to the components of the ironsand–coal compacts were made to examine the effect of changing the raw materials on the strength of reduced compacts. Additions of a coking coal (compact no. 2) and rice husks (compact no. 3) were made to examine their effects on the bonding of the ironsand grains in the reduced compacts. These changes were planned to have effects on different phases within the reduced compacts.

The coking coal substituted half of the coal in the compact no. 2 composition as an attempt to improve the bonding of the ironsand particles by the carbonaceous material. It was hoped that the addition of a more fluid coal would allow a coke-like structure to be formed. However, this sample was found to exhibit little strength after reduction. Examination of the microstructure of a reduced compact no. 2 sample showed no bonding of the compact by carbonaceous material. It was hoped that a coke-like structure would be formed from the remnant carbonaceous material, bonding the reduced ironsand particles together. However, this coke-like structure was not observed. Any binding between ironsand particles was due to the formation of the slag-like material, with similar phases having similar compositions to those found in the reduced compact no. 1 samples. While the coking coal has a very different ash composition to the sub-bituminous coal used in compact no. 1, this caused little effect on the composition of the slag-like material. This also indicates that the slag-like material is likely to have formed from the gangue material in the ironsand.

Rice husks were introduced into the compacts as they can be seen as a cheap, waste product source of silica and some carbon. It was hoped that by introducing more silica into the compacts, more slag-like material would be produced and that the melting point of the slag-like material would be lowered. Both of these could combine to enhance the binding of the ironsand particles by the slag-like material. The microstructure of the reduced compact no. 3 sample showed that the slag-like material was again the main source of bonding between the ironsand particles. The composition of the slag-like material measured by EDS was found to be different in this case. While there were different phases seen in the slag-like material as before, for compact no. 3, the paler phase that appeared to make up the majority of the slag-like material was significantly richer in silica and lower in both magnesium and calcium oxides than previously measured.

Improving strength of reduced compacts

The compacts were produced from relatively coarse raw materials, in terms of both the coal and the ironsand ore. The coarse raw materials would have contributed to the low strengths of both the green and the reduced compacts. A finer particle size distribution, especially of the ironsand, would lead to better contact between particles and enhancement of the compact strength.

Within the reduced compacts, there are three phases: the metallic iron, unconsumed remnants of the coal and oxide material from the ore gangue, coal ash and any added fluxes. To improve the strength of reduced ironsand–coal compacts, it is necessary to enhance the bonding of the reduced ironsand particles. Possibilities to enhance the binding within the compacts could utilise any of the existing phases, through consolidation of the metal phase, by the formation a carbonaceous matrix or by enhancing the formation of the slag-like material.

In the current samples, little bonding was seen in the metal phase. To improve the sintering of the reduced iron, the temperature of reduction would have to be increased. This has the disadvantage of requiring either more coal or energy, decreasing any reduction in carbon usage and emissions.

The carbon remaining in the reduced compacts was in the form of dense individual particles. This likely explains why the coal type used did not have a significant effect on the strength of the compacts. To promote the formation of a carbonaceous matrix, the amount of coking coal used in the compacts should be increased, and the total amount of coal within the compact should be increased to give more excess carbon in the reduced compact.

The formation of the slag-like material can also be promoted, which could be carried out by one of three ways. These are increasing the temperature of the reduction, increasing the time at temperature or adding a fluxing agent to the compact.

Both increasing the temperature of the reduction, or the time at temperature, would enhance the formation of the slag-like phase, allowing more ironsand particles to be held together by the slag. Increasing the temperature would require a higher energy input. Increasing the temperature may also cause the oxide material trapped within the sponge structure to contribute to slag formation.

The formation of the slag-like material could also be enhanced by the addition of a flux that would lower the liquidus temperature and provide more slag-like material within the compact. The flux could be chosen such that the slag formed would have a very low liquidus temperature, which may subsequently increase after formation as more of the ore gangue is incorporated into it. This has an advantage in the reduction stage in not needing more or different forms of coal. However, this would have a negative impact at the melting stage, requiring more energy to melt the increased amounts of slag. A significant difficulty with this approach is the lack of data to enable a reasonable prediction of the liquidus temperature after fluxing.

The proposed methods to improve the strength of the reduced compacts all have the disadvantage of requiring either more energy or more coal than is currently being used for the production of the current, low strength compacts. However, for this to be a viable industrial practice, improvement of the compact strength is necessary.

Conclusions

This project was undertaken to develop a technique to produce suitable ironsand–coal compacts and to examine the strength of these compacts after reduction. The aim of the project was to develop a better understanding of the bonding in the reduced compacts and to improve on the strength of the compacts based on the improved understanding of the bonding.

The reduced ironsand–coal compacts had low strength when tested under compression. The main form of bonding between the reduced ironsand particles was by the formation of a slag-like material at higher temperatures. This slag-like material contained distinct phases, the majority of which was found to be in the form of a silica rich phase also containing lime. This was formed from a silica rich phase that was found as distinct regions within ironsand particles and as individual grains within the ore. Increasing the final reduction temperature was found to have a profound effect on the strength of the compacts by promoting the formation of this slag-like material.

Changes to the compact mixtures were made to study the effect of the composition on the strength of the compacts. The addition of a fluid, coking coal was made to promote the formation of a coke-like structure that could bind the ironsand particles together. However, there was little evidence of this coke-like material in the final microstructures, and these samples showed little strength. The addition of rice husks was carried out to enhance the formation of the slag-like material and was observed to have some beneficial effect.

Footnotes

Acknowledgements

This project was funded by the University of Wollongong’s BlueScope Steel Metallurgy Centre. The authors would also like to acknowledge the contribution of H. Rogers during this project.

References

Mourão

Takano

: Miner. Process. Extr. Metall. Rev., 2003, 24, 183–202.

Konishi

Ichikawa

Usui

: ISIJ Int., 2010, 50, 386–389.

Watanabe

Ueda

Inoue

Ariyama

: ISIJ Int., 2010, 50, 524–530.

Ueda

Yanagiya

Watanabe

Murakami

Inoue

Ariyama

: ISIJ Int., 2009, 49, 827–836.

Kawanari

Matsumoto

Ashida

Miura

: ISIJ Int., 2011, 51, 1227–1233.

Miura

Miyabayashi

Kawanari

Ashida

: ISIJ Int., 2011, 51, 1234–1239.

Inaba

Kimura

: ISIJ Int., 2004, 44, 2112–2114.

Tsutsumi

Yoshida

Tetsumoto

: Kobelco Technol. Rev., 2010, 29, 85–92.

Ishizaki

Nagata

Hayashi

: ISIJ Int., 2007, 47, 817–822.

10.

Ueki

Ohno

Maeda

Nishioka

Shimizu

: Fuel, to be published.

11.

Ueda

Watanabe

Yanagiya

Murakami

Inoue

Ariyama

: ISIJ Int., 2009, 49, 1505–1512.

12.

Nishioka

Taniguchi

Ueki

Ohno

Maeda

Shimizu

: ISIJ Int., 2007, 47, 602–607.

13.

Murakami

Kasai

: ISIJ Int., 2011, 51, 9–13.

14.

Ueki

Ohno

Maeda

Nishioak

Shimizu

: ISIJ Int., 2008, 48, 1670–1675.

15.

Wright

: N.Z. J. Geol. Geophys., 1964, 7, 424–444.

16.

McAdam

Dall

REA

Marshall

: N.Z. J. Sci., 1969, 12, 649–668.

17.

McAdam

Dall

REA

Marshall

: N.Z. J. Sci., 1969, 12, 669–686.

18.

McAdam

: Ironmaking Steelmaking, 1974, 138–150.

19.

Park

: PhD thesis, University of New South Wales, Sydney, NSW, Australia, 2002.

20.

Park

Ostrovski

: Proc. 1st Int. Conf. on ‘Advanced materials processing’, Rotorua, New Zealand, 2000, Institute of Materials Engineering, 87–94.

21.

Park

Ostrovski

: ISIJ Int., 2003, 43, 1316–1325.

22.

Park

Ostrovski

: ISIJ Int., 2004, 44, 74–81.

23.

Park

Ostrovski

: ISIJ Int., 2004, 44, 999–1005.

24.

Park

Lee

Ostrovski

Min

Rhee

: ISIJ Int., 2004, 44, 214–216.

25.

Longbottom

Ostrovski

Park

: ISIJ Int., 2006, 46, 641–646.

26.

Krasnova

Krezer

: Eur. J. Mineral., 1995, 7, 1361–1372.

27.

Takano

Mourão

: Miner. Process. Extr. Metall. Rev., 2003, 24, 233–252.

28.

Murakami

Nishimura

Kasai

: ISIJ Int., 2009, 49, 1686–1693.

29.

Tanaka

Ueno

Okumura

Hayashi

: ISIJ Int., 2011, 51, 1240–1246.

30.

Ratchev

Belton

: Proc. 5th Int. Conf. on ‘Molten slags, fluxes and salts’, Warrendale, PA, USA, 1997, ISS, 387–393.

31.

Tranell

Ostrovski

Jahanshahi

: Metall. Mater. Trans. B, 2002, 33B, 61–67.

32.

Kowalski

Spencer

Neuschütz

: in ‘Slag atlas’, (ed. Eisenhüttenleute

V D

, ed), 70; 1995, Düsseldorf, Verlag Stahleisen GmbH.

33.

Zhao

Jak

Hayes

: Proc. 8th Int. Conf. on ‘Molten slags, fluxes and slats’, Santiago, Chile, 2009, Quebecor World Chile, 71–82.
