On crystallisation and fracture toughness of poly(phenylene sulphide) under tape placement conditions

Abstract

Fibre reinforced thermoplastic tapes are subjected to high heating and cooling rates during the tape placement process. Such high cooling rates can significantly inhibit the crystallisation of the thermoplastic polymer and thereby affect its mechanical properties, such as strength or toughness. In the present work, the crystallisation of poly(phenylene sulphide) (PPS) subjected to high cooling rates was investigated using a fast scanning calorimeter. The PPS was found to be unable to crystallise when subjected to cooling rates higher than 20°C s⁻¹. The influence of the degree of crystallinity on fracture toughness was investigated using an essential work of fracture approach. The amount of plastic work during the fracture process was found to decrease after moderate annealing.

Keywords

Thermoplastic composites Tape placement Crystallisation Fracture toughness

Introduction

Background and motivation

The laser assisted tape placement process, schematically illustrated in Fig. 1, is a promising manufacturing technique for thermoplastic composites, combining in situ consolidation with high productivity.1 Unidirectionally (UD) fibre reinforced thermoplastic tapes can be deposited at high rates onto a pre-consolidated (in some cases double curved) laminate. This laminate can be produced by either the tape placement process itself or by an alternative, more conventional, manufacturing technique. The mechanical properties of the final component can be tailored to a high degree by incrementally placing the tapes in the desired orientation. The process shows great potential for automation, which makes it attractive for the aerospace or automotive manufacturing industries. Moreover, the tapes can potentially be welded in situ, that is without an energy consuming consolidation step in an autoclave.1 Currently, however, such a post-consolidation step is still required in order to obtain the desired mechanical properties. Much effort is spent optimising the process in order to omit this expensive step and reach truly in situ tape placement. Such an optimisation procedure requires a thorough understanding of the interrelation between processing parameters, constituent material properties and final component performance.

Figure 1

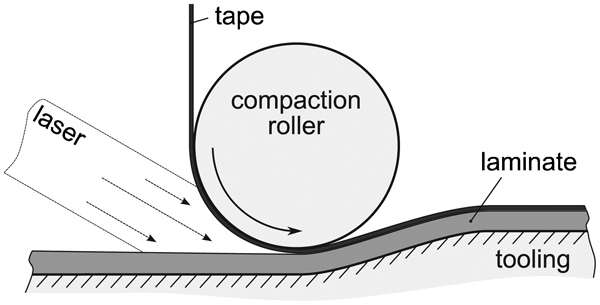

Schematic illustration of laser assisted tape placement process

The characteristic process time, i.e. the time available for consolidation, is extremely short for the tape placement process. Such short process times can only be achieved when the material is subjected to extremely high heating and cooling rates,2, 3 which can easily exceed 400°C s⁻¹. In the case of semicrystalline polymers, these high rates can significantly influence the resulting degree of crystallinity of the matrix material, and thereby the final product properties. The emergence of these fast manufacturing processes calls for an improved understanding of the crystallisation under highly non-isothermal conditions. Moreover, the influence of the degree of crystallinity on the material properties also becomes of increased interest.

The present work focuses on poly(phenylene sulphide) (PPS), which is a thermoplastic used in composite structures for aerospace applications. Earlier work by Grouve et al.4 focused on the tape placement of UD carbon reinforced PPS tapes onto woven fabric reinforced PPS laminates. It was shown that the UD carbon–PPS tapes exhibited a very low degree of crystallinity after tape placement. Apparently, the high cooling rates prevented the PPS in the tape from crystallising. Mandrel peel experiments demonstrated that these tape placed specimens exhibited a very high interfacial fracture toughness compared to press moulded (and slowly cooled) specimens. This difference was partly attributed to the low degree of crystallinity of the PPS in the tape, making it more susceptible to dissipate energy through plastic deformation during the fracture process. The present work aims to support these observations and investigates the crystallisation and fracture behaviour of neat PPS under tape placement conditions.

Literature overview

The isothermal5^–7 and non-isothermal8, 9 crystallisation kinetics of PPS have been investigated thoroughly in the literature. The literature reviews of Lopez and Wilkes10 and Cebe11 provide a comprehensive overview of the earlier work. Despite the abundance of literature on this topic, little work has been performed on the crystallisation of PPS under highly non-isothermal conditions. The present work employs fast scanning calorimetry (FSC) to investigate at which rate the PPS is unable to crystallise. The results aim to support the earlier experimental observations4 that the carbon–PPS tapes cannot crystallise during the tape placement process.

Spruiell and Janke12 provide a comprehensive overview of the research on the effect of crystallinity and morphology on the mechanical properties of neat and fibre reinforced PPS. The tensile modulus and strength are, for the high molecular weight PPS used in composites, found to increase with an increasing degree of crystallinity. The fracture toughness of PPS and its composites, however, has not been researched extensively. Davies et al.13 investigated the influence of crystallinity on fracture toughness of PPS based composites and showed that the mode I and mode II fracture toughness of carbon–PPS composites slightly decrease with increasing crystallinity. A similar observation was made by Nishihata et al.14. Nevertheless, there is, to the best of the authors’ knowledge, not much literature available on the influence of the degree of crystallinity on the fracture toughness of neat PPS. The present work, therefore, investigates the fracture toughness of as received (low degree of crystallinity) and annealed PPS film using the essential work of fracture (EWF) approach.

Objective and outline

The present work investigates the crystallinity and fracture behaviour of PPS that has been subjected to high cooling rates. For this purpose, the work is divided into three coherent parts. First, the critical cooling rate is determined at which PPS is still able to crystallise. The experiments are performed using a, recently introduced, fast scanning calorimeter from Mettler–Toledo: the Flash DSC 1. The experiments aim to confirm whether the PPS in the tape is indeed unable to crystallise under typical tape placement conditions. Second, tensile tests are performed on as received (low degree of crystallinity) and annealed PPS film to study the effect of crystallinity on the tensile properties. These tests provide qualitative information concerning the amount of plastic deformation during failure. Finally, the effect of crystallinity on the fracture properties is investigated quantitatively using a fracture mechanics approach. The present work employs the EWF approach. The EWF method can be used to quantify the fracture toughness for materials which show significant crack tip plasticity, when the linear elastic fracture mechanics approach becomes invalid.

The next section introduces the experimental work, which comprises FSC and mechanical testing. Subsequently, the experimental results are presented, followed by a discussion. Finally, the conclusions are presented.

Experimental

The material under consideration is PPS film known as Fortron 0214 from Ticona. The PPS has a glass transition temperature and melting temperature of 85 and 285°C respectively, according to the data from the manufacturer. The calorimetry experiments and tensile tests were performed on film with a thickness of 160 μm, while the EWF experiments were performed on film having a thickness of 60 μm. The mechanical tests were performed on both as received and annealed film specimens. The degree of crystallinity χ_c of the samples was measured using a standard differential scanning calorimeter from Mettler–Toledo (DSC 822) under inert atmosphere. These specimens were heated with a rate of 10°C min⁻¹ to a temperature of 330°C. The mass fraction of the crystalline region is then given by (1) in which ΔH_f and ΔH_c are the measured value of the melting enthalpy and the energy associated with the cold crystallisation exotherm respectively. By convention, ΔH_f is positive and ΔH_c is negative. The value for represents the melting enthalpy of PPS with 100% crystallinity and equals 150·4 J g⁻¹, based on the data provided by Spruiell and Janke.12

Critical quench rate

The investigation of the crystallisation of PPS under tape placement conditions requires FSC. In the present work, an FSC based on microelectromechanical system technology is applied: the Flash DSC 1 from Mettler–Toledo, which was released by the end of 2010.15^–18 Recently, it has been elaborately investigated for its performance and for finding and defining the calibration protocols required for reliable results and adequate interpretation of the data generated.19 The Flash DSC 1 equipment was kindly made available at DSM Resolve laboratory.

The Flash DSC 1 does not measure samples in crucible, because the heat capacity and thermal conductivity of the pan would have a significant influence on the end results. Instead, the sample is placed directly onto a chip, which allows measurements under extremely high heating and cooling rates16 of more than 20000°C s⁻¹. A small specimen, in the order of 500 ng, was cut from the as received PPS. The specimen was loaded in the Flash DSC 1, melted down in order to stick on the sensor and cooled from 350 to −50°C with a cooling rate varying from 1 to 5000°C s⁻¹. Subsequently, the specimen was heated with a scan rate of 100°C s⁻¹, which was high enough to prevent cold crystallisation (i.e. crystallisation during heating) during the heating scan. The data was evaluated with the StarE software version 10 of Mettler–Toledo. The subsequent heating curves after cooling at a specific rate are monitored to observe whether or not a melting peak can be identified. The presence of a melting peak points that the PPS was able to crystallise on the preceding cooling run.

Tensile properties

Tensile tests were performed on dumbbell shaped PPS film specimens having a thickness of 160±2 μm. The gauge width and length, as shown in Fig. 2(right), were 6 and 35 mm respectively. All specimens were cut using a manual die cutting machine with their length oriented parallel to the roll direction. A total of 12 specimens were produced of which six were annealed in an oven at 130°C for 30 min. The DSC showed that the as received film had a crystallinity χ_c of 5·5%, while for the annealed specimens a degree of crystallinity of approximately 24% was found. The specimens were loaded in a universal testing machine fitted with a 1 kN force cell and Zwick sensor arm extensometer. Furthermore, the specimens were marked every 5 mm to provide an estimate of the local strain in the necking area after testing. The crosshead displacement rate equalled 0·5 mm min⁻¹ for all specimens.

Figure 2

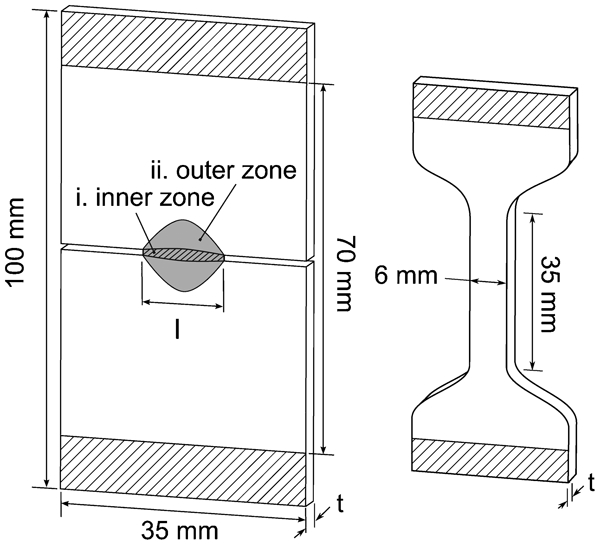

PPS film test specimen dimensions (hatching represents clamped part). Left: notched specimen for EWF experiments showing fracture zones (i. inner fracture process zone; ii. outer plastic deformation zone). Right: dumbbell specimen for tensile tests

Fracture toughness

Background

The EWF method allows the fracture characterisation of ductile polymers for which the linear elastic fracture mechanics approach is invalid. The foundation of the EWF approach was laid down by Broberg20 who proposed that the region near the crack tip may be divided into two zones: i. an inner fracture process zone and ii. an outer plastic deformation zone. Figure 2(left) shows the specimen and illustrates these process zones. The work in the inner fracture process zone comprises the energy required to create new surfaces and includes the necking and subsequent tearing of the ligament. The work in the outer plastic deformation process zone comprises various deformation mechanisms such as shear yielding or microvoiding.21 The total work of fracture W_f, calculated from the area under a force–displacement curve, can now be partitioned into two terms (2) The EWF W_e represents the work expended in the inner fracture process zone and is assumed to be proportional to the ligament length ℓ. The non-EWF W_p represents the work spent in the outer plastic deformation zone and is assumed to be proportional to the squared ligament length (3) in which t represents the film thickness and β represents a shape factor. Normalising equation (3) with respect to tℓ yields the specific total work of fracture w_f (4) The specific EWF w_e is now determined as the y intercept of a linear least square fit of w_f versus ℓ data, while the slope of the fit gives the value for βw_p which is known as the specific non-EWF. The specific EWF w_e is considered a material parameter for a given sheet thickness, independent of specimen geometry.22, 23 The non-EWF βw_p measures the amount of plastic deformation around the crack tip and is not regarded as a material property but depends on the specimen geometry.

The experimental procedure reduces to obtain the total work of fracture W_f from the area under the force–displacement curves of film specimens with different ligament lengths.24, 25 The simplicity of this procedure is one of the major reasons for the increasing popularity of the EWF method. The method has been applied to a number of different polymers of which the recent review work by Bárány et al.25 gives a broad overview. The influence of crystallinity (or rather an annealing procedure) on the specific essential w_e and specific non-essential βw_p work of fracture has been investigated for a few thermoplastics, such as LDPE26 and PP.27 Generally, it can be said that an increase in crystallinity results in an increase of w_e, but reduces βw_p.25 However, to the best of the authors’ knowledge, no results have been published on EWF on PPS.

Experimental procedure

The procedure followed for the EWF experiments was based on the latest ESIS TC4 protocol.28 The specimens were cut from the PPS film using a sharp scalpel. They had a thickness of approximately 60±2 μm and width and length of 35 and 100 mm respectively. The length between the clamps equalled 70 mm, as is also shown in Fig. 2(left). The notches were applied by sliding a sharp razor blade through the notches of a steel template. A total of four templates were used, having ligament lengths of nominally 3, 4, 6 and 8 mm. A new razor blade was used for every specimen. The final ligament length ℓ was measured using a travelling microscope and the thickness of the film at the ligament was measured using a film thickness gauge with a resolution of 0·5 μm. At least five specimens were tested for each steel template.

The tests were performed on as received film and on annealed film. A few specimens were subjected to the annealing procedure followed for the tensile specimens, i.e. these were annealed at 130°C for 30 min. The majority of the specimens, however, were annealed at a lower temperature of 120°C and for a shorter time period of 15 min. A DSC measurement showed that these annealed (120°C) specimens had a degree of crystallinity of approximately 17%, compared to 28% for the specimens annealed for 30 min at 130°C. The EWF specimens were loaded in a universal testing machine fitted with a Zwick 100 N force cell. The crosshead displacement was measured using a displacement transducer with a resolution of 1 μm. The crosshead displacement rate equalled 0·5 mm min⁻¹.

Results

Critical quench rate

The critical quench rate was determined by subjecting PPS to various cooling rates (from 1 up to 5000°C s⁻¹) and one particular heating rate, which presents melting only (in all cases absence of crystallisation upon heating, which is usually called cold crystallisation). Figure 3 represents the Flash DSC 1 heating curves of the PPS specimen. The PPS sample was heated in all cases from −50 to 350°C with a scan rate of 100°C s⁻¹. The trace corresponding to a cooling rate of 1°C s⁻¹ clearly shows an endothermic peak near 275°C, which represents the melting of the crystalline structure created under these cooling conditions. The peak demonstrates that the PPS specimen was able to crystallise during the preceding cooling run. Similar, though smaller, peaks are observed when the PPS was cooled with rates of 5 and 10°C s⁻¹. Nevertheless, when cooled at a rate of 20°C s⁻¹, the subsequent heating trace does not show any endothermic peak signal, from which can be interpreted that no melting occurs. Apparently, the PPS is unable to crystallise at scan rates of 20°C s⁻¹ or higher. The subsequent heating curves after respectively 100 and even 5000°C s⁻¹ of cooling are similar if not equal to the one for cooling at 20°C s⁻¹.

Figure 3

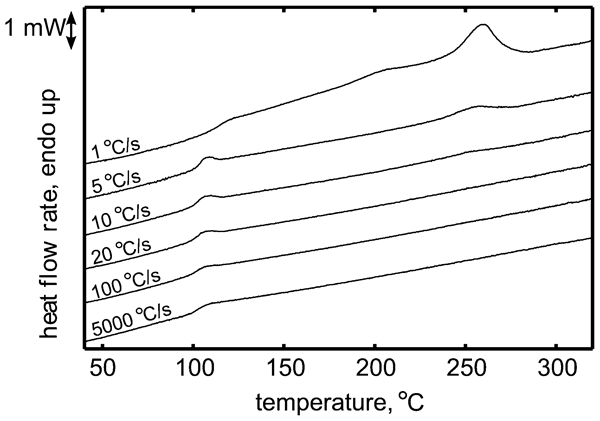

Subsequent Flash DSC heating curves of PPS (scan rate = 100°C s⁻¹) after cooling at rates from 1 to 5000°C s⁻¹

Firmly, one can state that this type of PPS is fully quenched, and hence is completely amorphous, at cooling rates above 20°C s⁻¹. This scan rate is far from the real processing cooling rate. Typically, a fibre reinforced thermoplastic tape can be subjected to cooling rates in excess of 400°C s⁻¹ during the tape placement process. This means that during the processing of PPS tapes the polymer is unable to crystallise. Discussions are at present going on how large the contribution of the influence of shear and/or flow is on the quench rate (typically shear/flow will increase the crystallisation rate not more than 10 times). Even if one argues that shear/flow induced crystallisation can take place during this process, the difference with the quench rate as defined by FSC and the processing cooling rate is that large (about 20 times higher) that one can firmly conclude the PPS film remains amorphous during processing. As a result, the properties, such as chemical resistance or fracture toughness, of the resulting structure might differ from structures manufactured using more conventional, and slower, production processes.

Tensile properties

Figure 4 shows a typical stress–strain curve for an as received and an annealed PPS dumbbell specimen. The graph shows a significant change in tensile behaviour upon crystallisation. The as received specimens showed necking followed by an extensive period of cold drawing before failure, while the annealed specimens failed in a more brittle manner.

Figure 4

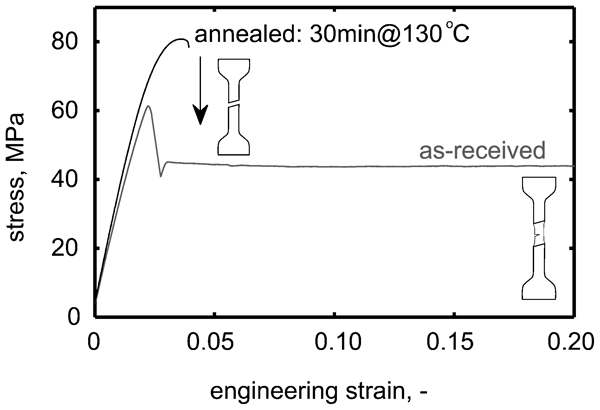

Stress–strain for the as received and annealed PPS film

Table 1 summarises the obtained experimental results. The tensile modulus and the maximum stress increased after annealing, while the maximum strain at failure decreased significantly as shown in Fig. 4. The maximum strain listed in Table 1 concerns the global strain as measured by the extensometer. Locally, the strain could exceed 250% as determined by measuring the length change between the markings on the specimens. All as received specimens failed before the full ligament length yielded, which was attributed to impurities and local thickness variations in the film.

Table 1

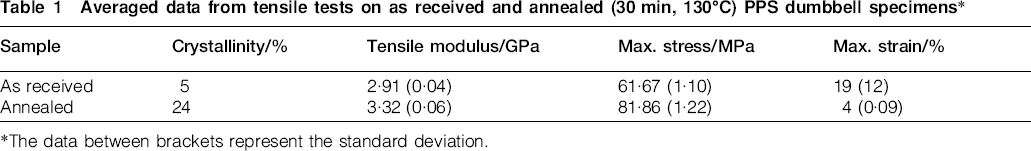

Averaged data from tensile tests on as received and annealed (30 min, 130°C) PPS dumbbell specimens*

Sample	Crystallinity/%	Tensile modulus/GPa	Max. stress/MPa	Max. strain/%
As received	5	2·91 (0·04)	61·67 (1·10)	19 (12)
Annealed	24	3·32 (0·06)	81·86 (1·22)	4 (0·09)

*The data between brackets represent the standard deviation.

Fracture toughness

Figure 5 shows the force–displacement curve for an as received and an annealed EFW specimen. The specimen shown here was annealed for 30 min at 130°C. The graph clearly shows that this specimen failed in a brittle manner and showed no yielding and tearing prior to failure, thereby rendering the EWF approach inapplicable. The specimens annealed at 120°C for 15 min, however, did show full ligament yielding prior to failure. The EWF analysis is, therefore, applied on these as well as the as received specimens. Figure 6 and 7 show typical force–displacement curves for the as received and annealed (120°C) specimens respectively. All specimens, except the annealed specimens with a ligament length ℓ larger than 6 mm, underwent full ligament yielding prior to final fracture. A basic requirement for applying the EWF approach is a geometrical similarity of the curves for varying ligament lengths. The graphs show that this is clearly the case. Furthermore, it can be seen that annealing reduces the extension at failure, but increases the maximum force. The tensile tests, presented earlier, showed a similar trend.

Figure 5

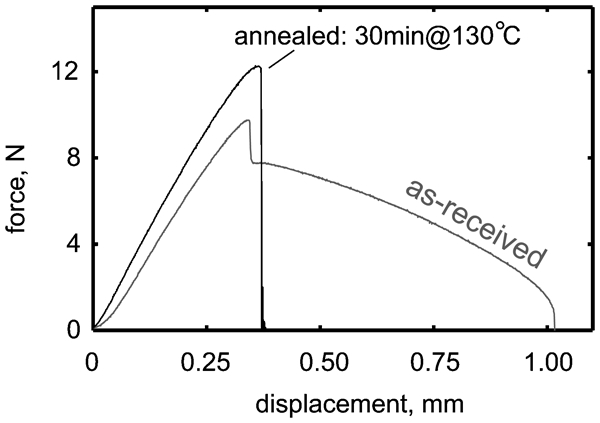

Force–displacement curve for as received EWF specimen (ℓ = 2·64 mm) and annealed, at 130°C for 30 min, EWF specimen (ℓ = 2·63 mm)

Figure 6

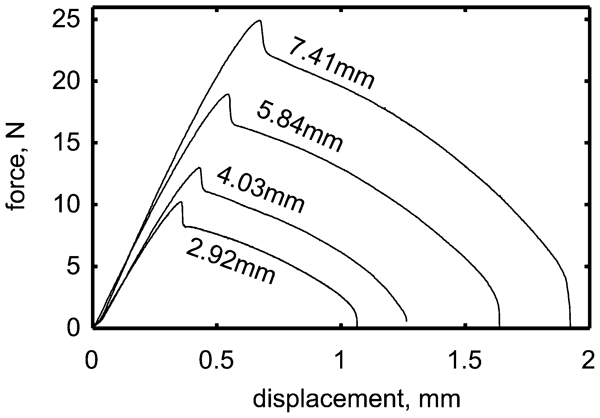

EWF force–displacement traces for as received PPS film specimens

Figure 7

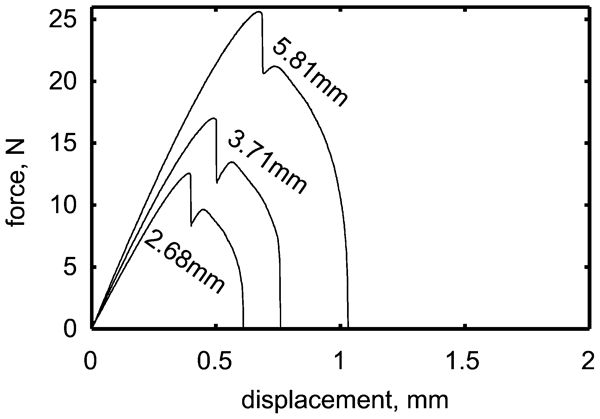

EWF force–displacement traces for annealed (15 min, 120°C) PPS film specimens

Figure 8 shows the calculated maximum stress for all tested specimens. The grey areas represent the stress criterion given in the ESIS TC4 protocol.28 This criterion states that any essential work data for which the maximum stress is greater than 1·1σ_m or less than 0·9σ_m should be rejected, in which σ_m represents the average value of the maximum stress (5) with F_max the maximum measured force. The graph shows that the data used in the present work fulfill this criterion.

Figure 8

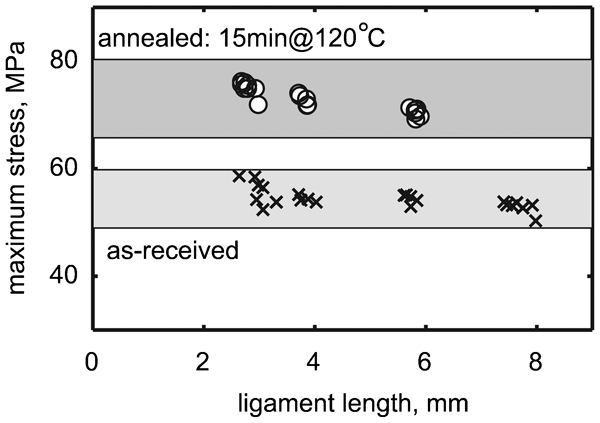

Maximum stress for as received and annealed (15 min, 120°C) EWF specimens

Figure 9 shows the specific work of fracture w_f as a function of ligament length ℓ for the as received and annealed specimens. The figure shows a linear relation between w_f and ℓ for both samples, although it must be pointed out that only three distinct ligament lengths were used for the annealed sample. A linear fit of the data demonstrates that the EWF w_e is not affected by the annealing procedure. According to the literature, however, annealing often results in an increase in w_e. The chosen moderate annealing procedure (15 min, 120°C) might not have any distinctive effect on the EWF. The change in slope of the linear fit βw_p, however, does indicate that annealing decreases the amount of plastic work during failure.

Figure 9

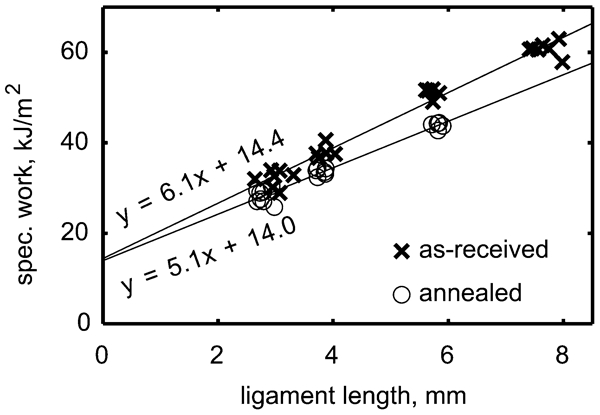

Specific work of fracture for as received and annealed (15 min, 120°C) PPS film specimens

Discussion

The previous experiments focused on the crystallisation and fracture behaviour of PPS under tape placement conditions. Fast scanning calorimetry experiments showed that the PPS, considered in this work, is unable to crystallise when subjected to cooling rates larger than 20°C s⁻¹, which is significantly lower than the rate typically observed during tape placement. Based on these data, tape placed PPS composites will exhibit a low degree of crystallinity, as was also demonstrated in an earlier study.4 It must be pointed out here, however, that the crystallisation was investigated under quiescent conditions. There is a limited amount of literature available concerning the shear induced crystallisation of PPS,29 and additional research in this subject is desired.

The effect of the degree crystallinity on the toughness was investigated using the EWF approach. Although the as received (low crystallinity) specimens showed a higher specific work of fracture w_f than the annealed specimens, the specific EWF w_e was approximately equal for both samples. Apparently, the short annealing time at a relatively low temperature did not result in a distinctive change in the amount of energy required to create new surfaces. The amount of specific non-EWF βw_p, however, decreased after annealing, which is attributed to a reduction of the energy dissipated by plastic deformation in the outer process zone. The tensile tests results for the as received and annealed dumbbell specimens support this observation. Although the EWF results show a clear trend and can be used in a qualitative manner, a direct quantitative translation of the EWF results to the toughness of composites is difficult. The toughness of composites not only depends on the polymer properties, but also on for example the fibre–matrix adhesion and fibre distribution near the crack interface. Moreover, the properties of the polymer depend strongly on its thermal history. The tested annealed PPS film cannot be readily compared to the PPS in tape placed composites in terms of crystalline morphology and degree of crystallinity. Nevertheless, the results support the earlier experimental work concerning the fracture toughness of UD reinforced carbon–PPS tapes welded (using laser assisted tape placement equipment) onto carbon fabric reinforced laminates.4 There, the fracture toughness of the weld interface was found to decrease significantly upon annealing, which was mainly attributed to a decrease in the amount of plastic work during fracture.

Conclusions

The present work investigated the crystallisation and fracture toughness of PPS under tape placement conditions. A new fast scanning calorimeter from Mettler–Toledo (the Flash DSC 1) was successfully applied to investigate the critical (quench) rate. The PPS was found to be unable to crystallise when subjected to cooling rates in excess of 20°C s⁻¹ under quiescent conditions. As the cooling rates observed during in situ tape placement can be significantly higher, the PPS in such composites is anticipated to have an amorphous morphology. Consequently, the final product properties, such as chemical resistance or thermal stability, can differ from conventionally and slowly manufactured components. Clearly, the introduction of these new manufacturing methods, involving high heating and cooling rates, calls for an improved understanding of polymer crystallisation and its resulting properties.

The effect of crystallinity on the tensile behaviour and fracture toughness, through an EWF approach, was investigated experimentally for PPS film. The tests were performed on as received (low crystallinity) as well as annealed film specimens. The as received tensile specimens showed extensive plastic deformation prior to fracture, while the annealed specimens showed a more brittle fracture behaviour. Similarly, the EWF experiments demonstrated that the amount of plastic work spent during fracture decreases after an annealing procedure. The experimental results show that the tape placement of PPS based composites results in favourable fracture properties. Nevertheless, for practical application other properties, such as chemical resistance or strength and stiffness should also be taken into account. Additional research is therefore required to understand the effect of high heating and cooling rates on the properties of PPS and its composites.
