Computerized tomography based tumor-thickness measurement is useful to predict postoperative pathological tumor thickness in oral tongue squamous cell carcinoma

Introduction

Oral squamous cell cancer (OSCC) accounts for approximately 2.5 % of all cancers in the United States and are primarily associated with chronic consumption of alcohol and tobacco [1]. OTSCC are particular in their high propensity to metastasize given the rich lymphatic drainage among most of the anatomic subsites. This is clinically relevant as cervical lymph node metastasis are thought to be the single most important prognostic factor in head and neck carcinoma, with certain studies reporting an associated 5-fold increase in mortality [2].

One issue is that a high proportion of OSCC present with occult cervical metastasis. The literature indeed shows that they are present in 18 % to 53 % of cT1-2 N0 oral cavity cancers [2–5]. The prediction and therapeutic assessment of occult metastasis is important, as nodal metastasis that become clinically apparent have been shown to be harder to treat. [6, 7]. Given the lack of sensitivity of current imaging modalities to detect micrometastases, many patients with early OCSCC will undergo elective neck dissections. This approach will be useful for the proportion of patients with occult metastasis but amounts to overtreatment in patients without.

Analogous to melanoma [8], tumor thickness is now increasingly used in OSCC.to predict lymph node metastasis [9–13]. While the gold standard to measure tumor thickness is ultimately postoperative tumor thickness assessed on definitive pathology, it would be useful to establish a method to evaluate tumor thickness pre-operatively, thus avoiding two-step surgery. Different modalities, allowing preoperative measurement of tumor thickness are being evaluated with conflicting results.

Our retrospective study evaluates the accuracy of computer tomography (CT scan) in predicting histological tumor thickness.

Materials and methods

Results

CT tumor thickness versus postoperative tumor thickness

The mean postoperative final pathological tumor thickness was 11.60 mm while the mean CT tumor thickness was 12.88 mm. The correlation between CT thickness and postoperative thickness was highly significant (Spearman rho = 0.755, P < 0.001) (Fig. 1). Figure 2 shows the box and whisker box plot for CT scan based tumor thickness and postoperative tumor thickness.

OPEN IN VIEWER

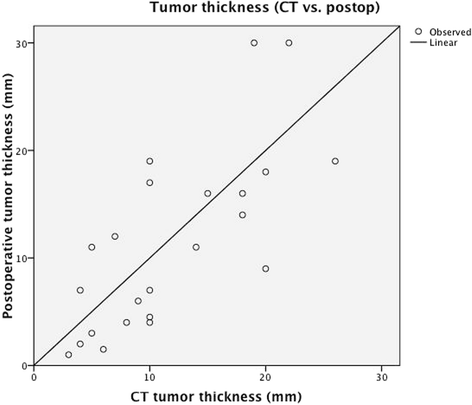

Fig. 1

Shows a significant correlation between CT thickness and postoperative thickness (Spearman rho = 0.755, P < 0.001)

OPEN IN VIEWER

Fig. 2

Shows the box and whisker box plot for CT scan based tumor thickness and postoperative tumor thickness

Discussion

In order to better stratify OSCC patients according to their occult cervical metastasis risk, growing evidence supports the use of tumor thickness [14]. It would be very useful to establish a reliable method to predict tumor thickness preoperatively, thus avoiding two-step surgery.

While there are currently no established methods of assessing tumor thickness pre-operatively, three main options are currently being investigated: preoperative biopsy, intraoral ultrasonography, and CT imaging.

To our knowledge, there is very limited data on the accuracy of preoperative tumor biopsy to predict histological tumor thickness. We previously conducted an unpublished retrospective study and compared tumor thickness estimated from preoperative tumor biopsy with the final postoperative pathologic measurement. We demonstrated a lack of significant correlation between the two measurements in thicker tumors and concluded that tumor thickness should not be reported in biopsy reports, as especially thicker tumors were at risk to harbour nodal metastasis.

There is emerging evidence that intraoral ultrasonography may accurately predict histological tumor thickness in OSCC. Shintani et al. were among the first to demonstrate this correlation in tongue carcinoma by comparing preoperative ultrasound estimation of tumor thickness with measurements obtained from postoperative histological sections [15]. Since then, many authors have published similar results with other sub sites (i.e. floor of mouth) while also showing direct correlation between ultrasound tumor thickness and neck metastasis [16, 17]. Limitations to intraoral ultrasonography include tenderness, trismus, or anatomic location hindering adequate ultrasound probe placement. Furthermore, discordances between pathological and ultrasound derived tumor thickness have been recorded in thicker tumors (i.e. >20 mm) and is explained by transducer limitation as well as tissue shrinkage secondary to histological processing [15, 16].

The use of imaging in assessing tumor thickness has not being discussed critically in the literature. Park et al. performed a retrospective study to evaluate the accuracy of MRI in measuring the invasion depth of different oral cavity cancers [18]. The authors calculated Pearson's correlation coefficient for histologic and imaging invasion depths in oral tongue, tongue base, and tonsil cancers of 0.949, 0.941, and 0.578, respectively. Their study also demonstrated a direct correlation between radiologic invasion depth and lymph node metastasis in oral tongue and tongue base cancers with calculated invasion depth cut-off values of 9.5 mm and 14.5 mm, respectively. Interestingly, the mean invasion depth measured from histologic specimens was less than when measured by imaging. This is likely due to shrinking of tissue following resection and processing, which has been previously reported in the literature [19]. Lam et al. performed a similar study and validated the accuracy of imaging in estimating tumor thickness in oral tongue cancer [14].

On the other hand, Lwin et al. analyzed MRI imaging and histopathological reports of 102 consecutive OSCC cases and concluded that radiological staging of the neck or tumor thickness could not safely determine the need for neck dissection [20]. Indeed, the authors found no valid radiological tumor thickness threshold that could be used clinically to predict nodal involvement. Moreover, they reported a total of 11 tumors, with sizes varying from 2 mm to 24 mm, which were undetectable on radiology.

Our study results showed a significant correlation between postoperative final pathological tumor thickness and CT based tumor thickness. While MRI may be superior to CT in the evaluation of soft tissue lesions, our results may support the use of CT in measuring tumor thickness. This may be relevant as CT scanning is faster and usually more available than MRI.

In conclusion, this study supports a role for CT scan in determining tumor thickness in OTSCC.
