Clinico-pathologic Features of Fatal Disease Attributed to New Variants of Endotheliotropic Herpesviruses in Two Asian Elephants (Elephas maximus)

Animals

Case No. 1 was a 5-year-old, female captive bred Asian elephant that had a 2-day history of illness before death. No antemortem testing was performed. Case No. 2 was a 6.5-year-old, 2,332-kg female captive-bred Asian elephant that died after an 8-day history of abdominal discomfort, lethargy, and partial anorexia. Complete blood cell count, fibrinogen, and biochemistry panel obtained at day 3 and day 5 of illness was normal based on International Species Information System (ISIS, 2002, Eagan, MN) values and in-house data for this animal and concurrently housed conspecifics. Symptomatic treatment was initiated and included flunixin meglumine (Banamine paste, 50 mg/g, Schering-Plough Animal Health Corp., Union, NJ; 2500–3000 mg PO, SID), sulfadiazine-trimethoprim 5 : 1 (Tucoprim powder, 400 mg/g, Pfizer, Inc., New York, NY; 28,800 mg PO, SID), psyllium powder, bran mash, oral mineral oil administration, and warm-water enemas but only mild-to-moderate improvement was noted and symptoms appeared to wax and wane. Leptospirosis serology was negative for antibodies, fecal cytology was normal, and no pathogens were isolated on fecal cultures. Blood PCR was negative for EEHV1 and EEHV2 on day 3 of illness and on a postmortem sample (National Elephant Endotheliotropic Herpesvirus Laboratory, Washington DC).

Necropsy

Necropsy findings were not recorded for case No. 1. Necropsy protocol was performed in accordance with Species Survival Plan guidelines for case No. 2 (http://www.elephanttag.org/Professional/professional_Medical_Health_Care.html).

Histopathology

For case No. 1, kidney, liver, spleen, small intestine, brain, heart, lung, and lymph node were collected. For case No 2, representative sections of all tissues were collected. For both cases, tissues were fixed in 10% neutral buffered formalin and were trimmed at day 5 of fixation for case No. 1, and day 2 for case No. 2. Tissues were routinely processed, sectioned at 5 µm, mounted on frosted-glass microscopy slides, and stained with HE. Warthin-Starry and Goodpasture's stains were applied to select tissue sections.

Electron microscopy

Formalin-fixed wet spleen from case No. 1 and wet kidney, liver, and lung from case No. 2 were examined by electron microscopy. Tissues were retrimmed and placed into modified (1/2 strength) Karnovsky's fixative. ⁸ After Karnovsky's immersion tissues were further postfixed in 2% osmium tetroxide reduced with 2.5% potassium ferrocyanide. ¹⁶ After osmification, the tissue was rinsed in 0.2 M sodium cacodylate, dehydrated through a graded ethanol series, transitioned through propylene oxide and infiltrated and embedded in Eponate-12 epoxy formulation (Eponate-12, Ted Pella Inc., Redding, CA). Thick sections were cut, mounted on glass slides, and stained with toluidine blue O and examined by light microscopy. Thin sections were mounted on bare 150-mesh copper grids, stained in 4% uranyl acetate in 75% ethanol, followed by poststaining in Reynold's lead citrate. ¹¹ The sections were then examined in a Zeiss 906E transmission electron microscope at 60 kV accelerating voltage (Carl Zeiss SMT, Peabody, MA).

Detection of herpesvirus by PCR

The templates for PCR amplification were total DNA samples purified from minced frozen necropsy tissue (Medimachine, Dako, Carpinteria, CA) and/or from whole blood by using a Gentra Capture Column-kit (GC-0050). The redundant terminase (TER) PCR amplification used the following conditions: 34 cycles of 94°C for 1 minute, 50°C for 1 minute, and 72°C for 1 minute followed by 72°C for 7 minutes, by using Platinum PCR Supermix (Invitrogen). The Codehops POL PCR amplification (Promega reagents) used the following conditions: 95°C for 2 minutes, then 45 cycles of 95°C for 40 seconds, 50°C for 45 seconds, and 73°C for 1 minute after by 73°C for 5 minutes.

The following 2 sets of redundant consensus herpesvirus DNA PCR primers were used for initial attempts at detection of novel herpesvirus genomes:

TER ⁷

1. B1 LGH2425 5′-ACAGCCACGCCNGTNCCNGANGC-3′

2. A3 LGH2426 5′-GCAAGATCATNTTYRTNTCNTC-3′

3. B2 LGH2427 5′-TGTTGGTCGTRWANGCNGGRTC-3′

4. A2 LGH2428 5′-TTGTGGACGAGRSNMAYTTYAT-3′

5. A3SEQ 5′-CCCCATCTGAGCAAGATCAT-3′

6. B2SEQ 5′-GGCTGACAAATGTTGGTCGT-3′

First round PCR B1/A2 575 base pair (bp); second round A3/B2 415 bp; A3SEQ/B2SEQ =  360 bp.

DNA polymerase (POL) Codehops ¹⁵

DFASA(Mod) LGH2595 5′-GTGTTCGACTTYGCNAGYYTNTAYCC-3′

GDTD1B LGH2597 5′-CGGCATGCGACAAACACGGAGTCNGTRTCNCCRRA-3′

VYGA LGH2596 5′-AGTGCAACGCGGTGTAYGGNKTNACNGG-3′

First round DFASA/GDTD1B 550 bp; second round VYGA/GDTD1B 250 bp.

The following EEHV3 species-specific nonredundant second-generation primer sets were used to obtain greatly increased sensitivity of detection:

EEHV3 TER

A1 LGH6707 5′-GTGCTGTAGCGGATCATGTC -3′

B1 LGH6708 5′-CGTGCAACACGAGCACGCAAAG -3′

A2 LGH6727 5-CACGAGCACGCAAAGTACGTC -3′

B2 LGH6728 5′-CGGATCATGTCGAACTCCGTG -3′

First round A1/B1 =  310 bp, second A1/B2 =  290 bp, third A2/B2 =  270 bp

Sequencing and sequence analysis

All DNA sequencing was carried out by direct cycle sequencing on both strands of agarose gel electrophoresis purified PCR DNA products from either first-round or second-round PCR amplification. The correct-sized PCR products were purified with a Qiagen Gel Extraction kit (Qiagen Inc., Valencia, CA), then sequenced with the ABI PRISM BigDye Terminator v3.1 cycle sequencing kit (Applied Biosystems, Foster City, CA) and analyzed on an ABI310 DNA sequencer. All DNA sequence editing, analysis and manipulation was performed by using AssemblyLIGN (Accelrys, San Diego, CA), Clustal and MacVector version 6 or 7 formulated for a MacIntosh computer. Genbank accession Nos. are the following: case No 1 POL, EU658934; Case No 1 TER, EU658935; case No. 2 POL, EU658936; case No 2 TER, EU658937.

Necropsy

Case No. 2 had approximately 10 liters of straw colored fluid in the abdominal cavity. Marked edema was noted in the mesenteric root and omentum (Fig. 1). Petechiae were noted throughout the serosal surfaces of the gut. Marked thickening of the intestinal wall because of edema and congestion was noted throughout the alimentary tract. Foci of punctate reddening and ulceration were noted throughout the mucosa, the small intestine, and the proximal aspect of the large intestine. Some petechiae were noted on serosal surfaces of the kidney. On cut surface, the renal medullary regions of all lobes were markedly reddened (Fig. 2). The urinary bladder had petechiae on the serosal surfaces and mucosal surfaces. The heart had extensive petechiae and ecchymoses on the endocardial and serosal surfaces (Fig. 3). The lungs were diffusely and mildly reddened, edematous, and swollen. Generalized reddening and mild enlargement of all examined visceral and subcutaneous lymph nodes was also noted.

OPEN IN VIEWER

Fig. 1

Elephant No. 2. Note marked edema in mesentery root with associated petechiae and ecchymoses.

OPEN IN VIEWER

Fig. 2

Elephant No. 2, kidney on cut surface shows lobular reddening, especially of the medullary regions, corresponding to congestion within and hemorrhage around the peritubular capillaries. Inset: Higher magnification of medullary reddening.

OPEN IN VIEWER

Fig. 3

Heart; elephant No. 2. Note hemorrhage in left atrioventricular valve leaflets and associated endocardium, and to a lesser extent in the myocardium of the ventricular septum and left ventricular free wall.

Histopathology

Blood vessels throughout all tissues from both elephants, especially the uvea, alimentary tract, kidney, and liver, had varying degrees of endothelial cell hypertrophy or necrosis, edema, or fibrinoid degeneration of the vessel wall, thrombosis, and perivascular edema or hemorrhage. Affected vessels included capillaries, small veins and venules, small arteries, and arterioles. Especially in the large arteries of the splenic capsule (case No. 1) and renal medulla and uvea (case No. 2), endothelial cells occasionally contained single, variably sized, eosinophilic or amphophilic smudged intranuclear inclusions (Figs. 4, 5). The small intestine and colon of case No. 2 had numerous foci of hemorrhage and necrosis that corresponded to the punctate reddened foci grossly noted, and these were associated with extensive bacterial overgrowth in the colon. Mild neutrophilic inflammation was noted multifocally in the heart adjacent to or within foci of perivascular hemorrhage and multifocally within the interstitium of the lung. Lymph nodes had mild erythrophagocytosis in the medullary sinuses. Hepatic sinusoids had slightly increased numbers of neutrophils and hypertrophied Kupffer cells that contained phagocytized cell debris. Few bile canaliculi contain bile casts, and few very small foci of clustered neutrophils were noted randomly throughout the hepatic parenchyma. “Blue bodies” were frequently seen in the hepatic sinusoids and rarely in renal peritubular capillaries of case No. 2. These structures were roughly spherical, 15–20 microns in diameter, basophilic and resembled necrotic cells (Fig. 6). Mild rhabdomyolysis was noted in skeletal muscle from the legs and tongue of case No. 2. No bacteria were seen when using Goodpasture's and Warthin-Starry stains on multiple tissues from either elephant.

OPEN IN VIEWER

Fig. 4

Kidney; elephant No. 2. Note congestion of the medullary peritubular capillaries associated with some mild hemorrhage and scattered interstitial cellular debris. Inset: Higher magnification of circled region showing intranuclear amphophilic inclusion in an endothelial cell. HE.

OPEN IN VIEWER

Fig. 5

Artery in splenic capsule; elephant No. 1. Note hypertrophy of endothelial cells, Some of which contain intranuclear inclusions (arrows). Inset: Higher magnification of circled endothelial cell showing intranuclear amphophilic inclusion. HE.

OPEN IN VIEWER

Fig. 6

Liver; elephant No. 2. Note congestion and sinusoidal leukocytosis. Sinusoids also contain blue bodies (arrow), determined by electron microscopy to be degenerative inflammatory cells. Inset: Higher magnification of 2 blue bodies from circled region. HE.

Electron microscopy

Intranuclear inclusions in endothelial cells of splenic vessels from case No. 1 and uveal vessels of case No. 2 were examined by electron microscopy. The inclusions were associated with peripheral margination of chromatin and were composed of electron-dense granular material that gave rise to icosahedral viral particles 70–80 nm in greatest dimension. These particles were seen budding through the nuclear envelope in case No. 1 and were enveloped, and 100–120 nm in diameter when seen in the cytoplasm of infected cells from both elephants (Fig. 7). Blue bodies in the hepatic sinusoids were unidentified cells with pyknotic nuclei and degenerative cytoplasmic organelles.

OPEN IN VIEWER

Fig. 7

Electron photomicrograph of artery from splenic capsule; elephant No 1. Note hypertrophy of endothelial cells and accumulation of electron dense granules in the cytoplasm of center cell, m =  muscular tunic. Inset left: Note nonenveloped icosahedral particle in nucleus (n), budding of particle through nuclear membrane (arrow), and enveloped particles in the cytoplasm. Inset right: Intracytoplasmic enveloped icosahedral particles typical of herpesvirus, uranyl acetate and lead citrate. Bar =  125 nm.

Detection of herpesvirus by PCR

Initially, the 2 standard PCR DNA tests for the specific TER region loci of EEHV1 and EEHV2 were negative on necropsy tissue samples from case No. 1. Similarly, negative results were also obtained on 2 whole-blood samples obtained during the acute illness of case No 2. Therefore, additional PCR searches for a possible novel herpesvirus were carried out with both the redundant PAN herpesvirus TER primers ⁷ used in the original discovery of EEHV1 ¹³ and with the more recently developed PAN herpesvirus POL region Codehops primers that detect the majority of known mammalian herpesvirus DNA polymerase genes (Figs. 8, 9). ¹⁵ The TER consensus primers produced second-round PCR bands of 415 bp in the heart-tissue DNA sample from case No. 1, as well as from the colon and kidney tissue DNA sample from case No. 2, but not in the whole blood or several other disease tissue samples of both. Similarly, the consensus POL primers also produced a 550-bp band from the heart-tissue sample from case No. 1 and the colon sample of case No. 2, but in no other tissue or blood samples from either case. The second-round consensus POL primers were negative on all samples.

OPEN IN VIEWER

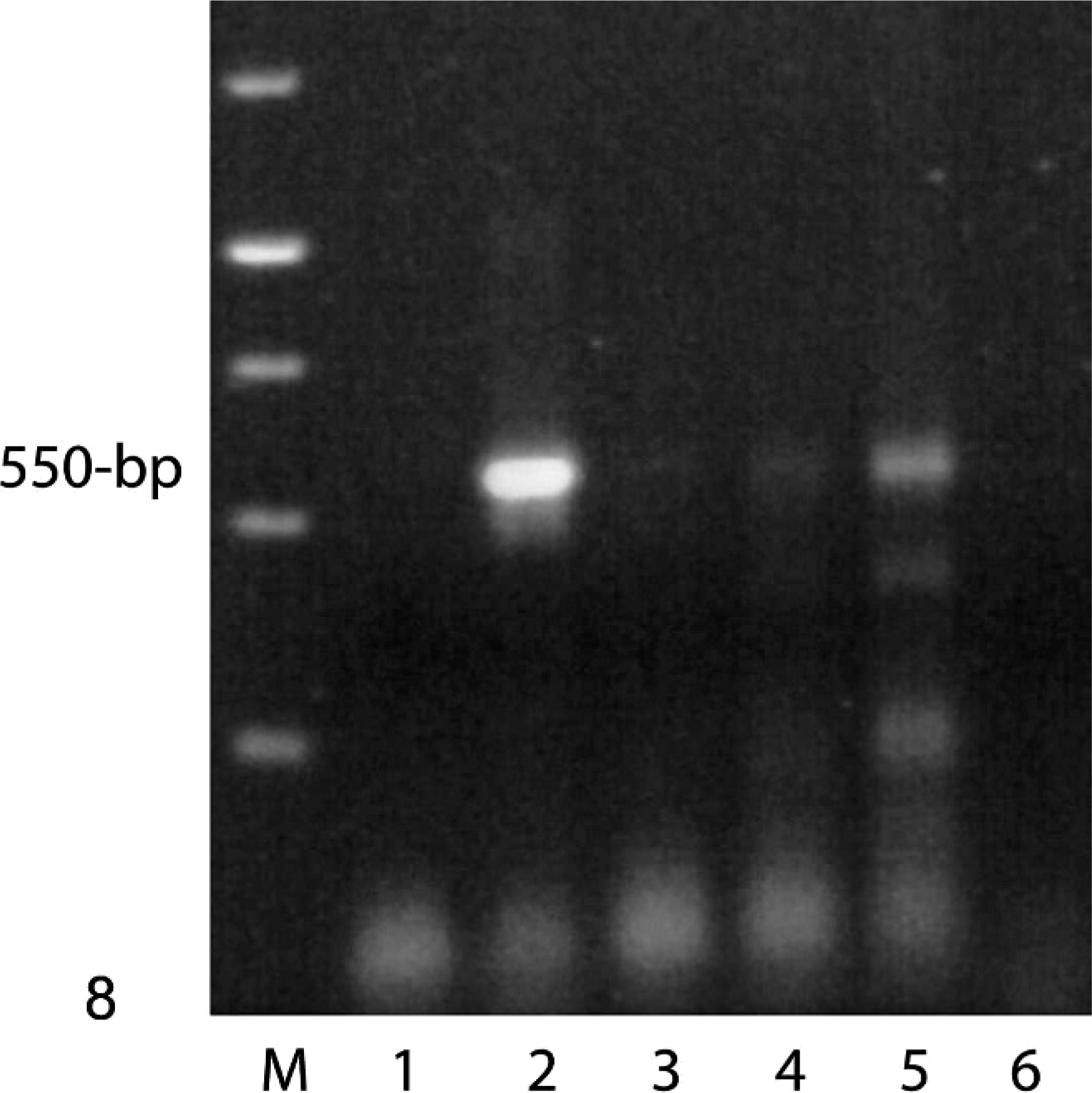

Fig. 8

PCR detection of a novel herpesvirus POL gene in the heart tissue; elephant No. 1. Gel electrophoretic separation of first-round PCR products by using Codehops primers LGH2595/2597 (550 bp). Photograph of ethidium bromide stained agarose gel. Lanes 1 to 4, undiluted DNA samples from No. 1. Lane 1, whole blood; 2, heart; 3, intestine; 4, spleen; 5, EEHV1B positive control; 6, no DNA negative control.

DNA sequencing and sequence analysis

DNA sequence analysis was carried out on second-round PCR products from the 3 positive consensus TER samples and on the first-round Codehops POL PCR products from both cases (Fig. 9). The results revealed evidence for the presence of 2 closely related but novel highly diverged herpesvirus genomes. Both were more closely related to the previously described EEHV1 and EEHV2 viruses than to any other known herpesviruses. The 317-bp TER domain DNA sequence of No. 1 differed by 25.4% at the nucleotide level from both EEHV1 and EEHV2 but with just 4 of 104 predicted amino-acid differences. Moreover, the 499-bp DNA POL block from case No. 1 displayed 34.2% nucleotide differences from EEHV1 and 27% (44/166 amino acids and 42/167 amino acid) differences from both EEHV1 and EEHV2 at the protein level. The 317-bp TER sequence from No. 2 produced the same predicted amino sequence as case No. 1 but differed at 12 nucleotides (3.8%) from case No. 1. Furthermore, the 488-bp POL region DNA sequence obtained from case No. 2 differed from those of case No. 1 by 7.3% at the nucleotide level and by 9% (15/162 amino acids) at the protein level. Therefore, the two viruses were designated as A and B variants of a new herpesvirus named EEHV3 within the proboscivirus genus of the betaherpesvirinae. All other herpesvirus genomes in the Genbank database showed less than 54% and 55% amino-acid identity with the TER and POL proteins of these 2 EEHV3 genomes, respectively, with the closest being chimpanzee cytomegalovirus for TER and human HHV6A for POL.

OPEN IN VIEWER

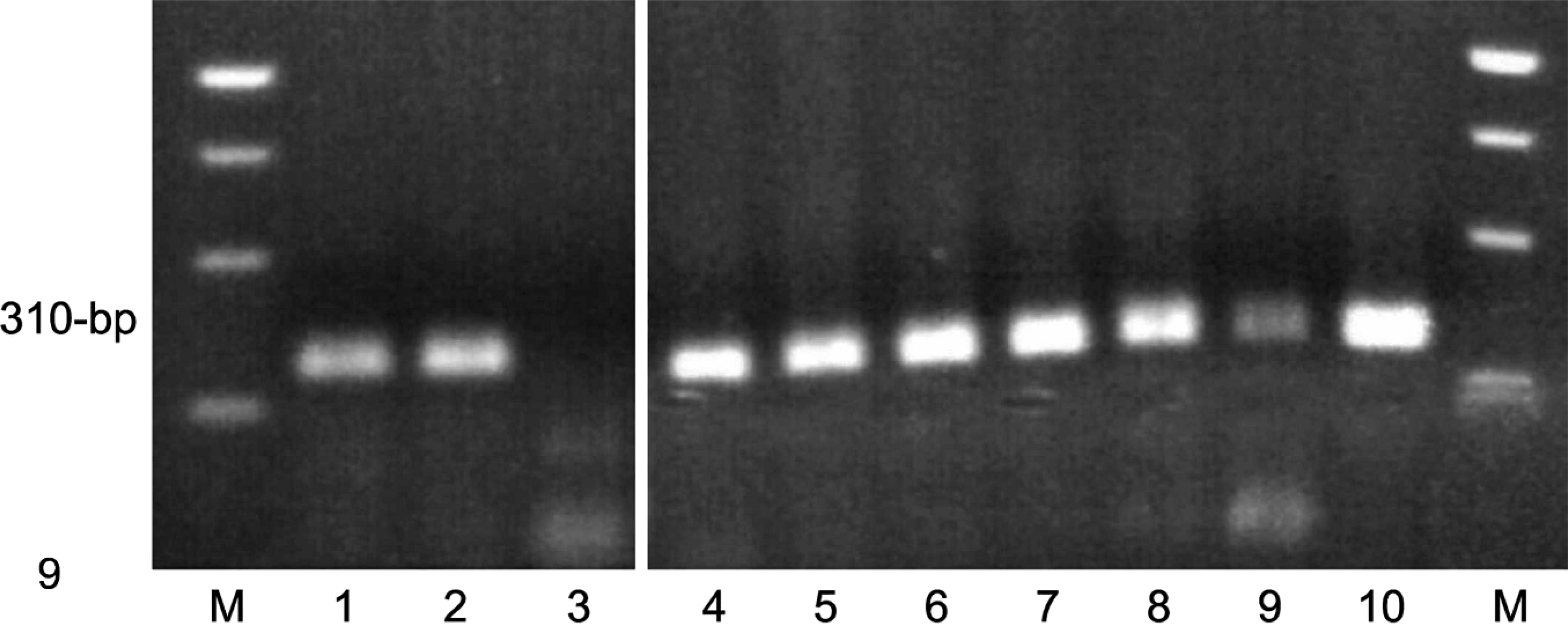

Fig. 9

PCR detection of EEHV3 TER gene in all tissues; elephant Nos. 1 and 2. Gel electrophoretic separation of first-round PCR products by using primers LGH6707/6708 (310 bp). Photograph of ethidium bromide stained agarose gel. Lanes 1, 2, 9, and 10, elephant No. 1, undiluted DNA samples; 1, intestine; 2, spleen; 9, whole blood; 10, heart. Lane 3, human placental DNA negative control. Lanes 4 to 8, elephant No. 2., undiluted DNA samples; 4, whole blood; 5, colon; 6, kidney; 7, liver; 8, spleen. Elephant No. 1 intestine was also positive (not shown).

Based on these initial DNA sequences, a set of new second-generation PCR primers specific for case No. 2 in the TER locus were generated. These EEHV3 TER specific primers proved to give positive 310-bp first-round PCR bands from all 4 tested diseased tissue samples from case No. 1 and also from all 5 tested diseased tissue samples from No. 2. In both cases, the whole-blood samples gave weaker bands than the other tissues. Two separate acute disease blood samples taken 4 days apart from case No. 2 were positive, but a routine whole-blood sample taken a year earlier was negative. After sequencing, all of these bands proved to represent the same new EEHV3A or EEHV3B viruses observed with PCR products from the original consensus TER primers. All PCR product DNA sequences obtained from the 4 different positive necropsy tissue and blood samples from case No. 1 were identical to one another, as also were the 6 different positive tissue or blood samples from case No. 2.
