Past and Present Scenario of Imaging Infection and Inflammation: A Nuclear Medicine Perspective

Abstract

Nuclear medicine techniques provide potential non-invasive tools for imaging infections and inflammations in the body in a precise way. These techniques are further exploited by the use of radiopharmaceuticals in conjunction with imaging tests such as scintigraphy and positron emission tomography. Improved agents for targeting infection exploit the specific accumulation of radiolabeled compounds to understand the pathophysiologic changes involved in the inflammatory process and correlate them with other chronic illnesses. In the recent past, a wide variety of radiopharmaceuticals have been developed, broadly classified as specific radiopharmaceuticals and nonspecific radiopharmaceuticals. New developments in positron emission (leveraging ¹⁸F and ¹⁸fluorodeoxyglucose) and heterocyclic/peptide chemistry and radiochemistry are resulting in unique agents with high specific activity. Various approaches to visualizing infection and inflammation are presented in this review, in an integral manner, that give a clear view of the existing radiopharmaceuticals in clinical practice and those under development.

EVER SINCE THEIR INCEPTION, nuclear medicine techniques have played a pivotal role in the visualization, detection, and localization of inflammation and infection.¹ They point to parts in the body where a particular metabolic process is ongoing, leading to elevated uptake of a radiopharmaceutical. In conjunction, other techniques, such as puncture, biopsy and culture, help to come to a definitive diagnosis. At present, several functional (planar scintigraphy, single-photon emission computed tomography [SPECT], and positron emission tomography [PET]) and morphologic (computed tomography [CT] and magnetic resonance imaging [MRI]) imaging modalities are being used to identify infectious and inflammatory foci of soft tissue and/or bone. All of these techniques have specific advantages and disadvantages and are listed in Table 1.

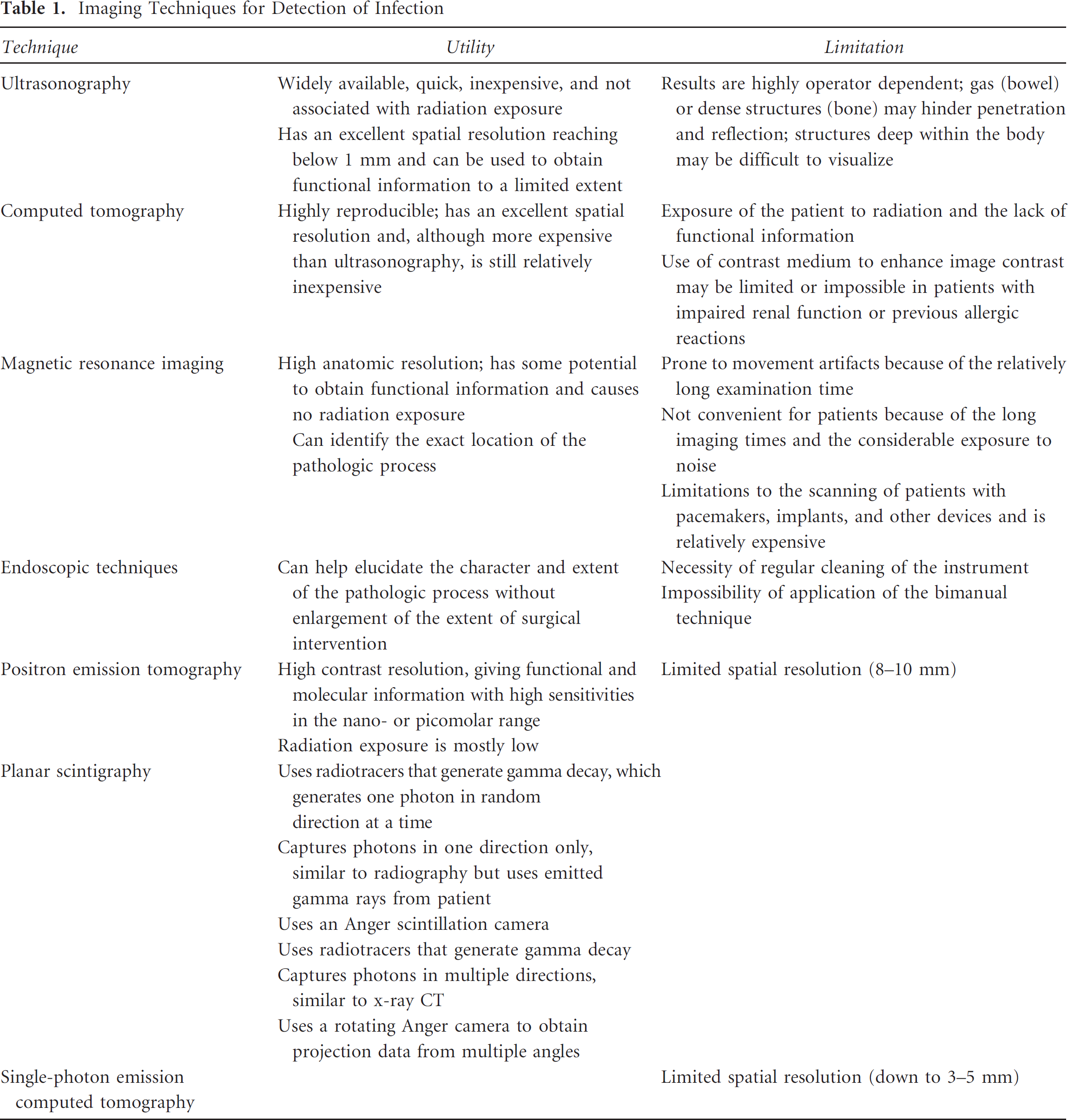

Table 1.

Imaging Techniques for Detection of Infection

Technique	Utility	Limitation
Ultrasonography	Widely available, quick, inexpensive, and not associated with radiation exposure Has an excellent spatial resolution reaching below 1 mm and can be used to obtain functional information to a limited extent	Results are highly operator dependent; gas (bowel) or dense structures (bone) may hinder penetration and reflection; structures deep within the body may be difficult to visualize
Computed tomography	Highly reproducible; has an excellent spatial resolution and, although more expensive than ultrasonography, is still relatively inexpensive	Exposure of the patient to radiation and the lack of functional information Use of contrast medium to enhance image contrast may be limited or impossible in patients with impaired renal function or previous allergic reactions
Magnetic resonance imaging	High anatomic resolution; has some potential to obtain functional information and causes no radiation exposure Can identify the exact location of the pathologic process	Prone to movement artifacts because of the relatively long examination time Not convenient for patients because of the long imaging times and the considerable exposure to noise Limitations to the scanning of patients with pacemakers, implants, and other devices and is relatively expensive
Endoscopic techniques	Can help elucidate the character and extent of the pathologic process without enlargement of the extent of surgical intervention	Necessity of regular cleaning of the instrument Impossibility of application of the bimanual technique
Positron emission tomography	High contrast resolution, giving functional and molecular information with high sensitivities in the nano- or picomolar range Radiation exposure is mostly low	Limited spatial resolution (8–10 mm)
Planar scintigraphy	Uses radiotracers that generate gamma decay, which generates one photon in random direction at a time Captures photons in one direction only, similar to radiography but uses emitted gamma rays from patient Uses an Anger scintillation camera Uses radiotracers that generate gamma decay Captures photons in multiple directions, similar to x-ray CT Uses a rotating Anger camera to obtain projection data from multiple angles
Single-photon emission computed tomography		Limited spatial resolution (down to 3–5 mm)

For many inflammatory diseases, no unequivocal guidelines for the use of imaging procedures exist, but in some cases, there is sufficient evidence to advise on imaging procedures for optimal diagnosis or follow-up. Moreover, the diagnosis of a specific inflammatory disease depends on the type of suspected disease and the clinical presentation. Also, with the aging population and increasing use of implants and transplants, the number of immunocompromised patients is growing, mainly because of the frequent use of chemotherapeutic agents leading to neutropenia. Furthermore, the increased use of antibiotics leads to insensitivity or resistance. Persistent infection and inflammation can be the root cause of several dreaded diseases as well. It is thus imperative that the pathophysiologic changes involved in the inflammatory process and the coexistence of other diseases, such as cancer, to select the most efficacious procedure are well understood. Therefore, imaging of infection and inflammation is becoming increasingly important.

The design and development of new radiopharmaceuticals for infection imaging are based on the definition and description of the ideal properties of a radiopharmaceutical for infection imaging, such as the following:

High sensitivity for inflammation or infection so as to have efficient accumulation and retention in inflammatory foci

Ability to differentiate between infection and nonmicrobial inflammation

Ability to differentiate between acute and chronic infection

Early diagnostic imaging

No toxicity and/or immunogenic response

High specificity and no accumulation in nontarget organs

Rapid clearance from circulation and thus from the background

No uptake in the gastrointestinal tract

Easy low hazard preparation and low radiation burden

Low cost and wide availability

Radiolabeled antiinfective agents can fulfill the majority of these requirements. The radionuclides currently in use for these techniques are shown in Table 2. With the current resurgence of interest in molecular imaging strategies, the design of target-specific molecular imaging probes based on better understanding of the biochemistry of the inflammatory response may ultimately lead to the development of an ideal agent for infection imaging.

Table 2.

Isotopes Used in Nuclear Medicine Techniques

Isotope	Physical Half-life (T _1/2 )	Production Methods	Gamma Ray Energy	Mode of Decay (%)
^99mTc	6.02 h	⁹⁹Mo(β⁻)^99mTc	0.140	IT (100)
¹²³I	13.2 h	¹²¹Sb(α, 2n)¹²³I	0.159	EC (99.7)
⁶⁷Ga	78 h	⁶⁸Zn(p, 2n) ⁶⁷Ga	0.093	EC (99.9)
		⁶⁶Zn(d, n) ⁶⁷Ga	0.185
		⁶⁴Zn(α, p) ⁶⁷Ga	0.300
			0.393
¹¹¹In	2.8 d		0.171	EC (100)
			0.245

Pathophysiology of Inflammation and Infection

We can define inflammation as a complex tissue reaction to any kind of injury that may be caused by physical, chemical, or immunologic agents or even by radiation. If the injury is caused by or involves living microbes, it leads to infection, which simply means “contamination with microorganisms.”² There can be infection without inflammation, as in the case of a severely immunocompromised patient. Especially in such cases, it is clear that for the purpose of imaging, one would need an agent that directly interacts with the microorganisms. Conversely, there can be inflammation without infection when tissue injury is not due to invasion by microorganisms but rather is caused by “stimuli” such as trauma, ischemia, neoplasm, or foreign particles (eg, asbestos). Whatever the cause may be, inflammation is a nonspecific response to an injury and is a protective response to the cause and the consequences of such an injury. In general, the inflammatory response is characterized by local hyperemia (rubor, calor), edema or swelling (tumor), and, in some locations, pain (dolor).

Inflammation may be classified broadly as acute or chronic depending on the duration of the inflammatory reaction (the interval since the initial injury) and on other pathologic and clinical features.³ Acute inflammation is the early or an immediate response to injury that lasts for a short duration (8–10 days). It is mediated through the activation of the immune system and is usually beneficial for the host. The condition characterized as chronic inflammation is of longer duration, lasting for several weeks to even years. The systemic changes associated with inflammation are leukocytosis (caused by stimulation by complement component C3a and colony-stimulating factors), fever, and an increase in plasma antiinflammatory proteins such as C-reactive protein, fibrinogen, and haptoglobin.⁴ Abscess formation is an occasional consequence, resulting in isolation of the inflammatory focus, which may result in hindering radiotracer access and hence reducing detection.

Acute Inflammation

Acute inflammation is characterized by regional and systemic changes, such as vasodilation of local arterioles and capillaries, increased vascular permeability, and exudate formation. Increased vascular permeability results because of (1) widening of intercellular gaps, (2) leukocyte-mediated endothelial injury, (3) endothelial necrosis and detachment, and (4) formation of new capillaries (angiogenesis) that are leaky. Formation of exudate, an inflammatory extravascular fluid with a high protein (globulins and fibrin) content and cell debris, results as a consequence of vasodilation and increased capillary permeability. These events are followed by local cellular events, such as chemotaxis, leukocyte margination, and emigration (diapedesis), most of which are regulated by chemical mediators produced endogenously by cells at the infectious foci or present in circulation.^4,5

Chemotaxis is the process of leukocyte migration to the site of injury. Leukocytes accumulate at the site of infection as a result of leukocyte margination and emigration. First, they adhere to the vascular endothelium owing to locally enhanced expression of adhesion molecules (rolling, arrest, and adhesion). Subsequently, they pass through the endothelium and the basal membrane (diapedesis) and migrate into the inflammatory focus (chemotaxis). Several inflammatory cells, particularly polymorphonuclear leukocytes (PMNs), accumulate and aggregate at the site of inflammation/infection. As part of the response to infectious material, PMNs and macrophages ingest foreign particles and bacterial and tissue debris in a process known as phagocytosis. In the PMN, this is accompanied by the release of peroxides (the superoxide burst) that destroy bacteria.

Chronic Inflammation

After acute inflammation, healing of the injured tissue may lead to resolution (restoration of normal structure and function) or repair (formation of a scar consisting of collagen). Chronic inflammation is a progressive stage of acute inflammation that lasts for a longer period of time. It is characterized by a reduction in the number of PMNs and an increased infiltration of macrophages, lymphocytes, plasma cells, and fibroblasts. Chronic inflammation may predispose the host to various chronic illnesses, including cancer.

Abscess Formation

Both acute and chronic inflammation can be accompanied by abscess formation, which is generally caused by bacterial infection and is defined as a collection of pus in tissues, organs, or confined spaces. During this period of development, inflammation is characterized by hyperemia, leukocytosis (increased production of leukocytes), and edema, with or without cellular necrosis (also known as phlegmon). During the period of abscess formation, there is a vigorous PMN response, but, after stabilization of the abscess, depending on the degree of isolation of the abscess contents, there is a diminution in the pathophysiologic response; hence, functional imaging procedures may be less sensitive.

Inflammation and Cancer

Inflammation is regarded as a “secret killer” for diseases such as cancer. It has been linked to cancer by epidemiologic and experimental data and confirmed by antiinflammatory therapies that show efficacy in cancer prevention and treatment. Tumors may arise at the sites of chronic inflammation, and there has been evidence of the presence of inflammatory cells within them. Oxidative stress has been shown to be a causative phenomenon leading to chronic inflammation, which in turn could mediate chronic diseases such as cancer.⁶ Oxidative stress can activate inflammatory pathways by activating a variety of transcription factors, including nuclear factor kB, Activator Protein-1 (AP-1), p53, hypoxia-inducible factor 1a, peroxisome proliferator–activated receptor γ, β-catenin/Wnt, and NF-E2 related factor-2 (Nrf2).^7,8 Activation of these transcription factors can lead to the expression of over 500 different genes, including those for antiinflammatory molecules. Thus, oxidative stress can lead to transformation of a normal cell to a tumor cell, tumor cell survival, proliferation, chemoresistance, radioresistance, invasion, and angiogenesis.⁹

Types of Inflammation

Although the basic pathophysiology of infection/inflammation has a characteristic pattern, there are subtle differences in the microenvironment at different sites of soft tissue and bone infections.

Abdominal Infection/Inflammation

Abdominal inflammation may involve an organ diffusely, as in hepatitis, colitis, or peritonitis, or focally, as in intraperitoneal abscess, retroperitoneal abscess, or visceral abscess (hepatic, pancreatic, and splenic). Several factors, such as hyperemia and fibrin formation, may predispose infection/inflammation in the abdominal cavity to abscess formation.⁴ The pathophysiology may include inflammation of the mucosal lining of the intestinal tract, causing ulceration, edema, bleeding, and fluid and electrolyte loss.

Pulmonary Infection/Inflammation

The common chest inflammatory conditions include bacterial and viral pneumonia, fungal infections, infection involving organisms that are usually nonpathogenic, such as Pneumocystis carinii pneumonia, granulomatous disease (either infectious, such as tuberculosis, histoplasmosis, or coccidiomycoses, or presumably noninfectious, such as sarcoidosis), and diffuse interstitial inflammation. Bacterial and even viral pneumonias are associated with an acute inflammatory process and a vigorous PMN response. The injured tissue becomes vulnerable to secondary infection involving other organisms, thus complicating the specific cellular content of the inflammatory response. In this setting, labeled leukocytes are quite sensitive and provide images with the greatest contrast between infected/inflamed tissue and background. Pulmonary sarcoidosis starts as a diffuse interstitial alveolitis, followed by characteristic granulomas, which are present in the alveolar septa and in the walls of bronchi and pulmonary arteries and veins. During periods of active inflammation, the response is characterized by macrophages and other elements typical of chronic inflammation.

Renal Inflammation/Infection

Two kinds of acute renal infection mainly found are pyelitis (confined to the renal pelvis) and pyelonephritis (involving both the pelvis and parenchyma). Acute pyelonephritis is a bacterial infection and most often occurs because of ascending urinary tract infection. The kidney is usually enlarged and edematous, with small foci of abscess formation in the cortex. The interstitial tissue is predominantly infiltrated by lymphocytes and plasma cells.

Skeletal Inflammation

Osteomyelitis is an infection involving the cortical bone and the myeloid (bone marrow). Skeletal infection may be limited to the periosteum (periosteitis) without involvement of cortex and marrow, but when the cortex is involved, it is called osteitis and osteomyelitis. Osteomyelitis may be classified based on several factors, such as the route of infection hematogenous or non-hematogenous), underlying etiology (diabetic foot), and age at onset (infantile).⁴ These classifications are relevant as they also represent differences in the pathophysiologic responses involved and hence influence the choice of radiopharmaceutical selected to identify the inflammatory process. One of the consequences of osteomyelitis is reactive new bone formation resulting in increased blood flow. Chronic osteomyelitis is characterized by less marked infiltration of inflammatory cells than seen in the acute state and may exhibit variable amount of necrotic tissue. Osteomyelitis in the diabetic foot is a unique clinical and pathologic problem. It is a common complication of diabetes and generally occurs as a result of the spread of infection from adjacent foot ulcers.⁴

Neuroinflammation

Neuroinflammation is a process in which the brain responds to infections, diseases, and injuries. This kind of inflammation involves these immune cells: lymphocytes, monocytes, and macrophages of the hematopoietic system and microglial cells of the central nervous system (CNS). Neuroinflammation disrupts the blood-brain barrier (BBB), allowing cells from the hematopoietic system to leave the bloodstream and come in contact with the site of injury. The immune cells respond to injuries by eliminating debris and synthesizing and releasing a host of powerful regulatory substances, such as the complements, cytokines, chemokines, glutamate, interleukins, nitric oxide, reactive oxygen species, and transforming growth factors. The substances have both beneficial and harmful effects on the cellular environment, creating further damage. Mature astrocytes are also activated following injury to the CNS. Astrocytic activation is believed to be necessary for containing the immune response, repairing the BBB, and attenuating further neuronal death.

Specific and Nonspecific Tracers for Imaging

During recent decades, many radiopharmaceuticals have been developed for the diagnosis of infection, each with its own advantages and disadvantages. However, all radiopharmaceuticals may not meet the prescribed criteria in a perfect way. In clinical practice, the choice of the imaging agent is based on careful examination of each individual case. Early diagnostic imaging is preferable but not always necessary, as in the case of osteomyelitis or in infected bone/joint prostheses. Imaging with high radiation doses or imaging that entails the occurrence of minor transient side effects after the administration of the radiopharmaceutical is in general unfavorable and should be considered only when significant clinical benefit is to be expected. Several radionuclides are used to prepare radiopharmaceuticals, such as ¹⁸F, ¹¹¹In, ¹²³I, ⁶⁷Ga, and ^99mTc. However, technetium 99m (^99mTc)-labeled antibiotics have come up in a big way with their potential to differentiate sterile inflammation from infection. ^99mTc-labeled antiinfectives are ideal as infection-seeking agents because of their direct and fast accumulation. Clinical studies already undertaken and further evaluation with different pathogen types, such as viruses, fungi, parasites, and intracellular pathogens, in humans will improve the potential of these compounds. Depending on their mechanism of action, radiopharmaceuticals may be classified as specific and nonspecific. Table 3 elaborates this classification with examples.

Table 3.

Radiopharmaceuticals Used for Imaging Inflammatory Processes

Radiopharmaceutical	Mechanism
⁶⁷Ga-citrate	Increased perfusion, extravasation owing to increased vessel permeability, locally binding to lactoferrin
^99mTc/¹¹¹In-labeled autologous WBCs (leukocytes)	Active migration into sites of inflammation
Radiolabeled granulocytes	Granulocyte influx
^99mTc-labeled bisphosphonates	Uptake in sites of increased perfusion and extravasation (early phase) and increased bone formation (late phase)
^99mTc-labeled nanocolloids	Uptake in macrophages (inflammation, bone marrow, liver, spleen)
^99mTc/¹¹¹In-labeled proteins (IgG, albumin)	Extravasation (increased perfusion and vessel permeability)
¹⁸F-FDG	Macrophages (metabolically active cells), leukocytes

Specific Radiopharmaceuticals

Specific processes of accumulation comprise a number of possible interactions between the radiopharmaceutical and the target, for example, receptor binding and antibody-antigen binding. Several pathways can be distinguished in infection imaging based on specific processes of accumulation of the radiopharmaceutical, as shown in Table 4. Leukocytes preferentially target infection by chemotaxis and can therefore be used to transport radionuclides to the infected area (pathway A). With respect to pathways B and C, vasoactive or chemotactic mediators of the inflammatory process either can be targeted in vivo by radiopharmaceuticals or can be radiolabeled in vitro and injected. So a particular component that is already present in or goes to the inflamed area is either labeled in vivo or is injected in a radiolabeled form in the mediator itself. Pathway D can be said to be truly infection imaging because it uses radiopharmaceuticals that specifically target microorganisms. A completely different mechanism of accumulation at the inflammatory site underlies PET scans using fluorodeoxyglucose (FDG), namely enhanced uptake of radiolabeled glucose by infiltrated granulocytes and tissue macrophages with increased metabolic requirements (pathway E). The accumulation of FDG in cells with increased glucose metabolism is specific. However, FDG is also taken up by, for example, tumor cells.

Table 4.

Strategies in Infection Imaging with Specific Tracers

Pathway	Strategy	Methodology
A	Target leukocytes moving to and present in the focus of infection	Direct labeling of leukocytes (ex vivo labeling)Indirect labeling of leukocytes (in vivo labeling): Antibody-antigen interactions: radiolabeled antigranulocyte monoclonal antibodies/antibody fragments Binding to receptors on leukocytes Radiolabeled chemotactic peptides: formyl- Met-Leu-Phe Radiolabeled cytokines: the interleukins, platelet factor 4
B	Target mediators that are already present at or migrating to the site of infection by radiopharmaceuticals	Anti-E-selectin antibodies or anti-E-selectin F(ab′)₂ fragments
C	Administer radiolabeled mediators that migrate to the site of infection	Mediators binding to leukocytes (indirect labeling of leukocytes)
D	Target the locally present microorganisms	Radiolabeled ciprofloxacinRadiolabeled antimicrobial peptides
E	Target the increased glucose uptake of infiltrated granulocytes and tissue macrophages	FDG-PET

FDG-PET = fluorodeoxyglucose–positron emission tomography.

Leukocyte Labeling

It has been common practice in nuclear medicine to use radiolabeled leukocytes for imaging infectious/inflammatory lesions.¹⁰ The principal mechanism of uptake of radiolabeled leukocytes at the sites of infection is by cellular migration and target-specific localization. Leukocytes move largely to the site of infection and localize there in great numbers. Detection of infection can be accomplished by direct labeling of leukocytes (ex vivo labeling) or by labeling leukocytes indirectly (in vivo labeling).

Ex vivo labeling requires withdrawal of blood from the patient containing a mixed leukocyte population, purification of leukocytes, and labeling and reinjection of the radiolabeled cells with appropriate radionuclides such as ¹¹¹In or ^99mTc. ¹¹¹In- or ^99mTc-labeled leukocytes have been useful in scintigraphic detection of infected or inflammatory lesions in a number of clinical pathologies, such as fever of unknown origin, inflammatory bowel disease, pulmonary and abdominal infections, osteomyelitis, infected artificial joints, infected vascular grafts, bacterial endocarditis, and inflammatory joint disorders such as rheumatoid arthritis. Leukocyte imaging provides up to 90% sensitivity for both acute and chronic infection.¹¹ Oxine or tropolone complexes of ¹¹¹In are used in labeling leukocytes with ¹¹¹In. Both of the agents are lipid soluble and allow for passive diffusion through the cell membrane after forming 3:1 complexes with indium. ¹¹¹In-oxine shows higher labeling efficiency in saline than in plasma, whereas tropolone has the advantage of labeling ¹¹¹In in the presence of plasma. Leukocytes labeled in plasma were shown to accumulate in abscesses to a greater extent compared to cells labeled in the absence of plasma. Of the ^99mTc-labeled complexes, such as ^99mTc–gentisic acid, ^99mTc–hexamethylpropyleneamine oxime (HMPAO), and ^99mTc–poly-D-lysine modified by N-acetyl homocysteine, ^99mTc-HMPAO is the most widely used agent in routine application. It labels granulocytes predominantly; thus, complicated cell separation techniques used for ¹¹¹In-oxine and ¹¹¹In-tropolone are not necessary.¹² Use of autologous leukocytes labeled with ¹¹¹In or ^99mTc can lead to positive imaging because leukocytes, even after ex vivo labeling, have the capacity to migrate to the inflamed area. ¹¹¹In leukocytes have been found to be more stable in vivo and better for infection imaging than ^99mTc leukocytes owing to their more optimal radiation and biodistribution characteristics and are preferred for evaluation of the kidneys, bladder, and gallbladder and also in the case of chronic infection. The latter may provide early diagnosis (2–4 hours), but physiologic ^99mTc activity in the abdominal area may be seen, resulting in false-positive images.¹² One important advantage of this method of labeling is that the nontarget localization is considerably reduced because the radio-contaminants are removed before reinjection, but this is accompanied by the time-consuming and laborious preparation of the radiopharmaceutical.

In vivo labeling of leukocytes can be based on antibody– antigen interactions (eg, radiolabeled antigranulocyte monoclonal antibodies) or on leukocyte receptor binding (eg, radiolabeled chemotactic peptides and cytokines). Given that radiolabeled leukocytes are specific to detect infection and inflammation, ^99mTc-labeled antigranulocyte antibodies have been developed to label leukocytes in vivo.^13,14 The murine anti-NCA-95 IgG1 antibody (BW 250/183) recognizes the nonspecific cross-reacting antigen 95 (NCA-95) expressed on human granulocytes, myelocytes, and promyeloctes (K_d: 2 × 10⁹). It has been used successfully to image various infections and inflammatory processes, including subacute infectious endocarditis, lung abscesses, and septic loosening of hip and knee prostheses. The anti–stage-specific embryonic antigen 1 (anti-SSEA-1) IgM (Neutrospec) recognizes CD15 antigens on granulocytes with high affinity (K_d = 10⁻¹¹ mol/L). The in vivo binding exceeds 50%, and the ^99mTc-labeled anti-SSEA-1 IgM has been successfully used in patients with various inflammatory and infectious diseases, such as osteomyelitis, diabetic foot ulcers, and postsurgical infection with similar diagnostic accuracy when compared to radiolabeled leukocytes.¹⁰ Imaging with ^99mTc-anti-SSEA-1 IgM has also proved to be a highly sensitive test for the detection of appendicitis in equivocal cases.¹⁵ However, the high molecular weight of monoclonal antibodies could prove to be disadvantageous, resulting in slow diffusion into sites of inflammation, a long plasma half-life, and uptake in the liver owing to clearance by the reticuloendothelial system. Because of this, a long interval is often required between administration of radiolabeled antibodies and acquisition of images to improve target to background ratios.

The chemotactic peptide formyl-methionyl-leucyl-phenylalanine (fMLP) is one of the earliest peptides studied in inflammation imaging. This peptide binds to the specific receptors expressed on the surface membrane of granulocytes and monocytes with high affinity. Diagnostic applications have shown ^99mTc-fMLP to be superior to ¹¹¹In leukocytes in rabbits.¹⁶

Interleukin-8 (IL-8) is a small protein (8.5 kDa) belonging to the CXC subfamily of chemokines or chemotactic cytokines in which the first two cysteines are separated by one amino acid. IL-8 binds with high affinity (0.3⁻⁴ × 10⁻⁹ mol/L) to two different receptors (CXCR1 and CXCR2) expressed on granulocytes and promotes chemotaxis of these cells. ¹²³I- and ^99mTc-labeled IL-8 were developed as target-specific molecular probes to image infection.¹⁷ Recent clinical studies in patients with suspected infection demonstrated the diagnostic potential of ^99mTc-IL-8 with no side effects.¹⁸

^99mTc-MDP

Bone scintigraphy using ^99mTc-radiolabeled diphosphonates such as ^99mTc-methylene diphosphonate (^99mTc-MDP) has historically shown good success in detecting bone infections such as osteomyelitis. ^99mTc-MDP binds to the hydroxyapatite bone crystal and therefore gives signal depending on both blood flow and rates of bone turnover.¹⁹ Bone scintigraphy has a high sensitivity (> 80%) but a limited specificity (up to 50%).²⁰ ^99mTc-MDP imaging only denotes regions of active bone turnover and therefore cannot discriminate osteomyelitis from other causes of increased local bone remodeling.²¹ Therefore, the specificity of this technique is less in patients with underlying skeleton conditions due to uptake of the radiopharmaceutical at all sites of increased bone metabolism irrespective of the underlying cause, which may otherwise induce a positive finding on the bone scan. However, specificity can be increased by using this technique in combination with ⁶⁷Ga imaging or SPECT/CT.²²

Ciprofloxacin (Infecton)

Ciprofloxacin, a fluoroquinolone antimicrobial agent, binds to the deoxyribonucleic acid (DNA) gyrase enzyme present in all dividing bacteria, even to those resistant to ciprofloxacin. Fluoroquinolones are thought neither to bind to dead bacteria nor to accumulate in nonmicrobial inflammatory processes such as Crohn disease. Given that ciprofloxacin binds only to living bacteria, ^99mTc-labeled ciprofloxacin theoretically allows discrimination between infection and sterile inflammation.²³ Localization, however, appears to be based primarily on extravasation and stasis at the sites of increased vascular permeability. It is rapidly cleared from circulation by the kidneys and shows no uptake in bone marrow and minimal localization in the liver and abdominal area. In clinical studies, ciprofloxacin has shown acceptable sensitivity and specificity in identifying a wide variety of infectious foci, such as bone and joint infections, infections of hip or knee prostheses, and osteoarticular infections^24–28 but does not appear to distinguish between infection and sterile inflammation.²⁹

Nonspecific Radiopharmaceuticals

Increased blood supply, increased vascular permeability, and enhanced transudation are processes that are used during nonspecific accumulation of tracers. It must be noted that all radiopharmaceuticals accumulate to some extent in this nonspecific way at the site of infection. Examples of nonspecific tracers for the detection of infection based on increased vascular permeability include the following:

Radiolabeled Nanocolloids and Liposomes

Inflammatory lesions can be visualized with nanometer-sized particles that have prolonged blood clearance. Owing to their small size, nanoparticles remain in circulation and make contact with inflammatory/infected cells for relatively longer periods of time. Typical nanoparticles include ^99mTc-albumin nanocolloids^30–33 and liposomes.^34,35

Liposomes, lipid vesicles that are formed as a result of thermodynamic arrangements where an aqueous core is surrounded by two phospholipid layers, have been investigated for infection imaging.³⁶ Their size varies between 0.1 and 0.5 mm. The exact mechanism for accumulation is speculated to be extravasation at the inflammatory sites as a result of enhanced capillary permeability; however, the role of bacteria and leukocytes is not yet clear. Liposomes are removed from the circulation by the mononuclear phagocytic system (MPS) by being recognized as foreign particles. The short circulation time resulting from their rapid uptake by MPS has been an obstacle in their clinical applications. If the surface of the liposomes is coated with a hydrophilic polymer such as polyethylene glycol (PEG), they circumvent recognition by the MPS, leading to a prolonged residence time in the circulation and enhanced uptake at pathologic sites by extravasation owing to locally enhanced vascular permeability.³⁷ Such stabilized PEG liposomes can be labeled with ¹¹¹In-oxinate and ^99mTc either using HMPAO as an internal label or via hydrazinonicotinamide (HYNIC) as an external chelator.^38,39 ^99mTc-PEG liposome scintigraphy has shown high sensitivity (94%) and specificity (89%), and visualization of musculoskeletal and abdominal pathology has been shown to be better than with ¹¹¹In-IgG.

Radiolabeled Macromolecules

Radiolabeled macromolecules such as proteins (albumin, immunogammaglobulin, monoclonal antibodies, and avidin or streptavidin),^40–46 polysaccharides (dextran), and derivatized polyamines (methoxy poly(ethylene glycol)-poly-L-lysine–diethylenetriaminepentaacetic acid [DTPA])⁴⁷ have been proposed for imaging inflammatory and infectious lesions.

Some agents that have small molecular weight, such as ⁶⁷Ga-citrate, ^99mTc-porphyrin,⁴⁸ and ^99mTc-glucose phosphate, combine with plasma proteins after intravenous injection and thus become macromolecules. Radiolabeled macromolecules have prolonged blood residence. Macromolecules leak out of the injured blood vessels and get entrapped at the interstitial space owing to their large size. They might bind to extracellular proteins at the site of inflammation. The most investigated among these are human immunoglobulin (HIG) and streptavidin/avidin–¹¹¹In-biotin complex. Recently, there has been considerable interest in ^99mTc-dextran in this respect owing to the low cost and easy labeling procedure.

¹¹¹In and ^99mTc-Labeled Nonspecific Human IgG. According to earlier studies, it was proposed that HIG labeled with ¹¹¹In or ^99mTc is retained at sites of infection and inflammation because of a specific interaction (binding) of HIG with Fc-γ receptors expressed on leukocytes.⁴⁹ Subsequently, it was shown that radiolabeled HIG localization at the infectious foci is mainly attributable to nonspecific extravasation or leakage (similar to ⁶⁷Ga-transferrin complex) of the labeled protein owing to increased vascular permeability. For clinical use, HIG has been labeled with ¹¹¹In as well as ^99mTc. HIG was initially labeled with ¹¹¹In with the use of DTPA-conjugated HIG (¹¹¹In-HIG). Subsequently, HIG labeled with ^99mTc (^99mTc-HIG) with hydrazinonicotinamide as the chelator to complex the metal became available. Both agents have slow blood clearance and physiologic uptake in the liver, spleen, and kidneys. The ^99mTc-labeled preparation has the known ideal radiation characteristics, whereas the ¹¹¹In-labeled preparation allows imaging at time points beyond 24 hours postinjection. In various subacute infections, ¹¹¹In-HIG scintigraphy showed a slightly but significantly better overall accuracy compared to ¹¹¹In–white blood cell imaging. ¹¹¹In- or ^99mTc-labeled HIG has been extensively tested in a large number of clinical studies. It has shown excellent performance in the localization of musculoskeletal infection and inflammation.⁵⁰ Radiolabeled HIG appeared to be clinically useful for infection imaging studies in patients with musculoskeletal infections and inflammation⁵¹ or rheumatoid arthritis and in pulmonary infection, particularly in immunocompromised patients^1,49,51,52 and abdominal inflammation.⁵³

Avidin-Biotin System. Scintigraphic detection of infectious/inflammatory lesions can also be carried out by a two-step approach in which a nonradioactive compound is pre-targeted followed by a radiolabeled high-affinity partner. Biotin is a compound of low molecular weight that can be easily radiolabeled. Avidin and streptavidin (a family of proteins present in the eggs of amphibians) (molecular weight 66,000 and 60,000 kDa, respectively) bind to biotin with extremely high affinity (K_d = 10⁻¹⁵ M). The avidin-biotin approach is based on the fact that avidin (or streptavidin) will nonspecifically localize at sites of infection by transcapillary leakage and entrapment in the interstitial edema while clearing from blood and nontarget tissues. Avidin (or streptavidin) is injected as a pretargeting agent, followed hours later by a second injection with radiolabeled biotin. Good diagnostic accuracy has been demonstrated in studies of vascular infection⁵⁴ and chronic osteomyelitis.⁵⁵

^99mTc-Dextran. ^99mTc-dextran is a potential radiopharmaceutical for infection/inflammation imaging owing to its easy labeling procedure and economical pricing. Dextran (average molecular weight 60,000–90,000 kDa) can be labeled almost quantitatively with ^99mTc by Sn⁺² reduction according to a method modified⁵⁶ from Henze and colleagues.⁵⁷ ^99mTc-dextran has been evaluated in both experimental abscesses in mice⁵⁸ and arthritis in rabbits⁵⁹ and in patients with inflammatory lesions, including ulcerative colitis.^60–62 The blood clearance of ^99mTc-dextran in normal rabbits has been shown to be faster in comparison with other macromolecules, such as HIG and ⁶⁷Ga-citrate. Compared to HIG, it had the advantages of early detection of the lesions (1 hour vs 6 hours), faster blood clearance (T_1/2 = 70 minutes vs 300 minutes), consequently resulting in lower background, and lower cost.⁶² The main mechanism of its accumulation in inflammatory lesions is increased capillary permeability. Its superiority over other agents was attributed to its smaller size and neutral charge, facilitating higher outflow to the lesion from the vascular pool compared to negatively charged proteins such as Human Serum Albumin (HSA) and HIG.^56,62

Radiolabeled Small Molecules and Ions

The accumulation of pertechnetate ion in inflamed synovium was demonstrated almost four decades ago. Since then, localization of other small molecules and ions in various inflammatory and infectious lesions has been reported. These include ionic and neutral complexes of ^99mTc with ligands such as DTPA, citrate, gluconate, glucoheptonate, and pentavalent dimercaptosuccinic acid (DMSA).^58,63 They are small water-soluble complexes with low plasma protein binding used as renal agents in routine practice. Owing to their small molecular size, they can penetrate the injured capillaries more easily than macromolecules.

⁶⁷Ga-Citrate. ⁶⁷Ga-citrate is used in clinical practice in several pathologic conditions, including infection and many skeletal disorders,⁶⁴ owing to its accumulation in soft tissue tumors and uptake in inflammatory lesions. Because ⁶⁷Ga is a cyclotron-produced radionuclide, it is essentially carrier free and is available in very high specific activity (10–16 Ci/μmol). As a result, the routine clinical dose of ⁶⁷Ga-citrate (370 MBq) represents < 50 ng. Once injected in the circulation, ⁶⁷Ga citrate binds to transferrin and is distributed generally within the body. This complex extravasates at the site of infection owing to the locally enhanced vascular permeability and is partly bound there to lactoferrin excreted by leukocytes or to siderophores produced by microorganisms. The agent is excreted partly via the kidneys (especially during the first 24 hours after injection) and via the gastrointestinal tract. Physiologic uptake of the radiolabel occurs in liver, bone, bone marrow, and bowel. Although ⁶⁷Ga-citrate scintigraphy has high sensitivity for both acute and chronic infection and noninfectious inflammation,⁶⁵ the specificity of the technique is low owing to physiologic bowel excretion and accumulation in malignant tissues and areas of bone modeling.^66,67 In addition, its unfavorable imaging characteristics (long physical half-life and high-energy gamma radiation) in combination with the development of newer radiopharmaceuticals have narrowed the clinical applications for gallium scintigraphy.

Pentavalent DMSA. ^99mTc (V) DMSA was initially proposed for tumor imaging and has been investigated for imaging inflammatory lesions and various malignancies.⁶⁸ It can be instantly prepared from ready kits at basic pH. Its chemical and biologic properties are different from the renal radiopharmaceutical ^99mTc (III) DMSA, which localizes predominantly in the renal cortex. Pentavalent DMSA exhibited less plasma protein binding; in mice, greater bone and muscle uptake and lower kidney and liver uptake were observed with respect to trivalent DMSA.⁶⁹ ^99mTc (V) DMSA has been evaluated for imaging inflammatory lesions in experimental animals in comparison with ^99mTc(III) DMSA and ^99mTc-HIG.⁷⁰ Early results for ^99mTc-DMSA scintigraphy in neonates with symptomatic urinary tract infections were helpful in ruling out later development of permanent renal damage but were not predictive of the absence of dilating vesicoureteral reflux.⁷¹

PET Radiopharmaceuticals. Infection imaging with FDG-PET is based on the fact that all activated leukocytes (granulocytes, macrophages, and lymphocytes) use glucose as an energy source after activation during the metabolic burst. When activated through infection, metabolism and thus FDG uptake increase because of increased cellular expression of glucose transporters.^72–74 ¹⁸F-FDG-PET has demonstrated significant diagnostic potential and advantage compared to standard nuclear medicine tracers (⁶⁷Ga-citrate and radiolabeled leukocytes) in patients with soft tissue and bone infections.^1,75 The usefulness of FDG-PET for the imaging of infections has been demonstrated in several patient studies.^76–78 It can be used for a wide variety of infections, including lesions of bacterial, tuberculous, or fungal origin; soft tissue infections; bone infections; and chronic inflammatory diseases, such as cancer. Sensitivity and specificity using ¹⁸F-FDG have generally exceeded 90%. ¹⁸F-FDG has been especially successful in cases of osteomyelitis.^79,80 The high spatial resolution allows differentiation between osteomyelitis or inflammatory spondylitis and infection of the soft tissue surrounding the bone,⁸¹ and the absence of artifacts from metallic implants allows the imaging of patients with suspected infection in hip and knee prostheses. The accuracy of FDG-PET in evaluating prosthetic joint infections, however, is higher in hip prostheses than in knee prostheses, perhaps because attenuation correction in imaging knee prostheses can introduce artifacts that lead to false-positive results. A negative result of PET study essentially rules out osteomyelitis because of its high sensitivity in detecting infection; however, this may lead to increased false-positive results. A drawback of FDG-PET is the lack of anatomic landmarks, which may make it difficult to assign lesions to a particular structure. High spatial resolution and rapid accumulation into infectious foci are significant advantages over conventional imaging techniques such as the use of labeled leukocytes. In addition, because of the superior signal provided by ¹⁸F and the utility in both acute and chronic inflammation, ¹⁸F-FDG may become the agent of choice for the initial screening of patients suspected of having occult inflammation.

Limitations in the Clinical Use of Nonspecific Radiopharmaceuticals

Infectious foci can be visualized using radiopharmaceuticals without their specific interaction with a tissue component in the infectious focus by means of a nonspecific process of localization owing to the locally enhanced vascular permeability. Prolonged high blood levels are needed to allow sufficient diffusion into the target tissue ([macro]molecules diffuse into blood vessels by a relatively slow process). However, high blood levels entail relatively high background levels, especially in well-perfused tissues. Moreover, in chronic inflammation, the vascular permeability tends to normalize. Given that nonspecific agents accumulate owing to a common feature of infection and inflammation, these agents cannot distinguish between infection and inflammation. Thus, nonspecific tracers are in principle limited in their ability to detect (and discriminate between) infections and inflammations.

Chemical Leads for Antimicrobial Agents

Pyrimidines

Pyrimidines as Antibacterial Agents

The chemistry of pyrimidines and its derivatives is of great significance in medicine owing to their diverse pharmacologic properties. Pyrimidines are considered to be important not only because they form an integral part of the genetic material,. DNA and ribonucleic acid (RNA), as nucleotides and nucleosides but also because they impart numerous biologic properties. Pyrimidines are an important class of chemicals used as antibacterial agents; the simplest antibiotic based on pyrimidines is bacimethrin, 5-hydroxymethyl-2-methoxypyrimidine-4-amine (58), which was isolated from Bacillus megaterium. It has a broad spectrum of antibacterial activities against various yeasts, bacteria, and staphylococcal infections in vivo. Hitchings and Elion developed trimethoprim (TMP) (59) as a single agent for the oral treatment of uncomplicated urinary tract infections caused by susceptible bacteria.⁸² The active component of this antibacterial agent is its structural similarity to the pteridine ring of dihydrofolic acid, which allows it to act as a competitive inhibitor of the bacterial enzyme dihydrofolate reductase.

Sulfonamides prove to be the drugs of choice in well-defined areas such as acute urinary tract infections or cerebrospinal meningitis or in the numerous patients sensitive to penicillins; in addition, most sulfonamides have excellent therapeutic indices, and their side effects, if any, disappear quickly on discontinuance of the drug.⁸³ Three sulfa pyrimidines, namely sulfadiazine, sulfamerazine, and sulfamethazine, are homologues in which the N′- substituent is 2-pyrimidinyl in sulfadiazine (60), 4-methyl-2-pyrimidinyl in sulfamerazine, and 4,6-dimethyl-2-pyrimidinyl in sulfamethazine. Several other metal analogues and new derivatives are being added to the list and are summarized in Table 5.

Table 5.

Pyrimidines as Antibacterial Agents

Sr. No.	Drug Name	Action	Mode/Mechanism
1	Sodium sulfadiazine (3)	As a 5% solution in sterile water	For immediate high blood level of antibacterial agent¹⁰⁵
2	Silver sulfadiazine (3)	Acts on cell membrane to produce its local antibacterial effect	Broad-spectrum activity^106,107
3	Sulfamerazine (4)	Similar therapeutic properties to sulfadiazine	Slower excretion^106,107
4	2,4-Diaminopyrimidines (5–7)	Gram-positive selective antibacterials; inhibits DNA polymerase	Potent against respiratory tract pathogens^108,109
5	4-Pyrimidinediamine derivatives (8, 9)	Active against streptococcus pneumoniae
6	Aminopyrimidinediones (10)	Active against gram-positive antibacterials	DNA polymerase
7	2-(Pyrazol-1-yl)pyrimidines (11–13)	Bacterial infection	Inhibit the mycobacterial enoyl-ACP reductase required for cell wall biosynthesis
8	Pyrimidines used in combination with β-lactam, quinolone, tetracycline streptogramine, glycopeptide, or antibiotic (14–18)	Antibacterial	Treat a bacterial and protozoal infections in mammal, fish or bird¹¹⁰
9	2,4-Bis(aryloxy) pyrimidines (19–21)	Active against Staphylococcus aureus, Staphylococcus faecalis, Escherichia coli	Bactericidal and bacteriostatic activity, independent of the substituent on phenyl ring^111–113
10	Analogues of folic acid (22, 23)	Antibacerial	Significant activity¹¹⁴
11	Tetra-substituted pyrimidine derivatives (24–26)	Antibacterial	Active against Helicobacter bacteria
12	Uridine derivatives (27)	Antibiotics

ACP = acyl carrier protein; DNA = deoxyribonucleic acid.

Numbers in parentheses refer to the structures given in Figure 1.

Figure 1.

Structures of antibacterial pyrimidines 1–27.

Pyrimidines as Antifungal Agents

Pyrimidines act as novel lead molecules for designing antifungal agents. A series of pyrimidines that are being used against fungal cells are listed in Table 6. 5-Fluorocytosine (28), a pyrimidine antimetabolite, is widely used in systemic antifungal chemotherapy. Other pyrimidines known for their antifungal activity include natural products such as nikkomycins (29),⁸⁴ polyoxins (30), and their synthetic analogues. A pyrimidinyl ketone oxime ether derivative at 200 ppm completely controlled Cercospora beticola for beet seedlings. 2-(Pyrimidinyloxyphenyl)methacrylates gave complete control of seven weeds, for example, Pyricularia oryzae, at 100 ppm combined foliar spray and root drench. 4-(2-Pyrimidinyloxy and 2-pyrimidinylthio)quinoline N-oxide derivatives have been used as agrochemical fungicides. 2-Acylvinyl sulfide pyrimidine derivative at 200 ppm controlled > 95% P. oryzae on rice seedlings. Tetrahydropyrimidine derivatives gave > 80% control, for exanple, at 600 ppm, therapeutically against Erysiphe graminis on barley seedlings. In tests against Alternaria solani, Phytophthora infestans, Botrytis cinerea, and other phytopathogens under a variety of conditions, various salts have typically shown > 80% disease control.

Table 6.

Pyrimidines as Antifungal Agents

Sr. No.	Compound	Action	Mode/Mechanism
1	5-Fluorocytosine (28)	Pyrimidine antimetabolite	Systemic antifungal chemotherapy Active form acts by interfering with the formation of RNA and DNA¹¹⁵
2	Nikkomycins (29)	Chitin synthesis inhibitors	Act as competitive inhibitors
	Polyoxins (30)		Blocking of the active peptide transport mechanism^84,116
3	Pyrimidotriazolothiadiazines (31) and their thiobarbituric acid (32)		Inhibit cell wall
4	6-Substituted pyrimidines (33)		Useful as insecticides, acaricides, nematocides, and fungicides
5	Fluorosubstituted-7-heterocyclyltriazolopyrimidines (34)		100% control of Erysiphe graminis on Triticum aestivum
6	4-Substituted pyrimidines (35–38)		Inhibits mitochondrial respiration
7	Fused pyrimidines (34,39–41)
8	Pyrimidinylimino compounds (42–45)	Agrochemical fungicides + pesticides

DNA = deoxyribonucleic acid; RNA = ribonucleic acid.

Numbers in parentheses refer to the structures given in Figure 2.

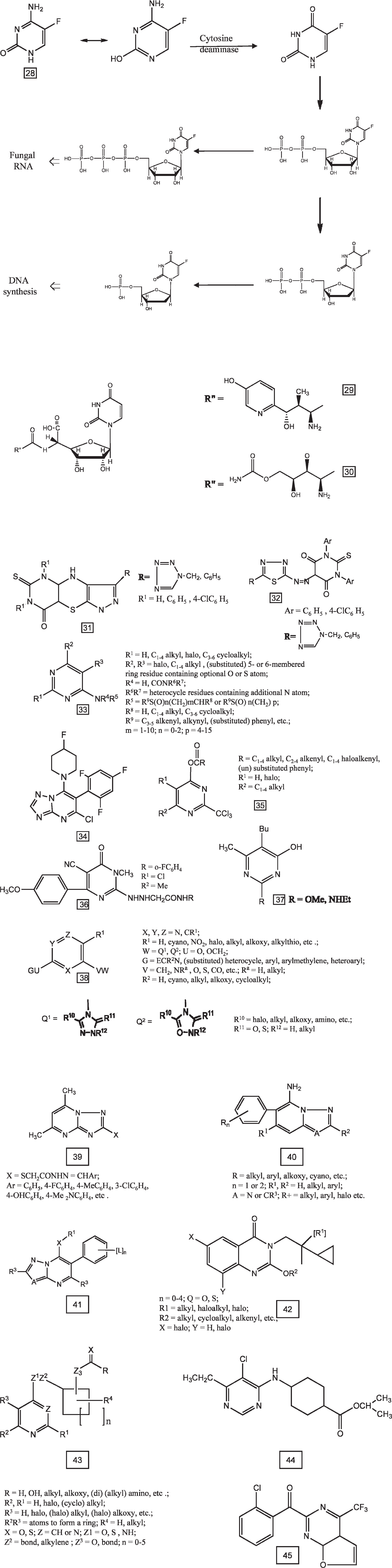

Figure 2.

Structures of antifungal pyrimidines 28–45.

Imidazoles and Triazoles as Antifungal Agents

The azoles are synthetic compounds containing one or more azole rings with a complex side chain attached to one of the nitrogen atoms. Azole-based antifungal agents in clinical use contain either two or three nitrogens in the azole ring and are thereby classified as imidazoles (eg, ketoconazole and miconazole, clotrimazole) or triazoles (eg, itraconazole and fluconazole), respectively.⁸⁵ With the exception of ketoconazole, use of the imidazoles is limited to the treatment of superficial mycoses, whereas the triazoles have a broad range of applications in the treatment of both superficial and systemic fungal infections. Another advantage of the triazoles is their greater affinity for fungal rather than mammalian cytochrome P-450 enzymes, which contributes to an improved safety profile.

The imidazoles can be used to treat invasive diseases but are mostly effective as topical therapies against cutaneous and mucocutaneous infections.⁸⁶ The imidazole and triazole groups of antifungal drugs inhibit the enzyme cytochrome P-450 14α-demethylase (also referred to as 14α-sterol demethylase or P-450DM).^87–90 This enzyme converts lanosterol to ergosterol and is required in fungal cell membrane synthesis. This enzyme also plays an important role in cholesterol synthesis in mammals.⁸⁹ Examples are drugs such as miconazole, bifonazole, ketoconazole, butoconazole, clotrimazole, and econazole, which also block steroid synthesis in humans.

Ergosterol also has a hormone-like (“sparking”) function in fungal cells, which stimulates growth and proliferation.^87,90 This function may be disrupted when ergosterol depletion is virtually complete (0.99%).⁸⁷

The azoles act through an unhindered nitrogen, which binds to the iron atom of the heme, preventing the activation of oxygen that is necessary for the demethylation of lanosterol. In addition to the unhindered nitrogen, a second nitrogen in the azoles is thought to interact directly with the apoprotein of lanosterol demethylase. It is thought that the position of this second nitrogen in relation to the apoprotein may determine the specificity of different azole drugs for the enzyme. The resulting depletion of ergosterol alters the fluidity of the membrane, and this interferes with the action of membrane-associated enzymes. The overall effect is an inhibition of replication (ie, the azoles are fungistatic drugs). A further repercussion is the inhibition of transformation of candidal yeast cells into hyphae—the invasive and pathogenic form of the parasite.

A number of promising new azole and triazole derivatives are currently being developed by several pharmaceutical companies. Three of these agents—voriconazole, ER-30346, and D0870—are derivatives of fluconazole, and another agent, SCH 56592, is a hydroxylated analogue of itraconazole. All of these new agents are active following oral administration; voriconazole and T-8581 may also be administered intravenously, and SCH 56592 shows topical activity. With the exception of D0870, UR-9746, and UR-9751, which show little activity against Aspergillus spp., the new triazole derivatives possess potent, broad-spectrum, antifungal activity. These agents have promise for the treatment of a wide variety of superficial and systemic infections owing to both opportunistic and endemic fungal pathogens. As per earlier studies, only voriconazole was in phase III clinical trials; SCH 56592 was in phase I/II studies, the other new azoles were in the preliminary stages of development, and D0870 has been withdrawn from development. Thus, any proposed clinical uses are based for the most part on in vitro data and the results of in vivo studies in experimental animal infection models. The chemical structures, proposed routes of administration, and potential clinical uses of these compounds are listed in Table 7.

Table 7.

Important New Azole Antifungal Agents under Development

Sr. No.	Generic Name (Developer)	Proposed Route of Administration	Potential Clinical Uses
Triazoles
1	Voriconazole (Pfizer, UK)	Oral Intravenous	Clinical trials: superficial and systemic mycoses including oropharyngeal, esophageal, and systemic candidiasis; acute and chronic invasive aspergillosis; and emerging fungal pathogens
			Animal infection models: systemic candidiasis, pulmonary and intracranial cryptococcosis, systemic and pulmonary and endocardial aspergillosis.
			In vitro data: broad-spectrum antifungal activity suggests potential use in other infections, including blastomycosis, histoplasmosis, coccidioidomycosis, para coccidioidomycosis, and infection owing to dimorphic and filamentous fungi
2	SCH-56592 (Schering, US)	Oral Topical	Animal infection models: systemic, gastrointestinal, and vaginal candidiaisis; systemic and pulmonary aspergillosis, cryptococcal meningitis, histoplasmosis, disseminated coccidioidomycosis, and tropical dermatophytosis
			In vitro data: broad-spectrum antifungal activity suggests potential use in other infections owing to dimorphic fungi
3	T-8581 (Toyama, Japan)	Oral Intravenous	Animal infection models: systemic fungal infection including aspergillosis and candidiasis
4	E-30346 (Eisai, Japan)	Oral	Animal infection models: systemic and pulmonary infection owing to Candida, Aspergillus, and Cryptococcus; intracranial Cryptococcus; and oral candidiasis
	Now BM-207147 (Bristol-Meyers Squibb, US)		In vitro data: suggest potential use in dermatophytoses owing to Trichophyton mentagrophytes, Trichophyton rubrum, Microsporum gypseum, and Microsporum canis
Azoles
5	UR-9746 (Uriach & CIA Spain)	Oral	Superficial and systemic fungal infections, including vaginal and systemic candidiasis, cryptococcosis, histoplasmosis, and coccidioidomycosis
6	UR-9751 (Uriach & CIA, Spain)	Oral	Superficial and systemic fungal infections, including vaginal and systemic candidiasis, cryptococcosis, histoplasmosis, and coccidioidomycosis

Peptides as Infection Imaging Agents

Antimicrobial peptides (molecular weight = 5–7 kDa) are produced by phagocytes, endothelial cells, and many other cell types and are an important component of the innate immune system. The basis of their antimicrobial activity is their direct interaction with the bacterial plasma membrane by electrostatic and hydrophobic interaction. Owing to this preferential binding, these peptides potentially can be used to discriminate bacterial infections from nonbacterial infections and sterile inflammations. One of the earliest peptides studied in inflammation imaging is the chemotactic peptide fMLP,¹⁶ which binds to the specific receptors expressed on the surface membrane of granulocytes and monocytes with high affinity. Another molecule, ^99mTc-UBI 29-41, a fragment of the antimicrobial peptide ubiquicidin (UBI 29-41) labeled with ^99mTc, is now under evaluation in in vitro and preclinical and clinical settings.⁹¹ It binds preferentially to bacteria in vitro and not to activated leukocytes. It binds to the negatively charged groups present on the bacterial cell envelope by electrostatic interaction, and a specific mechanism is responsible for intrabacterial ^99mTc-UBI 29-41 accumulation.⁹² This ^99mTc-UBI 29-41 showed some specific uptake (1–2%ID) in the infected thigh muscle at 30 minutes postinjection, with coinjection of an excess of unlabeled UBI 29-41 peptide showing significantly lower uptake of ^99mTc-UBI 29-41. In addition, uptake in muscle tissue with inflammation induced by inoculation of dead bacteria was also significantly lower.⁹³ UBI scintigraphy was shown to be 100% sensitive in acute postoperative prosthetic joint infection.⁹⁴ Similarly, human neutrophil peptide 1 (HNP-1) labeled with ^99mTc was characterized in mice with inflamed thigh muscles.⁹⁵ The abscess to background ratios obtained with this tracer were low (3–5) and decreased with time. In the peritoneal cavity of the infected mice, ^99mTc-HNP-1 bound preferentially to bacteria rather than to leukocytes. These peptides can be used to monitor the efficacy of antimicrobial therapy regimens and to distinguish between bacterial infection and sterile inflammation.

Many proteins and peptide drugs can now be produced relatively economically. A number of physiologic and biologic barriers are associated with these peptides that limit their use as therapeutic agents. However, most protein drugs have a short half-life in vivo, requiring multiple treatments to provide efficacy. They are also unstable in biologic fluids and not fully absorbed because of their high molecular weight. To overcome these disadvantages associated with protein drugs, microspheres are beneficial as long-term dosage forms.

Antibacterial peptides, which were originally described in insects (Hyalophora cecropia) and plants and subsequently identified in vertebrates, constitute a key component of the innate immune system. Most of the known antibacterial peptides (currently more than 850 characterized) are active against multiple microorganisms, such as viruses, bacteria, fungi, and protozoa, and can be ascribed to one of three main groups: (1) α-helical peptides without cysteine, (2) peptides with three disulfide bonds, or (3) peptides rich in proline or tryptophan⁹⁵ (Table 8). However, in most cases, peptide sequences are unique to each species and even to tissues within a species. Consequently, in nature tremendous sequence diversity exists among bacteria-killing peptides. Antibacterial peptides exert their activity by both intracellular and extracellular killing of microbes, attacking multiple molecular targets to cooperatively penetrate and disrupt microbial surfaces and membrane barriers, resulting in membrane depolarization, a loss of pH gradient, impaired osmotic regulation, and inhibition of respiration.⁹⁶ When bacterial cells are exposed to antibacterial peptides, within minutes more and more peptide molecules dock to the surface of the bacterial membrane. Charge-based interactions between negatively charged bacterial wall moieties such as lipopolysaccharide (LPS) and lipoteichoic acid (LTA) and positively charged sites on the peptides initiate adhesion of antibacterial peptides to bacterial surfaces,⁹⁷ and hydrophobic interaction may further enhance binding. Although electrostatics is assumed to be the critical force driving attachment of antibacterial peptides, some antibacterial peptides permeate both zwitterionic and negatively charged phospholipid vesicles.⁹⁸ The hydrophobicity of these molecules does not ensure their binding to phospholipids,⁹⁹ but it does favor their penetration into phospholipid monolayers if docking is enabled, thereby destabilizing membranes of both eukaryotic and prokaryotic cells.¹⁰⁰

Table 8.

Structure of Some Representative Antimicrobial Peptides

Peptide	Group	Structure
LL37	α-Helix	LLGDFFRKSKEKIGKEFKRIVQRIKDFLRNLVPRTES
Magainin II	α-Helix	GIGKFLHSAKKFGKAFVGEIMNS
Temporin L	α-Helix	FVQWFSKFLGRIL
β-Defensin-1	With disulfide bridges	DHYNC₁VSSGGQC₂LYSAC₃PIFTKIQGTC₂YRGKAKC₁C₃F
Lactoferricin	With disulfide bridges	FKC₁RRWQWRMKKLGAPSITC₁VRRAF
Bactenecin-1	With disulfide bridges	RLC₁RIVVIRVC₁R
Bactenecin-5	Rich in proline	ERPPIRRPPIRPPFYPPFRPPIRPPIFPPIRPPFRPPLRFP
PR39	Rich in proline	RRRPRPPYLPRPRPPPFFPPRLPPRIPPGFPPRFPPRFP
Indolicidin	Rich in proline	ILPWKWPWWPWRR

For amino acids, the one-letter code is used. Subscript numbers represent amino acids that are joined by disulfide bridges.

A new class of antibacterial agents is those that act through the inhibition of the metalloenzyme peptide deformylase (PDF).^101,102 Nature itself has confirmed the importance of PDF as an antibacterial target with the discovery that the antimicrobial natural product actinonin is a potent PDF inhibitor.^103,104 Some new inhibitors have been designed on the basis of substrate analogues that demonstrated a high affinity for the enzyme, which are summarized in Table 9.

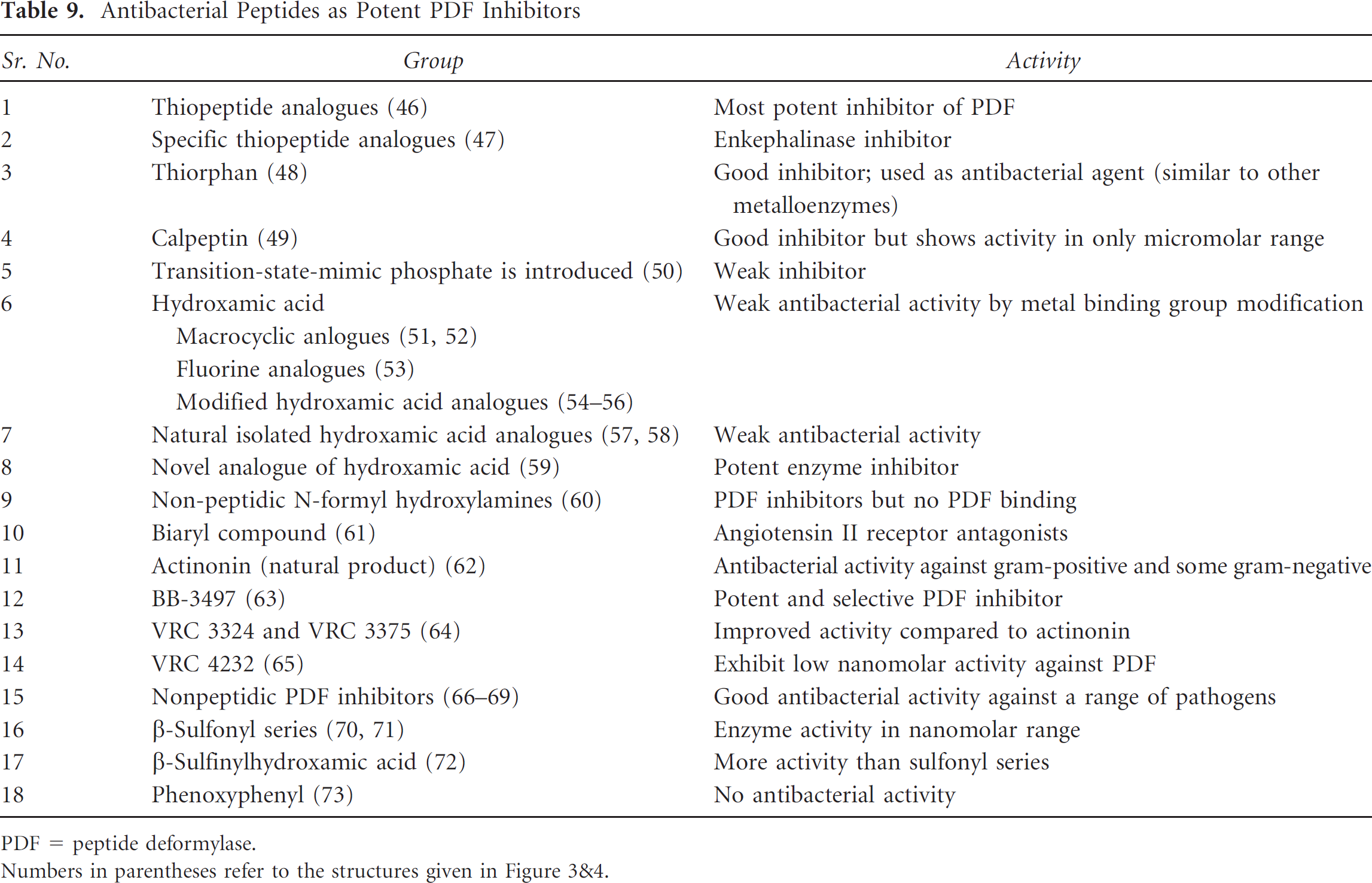

Table 9.

Antibacterial Peptides as Potent PDF Inhibitors

Sr. No.	Group	Activity
1	Thiopeptide analogues (46)	Most potent inhibitor of PDF
2	Specific thiopeptide analogues (47)	Enkephalinase inhibitor
3	Thiorphan (48)	Good inhibitor; used as antibacterial agent (similar to other metalloenzymes)
4	Calpeptin (49)	Good inhibitor but shows activity in only micromolar range
5	Transition-state-mimic phosphate is introduced (50)	Weak inhibitor
6	Hydroxamic acid	Weak antibacterial activity by metal binding group modification
	Macrocyclic anlogues (51, 52)
	Fluorine analogues (53)
	Modified hydroxamic acid analogues (54–56)
7	Natural isolated hydroxamic acid analogues (57, 58)	Weak antibacterial activity
8	Novel analogue of hydroxamic acid (59)	Potent enzyme inhibitor
9	Non-peptidic N-formyl hydroxylamines (60)	PDF inhibitors but no PDF binding
10	Biaryl compound (61)	Angiotensin II receptor antagonists
11	Actinonin (natural product) (62)	Antibacterial activity against gram-positive and some gram-negative
12	BB-3497 (63)	Potent and selective PDF inhibitor
13	VRC 3324 and VRC 3375 (64)	Improved activity compared to actinonin
14	VRC 4232 (65)	Exhibit low nanomolar activity against PDF
15	Nonpeptidic PDF inhibitors (66–69)	Good antibacterial activity against a range of pathogens
16	β-Sulfonyl series (70, 71)	Enzyme activity in nanomolar range
17	β-Sulfinylhydroxamic acid (72)	More activity than sulfonyl series
18	Phenoxyphenyl (73)	No antibacterial activity

PDF = peptide deformylase.

Numbers in parentheses refer to the structures given in Figure 3&4.

Figure 3.

Structures of antibacterial peptides 46–61.

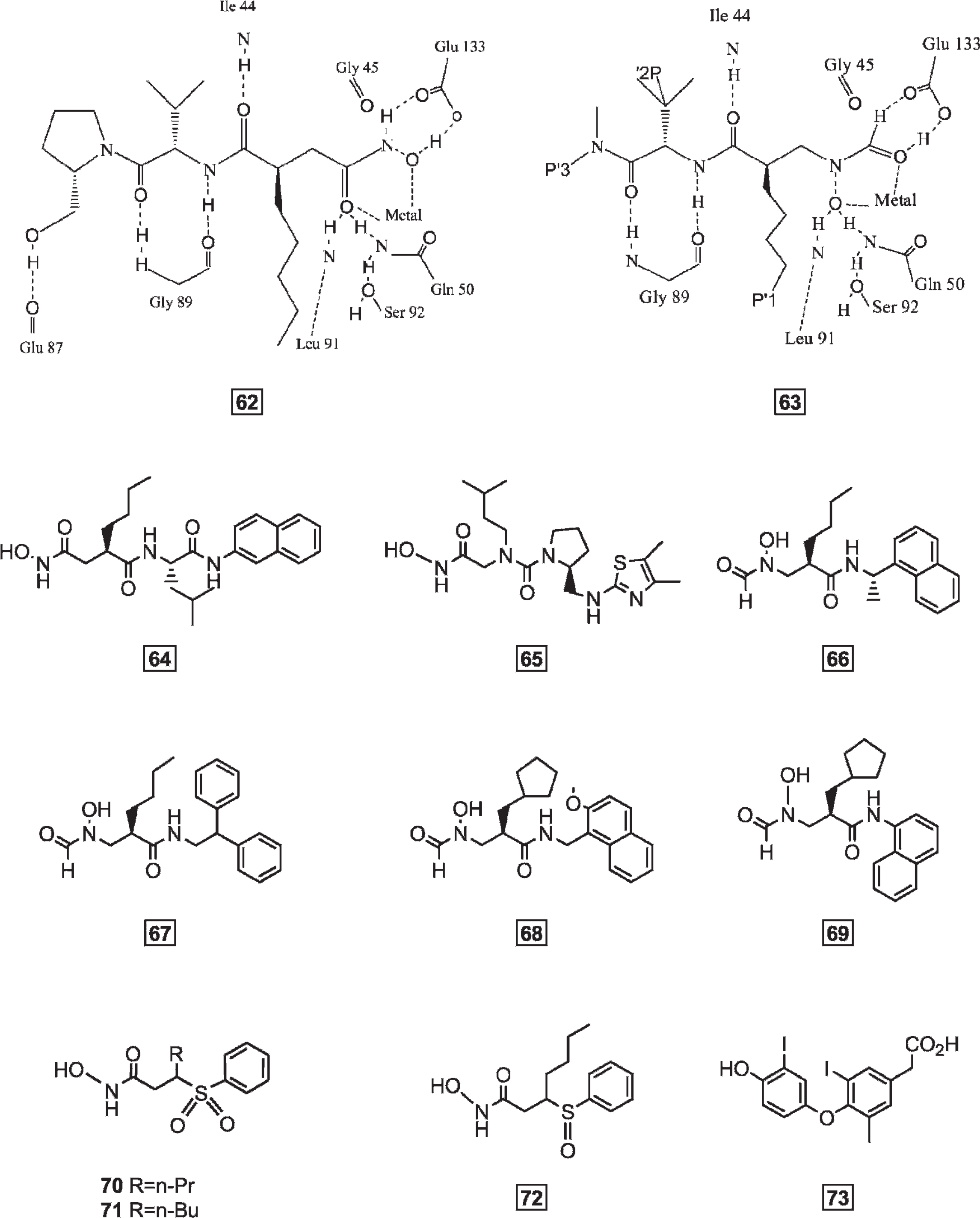

Figure 4.

Structures of antibacterial peptides 62–73.

Limitations of Nuclear Medicine Imaging Techniques

Nuclear medicine procedures can be time consuming. It can take hours to days for the radiotracer to accumulate in the part of the body under study, and imaging may take up to several hours to perform, although in some cases, newer equipment is available that can substantially shorten the procedure time. But at the same time, nuclear medicine techniques have become of the utmost importance in evaluating patients with infection and inflammatory diseases. SPECT and PET are accurate methods for diagnosing infection and related abnormalities but often do not provide the anatomic landmarks needed to precisely localize lesions. MRI and CT, on the other hand, offer excellent anatomic detail but are less sensitive because they do not provide functional detail. Fusion imaging combines functional studies with morphologic ones, overcoming the drawbacks of these existing modalities. Software-based fusion of independently performed scintigraphic and radiologic images has proven time consuming and impractical for routine use. Recently, dual-modality integrated imaging systems (SPECT/CT and PET/CT) have been developed. Although these are in their nascent stages, they provide great hope in the field of nuclear medicine for imaging infection and inflammation.

Conclusions

During the last several decades, a gradual shift has taken place in the field of nuclear medicine from basic to advanced techniques (radiolabeled leukocytes) to more intelligent approaches based on small agents that bind to their targets with high affinity. Classes of agents can be designed to specifically distinguish between infection and noninfectious inflammation and between acute and chronic processes. Antifungal/antibacterial drug research has grown considerably over the past decade. The use of the currently available azoles in combination with other antifungal agents with different mechanisms of action is also likely to provide enhanced efficacy. ^99mTc as a radionuclide offers several advantages, as already mentioned in this review; however, many more can still be explored. Labeled leukocytes provide the greatest specificity to identify infection but have the limitation that they are most sensitive to detect acute inflammation, that is, the inflammatory response dominated by polymorphonuclear leukocytes (granulocytes). Chronic and acute inflammation are nevertheless readily detectable with either ⁶⁷Ga-citrate or ¹⁸F-FDG because the accumulation of both occurs with localized pH reduction. It is appropriate to briefly consider the choice or preference between these two tracers and the differences observed between ¹¹¹In- and ^99mTc-labeled leukocytes. A summarized list is given on the basis of their mechanism of action in Table 10. Although a shorter radionuclide half-life is favorable because it allows for the administration of a larger dose, labeling with high specific activity will reduce the doses used so that undesirable agonistic activities will become nonexistent. At present, however, although ¹⁸F-FDG is available as an imaging agent for neurologic, oncologic, and cardiac indications, it is not yet approved as an agent for the identification of inflammatory/infectious foci. Having said this, it should be mentioned that positron-emitting isotopes have enormous potential for inflammation imaging owing to their ability to be used with various tracers with different specificities and the long time spans necessary for imaging and diagnosis.

Table 10.

Known Radiopharmaceuticals for Inflammation/Infection Imaging

Radiopharmaceutical	Mechanism	Comments
⁶⁷Ga-citrate	Increased capillary permeability of radiolabeled proteins and small molecules	⁶⁷Ga binds to transferrin in blood
¹¹¹In-human IgG (HIG)		Nonspecific IgG immunoglobulin
^99mTc-HYNIC-IgG (HIG)		Nonspecific IgG immunoglobulin
^99mTc-anti-NCA-90 Fab = (LeukoScan)¹¹⁷		Antigranulocyte antibody with no in vivo binding to leukocytes in blood
^99mTc-anti-NCA-95 IgG (BW 250/183)		Antigranulocyte antibody with no in vivo binding to leukocytes in blood
^99mTc-albumin nanocolloids		Nonspecific uptake
^99mTc-MDP	Vasodilation and hyperemia Target specific Cellular migration	Nonspecific flow tracer
¹¹¹In-oxine-labeled leukocytes		Autologous leukocytes labeled in vitro
^99mTc-HMPAO-labeled leukocytes		Autologous leukocytes labeled in vitro
¹⁸F-FDG-labeled leukocytes		Autologous leukocytes labeled in vitro
^99mTc-anti-SSEA-1 (LeuTech)^{10, 15}		Antigranulocyte IgM antibody labels leukocytes in the blood after injection
¹⁸F-FDG	Metabolic trapping	Increased glucose use by activated leukocytes and microbes
¹²³I and ^99mTc-labeled interleukin-2^118,119	Receptor binding	Specific binding to activated lymphocytes
¹²³I- and ^99mTc-labeled interleukin-8^120,121		Specific binding to receptors (CXCR1, CXCR2) on granulocytes and promotes chemotaxis
^99mTc-ciprofloxacin (Infecton)	Specific binding to microbes	Specific binding to DNA gyrase in viable bacteria

DNA = deoxyribonucleic acid; FDG = fluorodeoxyglucose; HMPAO = hexamethylpropyleneamine oxime; MDP = methylene diphosphonate; NCA = nonspecific cross-reacting antigen; SSEA = stage-specific embryonic antigen.

Footnotes

Acknowledgments

We would like to thank Dr. R.P. Tripathi, director, Institute of Nuclear Medicine and Allied Sciences, for providing all of the facilities as well as support during the writing of the manuscript. We also thank Dr. Anupama Datta for valuable discussions on the subject.

Financial disclosure of authors and reviewers: None reported.

References

Bleeker-Rovers

Vos

Corstens

FHM

. Imaging infection and inflammation. In: Schiepers

, editor. Germany, Los Angeles: Springer; 2007. p. 347–59.

Chinen

Shearer

. Advances in basic and clinical immunology. J Allergy Clin Immunol 2011;127:336–41, doi:10.1016/j.jaci.2010.11.042.

Weidner

Anderson

. Evaluation of acute and chronic bacterial prostatis and diagnostic management of chronic prostatis/chronic pelvic pain syndrome with special reference to infection/inflammation. Int J Antimicrob Agents 2008;31:91–5, doi:10.1016/j.ijantimicag.2007.07.044.

Elgazzar

Elmonayeri

. Pathopysiologic basis of nuclear medicine. Inflamation. In: Elgazzar

Abdelhamid H.

, editor. Berlin: Springer-Verlag; 2006. p. 67–89.

Ranklin

. Biologic mediators of acute inflammation. Clin Issues 2004;15:3–17, doi:10.1097/00044067-200401000-00002.

Reuter

Gupta

Chaturvedi

Aggarwal

. Oxidative stress, inflammation, and cancer: how are they linked? Free Radic Biol Med 2010;49:1603–16, doi:10.1016/j.freeradbiomed.2010.09.006.

Gupta

Prasad

Reuter

. Modification of cysteine 179 of IκBα kinase by nimbolide leads to down-regulation of NF-κB-regulated cell survival and proliferative proteins and sensitization of tumor cells to chemotherapeutic agents. J Biol Chem 2010;285:35406–17, doi:10.1074/jbc.M110.161984.

Gupta

Sundaram

Reuter

Aggarwal

. Inhibiting NF-κB activation by small molecules as a therapeutic strategy. Biochim Biophys Acta 2010;1799:775–87.

Gupta

Kim

Prasad

Aggarwal

. Regulation of survival, proliferation, invasion, angiogenesis, and metastasis of tumor cells through modulation of inflammatory pathways by nutraceuticals. Cancer Metastasis Rev 2010;29:405–34, doi:10.1007/s10555-010-9235-2.

10.

Medina

Hung

Timothy

. Indium-111 leukocyte scintigraphy aids in diagnosis of tubo-ovarian abscess. Clin Nucl Med 2011;4:300–2.

11.

Wanahita

Villeda

Kutka

. Diagnostic sensitivity and specificity of the radionuclide (indium)-labelled leukocytes scan. J Infect 2007;55:214–9, doi:10.1016/j.jinf.2007.04.352.

12.

Datz

Morton

. New Radiopharmaceuticals for Detecting Infection. Prog Clin Radiol 1993;28:356–65.

13.

Klett

Kordell

Stahl

. Immunoscintigraphy of septic loosening of knee endoprosthesis: a retrospective evaluation of the antigranulocyte antibody BW 250/183. Eur J Nucl Med Mol Imaging 2003;20:1463–6, doi:10.1007/s00259-003-1275-1.

14.

Passalaqua

Klein

Wegener

. Diagnosing suspected acute nonclassic appendicitis with sulesomab, a radiolabeled antigranulocyte antibody imaging agent. J Pediatr Surg 2004;39:1338–44, doi:10.1016/j.jpedsurg.2004.05.019.

15.

Kipper

Rypins

Evans

. Neutrophil-specific ^99mTc labeled anti-CD-15 monoclonal antibody imaging for diagnosis of equivocal appendicitis. J Nucl Med 2000;41:449–55.

16.

Babich

Graham

Barrow

. Technetium-99m-Labeled Chemotactic Peptides: Comparison with Indium-111-Labeled White Blood Cells for Localizing Acute Bacterial Infection in the Rabbit. J Nucl Med 1993;34:2176–81.

17.

Bleeker-Rovers

Rennen

HJJM

Boerman

. ^99mTc-labeled interleukin-8 for the scintigraphic detection of infection and inflammation. J Nucl Med 2007;48:337–43.

18.

Visser

Bakker

. ^99mTc-labeled interleukin 8 for the scintigraphic detection of infection and inflammation: first clinical evaluation. J Nucl Med 2007;48:337–43.

19.

Palestro

Love

. Radionuclide imaging of musculoskeletal infection: conventional agent. Semin Musculoskelet Radiol 2007;11:335–52, doi:10.1055/s-2008-1060336.

20.

Hakim

Bruecker

Jacobsen

. The value of FDG-PET and bone scintigraphy with SPECT in the primary diagnosis and follow-up of patient with chronic osteomylitis of the mandible. Int J Oral Maxillofac Surg 2006;35:809–16, doi:10.1016/j.ijom.2006.03.029.

21.

Ballani

Al-Huda

Khan

. The value of quantitative uptake of ^99mTc-MDP and ^99mTc-HMPAO white blood cells in detecting osteomyelitis in violated peripheral bones. J Nucl Med Technol 2007;35:91–5, doi:10.2967/jnmt.106.035402.

22.

Horger

Eschmann

Pfannenberg

. Added value of SPECT/CT in patients suspected of having bone infection: prelimnary results. Arch Orthop Trauma Surg 2007;127:211–21, doi:10.1007/s00402-006-0259-6.

23.

Vinjamuri

Hall

Solanki

. Comparison of ^99mTc infection imaging with radiolabelled white-cell imaging in the evaluation of bacterial infection. Lancet 1996;347:233–5, doi:10.1016/S0140-6736(96)90407-9.

24.

Britton

Wareham

Das

. Imaging bacterial infection with 99mTc- ciprofloxacin (infecton). J Clin Pathol 2002;55:817–23, doi:10.1136/jcp.55.11.817.

25.

Singh

Mittal

Aggarwal

. Technetium-99m ciprofloxacin imaging in the diagnoses of post surgical bony infection and evaluation of the responces to antibiotic therapy: a case report. J Orthop Surg 2005;13:190–4.

26.

Sonmezoglu

Halac

. Usefulness of ^99mTc-ciprofloxacin (Infecton) scan in diagnosis of chronic orthopedic infections: comparative study with 99mTc-HMPAO leukocyte scintigraphy. J Nucl Med 2001;42:567.

27.

Yapar

Kibar

Yapar

. The efficacy of technetium-99m ciprofloxacin (Infecton) imaging in suspected orthopaedic infection: a comparison with sequential bone/gallium imaging. Eur J Nucl Med 2001;28:822, doi:10.1007/s002590100555.

28.

Larikka

Ahonen

Niemela

. Comparison of ^99mTc ciprofloxacin, ^99mTc white blood cell and three-phase bone imaging in the diagnosis of hip prosthesis infections: improved diagnostic accuracy with extended imaging time. Nucl Med Commun 2002;23:655, doi:10.1097/00006231-200207000-00010.

29.

Sarda

Cremieux

Lebellec

. Inability of ^99mTc-ciprofloxacin scintigraphy to discriminate between septic and sterile osteoarticular diseases. J Nucl Med 2003;44:920–6.

30.

De Schrijver

Streule

Senekowitsch

Fridrick

. Scintigraphy of inflammation with nanometer-sized colloidal tracers. Nucl Med Commun 1987;8:895–908, doi:10.1097/00006231-198711000-00007.

31.

Streule

DeSchrijver

Fridrich

. ^99mTc-labelled HSA-nanocolloid versus ¹¹¹In oxine-labelled granulocytes in detecting skeletal septic process. Nucl Med Commun 1988;9:59–67, doi:10.1097/00006231-198801000-00011.

32.

Comacchio

D'Eredita

Bison

. Value of Tc^99m-nanocolloid SPECT in diagnosis and follow-up of necrotizing external otitis. Acta Otorhinolaryngol Ital 1993;13:517–24.

33.

Basu

Zhuang

Torigian

. Functional imaging of inflammatory diseases using nuclear medicines techniques. Semin Nucl Med 2009;39:124–45, doi:10.1053/j.semnuclmed.2008.10.006.

34.

Awasthi

Goins

McManus

. Technetium-99m liposomes for localizing experimental colitis in a rabbit modal. Nucl Med Biol 2003;30:159–68, doi:10.1016/S0969-8051(02)00419-5.

35.

Saha

de Kerviller

. Basics of PET imaging. J Radiol 2006;87:n719, doi:10.1016/S0221-0363(06)77434-0.

36.

Boerman

Strom

Oyen

WJG

. Sterically stabilized liposomes labeled with indium-111 to image focal infection. J Nucl Med 1995;36:1639–44.

37.

Chow

Lin

Hwang

. Diagnostic and therapeutic evaluation of ¹¹¹In-vinorelbine-liposomes in a human colorectal carcinoma HT-29//uc-bearing animal model. Nucl Med Biol 2008;35:623–34, doi:10.1016/j.nucmedbio.2008.04.001.

38.

Cornelis

JJM

Sikkink Michel

MPJ

. Tc-99m-PEG-liposomes target both adhesion and abscesses and their reduction by hyaluronate in rats with fecal peritonitis. J Surg Res 2009;39:124–45.

39.

Awasthi

Goins

Klipper

Philipps

. Dual radiolabeled liposomes: biodistribution studies and localization of focal sites of infection in rats. Nucl Med Biol 1998;25:155–60, doi:10.1016/S0969-8051(97)00162-5.

40.

Sciuk

Brandau

Vollet

. Comparison of technetium-99m polyclonal human immunoglobulin and technetium 99m monoclonal antibodies for imaging chronic osteomyelitis. Eur J Nucl Med 1991;8:401–7, doi:10.1007/BF02258431.

41.

Palestro

Caprioli

Love

. Rapid diagnosis of pedal osteomyletis in diabetic with a technetium-99m-labeled monoclonal antigranulocytes antibody. J Foot Ankle Surg 2003;42:2–88, doi:10.1053/jfas.2003.0420001.

42.

Calame

Feitsma

HIJ

Ensing

. Detection of a local staphylococcal infection in mice with technetium-99m-labeled polyclonal human immunoglobulin. J Nucl Med 1991;32:468–74.

43.

Thakur

Defulvio

Park

. Technetium-99m labelled proteins for imaging inflammatory foci. Nucl Med Biol 1991;18:605–12.

44.

Blok

Van Ogtrop

Arndt

. Feasibility study of radioimmunoguided surgery of colorectal carcinomas using indium-111 CEA-specific monoclonal antibody. Eur J Nucl Med 1990;16:303–5, doi:10.1007/BF00842784.

45.

Jung

Kim

Jung

. A polydiacetylene microchip based on a biotin-streptavidin interaction for the diagnosis of pathogen infections. Small 2008;4:1778–84.

46.

Thakur

Marcus

Henneman

. Imaging inflammatory diseases with neutrophil-specific technetium-99m-labeled monoclonal antibody anti-SSEA-1. J Nucl Med 1996;37:1789–95.

47.

Gupta

Wilkinson

Bogdanov

Jr . Inflammation: imaging with methoxy poly(ethylene glycol)-poly-L-lysine-DTPA, a long-circulating graft copolymer. Radiology 1995;197:665–9.

48.

Murugesan

Shetty

Srivastava

. A technetium-99m-labelled cyclam acid porphyrin (CAP) for tumour imaging. Appl Radiat Isot 2001;55:641–6, doi:10.1016/S0969-8043(01)00113-0.

49.

Rubin

Fishman

. The use of radiolabeled non-specific immunoglobulin in the detection of local inflammation. Semin Nucl Med 1994;24:169–79, doi:10.1016/S0001-2998(05)80230-2.

50.

Nijhof

Oyen

Van Kampen

. Evaluation of infections of the locomotor system with indium-111-labelled human IgG scintigraphy. J Nucl Med 1997;38:1300–5.

51.

Liberatore

Clemente

Lurilli

. Scintigraphic evaluation of disease activity in rheumatoid arthritis: a comparison of Tc-99m human non-specific immunoglobulin, leukocytes and albumin nanocolloids. Eur J Nucl Med 1992;19:853–7, doi:10.1007/BF00168160.

52.

Buscombe

Oyen

WJG

Grant

. Indium-111-labeled human polyclonal immunoglobulin: identifying focal infection in patients positive for human immunodeficiency virus (HIV). J Nucl Med 1993;34:1621–5.

53.

Mairal

Lima

Martin Comin

. Simultaneous administration of ¹¹¹In-human immunoglobulin and 99mTc-HMPAO labeled leukocytes in inflammatory bowel disease. Eur J Nucl Med 1995;22:664–70, doi:10.1007/BF01254568.

54.

Samuel

Paganelli

Chiesa

. Detection of prosthetic vascular graft infection using avidin/indium-111-biotin scintigraphy. J Nucl Med 1996;37:55–61.

55.

Rusckowski

Paganelli

Hnatowich

. Imaging osteomyelitis with streptavidin and indium-111-labeled biotin. J Nucl Med 1996;37:1655–62.

56.

Ercan

Schneidereit

Senekowitsch

Kriegel

. Evaluation of ^99mTc-dextran as a lymphoscintigraphic agent in rabbits. Eur J Nucl Med 1985;11:80–4, doi:10.1007/BF00252139.

57.

Henze

Robinson

Kuhl

Schelbert

. Tc-99m dextran: a new blood-pool-labeling agent for radionuclide angiocardiography. J Nucl Med 1982;23:348–53.

58.

Ercan

Ünlenen

. Accumulation of some small molecular weight complexes of ^99mTc in experimental abscesses. Nucl Med Biol 1994;21:143–9, doi:10.1016/0969-8051(94)90002-7.

59.

Bhatnagar

Singh

Shankar

. ^99mTc-dextran: a potential inflammation-seeking radiopharmaceutical. Nucl Med Commun 1995;16:1058–62, doi:10.1097/00006231-199512000-00011.

60.

Bhatnagar

Mishra

Singh

. Scintiscan demonstration of localized bowel loop inflamation: comparison of Tc-99m dextran, Tc-99m citrate and Tc-99m human immunoglobulin G. Clin Nucl Med 1996;21:685–8, doi:10.1097/00003072-199609000-00003.

61.

Bhatnagar

Singh

. Inflammation imaging using Tc-99m dextran. Clin Nucl Med 1998;23:123–4, doi:10.1097/00003072-199802000-00021.

62.

Lahoti

Bhatnagar

Singh

. Tc-99m dextran: a new and sensitive general purpose scintigraphic agent for diagnosing intestinal inflammation. Clin Nucl Med 1999;24:424–7, doi:10.1097/00003072-199906000-00010.

63.

Xiong

Chen

. In vitro evaluation of apoptosis with 99m Tc-glucoheptonate. J Nucl Med 2007;23:250–4.

64.

Delcourt

Huglo

Prangere

. Comparison between Leukoscan (Sulesomab) and Ga-67 for the diagnosis of osteomyelitis in the diabetic foot. Diabetes Metab 2005;31:125–33, doi:10.1016/S1262-3636(07)70178-7.

65.

Palestro

. The current role of gallium imaging in infection. Semin Nucl Med 1994;24:128–41, doi:10.1016/S0001-2998 (05)80227-2.

66.

Collery

Keppler

Madoulet

Desoize

. Gallium in cancer treatment. Crit Rev Oncol Hematol 2002;42:283–96, doi:10.1016/S1040-8428(01)00225-6.

67.

Seabold

Nepola

Conrad

. Detection of osteomyelitis at fracture nonunion sites: comparison of two scintigraphic methods. AJR Am J Roentgenol 1989;152:1021–7.

68.

Ercan

Gülald

NCM

Ünsal

. Evaluation of Tc-99m(V) DMSA for imaging inflammatrory lesions: an experimental study. Ann Nucl Med 1996;10:419–23, doi:10.1007/BF03164803.

69.

Chauhan

UPS

Babbar

Kashyap

Prakash

. Evaluation of a DMSA kit for instant. Nucl Med Biol 1992;19:825–30.

70.

Hitzel

Liard

Dacher

J-N

. Quantitative analysis of 99mTc-DMSA during acute pyelonephritis for prediction of long-term renal scarring. J Nucl Med 2006;45:285–9.

71.

Siomou

Giapros

Fotopoulos

. Implications of 99m Tc-DMSA scintigraphy performed during urinary tract infection in neonates. Pediatrics 2009;124:881–7, doi:10.1542/peds.2008-1963.

72.

Palestro

Love

Schneider

. The evolution of nuclear medicines and the musculoskeletal system. Radiol Clin North Am 2009;47:505–32, doi:10.1016/j.rcl.2009.01.006.

73.

Gross

Kaim

Ragazzoni

Widmer

. Current concept in posttraumatic osteomyelitis: a diagnostic challenge with new imaging option. J Trauma 2002;52:1210–9, doi:10.1097/00005373-200206000-00032.

74.

Love

Tomas

Tronco

Palestro

. FDG PET of infection and inflammation. Radiographics 2005;25:1357–68, doi:10.1148/rg.255045122.

75.

Bleeker-Rovers

Vos

Muddle

. A prospective multicenter study of the value of FDG-PET as a part of structured diagnostic protocol in patients with fever of unknown origin. Eur J Nucl Med Mol Imaging 2007;34:694–703, doi:10.1007/s00259-006-0295-z.

76.

Lan

Zhang

. The value of dual time point 18F-FDG PET imaging for the differentiation between malignant and benign lesions. Clin Radiol 2008;63:756–64, doi:10.1016/j.crad.2008.01.003.

77.

Warwick

Sathekge

. PET/CT scanning with a high HIV/AIDS prevalence. Transfusion and apheresis. Science 2011;44:167–72.

78.

Sugawara

Braun

Kison

. Rapid detection of human infections with fluorine-18 fluorodeoxyglucose and positron emission tomography: preliminary results. Eur J Nucl Med 1998;25:1238–43, doi:10.1007/s002590050290.

79.

Ichiya

Kuwabara

Sasaki

. FDG-PET in infectious lesions: the detection and assessment of lesion activity. Ann Nucl Med 1996;10:185–91, doi:10.1007/BF03165391.

80.

Hammoud

Endres

Hammond

. Imaging serotonergic transmission with [¹¹C]DASB-PET in depressed and non-depressed patients infected with HIV. Neuroimage 2010;49:2588–95, doi:10.1016/j.neuroimage.2009.10.037.

81.

Sugawara

Braun

Kison

. Rapid detection of human infections with fluorine-18 fluorodeoxyglucose and positron emission tomography: preliminary results. Eur J Nucl Med 1998;25:1238–43, doi:10.1007/s002590050290.

82.

Hitchings

Elion

Vander Werff

. Pyrimidine derivatives as antagonists of pteroylglutamic acid. J Biol Chem 1948;174:765.

83.

Weinstein

. Pharmacological Basis of Therapeutics. 5th ed. Antimicrobial agents. In: Goodman

Gilman

, editors. New York: Macmillan; 1975. p. 1105–19.

84.

Godio

Fouces

Martín

. A Squalene epoxidase is involved in biosynthesis of both the antitumor compound clavaric acid and sterols in the basi domycetes H. sublateritium, Chem Biol, 2007;14:1334–46.

85.

Sorensen

Sobel

Clemons

. Comparison of fluconazole and itraconazole in a rabbit model of coccidioidal meningitis. Antimicrob Agents Chemother 2000;44:1512–7, doi:10.1128/AAC.44.6.1512-1517.2000.

86.

Kyle

Dahl

. Topical therapy for fungal infections. Am J Clin Dermatol 2004;5:443–51.

87.

Georgopapadakou

Walsh

. Antifungal agents: chemotherapeutic targets and immunologic strategies Antimicrob Agents Chemother 1996;40:279–91.

88.

Bastert

Schaller

Kortingand

Evans

EGV

. Current and future approaches to antimycotic treatment in the era of resistant fungi and immunocompromised hosts. Int J Antimicrob Agents 2001;17:81–91, doi:10.1016/S0924-8579(00)00323-X.

89.

Ekiert

Krzek

Talik

. Chromatographic and electrophoretic techniques used in analysis of triazole antifungal agents. Talanta 2010;82:1090–100, doi:10.1016/j.talanta.2010.06.056.

90.

Andes

. Antifungal pharmokinetics and pharmacodynamics: understanding the implications for antifungal drug resistance. Drug Resist Updat 2004;7:185–94, doi:10.1016/j.drup.2004.06.002.

91.

Lupetti

Welling

Pauwels

Nibbering

. Radiolabelled antimicrobial peptides for infection detection. Lancet Infect Dis 2003;3:223–9, doi:10.1016/S1473-3099(03)00579-6.

92.

Ferro-Flores

Arteaga de Murphy

Pedraza-Lopez

. In vitro and in vivo assessment of ^99mTc-UBI specificity for bacteria. Nucl Med Biol 2003;30:597–603, doi:10.1016/S0969-8051(03)00054-4.

93.

Welling

Paulusma-Annema

Balter

. Technetium-99m labeled antimicrobial peptides discriminate between bacterial infections and sterile inflammations. Eur J Nucl Med 2000;27:292, doi:10.1007/s002590050036.

94.

Sarda-Mantel

Saleh-Mghir

Welling

. Evaluation of ^99mTc-UBI 29-41 scintigraphy for specific detection of experimental Staphylococcus aureus prosthetic joint infection. Eur J Nucl Med Mol Imaging 2007;34:1302–9, doi:10.1007/s00259-007-0368-7.

95.

Welling

Nibbering

Paulusma-Annema

. Imaging of bacterial infections with 99mTc-labeled human neutrophil peptide-1. J Nucl Med 1999;40:2073.

96.

Boman

. Antibacterial peptides: basic facts and emerging concepts. J Intern Med 2003;254:197, doi:10.1046/j.1365-2796.2003.01228.x.

97.

Okumura

. Cathelicidins—therapeutic antimicrobial and antitumor host defence peptides for oral diseases. Jpn Dent Sci Rev 2011;47:67–81, doi:10.1016/j.jdsr.2010.11.001.

98.

Bucki

Janmey

. Interaction of the gelsolin-derived antibacterial PBP 10 peptide with lipid bilayers and cell membranes. Antimicrob Agents Chemother 2006;50:2932, doi:10.1128/AAC.00134-06.

99.

Oren

Lerman

Gudmundsson

. Structure and organization of the human antimicrobial peptide LL-37 in phospholipid membranes: relevance to the molecular basis for its non-cell-selective activity. Biochem J 1999;341:501, doi:10.1042/0264-6021:3410501.

100.

Ogasawara

Kuroki

Akino

. Pulmonary surfactant protein D specifically binds to phosphatidylinositol. J Biol Chem 1992;267:21244.

101.

Hong

Lee

. Effect of D-amino acid substitution on the stability, the secondary structure, and the activity of membrane-active peptide. Biochem Pharmacol 1999;58:1775, doi:10.1016/S0006-2952(99)00259-2.

102.

Pei

. Peptide deformylase: a target for novel antibiotics. Emerg Ther Targets 2001;5:23, doi:10.1517/14728222.5.1.23.

103.

Leeds

Dean

. Peptide deformylase as an antibacterial target: a critical assessment. Curr Opin Pharmacol 2006;6:445–52, doi:10.1016/j.coph.2006.06.003.

104.

Mona

D Lee

Antczak

Yueming

. A new human peptide deformylase inhibitable by actinonin. Biochemical and Biophysical Research Communications 2003;312:309–15.

105.

Hosseini

Karimian

Mousavinasa

. Xenoderm versus 1% silver sulfadiazine in partial-thickness burns. Asian J Surg 2009;32:234–9, doi:10.1016/S1015-9584(09)60400-0.

106.

Valderas

Andi

Barrow

Cook

. Examination of intrinsic sulfonamide resistance in bacillus anthracis: a novel assay for dihydropteroate synthase. Biochim Biophys Acta 2008;1780:848–53.

107.

De Benedetti

Rostelli

Frassiniti

Cennamo

. Structure-activity relationships in dihydropteroate synthase inhibition by sulfanilamides. Comparison with the antibacterial activity. J Med Chem 1981;24:454, doi:10.1021/jm00136a015.

108.

Burri

Greiveldinger-Poenaru

Islam

. PCT Int Appl WO 02 10, 156.

109.

Gangjee

Adair

Queener

. Synthesis of 2,4-diamino-6-(thioarylmethyl)pyrido[2,3-d]pyrimidines as dihydrofolate reductase inhibitors. Bioorg Med Chem 2001;9:2929, doi:10.1016/S0968-0896(01)00223-1.

110.

El Kolli

Mahamoud

Coulibaly

. Synthesis of new 5-aminoorotic acid derivatives as antimicrobial agents. Heterocycl Commun 1996;2:531.

111.

Ghosh

Mukherjee

. 4-Bis (2aryloxy)pyrimidines as antimicrobial agents. J Med Chem 1968;11:1237, doi:10.1021/jm00312a036.

112.

Pluta

Gubrynowicz

Cieplik

. Synthesis and biological properties of 4-hydroxy, 4-thio-5-pyrimidine derivatives. Boll Chim Farm 1999;138:30.

113.

Wada

Kumaki

Moriguchi

. Synthesis of antibacterial agents having both sulfanilamido- and nitrofuryl- groups in the molecules I. Chem Pharm Bull 1969;17:2168.

114.

Claude

Fulmer

. Folic acid analogs. Modifications in the benzene-ring region. 2′- and 3′-azafolic acids. J Med Chem 1971;14:125, doi:10.1021/jm00284a010.

115.

Chaszczewska-Markowska

Stebelska

Sikorski

. Liposomal formulation of 5-fluorocytosine in suicide gene therapy with cytosine deaminase for colorectal cancer. Cancer Lett 2008;262:164–72, doi:10.1016/j.canlet.2007.12.006.

116.

Khare

Becker

Naider

. Synthesis and anticandidal properties of polyoxin L analogs containing alpha-amino fatty acids. J Med Chem 1998;31:650, doi:10.1021/jm00398a027.

117.

Barron

Hanna

Passalaqua

. Rapid diagnostic imaging of acute, nonclassic appendicitis by leukoscintigraphy with sulesomab, a technetium-99m-labeled antigranulocyte antibody Fab′ fragment. Surgery 1999;125:288–96, doi:10.1016/S0039-6060(99)70239-4.

118.

Signore

Chianelli

Annovazi

. ¹²³I-interleukin-2 scintigraphy for in vivo assessment of interstitial mononuclear cell infiltration in Crohn's disease. J Nucl Med 2000;41:242–9.

119.

Procaccini

Chianelli

Pantano

. Imaging of autoimmune disease. Q J Nucl Med 2003;43:100–12.

120.

Rennen

Boerman

Oyen

. Kinetics of ^99mTc-labeled interleukin-8 in experimental inflammation and infection. J Nucl Med 2003;44:1502–9.

121.

Bleeker-Rovers

Rennen

HJJM

Boerman

. ^99mTc-labeled interleukin-8 for the scintigraphic detection of infection and inflammation. J Nucl Med 2007;48:337–43.
