Wavelet-domain human activity recognition utilizing convolutional neural networks

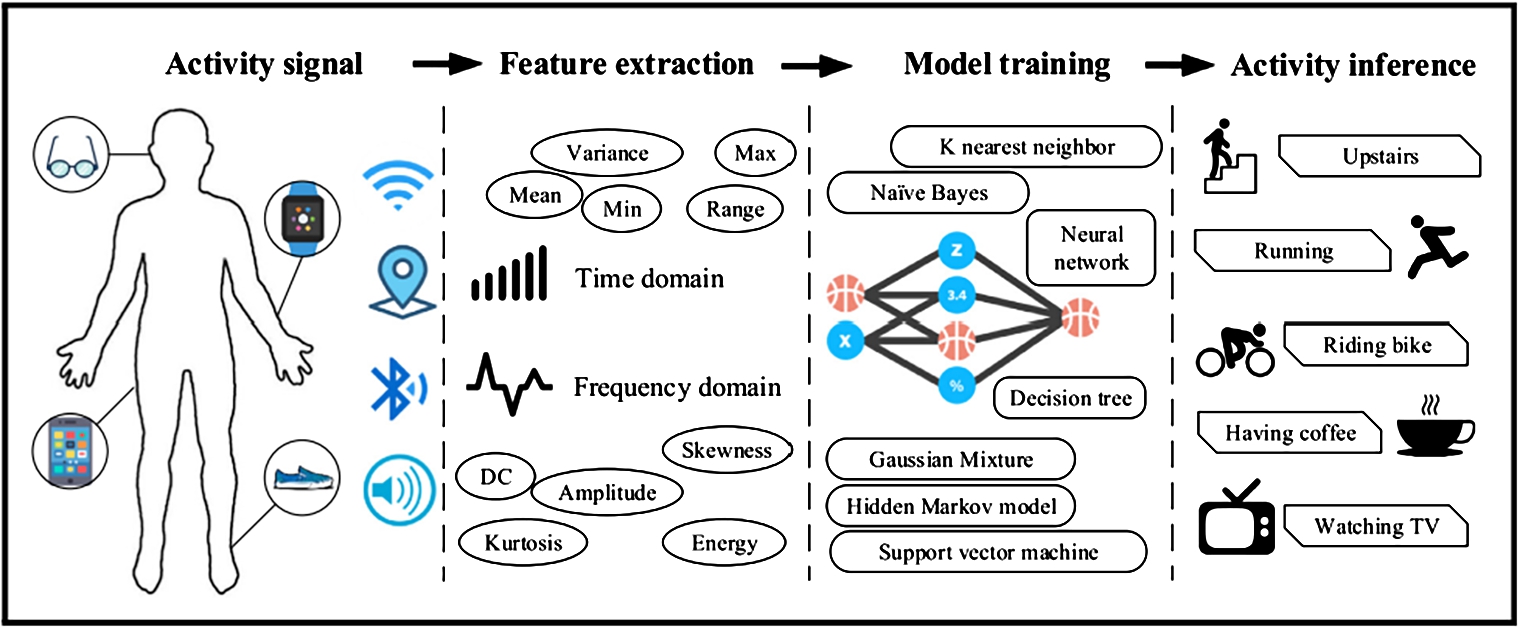

2.1. Manual feature extraction in time and frequency domains

Various statistical features in the time domain are commonly used for human activity recognition, such as mean, median, variance, and other order statistical moments like skewness and kurtosis. In addition to these statistics, other features, including percentiles, auto-correlation coefficient, Pearson’s correlation coefficient, as well as linear and quadratic regression coefficients, have been used in [30]. Furthermore, features such as the average absolute difference, average resultant acceleration, time between peaks, and binned distribution have been employed in [4].

The features mentioned above are dependent on the specific problem and may not be sufficient for detecting more complex activities. To overcome this limitation, researchers have explored features in the frequency domain. The Fourier transform is one of the most widely used transforms in this regard and has been employed in studies [13]. After applying the Fourier transform to the raw signal, features such as transform coefficients, energy, entropy, and DC components are extracted.

The Fourier transform can accurately extract the frequency characteristics of a signal but lacks information on when the frequency occurs. To retain information in the time domain, multi-resolution analysis methods such as the short-time Fourier transform and spectrograms are utilized. Laput and Harrison combined time-frequency spectral features with convolutional networks to achieve 95.2% classification accuracy over 25 atomic hand activities of 12 people [16]. Similarly, Fan et al. [7] proposed the development of time-angle spectrum frames to represent spectral power variations along time in different spatial angles of the RFID signals. Zheng et al. [35] proposed varying levels of interference to the spectrum of radio signals, capturing the crucial frequency variation over time. The method utilizes deep learning, employing short-time Fourier transform to transform the signals into the frequency domain. Augmented signals are reconstructed using inverse Fourier transform and used alongside the original signals to train a deep neural network.

2.2. Deep learning in human activity recognition

To overcome the limitations of manual methods of feature extraction, the use of deep neural networks for feature extraction has gained considerable attention. Various types of neural network structures have been utilized in human activity recognition, including deep feed-forward, recurrent, convolutional, generative, and hybrid models. These models are capable of automatically learning features that are most relevant to the recognition of human activities, without the need for human experts to manually extract features.

In their study, Hammerla et al. [11] compared the performance of deep feed-forward, convolutional, and recurrent networks in extracting features for HAR. The results indicated that convolutional and recurrent structures outperformed the feed-forward network. This is likely due to the fact that fully-connected networks typically have a large number of parameters and may not be optimal for feature extraction. Instead, they are often used for classification purposes.

Human activity recognition involves processing temporal data, making recurrent networks an attractive option due to their ability to handle sequential data. However, training recurrent networks can be challenging due to the issue of vanishing gradients, and they often require high computational resources. To optimize neural network performance, Edel et al. proposed a model where the weights of all layers were binary (0 or 1), which allowed for significant reductions in computation and memory usage while maintaining accuracy [6]. In addition, Yuan et al. introduced a recurrent neural network with multi-view attention mechanisms for multiple time series in [29], achieving promising results in the human activity recognition problem. Recently, several studies have proposed combinations of recurrent and convolutional networks for human activity recognition [18,20,28]. In Mutegeki et al. [20], raw signals were first filtered by a 1-D convolutional network, and then, the Long Short Term Memory (LSTM) network was used to extract temporal features. Li et al. [18] improved upon this approach by replacing the convolutional block with the residual convolutional block and using bidirectional LSTM cells instead of traditional ones. In contrast to these methods, Xia et al. [28] first extracted temporal features using an LSTM network, and then captured spatial features using a convolutional network.

Convolutional networks have several advantages over fully connected networks, including sparsity of connections, parameter sharing, and space-invariant representation. These networks have been successfully applied in audio and image processing tasks. To utilize convolutional networks in human activity recognition, the data dimensions and parameter sharing need to be considered. Wearable sensor data typically consist of one-dimensional time series data. There are two general approaches to preparing data for a convolutional network: data-driven and model-driven [26].

Data-driven methods consider the data of different sensors in separate time series. After applying one-dimensional convolution to these time series and merging them, classification is performed. An example of this method was examined in [31]. Parameter sharing between different sensors was examined in [10,31]. Chen et al. replaced the one-dimensional convolutional layer with a two-dimensional one and obtained better results compared to manual feature extraction and the use of classifiers such as the support vector machine [5]. However, data-driven methods do not consider the relationship between different sensors, which can impact the model’s performance.

Model-based methods consider the model to be constant and vary the data according to the model. In [13], different time series and their permutations are stacked line by line to yield a signal image. The Fourier transform is then applied to the image to obtain the signal image. Finally, feature extraction and classification are performed with a two-dimensional convolutional network. Although these methods outperform data-driven methods, they require expert knowledge to generate appropriate inputs.

To capture longer-term dependencies and increase the convolution kernel receptive field, dilated convolutional networks have been proposed. Hamad et al. [1] utilized a dilated causal convolutional network with a self-attention mechanism to reduce the number of convolutional network parameters. This approach allowed the model to learn both short-term and long-term temporal features efficiently while avoiding overfitting.

Tang et al. [25] proposed a triplet cross-dimension attention model for HAR that incorporated three attention parts to enable cross-interaction between sensor, temporal, and channel dimensions. The model was tested with different backbone structures, including simple and residual convolutional networks, and showed promising results. However, one of the main challenges of these methods is the complexity of the attention operation, which increases exponentially with larger input sizes. Zhang et al. [32] developed a system that combined the concept of CNN and attention mechanism for activity recognition using the data from a smartphone. Here, the attention is incorporated into multi-head CNNs that facilitate extracting and selecting features efficiently trained HAR models face a significant challenge in that the performance of the classifier is highly sensitive to the context of the sensor and engineered features. Rokni et al. [2] proposed personalizing their models with transfer learning. During training, a CNN is first trained with data collected from a few participants (source domain). During the test phase, only the top layers of the CNN are fine-tuned with a small amount of data for the target users (target domain). Annotation for target users is required. To address distribution discrepancies, a generative adversarial network (GAN) can also be used. Sah and Ghasemzadeh [23] demonstrated that activity recognition models are highly vulnerable to adversarial attacks and proposed a robust adversarial training model. Similarly Zheng et al. proposed DL-PR (Deep Learning with Priori Regularization), a deep learning method for automatic modulation classification (AMC) in cognitive radios. DL-PR incorporates a priori regularization that guides loss optimization during model training by increasing inter-class distance and reducing intra-class distance. This regularization factor utilizes inter-class confrontation, global divergence, and dimensional divergence [34].

2.3. Wavelet transform

Like other transforms, the wavelet transform is defined as continuous and discrete. The continuous wavelet transform is calculated using Eq. (1): (1) W x ( s , τ ) = 1 s ∫ − ∞ + ∞ x ( t ) Ψ ( t − τ s ) d t In Eq. (1), ψ is the mother function and W x ( s , τ ) is wavelet coefficient at scale s and shift τ. The Fourier transform decomposes the signal into sine and cosine waves at different frequencies. In the wavelet transform; however, the input signal is decomposed into different frequencies of the mother function.

3.1. Preprocessing and sample generation

The first step of the proposed approach is to generate samples from the raw signal. The raw signal is segmented into segments by a sliding window to form the set of samples. Depending on the evaluation method, these samples are then divided into training and testing samples for model training and testing. Sliding windows can be either full-non-overlapping or semi-non-overlapping. Since the semi-non-overlapping window generates more samples, this type of segmentation was used to generate the samples. Considering the iterative nature of the tasks and based on the recommendation of [14], the size of the sliding window is set to 5 seconds with a 50% overlap.

After generating the samples from the raw signal, the proposed approach generates an activity image by applying the wavelet transform with different sizes. The samples generated in the previous step include several time series, each corresponding to an axis of a sensor. The wavelet transform generates an image for each time series, with the horizontal axis representing time and the vertical axis denoting the frequency components. The number of frequency components is equal to the number of wavelet transform scales. The size of the horizontal axis is determined by the sampling frequency of the dataset and the size of the time window.

In this operation, the process is repeated for each time series, and the resulting images are stacked as separate channels to create a single activity image. To ensure consistency across different datasets, the image is converted into a square shape, where the vertical axis representing the wavelet transform scales remains constant, and the horizontal axis (time) is transformed into the number of scales using interpolation. Since the cost function used in the proposed method is dependent on the dimensions of the feature space, it is important to equalize the dimensions of the activity images from different datasets to enable comparison. Additionally, the design of the convolutional network should be adapted to accommodate different data dimensions.

For instance, the USC-HAD dataset contains 6 time series recorded at a frequency of 100 Hz. By applying the wavelet transform with 64 scales to each series, the resulting image will have dimensions of ( 64 , 500 , 6 ) . After converting the image into a square, the dimensions become ( 64 , 64 , 6 ) . This procedure generates an image for each sample that is used as input to the convolutional neural network. To illustrate, a sample image of the different channels for the activities of walking, running, and standing is presented in Fig. 2.

OPEN IN VIEWER

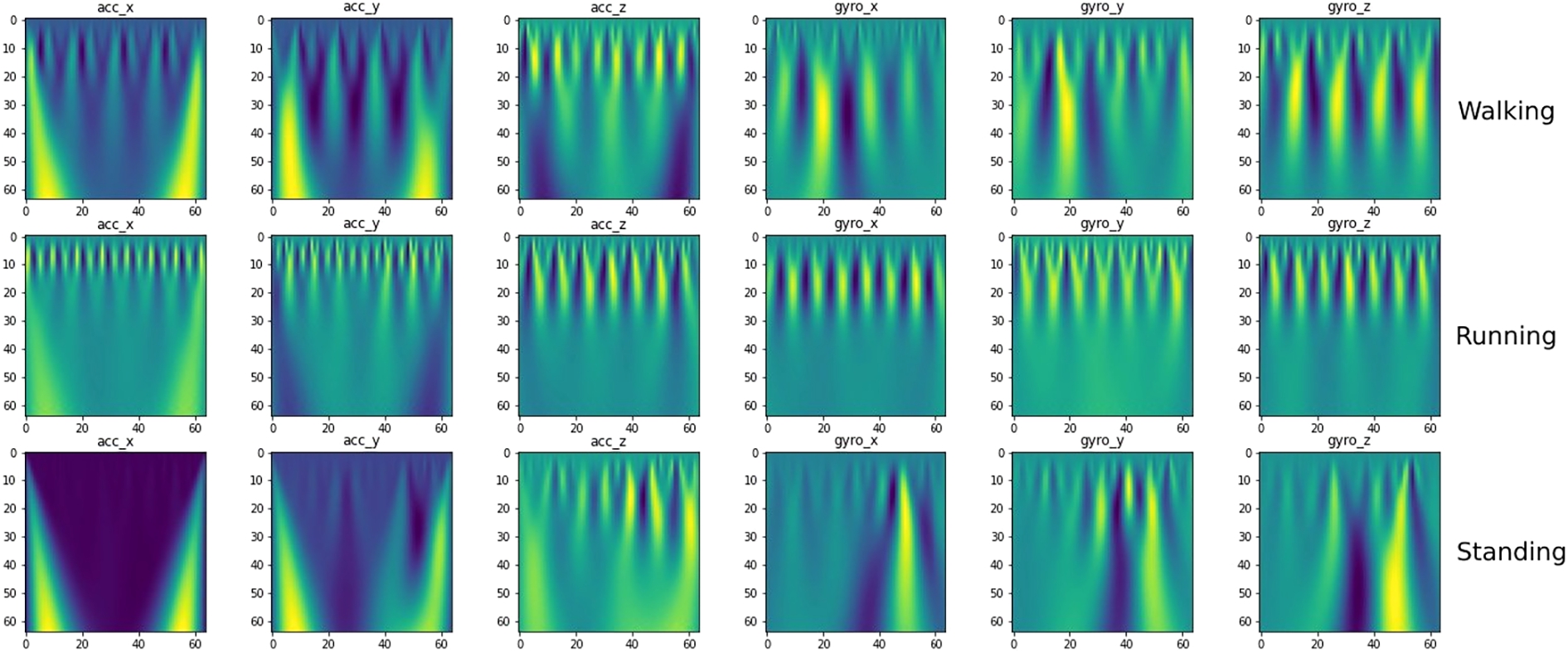

Fig. 2.

Sample activity images generated for walking, standing and running from USC-HAD dataset.

Given that the input is transformed into an image, the convolutional network is a good choice and is, therefore, used in the proposed method. The proposed structure consists of several convolutional blocks which are introduced below.

In each block, the input to the convolutional block is filtered by several 5*5 filters and the ReLU function is applied to them. Finally, a 2*2 maximum pooling layer extracts the most prominent features.

The proposed structure consists of five convolutional blocks, each with the same internal structure. For experiments with an input size of ( 64 , 64 , n channels ) , the last maximum pooling layer has a filter size of 4*4. When the input size is ( 32 , 32 , n channels ) , four convolutional blocks are used. Typically, the height and width of the image decrease during convolution and pooling layers, while the number of channels increases with network depth. In the proposed structure, the first block has 32 output filters, and the following blocks have 64, 128, 256, and 512 filters, respectively. Additionally, the height and width of the image are reduced per block in the maximum pooling layer. Figure 3 depicts the proposed convolutional network structure.

After the features are extracted by the convolutional blocks and converted into a one-dimensional vector, a 512-dimensional representation vector is created for each activity. A fully connected linear layer is then placed for the final classification. The number of outputs of this linear layer is equal to the number of activity classes, indicating the probability that the sample belongs to each class.

OPEN IN VIEWER

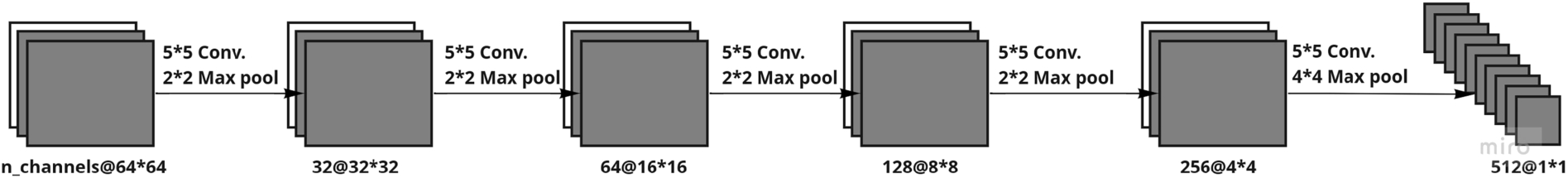

Fig. 3.

Proposed convolutional network.

The network structure and cost function are two factors that significantly impact the final performance of the model. To optimize the model’s performance, we developed a loss function based on the angular triplet centered loss (ATCL) proposed by Li et al. [19]. This cost function aims to train the model to generate feature representations that are more similar for samples belonging to the same class while keeping the representations of samples from different classes as far apart as possible. The class centers are defined as learnable parameters, enabling the distance between the centers to be maximized by adding a constraint to the cost function. The final cost function is calculated based on Equation (2): (2) Proposed Loss = λ ( 1 N ∑ i = 1 N max [ 0 , cos − 1 ( f i . c y i ) − min j ≠ y i cos − 1 ( f i . c j ) + m ] − 2 C ( C − 1 ) ∑ i = 1 C ∑ j = i + 1 C cos − 1 ( c y i . c y j ) ) + L softmax In Eq. (2), c y i is center of i-th sample class, f i is feature vector of i-th sample, m is margin and N is number of samples. The dot operator also performs the dot product. By minimizing this function, the distance between the samples of one class and the center of that class will be less than the nearest center of other classes. The value of margin m emphasizes that the distance from positive and negative centers should be greater than this value.

In the second part of the Eq. (2), C is the number of classes. This part is equal to the average distance between the centers; thus, the average distance between the centers will increase as the overall cost function is minimized. Since the centers are parameters that are not constant during training and are trained, the training will become unstable. Therefore, to maintain stability in training, the softmax function has also been added because this cost function has no learnable parameter and will generally be stable.

In each stage of the training, the value of the cost function is first calculated for a batch of samples. Subsequently, the cost function gradient is calculated with respect to all the model parameters, including convolutional network parameters and cost function parameters (centers). Finally, the parameters are updated based on the gradient values and by using the Adam optimizer [15].

The initial value of the learning rate is set to 0.001. To avoid entrapment in local optima, the learning rate is exponentially reduced according to Eq. (3): (3) η n = 0.95 ∗ η n − 1

In this section, we discussed the proposed method and its components which includes activity image generation, convolution network architecture, and model training.

4.1. Evaluation method

Evaluation of human activity recognition models is challenging as there are no standard guidelines for this task. Unlike image classification problems, there is no separate evaluation set available for this task. To evaluate and compare different models, various methods have been proposed, including K-fold cross-validation, leave-one-trial-out cross-validation (LOTO), and leave-one-subject-out cross-validation (LOSO). These methods are explained in more detail below.

In K-fold cross-validation, the samples are randomly divided into k subsets, and one subset is used for evaluation while the others are used for training. This process is repeated k times, with each subset used once for evaluation. The evaluation criterion is then averaged across all k folds to estimate the model’s performance. However, due to the overlap of generated samples, there may be data leakage between the training and testing sets, which can lead to overestimating the model’s performance.

To address the issue of data leakage in training, the leave one trial out cross-validation method has been proposed [14]. In this method, the raw data is first divided into trials, where each trial corresponds to a sequence of activities. Then, samples are generated using a sliding window technique, and as in the K-fold method, a test set is selected at each iteration as the evaluation set. The final evaluation metric is calculated as the average of the performance on all test sets. However, it is possible that samples from the same person exist in both the training and testing sets, depending on how the trials are divided, which can result in data leakage.

Another method for evaluating the performance of the model is the leave one subject out cross-validation, which is similar to the K-fold cross-validation but the division is based on the subjects. In each stage, the data of one subject are considered as the test data, and the model is trained with the remaining data. This method provides a more accurate estimate of the model’s performance as it is closer to reality. Therefore, we chose to use this evaluation method for our study.

In classification problems, accuracy is the most commonly used evaluation criterion, which is defined as the ratio of the correctly predicted samples to the total number of predictions. In this research, accuracy is the evaluation criterion, as defined by Eq. (4). Additionally, to evaluate the performance of the cost function, the reduced-dimension representations of the features will be compared visually. (4) Accuracy = correct predictions total predictions

The tested datasets are MHealth [3],1

The impact of image size on model performance was evaluated by comparing activity images generated at 32 and 64 pixels. Results are presented in Table 1. Smaller images provide lower resolution and less information, thus increasing image size can improve model performance. Increasing the image size results in more distinguishable activity images. However, larger image sizes result in higher computational complexity, so sizes larger than 64 pixels were not used in this study.

The choice of wavelet transform mother function is crucial in extracting time-frequency features. To investigate this effect, three mother functions: morlet, Gaussian, and Mexican hat, are compared in Table 2. The results indicate that the selection of the initial image generation plays a vital role in the final performance of the model. Among the mother functions examined, the Morley function under performed. Meanwhile, the Mexican hat and Gaussian functions performed similarly. Consequently, the Mexican hat mother function is adopted for the subsequent experiments.

The proposed cost function uses an angular distance that is bounded between 0 and 1. The margin value emphasizes that the difference between the distance of the sample from its center and the nearest center of other classes should be greater than the margin value. If the margin value is 0, the optimal point of the cost function is where all the representations are the same and all distances are zero, which is a wrong optimum. Three values of 0.4, 0.5 and 0.6 are investigated for the margin and the final results are compared in Table 3. The learned representations for different classes of activity are also presented in Fig. 4.

OPEN IN VIEWER

Fig. 4.

Learned representation with proposed loss function and m is 0.6, 0.5 and 0.4 form left to right respectively.

The qualitative analysis of the representations reveals that the models have relatively similar performance. However, it should be noted that this representation is limited to three dimensions and does not capture the full feature space. Quantitative comparison of the results shows that a margin value of 0.5 provides the best performance.

In the proposed cost function, the weight of the first part relative to the cross-entropy is denoted by λ. Increasing this coefficient means that the model will pay more attention to reducing the first part of the cost function. However, assigning large values to this coefficient can cause instability in the training process, even though the ultimate goal is to reduce the first part of the cost function. In our experiments, the value of the second part of the cost function was nearly 10 times that of the first part. Therefore, we examined three values of λ (10, 20, and 50) and compared the final results in Table 4. The learned representations for different classes of activity are also shown in Fig. 5.

OPEN IN VIEWER

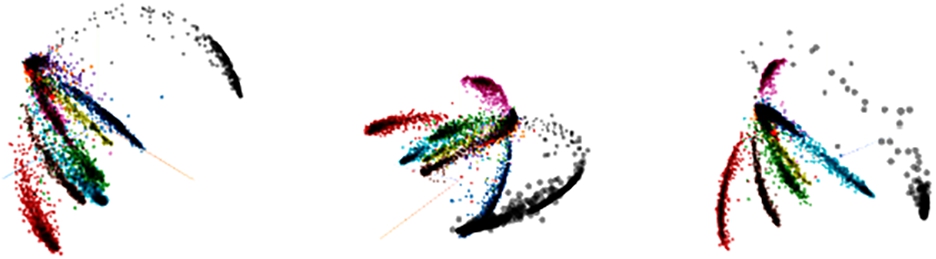

Fig. 5.

Learned representation with proposed loss function and λ is 50, 20 and 10 form left to right respectively.

To investigate the effect of the proposed cost function, we kept the input and model constant and compared the performance of three different cost functions: cross-entropy, angular triplet center loss (ATCL), and the proposed cost function. The final results of this comparison are presented in Table 5. For a visual comparison, we also display the learned representations for different classes of activity in Fig. 6.

The comparison of the learned representations indicates that the proposed cost function has produced denser representations, where the samples of a class are closer to each other and farther from other classes. This can enhance the model’s generalizability for evaluation data, as it promotes the discrimination between different classes. A comparison of these confusion matrices reveals that utilizing the suggested loss function enabled the network to learn more distinguishable features, resulting in improved classification accuracy (see Tables 6 and 7). A comparison of these confusion matrices reveals that utilizing the suggested loss function enabled the network to learn more distinguishable features, resulting in improved classification accuracy.

OPEN IN VIEWER

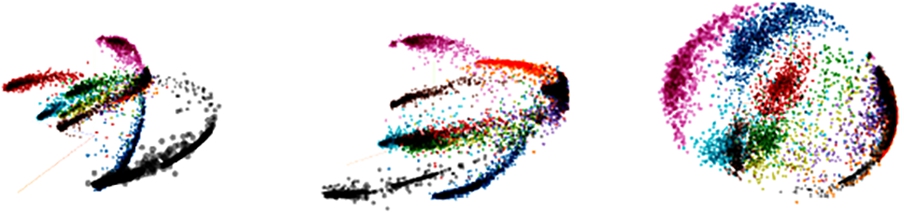

Fig. 6.

Learned representations with: proposed loss function, ATCL and cross entropy from left to right respectively.

Based on the experiments conducted, the parameters of the proposed model are defined as shown in Table 8. The baseline methods compared include studies by Chen [5], Jiang [13], and Ha [10]. The final results are given in Table 9.

In Table 9, the proposed method was tested on the WISDM dataset using an activity image size of 32 due to hardware limitations. Nevertheless, the accuracy of the proposed method outperformed the baselines. Comparing the accuracy of the baselines in Table 9 with that of the proposed method, considering different cost functions in Table 5, indicates that the generation of the activity image in the proposed convolutional structure has enhanced the model’s performance. Moreover, incorporating the developed cost function has further improved the model’s prediction accuracy.
