Abstract
Here, we present a short overview of our implementation of label-free digital pathology by infrared (IR) imaging. We address the major issues to overcome for clinical translation. First, we elucidate that label-free IR imaging not only identifies cancer in tissue sections but also is even able to provide differential diagnostics as exemplified for colorectal and lung cancer. We obtained sensitivities and specificities far above 90% as compared to the gold standard histopathology. The information is obtained label-free, automated and observer independent. We showed that the spectral patterns observed in the infrared corresponds directly to protein alterations in tissue. This was achieved by integrating IR imaging with laser capture microdissection and subsequent proteome analysis. Furthermore, we demonstrated that IR imaging could replace immunohistochemical marker panels for differential diagnosis. Following one of the most important steps towards translation was the reduction of the measurement time, which now matches the time consumed for immediate diagnostics. Finally, we integrate deep neural networks for the automated annotation. All hurdles has been overcome and label-free digital pathology is ready to validate now the approach in clinically relevant unmet medical needs. This will facilitate acceptance of the approach by clinicians and pave the road for clinical translation.
Introduction
Digital pathology is an emerging field in precise medicine that incorporates the acquisition, management, sharing and interpretation of pathology diagnosis in a digital environment. Digital images of stained tissue thin sections can be viewed on a computer screen or mobile device. The idea is to replace the visual inspection of thin sections using an analog microscope by a digital computer screen. Recent developments in the machine-learning field are also offering automated tissue classification based on the stained tissue thin section images. Digital pathology is an emerging powerful tool for clinical diagnostics.
However, digital pathology is limited to the availability and usability of tissue stains (e.g. H&E staining or immunohistochemical (IHC) staining) and to the availability of a sufficiently large quantity of tissue material for the different staining procedures. An alternative is label-free digital pathology by vibrational spectroscopic methods (infrared (IR) and Raman) to analyze tissue thin sections of biopsies. Label-free digital pathology methods are less expensive, less hand-waved, less labor-intensive, and consume lowest amounts of biopsies.
Here we will focus on the infrared (IR) imaging as label-free digital pathology method [3]. It possesses high sensitivity, but the signatures of all bio-molecular components of a tissue sample are superimposed. Since all signatures of biomolecules fall into a reasonable narrow spectral range, they all can be detected simultaneously in a routine experiment. In this sense, IR imaging is a “top down” technique that simultaneously, and spatially resolved, integrates the entire proteome, genome, transcriptome, lipidome and metabolome of a cell or tissue. This allows correlating spectral changes from different tissue areas, with the morphology and molecular changes of the tissue for specific disease states and stages. Based on this, machine-learning algorithms can be trained that allow the label-free annotation of unknown tissue specimens.
This approach opens avenues into personalized medicine by more precise medical diagnostics. In this short review we will present the development of the methodology in the center of protein- diagnostics (ProDi) in Bochum over the past decade beginning with Fourier transform infrared (FTIR) imaging for tissue diagnostics towards differential diagnostics as far as recent technical developments – quantum cascade laser (QCL) based IR imaging – allowing very fast diagnostics for use in the clinical environment.
FTIR imaging of cancer tissues
Over the past decades, label-free digital pathology by FTIR imaging has been applied by a number of research groups worldwide to first identify spectral differences between different (normal) tissue types, between normal and diseased tissues [1,15,26,27,30], between tissues with different disease types [6], and as a method to elucidate prognostic information [8,17]. These were the first steps in establishing label-free digital pathology by IR imaging as a therapeutic tool, since proper diagnosis, as in certain cancer diseases, determines the next treatment steps and therefore the prognosis for the patient.
These early results have demonstrated that this method can distinguish morphological regions in tissue sections, which subsequently could be associated with different tissue types or areas of disease. In one of our first studies, we demonstrated that the different tissue structures that occur in the colon wall present distinctly different spectro-chemical signatures. In our contribution, the structures identified spectrally, the lamina propria mucosae, the lamina muscularis mucosae, the crypts and lumen filled with mucus, connective tissue and cancer, were classified by a random forest algorithm that was trained on a spectral dataset representing the different tissue types. This allows proofing the excellent correspondence between IR imaging, H&E images, and fluorescence images based on several IHC stains. But in label-free digital pathology automated and observer independent The classification of colorectal cancers with IR imaging reaches high accuracy, sensitivity, and specificity (96% accuracy, 94% sensitivity, and 100% specificity) [13]. The prospect of observing individual cancer markers, or their effects on the spectral signatures, presented novel avenues towards diagnostics and prognostics of disease in general, and for cancer in particular.
By now IR imaging was applied for the automated, label-free classification of tumorous tissue [24], including, but not limited to, colorectal [13,21], lung [7,10], prostate [2], and bladder [12,29] cancer or melanoma [28] tissues. All these studies demonstrated sensitivities and specificities of the technique higher than 90%, as compared to histopathological as well as IHC diagnostics by pathologists. As mentioned above we also started by implementing a technique for the automated label-free classification of colorectal cancers and extended this classification by differential cancer diagnosis, including its grading a few years later [19]. Parallel we analyzed lung and thoracic tumors, showing that FTIR imaging can be used for the identification of different lung cancer types, especially subtypes of adenocarcinomas with 96% accuracy [10] and diffuse pleural malignant mesothelioma subclasses (sarcomatoid and epithelioid) with 88% accuracy (Fig. 1) [9]. These studies from our group proofed that FTIR imaging has the power to annotate the tissue morphology without staining based on spectral signatures. The results are highly comparable to the annotation by a trained expert but observer independent and automated.

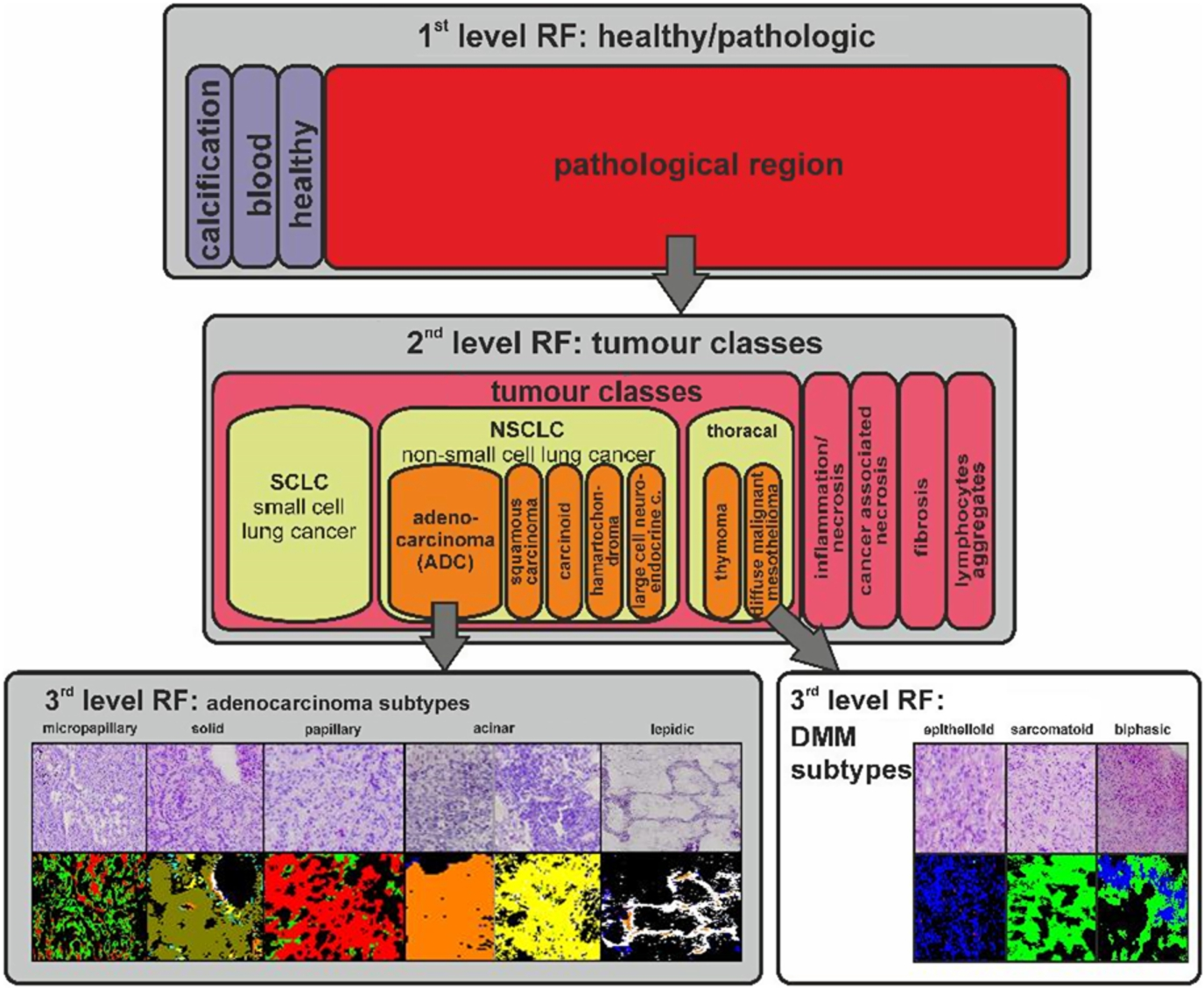

Schematic workflow of the differential FTIR imaging tissue characterization for thoracal tumours. Tissue annotation by FTIR imaging for lung tumours and thoracal tumours is illustrated. In a first classifier, the pathologic regions were identified. In a second classifier, the different tumour classes of the pathologic region are differentiated. Finally, in the third classifier, a differential diagnosis of the tumour subtypes is provided. The classifiers for lung tumours and thoracal tumours (shaded in grey) were previously published by Großerueschkamp, Kallenbach-Thieltges et al. [10]. The classification of DMM subtypes was previously published by Großerueschkamp et al. [9]. The proof that differential diagnostic is possible with IR imaging was an important step for the label-free digital pathology.
First and foremost, the infrared spectrum of a tissue pixel contains a snapshot of the entire proteome, transcriptome, genome, lipidome, and metabolome of the tissue, spatially resolved by this pixel; this snapshot includes overexpressed genes, oncogenes, protein and non-protein markers of disease (such as elevated glucose levels in diabetes) and biological consequences, such as apoptosis. To learn more about the diseases and the resulting spectral signatures they must be correlated to the molecular background.

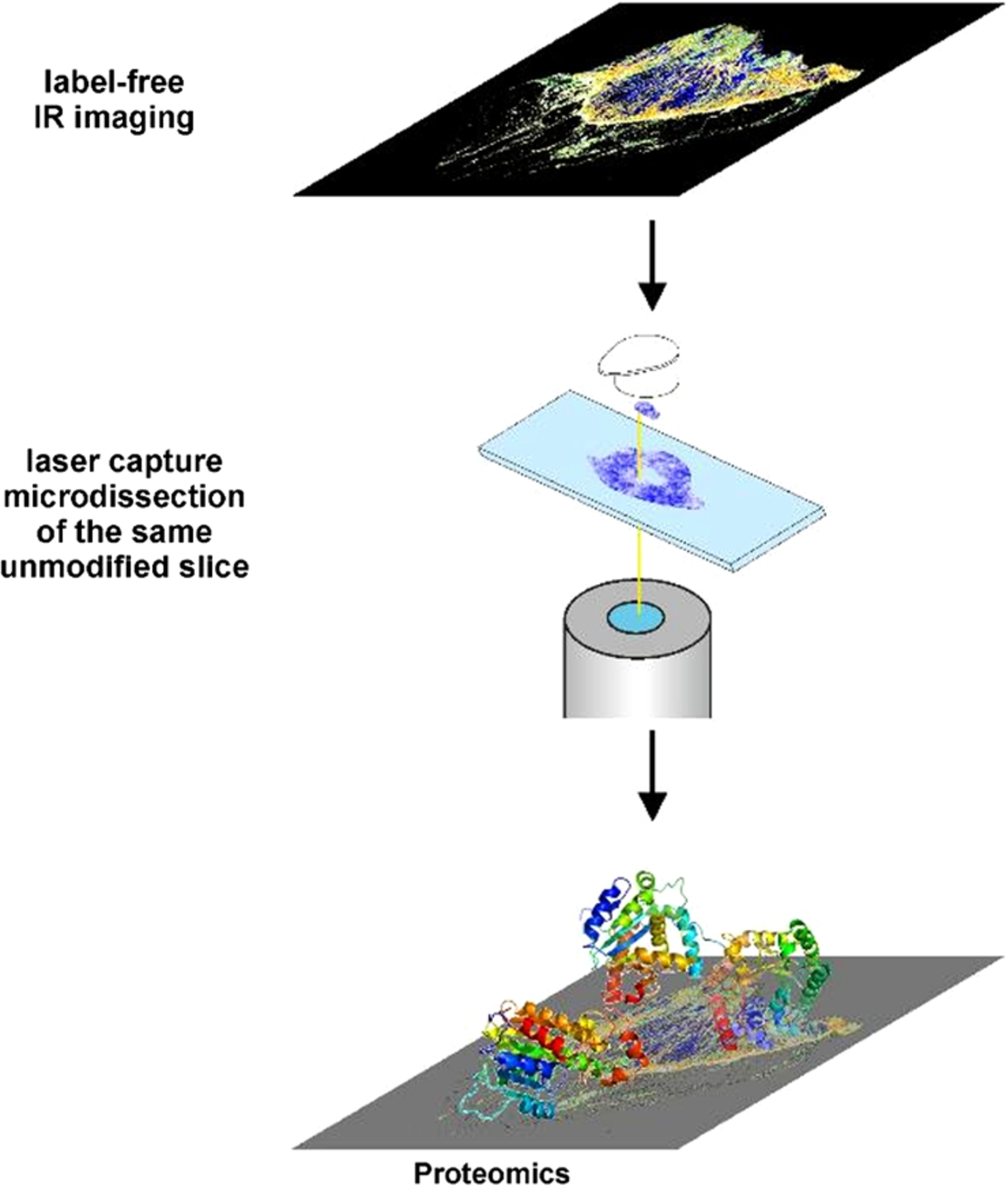

We addressed this by integrating FTIR imaging and laser capture microdissection (LCM) for subsequent molecular analysis (Fig. 2). Therefore, label-free by IR imaging annotated tissue was cut out precisely and analyzed by proteomics providing in addition to spatial resolution by IR imaging also molecular resolution [9]. Thereby the respective vibrational spectra are assigned to specific protein alterations in the diseased tissue as compared to healthy tissue. The study was performed on the two subtypes of diffuse malignant mesothelioma (DMM). The results demonstrated for the first time that FTIR imaging of tissue thin sections delivers already in one index color image the full information as biomarkers of multi-panel IHC staining’s, which are used to differentiate subtypes of cancer. Therefore, we showed that IR imaging could replace expensive IHC marker panels for differential diagnosis. Furthermore, this integrated approach of IR imaging guided microdissection and proteome analysis can be used to identify new protein biomarkers. With this technique we already identified a new bladder cancer IHC protein marker that helps to differentiate severe cystitis from carcinoma in situ (CIS), a high grade carcinoma [29]. It is the only method that allows molecular tissue analysis without tissue alteration.
IR-guided laser capture microdissection (LCM) allows spatial and molecular resolution. The label-free IR imaging tissue classification can be used to cut out very precisely homogeneous tissue regions by LCM [9]. This allows correlating the spectral patterns with the molecular changes in the tissue. In addition, it opens up a completely new field of application for marker-free digital pathology in biomarker research. With no other method, it is possible to select homogeneous tissue samples for subsequent molecular analyses.
Up to here, FTIR imaging proofed that it can be used to analyze label-free and automatically the morphology of tissue thin sections down to differential diagnostics and representing the molecular changes with high sensitivity and specificity. However, the clinical translation of this powerful technique is hindered mainly by the several hours long measuring time and the complex and large instrumental FTIR setup with liquid nitrogen cooling.
These issues can be overcome by using the quantum cascade laser (QCL) as high power light source instead of the globar in FTIR set-ups. The Bhargava and Petrich groups conducted pioneering work in the field of chemical imaging with home-made QCL based microscopes [11,14,18]. Initial studies using the first-generation commercially available Spero IR microscope (Daylight Solutions, San Diego, CA, USA), reported already promising results [4,23,24]. However, coherence effects, low laser stability, and offset edges in mosaic datasets due to insufficient movement accuracy of the stage had to be overcome. In the second generation of the commercial available instrument, transients due to laser stability and offset edges were minimized in an improved QCL based IR microscope (Spero QT). This allowed us in combination with a new developed classification model for colorectal cancer to analyze tissue thin sections now within few minutes, matching the same time range used for an immediate section of pathologists’ right in the operating theatre. The measuring time with the QCL-based microscope is 160 times faster as compared to FTIR-based microscopes with 4 cm−1 spectral resolution for the same measured area. In the study, 100 samples with UICC Stage II and III colorectal cancer tissue and 20 tumor-free tissue samples of 110 randomly chosen patients older than 18 years were analyzed. Resulting in a sensitivity of 96% and specificity of 100% as compared to histopathology (Fig. 3) [20]. This speed-up of the methodology was the most important step towards possible translation of label-free digital pathology into the clinic because it allows larger studies, which enable the label-free digital pathology to follow the same path as the stain based digital pathology for validation studies and subsequent translation into clinics.

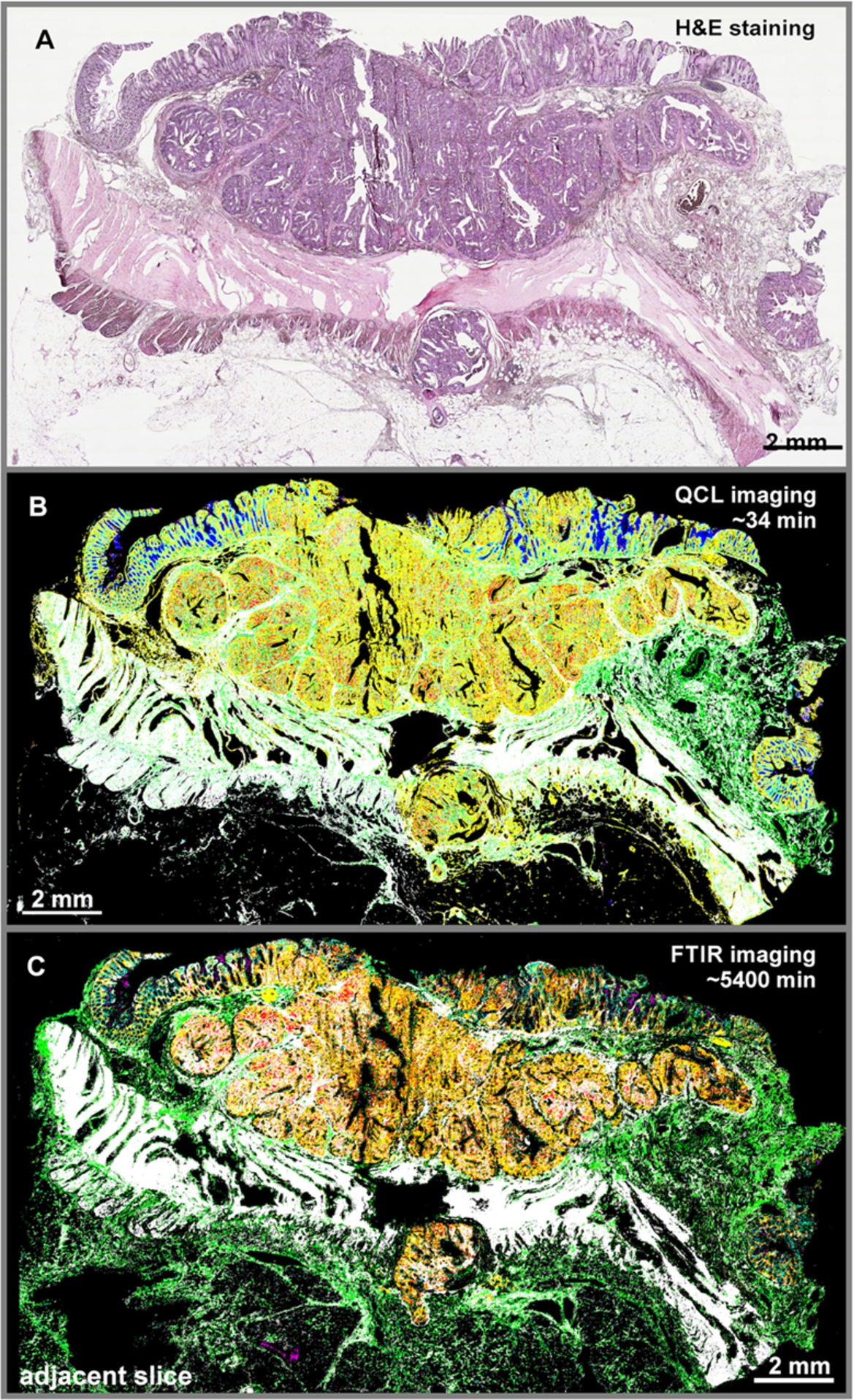

Comparison of the QCL-IR- and FTIR-based IR tissue analysis. Colorectal cancer tissue analysis using H&E staining as Gold standard (A), Spero QT system (B), and FTIR-based imaging system (C). The listed times illustrate the duration of the measurements. Red, pathological region comprising of tumorous regions and infiltrating inflammatory cells; white, muscles; green, connective tissue; cyan, crypts and blue, lumen. The comparison of the images demonstrates convincingly, that the QCL IR imaging results are in nice agreement with those obtained using the FTIR imaging. The observed deviations seem to be caused mainly by the use of an adjacent slice and the training of the FTIR classifier on samples of another study which could slightly differ in sample handling and processing. Furthermore, the previously FTIR classifier is performing the classification in one-step which is less accurate by means of tumor detection. While the improved classifier for the QCL imaging recognizes infiltrating inflammatory cells in the first level random forest (RF) and cancerous regions in the second level RF which allows a much more accurate classification This figure was previously published in the supplement of a paper by Kuepper, Kallenbach-Thieltges et al. [20].
A final important step to unlock the full potential of label-free digital pathology the application of deep learning to vibrational spectroscopic images as in dye based digital pathology. This becomes possible due to the availability of large data sets and will allow for the first time in the field the correlation of spatial resolved molecular information by IR spectra with morphological information directly from the spectral data cube. It was demonstrated that convolutional neural networks (CNN) with architectures designed to process both spectral and spatial information can significantly improve classifier performance over per-pixel spectral classification for both Raman and IR imaging [5,16]. And that this information can be used to digitally stain the FTIR images allowing the transfer of the spectral information to a well-known visualization known by clinical experts [22]. Furthermore, the use of deep representation learning allows the first time to transfer models between different tissue preparations (fresh-frozen and formalin fixed paraffinized – FFPE). This enables the training of classifiers for IR imaging with FFPE tissues from large tissue biobanks and the later transfer to fresh-frozen on a much smaller number of patients allowing fast diagnostics during surgeries [25]. This development will revolutionize the label-free as well as the classical digital pathology.
Conclusion
We addressed in our studies the major issues to overcome translation of infrared-based label-free digital pathology to the clinics. We successfully applied IR imaging for differential diagnostics to different cancers, correlate changes on the proteome to changes in the spectral signature, reduced the measuring time close to the pathological workflow with lowest possible intra- and inter-operator/observer variability, and used state-of-the-art deep learning bioinformatics. In order to increase the acceptance in the medical/pathological community in the next step larger studies of unmet clinical needs will be addressed. This may propel IR-based label-free digital pathology into clinical routines. Furthermore, by IR imaging guided laser capture microdissection the approach can be used for largely improved and more successful biomarker search.
IR imaging is a powerful, non-destructive, label-free, inexpensive and now fast technique for tissue classification and biomarker research.
