Pioglitazone suppresses inflammation and fibrosis in nonalcoholic fatty liver disease by down-regulating PDGF and TIMP-2: Evidence from in vitro study

Abstract

BACKGROUND:

The prevalence of nonalcoholic fatty liver disease (NAFLD) has been increasing worldwide. Pioglitazone is a pharmacologic agonist of peroxisome proliferators-activated receptor- $\gamma$ (PPAR- $\gamma$ ) that was reported to ameliorate hepatic steatosis and inflammatory changes.

OBJECTIVE:

We aimed to evaluate the effects of pioglitazone in NAFLD and investigate the underlying mechanism by testing platelet derived growth factor (PDGF) and tissue inhibitory of metalloproteinase-2 (TIMP-2).

METHODS:

A total of C57BL/6 wild-type mice were randomized to three groups, control group (NC, $n=$ 60), high-fat control group (HF, $n=$ 60), and pioglitazone treatment group ( $L,n=$ 60). Mice were administrated with high-fat diet to construct NAFLD model. Enzyme-linked immunosorbent assay (ELISA) was used to measure protein expression of PDGF and TIMP-2. Liver histology samples were stained with hematoxylin and eosin (H&E).

RESULTS:

Upon pioglitazone treatment, the PDGF and TIMP-2 expression levels were decreased compared with high-fat diet-fed mice devoid of drug stimulation. Analysis of liver histology showed pioglitazone treatment could reduce steatosis and inflammatory changes, which was helpful to inhibit hepatic fibrosis in NAFLD mice.

CONCLUSIONS:

The study showed pioglitazone might exert an inhibitory effect on hepatic inflammation and fibrosis in NAFLD. Moreover, this study provided novel evidence for the promising clinical application of pioglitazone in intervening NAFLD.

Keywords

NAFLD pioglitazone hepatic fibrosis PDGF TIMP-2

1. Background

Nonalcoholic fatty liver disease (NAFLD) is an umbrella term for a spectrum of conditions characterized by lipid deposition in hepatocytes. With the improvement of living standard, NAFLD is increasingly common worldwide and patients trend to suffer this disease at a younger age. In the United States, it is estimated to occur in one-third of the general population [1, 2, 3]. From a pathological point of view NAFLD may be classified into nonalcoholic simple fatty liver (NAFL, or steatosis), nonalcoholic steatohepatitis (NASH-fatty changes with inflammation and hepatocellular injury or fibrosis), and advanced cirrhosis. Although simple steatosis will usually follow a slow course, it is well documented that it can progress to NASH and fibrosis [4], and approximately 15% to 25% of patients with NASH progress to cirrhosis and its complications over 10 to 20 years. Patients with the latter two diseases are at a significant risk of increasing morbidity [5, 6, 7]. Although the clinical course of NAFLD is variable, the most prevalent causes of deaths in NAFLD patients are cardiovascular disorders and malignancy followed by liver-related deaths [8]. The pathogenesis of NAFLD is multifactorial and epidemiological associations strongly support the notion that NAFLD is closely associated with MetS and its individual components [1, 9]. Currently, NAFLD appears as a global public medical hotspot, where multiple insulin resistance (IR)-related complications are involved [2, 8]. There is a directional association between NAFLD and metabolic syndrome (MS), MS plays an crucial role for the onset and perpetuation of NAFLD and, in return, NAFLD may be also a cause of MS [10, 11].

The peroxisome proliferator-activated receptor (PPAR)- $\gamma$ , a member of the nuclear hormone receptor family of ligand-inducible transcription factors, was initially recognized as a stimulator of adipocyte differentiation and regulates fat, lipid and calorie utilization, as well as glucose metabolism [12]. Moreover, PPAR- $\gamma$ plays a central role in inflammation response [13] and its activation is implicated in IR and the regulation of inflammation in fatty liver disease [14, 15, 16]. Pioglitazone is a PPAR- $\gamma$ agonist which has been reported to improve insulin sensitivity and reduce blood glucose levels in patients with diabetes [17]. In recent years, it has been found that pioglitazone may ameliorate hepatic steatosis and inflammatory changes [18, 19].

There are several cytokines generated and participating in the progression of NAFLD. Upon the stimulation of reactive oxide species (ROS), liver mesenchymal cells secrete platelet derived growth factor (PDGF) and tissue inhibitory of metalloproteinase-2 (TIMP-2), two proteins which are proved to be potent hallmarks in wound healing and regeneration of periodontal and bone [20]. However, so far there is no report concerning an effective method by which we can detect the aberrant expression patterns of proteins in patients’s era to determine hepatic fibrosis. Meanwhile, the lack of large-scale trials limits the exploration of pioglitazone intervening NAFLD. Therefore, the present study aimed to evaluate the effects of pioglitazone on NAFLD and investigate the underlying mechanism.

2. Methods

2.1 NAFLD Model construction

A total of 180 male C57BL/6 wild-type mice weighting 200 $\pm$ 10 g were obtained from the Animal Laboratory of Yantaishan Hospital (Yantai, Shandong, China). They were maintained in separate cages at 22–28 ${{}^{\circ}}$ C, with a 12:12 h light-dark cycle (lights on at 06:00). After acclimating for one week, mice were randomized to three groups: control group (NC, $n=$ 60), high-fat control group (HF, $n=$ 60) and pioglitazone treatment group ( $L,n=$ 60). In NC group, mice were fed with normal laboratory diet containing 21% calories from proteins, 19% from fat, and 60% from carbohydrate, while mice were kept with a high-fat diet of 18% calories from proteins, 63% from fat and 19% from carbohydrate in HF and L group. The mice of three groups were all fed for 12 weeks. Then, mice of L group were fed with a high-fat diet supplemented with 3 mg/(kg $\cdot$ d) pioglitazone (Libofuni Co., Ltd, France) for 4 weeks, while mice in NC and HF groups were administrated equivalent distilled water for 4 weeks.

2.2 Enzyme-linked immunosorbent assay

After treatment, the sera were collected from mice of three groups and subjected to ELISA. PDGF and TIMP-2 protein detection kits were bought from Nanjing Jiancheng Biotech Co., Ltd (Nanjing, Jiangsu, China). Standard ELISA method was performed to measure PDGF and TIMP-2 protein concentrations in serum by using detection kits according to the manufacturer’s instructions. All determinations were performed in triplicate and data are presented as the mean $\pm$ standard deviation (SD).

2.3 Hematoxylin and Eosin staining

The same positions of livers in each group were fastened to 40 g/L formaldehyde buffer. Afterwards, the slices were stained with hematoxylin for 10 min, washed twice with distilled water, and then were dehydrated in an ethanol series (80%, 90%, 95%), and stained with eosin for 5 min, followed by twice 2-min rinse with anhydrous ethanol and then 20-min immerse in xylene. Liver histology samples were examined under light microscope.

2.4 Statistical analysis

All experiments were repeated in triplicate. The results of multiple experiments are presented as the mean $\pm$ SD. Statistical analyses were performed using SPSS 17.0 statistical software. The $P$ -values were calculated with a one-way analysis of variance (ANOVA). A $P$ -value of $<$ 0.05 was considered to indicate a statistically significant result.

2.5 Informed consent and Statement of animal right

The materials and methods above have been reviewed and approved by the Research Review and Ethics Board (RREB) of the Yantaishan Hospital. We declare that the animal studies were performed according to National or Institutional Guide for the Care and Use of Laboratory Animals, and the ethical treatment of all experimental animals were observed carefully.

Figure 1.

PDGF expression in NC, HF, and L groups.

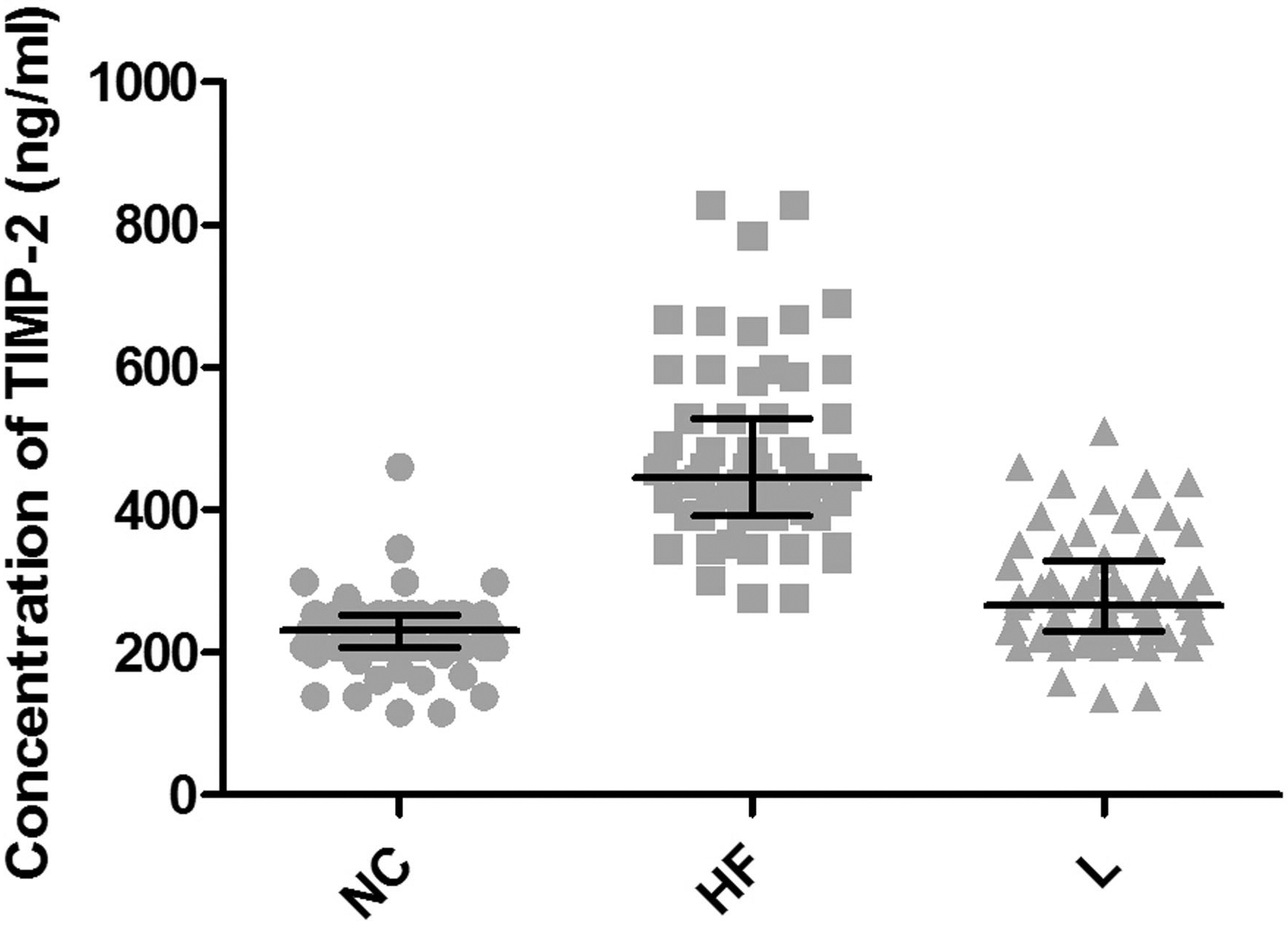

Figure 2.

TIMP-2expression in NC, HF, and L groups.

3. Results

3.1 Evaluation of aberrant protein expression in serum of NAFLD mice

ELISA assay was performed to investigate the expression of PDGF and TIMP-2 in NAFLD mice. As shown in Fig. 1, a significant increase in the expression level of PDGF was observed when mice were exposed to high-fat diet, compared with the NC group. Of note, there was a remarkable decline in the PDGF expression level in these high-fat diet-fed mice upon pioglitazone treatment. Likewise, treatment of mice with pioglitazone dramatically compromised TIMP-2 accrual caused by the high-fat diet (Fig. 2). The decreased TIMP-2 expression in L group had no statistically significant difference in comparison to the NC group ( $P>$ 0.05). In aggregate, expressions of PDGF and TIMP-2 proteins were reduced in NAFLD mice in response to pioglitazone treatment.

Figure 3.

Liver histology (H&E). In the absence of pioglitazone, large lipid vacuoles were seen representing a severe fatty degeneration, which was alleviated in the presence of pioglitazone.

3.2 Liver biopsies stained by H&E in NAFLD mice

The histologic examination of liver biopsies was conducted and shown in Fig. 3. In NC group, the structure of hepatic lobule was complete. The hepatocytes arranged uniformly and radically, with round nucleus located in the center. No obvious inflammatory cell was detected. However, there was accumulation of triglyceride droplet vacuoles, known as fatty degeneration and accompanied with diffuse bullous, within the liver cells from mice in HF group, and these vacuoles occupied a large proportion of the cell’s volume and push the cytoplasm up against the cell membrane. Some hepatic tissues appeared with hepatic fibrosis together with hepatocyte necrosis and inflammatory cell infiltration. In the presence of pioglitazone, there were a small number of bullous fatty degeneration with no obvious hepatocyte necrosis or inflammatory cell infiltration. Therefore, it revealed that pioglitazone treatment could significantly all eviate steatosis and inflammatory changes, thereby suppressing the subsequent hepatic fibrosis in NAFLD mice.

4. Discussion

With the changes of dietary structure and life style, NAFLD has gained increasing attention as a common cause of chronic liver disease worldwide over the last decade [21, 22]. NAFLD is closely related to MetS and its individual features [9, 23].

The pathological features of NAFLD are fatty and necro-inflammatory changes, hepatocyte ballooning and hepatic fibrosis. Among them, fibrosis is deemed as the end stage result of chronic liver disease owing to various etiologies [24], which often progresses to cirrhosis. PDGF is the predominant stimulator for the proliferation of hepatic stellate cells (HSCs). Previous report suggested that PDGF-B and its receptor played an important role in the promotion of hepatic fibrosis of mice model [5, 6, 25] and, for this reason, we chose PDGF as a detection index for liver fibrosis in NAFLD. Figure 1 shows that in the HF group with a high-fat diet for 16 weeks, the PDGF expression was significantly increased in comparison with NC group, indicating that liver tissues in HF group appeared to be more susceptible to fibrosis. Of note, there was a remarkable decline in the PDGF expression level in these high-fat diet-fed mice upon pioglitazone treatment, consistent with results of the histological examination (Fig. 3). These findings suggest that, once NAFLD develops, there is an inherent risk in fibrosis progression. The mechanism underlying how pioglitazone restrains the process of hepatic fibrosis might be attributed to suppression PDGF expression in mesenchymal cells, followed by the inhibition of HSCs activation and related signal transduction pathways.

TIMPs are a family of secreted glycolproteins that can suppress the activity of almost all metalloproteinases (MMPs). Previous reports indicated that the expression of TIMP-1 and TIMP-2 was significantly higher in animal models of hepatic fibrosis induced by a variety of chronic liver diseases [26, 27]. Particularly, TIMP-2 suppresses the apoptosis of HSCs and promoted their proliferation. Figure 2 shows that pioglitazone treatment reduced the expression of TIMP-2 and further compromised its inhibitory effect on MMPs, which are involved in the degradation of collagen fibers in our mouse model of NAFLD.

This study evaluated the effects of pioglitazone on NAFLD and attempted to explore the molecular mechanisms for the first time. Taken collectively, our data support the notion that pioglitazone participated in the down-regulation of PDGF and TIMP-2, which sequentially inhibited the activation of HSCs and promoted HSCs apoptosis. However, this speculation remains to be verified by in vitro study, where the viability and apoptosis of HSCs would be assessed upon pioglitazone treatment. Moreover, the roles that PDGF and TIMP-2 genes play in the anti-fibrotic effects induced by pioglitazone require further investigation.

The PPAR- $\gamma$ ligand pioglitazone was chosen in the study on the grounds ofits effective effects on improving insulin sensitivity [28]. The present study has shown that PPAR- $\gamma$ agonist pioglitazone might exert its anti-inflammatory and antifibrotic effects by repressing the expression level of PDGF and TIMP-2.

5. Conclusions

We conclude that our study, in agreement with a previous pilot research [29] prompts for further evaluation of PPAR- $\gamma$ agonists to be conducted with large, placebo-controlled randomized trials. It suggested that pioglitazone inhibited hepatic inflammation and fibrosis in the process of NAFLD, providing novel evidence for the promising clinical application of pioglitazone in interfering with NAFLD.

References

Non Alcoholic Fatty Liver Disease Study and Lonardo Group, et al., Epidemiological modifiers of non-alcoholic fatty liver disease: Focus on high-risk groups, Digestive and Liver Disease: Official Journal of the Italian Society of Gastroenterology and the Italian Association for the Study of the Liver 47 (2015), 997–1006.

Younossi

Z.M.

et al., Global epidemiology of nonalcoholic fatty liver disease-Meta-analytic assessment of prevalence, incidence, and outcomes, Hepatology 64 (2016), 73–84.

Fazel

et al., Epidemiology and natural history of non-alcoholic fatty liver disease, Metabolism: Clinical and Experimental 65 (2016), 1017–1025.

Ballestri

et al., The role of nuclear receptors in the pathophysiology, natural course, and drug treatment of NAFLD in humans, Advances in Therapy 33 (2016), 291–319.

Rinaldi

et al., Clinical features and natural history of cryptogenic cirrhosis compared to hepatitis C virus-related cirrhosis, World Journal of Gastroenterology 23 (2017), 1458–1468.

Piscaglia

et al., Clinical patterns of hepatocellular carcinoma in nonalcoholic fatty liver disease: A multicenter prospective study, Hepatology 63 (2016), 827–838.

Povero

et al., Lipid-induced hepatocyte-derived extracellular vesicles regulate hepatic stellate cell via microRNAs targeting PPAR-gamma, Cellular and Molecular Gastroenterology and Hepatology 1 (2015), 646–663, e644.

Polyzos

S.A.

et al., Circulating leptin in non-alcoholic fatty liver disease: A systematic review and meta-analysis, Diabetologia 59 (2016), 30–43.

Italian

, Association for the Study of the, AISF position paper on nonalcoholic fatty liver disease (NAFLD): Updates and future directions, Digestive and Liver Disease: Official Journal of the Italian Society of Gastroenterology and the Italian Association for the Study of the Liver 49 (2017), 471–483.

10.

Ballestri

et al., Nonalcoholic fatty liver disease is associated with an almost twofold increased risk of incident type 2 diabetes and metabolic syndrome, Evidence from a systematic review and meta-analysis, Journal of Gastroenterology and Hepatology 31 (2016), 936–944.

11.

Ballestri

et al., The independent predictors of non-alcoholic steatohepatitis and its individual histological features: Insulin resistance, serum uric acid, metabolic syndrome, alanine aminotransferase and serum total cholesterol are a clue to pathogenesis and candidate targets for treatment, Hepatology Research: The Official Journal of the Japan Society of Hepatology 46 (2016), 1074–1087.

12.

Heneka

M.T.

and Landreth

G.E.

, PPARs in the brain, Biochimica Et Biophysica Acta 1771 (2007), 1031–1045.

13.

Cherkaoui-Malki

et al., Hepatic steatosis and peroxisomal fatty acid beta-oxidation, Current Drug Metabolism 13 (2012), 1412–1421.

14.

Zhao

C.Y.

et al., Peroxisome proliferator activated receptor-gamma in pathogenesis of experimental fatty liver disease, World Journal of Gastroenterology 10 (2004), 1329–1332.

15.

Lutchman

et al., The effects of discontinuing pioglitazone in patients with nonalcoholic steatohepatitis, Hepatology 46 (2007), 424–429.

16.

Nan

Y.M.

et al., Rosiglitazone prevents nutritional fibrosis and steatohepatitis in mice, Scandinavian Journal of Gastroenterology 44 (2009), 358–365.

17.

Osman

and Segar

, Pioglitazone, a PPARgamma agonist, attenuates PDGF-induced vascular smooth muscle cell proliferation through AMPK-dependent and AMPK-independent inhibition of mTOR/p70S6K and ERK signaling, Biochemical Pharmacology 101 (2016), 54–70.

18.

Singh

et al., Comparative effectiveness of pharmacological interventions for nonalcoholic steatohepatitis: A systematic review and network meta-analysis, Hepatology 62 (2015), 1417–1432.

19.

Sawangjit

et al., Comparative efficacy of interventions on nonalcoholic fatty liver disease (NAFLD): A PRISMA-compliant systematic review and network meta-analysis, Medicine 95 (2016), e4529.

20.

Alvares

et al., Growth factor effects on the expression of collagenase and TIMP-1 in periodontal ligament cells, Journal of Periodontology 66 (1995), 552–558.

21.

Younossi

Z.M.

et al., Nonalcoholic fatty liver disease: An agenda for clinical research, Hepatology 35 (2002), 746–752.

22.

Lazo

and Clark

J.M.

, The epidemiology of nonalcoholic fatty liver disease: A global perspective, Seminars in Liver Disease 28 (2008), 339–350.

23.

Lonardo

et al., Nonalcoholic fatty liver disease: A precursor of the metabolic syndrome, Digestive and Liver Disease: Official Journal of the Italian Society of Gastroenterology and the Italian Association for the Study of the Liver 47 (2015), 181–190.

24.

Jiang

Z.G.

et al., Lipoprotein metabolism in nonalcoholic fatty liver disease, Journal of Biomedical Research 27 (2013), 1–13.

25.

Starley

B.Q.

et al., Nonalcoholic fatty liver disease and hepatocellular carcinoma: A weighty connection, Hepatology 51 (2010), 1820–1832.

26.

Zhao

J.S.

et al., Pioglitazone ameliorates nonalcoholic steatohepatitis by down-regulating hepatic nuclear factor-kappa B and cyclooxygenases-2 expression in rats, Chinese Medical Journal 125 (2012), 2316–2321.

27.

Stojsavljevic

et al., Adipokines and proinflammatory cytokines, the key mediators in the pathogenesis of nonalcoholic fatty liver disease, World Journal of Gastroenterology 20 (2014), 18070–18091.

28.

Inzucchi

S.E.

et al., Pioglitazone prevents diabetes in patients with insulin resistance and cerebrovascular disease, Diabetes Care 39 (2016), 1684–1692.

29.

Neuschwander-Tetri

B.A.

et al., Improved nonalcoholic steatohepatitis after 48 weeks of treatment with the PPAR-gamma ligand rosiglitazone, Hepatology 38 (2003), 1008–1017.
