Encapsulation of anticancer drug Ibrance into the CNT(8,8-7) nanotube: A study based on DFT method

Abstract

In this research, a DFT calculation was performed for study to investigate the encapsulation of the anticancer drug Ibrance into CNT(8,8-7) by using M062X/6-311G^* level of theory in the solvent water. TD-DFT method was used to compute the electronic spectra of the Ibrance drug, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance in aqueous medium for the study of non-bonded interaction effect. The non-bonded interaction effects of Ibrance drug with CNT(8,8-7) on the electronic properties and natural charges have been also studied. The results display the change in title parameters after process adsorption. According to NBO results, the molecule Ibrance and CNT(8,8-7) play as both electron donor and acceptor at the complex CNT(8,8-7)/Ibrance. Charge transfer, on the other hand, occurs between the bonding, antibonding, or nonbonding orbitals of Ibrance drug and CNT (8,8-7). According to QTAIM analysis and the LOL and ELF values, all intermolecular bonds in the complex are non-covalent in nature. As a result, CNT(8,8-7) can be thought of as a drug delivery system for transporting Ibrance as an anticancer drug within biological systems.

Keywords

Ibrance CNT(8,8-7)DFT charge transfer QTAIM analysis

1 Introduction

Controlling the side effects and toxicity of drugs is an important and difficult task that is usually accomplished by administering chemical drugs to the target region of the body. Target drug delivery at the site of action can be accomplished through methods such as direct injection, catheter, gene gun, and so on. However, these systems demonstrate direct delivery, which is inconvenient for the patient and costly to perform in humans [1 –4]. TDDS (target drug delivery systems) are currently being developed, which include chemical, physical, and biological modifications or functionalization with or without the use of carriers. Functionalization of drug delivery agents with carbon nanotubes (CNTs) has received a lot of consideration in research because of their exceptional physical properties. Functionalization of drug delivery agents is a safe and well-established method for improving the agents’ interactions with drugs [5 –7].

Among the nanomaterials that have attracted interest for drug delivery, nanotubes are the most concerning nanovectors. CNTs are also chemically inert and oxidation and corrosion resistant. The safety of clinical application of CNTs as anti-tumor drug carriers has been a subject of concern in recent years. Due to the special nanostructural properties of CNTs, potential toxic effects and improved biocompatibility may be avoided to ensure clinical drug safety. To achieve these positive effects, it needs to clarify the mechanisms underlying CNT-induced toxicity to eliminate toxic nanometer formulations [8 –10].

Nanoencapsulation of drugs increases their efficacy, specificity and targeting ability [11]. Nanocarriers protect their payload from premature degradation in the biological environment, enhance bioavailability, and prolong presence in blood and cellular uptake [12].

Ibrance (Fig. 1), also known as palbociclib, is a kinase inhibitor used to treat HR-positive and HER2-negative breast cancer. Cancer cells proliferate in an uncontrolled manner. It inhibits the cyclin-dependent kinases CDK4 and CDK6 selectively [13, 14]. Ibrance was the first CDK4/6 inhibitor to receive FDA approval as a cancer treatment [15].

Fig. 1

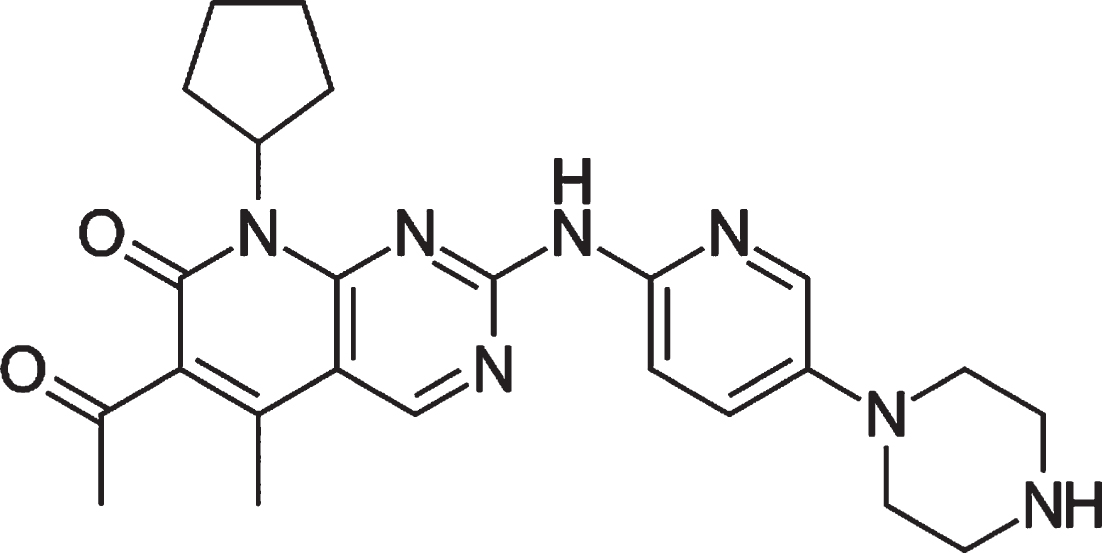

Chemical structure of Ibrance.

A thorough understanding of drug molecules’ interactions with carbon nanotubes is a necessary first step in the development of nanoscale drug delivery vehicles [16 –18]. Many attempts have been made over the last decade to use density functional theory (DFT) calculations to analyze the interactions of CNTs with various biomolecules and drugs [19 –21]. DFT studies may yield more useful information about the interaction of nanotubes [22 –25].

In the present work, we used the DFT method to investigate the interaction between CNT and Ibrance drug. Frontier molecular orbitals, quantum-chemical molecular descriptors, Molecular Electrostatic Potential (MEP) analysis, natural charge, charge transfer analysis using Natural Bond Orbital (NBO) analysis, Quantum theory of atoms in molecules (QTAIM) and electronic structure and excited states were all investigated.

2 Computational methods

In current research, the encapsulation and non-bonded interaction of CNT(8,8-7) with the anticancer drug Ibrance in the solvent water was investigated. The solvent effect was calculated using the Polarized Continuum Model (PCM) [26]. The Gaussian 09W software [27] was used to perform quantum chemical calculations using DFT at the M062X/6-311G^* level of theory for optimization of Ibrance drug, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance. The choice of M062X functional is based on the fact that it produces acceptable results for adsorption energies [28]. The following equation was used to calculate the adsorption energy (E_ad) [29]: $E_{ad} = E_{CNT (8, 8 - 7) / Ibrance} - [E_{Ibrance} + E_{CNT (8, 8 - 7)}]$ (1)

where E_{CNT (8,87)/Ibrance}, E_CNT (8,87) and E_Ibrance are energies of the CNT(8,8-7) with the adsorbed Ibrance, CNT(8,8-7) and Ibrance drug, respectively.

The molecular orbital (MO) calculations of the title systems such as E_HOMO, E_LUMO, energy gap between LUMO and HOMO (Eg) were also performed. GaussView 05 software [30] was used to visualize the optimized structures, HOMO, LUMO, and MEP surfaces. The quantum molecular descriptors for the Ibrance drug, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance including ionization potential (I), electron affinity (A), global hardness (η), electronegativity (χ), electronic chemical potential (μ), electrophilicity (ω) and chemical softness (S) are computed by follows equations [31]: $I = - E_{HOMO}$ (2) $A = - E_{LUMO}$ (3) $η = I - A / 2$ (4) $χ = I + A / 2$ (5) $μ = - (I + A) / 2$ (6) $ω = μ^{2} / 2 η$ (7) $S = I / 2 η$ (8)

In the following, the effects of encapsulation of Ibrance drug into CNT(8,8-7) on the natural charge [31] was studied. The electronic transitions of the molecule Ibrance and the complex CNT(8,8-7)/Ibrance were calculated using the Time-dependent Density Functional Theory (TD-DFT) method [31]. In order to understand hyperconjugative interactions and charge delocalization, the electronic structure of the title structures was also investigated using NBO analysis [32] at the M062X/6-311G^* level. Electron delocalization from donor orbitals (full NBOs) to acceptor orbitals (empty NBOs) demonstrates a conjugative electron transfer process [31]. While electron transfer from donor orbital (i) to acceptor orbital (j) and delocalization process i→j, the stabilization energy E⁽²⁾ is calculated [32]: $E^{(2)} = Δ E_{ij} = q_{i} \frac{F {(i, j)}^{2}}{s_{j} - s_{i}}$ (9)

Quantum theory of atoms in molecules (QTAIM) analysis [33] was carried out by MultiWFN 3.1 [34].

3 Results and discussion

3.1 Optimized structures

In the first step, we have optimized the compounds Ibrance, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance in water using the M062X/6-311G^* level of theory. The optimized structures are shown in Fig. 2.

Fig. 2

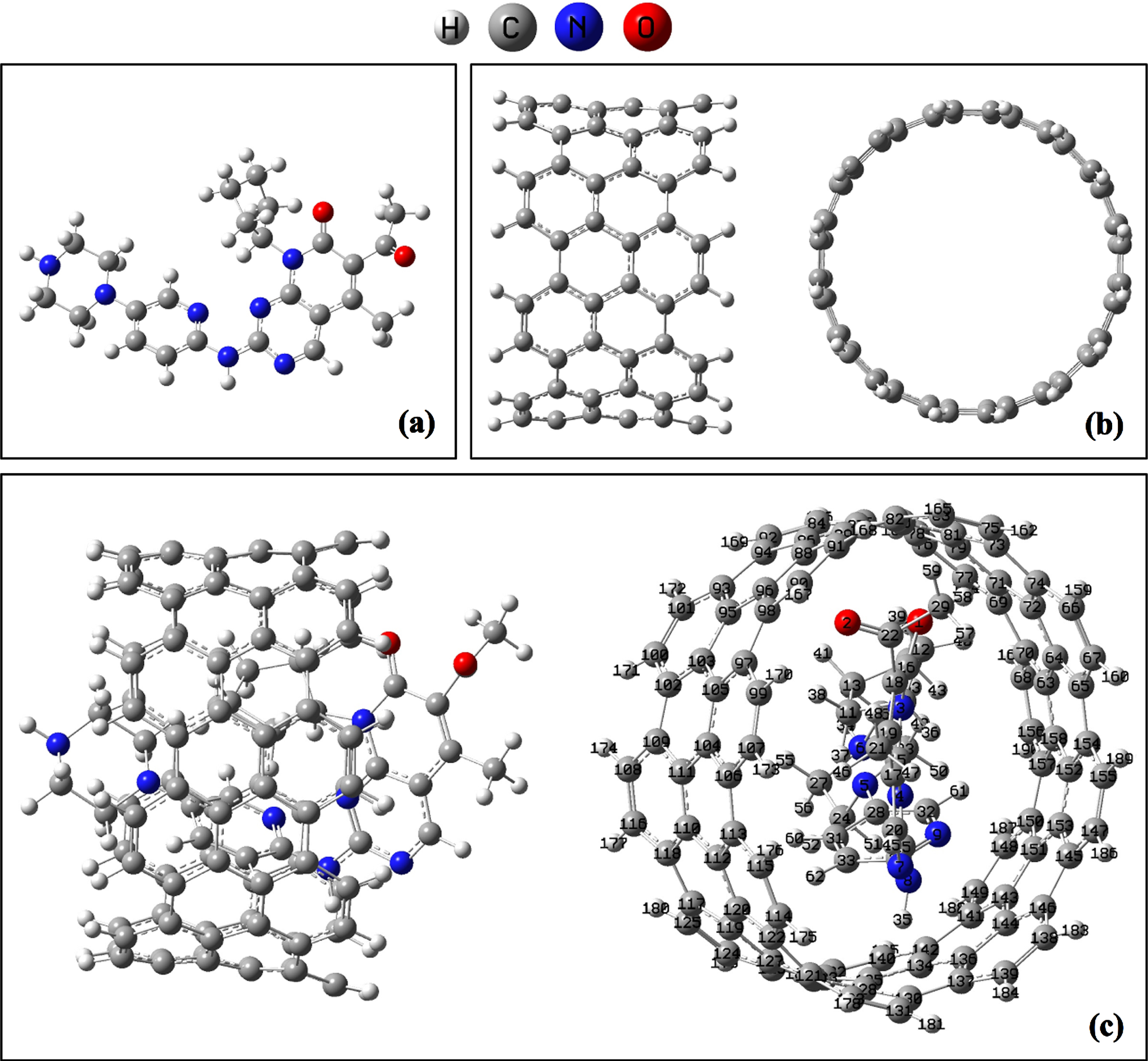

The optimized geometry of the molecules (a): Ibrance, (b): CNT(8,8-7) and (c): complex CNT(8,8-7)/Ibrance using M062X/6-311G^* level of theory.

Table 1 shows the thermochemical parameters calculated for the molecules Ibrance, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance with M062X/6-311G^* level of theory. According to the reported results in Table 1, when Ibrance drug is encapsulated in CNT(8,8-7), the Thermal, Gibbs, and Enthalpy energies decrease. In the non-bonded intermolecular interaction with CNT, energy values indicate a decrease in reactivity and an increase in stability of Ibrance drug (8,8-7).

Table 1

The thermochemical parameters of the molecules Ibrance, CNT(8,8-7), complex CNT(8,8-7)/Ibrance calculated by M062X/6-311G^* level of theory

Parameter	Ibrance	CNT(8,8-7)	CNT(8,8-7)/Ibrance
E + G (eV)	–39867.34	–100041.67	–142801.63
E + H (eV)	–39864.87	–100038.14	–142797.17
E + T (eV)	–39864.89	–100038.16	–142796.16
E + ZPE (eV)	–39865.68	–100039.63	–142792.41
S (cal/mol.K)	192.51	274.56	397.26

Geometrical parameters are critical in interpreting drug interactions with nanotubes in drug delivery systems. Table 2 summarizes the calculated bond lengths of Ibrance drug, CNT(8,8-7), and CNT(8,8-7)/Ibrance complex at the interaction sites. Some bond lengths of Ibrance drug and CNT are changed after interaction, according to the results. The bond lengths of N3-C10, N3-C16, N4-C15, N7-C25, N8-C30, C10-C12, C14-H44, C30-C33, C33-H62 in the molecule Ibrance is 1.480Å, 1.395Å, 1.329Å, 1.354Å, 1.480Å, 1.553Å, 1.091Å, 1.399Å, 1.083Å and after the interaction of Ibrance drug with CNT(8,8-7) changes to 1.487Å, 1.390Å, 1.314Å, 1.349Å, 1.436Å, 1.518Å, 1.086Å, 1.391Å, 1.076Å, respectively (see Table 2). These bonds show the high changes in Ibrance drug during interaction process with CNT(8,8,7). The optimized structure of CNT(8,8-7) has the C64-C72, C80-C81, C80-C82, C88-C89, C90-C98, C97-C105, C99-C107, C102-C109, C121-C122, C128-C129 bonds length 1.417Å, 1.417Å, 1.407Å, 1.407Å, 1.408Å, 1.407Å, 1.377Å, 1.461Å, 1.461Å, 1.417Å, while after interaction with Ibrance drug change to 1.421Å, 1.420Å, 1.409Å, 1.409Å, 1.405Å, 1.409Å, 1.379Å, 1.459Å, 1.465Å, 1.421Å, respectively. The geometry of the structures Ibrance drug and CNT(8,8-7) changes after the non-bonded interaction of the two compounds and the formation of the complex, according to the results, though these changes are not fundamental.

Table 2

The calculated bond length (Å) of the molecule Ibrance, CNT(8,8-7) and complex CNT(8,8-7)/Ibrance using M062X/6-311G^* method in a solvent water

Bond length	Ibrance	CNT(8,8-7)	CNT(8,8-7)/Ibrance
O1-C16	1.222	–	1.219
N3-C10	1.480	–	1.487
N3-C15	1.375	–	1.374
N3-C16	1.395	–	1.390
N4-C15	1.329	–	1.314
N5-C23	1.460	–	1.461
N5-C24	1.469	–	1.468
N5-C28	1.404	–	1.402
N7-C25	1.354	–	1.349
N8-C30	1.480	–	1.436
N8-H35	1.009	–	1.009
N9-C30	1.321	–	1.321
N9-C32	1.336	–	1.337
C10-C12	1.553	–	1.518
C12-C14	1.536	–	1.533
C14-H44	1.091	–	1.086
C28-C31	1.404	–	1.401
C30-C33	1.399	–	1.391
C31-C33	1.378	–	1.377
C33-H62	1.083	–	1.076
C63-C70	–	1.407	1.408
C64-C65	–	1.407	1.408
C64-C72	–	1.417	1.421
C68-C70	–	1.408	1.408
C80-C81	–	1.417	1.420
C80-C82	–	1.407	1.409
C82-C83	–	1.408	1.408
C88-C89	–	1.407	1.409
C90-C98	–	1.408	1.405
C97-C99	–	1.408	1.408
C90-H167	–	1.082	1.083
C97-C105	–	1.407	1.409
C99-C107	–	1.377	1.379
C100-C102	–	1.408	1.408
C102-C103	–	1.407	1.406
C102-C109	–	1.461	1.459
C107-H173	–	1.082	1.083
C121-C122	–	1.461	1.465
C121-C129	–	1.407	1.406
C123-H178	–	1.082	1.083
C127-C129	–	1.440	1.440
C128-C129	–	1.417	1.421
C128-C130	–	1.407	1.406
C131-H181	–	1.082	1.083

3.2 NBO analysis

NBO analysis is used to investigate intra- and intermolecular bonding as well as bond interaction in molecular structure [31]. The stabilization energy (E⁽²⁾) represents the amount of electron participation in the resonance between atoms of molecules [26]. The larger E⁽²⁾ indicated that an electron donor has a high tendency to donate to an electron acceptor [26]. The NBO analysis for complex CNT(8,8-7)/Ibrance was performed using M062X/6-311G^* level of theory and the results are shown in Table 3. According to obtained results, the π → π^*, π → σ^*, σ → π^*, n→π^*, n→σ^*, π^* → π^*, π^* → σ^* transitions take place between Ibrance drug and CNT(8,8-7). The π^*(N9-C30)→π^*(C144-C146), π^*(C17-C20)→π^*(C106-C107) transitions have the highest resonance energies (E⁽²⁾) of 0.70 kcal/mol, 0.95 kcal/mol respectively, rather than other transitions Ibrance→CNT. The lone pairs (n) of the O1 and O2 atoms in the molecule Ibrance overlaps with the anti-bonding orbitals π^* and σ^* of CNT(8,8-7) that are including n1(O1)→π^*(C75-C83), n1(O1)→π^*(C89-C91) n1(O2)→σ^*(C90-H167), n2(O2)→σ^*(C99-H170) interactions with resonance energies (E⁽²⁾) of 0.33 kcal/mol, 0.48 kcal/mol, 0.32 kcal/mol, 0.44 kcal/mol respectively. The other important transitions of Ibrance→CNT are including π(O2-C22)→π^*(C90-H167), σ(C14-H44)→π^*(C78-C79), π^*(N4-C15)→π^*(C106-C107) interactions with stabilization energies (E⁽²⁾) about 0.49 kcal/mol, 0.34 kcal/mol, 0.44 kcal/mol, respectively. The maximum stabilization energy (E⁽²⁾) in charge transfer from CNT(8,8-7) to Ibrance is observed for The π(C130-C131)→σ^*(N8-H35) and π^*(C126-C127)→π^*(C31-C33) transitions about 1.94 kcal/mol and 1.99 kcal/mol. The other important transitions of CNT→Ibrance are including π(C97-C105)→σ^*(C11-H38), π(C120-C122)→σ^*(C33-H62), π(C121-C123)→σ^*(N8-H35), π(C128-C129)→π^*(C31-C33), π(C144-C146)→π^*(N9-C30) interactions with resonance energies of 0.39 kcal/mol, 0.83 kcal/mol, 0.48 kcal/mol, 0.96 kcal/mol, 0.49 kcal/mol, respectively. Thus, Ibrance and CNT(8,8-7) acts as both electron donor and electron acceptor; therefore, charge transfer takes place between they in the complex CNT(8,8-7)/Ibrance.

Table 3
The donor-acceptor interactions and second-order perturbation energies (E⁽²⁾, kcal/mol) related to charge transfer between Ibrance and CNT(8,8-7) in complex calculated using the M062X/6-311G^* method

Donor (i) Acceptor (j) E^(2) a (kcal/mol) E(j)-E(i)^b (a.u.) F(i, j)^c (a.u.)

π(O2-C22) σ^(C90-H167) 0.49 1.00 0.020

π(N7-C25) π^(C114-C115) 0.10 0.42 0.006

σ(C12-H39) π^(C89-C91) 0.17 0.60 0.010

σ(C12-H40) π^(C72-C74) 0.18 0.60 0.010

σ(C14-H44) π^(C73-C81) 0.19 0.60 0.011

π^(C78-C79) 0.34 0.61 0.014

σ(C23-H50) π^(B157-C158) 0.20 0.62 0.011

σ(C33-H62) π^(C120-C122) 0.21 0.64 0.012

π^(C126-C127) 0.23 0.65 0.012

π^(C128-C129) 0.26 0.65 0.013

n1(O1) π^(C75-C83) 0.33 0.86 0.016

π^(C89-C91) 0.48 0.83 0.020

n1(O2) σ^(C90-H167) 0.32 1.32 0.018

σ^(C90-H170) 0.10 1.31 0.010

n2(O2) σ^(C90-H167) 0.20 0.89 0.012

σ^(C99-H170) 0.44 0.89 0.018

n1(N7) π^(C114-C115) 0.13 0.50 0.008

n1(N8) π^(C136-C137) 0.10 0.37 0.006

n1(N9) π^(C145-C147) 0.11 0.46 0.007

π^(N4-C15) π^(C106-C107) 0.44 0.03 0.005

π^(N9-C30) π^(C144-C146) 0.70 0.02 0.005

π^(C17-C20) π^(C106-C107) 0.95 0.01 0.005

σ^(C114-C115) 0.30 0.03 0.005

π(C66-C67) σ^(C12-H40) 0.11 0.83 0.009

π(C68-C156) σ^(C26-H53) 0.16 0.81 0.011

π(C73-C81) σ^(C10-C12) 0.17 0.76 0.011

π(C78-C79) σ^(C14-H44) 0.30 0.83 0.016

π(C80-C82) σ^(C12-H39) 0.16 0.81 0.011

π(C89-C91) σ^(C12-H39) 0.12 0.81 0.010

π(C97-C105) σ^(C11-H38) 0.39 0.81 0.018

π(C106-C107) π^(N4-C15) 0.10 0.32 0.005

π(C120-C122) σ^(C33-H62) 0.83 0.85 0.026

π(C121-C123) σ^(N8-H35) 0.48 0.80 0.020

π(C128-C129) π^(N9-C30) 0.14 0.34 0.006

π(C128-C129) π^(C31-C33) 0.96 0.36 0.017

π(C130-C131) σ^(N8-H35) 1.94 0.80 0.039

π(C136-C137) π^(N9-C30) 0.31 0.34 0.009

π(C141-C143) π^(C28-C32) 0.17 0.35 0.007

π(C144-C146) π^(N9-C30) 0.49 0.33 0.011

π(C148-C149) σ^(C23-H50) 0.12 0.80 0.009

π(C148-C149) σ^(C24-H51) 0.23 0.79 0.013

π^(C126-C127) π^(C31-C33) 1.99 0.01 0.007

π^(C128-C129) π^(C31-C33) 0.18 0.01 0.002

π^(C130-C131) σ^(N8-H35) 0.13 0.47 0.015

Donor (i)	Acceptor (j)	E^(2) a (kcal/mol)	E(j)-E(i)^b (a.u.)	F(i, j)^c (a.u.)
π(O2-C22)	σ^*(C90-H167)	0.49	1.00	0.020
π(N7-C25)	π^*(C114-C115)	0.10	0.42	0.006
σ(C12-H39)	π^*(C89-C91)	0.17	0.60	0.010
σ(C12-H40)	π^*(C72-C74)	0.18	0.60	0.010
σ(C14-H44)	π^*(C73-C81)	0.19	0.60	0.011
	π^*(C78-C79)	0.34	0.61	0.014
σ(C23-H50)	π^*(B157-C158)	0.20	0.62	0.011
σ(C33-H62)	π^*(C120-C122)	0.21	0.64	0.012
	π^*(C126-C127)	0.23	0.65	0.012
	π^*(C128-C129)	0.26	0.65	0.013
n1(O1)	π^*(C75-C83)	0.33	0.86	0.016
	π^*(C89-C91)	0.48	0.83	0.020
n1(O2)	σ^*(C90-H167)	0.32	1.32	0.018
	σ^*(C90-H170)	0.10	1.31	0.010
n2(O2)	σ^*(C90-H167)	0.20	0.89	0.012
	σ^*(C99-H170)	0.44	0.89	0.018
n1(N7)	π^*(C114-C115)	0.13	0.50	0.008
n1(N8)	π^*(C136-C137)	0.10	0.37	0.006
n1(N9)	π^*(C145-C147)	0.11	0.46	0.007
π^*(N4-C15)	π^*(C106-C107)	0.44	0.03	0.005
π^*(N9-C30)	π^*(C144-C146)	0.70	0.02	0.005
π^*(C17-C20)	π^*(C106-C107)	0.95	0.01	0.005
	σ^*(C114-C115)	0.30	0.03	0.005
π(C66-C67)	σ^*(C12-H40)	0.11	0.83	0.009
π(C68-C156)	σ^*(C26-H53)	0.16	0.81	0.011
π(C73-C81)	σ^*(C10-C12)	0.17	0.76	0.011
π(C78-C79)	σ^*(C14-H44)	0.30	0.83	0.016
π(C80-C82)	σ^*(C12-H39)	0.16	0.81	0.011
π(C89-C91)	σ^*(C12-H39)	0.12	0.81	0.010
π(C97-C105)	σ^*(C11-H38)	0.39	0.81	0.018
π(C106-C107)	π^*(N4-C15)	0.10	0.32	0.005
π(C120-C122)	σ^*(C33-H62)	0.83	0.85	0.026
π(C121-C123)	σ^*(N8-H35)	0.48	0.80	0.020
π(C128-C129)	π^*(N9-C30)	0.14	0.34	0.006
π(C128-C129)	π^*(C31-C33)	0.96	0.36	0.017
π(C130-C131)	σ^*(N8-H35)	1.94	0.80	0.039
π(C136-C137)	π^*(N9-C30)	0.31	0.34	0.009
π(C141-C143)	π^*(C28-C32)	0.17	0.35	0.007
π(C144-C146)	π^*(N9-C30)	0.49	0.33	0.011
π(C148-C149)	σ^*(C23-H50)	0.12	0.80	0.009
π(C148-C149)	σ^*(C24-H51)	0.23	0.79	0.013
π^*(C126-C127)	π^*(C31-C33)	1.99	0.01	0.007
π^*(C128-C129)	π^*(C31-C33)	0.18	0.01	0.002
π^*(C130-C131)	σ^*(N8-H35)	0.13	0.47	0.015

^aE⁽²⁾ Energy of hyperconjucative interactions. ^bEnergy difference between donor and acceptor i and j NBO orbitals. ^cF(i, j) Is the Fock matrix element between i and j NBO orbitals.

3.3 Electronic properties

The frontier molecular orbitals (FMO), which include the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO), play important roles in chemical reactions and charge transfer in molecular systems [29]. The HOMO and LUMO energies have the ability to donate and obtain electrons, respectively. The energy gap (E_g) between the HOMO and LUMO orbitals is a key parameter in determining electronic transport properties in molecular structures [24]. We have investigated the effects of non-bonded intermolecular interaction effects on the electronic properties of Ibrance drug and CNT(8,8-7). Table 4 displays the calculated results.

Table 4
The calculated electronic properties of the Ibrance drug, CNT(8,8-7) and the complex CNT(8,8-7)/Ibrance at the M062X/6-311G^* level of theory in the solvent water

Property Ibrance CNT(8,8-7) CNT(8,8-7)/Ibrance

Dipole moment (Debye) 9.146 0.031 5.629

E (eV) –39879.92 –100065.56 –139946.77

E_ad (eV) – – –29.53

E_HOMO (eV) –6.92 –5.81 –5.83

E_LUMO (eV) –1.24 –2.54 –2.54

E_g (eV) 5.68 3.27 3.29

I (eV) 6.92 5.81 5.83

A (eV) 1.24 2.54 2.54

χ (eV) 4.08 4.17 4.18

η (eV) 2.84 1.63 1.64

μ (eV) –4.08 –4.17 –4.18

ω (eV) 2.93 5.33 5.32

S (eV) 0.176 0.306 0.304

Property	Ibrance	CNT(8,8-7)	CNT(8,8-7)/Ibrance
Dipole moment (Debye)	9.146	0.031	5.629
E (eV)	–39879.92	–100065.56	–139946.77
E_ad (eV)	–	–	–29.53
E_HOMO (eV)	–6.92	–5.81	–5.83
E_LUMO (eV)	–1.24	–2.54	–2.54
E_g (eV)	5.68	3.27	3.29
I (eV)	6.92	5.81	5.83
A (eV)	1.24	2.54	2.54
χ (eV)	4.08	4.17	4.18
η (eV)	2.84	1.63	1.64
μ (eV)	–4.08	–4.17	–4.18
ω (eV)	2.93	5.33	5.32
S (eV)	0.176	0.306	0.304

The adsorption energy (E_ad) of the Ibrance drug over the CNT(8,8-7) is approximately 29.53 eV, indicating that the reaction is exothermic (Table 4).

The electron density in HOMO orbital of the compound Ibrance is primarily located on the double bonds (–C = C–and –C = N–) of pyridine ring, nitrogen atom of piperazine ring, double bonds (-C = N-) of imine group, whereas the LUMO orbital is localized on double the double bonds (-C = C- and –C = N-) of pyrimidine ring, carbonyl group (C = O) and double bonds (-C = N-) of imine group, as shown in Fig. 3. Thus, the contribution of pi (π) bonds and lone pairs accounts for the majority of charge transfer from the HOMO orbital to the LUMO orbital in the Ibrance drug. The HOMO and LUMO orbitals of the CNT(8,8-7) and complex CNT(8,8-7)/Ibrance are localized on the double bonds (-C = C-).

Fig. 3

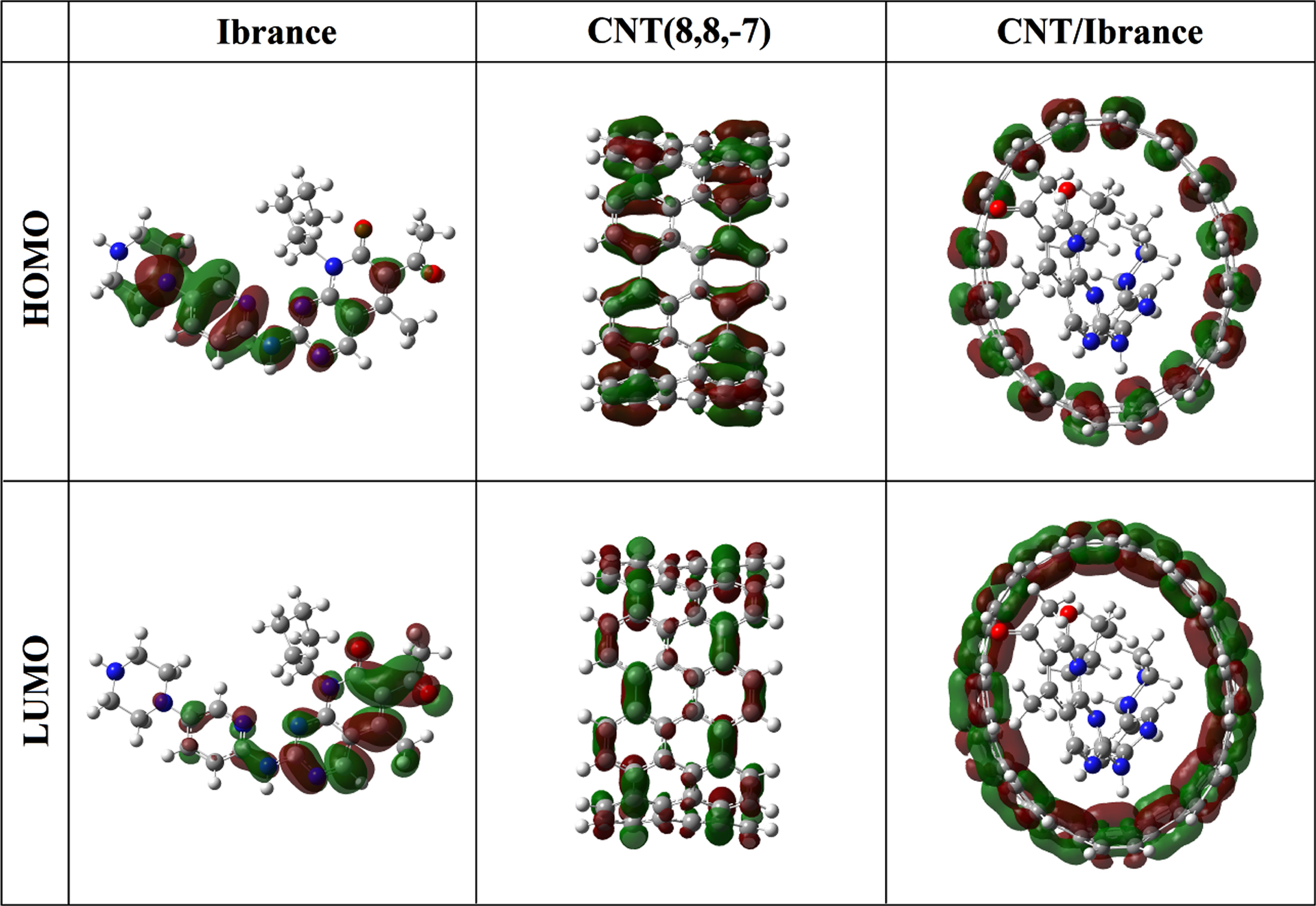

The calculated HOMO and LUMO orbitals of the compounds Ibrance, CNT(8,8-7), and complex CNT(8,8-7)/Ibrance at the M062X/6-311G^* level of theory.

The energy gaps (E_g) of Ibrance drug is 5.68 eV, whereas after the encapsulation process of Ibrance drug into CNT(8,8-7) (complex) decreases to 3.29 eV. This result shows that the electrical conductivity of system complex CNT(8,8-7)/Ibrance is significantly higher than that of isolated Ibrance. The energy gaps of the investigated systems are also shown in the DOS plots [29] in Fig. 4.

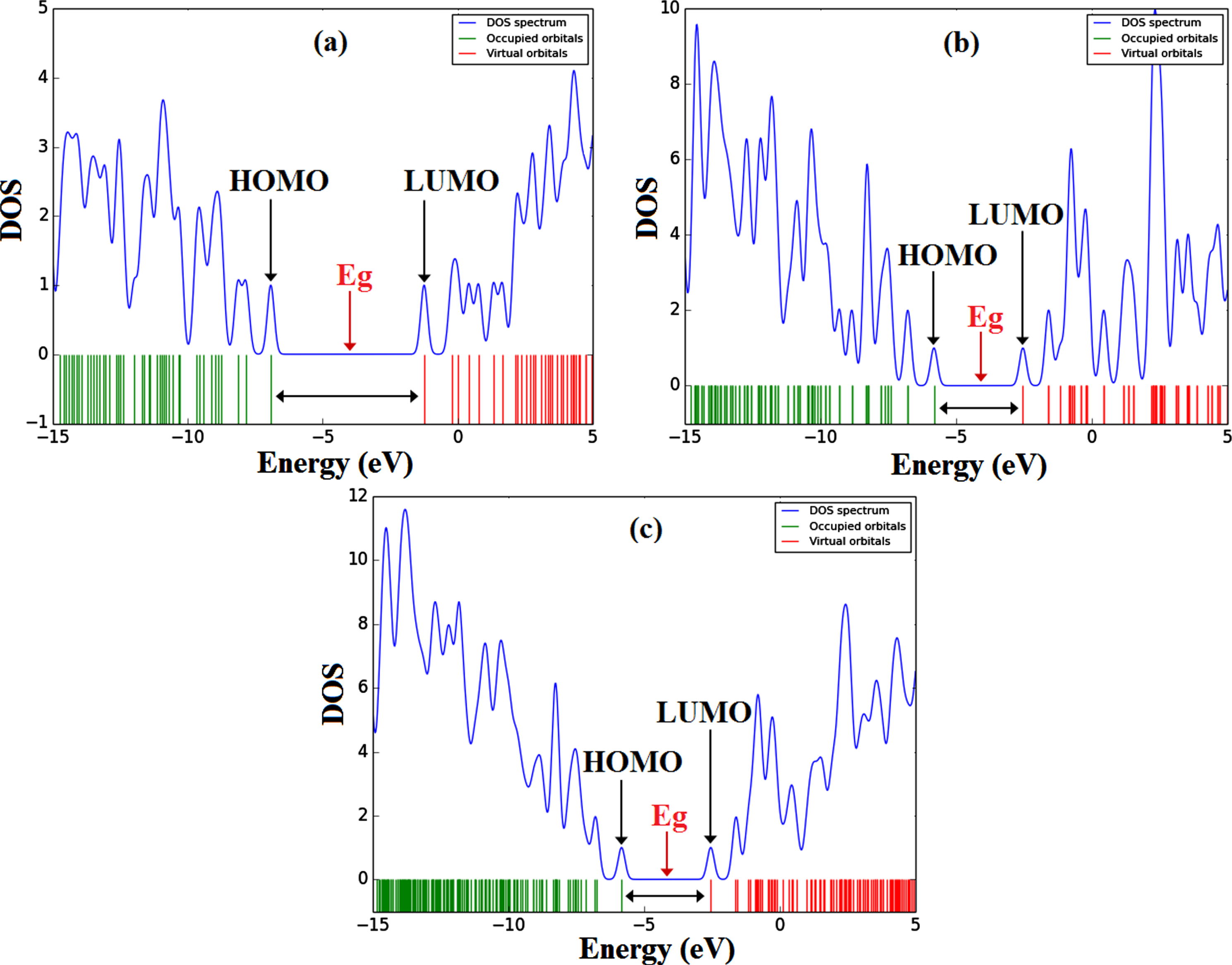

Fig. 4

The DOS plot of the compounds Ibrance (a), CNT(8,8-7) (b), and complex CNT(8,8-7)/Ibrance (c) at the M062X/6-311G^* level of theory.

The quantum molecular descriptors were reported in Table 4. The encapsulation of Ibrance into CNT changes its electronic properties (8,8-7). The hardness (η) of molecular structures is related to their stability, which is an important factor in detecting chemical reactivity [33]. The hardness and electronic chemical potential indexes of the complex CNT/Ibrance drug will be reduced, while electrophilicity and softness will be increased, as opposed to the isolated Ibrance drug. As a result, the complex CNT(8,8-7)/Ibrance exhibits high chemical activity, low chemical stability, and a soft molecular structure. As a result, the encapsulation of Ibrance drug into CNT(8,8-7) in solvent water alters electronic properties.

The values of dipole moment of CNT(8,8-7), Ibrance drug and complex CNT(8,8-7)/Ibrance are 0.031, 9.146, 5.629 Debye, respectively (Table 4). After capsulation process, the values of dipole moment of the CNT(8,8-7) decrease from 0.031 to 5.629 and in Ibrance drug increase from 9.146 to 5.629 Debye. The change of dipole moment after capsulation process show a charge transfer between Ibrance drug and CNT(8,8-7). The atomic charges have an important role on physical properties such as molecular polarizability, dipole moment, electronic structure and related properties of molecules [22]. Using the M062X/6-311G^* level of theory, the NBO charges for equilibrium geometry of the CNT(8,8-7), Ibrance, and complex CNT(8,8-7)/Ibrance were calculated. Table 5 shows the calculated natural charges for selected atoms in three molecular structures (atoms are numbered according to Fig. 2). The natural charges of the O1, N4, N8, N9, C10, C11, C12, C13, C14, C37 atoms at the compound Ibrance are –0.674e, –0.584e, –0.606e, –0.483e, –0.013e, –0.395e, –0.392e, –0.383e, –0.383e, 0.205e, while after encapsulation process of Ibrance into CNT(8,8-7) change to –0.659e, –0.594e, –0.653e, –0.465e, –0.001e, –0.412e, –0.413e, –0.392e, –0.398e, 0.225e, respectively. The natural charges of the C68, C90, C97, C98, C102, C107, C109, C122, C123, C127, C128, C130, C131 atoms of CNT(8,8-7) are –0.176e, –0.176e, –0.030e, –0.030e, –0.030e, –0.176e, –0.030e, –0.030e, –0.176e, –0.013e, –0.013e, –0.030e, –0.176e respectively. After encapsulation of Ibrance into CNT(8,8-7), the natural charges change to –0.181e, –0.191e, –0.032e, –0.027e, –0.033e, –0.181e, –0.028e, –0.039e, –0.190e, –0.015e, –0.010e, –0.038e, –0.200e, respectively. Thus, it shows a charge transfer and non-bonded intermolecular interaction between Ibrance drug and CNT(8,8-7).

Table 5

The natural charges (NBO charges, e) and NMR parameters (ppm) including CS^I and CS^A for the selected atoms in the molecules Ibrance, CNT(8,8-7) and the complex CNT(8,8-7)/Ibrance calculated by the M062X/6-311G^* method

Bond length	Ibrance	CNT(8,8-7)	CNT(8,8-7)/Ibrance
O1	–0.674	–	–0.659
N3	–0.454	–	–0.454
N4	–0.584	–	–0.594
N5	–0.526	–	–0.533
N6	–0.698	–	–0.699
N7	–0.560	–	–0.563
N8	–0.606	–	–0.653
N9	–0.483	–	–0.465
C10	–0.013	–	–0.001
C11	–0.395	–	–0.412
C12	–0.392	–	–0.413
C13	–0.383	–	–0.392
C14	–0.383	–	–0.398
C16	0.704	–	0.711
C20	0.168	–	0.159
C24	–0.177	–	–0.181
C25	0.659	–	0.667
C27	–0.179	–	–0.177
C31	–0.183	–	–0.189
C37	0.205	–	0.225
C63	–	–0.013	–0.013
C64	–	–0.013	–0.013
C65	–	–0.030	–0.031
C68	–	–0.176	–0.181
C72	–	–0.013	–0.012
C80	–	–0.013	–0.012
C81	–	–0.013	–0.014
C82	–	–0.030	–0.029
C88	–	–0.013	–0.014
C89	–	–0.030	–0.030
C90	–	–0.176	–0.191
C97	–	–0.030	–0.032
C98	–	–0.030	–0.027
C100	–	–0.176	–0.175
C102	–	–0.030	–0.033
C103	–	–0.013	–0.014
C105	–	–0.013	–0.012
C107	–	–0.176	–0.181
C109	–	–0.030	–0.028
C121	–	–0.030	–0.031
C122	–	–0.030	–0.039
C123	–	–0.176	–0.190
C127	–	–0.013	–0.015
C128	–	–0.013	–0.010
C130	–	–0.030	–0.038
C131	–	–0.176	–0.200

3.4 Electronic structure and excited states

To investigate the interaction effect of Ibrance with CNT(8,8-7) on the λ_max, we calculated the UV spectra of Ibrance drug and the complex CNT(8,8-7)/Ibrance in the solvent water using the TDM062X/6-311G^* method, taking into account 20 excited states, and reporting the important transitions in Tables 6, 7. Tables 6, 7 display the λmax, oscillator strength (f), and excitation energies (E).

Table 6

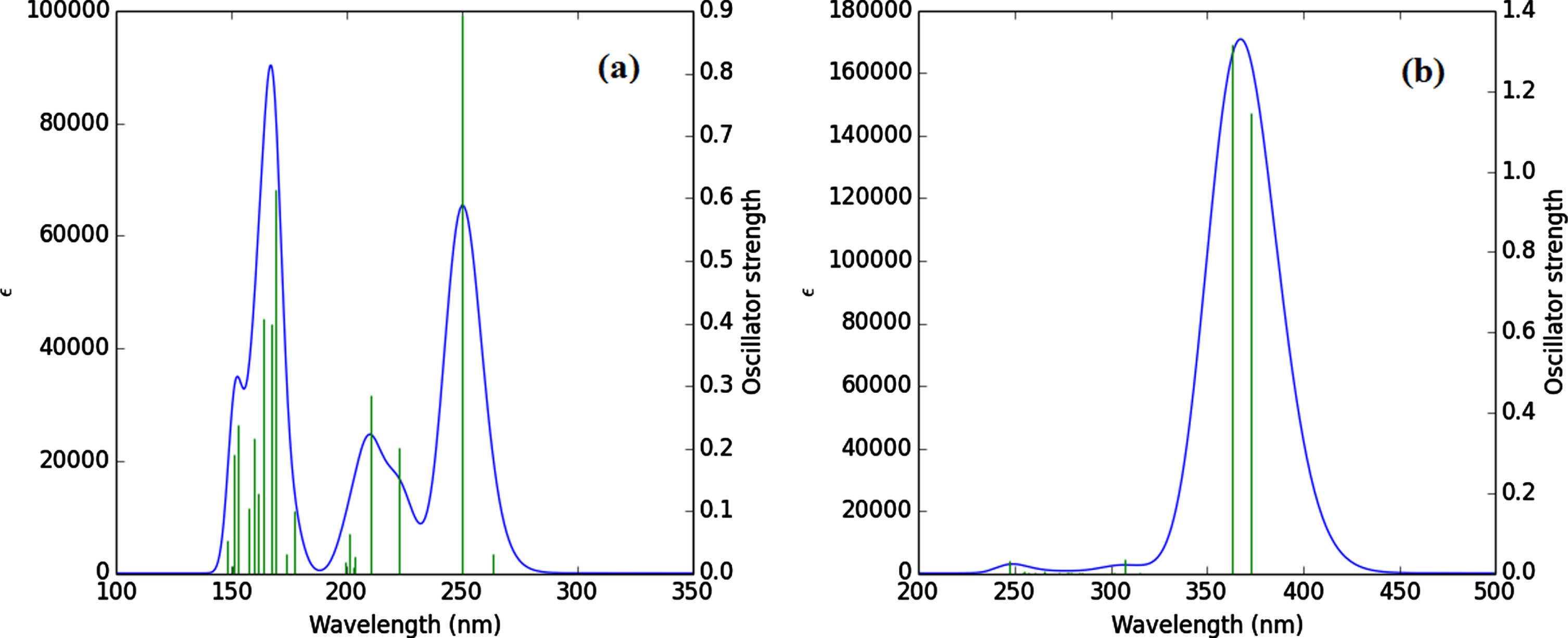

Electronic absorption spectrum of Ibrance drug calculated by TDM062X/6-311G^* method

Excited State Wavelength (nm) Excitation Energy (eV) Configurations Composition (corresponding transition orbitals) Oscillator Strength (f)

S₀→S₂ 250.05 4.95 H-1→L (36%), H→L (45%), H→L + 3 (3%) 0.89

S₀→S₃ 222.80 5.56 H-1→L (10%), H→L + 2 (56%), H-10→L + 2 (4%), H-1→L + 2 (7%), H→L + 1 (8%) 0.20

S₀→S₄ 210.17 5.89 H-1→L (11%), H→L + 2 (11%), H→L + 3 (40%), H-4→L + 2 (6%), H-1→L + 3 (3%), H→L + 1 (5%), H→L + 5 (4%) 0.28

S₀→S₁₁ 169.30 7.32 H-4→L (17%), H-3→L (27%), H-8→L (5%), H-6→L (4%), H-5→L (4%), H-1→L + 1 (4%), H-1→L + 4 (5%), H→L + 1 (9%), H→L + 4 (2%) 0.61

S₀→S₁₂ 167.07 7.42 H-3→L + 1 (25%), H-1→L + 1 (11%), H-4→L + 2 (7%), H-1→L + 3 (4%), H-1→L + 4 (8%), H-1→L + 5 (5%), H→L (4%), H→L + 4 (5%) 0.39

S₀→S₁₃ 164.04 7.55 H-3→L + 1 (10%), H-1→L + 4 (29%), H→L + 4 (10%), H-6→L + 1 (2%), H-4→L + 1 (4%), H-4→L + 2 (4%), H-3→L (5%), H→L + 1 (3%) 0.40

S₀→S₁₄ 161.33 7.68 H-4→L + 2 (17%), H-8→L + 3 (8%), H-7→L + 3 (3%), H-6→L (4%), H-6→L + 3 (2%), H-5→L + 3 (3%), H-4→L + 1 (2%), H-4→L + 3 (8%), H-3→L + 2 (6%), H→L (5%), H→L + 3 (9%), H→L + 5 (3%) 0.12

S₀→S₁₅ 7.77 159.56 H-1→L (14%), H-1→L + 3 (10%), H→L (16%), H-5→L + 1 (3%), H-3→L (2%), H-3→L + 1 (6%), H-1→L + 1 (3%), H-1→L + 2 (3%), H-1→L + 5 (3%), H→L + 1 (3%), H→L + 3 (5%) 0.21

S₀→S₁₆ 7.88 157.30 H-3→L + 1 (10%), H-20→L (3%), H-20→L + 1 (3%), H-19→L (4%), H-19→L + 1 (4%), H-14→L (2%), H-7→L (4%), H-6→L + 1 (2%), H-5→L + 1 (4%), H-5→L + 3 (4%), H-1→L (4%), H→L (3%) 0.10

S₀→S₁₇ 8.11 152.84 H-8→L + 3 (12%), H-10→L + 3 (4%), H-8→L (7%), H-8→L + 2 (3%), H-7→L + 2 (3%), H-7→L + 3 (3%), H-6→L + 2 (6%), H-6→L + 3 (4%), H-4→L + 1 (5%), H-4→L + 2 (7%), H-4→L + 3 (5%), H-3→L + 2 (4%), H→L + 3 (5%) 0.23

S₀→S₁₈ 8.20 151.04 H-4→L + 3 (19%), H-3→L + 3 (12%), H-7→L (3%), H-7→L + 3 (3%), H-6→L + 3 (8%), H-4→L (8%), H-4→L + 1 (3%), H-4→L + 5 (5%), H-3→L (3%), H-3→L + 5 (2%), H-1→L + 5 (3%), H→L + 2 (4%) 0.19

Excited State	Wavelength (nm)	Excitation Energy (eV)	Configurations Composition (corresponding transition orbitals)	Oscillator Strength (f)
S₀→S₂	250.05	4.95	H-1→L (36%), H→L (45%), H→L + 3 (3%)	0.89
S₀→S₃	222.80	5.56	H-1→L (10%), H→L + 2 (56%), H-10→L + 2 (4%), H-1→L + 2 (7%), H→L + 1 (8%)	0.20
S₀→S₄	210.17	5.89	H-1→L (11%), H→L + 2 (11%), H→L + 3 (40%), H-4→L + 2 (6%), H-1→L + 3 (3%), H→L + 1 (5%), H→L + 5 (4%)	0.28
S₀→S₁₁	169.30	7.32	H-4→L (17%), H-3→L (27%), H-8→L (5%), H-6→L (4%), H-5→L (4%), H-1→L + 1 (4%), H-1→L + 4 (5%), H→L + 1 (9%), H→L + 4 (2%)	0.61
S₀→S₁₂	167.07	7.42	H-3→L + 1 (25%), H-1→L + 1 (11%), H-4→L + 2 (7%), H-1→L + 3 (4%), H-1→L + 4 (8%), H-1→L + 5 (5%), H→L (4%), H→L + 4 (5%)	0.39
S₀→S₁₃	164.04	7.55	H-3→L + 1 (10%), H-1→L + 4 (29%), H→L + 4 (10%), H-6→L + 1 (2%), H-4→L + 1 (4%), H-4→L + 2 (4%), H-3→L (5%), H→L + 1 (3%)	0.40
S₀→S₁₄	161.33	7.68	H-4→L + 2 (17%), H-8→L + 3 (8%), H-7→L + 3 (3%), H-6→L (4%), H-6→L + 3 (2%), H-5→L + 3 (3%), H-4→L + 1 (2%), H-4→L + 3 (8%), H-3→L + 2 (6%), H→L (5%), H→L + 3 (9%), H→L + 5 (3%)	0.12
S₀→S₁₅	7.77	159.56	H-1→L (14%), H-1→L + 3 (10%), H→L (16%), H-5→L + 1 (3%), H-3→L (2%), H-3→L + 1 (6%), H-1→L + 1 (3%), H-1→L + 2 (3%), H-1→L + 5 (3%), H→L + 1 (3%), H→L + 3 (5%)	0.21
S₀→S₁₆	7.88	157.30	H-3→L + 1 (10%), H-20→L (3%), H-20→L + 1 (3%), H-19→L (4%), H-19→L + 1 (4%), H-14→L (2%), H-7→L (4%), H-6→L + 1 (2%), H-5→L + 1 (4%), H-5→L + 3 (4%), H-1→L (4%), H→L (3%)	0.10
S₀→S₁₇	8.11	152.84	H-8→L + 3 (12%), H-10→L + 3 (4%), H-8→L (7%), H-8→L + 2 (3%), H-7→L + 2 (3%), H-7→L + 3 (3%), H-6→L + 2 (6%), H-6→L + 3 (4%), H-4→L + 1 (5%), H-4→L + 2 (7%), H-4→L + 3 (5%), H-3→L + 2 (4%), H→L + 3 (5%)	0.23
S₀→S₁₈	8.20	151.04	H-4→L + 3 (19%), H-3→L + 3 (12%), H-7→L (3%), H-7→L + 3 (3%), H-6→L + 3 (8%), H-4→L (8%), H-4→L + 1 (3%), H-4→L + 5 (5%), H-3→L (3%), H-3→L + 5 (2%), H-1→L + 5 (3%), H→L + 2 (4%)	0.19

^*In this Table the transitions with f≥0.10 are presented. ^*H: HOMO, L: LUMO.

Table 7

Electronic absorption spectrum of complex CNT(8,8-7)/Ibrance calculated by TDM062X/6-311G^* method

Excited State	Wavelength (nm)	Excitation Energy (eV)	Configurations Composition (corresponding transition orbitals)	Oscillator Strength (f)
S₀→S₂	373.02	3.32	H-1→L (37%), H→L + 1 (35%), H-2→L (2%), H→L + 2 (5%)	1.14
S₀→S₃	363.01	3.41	H-2→L (36%), H→L + 2 (34%), H-1→L (3%), H→L + 1 (6%)	1.31

^*In this Table the transitions with f≥0.10 are presented. ^*H: HOMO, L: LUMO.

The calculated UV spectrum of Ibrance drug shows λ_max at 250.05 nm (f = 0.89) (Table 6). The charge transfer at λ_max = 250.05 nm takes place at excited state S₀→S₂ with three electron configurations including H-1→L (36%), H→L (45%), H→L + 3 (3%) in which the main transition is observed from HOMO to LUMO [H→L (45%)]. Figure 5 shows shape of molecular orbitals participants at λ_max = 250.05 nm. As previously stated, the contribution of pi (π) bonds and lone pairs accounts for the majority of charge transfer from the HOMO orbital to the LUMO orbital in the Ibrance drug. The excited states of S₀→S₁₁, S₀→S₁₂, S₀→S₁₃ at 169.30 nm (f = 0.61), 167.7 (f = 0.39), 164.04 (f = 0.40) are also the other important excited state in the UV spectrum of Ibrance. The other excited states of Ibrance drug have low intensities and play no role in the formation of title compound electron spectrum (Table 6). Figure 6a depicts the theoretical electronic absorption spectrum of Ibrance drug in aqueous medium.

Fig. 5

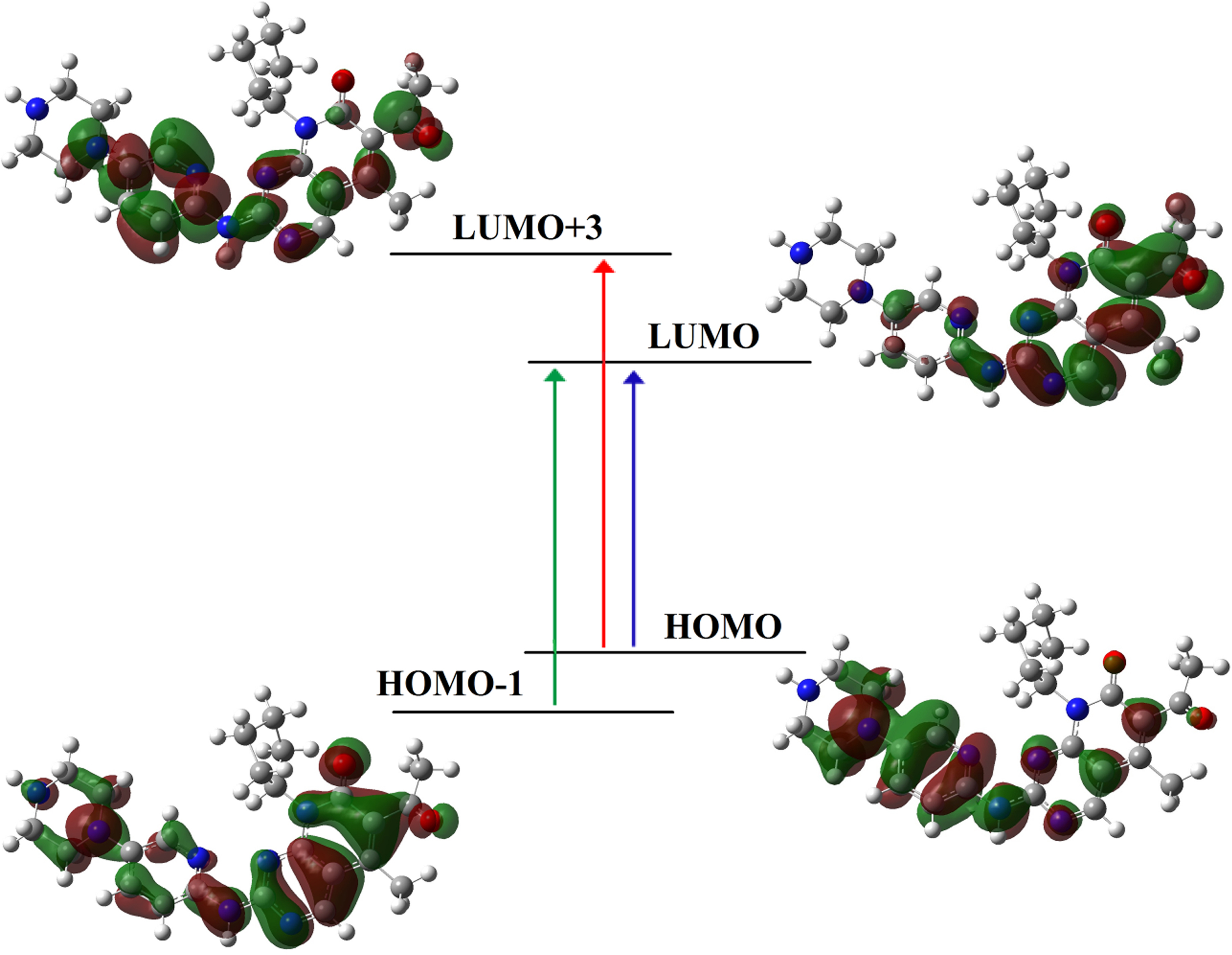

MO involved in formation of absorption spectrum of the complex Ibrance at λ_max = 197 nm calculated by B3LYP/6-31G^* method.

Fig. 6

UV spectra of the Ibrance drug (a) and complex CNT(8,8-7)/Ibrance (b) calculated by TDM062X/6-311G^* method.

After the encapsulation of Ibrance drug into the CNT(8,8-7), λ_max of complex CNT(8,8-7)/Ibrance appears at 373.02 nm (f = 1.14). The charge transfer at λ_max = 373.02 takes place at excited state S₀→S₂ and is defined by four configurations such as H-1→L (37%), H→L + 1 (35%), H-2→L (2%), H→L + 2 (5%) (Table 7). The significant contribution to the absorption maxima is observed at HOMO-1→L transition [H-1→L], which contributes about 37% of the total excitations. Figure 7 shows shape of molecular orbitals participants at λ_max = 373.02 nm. The excited state S₀→S₃ at 363.01 nm (f = 1.31) are also the other important excited state in the calculated UV spectrum of complex CNT(8,8-7)/Ibrance. The other excited states of the title compound have very small intensity (Table 7). Figure 6(b) shows the calculated UV spectrum of complex CNT/drug in the solvent water.

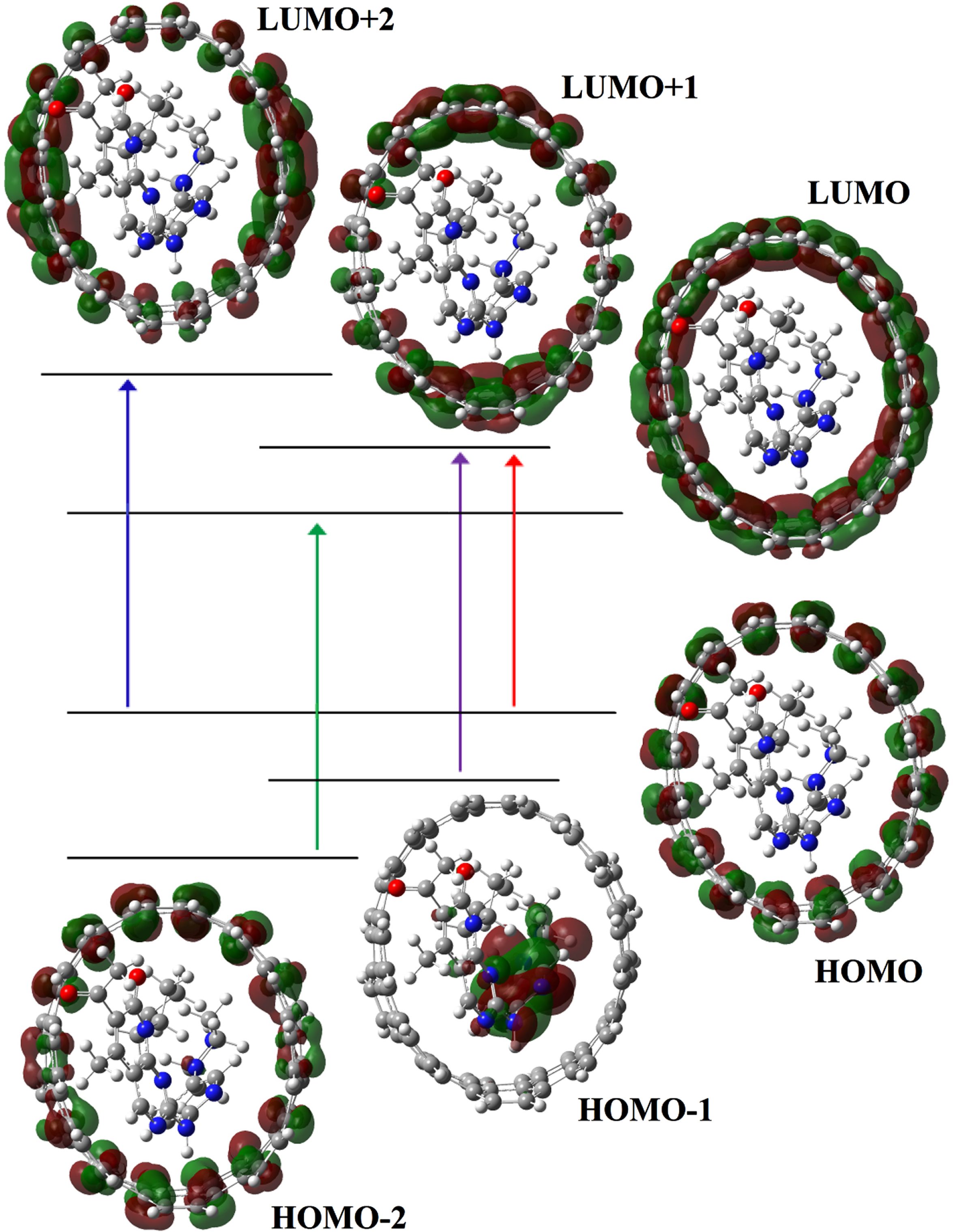

Fig. 7

MO involved in formation of absorption spectrum of the complex Ibrance at λ_max = 197 nm calculated by M062X/6-311G^* method.

In the UV spectrum of the isolated Ibrance, λ_max is observed at 250.05 nm, but after encapsulation in CNT(8,8-7) it is increased to 373.02 nm. As a result, we found that encapsulation and non-bonded intermolecular interaction of Ibrance into the CNT(8,8-7) change the value of λ_max which can be interpreted as a bathochromic shift.

3.5 QTAIM, ELF and LOL analysis

Quantum theory of atoms in molecules (QTAIM) [35] is used to reveal the nature of intermolecular interactions in the Ibrance/CNT complex at bond critical points (BCPs). Topological parameters such as electron density (ρ(r)), Laplacian of electron density (∇²ρ (r)), total energy density (H(r)), kinetic energy density (G(r)) and potential energy density (V(r)) [36] can be used to determine the intermolecular interactions. Figure 8 depicts the molecular graphs of the Ibrance drug molecule encapsulated in the CNT cavity. As shown in Fig. 8, there are five intermolecular hydrogen bonds formed between the hydrogen atom of the CNT and the oxygen atom of the Ibrance drug molecule (N4-H36, N5-H42O1-H58, O2-H167 and O2-H170). Topological analysis of the intermolecular bonds formed between Ibrance drug molecule and Carbon nanotube at the BCPs is listed in Table 8. The value of ρ(r) describes the strength of a chemical bond, so that a system with higher value of ρ(r) indicating more interaction and vice versa. The highest value of (r) is 0.099a.u, which is related to the C157-H50 bond. It demonstrates that this is the strongest bond. Positive and negative values of (r) characterize closed-shell and shared interactions, respectively [37, 38]. As shown in Table 1, the positive values of ∇²ρ (r) for all intermolecular bonds formed between Ibrance drug molecule and CNT indicate closed-shell interactions. The negative values of the ∇²ρ (r) and H(r) represent strong interactions, whereas the positive value of ∇²ρ (r) and the negative value of H(r) denote the medium interactions [39]. In the case of weak interactions, ∇²ρ (r) and H(r) values are positive. The calculated ∇²ρ (r) and H(r) values for all intermolecular bonds in the Ibrance drug/CNT complex are positive, showing weak interactions.

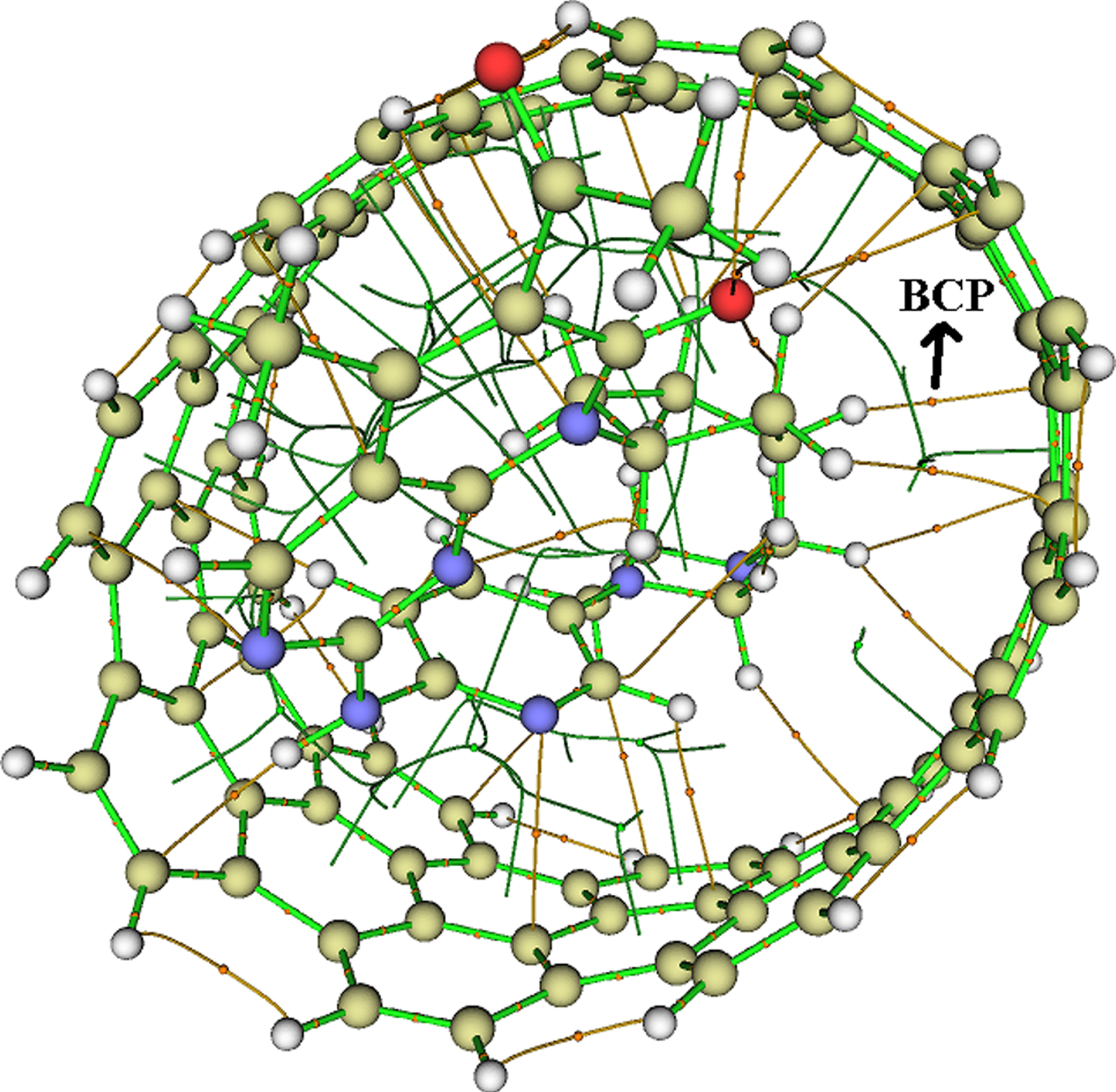

Fig. 8

Molecular graphs of Ibrance/CNT complex.

Table 8

Calculated topological parameters (in a.u) at the BCPs of the intermolecular bonds of Ibrance/CNT complex

Bond	ρ(r)	∇²ρ (r)	H(r)	-G(r) /V(r)
N3-C99	0.029	0.103	0.469	1.28
N7-C114	0.064	0.195	0.699	1.20
N9-C144	0.087	0.277	0.901	1.17
N4-H36	0.025	0.115	0.374	1.17
N5-H42	0.086	0.789	0.838	1.14
C157-H50	0.099	0.853	0.145	1.24
C77-H53	0.034	0.113	0.636	1.41
C68-H53	0.064	0.201	0.100	1.33
C79-H44	0.043	0.464	0.143	1.15
C73-H40	0.091	0.840	0.157	1.29
C120-H62	0.075	0.547	0.110	1.09
C129-H62	0.071	0.438	0.202	1.29
C151-H61	0.090	0.832	0.159	1.31
C86-H41	0.060	0.202	0.949	1.30
C123-H35	0.076	0.566	0.106	1.09
C33-H37	0.069	0.221	0.102	1.29
C140-H51	0.056	0.178	0.886	1.33
C95-H41	0.062	0.212	0.101	1.30
O1-C12	0.075	0.605	0.170	1.14
O1-C83	0.068	0.259	0.103	1.23
O1-C91	0.072	0.442	0.114	1.13
O1-H58	0.042	0.447	0.112	1.11
O2-H167	0.040	0.375	0.101	1.13
O2-H170	0.057	0.436	0.936	1.26

The nature of the interactions can be determined based on the -G(r) and V(r) descriptors, so that the values of 0.5< -G(r)/V(r)<0, 1< -G(r)/V(r)<0.5 and -G(r)/V(r)>1 indicate covalent, electrostatic with partially covalent and non-covalent interactions, respectively [40]. As listed in Table 1, the -G(r)/V(r)value of all intermolecular bonds in the Ibrance drug/CNT complex is found to be greater than one, which means that they are non-covalent in nature.

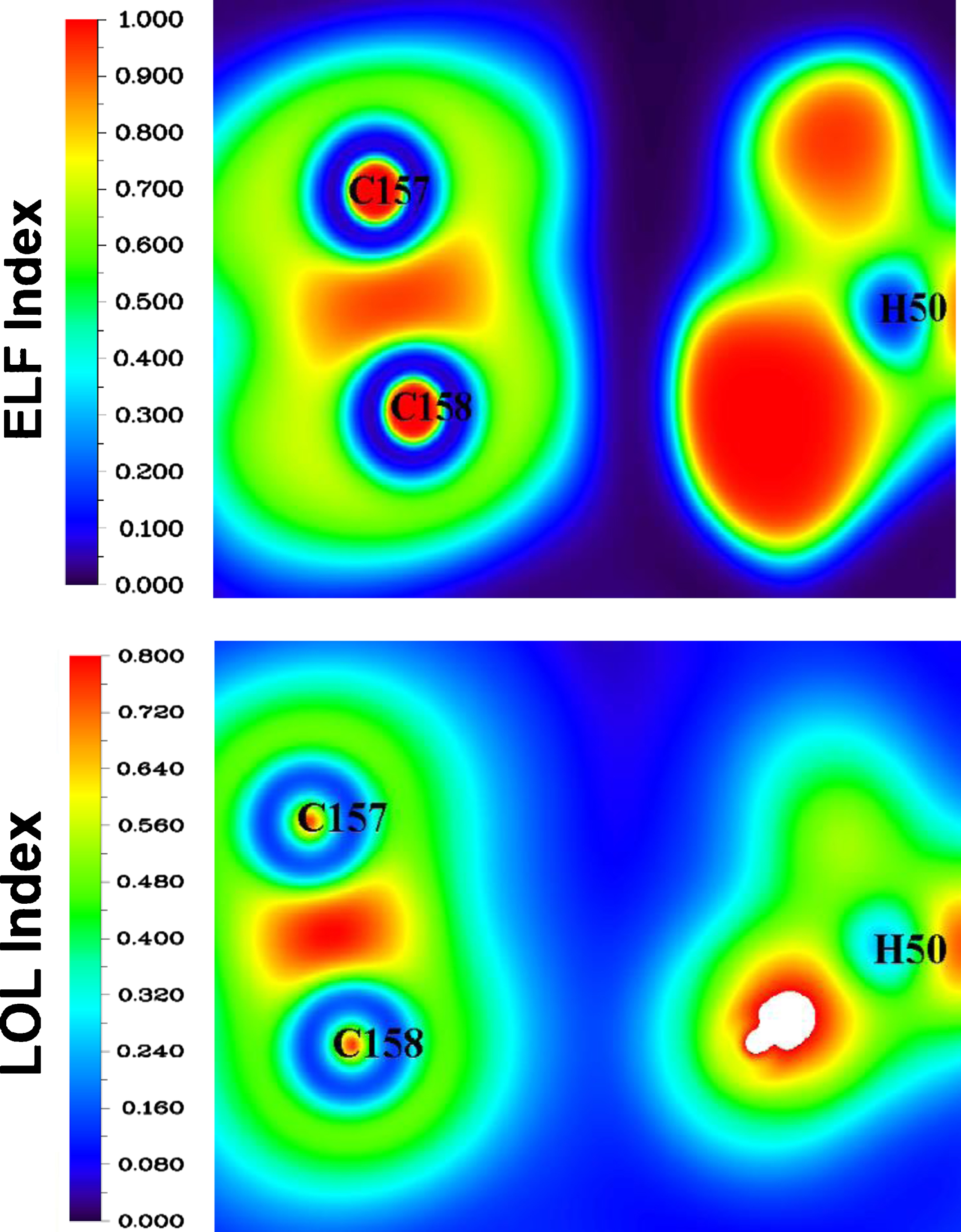

Figure 9 depicts electron location function (ELF) and localized orbital locator (LOL) analyses of the studied complexes. The ELF and LOL are measures of the degree of electron localization. ELF and LOL values that are large (perfect localization, red areas) and small (low charge density, blue areas) indicate covalent and non-covalent interactions, respectively [41, 42]. The LOL and ELF values of all intermolecular bonds in the Ibrance/CNT complex are low, confirming non-covalent interactions between the Ibrance drug molecule and the CNT, as shown in Fig. 9.

Fig. 9

The ELF and LOL maps of molecular encapsulation of Ibrance drug molecule in CNT cavity.

4 Conclusion

Herein, the encapsulation of Ibrance drug into the CNT(8,8-7) was studied at the M062/6-311G^* level of theory. According to the obtained results, the encapsulation process of Ibrance drug into the CNT(8,8-7) is an exothermic process and CNT(8,8-7)/Ibrance is a stable complex. It is found that some geometrical parameters of Ibrance and CNT(8,8-7) are changed after interaction between Ibrance and CNT. The NBO analysis predicted a charge transfer from the molecule Ibrance to CNT and vice versa. The energy gaps between LUMO and HOMO narrow after the interaction of Ibrance and CNT(8,8-7) rather than isolated Ibrance, and thus the electrical conductivity of the complex increases. After non-bonded interaction between Ibrance and the CNT(8), the electronic properties and natural charges change. The complex hardness and electronic chemical potential of the material will be reduced, while its electrophilicity and softness will be increased. The Non-bonded interaction between the compound Ibrance and CNT(8,8-7) changes the value of λ_max. According to QTAIM analysis, the -G(r)/V(r) value of all intermolecular bonds in the Ibrance/CNT complex is found to be greater than one; therefore bonds are non-covalent. The LOL and ELF values of all intermolecular bonds in the Ibrance/CNT complex are low, confirming non-covalent interactions between the Ibrance molecule and the CNT. We hope that our findings can be can be used to improve drugs delivery to cancer cells using adsorbents.

Footnotes

Acknowledgments

The authors gratefully acknowledgment the financial and other support of this research, provided by the Islamic Azad University, Gachsaran Branch, Gachsaran, Iran.

References

Bertrand

and Leroux

J.C.

, The journey of a drug-carrier in the body: an anatomo-physiological perspective, J Control Release 161 (2012), 152–163.

Kumar

, Jalodia

, Kumar

and Gautam

H.K.

, Recent advances in nanoparticle-mediated drug delivery, J Drug Deliv Sci Technol 41 (2017), 260–268.

Wang

, Wang

, Shen

, He

and Guo

, Tumor-specific disintegratable nanohybrids containing ultrasmall inorganic nanoparticles: from design and improved properties to cancer applications, Mater Horiz 5 (2018), 184–205.

Padma

V.D.

and Jain

, (eds.) Targeted Drug Delivery: Concepts and Design Advances in Delivery Science and Technology, Springer (2014).

Dai

, Liu

, Luo

, Li

and Cai

, Tumor therapy: targeted drug delivery systems, J Mater Chem B 4 (2016), 6758–6772.

Bhirde

A.A.

, Patel

, Gavard

, Zhang

, Sousa

A.A.

, Masedunskas

, Leapman

R.D.

, Weigert

, Gutkind

J.S.

and Rusling

J.F.

, Targeted killing of cancer cells in vivo and in vitro with EGF-directed carbon nanotubebased drug delivery, ACS Nano 3 (2009), 307–316.

Heister

, Neves

, Tîlmaciu

, Lipert

, Beltrán

V.S.

, Coley

H.M.

, Silva

S.R.P.

and McFadden

, Triplefunctionalisation of single-walled carbon nanotubes with doxorubicin, a monoclonal antibody, and a fluorescentmarker for targeted cancer therapy, Carbon 47 (2009), 2152–2160.

Saleemi

M.A.

, Hosseini Fouladi

, ,Chen Yong

P.V.

, Chinna

, Kumari Palanisamy

and Wong

E.H.

, Toxicity of Carbon Nanotubes: Molecular Mechanisms, Signaling Cascades, and Remedies in Biomedical Applications, Chem Res Toxicol 34 (2021), 24–46.

Liu

, Zhao

, Sun

and Chen

Ch.

, Understanding the Toxicity of Carbon Nanotubes, Acc Chem Res 46 (2013), 702–713.

10.

Kobayashi

, Izumi

and Morimoto

, Review of toxicity studies of carbon nanotubes, J Occup Health 59 (2017), 394–407.

11.

Soppimath

K.S.

, Aminabhavi

T.M.

, Kulkarni

A.R.

and Rudzinski

W.E.

, Biodegradable polymeric nanoparticles as drug delivery devices, J Control Release 70 (2001), 1–20.

12.

Kumari

, Yadav

S.K.

, Pakade

Y.B.

, Singh

and Yadav

S.C.

, Development of biodegradable nanoparticles for delivery of quercetin, Colloids Surf B 80 (2010a), 184–192.

13.

Finn

R.S.

, Dering

, Conklin

, Kalous

, Cohen

D.J.

, Desai

A.J.

, Ginther

, Atefi

, Chen

, Fowest

, Los

and Slamon

D.J.

, PD 991, a selective cyclin D kinase 4/6 inhibitor, preferentially inhibits proliferation of luminal estrogen receptor-positive human breast cancer cell lines in vitro, Breast Cancer Res BCR 11 (2009), R77.

14.

Rocca

, Farolfi

, Bravaccini

, Schirone

and Amadori

, Palbociclib (PD 991): targeting the cell cycle machinery in breast cancer, Expert Opin Pharmacother 15 (2014), 407–420.

15.

“Updated Data from Phase 3 Trial of IBRANCE® (palbociclib) Plus Letrozole in HR+, HER2- Metastatic Breast Cancer Confirm Improvement in Progression-Free Survival| Pfizer: One of the world’s premier biopharmaceutical companies”. http://www.pfizer.com. Retrieved 2017-12-16.

16.

Faramarzi1

, Falahati1

and Mirzaei

, Interactions of Fluorouracil by CNT and BNNT: DFT Analyses, Adv J Sci Eng 1 (2020), 62–66.

17.

Yaraghi

, Ozkendir

O.M.

and Mirzaei

, DFT studies of 5-fluorouracil tautomers on a silicon graphene nanosheet, Superlattices Microstruct 85 (2015), 784–788.

18.

Aramideh

, Mirzaei

, Khodarahmi

Gh.

and Gülseren

, DFT Studies of Graphene-Functionalised Derivatives of Capecitabine, Z Naturforsch A 72 (2017), 1131–1138.

19.

Kakaei

and Mirzaei

, Cyclophosphamide@CNT: In Silico Exploration of Nano Drug Delivery System, Lab Silico 2 (2021), 9–14.

20.

Mirzaei

and Gulseren

, DFT studies of CNT–functionalized uracil-acetate hybrids, Phys E: Low-Dimens Syst Nanostruct 73 (2015), 105–109.

21.

Harismah

, Mirzaei

, Sahebi

, Gülseren

and Shokuhi Rad

, Chemically uracil–functionalized carbon and silicon carbide nanotubes: Computational studies, Mater Chem Phys (2018), 164–170.

22.

Sheikhi

, Shahab

, Khaleghian

and Kumar

, Interaction between new anti-cancer drug syndros and CNT (6, 6-6) nanotube for medical applications: geometry optimization, molecular structure, spectroscopic (NMR, UV/Vis, excited state), FMO, MEP and HOMO-LUMO investigation, Appl Surf Sci 434 (2018), 504–513.

23.

Sheikhi

, Shahab

, Khaleghian

, Hajikolaee

F.H.

, Balakhanava

and Alnajjar

, Adsorption properties of the molecule resveratrol on CNT (8, 0-10) nanotube: Geometry optimization, molecular structure, spectroscopic (NMR, UV/Vis, excited state), FMO, MEP and HOMO-LUMO investigations, J Mol Struct 1160 (2018), 479–487.

24.

Sheikhi

, Shahab

, Alnajjar

and Ahmadianarog

, Adsorption Properties of the New Anti-cancer Drug Alectinib on CNT(6,6-6) Nanotube: Geometry Optimization, Molecular Structure, Spectroscopic (NMR, UV/Vis, Excited State), FMO, MEP and HOMO-LUMO Investigations, J Clust Sci 30 (2019), 83–96.

25.

Shahab

, Sheikhi

, Khaleghian

, Balakhanava

and Azarakhshi

, DFT Study of Physisorption Effect of the Curcumin on CNT(8,0-6) Nanotube for Biological Applications, Chinese J Struct Chem 38 (2019), 37–52.

26.

Sheikhi

, Shahab

, Filippovich

, Yahyaei

, Dikusar

and Khaleghian

, New derivatives of (E,E)-azomethines: Design, quantum chemical modeling, spectroscopic (FT-IR, UV/Vis, polarization) studies, synthesis and their applications: Experimental and theoretical investigations, J Mol Struct 1152 (2018), 368–385.

27.

Frisch

M.J.

, Trucks

G.W.

, Schlegel

H.B.

, Scuseria

G.E.

, Robb

M.A.

, Cheeseman

J.R.

, Scalmani

, Barone

, Mennucci

, Petersson

G.A.

, Nakatsuji

, Caricato

, Li

, Hratchian

H.P.

, Izmaylov

A.F.

, Bloino

, Zheng

, Sonnenberg

J.L.

, Hada

, Ehara

, Toyota

, Fukuda

, Hasegawa

, Ishida

, Nakajima

, Honda

, Kitao

, Nakai

, Vreven

, Montgomery

J.A.

Jr , Peralta

J.E.

, Ogliaro

, Bearpark

, Heyd

J.J.

, Brothers

, Kudin

K.N.

, Staroverov

V.N.

, Kobayashi

, Normand

, Raghavachari

, Rendell

, Burant

J.C.

, Iyengar

S.S.

, Tomasi

, Cossi

, Rega

, Millam

J.M.

, Klene

, Knox

J.E.

, Cross

J.B.

, Bakken

, Adamo

, Jaramillo

, Gomperts

, Stratmann

R.E.

, Yazyev

, Austin

A.J.

, Cammi

, Pomelli

, Ochterski

J.W.

, Martin

R.L.

, Morokuma

, Zakrzewski

V.G.

, Voth

G.A.

, Salvador

, Dannenberg

J.J.

, Dapprich

, Daniels

A.D.

, Farkas

Ö.

, Foresman

J.B.

, Ortiz

J.V.

, Ciwski

and Fox

D.J.

, Gaussian 09 revision A02, Gaussian, Inc., Wallingford CT, 2009.

28.

El Mahdy

A.M.

, Density functional investigation of CO and NO adsorption on TM-decorated C₆₀ Fullerene, Appl Surf Sci 383 (2016), 353–366.

29.

Tavakoli

, Theoretical investigation of adsorption effects Granisetron anticancer drug over BN(7,7-7) nanotube as factor of drug delivery: A DFT study, Chinese J Struct Chem 38 (2019), 1421–1431.

30.

Frisch

, Nielson

A.B.

and Holder

A.J.

, GAUSSVIEW User Manual, Gaussian Inc. Pittsburgh, PA, 2000.

31.

Sheikhi

, Shahab

, Filippovich

, Dikusar

and Khaleghian

, DFT Investigations (Geometry Optimization, UV/Vis, FT-IR, NMR, HOMO-LUMO, FMO, MEP, NBO, Excited States) and the Syntheses of New Pyrimidine Dyes, Chinese J Struc Chem 37 (2018), 1201–1222.

32.

Weinhold

and Landis

C.R.

, Natural Bond Orbitals and Extensions of Localized, Chem Educ Res Pract 2 (2001), 91–104.

33.

Shyam Kumar Vinod

, Raghavendra

and Subramanian

, Bader’s theory of atoms in molecules (AIM) and its applications to chemical bonding, J Chem Sci 128 (2016), 1527–1536.

34.

and Chen

, Multiwfn: a multifunctional wave function analyzer, J Comput Chem 33 (2012), 580–592.

35.

Bader

R.F.W.

, A quantum theory of molecular structure and its applications, Chem Rev 91 (1991), 893–928.

36.

Vatanparast

and Shariatinia

, Hexagonal boron nitride nanosheet as novel drug delivery system for anticancer drugs: insights from DFT calculations and molecular dynamics simulations, J Mol Graph Model 89 (2019), 50–59.

37.

Keith

T.A.

, Bader

R.F.W.

and Aray

, Structural homeomorphism between the electron density and the virial field, Int J Quantum Chem 57 (1996), 183–198.

38.

Koch

and Popelier

P.L.

, Characterization of CHO hydrogen bonds on the basis of the charge density, J Phys Chem 99 (1995), 9747–9754.

39.

Alirezapour

and Khanmohammadi

, The effect of cation–π interactions on the stability and electronic properties of anticancer drug Altretamine: a theoretical study, Acta Crystallogr C: Struct Chem 76 (2020), 982–991.

40.

Khavani

, Izadyar

and Housaindokht

M.R.

, DFT investigation and molecular dynamic simulation on the selective complexation of cis-cyclic nanopeptides with alkaline earth metal ions, Sens Actuators B Chem 221 (2015), 1120–1129.

41.

Tsirelson

and Stash

, Determination of the electron localization function from electron density, Chem phys Lett 351 (2002), 142–148.

42.

Jacobsen

, Localized-orbital locator (LOL) profiles of chemical bonding, Can J Chem 86 (2008), 695–702.
