High-level ETL for semantic data warehouses

Abstract

The popularity of the Semantic Web (SW) encourages organizations to organize and publish semantic data using the RDF model. This growth poses new requirements to Business Intelligence technologies to enable On-Line Analytical Processing (OLAP)-like analysis over semantic data. The incorporation of semantic data into a Data Warehouse (DW) is not supported by the traditional Extract-Transform-Load (ETL) tools because they do not consider semantic issues in the integration process. In this paper, we propose a layer-based integration process and a set of high-level RDF-based ETL constructs required to define, map, extract, process, transform, integrate, update, and load (multidimensional) semantic data. Different to other ETL tools, we automate the ETL data flows by creating metadata at the schema level. Therefore, it relieves ETL developers from the burden of manual mapping at the ETL operation level. We create a prototype, named Semantic ETL Construct (SETL_CONSTRUCT), based on the innovative ETL constructs proposed here. To evaluate SETL_CONSTRUCT, we create a multidimensional semantic DW by integrating a Danish Business dataset and an EU Subsidy dataset using it and compare it with the previous programmable framework SETL_PROG in terms of productivity, development time, and performance. The evaluation shows that 1) SETL_CONSTRUCT uses 92% fewer Number of Typed Characters (NOTC) than SETL_PROG, and SETL_AUTO (the extension of SETL_CONSTRUCT for generating ETL execution flows automatically) further reduces the Number of Used Concepts (NOUC) by another 25%; 2) using SETL_CONSTRUCT, the development time is almost cut in half compared to SETL_PROG, and is cut by another 27% using SETL_AUTO; and 3) SETL_CONSTRUCT is scalable and has similar performance compared to SETL_PROG. We also evaluate our approach qualitatively by interviewing two ETL experts.

Keywords

Semantic ETL Semantic Data Warehosue RDF Layer-based Semantic Data Integration ETL Constructs

1. Introduction

Semantic Web (SW) technologies enable adding a semantic layer over the data; thus, the data can be processed and effectively retrieved by both humans and machines. The Linked Data (LD) principles are the set of standard rules to publish and connect data using semantic links [9]. With the growing popularity of the SW and LD, more and more organizations natively manage data using SW standards, such as Resource Description Framework (RDF), RDF-Schema (RDFs), the Web Ontology Language (OWL), etc. [17]. Moreover, one can easily convert data given in another format (database, XML, JSON, etc.) into RDF format using an RDF Wrappers [8]. As a result, a lot of semantic datasets are now available in different data portals, such as DataHub,1

¹
https://datahub.io/

Linked Open Data Cloud2

https://lod-cloud.net/

(LOD), etc. Most SW data provided by international and governmental organizations include facts and figures, which give rise to new requirements for Business Intelligence tools to enable analyses in the style of Online Analytical Processing (OLAP) over those semantic data [34].

OLAP is a well-recognized technology to support decision making by analyzing data integrated from multiple sources. The integrated data are stored in a Data Warehouse (DW), typically structured following the Multidimensional (MD) Model that represents data in terms of facts and dimensions to enable OLAP queries. The integration process for extracting data from different sources, translating them according to the underlying semantics of the DW, and loading them into the DW is known as Extract-Transform-Load (ETL). One way to enable OLAP over semantic data is by extracting those data and translating them according to the DW’s format using a traditional ETL process. [47] outlines such a type of semi-automatic method to integrate semantic data into a traditional Relational Database Management System (RDBMS)-centric MD DW. However, the process does not maintain all the semantics of data as they are conveying in the semantic sources; hence, the integrated data no more follow the SW data principles defined in [27]. The semantics of the data in a semantic data source is defined by 1) using Internationalized Resource Identifiers (IRIs) to uniquely identify resources globally, 2) providing common terminologies, 3) semantically linking with published information, and 4) providing further knowledge (e.g., logical axioms) to allow reasoning [7].

Therefore, considering semantic issues in the integration process should be emphasized. Moreover, initiatives such as Open Government Data3

https://opengovdata.org/

encourage organizations to publish their data using standards and non-proprietary formats [62]. The integration of semantic data into a DW raises the challenges of schema derivation, semantic heterogeneity, semantic annotation, linking as well as the schema, and data management system over traditional DW technologies and ETL tools. The main drawback of a state-of-the-art RDBMS-based DW is that it is strictly schema dependent and less flexible to evolving business requirements [16]. To cover new business requirements, every step of the development cycle needs to be updated to cope with the new requirements. This update process is time-consuming as well as costly and is sometimes not adjustable with the current setup of the DW; hence, it introduces the need for a novel approach. The limitations of traditional ETL tools to process semantic data sources are: (1) they do not fully support semantic-aware data, (2) they are entirely schema dependent (i.e., cannot handle data expressed without pre-defined schema), (3) they do not focus on meaningful semantic relationships to integrate data from disparate sources, and (4) they neither support to capture the semantics of data nor support to derive new information by active inference and reasoning on the data.

Semantic Web technologies address the problems described above, as they allow adding semantics at both data and schema level in the integration process and publish data in RDF using the LD principles. On the SW, the RDF model is used to manage and exchange data, and RDFS and OWL are used in combination with the RDF data model to define constraints that data must meet. Moreover, Data Cube (QB) [12] and Data cube for OLAP (QB4OLAP) [19] vocabularies can be used to define data with MD semantics. [44] refers to an MD DW that is semantically annotated both at the schema and data level as a Semantic DW (SDW). An SDW is based on the assumption that the schema can evolve and be extended without affecting the existing structure. Hence, it overcomes the problems triggered by the evolution of an RDBMS-based data warehousing system. On top of that, as for the physical storage of the facts and pre-aggregated values, a physically materialized SDW, the setting we focus on, store both of these as triples in the triplestore. Thus, a physical SDW is a new type of OLAP (storage) compared to classical Relational OLAP (ROLAP), Multidimensional OLAP (MOLAP), and their combination Hybrid OLAP (HOLAP) [61]. In general, physical SDW offers more expressivity at the cost of performance [35]. In [44], we proposed SETL (throughout this present paper, we call it SETL_PROG), a programmable semantic ETL framework that semantically integrates both semantic and non-semantic data sources. In SETL_PROG, an ETL developer has to create hand-code specific modules to deal with semantic data. Thus, there is a lack of a well-defined set of basic ETL constructs that allows developers having a higher level of abstraction and more control in creating their ETL process. In this paper, we propose a strong foundation for an RDF-based semantic integration process and a set of high-level ETL constructs that allows defining, mapping, processing, and integrating semantic data. The unique contributions of this paper are:

We structure the integration process into two layers: Definition Layer and Execution Layer. Different to SETL_PROG or other ETL tools, here, we propose a new paradigm: the ETL flow transformations are characterized once and for all at the Definition Layer instead of independently within each ETL operation (in the Execution Layer). This is done by generating a mapping file that gives an overall view of the integration process. This mapping file is our primary metadata source, and it will be fed (by either the ETL developer or the automatic ETL execution flow generation process) to the ETL operations, orchestrated in the ETL flow (Execution Layer), to parametrize themselves automatically. Thus, we are unifying the creation of the required metadata to automate the ETL process in the Definition layer. We propose an OWL-based Source-To-target Mapping (S2TMAP) vocabulary to express the source-to-target mappings.

We provide a set of high-level ETL constructs for each layer. The Definition Layer includes constructs for target schema4

⁴

Here, we use the terms “target” and “MD SDW” interchangeably.

definition, source schema derivation, and source-to-target mappings generation. The Execution Layer includes a set of high-level ETL operations for semantic data extraction, cleansing, joining, MD data creation, linking, inferencing, and for dimensional data update.

We propose an approach to automate the ETL execution flows based on metadata generated in the Definition Layer.

We create a prototype SETL_CONSTRUCT, based on the innovative ETL constructs proposed here. SETL_CONSTRUCT allows creating ETL flows by dragging, dropping, and connecting the ETL operations. In addition, it allows creating ETL data flows automatically (we call it SETL_AUTO).

We perform a comprehensive experimental evaluation by producing an MD SDW that integrates an EU farm Subsidy dataset and a Danish Business dataset. The evaluation shows that SETL_CONSTRUCT improves considerably over SETL_PROG in terms of productivity, development time, and performance. In summary: 1) SETL_CONSTRUCT uses 92% fewer Number of Typed Characters (NOTC) than SETL_PROG, and SETL_AUTO further reduces the Number of Used Concepts (NOUC) by another 25%; 2) using SETL_CONSTRUCT, the development time is almost cut in half compared to SETL_PROG, and is cut by another 27% using SETL_AUTO; 3) SETL_CONSTRUCT is scalable and has similar performance compared to SETL_PROG. Additionally, we interviewed two ETL experts to evaluate our approach qualitatively.

The remainder of the paper is organized as follows. We discuss the terminologies and the notations used throughout the paper in Section 2. Section 3 explains the structure of the datasets we use as a use case. Section 4 gives the overview of an integration process. The descriptions of the Definition Layer and Execution Layer constructs are given in Sections 5 and 6, respectively. Section 7 presents the automatic ETL execution flow generation process. In Section 8, we create an MD SDW for the use case using SETL_CONSTRUCT and compare the process with SETL_PROG using different metrics. The previous research related to our study is discussed in Section 9. Finally, we conclude and give pointers to future work in Section 10.

2. Preliminary definitions

In this section, we provide the definitions of the notions and terminologies used throughout the paper.

2.1. RDF graph

An RDF graph is represented as a set of statements, called RDF triples. The three parts of a triple are subject, predicate, and object, respectively, and a triple represents a relationship between its subject and object described by its predicate. Each triple, in the RDF graph, is represented as $subject \overset{predicate}{\to} object$ , where subject and object of the triple are the nodes of the graph, and the label of the directed arrow corresponds to the predicate of the triple. Given I, B, and L are the sets of IRIs, blank nodes, and literals, and $(I \cap B \cap L) = \emptyset$ , an RDF triple is $(s, p, o)$ , where $s \in (I \cup B)$ , $p \in I$ , and $o \in (I \cup B \cup L)$ . An RDF graph G is a set of RDF triples, where $G \subseteq (I \cup B) \times I \times (I \cup B \cup L)$ [26].

2.2. Semantic data source

We define a semantic data source as a Knowledge Base (KB) where data are semantically defined. A KB is composed of two components, TBox and ABox. The TBox introduces terminology, the vocabulary of a domain, and the ABox is the assertions of the TBox. The TBox is formally defined as a 3-tuple: $TBox = (C, P, A^{O})$ , where C, P, and $A^{O}$ are the sets of concepts, properties, and terminological axioms, respectively [4]. Generally, a concept provides a general framework for a group of instances that have similar properties. A property either relates the instances of concepts or associates the instances of a concept to literals. Terminological axioms are used to describe the domain’s concepts, properties, and the relationships and constraints among them. In this paper, we consider a KB as an RDF graph; therefore, the components of the KB are described by a set of RDF triples. Some standard languages such as RDFS and OWL provide standard terms to define the formal semantics of a TBox. In RDFS, the core concepts rdfs:Class and rdf:Property are used to define the concepts and properties of a TBox; one can distinguish between instances and concepts by using the rdf:type property, express concept and property taxonomies by using rdfs:subClassOf and rdfs:subPropertyOf, and specify the domain and range of properties by using the rdfs:domain and rdfs:range properties. Similarly, OWL uses owl:Class to define concepts and either owl:DataTypeProperty or owl:ObjectProperty for properties. In addition to rdfs:subClassOf, it uses owl:equivalentClass and owl:disjointWith constructs for class axioms to give additional characteristics of concepts. Property axioms define additional characteristics of properties. In addition to supporting RDFS constructs for property axioms, OWL provides owl:equivalentProperty and owl:inverseOf to relate different properties, provides owl:FunctionalProperty and owl:InverseFunctionalProperty for imposing global cardinality constraints, and supports owl:SymmetricProperty and owl:TransitivityProperty for characterizing the relationship type of properties. As a KB can be defined by either language or both, we generalize the definition of C and P in a TBox T as $C (T) = {c | type (c) \in P ({rdfs:Class, owl:Class})}$ and $P (T) = {p | type (p) \in P ({rdf:Property, owl:ObjectProperty, owl:DatatypeProperty})}$ , respectively, where $type (x)$ returns the set of concepts of x, i.e., (xrdf:type $? type (x)$ ) – it returns the set of the objects of the triples whose subjects and predicates are x and rdf:type, respectively – and $P (s)$ is the power set of s.

2.3. Semantic data warehouse

A semantic data warehouse (SDW) is a DW with the semantic annotations. We also considered it as a KB. Since the DW is represented with Multidimensional (MD) model for enabling On-Line Analytical Processing (OLAP) queries, the KB for an SDW needs to be defined with MD semantics. In the MD model, data are viewed in an n-dimensional space, usually known as a data cube, composed of facts (the cells of the cube) and dimensions (the axes of the cube). Therefore, it allows users to analyze data along several dimensions of interest. For example, a user can analyze sales of products according to time and store (dimensions). Facts are the interesting things or processes to be analyzed (e.g., sales of products) and the attributes of the fact are called measures (e.g., quantity, amount of sales), usually represented as numeric values. A dimension is organized into hierarchies, composed of several levels, which permit users to explore and aggregate measures at various levels of detail. For example, the location hierarchy ( $municipality \to region \to state \to country$ ) of the store dimension allows to aggregate the sales at various levels of detail.

We use the QB4OLAP vocabulary to describe the multidimensional semantics over a KB [19]. QB4OLAP is used to annotate a TBox with MD components and is based on the QB vocabulary which is the W3C standard to publish MD data on the Web [15]. QB is mostly used for analyzing statistical data and does not adequately support OLAP MD constructs. Therefore, in this paper, we choose QB4OLAP. Figure 1 depicts the ontology of QB4OLAP [62]. The terms prefixed with “qb:” are from the original QB vocabulary, and QB4OLAP terms are prefixed with “qb4o:” and displayed with gray background. Capitalized terms represent OWL concepts, and non-capitalized terms represent OWL properties. Capitalized terms in italics represent concepts with no instances. The blue-colored square in the figure represents our extension of QB4OLAP ontology.

Fig. 1.

QB4OLAP vocabulary.

In QB4OLAP, the concept qb:DataSet is used to define a dataset of observations. The structure of the dataset is defined using the concept qb:DataStructureDefinition. The structure can be a cube (if it is defined in terms of dimensions and measures) or a cuboid (if it is defined in terms of lower levels of the dimensions and measures). The property qb4o:isCuboidOf is used to relate a cuboid to its corresponding cube. To define dimensions, levels and hierarchies, the concepts qb4o:DimensionProperty, qb4o:LevelProperty, and qb4o:Hierarchy are used. A dimension can have one or more hierarchies. The relationship between a dimension and its hierarchies are connected via the qb4o:hasHierarchy property or its inverse property qb4o:inHierarchy. Conceptually, a level may belong to different hierarchies; therefore, it may have one or more parent levels. Each parent and child pair has a cardinality constraint (e.g., 1-1, n-1, 1-n, and n-n) [62]. To allow this kind of complex nature, hierarchies in QB4OLAP are defined as a composition of pairs of levels, which are represented using the concept qb4o:HierarchyStep. Each hierarchy step (pair) is connected to its component levels using the properties qb4o:parentLevel and qb4o:childLevel. A roll-up relationship between two levels are defined by creating a property which is an instance of the concept qb4o:RollupProperty; each hierarchy step is linked to a roll-up relationship with the property qb4o:rollup and the cardinality constraint of that relationship is connected to the hierarchy step using the qb4o:pcCardinality property. A hierarchy step is attached to the hierarchies it belongs to using the property qb4o:inHierarchy [19]. The concept qb4o:LevelAttributes is used to define attributes of levels. We extend this QB4OLAP ontology (the blue-colored box in the figure) to enable different types of dimension updates (Type 1, Type 2, and Type 3) to accommodate dimension update in an SDW, which are defined by Ralph Kimball in [37]. To define the update-type of a level attribute in the TBox level, we introduce the qb4o:UpdateType class whose instances are qb4o:Type1, qb4o:Type2, and qb4o:Type3. A level attribute is connected to its update-type by the property qb4o:updateType. The level attributes are linked to its corresponding levels using the property qb4o:hasAttribute. We extend the definition of C and P of a TBox, T for an SDW as $\begin{array}{l} C (T) \\ = {c | type (c) \in P ({rdfs:Class, owl:Class, \\ qb:DataStructureDefinition, \\ qb:DataSet, qb:DimensionProperty, \\ qb4o:LevelProperty, \\ qb4o:Hierarchy, \\ (1) & qb4o:HierarchyStep})} \end{array}$ $\begin{array}{l} P (T) \\ = {p | type (p) \in P ({rdf:Property, \\ owl:ObjectProperty, owl:Datatype \\ Property, qb4o:LevelAttribute, \\ qb:MeassureProperty, \\ (2) & qb4o:Rollup Property})} \end{array}$

Fig. 2.

The ontology of the Danish Business dataset. Due to the large number of datatype properties, they are not included.

3. A use case

We create a semantic Data Warehouse (SDW) by integrating two data sources, namely, a Danish Agriculture and Business knowledge base and an EU Farm Subsidy dataset. Both data sources are described below.

Description of Danish Agriculture and Business knowledge base The Danish Agriculture and Business knowledge base integrates a Danish Agricultural dataset and a Danish Business dataset. The knowledge base can be queried through the SPARQL endpoint http://extbi.lab.aau.dk:8080/sparql/. In our use case, we only use the business related information from this knowledge base and call it the Danish Business dataset (DBD). The relevant portion of the ontology of the knowledge base is illustrated in Fig. 2. Generally, in an ontology, a concept provides a general description of the properties and behavior for the similar type of resources; an object property relates among the instances of concepts; a data type property is used to associate the instances of a concept to literals.

We start the description from the concept bus:Owner. This concept contains information about the owners of companies, the type of the ownership, and the start date of the company ownership. A company is connected to its owner through the bus:hasOwner property. The bus:Company concept is related to bus:BusinessFormat and bus:ProductionUnit through the bus:hasProductionUnit and bus:hasFormat properties. Companies and their production units have one or more main and secondary activities. Each company and each production unit has a postal address and an official address. Each address is positioned at an address feature, which is in turn contained within a particular municipality.

Description of the EU subsidy dataset Every year, the European Union provides subsidies to the farms of its member countries. We collect EU Farm subsidies for Denmark from https://data.farmsubsidy.org/Old/. The dataset contains two MS Access database tables: Recipient and Payment. The Recipient table contains the information of recipients who receive the subsidies, and the Payment table contains the amount of subsidy given to the recipients. We create a semantic version of the dataset using SETL_PROG framework [43]. We call it the Subsidy dataset. At first, we manually define an ontology, to describe the schema of the dataset, and the mappings between the ontology and database tables. Then, we populate the ontology with the instances of the source database files. Figure 3 shows the ontology of the Subsidy dataset.

Fig. 3.

The ontology of the Subsidy dataset. Due to the large number of datatype properties, all are not included.

Fig. 4.

The ontology of the MD SDW. Due to the large number, data properties of the dimensions are not shown.

Example 1.

Listing 1 shows the example instances of bus:Company from the Danish Business dataset and sub:Recipient and sub:Subsidy from the EU Subsidy dataset.

Listing 1.

Example instances of the DBD and the Subsidy dataset

Description of the Semantic Data Warehouse Our goal is to develop an MD Semantic Data Warehouse (SDW) by integrating the Subsidy and the DBD datasets. The sub:Recipient concept in the Subsidy dataset contains the information of recipient id, name, address, etc. From bus:Company in the DBD, we can extract information of an owner of a company who received the EU farm subsidies. Therefore, we can integrate both DBD and Subsidy datasets. The ontology of the MD SDW to store EU subsidy information corresponding to the Danish companies is shown in Fig. 4, where the concept sdw:Subsidy represents the facts of the SDW. The SDW has two dimensions, namely sdw:Benificiary and sdw:Time. The dimensions are shown by a box with dotted-line in Fig. 4. Here, each level of the dimensions are represented by a concept, and the connections among levels are represented through object properties.

4. Overview of the integration process

Fig. 5.

The overall semantic data integration process. Here, the round-corner rectangle, data stores, dotted boxes, ellipses, and arrows indicate the tasks, semantic data sources and SDW, the phases of the ETL process, ETL operations and flow directions.

In this paper, we assume that all given data sources are semantically defined and the goal is to develop an SDW. The first step of building an SDW is to design its TBox. There are two approaches to design the TBox of an SDW, namely source-driven and demand-driven [61]. In the former, the SDW’s TBox is obtained by analyzing the sources. Here, ontology alignment techniques [40] can be used to semi-automatically define the SDW. Then, designers can identify the multidimensional constructs from the integrated TBox and annotate them with the QB4OLAP vocabulary. In the latter, SDW designers first identify and analyze the needs of business users as well as decision makers, and based on those requirements, they define the target TBox with multidimensional semantics using the QB4OLAP vocabulary. How to design a Target TBox is orthogonal to our approach. Here, we merely provide an interface to facilitate creating it regardless of whatever approach was used to design it.

Table 1

Summary of the ETL operations

Operation category	Operation name	Compatible successors	Objectives
Extraction	GraphExtractor	GraphExtractor, TBoxExtraction, TransformationOnLiteral, JoinTransformation, LevelMemberGenerator, ObservationGenerator, DataChangeDetector, UpdateLevel, Loader	It retrieves an RDF graph in terms of RDF triples from semantic data sources.
Transformation	TBoxExtraction		It derives a TBox from a given ABox.
	TransformationOnLiteral	TransformationOnLiteral, JoinTransformation, LevelMemberGenerator, ObservationGenerator, Loader	It transforms the source data according to the expressions described in the source-to-target mapping.
	JoinTransformation	TransformationOnLiteral, JoinTransformation, LevelMemberGenerator, ObservationGenerator, Loader	It joins two data sources and transforms the data according to the expressions described in the source-to-target mapping.
	LevelMemberGenerator (QB4OLAP construct)	Loader	It populates levels of the target with the input data.
	ObservationGenerator (QB4OLAP construct)	Loader	It populates facts of the target with the input data.
	DataChangeDetector	LevelMemberGenerator, UpdateLevel	It returns the differences between the new source dataset and the old one.
	UpdateLevel	Loader	It reflects the changes occurred in the source data to the target level.
	MaterializeInference	Loader	It enriches the SDW by materializing the inferred triples.
	ExternalLinking	Loader	It links internal resources with external KBs.
Load	Loader		It loads the data into the SDW.

After creating the TBox of the SDW, the next step is to create the ETL process. ETL is the backbone process by which data are entered into the SDW and the main focus of this paper. The ETL process is composed of three phases: extraction, transformation, and load. A phase is a sub-process of the ETL which provides a meaningful output that can be fed to the next phase as an input. Each phase includes a set of operations. The extraction operations extract data from the data sources and make it available for further processing as intermediate results. The transformation operations are applied on intermediate results, while the load operations load the transformed data into the DW. The intermediate results can be either materialized in a data staging area or kept in memory. A data staging area (temporary) persists data for cleansing, transforming, and future use. It may also prevent the loss of extracted or transformed data in case of the failure of the loading process.

As we want to separate the metadata needed to create ETL flows from their execution, we introduce a two-layered integration process, see Fig. 5. In the Definition Layer, a single source of metadata truth is defined. This includes: the target SDW, semantic representation of the source schemas, and a source to target mapping file. Relevantly, the metadata created represents the ETL flow at the schema level. In the Execution Layer, ETL data flows based on high-level operations are created. This layer executes the ETL flows for instances (i.e., at the data level). Importantly, each ETL operation is fed the metadata created to parameterize themselves automatically. Additionally, the Execution Layer automatically checks the correctness of the created flow, by checking the compatibility of the output and input of consecutive operators. Overall the data integration process requires the following four steps in the detailed order.

Defining the target TBox with MD semantics using QB and QB4OLAP constructs. In addition, the TBox can be enriched with RDFS/OWL concepts and properties. However, we do not validate the correctness of the added semantics beyond the MD model. This step is done at the Definition Layer.

Extracting source TBoxes from the given sources. This step is done at the Definition Layer.

Creating mappings among source and target constructs to characterize ETL flows. The created mappings are expressed using the proposed S2TMAP vocabulary. This step is also done at the Definition Layer.

Populating the ABox of the SDW implementing ETL flows. This step is done at the Execution Layer.

Figure 5 illustrates the whole integration process and how the constructs of each layer communicate with each other. Here, we introduce two types of constructs: tasks and operations. On the one hand, a task requires developer interactions with the interface of the system to produce an output. Intuitively, one may consider the tasks output as the required metadata to automate operations. On the other hand, from the given metadata, an operation produces an output. The Definition Layer consists of two tasks (TargetTBoxDefinition and SourceToTargetMapping) and one operation (TBoxExtraction). These two tasks respectively address the first and third steps of the integration process mentioned above, while the TBoxExtraction operation addresses the second step. This is the only operation shared by both layers (see the input of SourceToTargetMapping in Fig. 5). Therefore, the Definition Layer creates three types of metadata: target TBox (created by TargetTBoxDefinition), source TBoxes (created by TBoxExtraction), and source-to-target mappings (created by SourceToTargetMapping). The Execution Layer covers the fourth step of the integration process and includes a set of operations to create data flows from the sources to the target. Figure 5 shows constructs (i.e., the Mediatory Constructs) used by the ETL task/operations to communicate between them. These mediatory constructs store the required metadata created to automate the process. In the figure,

{Ext}_{op}

{Trans}_{op}

, and

{Load}_{op}

are the set of extraction, transformation, and load operations used to create the flows at the instance level. The ETL data flows created in the Execution Layer are automatically validated by checking the compatibility of the operations. Precisely, if an operation

O_{1}

’s output is accepted by

O_{2}

, then we say

O_{2}

is compatible with

O_{1}

and express it as

O_{1} \to O_{2}

Since traditional ETL tools (e.g., PDI) do not have ETL operations supporting the creation of an SDW, we propose a set of ETL operations for each phase of the ETL to process semantic data sources. The operations are categorized based on their functionality. Table 1 summarizes each operation with its corresponding category name, compatible successors, and its objectives. Next, we present the details of each construct of the layers presented in Fig. 5.

5. The definition layer

This layer contains two tasks (TargetTBoxDefinition and Source2TargetMapping) and one operation TBoxExtraction. The semantics of the tasks are described below.

TargetTBoxDefinition The objective of this task is to define a target TBox with MD semantics. There are two main components of the MD structure: dimensions and cubes. To formally define the schema of these components, we use the notation from [12] with some modifications.

Definition 1.
A dimension schema can formally be defined as a 5-tuple $(D_{name}, L, \to, H, F_{R})$ where
$D_{name}$ is the name of the dimension;

$L$ is a set of level tuples $(L_{name}, L_{A})$ such that $L_{name}$ is the name of a level and $L_{A}$ is the set of attributes describing the level $L_{name}$ . There is a unique bottom level (the finest granularity level) $L_{b}$ , and unique top level (the coarsest one) denoted $L_{All}$ , such that $(L_{All}, \emptyset) \in L$ ;

→ is a strict partial order on $L$ . The poset $(L, \to)$ can be represented as a directed graph where each node represents an aggregation level $L \in L$ , and every pair of levels $(L_{i}, L_{j})$ in the poset are represented by a directed edge, also called the roll-up (i.e., aggregation) relationship, from the finer granularity level $L_{i}$ to the coarser granularity level $L_{j}$ , which means that $L_{i}$ rolls up to $L_{j}$ or $L_{j}$ drills down to $L_{i}$ . Each distinct path between the $L_{b}$ and $L_{All}$ is called a hierarchy;

$H$ is a set of hierarchy tuples $(H_{name}, H_{L})$ where $H_{name}$ is the name of a hierarchy and $H_{L} \subseteq L$ is the set of levels composing the hierarchy. The directed subgraph formed by this set of levels must be connected; and

${RUP}_{L_{i}}^{L_{j}}$ is the property used to relate instances based on the roll-up relationship between $L_{i}$ and $L_{j}$ within an hierarchy. $F_{R}$ denotes the set of all RUPs.

Example 2.
Figure 4 shows that our use case MD SDW has two dimensions: sdw:Time and sdw:Beneficiary. The dimension schema of sdw:Time is formally defined as follows:
$D_{name} = sdw:Time$ ;

$L = {(sdw:Day, ⟨ sdw:dayId, sdw:dayName ⟩), (sdw:Month, ⟨ sdw:monthId, sdw:monthName ⟩), (sdw:Year, ⟨ sdw:yearId, sdw:yearName ⟩)}$ ;

$(\to) = {(sdw:Day, sdw:Month), (sdw:Month, sdw:Year), (sdw:Year, sdw:All)}$ ,

$H = {sdw:TimeHierarchy, {sdw:Day, sdw:Month, sdw:Year, sdw:All}}$ ; and

$F_{R} = {{RUP}_{sdw:Day}^{sdw:Month} = sdw:payMonth, {RUP}_{sdw:Month}^{sdw:Year} = sdw:payYear, {RUP}_{sdw:Year}^{sdw:All} = sdw:payAll}$ .

Definition 2.
A cube schema is a 4-tuple $(C_{name}, D_{l_{b}}, M, F_{A})$ , where
$C_{name}$ is the name of the cube;

$D_{l_{b}}$ is a finite set of bottom levels of dimensions, with $| D_{l_{b}} | = n$ , corresponding to n bottom levels of n dimension schemas different from each other;

$M$ is a finite set of attributes called measures, and each measure $m \in M$ has an associated domain $Dom (m)$ ; and

$F_{A}$ is a mathematical relation that relates each measure to one or more aggregate function in $A = {SUM, MAX, AVG, MIN, COUNT \dots}$ , i.e., $F_{A} \subseteq M \times A$ .

Example 3.
The cube schema of our use case, shown in Fig. 4, is formally defined as follows:
$C_{name} = sdw:Subsidy$ ;

$D_{L} = {sdw:Day, sdw:Recipient}$ ;

$M = {sdw:amounteuro}$ ; and

$F_{A} = {(sdw:amounteuro, SUM), (sdw:amounteuro, AVG)}$ .

In Section 2.3, we discussed how the QB4OLAP vocabulary is used to define different constructs of an SDW. Listing 2 represents the sdw:Time dimension and sdw:Subsidy cube in QB4OLAP.

Listing 2.
QB4OLAP representation of sdw:Time dimension and sdw:Subsidy cube

TBoxExtraction After defining a target TBox, the next step is to extract source TBoxes. Typically, in a semantic source, the TBox and ABox of the source are provided. Therefore, no external extraction task/operation is required. However, sometimes, the source contains only the ABox, no TBox. In that scenario, an extraction process is required to derive a TBox from the ABox. Since the schema level mappings are necessary to create the ETL process, and the ETL process will extract data from the ABox, we only consider the intentional knowledge available in the ABox in the TBox extraction process. We formally define the process as follows.
Definition 3.
The TBox extraction operation from a given ABox, ABox is defined as $f_{ABox 2 TBox} (ABox) \to TBox$ . The derived TBox is defined in terms of the following TBox constructs: a set of concepts C, a set of concept taxonomies H, a set of properties P, and the sets of property domains D and ranges R. The following steps describe the process to derive each TBox element for TBox.
C: By checking the unique objects of the triples in ABox where rdf:type is used as a predicate, C is identified.

H: The taxonomies among concepts are identified by checking the instances they share among themselves. Let $C_{1}$ and $C_{2}$ be two concepts. One of the following taxonomic relationships holds between them: 1) if $C_{1}$ contains all instances of $C_{2}$ , then we say $C_{2}$ is a subclass of $C_{1}$ ( $C_{2}$ rdfs:subClassOf $C_{1}$ ); 2) if they do not share any instances, they are disjoint ( $C_{1}$ owl:disjointWith $C_{2}$ ); and 3) if $C_{1}$ and $C_{2}$ are both a subclass of each other, then they are equivalent ( $C_{1}$ owl:equivalentClass $C_{2}$ ).

P, D, R: By checking the unique predicates of the triples, P is derived. A property $p \in P$ can relate resources with either resources or literals. If the objects of the triples where p is used as predicates are IRIs, then p is an object property; the domain of p is the set of the types of the subjects of those triples, and the range of p is the types of the objects of those triples. If the objects of the triples where p is used as predicates are literals, then p is a datatype property; the domain of p is the set of types the subjects of those triples, and the range is the set of data types of the literals.

Note that proving the formal correctness of the approach is beyond the scope of this paper and left for future work.

SourceToTargetMapping Once the target and source TBoxes are defined, the next task is to characterize the ETL flows at the Definition Layer by creating source-to-target mappings. Because of the heterogeneous nature of source data, mappings among sources and the target should be done at the TBox level. In principle, mappings are constructed between sources and the target; however, since mappings can get very complicated, we allow to create a sequence of SourceToTargetMapping definitions whose subsequent input is generated by the preceding operation. The communication between these operations is by means of a materialized intermediate mapping definition and it is meant to facilitate the creation of very complex flows (i.e., mappings) between source and target.

A source-to-target mapping is constructed between a source and a target TBox, and it consists of a set of concept-mappings. A concept-mapping defines i) a relationship (equivalence, subsumption, supersumption, or join) between a source and the corresponding target concept, ii) which source instances are mapped (either all or a subset defined by a filter condition), iii) the rule to create the IRIs for target concept instances, iv) the source and target ABox locations, v) the common properties between two concepts if their relationship is join, vi) the sequence of ETL operations required to process the concept-mapping, and vii) a set of property-mappings for the properties having the target concept as a domain. A property-mapping defines how a target property is mapped from either a source property or an expression over properties. Definition 4 formally defines a source-to-target mapping.
Definition 4.
Let $T_{S}$ and $T_{T}$ be a source TBox and a target TBox. We formally define a source-to-target mapping as a set of concept-mappings, wherein each concept-mapping is defined with a 10-tuple formalizing the elements discussed above (i–vii): $\begin{array}{l} SourceToTargetMapping (T_{S}, T_{T}) \\ = {(c_{s}, relation, c_{t}, {loc}_{c_{s}}, {loc}_{c_{t}}, mapIns, p_{map}, \\ {tin}_{iri}, p_{com}, op)} . \end{array}$

The semantics of each concept-mapping tuple is given below.
$c_{s} \in C (T_{S})$ and $c_{t} \in C (T_{T})$ are a source and a target concept respectively, where $C (T)$ defined in Equation (1).

represents the relationship between the source and target concept. The relationship can be either $equivalence$ ( $c_{s} \equiv c_{t}$ ), supersumption $(c_{s} ⊒ c_{t})$ , subsumption $(c_{s} ⊑ c_{t})$ , or $join$ . A join relationship can be either a natural join $(c_{s} ⋈ c_{t})$ , a right-outer join , or a left-outer join . A join relationship exists between two sources when there is a need to populate a target element (a level, a (QB) dataset, or a concept) from multiple sources. Since a concept-mapping represents a binary relationship, to join n sources, an ETL process requires $n - 1$ join concept-mappings. A concept-mapping with a join relationship requires two sources (i.e., the concept-mapping source and target concepts) as input and updates the target concept according to the join result. Thus, for multi-way joins, the output of a concept-mapping is a source concept of the next concept-mapping.

${loc}_{c_{s}}$ and ${loc}_{c_{t}}$ are the locations of source and target concept ABoxes.

$mapIns \in ({All} \cup FilterCondition)$ indicates which instances of the source concept to use to populate the target concept; it can either be all source instances or a subset of source instances defined by a filter condition.

$p_{map} = {(p_{c_{s}}, p_{c_{t}})}$ is a set of property-mappings across the properties of $c_{s}$ and $c_{t}$ . $p_{c_{s}}$ can be a property from $property (c_{s})$ or an expression over the elements of $\exp (property (c_{s}) \cup property (c_{t}))$ and $p_{c_{t}}$ is a property from $property (c_{t})$ . Here, $property (c)$ returns the union of the set of properties which are connected with concept c either using the rdfs:domain or qb4olap:inLevel properties, or the set of roll-up properties related to c. An expression allows to apply arithmetic operations and/or some high-level functions for manipulating strings, data types, numbers, dates defined as standard SPARQL functions in [25] over the properties.

${tin}_{iri}$ indicates how the unique IRIs of target instances are generated. The IRIs can be either the same as the source instances, or created using a property of $c_{s}$ , or using an expression from $\exp (property (c_{s}))$ , or in an incremental way.

$p_{com} = {({scom}_{i}, {tcom}_{i}) | {scom}_{i} \in property (e_{s_{i}}), {tcom}_{i} \in property (e_{t_{i}})}$ is a set of common property pairs. In each pair, the first element is a source property and the second one is a target property. $p_{com}$ is required when the relationship between the source and target concept is a join.

$op$ is an ETL operation or a sequence of ETL operations (mentioned in Table 1) required to implement the mapping element in the ABox level. When $op$ is a sequence of ETL operations, the location of the input ABox location for the first operation in the sequence is ${loc}_{c_{s}}$ ; the subsequent operations in the sequence take the output of their preceding operation as the input ABox. This generation of intermediate results is automatically handled by the automatic ETL generation process described in Section 7.

In principle, an SDW is populated from multiple sources, and a source-to-target ETL flow requires more than one intermediate concept-mapping definitions. Therefore, a complete ETL process requires a set of source-to-target mappings. We say a mapping file is a set of source-to-target mappings. Definition 5 formally defines a mapping file.
Definition 5.
$\begin{array}{l} Mapping file = ⋃_{i \in S} SourceToTargetMapping (T_{i}, T_{j}), \end{array}$ where S is the set of all sources and intermediate results schemas, and j the set of all intermediate results and the target schemas.

Fig. 6.
Graphical overview of key terms and their relationships to the S2TMAP vocabulary.

To implement the source-to-target mappings formally defined above, we propose an OWL-based mapping vocabulary: Source-to-Target Mapping (S2TMAP). Figure 6 depicts the mapping vocabulary. A mapping between a source and a target TBox is represented as an instance of the concept map:MapDataset. The source and target TBoxes are defined by instantiating map:TBox, and these TBoxes are connected to the mapping dataset using the properties map:sourceTBox and map:targetTBox, respectively. A concept-mapping (an instance of map:ConceptMapping) is used to map between a source and a target concepts (instances of map:Concept). A concept-mapping is connected to a mapping dataset using the map:mapDataset property. The source and target ABox locations of the concept-mapping are defined through the map:sourceLocation and map:targetLocation properties. The relationship between the concepts can be either map:subsumption, map:supersumption, map:Join, map:LeftJoin, map:RightJoin, or map:Equivalence, and it is connected to the concept-mapping via the map:relation property. The sequence of ETL operations, required to implement the concept-mapping at the ABox level, is defined through an RDF sequence. To express joins, the source and target concept in a concept-mapping represent the concepts to be joined, and the join result is stored in the target concept as an intermediate result. In a concept-mapping, we, via map:commonProperty, identify the join attributes with a blank node (instance of map:CommonProperty) that has, in turn, two properties identifying the source and target join attributes; i.e., map:commonSourceProperty and map:commonTargetProperty. Since a join can be defined on multiple attributes, we may have multiple blank node definitions. The type of target instance IRIs is stated using the property map:TargetInstanceIRIType. If the type is either map:Property or map:Expression , then the property or expression, to be used to generate the IRIs, is given by map:targetInstanceIRIvalue.

To map at the property stage, a property-mapping (an instance of map:PropertyMapping) is used. The association between a property-mapping and a concept-mapping is defined by map:conceptMapping. The target property of the property-mapping is stated using map:targetProperty, and that target property can be mapped with either a source property or an expression. The source type of target property is determined through map:sourceType4TargetProperty property, and the value is defined by map:source4TargetPropertyValue.
Example 4.
Listing 3 represents a snippet of the mapping file of our use case MD SDW and the source datasets. In the Execution Layer, we show how the different segments of this mapping file will be used by each ETL operation.

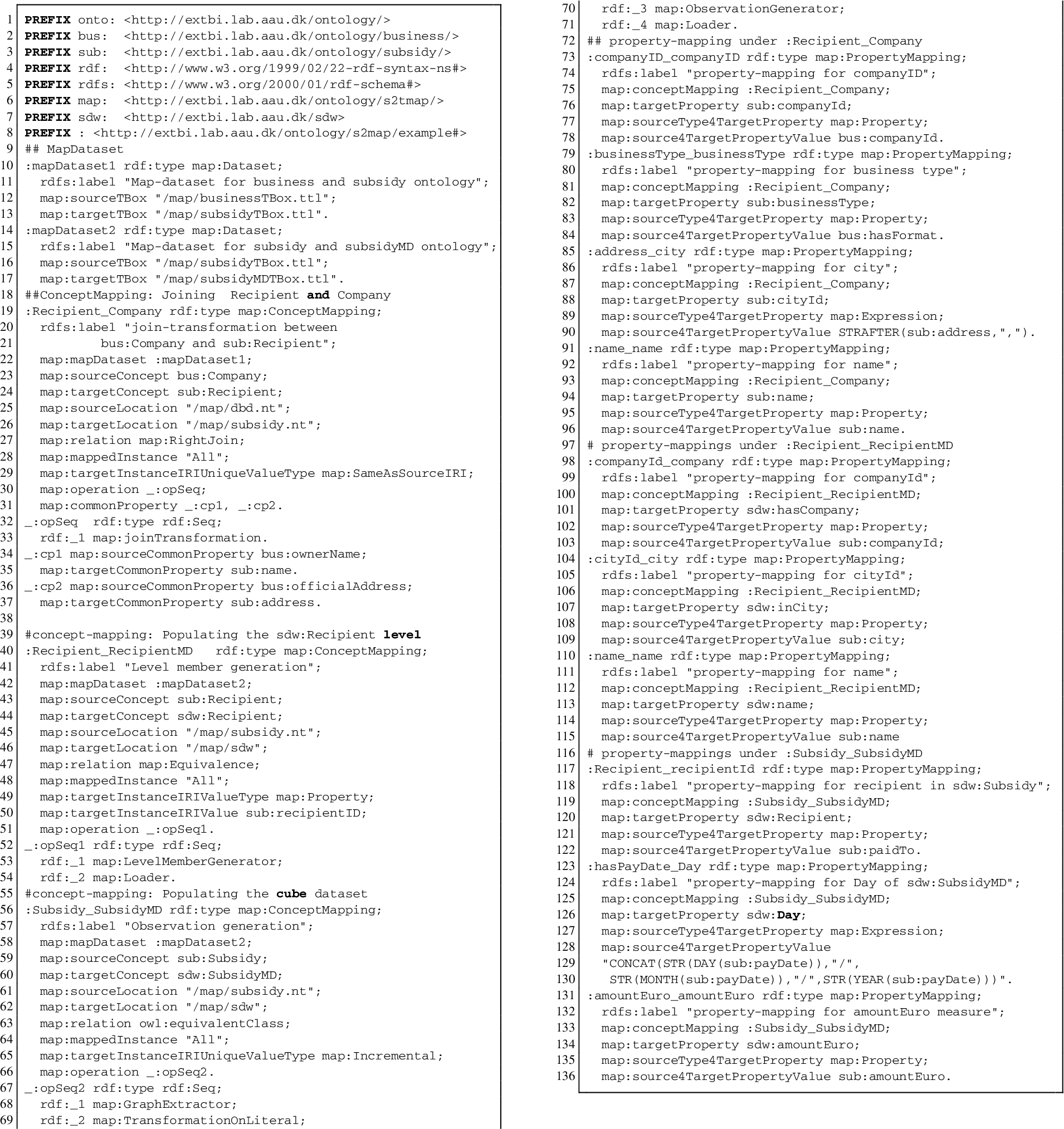

Listing 3.
An S2TMAP representation of the mapping file of our use case

Fig. 7.
The conceptual presentation of Listing 3.

A mapping file is a Directed Acyclic Graph (DAG). Figure 7 shows the DAG representation of Listing 3. In this figure, the sources, intermediate results and the SDW are denoted as nodes of the DAG and edges of the DAG represent the operations. The dotted-lines shows the parts of the ETL covered by concept-mappings, represented by a rectangle.
6. The Execution Layer

In the Execution Layer, ETL data flows are constructed to populate an MD SDW. Table 1 summarizes the set of ETL operations. In the following, we present an overview of each operation category-wise. Here, we give the intuitions of the ETL operations in terms of definitions and examples. To reduce the complexity and length of the paper, we place the formal semantics of the ETL operations in the Appendix. In this section, we only present the signature of each operation. That is, the main inputs required to execute the operation. As an ETL data flow is a sequence of operations and an operation in the sequence communicates with its preceding and subsequent operations by means of materialized intermediate results, all the operations presented here have side effects5

⁵
An operation has a side effect if it modifies some state variable value(s) outside its local environment (https://en.wikipedia.org/wiki/Side_effect_(computer_science)).

instead of returning output.

Developers can use either of the two following options: (i) The recommended option is that given a TBox construct aConstruct (a concept, a level, or a QB dataset) and a mapping file aMappings generated in the Definition Layer, the automatic ETL execution flow generation process will automatically extract the parameter values from aMappings (see Section 7 for a detailed explanation of the automatic ETL execution flow generation process). (ii) They can manually set input parameters at the operation level. In this section, we follow the following order to present each operation: 1) we first give a high-level definition of the operation; 2) then, we define how the automatic ETL execution flow generation process parameterizes the operation from the mapping file, and 3) finally, we present an example showing how developers can manually parameterize the operation. When introducing the operations and referring to their automatic parametrization, we will refer to aMappings and aConstruct as defined here. Note that each operation is bound to exactly one concept-mapping at a time in the mapping file (discussed in Section 7).

6.1. Extraction operations

Extraction is process of data retrieval from the sources. Here, we introduce two extraction operations for semantic sources: (i) GraphExtractor – to form/extract an RDF graph from a semantic source and (ii) TBoxExtraction – to derive a TBox from a semantic source as described in Section 5. As such, TBoxExtraction is the only operation in the Execution Layer generating metadata stored in the Mediatory Constructs (see Fig. 5).

GraphExtractor(Q, G, outputPattern, tABox) Since the data integration process proposed in this paper uses RDF as the canonical model, we extract/generate RDF triples from the sources with this operation. GraphExtractor is functionally equivalent to SPARQL CONSTRUCT queries [39].

If the ETL execution flow is generated automatically, the automatic ETL execution flow generation process first identifies the concept-mapping cm from aMappings where aConstruct appears (i.e., in aMapping, $c m \overset{map : targetConcept}{\to} aConstruct$ ) and the operation to process cm is GraphExtractor (i.e., GraphExtractor is an element in the operation sequence defined by the map:operation property). Then, it parametrizes GraphExtractor as follows: 1) G is the location of the source ABox defined by the property map:sourceLocation of $c m$ ; 2) Q and outputPattern are internally built based on the map:mappedInstance property, which defines whether all instances (defined by “All”) or a subset of the instances (defined by a filter condition) will be extracted; and 3) tABox is the location of target ABox defined by the property map:targetLocation. A developer can also manually set the parameters. From the given inputs, GraphExtractor operation performs a pattern matching operation over the given source G (i.e., finds a map function binding the variables in query pattern Q to constants in G), and then, for each binding, it creates triples according to the triple templates in outputPattern. Finally, the operation stores the output in the path tABox.

Example 5.
Listing 1 shows the example instances of the Danish Business Dataset (DBD). To extract all instances of bus:Company from the dataset, we use the GraphExtractor(Q, G, outputPattern, tABox) operation, where
Q=((?ins,rdf:type,bus:Company) AND (?ins,?p,?v)),6
⁶
To make it easily distinguishable, here, we use comma instead of space to separate the components of a triple pattern and an RDF triple.

G=“/map/dbd.ttl”,

outputPattern= (?ins,?p,?v),

tABox=“/map/com.ttl”.7
⁷
We present the examples in Turtle format for reducing the space and better understanding. In practice, our system prefers N-Triples format to support scalability.

Listing 4 shows the output of this operation.

Listing 4.
Example of GraphExtractor

TBoxExtraction is already described in Section 5, therefore, we do not repeat it here.
6.2. Transformation operations

Transformation operations transform the extracted data according to the semantics of the SDW. Here, we define the following semantic-aware ETL transformation operations: TransformationOnLiteral, JoinTransformation, LevelMemberGenerator, ObservationGenerator, ChangedDataCapture, UpdateLevel, External linking, and MaterializeInference. The following describe each operation.

TransformationOnLiteral(sConstruct, tConstruct, sTBox, sABox propertyMappings, tABox) As described in the SourceToTargetMapping task, a property (in a property-mapping) of a target construct (i.e., a level, a QB dataset, or a concept) can be mapped to either a source concept property or an expression over the source properties. An expression allows arithmetic operations, datatype (string, number, and date) conversion and processing functions, and group functions (sum, avg, max, min, count) as defined in SPARQL [25]. This operation generates the instances of the target construct by resolving the source expressions mapped to its properties.

If the ETL execution flow is generated automatically, the automatic ETL execution flow generation process first identifies the concept-mapping $c m$ from aMappings, where aConstruct appears and the operation to process cm is TransformationOnLiteral. Then, the process parametrizes TransformationOnLiteral as follows: 1) sConstruct and tConstruct are defined by map:sourceConcept and map:targetConcept; 2) sTBox is the target TBox of cm’s map-dataset, defined by the property map:sourceTBox; 3) sABox is the location of the source ABox defined by map:sourceLocation; 4) propertyMappings is the set of property-mappings defined under $c m$ ; and 5) tABox is the location of the target ABox defined by map:targetLocation. A developer can also manually set the parameters. From the given inputs, this operation transforms (or directly returns) the sABox triple objects according to the expressions (defined through map:source4TargetPropertyValue) in propertyMappings and stores the triples in tABox. This operation first creates a SPARQL SELECT query based on the expressions defined in propertyMappings, and then, on top of the SELECT query, it forms a SPARQL CONSTRUCT query to generate the transformed ABox for tConstruct.

Example 6.
Listing 5 (lines 16–19) shows the transformed instances after applying the operation TransformationOnLiteral(sConstruct, tConstruct, sTBox, sABox, PropertyMappings, tABox), where
sConstruct = tConstruct=sub:Subsidy,

sTBox=”/map/subsidyTBox.ttl”,

sABox= source instances of sub:Subsidy (lines 47–50 in Listing 1),

propertyMappings = lines 2–14 in Listing 5,

tABox=”/map/temp1.ttl”.

Listing 5.
Example of TransformationOnLiteral

JoinTransformation(sConstruct, tConstruct, sTBox, tTBox, sABox, tABox, comProperty, propertyMappings) A TBox construct (a concept, a level, or a QB dataset) can be populated from multiple sources. Therefore, an operation is necessary to join and transform data coming from different sources. Two constructs of the same or different sources can only be joined if they share some common properties. This operation joins a source and a target constructs based on their common properties and produce the instances of the target construct by resolving the source expressions mapped to target properties. To join n sources, an ETL process requires n-1 JoinTransformation operations.

If the ETL execution flow is generated automatically, the automatic ETL execution flow generation process first identifies the concept-mapping cm from aMappings, where aConstruct appears and the operation to process $c m$ is JoinTransformation. Then it parameterizes JoinTransformation as follows: 1) sConstruct and tConstruct are defined by the map:sourceConcept and map:targetConcept properties; 2) sTBox and tTBox are the source and target TBox of cm’s map-dataset, defined by map:sourceTBox and map:targetTBox; 3) sABox and tABox are defined by the map:sourceLocation and map:targetLocation properties; 4) comProperty is defined by map:commonProperty; and 5) propertyMappings is the set of property-mappings defined under cm.

A developer can also manually set the parameters. Once it is parameterized, JoinTransformation joins two constructs based on comProperty, transforms their data based on the expressions (specified through map:source4TargetPropertyValue) defined in propertyMappings, and updates tABox based on the join result. It creates a SPARQL SELECT query joining two constructs using either AND or OPT features, and on top of that query, it forms a SPARQL CONSTRUCT query to generate the transformed tABox.
Example 7.
The recipients in sdw:Recipient need to be enriched with their company information available in the Danish Business dataset. Therefore, a join operation is necessary between sub:Recipient and bus:Company. The concept-mapping of this join is described in Listing 3 at lines 19–37. They are joined by two concept properties: recipient names and their addresses (lines 31, 34–37). We join and transform bus:Company and sub:Recipient using JoinTransformation(sConstruct, tConstruct, sTBox, tTBox, sABox, tABox, comProperty, propertyMappings), where
sConstruct= bus:Company,

tConstruct= sub:Recipient,

sTBox= “/map/businessTBox.ttl”,

tTBox= “/map/subsidyTBox.ttl”,

sABox= source instances of bus:Company (lines 13–29 in Listing 1),

tABox= source instances of sub:Recipient (lines 40–45 in Listing 1),

comProperty = lines 31, 34–37 in Listing 3,

propertyMappings = lines 73–96 in Listing 3.
Listing 6 shows the output of the joinTransformation operation.
Listing 6.
Example of JoinTransformation

LevelMemberGenerator(sConstruct, level, sTBox, sABox, tTBox, iriValue, iriGraph, propertyMappings, tABox) In QB4OLAP, dimensional data are physically stored in levels. A level member, in an SDW, is described by a unique IRI and its semantically linked properties (i.e., level attributes and roll-up properties). This operation generates data for a dimension schema defined in Definition 1.

If the ETL execution flow is generated automatically, the automatic process first identifies the concept-mapping cm from aMappings, where aConstruct appears and the operation to process cm is LevelMemberGenerator. Then it parameterizes LevelMemberGenerator as follows: 1) sConstruct is the source construct defined by map:sourceConcept; 2) level is the target level8
⁸
A level is termed as a level property in QB4OLAP, therefore, throughout this paper, we use both the term “level” and “level property” interchangeably.

defined by the map:targetConcept property; 3) sTBox and tTBox are the source and target TBoxes of cm’s map dataset, defined by the properties map:sourceTBox and map:targetTBox; 4) sABox is the source ABox defined by the property map:sourceLocation; 5) iriValue is a rule9
⁹
A rule can be either a source property, an expression or incremental, as described in Section 5.

to create IRIs for the level members and it is defined defined by the map:TargetInstanceIriValue property; 6) iriGraph is the IRI graph10
¹⁰
The IRI graph is an RDF graph that keeps a triple for each resource in the SDW with their corresponding source IRI.

within which to look up IRIs, given by the developer in the automatic ETL flow generation process; 7) propertyMappings is the set of property-mappings defined under cm; and 8) tABox is the target ABox location defined by map:targetLocation.

A developer can also manually set the paramenters. Once it is parameterized, LevelMemberGenerator operation generates QB4OLAP-compliant triples for the level members of level based on the semantics encoded in tTBox and stores them in tABox.
Example 8.
Listing 3 shows a concept-mapping (lines 40–54) describing how to populate sdw:Recipient from sub:Recipient. Listing 7 shows the level member created by the LevelMemberGenerator(level, tTBox, sABox, iriValue, iriGraph, propertyMappings, tABox) operation, where
sConstruct= sub:Recipient,

level= sdw:Recipient,

sTBox= “/map/subsidyTBox.ttl”,

sABox= “/map/subsidy.ttl”, shown in Example 7,

tTBox = “/map/subsidyMDTBox.ttl”,

iriValue = sub:recipientID,

iriGraph = “/map/provGraph.nt”,

propertyMappings= lines 98–115 in Listing 3,

tABox=”/map/temp.ttl”.

Listing 7.
Example of LevelMemberGenerator

ObservationGenerator(sConstruct, dataset, sTBox, sABox, tTBox, iriValue, iriGraph, propertyMappings, tABox) In QB4OLAP, an observation represents a fact. A fact is uniquely identified by an IRI, which is defined by a combination of several members from different levels and contains values for different measure properties. This operation generates data for a cube schema defined in Definition 2.

If the ETL execution flow is generated automatically, the way used by the automatic ETL execution flow generation process to extract values for the parameters of ObservationGenerator from aMappings is analogous to LevelMemberGenerator. Developers can also manually set the parameters. Once it is parameterized, the operation generates QB4OLAP-compliant triples for observations of the QB datasetdataset based on the semantics encoded in tTBox and stores them in tABox.
Example 9.
Listing 8 (lines 21–25) shows a QB4OL-AP-compliant observation create by the ObservationGenerator(sConstruct, dataset, sTBox, sABox, tTBox, iriValue, iriGraph, propertyMappings, tABox) operation, where
sConstruct = sub:Subsidy,

dataset = sdw:SubsidyMD,

sTBox = “/map/subsidyTBox.ttl”

sABox = “/map/subsidy.ttl”, shown in Example 6,

tTBox = “/map/subsidyMDTBox.ttl”, shown in Listing 2,

iriValue = “Incremental”,

iriGraph = “/map/provGraph.nt”,

propertyMappings = lines 8–19 in Listing 8,

tABox = “/map/temp2.ttl”.

Listing 8.
Example of ObservationGenerator

ChangedDataCapture(nABox, oABox, flag) In a real-world scenario changes occur in a semantic source both at the schema and instance level. Therefore, an SDW needs to take action based on the changed schema and instances. The adaption of the SDW TBox with the changes of source schemas is an analytical task and requires the involvement of domain experts, therefore, it is out of the scope of this paper. Here, only the changes at the instance level are considered.

If the ETL execution flow is generated automatically, the automatic process first identifies the concept-mapping cm from aMappings, where aConstruct appears and the operation to process cm is ChangedDataCapture. Then, it takes map:sourceLocation and map:targetLocation for nABox (new dimensional instances in a source) and oABox (old dimensional instances in a source), respectively, to parametrize this operation. flag depends on the next operation in the operation sequence.

Developers can also manually set the parameters. From the given inputs, ChangedDataCapture outputs either 1) a set of new instances (in the case of SDW evolution, i.e., $flag = 0$ ) or 2) a set of updated triples – the existing triples changed over time – (in the case of SDW update, i.e., $flag = 1$ ) and overwrites oABox. This is done by means of the set difference operation. This operation must then be connected to either LevelMemberGenerator to create the new level members or updateLevel (described below) to reflect the changes in the existing level members.
Example 10.
Suppose Listing 6 is the old ABox of sub:Recipient and the new ABox is at lines 2–10 in Listing 9. This operation outputs either 1) the new instance set (in this case, lines 12–15 in the listing) or 2) the updated triples (in this case, line 17).

Listing 9.
Example of ChangedDataCapture

UpdateLevel(level, updatedTriples, sABox, tTBox, tABox, propertyMappings, iriGraph) Based on the triples updated in the source ABox sABox for the level level (generated by ChangedDataCapture), this operation updates the target ABox tABox to reflect the changes in the SDW according to the semantics encoded in the target TBox tTBox and level property-mappings propertyMappings. Here, we address three update types (Type1-update, Type2-update, and Type3-update), defined by Ralph Kimball in [37] for a traditional DW, in an SDW environment. The update types are already defined in tTBox for each level attribute of level (as discussed in Section 2.3), so they do not need to be provided as parameters. As we consider only instance level updates, only the objects of the source updated triples are updated. To reflect a source updated triple in level, the level member using the triple to describe itself, will be updated. In short, the level member is updated in the following three ways: 1) A Type1-update simply overwrites the old object with the current object. 2) A Type2-update creates a new version for the level member (i.e., it keeps the previous version and creates a new updated one). It adds the validity interval for both versions. Further, if the level member is a member of an upper level in the hierarchy of a dimension, the changes are propagated downward in the hierarchy, too. 3) A Type3-update overwrites the old object with the new one. Besides, it adds an additional triple for each changed object to keep the old object. The subject of the additional triple is the instance IRI, the object of the triple is the old object, and the predicate is concat(oldPredicate, “oldValue”).

If the ETL execution flow is generated automatically, this operation first identifies the concept-mapping cm from aMappings, where aConstruct appears and the operation to process cm is UpdateLevel. Then it parameterizes LevelMemberGenerator as follows: 1) level is defined by the map:targetConcept; 2) sABox is old source data; 3) updatedTriples is the source location defined by map:sourceLocation; 4) tTBox is the target TBox of cm’s map-dataset, defined by the property map:targetTBox; 5) tABox is defined by map:targetLocation; 6) propertyMappings is the set of property-mappings defined under cm; and 7) iriGraph is given by developer in the automatic ETL flow generation process.
Example 11.
Listing 10 describes how different types of updates work by considering two members of the sdw:Recipient level (lines 2–11). As the name of the second member (lines 7–11) is changed to “Kristian Jensen” from “Kristian Kristensen”, as found in Listing 9. A Type1-update simply overwrites the existing name (line 20). A Type2-update creates a new version (lines 39–46). Both old and new versions contain validity interval (lines 35–37) and (lines 44–46). A Type3-Update overwrites the old name (line 56) and adds a new triple to keep the old name (line 57).
Listing 10.
Example of different types of updates

Besides the transformation operations discussed above, we define two additional transformation operations that cannot be run by the automatic ETL dataflows generation process.

ExternalLinking (sABox, externalSource) This operation links the resources of sABox with the resources of an external source externalSource. externalSource can either be a SPARQL endpoint or an API. For each resource $inRes \in$ sABox, this operation extracts top k matching external resources either 1) submitting a query to externalSource or 2) by sending a web service request embedding inRes through the API (e.g., DBpedia lookup API). To find a potential link for each external resource exRes, the Jaccard Similarity of the semantic bags of inRes and exRes is computed. The semantic bag of a resource consists of triples describing the resource [45,46,56]. The pair of the internal and external resources is considered as a match if the Jaccard Similarity exceeds a certain threshold. A triple with the owl:sameAs property is created to materialize the link in sABox for each pair of matched internal and external resources.

MaterializeInference(ABox, TBox) This operation infers new information that has not been explicitly stated in an SDW. It analyzes the semantics encoded into the SDW and enriches the SDW with the inferred triples. A subset of the OWL 2 RL/RDF rules, which encodes part of the RDF-Based Semantics of OWL 2 [52], are considered here. The reasoning rules can be applied over the TBox TBox and ABox ABox separately, and then together. Finally, the resulting inference is asserted in the form of triples, in the same spirit as how the SPARQL regime entailments11
¹¹
https://www.w3.org/TR/sparql11-entailment/

deal with inference.
6.3. Load

Loader(tripleSet, tsPath) An SDW is represented in the form of RDF triples and the triples are stored in a triplestore (e.g., Jena TDB). Given a set of RDF triples triplesSet and the path of a triple store tsPath, this operation loads triplesSet in the triple store.

If the ETL execution flow is generated automatically, this operation first identifies the concept-mapping cm from aMappings, where aConstruct appears and the operation to process cm is Loader. Then, it takes values of map:sourceLocation and map:targetLocation for the parameters tripleSet and tsPath.

7. Automatic ETL execution flow generation

We can characterize ETL flows at the Definition Layer by means of the source-to-target mapping file; therefore, the ETL data flows in the Execution Layer can be generated automatically. This way, we can guarantee that the created ETL data flows are sound and relieve the developer from creating the ETL data flows manually. Note that this is possible because the Mediatory Constructs (see Fig. 5) contain all the required metadata to automate the process.

Algorithm 1:

CreateETL

Algorithm 2:

CreateAFlow

Algorithm 3:

Parameterize

Algorithm 1 shows the steps required to create ETL data flows to populate a target construct (a level, a concept, or a dataset). As inputs, the algorithm takes a target construct x, the mapping file G, and the IRI graph $G_{IRI}$ , and it outputs a set of ETL data flows E. At first, it uses the functions12

¹²

Here, some functions used in the algorithms are characterized by a pattern over G, shown at its side as comments in the corresponding algorithm.

to locate x in G (line 1) and get the concept-mappings where

{node}_{target}

participates (line 2). As a (final) target construct can be populated from multiple sources, it can be connected to multiple concept-mappings, and for each concept-mapping, it creates an ETL data flow by calling Algorithm 2: CreateAFlow (lines 5–8).

Algorithm 2 generates an ETL data flow for a concept-mapping c and recursively does so if the current concept-mapping source element is connected to another concept-mapping, until it reaches a source element. Algorithm 2 recursively calls itself and uses a stack to preserve the order of the partial ETL data flows created for each concept-mapping. Eventually, the stack contains the whole ETL data flow between the source and target schema.

Algorithm 2 works as follows. The sequence of operations in c is pushed to the stack after parameterizing it (lines 1–2). Algorithm 3 parameterizes each operation in the sequence, as described in Section 6 and returns a stack of parameterized operations. As inputs, it takes the operation sequence, the concept-mapping, the mapping file, and the IRI graph. For each operation, it uses the parameterizeOp( $op$ , G, loc( $c m$ ), $G_{IRI}$ ) function to automatically parameterize $op$ from G (as all required parameters are available in G) and push the parameterized operation in a stack (line 2–7). Note that for the first operation in the sequence, the algorithm uses the source ABox location of the concept-mapping (line 4) as an input, whereas for the remaining operations, it uses the output of the previous operation as input ABox (line 6). Finally, Algorithm 3 returns the stack of parameterized operations.

Fig. 8.

The graph presentation of a part of Listing 3.

Then, Algorithm 2 traverses to the adjacent concept-mapping of c connected via c’s source concept (line 3–4). After that, the algorithm recursively calls itself for the adjacent concept-mapping (line 6). Note that here, we set a restriction: except for the final target constructs, all the intermediate source and target concepts can be connected to at most one concept-mapping. This constraint is guaranteed when building the metadata in the Definition Layer. Once there are no more intermediate concept-mappings, the algorithm pushes a dummy starting ETL operation (StartOp) (line 7) to the stack and returns it. StartOp can be considered as the root of the ETL data flows that starts the execution process. The stacks generated for each concept-mapping of ${node}_{target}$ are added to the output set E (line 8 in Algorithm 1). The following section shows this process with an example of our use case.

7.1. Auto ETL example

In this section, we show how to populate sdw:Recipient level using CreateETL (Algorithm 1). As input, CreateETL takes the target construct sdw:Recipient, the mapping file Listing 3 and the location of IRI graph “/map/provGraph.nt”. Figure 8 presents a part (necessary to explain this process) of Listing 3 as an RDF graph. As soon as sdw:Recipient is found in the graph, the next task is to find the concept-mappings that are connected to sdw:Recipient through map:targetConcept (line 2). Here, ?c_maps = {:Recipient_RecipientMD}. For :Recipient_RecipientMD, the algorithm creates an empty stack $s_{c}$ and calls CreateAFlow (:Recipient_RecipientMD, $s_{c}$ , Listing 3) (Algorithm 2) at lines 6–7.

CreateAFlow retrieves the sequence of operations (line 1) needed to process the concept-mapping, here: ops = (LevelMemberGenerator; Loader) (see Fig. 8). Then, CreateAFlow parameterizes $ops$ by calling Parameterize (Algorithm 3) and then pushes the parameterized operations to $s_{c}$ (line 2). Parameterize creates an empty stack $s_{op}$ (line 1) and for each operation in $ops$ it calls the parameterize() method to parameterize the operation using the concept-mapping information from Listing 3, the source location of the concept-mapping, and the IRI graph, and then it pushes the parameterized operation in $s_{op}$ (lines 2–7). After the execution of the for loop in Parameterize (line 2–7), the value of the stack $s_{op}$ is (Loader(“/map/temp.nt”, “/map/sdw”); LevelMemberGenerator(sub:Recipient,sdw:Recipient, “/map/subsidyTBox.ttl”, “/map/subsidy.nt”, “/map/subsidyMDTBox.ttl”, sub:recipientID, “/map/provGraph.nt”, propertyMappings,13

¹³
Here, lines 95–112 in Listing 3.

“/map/temp.nt”)), which is returned to line 2 of CreateAFlow. Note that the output path of LevelMemberGenerator(..)14

¹⁴

(..) indicates that the operation is parameterized.

is used as the input source location of Loader(..). CreateAFlow pushes the parameterized operations to

s_{c}

(line 2), hence

s_{c}

= (LevelMemberGenerator(..); Loader(..)).

Then, CreateAFlow finds the source concept of :Recipient_RecipientMD (line 3), which is sub:Recipient; retrieves the concept-mapping :Recipient_Company of sub:Recipient from Listing 3 (line 4); and recursively calls itself for :Recipient_Company (lines 5–6). The operation sequence of :Recipient_Company (line 1) is (JoinTransformation) (see Fig. 8), and the call of Parameterize at line 2 returns the parameterized JoinTransformation(bus:Company, Sub:Reicipient, “/map/dbd.nt”, “/map/subsidy.nt”, comProperty,15

¹⁵

lines 32, 36–39 in Listing 3.

propertyMappings16

¹⁶

Lines 76–93 in Listing 3.

) operation, which is pushed to the stack

s_{c}

, i.e.,

s_{c}

= (JoinTransformation(...); LevelMemberGenerator(...); Loader(...)). The source concept bus:Company is not connected to any other concept-mapping through the map:targetConcept property in the mapping file. Therefore, CreateAFlow skips lines 5 and 6. After that, it pushes the start operation (StartOp) in

s_{c}

, i.e.,

s_{c}

= (StartOp, JoinTransformation(..); LevelMemberGenerator(..); Loader(..)) and returns it to CreateETL (Algorithm 1) at line 7. Then, CreateETL adds it to the set of ETL data flows E and returns it (line 9). Therefore, the ETL data flow to populate sdw:Recipient is StartOp ⇒ JoinTransformation(..) ⇒ LevelMemberGenerator(..) ⇒ Loader(..).

8. Evaluation

We created a GUI-based prototype, named SETL_CONSTRUCT [17] based on the different high-level constructs described in Sections 5 and 6. We use Jena 3.4.0 to process, store, and query RDF data and Jena TDB as a triplestore. SETL_CONSTRUCT is developed in Java 8. Like other traditional tools (e.g., PDI [11]), SETL_CONSTRUCT allows developers to create ETL flows by dragging, dropping, and connecting the ETL operations. The system is demonstrated in [17]. On top of SETL_CONSTRUCT, we implement the automatic ETL execution flow generation process discussed in Section 7; we call it SETL_AUTO. The source code, examples, and developer manual for SETL_CONSTRUCT and SETL_AUTO are available at https://github.com/bi-setl/SETL.

To evaluate SETL_CONSTRUCT and SETL_AUTO, we create an MD SDW by integrating the Danish Business Dataset (DBD) [3] and the Subsidy dataset ( https://data.farmsubsidy.org/Old/), described in Section 3. We choose this use case and these datasets for evaluation as there already exists an MD SDW, based on these datasets, that has been programatically created using SETL_PROG[44]. Our evaluation focuses on three aspects: 1) productivity, i.e., to what extent SETL_CONSTRUCT and SETL_AUTO ease the work of a developer when developing an ETL task to process semantic data, 2) development time, the time to develop an ETL process, and 3) performance, the time required to run the process. We run the experiments on a laptop with a 2.10 GHz Intel Core(TM) i7-4600U processor, 8 GB RAM, and Windows 10. On top of that we also present the qualitative evaluation of our approach.

In this evaluation process, we use SETL_PROG as our competitive system. We could not directly compare SETL_CONSTRUCT and SETL_AUTO with traditional ETL tools (e.g., PDI, pygramETL) because they 1) do not support semantic-aware data, 2) are not compatible with the SW technology, and 3) cannot supprot a data warehouse that is semantically defined. On the other hand, we could also not compare them with existing semantic ETL tools (e.g., PoolParty) because they do not support multidimensional semantics at the TBox and ABox level. Therefore, they do not provide any operations for creating RDF data following multidimensional principles. Nevertheless, SETL_PROG supports both semantic and non-semantic source integration, and it uses the relational model as a canonical model. In [44], SETL_PROG is compared with PDI to some extent. We also present the summary of that comparison in the following sections. We direct readers to [44] for further details.

Table 2
Comparison among the productivity of SETL_PROG, SETL_CONSTRUCT, and SETL_AUTO for the SDW

Tool ⇒ SETL _PROG SETL _CONSTRUCT SETL _AUTO

NOUC Components of Each Concept NOUC Components of Each Concept

ETL Task ⇓ Sub construct Procedures/Data structures NUEP NOTC Task/Operation Clicks Selections NOTC Clicks Selections NOTC

TBox with MD Semantics Cube Structure Concept(), Property(), BlankNode(), Namespaces(), conceptPropertyBindings(), createOntology() 1 665 TargetTBoxDefinition 1 9 9 7 1 9 9 7

Cube Dataset 1 67 1 2 2 18 1 2 2 18

Dimension 2 245 2 3 4 12 2 3 4 12

Hierarchy 7 303 7 4 6 18 7 4 6 18

Level 16 219 16 4 5 17 16 4 5 17

Level Attribute 38 228 38 4 3 15 38 4 3 15

Rollup Property 12 83 12 2 1 7 12 2 1 7

Measure Property 1 82 1 4 3 25 1 4 3 25

Hierarchy Step 12 315 12 6 6 6 12 6 6 6

Prefix 21 74 21 1 0 48 21 1 0 48

Subtotal (for the Target TBox) 1 24509 101 382 342 1905 101 382 342 1905

Mapping Generation Mapping Dataset N/A 0 0 SourceToTargetMapping 5 1 2 6 3 1 2 6

Concept-mapping dict() 17 243 23 9 10 0 18 12 10 15

Property-mapping N/A 0 0 59 2 2 0 44 2 2 0

Subtotal (for the Mapping File) 1 2052 87 330 358 30 65 253 274 473

Semantic Data Extraction from an RDF Dump File – query() 17 40 GraphExtractor 17 5 0 30 1 Auto Generation

Semantic Data Extraction through a SPARQL Endpoint – ExtractTriplesFromEndpoint() 0 100 GraphExtractor 0 5 0 30 0 Auto Generation

Cleansing – Built-in Petl functions 15 80 TransformationOnLiteral 5 12 1 0 1 Auto Generation

Join – Built-in Petl functions 1 112 JoinTransformation 1 15 1 0 1 Auto Generation

Tool ⇒		SETL _PROG		SETL _CONSTRUCT	SETL _AUTO
TBox with MD Semantics	Cube Structure	Concept(), Property(), BlankNode(), Namespaces(), conceptPropertyBindings(), createOntology()	1	665	TargetTBoxDefinition	1	9	9	7	1	9	9	7
Cube Dataset	1	67	1	2	2	18	1	2	2	18
Dimension	2	245	2	3	4	12	2	3	4	12
Hierarchy	7	303	7	4	6	18	7	4	6	18
Level	16	219	16	4	5	17	16	4	5	17
Level Attribute	38	228	38	4	3	15	38	4	3	15
Rollup Property	12	83	12	2	1	7	12	2	1	7
Measure Property	1	82	1	4	3	25	1	4	3	25
Hierarchy Step	12	315	12	6	6	6	12	6	6	6
Prefix	21	74	21	1	0	48	21	1	0	48
Subtotal (for the Target TBox)	1	24509		101	382	342	1905	101	382	342	1905
Mapping Generation	Mapping Dataset	N/A	0	0	SourceToTargetMapping	5	1	2	6	3	1	2	6
Concept-mapping	dict()	17	243	23	9	10	0	18	12	10	15
Property-mapping	N/A	0	0	59	2	2	0	44	2	2	0
Subtotal (for the Mapping File)	1	2052		87	330	358	30	65	253	274	473
Semantic Data Extraction from an RDF Dump File	–	query()	17	40	GraphExtractor	17	5	0	30	1	Auto Generation
Semantic Data Extraction through a SPARQL Endpoint	–	ExtractTriplesFromEndpoint()	0	100	GraphExtractor	0	5	0	30	0	Auto Generation
Cleansing	–	Built-in Petl functions	15	80	TransformationOnLiteral	5	12	1	0	1	Auto Generation
Join	–	Built-in Petl functions	1	112	JoinTransformation	1	15	1	0	1	Auto Generation

Table 2

(Continued)

Tool ⇒		SETL _PROG				SETL _CONSTRUCT				SETL _AUTO

						NOUC	Components of Each Concept			NOUC	Components of Each Concept

ETL Task ⇓	Sub construct	Procedures/Data structures	NUEP	NOTC	Task/Operation		Clicks	Selections	NOTC		Clicks	Selections	NOTC
Level Member Generation	–	createDataTripleToFile(), createDataTripleToTripleStore()	16	75	LevelMemberGenerator	16	6	6	0	1	Auto Generation
Observation Generation	–	createDataTripleToFile(), createDataTripleToTripleStore()	1	75	ObservationGenerator	1	6	6	0	1	Auto Generation
Loading as RDF Dump	–	insertTriplesIntoTDB(), bulkLoadToTDB()	0	113	Loader	0	1	2	0	0	Auto Generation
Loading to a Triplestore	–	insertTriplesIntoTDB(), bulkLoadToTDB()	17	153	Loader	17	1	2	0	1	Auto Generation
Auto ETL Generation	–	–	–	–	CreateETL	1	–	–	–	1	21	16	0
Total (for the Execution Layer Tasks)			1	2807		57	279	142	363	58	21	16	0
Grand Total (for the Whole ETL Process)			1	29358	245		991	826	2298	224	656	632	2378

Table 3

Comparison between the ETL processes of SETL_PROG and PDI for SDW (Reproduced from [44])

Tools	SETL			PDI (Kettle)

Task	Used tools	Used languages	LOC	Used tools	Used languages	LOC
TBox with MD semantics	Built-in SETL	Python	312	Protege, SETL	Python	312
Ontology Parser	Built-in SETL	Python	2	User Defined Class	Java	77
Semantic Data Extraction through SPARQL endpoint	Built-in SETL	Python, SPARQL	2	Manually extraction using SPARQL endpoint	SPARQL	NA
Semantic Data Extraction from RDF Dump file	Built-in SETL	Python	2	NA	NA	NA
Reading CSV/Database	Built-in Petl	Python	2	Drag & Drop	NA	Number of used Activities: 1
Cleansing	Built-in Petl	Python	36	Drag & Drop	NA	Number of used Activities: 19
IRI Generation	Built-in SETL	Python	2	User Defined Class	Java	22
Triple Generation	Built-in SETL	Python	2	User Defined Class	Java	60
External Linking	Built-in SETL	Python	2	NA	NA	NA
Loading as RDF dump	Built-in SETL	Python	1	Drag & Drop	NA	Number of used Activities: 1
Loading to Triple Store	Built-in SETL	Python	1	NA	NA	NA
Total LOC for the complete ETL process			401	471 LOC + 4 NA + 21 Activities

8.1. Productivity

SETL_PROG requires Python knowledge to maintain and implement an ETL process. On the other hand, using SETL_CONSTRUCT and SETL_AUTO, a developer can create all the phases of an ETL process by interacting with a GUI. Therefore, they provide a higher level of abstraction to the developer that hides low-level details and requires no programming background. Table 2 summarizes the effort required by the developer to create different ETL tasks using SETL_PROG, SETL_CONSTRUCT, and SETL_AUTO. We measure the developer effort in terms of Number of Typed Characters (NOTC) for SETL_PROG and in Number of Used Concepts (NOUC) for SETL_CONSTRUCT and SETL_AUTO. Here, we define a concept as a GUI component of SETL_CONSTRUCT that opens a new window to perform a specific action. A concept is composed of several clicks, selections, and typed characters. For each ETL task, Table 2 lists: 1) its sub construct, required procedures/data structures, number of the task used in the ETL process (NUEP), and NOTC for SETL_PROG; 2) the required task/operation, NOUC, and number of clicks, selections, and NOTC (for each concept) for SETL_CONSTRUCT and SETL_AUTO. Note that NOTC depends on the user input. Here, we generalize it by using same user input for all systems. Therefore, the total NOTC is not the summation of the values of the respective column.

To create a target TBox using SETL_PROG, an ETL developer needs to use the following steps: 1) defining the TBox constructs by instantiating the Concept, Property, and BlankNode classes that play a meta modeling role for the constructs and 2) calling conceptPropertyBinding() and createTriples(). Both procedures take the list of all concepts, properties, and blank nodes as parameters. The former one internally connects the constructs to each other, and the latter creates triples for the TBox. To create the TBox of our SDW using SETL_PROG, we used 24,509 NOTC. On the other hand, SETL_CONSTRUCT and SETL_AUTO use the TargetTBoxDefinition interface to create/edit a target TBox. To create the target TBox of our SDW in SETL_CONSTRUCT and SETL_AUTO, we use 101 concepts that require only 382 clicks, 342 selections, and 1905 NOTC. Therefore, for creating a target TBox, SETL_CONSTRUCT and SETL_AUTO use 92% fewer NOTC than SETL_PROG.

To create source-to-target mappings, SETL_PROG uses Python dictionaries where the keys of each dictionary represent source constructs and values are the mapped target TBox constructs, and for creating the ETL process it uses 23 dictionaries, where the biggest dictionary used in the ETL process takes 253 NOTC. In total, SETL_PROG uses 2052 NOTC for creating mappings for the whole ETL process. On the contrary, SETL_CONSTRUCT and SETL_AUTO use a GUI. In total, SETL_CONSTRUCT uses 87 concepts composed of 330 clicks, 358 selections, and 30 NOTC. Since SETL_AUTO internally creates the intermediate mappings, there is no need to create separate mapping datasets and concept-mappings for intermediate results. Thus, SETL_AUTO uses only 65 concepts requiring 253 clicks, 274 selections, and 473 NOTC. Therefore, SETL_CONSTRUCT reduces NOTC of SETL_PROG by 98%. Although SETL_AUTO uses 22 less concepts than SETL_CONSTRUCT, SETL_CONSTRUCT reduces NOTC of SETL_AUTO by 93%. This is because, in SETL_AUTO, we write the data extraction queries in the concept-mappings where in SETL_CONSTRUCT we set the data extraction queries in the ETL operation level.

To extract data from either an RDF local file or an SPARQL endpoint, SETL_PROG uses the query() procedure and the ExtractTriplesFromEndpoint() class. On the other hand, SETL_CONSTRUCT uses the GraphExtractor operation. It uses 1 concept composed of 5 clicks and 20 NOTC for the local file and 1 concept with 5 clicks and 30 NOTC for the endpoint. SETL_PROG uses different functions/procedures from the Petl Python library (integrated with SETL_PROG) based on the cleansing requirements. In SETL_CONSTRUCT, all data cleansing related tasks on data sources are done using TransformationOnLiteral (single source) and JoinTransformation (for multi-source). TransformationOnLiteral requires 12 clicks and 1 selection, and JoinTransformation takes 15 clicks and 1 selection.

To create a level member and observation, SETL_PROG uses createDataTripleToFile() and takes 125 NOTC. The procedure takes all the classes, properties, and blank nodes of a target TBox as input; therefore, the given TBox should be parsed for being used in the procedure. On the other hand, SETL_CONSTRUCT uses the LevelMemberGenerator and ObservationGenerator operations, and each operation requires 1 concept, which takes 6 clicks and 6 selections. SETL_PROG provides procedures for either bulk or trickle loading to a file or an endpoint. Both procedures take 113 and 153 NOTC, respectively. For loading RDF triples either to a file or a triple store, SETL_CONSTRUCT uses the Loader operation, which needs 2 clicks and 2 selections. Therefore, SETL_CONSTRUCT reduces NOTC for all transformation and loading tasks by 100%.

SETL_AUTO requires only a target TBox and a mapping file to generate ETL data flows through the CreateETL interface, which takes only 1 concept composed of 21 clicks and 16 selections. Therefore, other ETL Layer tasks are automatically accomplished internally. In summary, SETL_CONSTRUCT uses 92% fewer NOTC than SETL_PROG, and SETL_AUTO further reduces NOUC by another 25%.

8.1.1. Comparison between SETL_PROG and PDI

PDI is a non-semantic data integration tool that contains a rich set of data integration functionality to create an ETL solution. It does not support any functionality for semantic integration. In [44], we used PDI in combination with other tools and manual tasks to create a version of an SDW. The comparison between the ETL processes of SETL_PROG and PDI to create this SDW are shown in Table 3. Here, we outline the developer efforts in terms of used tools, languages, and Lines of Codes (LOC). As mentioned earlier, SETL_PROG provides built-in classes to annotate MD constructs with a TBox. PDI does not support defining a TBox. To create the SDW using PDI, we use the TBox created by SETL_PROG. SETL_PROG provides built-in classes to parse a given TBox and users can use different methods to parse the TBox based on their requirements. In PDI, we implement a Java class to parse the TBox created by SETL_PROG which takes an RDF file containing the definition of a TBox as input and outputs the list of concepts and properties contained in the TBox. PDI is a non-semantic data integration tool, thus, it does not support processing semantic data. We manually extract data from SPARQL endpoints and materialize them in a relational database for further processing. PDI provides activities (drag & drop functionality) to pre-process database and CSV files. On the other hand, SETL_PROG provides methods to extract semantic data either from a SPARQL endpoint or an RDF dump file batch-wise. In SETL_PROG, users can create an IRI by simply passing arguments to the createIRI () method. PDI does not include any functionality to create IRIs for resources. We define a Java class of 23 lines to enable the creation of IRIs for resources. SETL_PROG provides the createTriple() method to generate triples from the source data based on the MD semantics of the target TBox; users can just call it by passing required arguments. In PDI, we develop a Java class of 60 lines to create the triples for the sources. PDI does not support to load data directly to a triple store which can easily be done by SETL_PROG. Finally, we could not run the ETL process of PDI automatically (i.e., in a single pass) to create the version of a SDW. We instead made it with a significant number of user interactions. In total, SETL_PROG takes 401 Lines of Code (LOC) to run the ETL, where PDI takes $471 LOC + 4 Not Applicable (N / A) + 21 Activities$ . Thus, SETL_PROG creates the SDW with 14.9% less LOC and minimum user interactions comparing to PDI where users have to build their own Java classes, plug-in, and manual tasks to enable semantic integration.

Therefore, we can conclude that SETL_PROG uses 14.9% less LOC than PDI, SETL_CONSTRUCT uses 92% fewer NOTC than SETL_PROG, and SETL_AUTO further reduces NOUC by another 25%. Combining these results, we see that SETL_CONSTRUCT and SETL_AUTO have significantly better productivity than PDI for building an SDW.

8.2. Development time

We compare the time used by SETL_PROG, SETL_CONSTRUCT, and SETL_AUTO to build the ETL processes for our use case SDW. As the three tools were developed within the same project scope and we master them, the first author conducted this test. We chose the running use case used in this paper and created a solution in each of the three tools and measured the development time. We used each tool twice to simulate the improvement we may obtain when we are knowledgeable about a given project. The first time it takes more time to analyze, think, and create the ETL process, and in the latter, we reduce the interaction time spent on analysis, typing, and clicking. Table 4 shows the development time (in minutes) for main integration tasks used by the different systems to create the ETL processes.

Table 4
ETL development time (in minutes) required for SETL_PROG, SETL_CONSTRUCT, and SETL_AUTO

Tool Iteration number Target TBox definition Mapping generation ETL design Total

SETL_PROG 1 186 51 85 322

SETL_PROG 2 146 30 65 241

SETL_CONSTRUCT 1 97 46 35 178

SETL_CONSTRUCT 2 58 36 30 124

SETL_AUTO 1 97 40 2 139

SETL_AUTO 2 58 34 2 94

Tool	Iteration number	Target TBox definition	Mapping generation	ETL design	Total
SETL_PROG	1	186	51	85	322
SETL_PROG	2	146	30	65	241
SETL_CONSTRUCT	1	97	46	35	178
SETL_CONSTRUCT	2	58	36	30	124
SETL_AUTO	1	97	40	2	139
SETL_AUTO	2	58	34	2	94

Fig. 9.

The segment of the main method to populate the sdw:SubsidyMD dataset and the sdw:Recipient using SETL_PROG.

Fig. 10.

The ETL flows to populate the sdw:SubsidyMD dataset and the sdw:Recipient level using SETL_CONSTRUCT.

SETL_PROG took twice as long as SETL_CONSTRUCT and SETL_AUTO to develop a target TBox. In SETL_PROG, to create a target TBox construct, for example a level l, we need to instantiate the Concept() concept for l and then add its different property values by calling different methods of Concept(). SETL_CONSTRUCT and SETL_AUTO create l by typing the input or selecting from the suggested items. Thus, SETL_CONSTRUCT and SETL_AUTO also reduce the risk of making mistakes in an error-prone task, such as creating an ETL. In SETL_PROG, we typed all the source and target properties to create a mapping dictionary for each source and target concept pair. However, to create mappings, SETL_CONSTRUCT and SETL_AUTO select different constructs from a source as well as a target TBox and only need to type when there are expressions and/or filter conditions of queries. Moreover, SETL_AUTO took less time than SETL_CONSTRUCT in mapping generation because we did not need to create mappings for intermediate results.

To create ETL data flows using SETL_PROG, we had to write scripts for cleansing, extracting, transforming, and loading. SETL_CONSTRUCT creates ETL flows using drag-and-drop options. Note that the mappings in SETL_CONSTRUCT and SETL_AUTO use expressions to deal with cleansing and transforming related tasks; however, in SETL_PROG we cleansed and transformed the data in the ETL design phase. Hence, SETL_PROG took more time in designing ETL compared to SETL_CONSTRUCT. On the other hand, SETL_AUTO creates the ETL data flows automatically from a given mapping file and the target TBox. Therefore, SETL_AUTO took only two minutes to create the flows. In short, SETL_PROG is a programmatic environment, while SETL_CONSTRUCT and SETL_AUTO are drag and drop tools. We exemplify this fact by means of Figs 9 and 10, which showcase the creation of the ETL data flows for the sdw:SubsidyMD dataset and the sdw:Recipient level. To make it more readable and understandable, we add comments at the end of the lines of Fig. 9 and in each operation of Fig. 10. In summary, using SETL_CONSTRUCT, the development time is cut in almost half (41% less development time than SETL_PROG); and using SETL_AUTO, it is cut by another 27%.

Table 5

ETL execution time (in minutes) required for each sub-phase of the ETL processes created using SETL_PROG and SETL_CONSTRUCT

Performance metrics	Systems	Extraction and traditional transformation	Semantic transformation	Loading	Total processing time
Processing time (in minutes)	SETL _PROG	33	17.86	21	71.86
Processing time (in minutes)	SETL _CONSTRUCT	43.05	39.42	19	101.47
Input size	SETL _PROG	6.2 GB (Jena TDB) + 6.1 GB (N-Triples)	496 MB (CSV)	4.1 GB (N-Triples)
Input size	SETL _CONSTRUCT	6.2 GB (Jena TDB) + 6.1 GB (N-Triples)	6.270 GB (N-Triples)	4.1 GB (N-Triples)
Output size	SETL _PROG	490 MB (CSV)	4.1 GB (N-Tripels)	3.7 GB (Jena TDB)
Output size	SETL _CONSTRUCT	6.270 GB (N-Triples)	4.1 GB (N-Triples)	3.7 GB (Jena TDB)

8.3. Performance

Since the ETL processes of SETL_CONSTRUCT and SETL_AUTO are the same and only differ in the developer effort needed to create them, this section only compares the performance of SETL_PROG and SETL_CONSTRUCT. We do so by analyzing the time required to create the use case SDW by executing the respective ETL processes. To evaluate the performance of similar types of operations, we divide an ETL process into three sub-phases: extraction and traditional transformation, semantic transformation, as well as loading and discuss the time to complete each.

Table 5 shows the processing time (in minutes), input and output size of each sub-phase of the ETL processes created by SETL_PROG and SETL_CONSTRUCT. The input and output formats of each sub-phase are shown in parentheses. The extraction and traditional transformation sub-phases in both systems took more time than the other sub-phases. This is because they include time for 1) extracting data from large RDF files, 2) cleansing and filtering the noisy data from the DBD and Subsidy datasets, and 3) joining the DBD and Subsidy datasets. SETL_CONSTRUCT took more time than SETL_PROG because its TransformationOnLiteral and JoinTransformation operations use SPARQL queries to process the input file whereas SETL_PROG uses the methods from the Petl Python library to cleanse the data extracted from the sources.

SETL_CONSTRUCT took more time during the semantic transformation than SETL_PROG because SETL_CONSTRUCT introduces two improvements over SETL_PROG: 1) To guarantee the uniqueness of an IRI, before creating an IRI for a target TBox construct (e.g., a level member, an instance, an observation, or the value of an object or roll-up property), the operations of SETL_CONSTRUCT search the IRI provenance graph to check the availability of an existing IRI for that TBox construct. 2) As input, the operations of SETL_CONSTRUCT take RDF (N-triples) files that are larger in size than the CSV files (see Table 5), used by SETL_PROG as input format. To ensure our claims, we run an experiment for measuring the performance of the semantic transformation procedures of SETL_PROG and the operations of SETL_CONSTRUCT by excluding the additional two features introduced in SETL_CONSTRUCT operations (i.e., a SETL_CONSTRUCT operation does not lookup the IRI provenance graph before creating IRIs and takes a CSV input). Figure 11 shows the processing time taken by SETL_CONSTRUCT operations and SETL_PROG procedures to create level members and observations with increasing input size. In the figure, LG and OG represent level member generator and observation generator operations (in case of SETL_CONSTRUCT) or procedures (in case of SETL_PROG).

Fig. 11.

Comparison of SETL_CONSTRUCT and SETL_PROG for semantic transformation. Here, LG and OG stand for LevelMemberGenerator and ObservationGenerator.

Fig. 12.

Scalability of LevelMemberGenerator and ObservationGenerator.

In summary, to process an input CSV file with 500 MB in size, SETL_CONSTRUCT takes 37.4% less time than SETL_PROG to create observations and 23.4% less time than SETL_PROG to create level members. The figure also shows that the processing time difference between the corresponding SETL_CONSTRUCT operation and the SETL_PROG procedure increases with the size of the input. In order to guarantee scalability when using the Jena library, a SETL_CONSTRUCT operation takes the (large) RDF input in the N-triple format, divides the file into several smaller chunks, and processes each chunk separately. Figure 12 shows the processing time taken by LevelMemberGenerator and ObservationGenerator operations with the increasing number of triples. We show the scalability of the LevelMemberGenerator and ObservationGenerator because they create data with MD semantics. The figure shows that the processing time of both operations increase linearly with the increase in the number of triples, which ensures that both operations are scalable. SETL_CONSTRUCT takes less time in loading than SETL_PROG because SETL_PROG uses the Jena TDB loader command to load the data while SETL_CONSTRUCT programmatically load the data using the Jena API’s method.

In summary, SETL_PROG and SETL_CONSTRUCT have similar performance (29% difference in total processing time). SETL_CONSTRUCT ensures the uniqueness of IRI creation and uses RDF as a canonical model, which makes it more general and powerful than SETL_PROG.

Besides the differences of the performances already explained in Table 5, SETL_CONSTRUCT also includes an operation to update the members of the SDW levels, which is not included in SETL_PROG. Since the ETL process for our use case SDW did not include that operation, we scrutinize the performance of this specific operation of SETL_CONSTRUCT in the following.

Fig. 13.

Performance of UpdateLevel based on processing time and target ABox size with the changing of the sdw:Recipient and sdw:City members.

Performance analysis of UpdateLevel operation Figure 13 shows the performance of the UpdateLevel operation. To evaluate this operation, we consider two levels: mdProperty:Recipient and mdProperty:City. We consider these two levels because mdProperty:Recipient is the largest level (in terms of size) in our use case, and mdProperty:City is the immediate upper level of mdProperty:Recipient in the mdStructure:Address hierarchy of the dimension mdProperty:Beneficiary. Therefore, we can record how the changes in cities propagate to recipients, especially in Type2-update. The sdw:Recipient level is the lowest granularity level in the mdStructure:Address hierarchy; therefore, changes in a recipient (i.e., a member of sdw:Recipient) only affect that recipient. Figure 13a shows the processing time with the increasing number of recipients. As a Type2-update creates a new version for each changed level member, it takes more time than a Type1-update and a Type3-update. A Type3-update takes more time than a Type1-update because it keeps the record of old property values besides the current ones. Figure 13b shows how the size of the target ABox increases with the increasing number of recipients. The target ABox size increases linearly with the increasing number of recipients (see Fig. 13b) for Type2-update and Type-3 updates because they keep additional information. However, the target ABox size decreases with the increasing number of recipients for Type1-updates; this is because the current property-values are smaller than the older ones in size.

Figure 13c shows the processing time when increasing the number of updated cities. Since sdw:City is the immediate upper level of sdw:Recipient in the mdStructure:address hierarchy, to reflect a changed city in the target ABox, a Type2-update creates new versions for itself as well as for the recipients living in that city. Therefore, a Type2-update takes more processing time in comparison to a Type1-update and a Type-3 update. Figure 13d shows the target ABox size with the increasing number of cities. The figure shows that the target ABox size for Type2-updates increases slowly within the range from 120 to 160 (X-axis), and it indicates that the changed cities within this range contain fewer recipients than the cities in other ranges.

8.3.1. Comparison between SETL_PROG and PDI in processing sdw:Subsidy

In [44], we compare the performance of SETL_PROG with a non-semantic data integration tool, PDI. We populate the SDW for sdw:Subsidy concept using PDI. To run the process PDI takes 1903 s. On other hand, SETL takes only 1644 s. Thus, SETL is 259 s (13.5%) faster than PDI. PDI is much slower because almost everything MD-related must be embedded as UDFs or equivalent elements.

In overall, we conclude that SETL_PROG is better in performance compared to PDI and SETL_CONSTRUCT. However, SETL_CONSTRUCT is a more correct and scalable framework. On top of that, SETL_CONSTRUCT supports SDWs update.

8.4. Qualitative evaluation

To evaluate our proposed high-level ETL qualitatively, we selected and interviewed two experts with expertise across traditional ETL and semantic integration. We find that two experts are sufficient, because both of them have 10+ years research experiences in ETL and are the architects of popular open-source ETL tools (pygramETL [60] and QUARRY [33]). In this section, we present a high-level summary of the expert interviews. We follow the procedure described in [10,42] to structure the questionnaire and the answers of the experts. The two experts participated in the interviews via email. Interviews included nine semi-structured questions17

¹⁷
https://drive.google.com/file/d/1qgtijnXyLtOabnSR58LyoP3eqOizGZdZ/view?usp=sharing

aimed at gathering expert opinions on the significance of the proposed two-layered RDF-based semantic data integration paradigm, completeness and soundness of the proposed set of ETL operations, and further possibilities of the proposed approach. Table 6 shows the questions, their categories, and the responses as well as justifications of both experts. A response is rated from 1 to 5 (1 – strongly disagree, 2 – disagree, 3 – neutral, 4 – agree, and 5 -strongly agree). Q4, Q7, Q8, and Q9 contain free-text answers only.

Table 6

Summary of the expert interviews

Category	No.	Questions	Expert 1		Expert 2

			Response	Justification	Response	Justification
Significance of the proposed paradigm	Q1	Is the two-layered paradigm followed by SETL_CONSTRUCTmore convenient than the traditional approach?	5	Separation of Concerns	4	The intervention of more technical users is required
	Q2	Are the metadata artifacts from Definition Layer sufficient to deal with real-case problems?	4	Extensibility by the user would be useful	3	Complete for the ETL specific to semantic data and multidimensional analysis
	Q3	Do you consider SETL_CONSTRUCT’s target-driven approach to build semantic data warehouses appropriate?	4		5
	Q4	Do you consider \scon\is a valuable and notable contribution compared to traditional ETL tools and semantic-oriented ETL tools?	Yes		Yes
Soundness and completeness	Q5	Is the set of ETL operations proposed sound?	5	Okay	3	The ETL operations seem to be correct
	Q6	Are the proposed operations complete?	5	Sufficient	5
	Q7	Do you miss anything (else) in scon current set of core ETL operations	UDFs would be useful		Row normalizer/denormalizer
Further possibilities	Q8	Do you consider automation of the mapping file is feasible?	Semi-automation is feasible		Not easy to express more complex, black box operations
Further possibilities	Q9	Do you think our approach fits in the context of Big Data and Data Lakes (and how)?	Yes		Limited to support complex data transformations in the Big Data context

On the significance of the proposed paradigm category, both experts provide positive responses to all questions. Their only suggestion is to allow technical users to extend the metadata artifacts because ETL tool palettes can typically be much more complex. We use RDF as the canonical model in our paradigm, and it allows users to extend metadata artifacts based on their business requirements. Both experts think that our proposed ETL operations are sound and complete considering that the ETL is specific to semantic data and multidimensional analysis. However, one of the suggestions is to make the set of ETL operations open and to introduce user-defined functions (UDFs) so that users can write their own functions if there is a requirement for additional transformations (e.g., row normalizer/denormalizer, language conversion). In our future work, we will introduce UDFs in the set of ETL operations. Both experts do not support complete automation of the mapping file considering the complex nature of ETL scenarios. However, they think that semi-automation is feasible. Expert 1 thinks that we can apply this two-layered RDF-based data integration approach in the context of Big data and Data Lakes. However, Expert 2 thinks that there is a need to support more complex data transformations.

In summary, both experts acknowledge the contribution of our work and think that the set of ETL operations is complete and sound to annotate a knowledge base with multidimensional semantics. However, to fit this approach in the context of Big Data and data lakes, there is a need to include UDFs to support more complex transformations.

9. Related work

Nowadays, combining SW and BI technologies is an emerging research topic as it opens interesting research opportunities. As a DW deals with both internal and (increasingly) external data presented in heterogeneous formats, especially in the RDF format, semantic issues should be considered in the integration process [1]. Furthermore, the popularity of SW data gives rise to new requirements for BI tools to enable OLAP-style analysis over this type of data [32]. Therefore, the existing research related to semantic ETL is divided into two lines: 1) on the one hand, the use of SW technologies to physically integrate heterogeneous sources and 2) on the other hand, enabling OLAP analysis over SW data.

One prominent example following the first research line is [58], which presents an ontology-based approach to enable the construction of ETL flows. At first, the schema of both the sources and the DW are defined by a common graph-based model, named the datastore graph. Then, the semantics of the datastore graphs of the data sources and the DW are described by generating an (OWL-based) application ontology, and the mappings between the sources and the target are established through that ontology. In this way this approach addresses heterogeneity issues among the source and target schemata and finally demonstrates how the use of an ontology enables a high degree of automation from the source to the target attributes, along with the appropriate ETL transformations. Nonetheless, computationally complex ETL operations like slowly changing dimensions and the annotation of the application ontology with MD semantics are not addressed in this work. Therefore, OLAP queries cannot be applied on the generated DW.

Another piece of existing work [6] aligned to this line of research proposes a methodology describing some important steps required to make an SDW, which enables to integrate data from semantic databases. This approach also misses the annotation of the SDW with MD semantics. [59] has proposed an approach to support data integration tasks in two steps: 1) constructing ontologies from XML and relational sources and 2) integrating the derived ontologies by means of existing ontology alignment and merging techniques. However, ontology alignment techniques are complex and error-prone. [5] presents a semantic ETL framework at the conceptual level. This approach utilizes the SW technologies to facilitate the integration process and discusses the use of different available tools to perform different steps of the ETL process. [3] presents a method to spatially integrate a Danish Agricultural dataset and a Danish Business dataset using an ontology. The approach uses SQL views and other manual processes to cleanse the data and Virtuoso for creating and storing integrated RDF data. [38] presents UnifiedViews, an open-source ETL framework that supports management of RDF data. Based on the SPARQL queries, they define four types of Data Processing Units (DPUs): Extractor, Transformer, Loader, and Quality Assessor. However, the DPUs do not support to generate MD RDF data.

In the second line of research, a prominent paper is [47], which outlines a semi-automatic method for incorporating SW data into a traditional MD data management system for OLAP analysis. The proposed method allows an analyst to accomplish the following tasks: 1) designing the MD schema from the TBox of an RDF dataset, 2) extracting the facts from the ABox of the dataset and populating the MD fact table, and 3) producing the dimension hierarchies from instances of the fact table and the TBox to enable MDX queries over the generated DW. However, the generated DW no longer preserves the SW data principles defined in [27]; thus, OLAP analysis directly over SW data is yet to be addressed. To address this issue, [13] introduces the notion of a lens, called the analytical schema, over an RDF dataset. An analytical schema is a graph of classes and properties, where each node of the schema presents a set of facts that can be analyzed by traversing the reachable nodes. [28] presents a self-service OLAP endpoint for an RDF dataset. This approach first superimposes an MD schema over the RDF dataset. Then, a semantic analysis graph is generated on top of that MD schema, where each node of the graph represents an analysis situation corresponding to an MD query, and an edge indicates a set of OLAP operations.

Both [13] and [28] require either a lens or a semantic analysis graph to define MD views over an RDF dataset. Since most published SW data contains facts and figures, W3C recommends the Data Cube (QB) [15] vocabulary to standardize the publication of SW data with MD semantics. Although QB is appropriate to publish statistical data and several publishers (e.g., [51]) have already used the vocabulary for publishing statistical datasets, it has limitations to define MD semantics properly. The QB4OLAP [20] vocabulary enriches QB to support MD semantics by providing constructs to define 1) a cube structure in terms of different level of dimensions, measures, and attaching aggregate functions with measures and 2) a dimension structure in terms of levels, level attributes, relationships, the cardinality of relationships among the levels, and hierarchies of the dimension. Therefore, MD data can be published either by enriching data already published using QB with dimension levels, level members, dimension hierarchies, and the association of aggregate functions to measures without affecting the existing observations [62] or using QB4OLAP from scratch [22,29,44].

In [36], the authors present an approach to enable OLAP operations on a single data cube published using the QB vocabulary and shown the applicability of their OLAP-to-SPARQL mapping in answering business questions in the financial domain. However, their OLAP-to-SPARQL mapping may not result in the most efficient SPARQL query and requires additional efforts and a longer time to get the results as they consider that the cube is queried on demand and the DW is not materialized. While some approaches have proposed techniques to optimize execution of OLAP-style SPARQL queries in a federated setting [30], others have considered view materialization [21,31]. The authors in [62] present a semi-automatic method to enrich the QB dataset with QB4OLAP terms. However, there is no guideline for an ETL process to populate a DW annotated with QB4OLAP terms.

After analyzing the two research lines, we can draw some conclusions. Although each approach described above addresses one or more aspects of a semantic ETL framework, there is no single platform that supports them all (target definition, source-to-target mappings generation, ETL generations, MD target population, and evolution). To solve this problem, we have proposed a Python-based programmable semantic ETL (SETL_PROG) framework [44] that provides a number of powerful modules, classes, and methods for performing the tasks mentioned above. It facilitates developers by providing a higher abstraction level that lowers the entry barriers. We have experimentally shown that SETL_PROG performs better in terms of programmer productivity, knowledge base quality, and performance, compared to other existing solutions. However, to use it, developers need a programming background. Although SETL_PROG enables to create an ETL flow and provides methods by combining several tasks, there is a lack of a well-defined set of basic semantic ETL constructs that allow users more control in creating their ETL process. Moreover, how to update an SDW to synchronize it with the changes taking place in the sources is not discussed. Further, in a data lake/big data environment, the data may come from heterogeneous formats, and the use of the relational model as the canonical model may generate an overhead. Transforming JSON or XML data to relational data to finally generate RDF can be avoided by using RDF as the canonical model instead. To this end, several works have discussed the appropriateness of knowledge graphs for data integration purposes and specifically, as a canonical data model [14,54,55]. An additional benefit of using RDF as a canonical model is that it allows adding semantics without being compliant to a fixed schema. The present paper presents the improvements introduced on top of SETL_PROG to remedy its main drawbacks discussed above. As there are available RDF Wrappers (e.g., [18,57]) to convert another format to RDF, in this paper, we focus on only semantic data and propose an RDF-based two-layered (Definition Layer and Execution Layer) integration process. We also propose a set of high-level ETL constructs (tasks/operations) for each layer, with the aim of overcoming the drawbacks identified above for SETL_PROG. We also provide an operation to update an SDW based on the changes in source data. On top of that, we characterize the ETL flow in the Definition Layer by means of creating an RDF based source-to-target mapping file, which allows to automate the ETL execution flows.

10. Conclusion and future work

In this paper, we proposed a framework of a set of high-level ETL constructs to integrate semantic data sources. The overall integration process uses the RDF model as canonical model and is divided into the Definition and Execution Layer. In the Definition Layer, ETL developers create the metadata (target and source TBoxes, and source-to-target mappings). We propose a set of high-level ETL operations for semantic data that can be used to create ETL data flows in the Execution Layer. As we characterize the transformations in the Definition Layer in terms of source-to-target mappings at the schema level, we are able to propose an automatic algorithm to generate ETL data flows in the Execution Layer. We developed an end-to-end prototype SETL_CONSTRUCT based on the high-level constructs proposed in this paper. We also extended it to enable automatic ETL execution flows generation (and named it SETL_AUTO). The experiment shows that 1) SETL_CONSTRUCT uses 92% fewer NOTC than SETL_PROG, and SETL_AUTO further reduces NOUC by another 25%; 2) usingSETL_CONSTRUCT, the development time is almost cut in half compared to SETL_PROG, and is cut by another 27% using SETL_AUTO; 3) SETL_CONSTRUCT is scalable and has similar performance compared to SETL_PROG.

SETL_CONSTRUCT allows users to create source-to-target mappings manually. However, an extension of this work is to create the mappings (semi-)automatically. Although this kind of ETL mappings is different from traditional ontology schema matching techniques, we can explore those techniques to establish the relationships among the concepts across the source and target ontologies. Taking the output of this schema matching approach as a suggestion, the expert can enrich the mappings according to the business requirements [41]. As the correctness of an ontology schema matching technique depends on the semantic-richness of the given ontologies, besides the extensional knowledge given in the ABox, we need to take other external standard ontologies into account in the process of the TBoxExtraction operation.

The source-to-target mappings act as a mediator to generate data according to the semantics encoded in the target. Therefore, we plan to extend our framework from purely physical to also virtual data integration where instead of materializing all source data in the DW, ETL processes will run on demand. When considering virtual data integration, it is important to develop query optimization techniques for OLAP queries on virtual semantic DWs, similar to the ones developed for virtual integration of data cubes and XML data [48,49,63]. Another interesting work will be to apply this layer-based integration process in a Big Data and Data Lake environment. The metadata produced in the Definition Layer can be used as basis to develop advanced catalog features for Data Lakes. We will also introduce user-defined functions (UDFs) and other relevant ETL operations to make the approach fit in the Big Data context, as suggested by the two interviewed experts. Furthermore, we plan to investigate how to integrate provenance information into the process [2]. Another aspect of future work is the support of spatial data [23,24].

Footnotes

Acknowledgements

This research is partially funded by the European Commission through the Erasmus Mundus Joint Doctorate Information Technologies for Business Intelligence (EM IT4BI-DC), the Poul Due Jensen Foundation, and the Danish Council for Independent Research (DFF) under grant agreement no. DFF-8048-00051B.

Appendix

References

Abelló,

Romero,

T.B.

Pedersen,

Berlanga,

Nebot,

M.J.

Aramburu and

Simitsis, Using semantic web technologies for exploratory OLAP: A survey, IEEE transactions on knowledge and data engineering27(2) (2014), 571–588. doi:10.1109/TKDE.2014.2330822.

Ahlstrøm,

Hose and

T.B.

Pedersen, Towards answering provenance-enabled SPARQL queries over RDF data cubes, in: Joint International Semantic Technology Conference, Springer, 2016, pp. 186–203. doi:10.1007/978-3-319-50112-3_14.

A.B.

Andersen,

Gür,

Hose,

K.A.

Jakobsen and

T.B.

Pedersen, Publishing Danish agricultural government data as semantic web data, in: Joint International Semantic Technology Conference, Springer, 2014, pp. 178–186. doi:10.1007/978-3-319-15615-6_13.

Baader,

Calvanese,

McGuinness,

Patel-Schneider and

Nardi, The Description Logic Handbook: Theory, Implementation and Applications, Cambridge university press, 2003.

S.K.

Bansal, Towards a Semantic Extract-Transform-Load (ETL) framework for big data integration, in: Big Data, IEEE, 2014, pp. 522–529. doi:10.1109/BigData.Congress.2014.82.

Bellatreche,

Khouri and

Berkani, Semantic data warehouse design: From ETL to deployment A La Carte, in: International Conference on Database Systems for Advanced Applications, Springer, 2013, pp. 64–83. doi:10.1007/978-3-642-37450-0_5.

Berlanga,

Romero,

Simitsis,

Nebot,

Pedersen,

Abelló Gamazo and

M.J.

Aramburu, Semantic Web Technologies for Business Intelligence (2011). doi:10.4018/978-1-61350-038-5.ch014.

M.H.

Bhuiyan,

Bhattacharjee and

R.P.D.

Nath, DB2KB: A framework to publish a database as a knowledge base, in: 2017 20th International Conference of Computer and Information Technology (ICCIT), IEEE, 2017, pp. 1–7. doi:10.1109/ICCITECHN.2017.8281832.

Bizer,

Heath and

Berners-Lee, Linked data: The story so far, in: Semantic Services, Interoperability and Web Applications: Emerging Concepts, IGI Global, 2011, pp. 205–227. doi:10.4018/978-1-60960-593-3.ch008.

10.

Bogner,

Littig and

Menz, Das Experteninterview, Springer, 2005. doi:10.1007/978-3-322-93270-9.

11.

Casters,

Bouman and

Van Dongen, Pentaho Kettle Solutions: Building Open Source ETL Solutions with Pentaho Data Integration, John Wiley & Sons, 2010.

12.

Ciferri,

Gómez,

Schneider,

Vaisman and

Zimányi, Cube algebra: A generic user-centric model and query language for OLAP cubes, International Journal of Data Warehousing and Mining (IJDWM)9(2) (2013), 39–65. doi:10.4018/jdwm.2013040103.

13.

Colazzo,

Goasdoué,

Manolescu and

Roatiş, RDF analytics: Lenses over semantic graphs, in: WWW, ACM, 2014, pp. 467–478. doi:10.1145/2566486.2567982.

14.

Cudré-Mauroux, Leveraging Knowledge Graphs for Big Data Integration: The XI Pipeline, Semantic Web (2020), 1–5. doi:10.3233/SW-190371.

15.

Cyganiak,

Reynolds and

Tennison, The RDF Data Cube Vocabulary, W3C Recommendation, 2014, W3C, 2014, https://www.w3.org/TR/2012/WD-vocab-data-cube-20120405/.

16.

R.P.D.

Deb Nath, Aspects of Semantic ETL, Aalborg Universitetsforlag, 2020.

17.

R.P.D.

Deb Nath,

Hose,

T.B.

Pedersen,

Romero and

Bhattacharjee, SETL_BI: An integrated platform for semantic business intelligence, in: Companion Proceedings of the Web Conference 2020, 2020, pp. 167–171. doi:10.1145/3366424.3383533.

18.

Dimou,

Vander Sande,

Colpaert,

Verborgh,

Mannens and

Van de Walle, RML: A generic language for integrated RDF mappings of heterogeneous data, 2014.

19.

Etcheverry,

S.S.

Gomez and

Vaisman, Modeling and querying data cubes on the Semantic Web, 2015, preprint, available at: arXiv:1512.06080.

20.

Etcheverry,

Vaisman and

Zimányi, Modeling and querying data warehouses on the semantic web using QB4OLAP, in: DaWak, Springer, 2014, pp. 45–56. doi:10.1007/978-3-319-10160-6_5.

21.

Galárraga,

Ahlstrøm,

Hose and

T.B.

Pedersen, Answering provenance-aware queries on RDF data cubes under memory budgets, in: International Semantic Web Conference, Springer, 2018, pp. 547–565. doi:10.1007/978-3-030-00671-6_32.

22.

Galárraga,

K.A.M.

Mathiassen and

Hose, QBOAirbase: The European air quality database as an RDF cube, in: International Semantic Web Conference (Posters, Demos & Industry Tracks), 2017.

23.

Gür,

Nielsen,

Hose and

T.B.

Pedersen, GeoSemOLAP: Geospatial OLAP on the Semantic Web made easy, in: Proceedings of the 26th International Conference on World Wide Web Companion, ACM, 2017, pp. 213–217. doi:10.1145/3041021.3054731.

24.

Gür,

T.B.

Pedersen,

Zimányi and

Hose, A foundation for spatial data warehouses on the semantic web, Semantic Web9(5) (2018), 557–587. doi:10.3233/SW-170281.

25.

Harris,

Seaborne and

Prud’hommeaux, SPARQL 1.1 Query Language, W3C Recommendation 21(10), 2013, https://www.w3.org/TR/sparql11-query/ .

26.

Harth,

Hose and

Schenkel, Linked Data Management, CRC Press, 2014.

27.

Heath and

Bizer, Linked data: Evolving the web into a global data space, Synthesis Lectures on the Semantic Web: Theory and Technology1(1) (2011), 1–136. doi:10.2200/S00334ED1V01Y201102WBE001.

28.

Hilal,

C.G.

Schuetz and

Schrefl, An OLAP endpoint for RDF data analysis using analysis graphs, in: ISWC, 2017.

29.

Ibragimov,

Hose,

T.B.

Pedersen and

Zimányi, Towards exploratory OLAP over linked open data – a case study, in: Enabling Real-Time Business Intelligence, Springer, 2014, pp. 114–132. doi:10.1007/978-3-662-46839-5_8.

30.

Ibragimov,

Hose,

T.B.

Pedersen and

Zimányi, Processing aggregate queries in a federation of SPARQL endpoints, in: European Semantic Web Conference, Springer, 2015, pp. 269–285. doi:10.1007/978-3-319-18818-8_17.

31.

Ibragimov,

Hose,

T.B.

Pedersen and

Zimányi, Optimizing aggregate SPARQL queries using materialized RDF views, in: International Semantic Web Conference, Springer, 2016, pp. 341–359. doi:10.1007/978-3-319-46523-4_21.

32.

K.A.

Jakobsen,

A.B.

Andersen,

Hose and

T.B.

Pedersen, Optimizing RDF data cubes for efficient processing of analytical queries, in: COLD, 2015.

33.

Jovanovic,

Ó.

Romero Moral,

Simitsis,

Abelló Gamazo,

Candón Arenas and

Nadal Francesch, Quarry: Digging up the gems of your data treasury, in: Proceedings of the 18th International Conference on Extending Database Technology, 2015, pp. 549–552. doi:10.5441/002/edbt.2015.55.

34.

Kalampokis,

Roberts,

Karamanou,

Tambouris and

K.A.

Tarabanis, Challenges on developing tools for exploiting linked open data cubes, in: SemStats@ ISWC, 2015. doi: 10.1.1.703.6021

35.

Kämpgen and

Harth, No size fits all – running the star schema benchmark with SPARQL and RDF aggregate views, in: Extended Semantic Web Conference, Springer, 2013, pp. 290–304, doi:10.1007/978-3-642-38288-8_20.

36.

Kämpgen,

O’Riain and

Harth, Interacting with statistical linked data via OLAP operations, in: Extended Semantic Web Conference, Springer, 2012, pp. 87–101. doi:10.1007/978-3-662-46641-4_7.

37.

Kimball, The Data Warehouse Toolkit: Practical Techniques for Building Dimensional Data Warehouses, John Wiley & Sons, Inc., 1996.

38.

Knap,

Hanečák,

Klímek,

Mader,

Nečaskỳ,

Van Nuffelen and

Škoda, UnifiedViews: An ETL tool for RDF data management, Semantic Web9(5) (2018), 661–676. doi:10.3233/SW-180291.

39.

E.V.

Kostylev,

J.L.

Reutter and

Ugarte, CONSTRUCT queries in SPARQL, in: 18th International Conference on Database Theory (ICDT 2015), Schloss Dagstuhl-Leibniz-Zentrum fuer Informatik, 2015. doi:10.4230/LIPIcs.ICDT.2015.212.

40.

Li,

Tang,

Li and

Luo, Rimom: A dynamic multistrategy ontology alignment framework, IEEE Transactions on Knowledge and data Engineering21(8) (2008), 1218–1232. doi:10.1109/TKDE.2008.202.

41.

Marketakis,

Minadakis,

Kondylakis,

Konsolaki,

Samaritakis,

Theodoridou,

Flouris and

Doerr, X3ML mapping framework for information integration in cultural heritage and beyond, International Journal on Digital Libraries18(4) (2017), 301–319. doi:10.1007/s00799-016-0179-1.

42.

J.S.

Molléri,

Petersen and

Mendes, An empirically evaluated checklist for surveys in software engineering, Information and Software Technology119 (2020), 106240. doi:10.1016/j.infsof.2019.106240.

43.

R.P.D.

Nath,

Hose and

T.B.

Pedersen, Towards a programmable semantic extract-transform-load framework for semantic data warehouses, in: Acm Eighteenth International Workshop on Data Warehousing and Olap (dolap 2015), ACM, 2015. doi:10.1145/2811222.2811229.

44.

R.P.D.

Nath,

Hose,

T.B.

Pedersen and

Romero, SETL: A programmable semantic extract-transform-load framework for semantic data warehouses, Information Systems68 (2017), 17–43. doi:10.1016/j.is.2017.01.005.

45.

R.P.D.

Nath,

Seddiqui and

Aono, Resolving scalability issue to ontology instance matching in semantic web, in: 2012 15th International Conference on Computer and Information Technology (ICCIT), IEEE, 2012, pp. 396–404. doi:10.1109/ICCITechn.2012.6509778.

46.

R.P.D.

Nath,

M.H.

Seddiqui and

Aono, An efficient and scalable approach for ontology instance matching, JCP9(8) (2014), 1755–1768. doi:10.4304/jcp.9.8.1755-1768.

47.

Nebot and

Berlanga, Building data warehouses with semantic web data, Decision Support Systems52(4) (2012), 853–868. doi:10.1016/j.dss.2011.11.009.

48.

Pedersen,

Pedersen and

T.B.

Pedersen, Integrating XML data in the TARGIT OLAP system, in: Proceedings. 20th International Conference on Data Engineering, IEEE, 2004, pp. 778–781. doi:10.1109/ICDE.2004.1320045.

49.

Pedersen,

Riis and

T.B.

Pedersen, Query optimization for OLAP-XML federations, in: Proceedings of the 5th ACM International Workshop on Data Warehousing and OLAP, ACM, 2002, pp. 57–64. doi:10.1145/583890.583899.

50.

Pérez,

Arenas and

Gutierrez, Semantics and complexity of SPARQL, in: International Semantic Web Conference, Vol. 4273, Springer, 2006, pp. 30–43. doi:10.1007/11926078_3.

51.

Petrou,

Papastefanatos and

Dalamagas, 2013, pp. 1–3, Publishing census as linked open data: a case study. doi:10.1145/2500410.2500412.

52.

Polleres,

Hogan,

Delbru and

Umbrich, RDFS and OWL reasoning for linked data, in: Reasoning Web. Semantic Technologies for Intelligent Data Access, Springer, 2013, pp. 91–149. doi:10.1007/978-3-642-39784-4_2.

53.

Richardson and

Ruby, RESTful Web Services, “O’Reilly Media, Inc.”, 2008.

54.

Rouces,

De Melo and

Hose, Heuristics for connecting heterogeneous knowledge via FrameBase, in: European Semantic Web Conference, Springer, 2016, pp. 20–35. doi:10.1007/978-3-319-34129-3_2.

55.

Rouces,

De Melo and

Hose, FrameBase: Enabling integration of heterogeneous knowledge, Semantic Web8(6) (2017), 817–850. doi:10.3233/SW-170279.

56.

M.H.

Seddiqui,

Das,

Ahmed,

R.P.D.

Nath and

Aono, Augmentation of ontology instance matching by automatic weight generation, in: Information and Communication Technologies (WICT), 2011 World Congress on, IEEE, 2011, pp. 1390–1395. doi:10.1109/WICT.2011.6141452.

57.

J.F.

Sequeda and

D.P.

Miranker, Ultrawrap: SPARQL execution on relational data, Journal of Web Semantics22 (2013), 19–39. doi:10.1016/j.websem.2013.08.002.

58.

Skoutas and

Simitsis, Ontology-based conceptual design of ETL processes for both structured and semi-structured data, IJSWIS3(4) (2007), 1–24. doi:10.4018/jswis.2007100101.

59.

Thenmozhi and

Vivekanandan, An ontological approach to handle multidimensional schema evolution for data warehouse, International Journal of Database Management Systems6(3) (2014), 33. doi:10.5121/ijdms.2014.6303.

60.

Thomsen and

Bach Pedersen, pygrametl: A powerful programming framework for extract-transform-load programmers, in: Proceedings of the ACM Twelfth International Workshop on Data Warehousing and OLAP, 2009, pp. 49–56. doi:10.1145/1651291.1651301.

61.

Vaisman and

Zimányi, Data Warehouse Systems: Design and Implementation, Springer, 2014.

62.

Varga,

A.A.

Vaisman,

Romero,

Etcheverry,

T.B.

Pedersen and

Thomsen, Dimensional enrichment of statistical linked open data, Journal of Web Semantics40 (2016), 22–51. doi:10.1016/j.websem.2016.07.003.

63.

Yin and

T.B.

Pedersen, Evaluating XML-extended OLAP queries based on physical algebra, Journal of Database Management (JDM)17(2) (2006), 85–116. doi:10.4018/jdm.2006040105.

High-level ETL for semantic data warehouses

Abstract

Keywords

1. Introduction

1 https://datahub.io/

2.1. RDF graph

2.2. Semantic data source

2.3. Semantic data warehouse

5 An operation has a side effect if it modifies some state variable value(s) outside its local environment (https://en.wikipedia.org/wiki/Side_effect_(computer_science)).

7. Automatic ETL execution flow generation

13 Here, lines 95–112 in Listing 3.

8.1.1. Comparison between SETL PROG and PDI

8.2. Development time

8.4. Qualitative evaluation

17 https://drive.google.com/file/d/1qgtijnXyLtOabnSR58LyoP3eqOizGZdZ/view?usp=sharing

10. Conclusion and future work

Footnotes

Acknowledgements

Appendix

References

¹
https://datahub.io/

⁵
An operation has a side effect if it modifies some state variable value(s) outside its local environment (https://en.wikipedia.org/wiki/Side_effect_(computer_science)).

¹³
Here, lines 95–112 in Listing 3.

8.1.1. Comparison between SETL_PROG and PDI

¹⁷
https://drive.google.com/file/d/1qgtijnXyLtOabnSR58LyoP3eqOizGZdZ/view?usp=sharing
