Path-based and triplification approaches to mapping data into RDF: User behaviours and recommendations

1. Introduction

Structured data exists in a wide variety of formats, e.g. CSV, JSON, XML, and HTML. The need to convert this to RDF, for the creation of linked data, has stimulated the development of a variety of mapping techniques. There are two broad paradigms. One uses path descriptions, e.g. with JSONPath or XPath, to identify data elements. The other uses a default triplification which can be queried, e.g. with SPARQL.

An example of the use of path descriptions is R2RML [10], which was developed to map from relational database format to RDF. This was extended to RML [12], which also maps from CSV, TSV, JSON and XML. For the latter two formats, RML makes use of JSONPath and XPath. Subsequently, YARRRML, [34], has been developed as a more human-friendly representation of R2RML and RML rules. Rules written in YARRRML are translated to RML, which is then used to map the source data to RDF.

An example of the use of triplification is SPARQL Anything [9], which enables SPARQL to be used with structured data, e.g. CSV, JSON, XML, HTML, TXT and Markdown. The SERVICE operator is used to identify the relevant document and a default triplification of the whole document is created automatically, the structure of which depends on the format of the document. The WHERE clause is used to query the triplification. The CONSTRUCT clause is then used to create the required target RDF. Alternatively, a SELECT clause can be used to output query results rather than a graph, or an ASK clause can be used to determine the presence of matches to a query pattern.

The object of this study was to investigate the difficulties users experience with YARRRML and SPARQL Anything, taken as representatives of these two paradigms. Nielsen [25] defines usability as having five components: learnability, efficiency, memorability, errors and satisfaction. Our chief focus is on errors. However, many of our participants had little experience of YARRRML or SPARQL Anything, and to a considerable extent we were studying the learning experience. Observation of common errors gives an insight into the intuitiveness of the tools, since the difference between what the user intuitively does, and what is required of the user, is a source of error.

We chose YARRRML as an example of the use of path descriptions because we believe it to represent the state-of-the-art from the viewpoint of usability of RML mappings generation; see Iglesias et al. [19] for a recent comparison of user-friendly serializations for creating RDF. Similarly, we believe that SPARQL Anything represents the state-of-the-art for the triplification approach. Our goal was to recommend:

With regard to (i), we wished to investigate whether there are some use cases which are more appropriate for one or other of the two approaches.

Section 2 describes some related work on mapping tools. Section 3 gives an overview of the study and discusses the methodology used. Section 4 describes the questions and the data used. Sections 5 and 6 describe solutions to these questions for YARRRML and SPARQL Anything, and explain the two approaches. Sections 7 and 8 describe the participants’ behaviours when using YARRRML and SPARQL Anything, in particular the mistakes they made. Section 9 compares the problems experienced with the two tools. Section 10 discusses the limitations of the study. Section 11 makes some recommendations, addressing (i) and (ii) above. Finally, Section 12 draws some general conclusions and addresses (iii), including presenting some research questions for future investigation.

2. Related work

Many of the first attempts to map from structured formats to RDF worked with the relational model; [17] provides a comparison of some of these early approaches. [8] and [2] provide references to some more recent approaches for mapping to RDF. An example of an early approach is the use of the mapping language R2RML. In Section 1 we discussed how R2RML was developed into RML,1

2.3. Usability

The observation that R2RML is not user-friendly was the motivation for YARRRML [18]. The same observation has also motivated a number of graphical approaches. One example of such an approach is Juma, a block paradigm language designed initially for representing R2RML mappings [8], and then extended to SML [2]. Juma reduces syntax errors because it only permits the connection of blocks that create a valid mapping.

OPEN IN VIEWER

Fig. 1.

Three approaches to triplification: manual; (semi-)automatic; and automatic phase followed by a manual phase.

There have been a few usability studies looking at mapping techniques. A study of Juma indicated that this approach could be used to create accurate mappings and that it achieved “good results in standard usability evaluations” [7]. [6] compared the mental workload associated with using R2RML and Juma, using two self-assessment techniques, Workload Profile [33] and NASA-TLX [16]. The conclusion was that there was little difference in mental workload but that Juma offered appreciably better performance.

[15] compared YARRRML, SPARQL-Generate, and ShExML; the last of these being a language based on Shapes Expressions (ShEx). The comparison required participants to map from a JSON file and an XML file onto an RDF graph, and used a combination of quantitative and qualitative methods. For the former, measurements included the time to perform a task, number of keystrokes and distance travelled by the mouse. For the latter, participants’ feedback relating to usability was sought on a 5-point Likert scale. The study found that “ShExML users tend to perform better than those of YARRRML and SPARQL-Generate”. More specifically, SPARQL-Generate was particularly difficult for first-time users. When comparing YARRRML and ShExML, it appeared that the superior performance of the latter was caused by details of syntax, e.g. “the use of keywords that made the language more self-explanatory and the modularity used on iterators which reminds of object-oriented programming languages”. It is worth pointing out that the use-cases employed in [6] and [15] were considerably simpler than those used in our study, e.g. they did not have the kind of hierarchical data structures which we describe in Section 4.

The studies we report in this subsection are concerned with usability, in the sense of Nielsen’s [25] five components of usability. There has also been work to understand the computational requirements of various approaches. [21] employed the simple use-case of mapping from CSV documents to RDF to compare the compute time requirements of RML and SPARQL-Generate. They found that SPARQL-Generate became faster for more than approximately 1,500 CSV rows, although observing that this will depend upon the implementation. They argued that, given the competitive performances, “ease of implementation and use is the key benefit of our approach [i.e. SPARQL-Generate]”. In any case, compute-time equivalence for different approaches further strengthens the case for usability studies.

3. Overview of the study and methodology

The study was a between-participants study with two conditions, i.e. one set of participants answered questions using YARRRML, the other set answered questions using SPARQL Anything. There were eight questions and these were the same in both conditions, in the sense that participants were presented with the same data files and with the same objectives. There were nine participants in the YARRRML condition, and nine in the SPARQL Anything condition.

We needed as participants people with some knowledge of RDF; these are the target users of the tools and the study would have made no sense to those unfamiliar with RDF. Participants were recruited from the Open University and from two W3C groups: the Knowledge Graph Construction Community4

Some days before the study, participants were provided with a tutorial which explained all they needed to know about the technique they were to use. They were also provided with a document which explained how to download the necessary software and contained the eight questions which they would be requested to answer during the study. They were also sent the data files, as discussed in Section 4, and the question files, as discussed in Sections 5 and 6.6

Before the study, participants were also sent a brief survey asking them about their previous experience with relevant technologies, and asking for some basic demographic information. Most participants were from Europe, with a few from the Americas and one from India. Ages varied from under thirty to over seventy, peaking at 40 to 49 years. There were 10 male and 8 female participants. At least six of the SPARQL Anything participants had a little, or more than a little, knowledge of SPARQL; only three had any knowledge of SPARQL Anything. Five of the YARRRML participants had a little, or more than a little, knowledge of RML or R2RML; only three had any knowledge of YARRRML. Table 5, in Section 10, lists the median knowledge of the two sets of participants in each of the relevant technologies. Eight of the participants classified themselves as software engineers; five as knowledge engineers; three as ‘other’; and one did not specify role.

Each study was conducted over Microsoft Teams, with participants sharing their screen with the experimenter. There was a great deal of interaction between the participants and the experimenter; many participants found the exercises difficult and required assistance. This assistance ranged from ‘hints’, e.g. pointing out the presence of a square bracket denoting an array in JSON, to provision of the solution, which was then explained. Participants were also provided with files containing the required output RDF, although only a few participants referred to these. Only three of SPARQL Anything and four of the YARRRML participants completed all eight questions, although most completed the first five. Many participants spent more than the proposed hour on the study.

OPEN IN VIEWER

Fig. 2.

Flowchart illustrating stages of analysis.

Each session was recorded, using the Microsoft Teams recording facility and then analyzed using the NVivo qualitative analysis tool.7

For reasons of time, and in order to use each question to focus on specific features, we did not expect participants to create solutions from scratch. Instead, as is explained in more detail in Sections 5 and 6, we provided partial solutions and asked participants to complete the gaps.

We then analyzed the recordings to create a grounded classification of the observed errors, informed by the participants’ comments.8

We initially coded the recordings to identify recurring categories of problems. As Norman observes [26], it is difficult to understand the participants mental models which are leading to these errors. However, we attempted to find categories which went beyond observed behaviours and reflected fundamental participant difficulties. After we had coded all the recordings, we reviewed the categories and merged some categories which reflected broadly similar underlying causes. This left us with six categories for YARRRML and five for SPARQL Anything. More detail is provided in Sections 7 and 8. Finally, we used these errors to generate research questions for further study, as described in Section 12. Figure 2 illustrates the overall process.

We started the study with an initial set of research questions, without possessing any preconceived ideas of what the answers to these questions might be:

What conceptual problems did participants experience in using these tools?

Questions 1 and 2 used a slightly modified version of a JSON file which described an artwork in the Tate Gallery in London.9

OPEN IN VIEWER

Fig. 3.

JSON file used in questions 1, 2, 3 and 6 (artwork.json).

OPEN IN VIEWER

Fig. 4.

CSV file used in question 2 (artist_data.csv).

We omit the details of question 1, which was a straightforward question to test the basic understanding of the YARRRML or SPARQL Anything approaches, and to introduce participants to the study process. Question 2 used the JSON file in conjunction with the CSV file in Fig. 4, which contains information about five artists. The goal of question 2 was to create one triple with subject the url of the artwork, which is contained in the JSON file; and with object the url describing the artist, which is contained in the CSV file. The predicate of the triple was specified to be dct:creator. As with all the questions in the study, the predicate was provided in the question; only the subject and object were required to be identified from the data files. This requires correctly identifying the artist in the CSV file by matching the creator id from line 9 of the JSON file with the id in the first column of the CSV file.

Questions 3, 4 and 5 all had the same objectives. Question 3 used the JSON file shown in Fig. 3. The objective was to create two sets of twelve triples. One set had as subject the url of the artwork, and as object an IRI of the form tsub:id, where each id was an id describing the artwork. The predicate was to be schema:about. We asked participants to exclude id = 1, since this topic is common to all artworks and carries no information. This did have the effect of making the questions more difficult. The other twelve triples required each tsub:id as subject, and the corresponding topic name as object, again excluding id = 1. The predicate was to be schema:name. Question 4 used an XML file created by the authors, and containing the same information as, and a similar structure to, the JSON file. The file, shown in Fig. 5, was created without using attributes.

OPEN IN VIEWER

Fig. 5.

XML file used in questions 4 and 7 (artwork.xml).

OPEN IN VIEWER

Fig. 6.

XML file used in questions 5 and 8 (artworkAttributes.xml).

OPEN IN VIEWER

Fig. 7.

Required output for questions 3, 4 and 5.

OPEN IN VIEWER

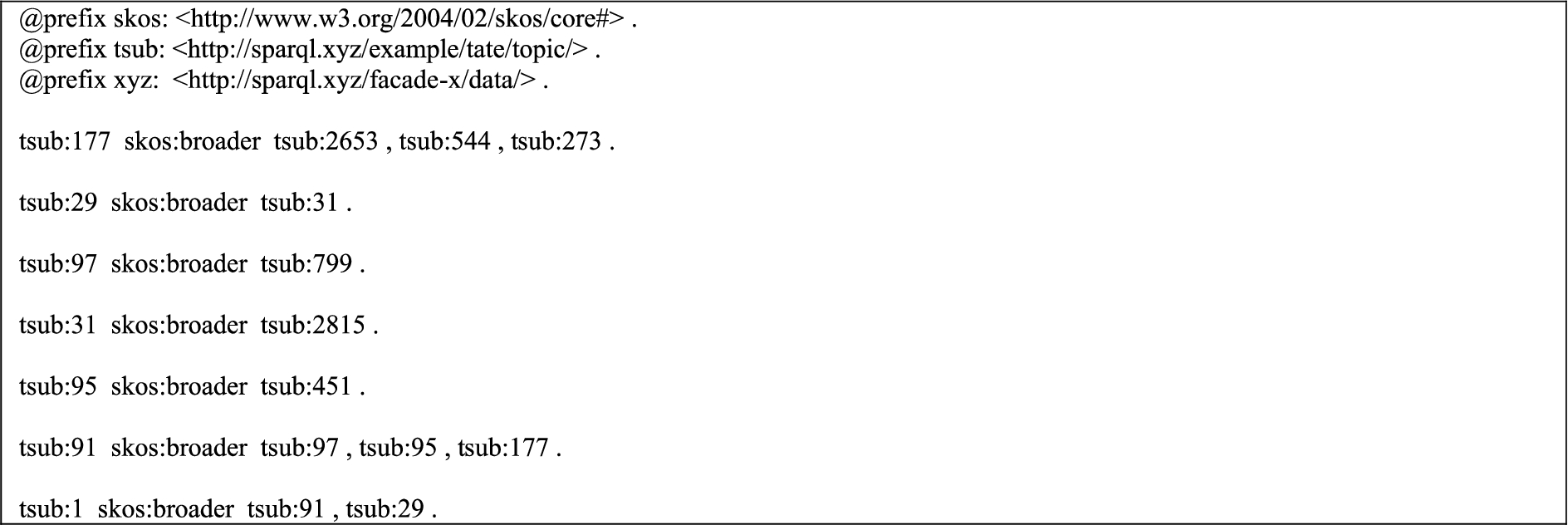

Fig. 8.

Required output for questions 6, 7 and 8.

Question 5 also used an XML file created by the authors, containing the same information as, and a similar structure to, the JSON file. This time, the file, shown in Fig. 6, made maximum use of XML attributes. Note that, whereas topics (in the plural) is used once in the JSON and the previous XML files, as shown in Figs 3 and 5, in this XML file topic (in the singular) is used on multiple occasions. The order of questions 3, 4 and 5 was varied amongst the participants. Figure 7 shows the required output for the three questions. Questions 6, 7 and 8 also had the same objective, and used the JSON file and the two XML variants. The objective of this question was to create 12 triples describing the links in the topic hierarchy, i.e. the subject of each triple was a topic, and the object was a child topic. The predicate was to be skos:broader. This time, id = 1 was included, so that tsub:1 was the subject of two triples, with objects tsub:29 and tsub:91. The order of presentation of these questions was also varied amongst the participants. Figure 8 shows the required output for these three questions. Table 1 illustrates the purpose of each of the questions, or sets of questions, and the implications for YARRRML and SPARQL Anything.

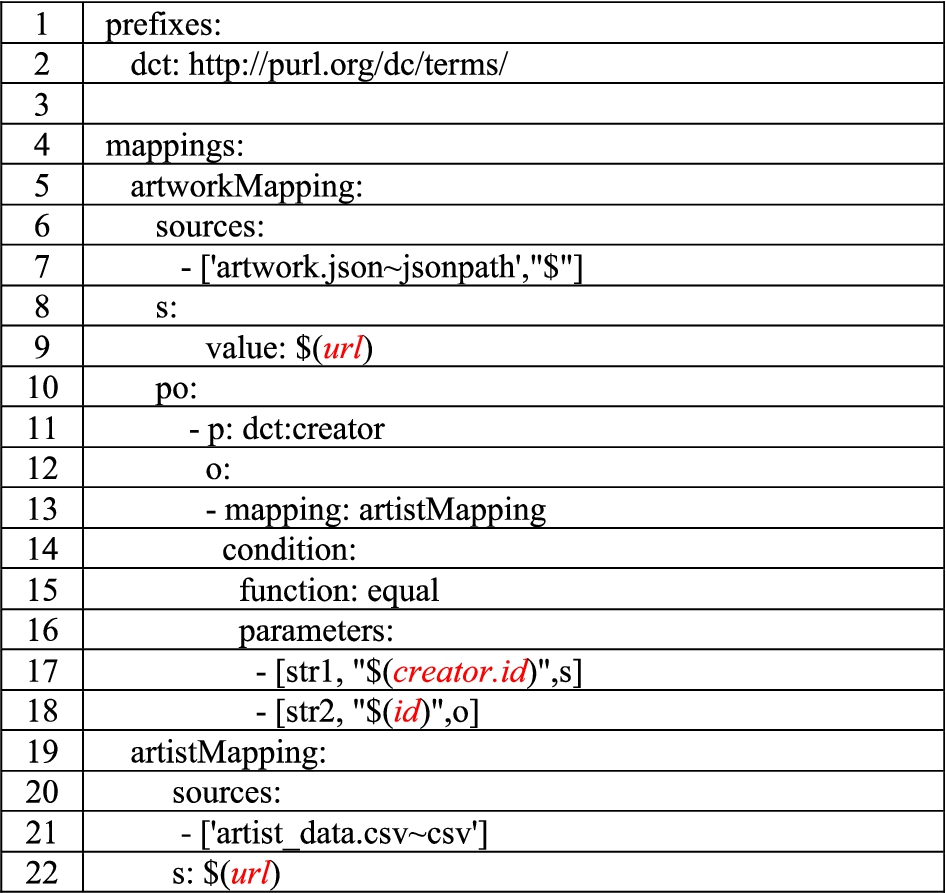

This section presents solutions to the questions, omitting the straightforward question 1. A solution to question 2 is illustrated in Fig. 9.10

Both mappings start by specifying the source file, in lines 7 and 21. In each case, after the tilde, it is stated how the file should be interpreted, as JSON in the first case and as a CSV file in the second. At the end of line 7 is a dollar sign, in quotes. This is referred to as an iterator. It is a JSONPath expression, indicating over which parts of the JSON file the YARRRML should iterate to create the RDF. Specifically, the iterator should prepend the contents of any value statement in the mapping. Thus, in line 9 we have url in a value statement, to which is prepended $, from the iterator, to create the JSONPath $.url. Because the previous line contained s: we know that this JSONPath statement indicates the subject of the mapping. po: in line 10 indicates that the predicate and object will follow, and in this case, the predicate is dct:creator. Line 13 indicates that we wish to extract the object from another mapping, i.e. artistMapping, specifically from the file which is specified on line 21 as part of the definition of artistMapping. Because this is a CSV file, the path statement is simply a header from the first line of the file. We see from line 22 that the subject of artistMapping, and hence the object of the triple being formed, is indicated by the field name url. Note that line 22 begins with s: because it contains the subject (url) of artistMapping, although url is the object of the triple being formed. Because there are a number of records in the CSV file, we indicate the record to be used by the condition in lines 14 to 18. Specifically, a field creator.id in the JSON needs to be identical to a field id in the CSV file. In lines 17 and 18 the s and o before the closing square brackets indicate that, in the first case we are concerned with the mapping providing the source, i.e. artworkMapping, and hence the JSON file; and in the second case with the mapping providing the object, i.e. artistMapping, and hence the CSV file. str1 and str2 are dummy variables with no significance, e.g. they could be interchanged without changing the effect.

Participants were presented with a file as shown in Fig. 9, except that the text in red italics was replaced with three dots. Participants were simply required to substitute a valid solution for these three dots.

OPEN IN VIEWER

Fig. 9.

YARRRML solution to question 2.

OPEN IN VIEWER

Fig. 10.

YARRRML solutions to (from left to right) questions 3, 4 and 5.

Figure 10 illustrates solutions to questions 3,11

Figure 11 shows solutions to question 6, 7 and 8. Question 6 requires two mappings. topHierarchyMapping creates the triples linking topicRoot to the two topics below it. lowerHierarchyMapping creates all the other required triples. Because of the structure of the XML data, questions 7 and 8 only require one mapping.

OPEN IN VIEWER

Fig. 11.

YARRRML solutions to (from left to right) questions 6, 7 and 8.

OPEN IN VIEWER

Fig. 12.

SPARQL Anything solution to question 2.

As before, we omit question 1. Figure 12 illustrates a solution to question 2. Lines 9, 10, 13 and 14 were replaced by three dots in the question. To help participants, the terminator for the line was provided, either a semicolon (lines 9 and 13) or a full stop (lines 10 and 14). This practice was followed for all other questions. Participants were free to use the square bracket notation, as shown, or to create dummy variables or blank nodes.

To understand this solution, it is necessary to understand the triplification of CSV and JSON. For CSV, the document is regarded as a container, represented by a root node. This node is the subject of triples, with predicates rdf:_1, rdf:_2 etc. The objects of these triples are nodes representing each of the rows, with the exception of the first row, which in our example is assumed to be a header row. Each of the column headers, e.g. id in Fig. 4, is used to form a predicate with prefix xyz:, e.g. xyz:id. Each of the nodes representing rows is then the subject of triples with predicates of the form xyz:id, xyz:name etc. and with objects the literals in the cell elements.12

For JSON, each object is regarded as a container and represented by a triple with a blank node as subject, and with predicate xyz:name1, where name1 is the name of the JSON object. If the value is a literal, then this will be the object of the triple. If the value is another JSON object, with name name2, then the object of the triple will be another blank node, which in turn will be the subject of another triple, with predicate xyz:name2. If an object is an array, of size n, then the object of the triple will be a blank node, which in turn will be the subject of triples with predicates rdf:_1, rdf:_2 … rdf:_n.

Figure 13 shows solutions to question 3, 4 and 5. These questions require the creation of a variable, here ?topicId, to be included in the SERVICE clause and then used in line 14. In the solution to each question, lines 10 and 11 query the triplification. The solution to question 3 can be understood by referring to the JSON triplification explained above.

OPEN IN VIEWER

Fig. 13.

SPARQL Anything solutions to questions 3 (top left), question 4 (top right), and question 5 (bottom).

OPEN IN VIEWER

Fig. 14.

SPARQL Anything solutions to questions 6 (top left), 7 (top right), and 8 (bottom).

To understand the solution to question 4, we need to understand how XML elements are triplified. Each distinct XML tag creates a node with IRI xyz:tag. Every element with that tag is regarded as a container and represented as a blank node, of type xyz:tag, i.e. the subject of a triple with predicate rdf:type and object xyz:tag. If the element only contains a literal, then the blank node will also be the subject of a triple with predicate rdf:_1 and object the literal.13

Figure 14 shows solutions to questions 6, 7 and 8. The differences between these three solutions are entirely limited to lines 9 and 10. For question 7, the a xyz:item in line 10 is not strictly necessary, as all the elements directly below the children tag have tag item.

Finally, for completeness although not relevant to the study, we note that SPARQL Anything treats XML CDATA sections as literals, and XML comments and processing instructions are ignored.

In research question 1 we asked what conceptual problems users experienced. In fact, most of their problems can be classified as conceptual; these are discussed in Sections 7.1 to 7.5. Research question 2 asked about syntactic problems. There were some purely syntactic errors, e.g. confusion between the use of quotes in the iterator but not in the value statement; these are discussed in Section 7.6.

Table 2 shows the error categories. Care needs to be taken in interpreting the numbers in the table. Because of the great deal of assistance given to some participants, these numbers should be interpreted as a lower bound.

With one exception, all or almost all of our participants made an error in each category. The exception was YARRRML syntax and semantics, where the fact that participants were merely required to complete the questions, rather than write solutions from scratch, helped reduce the number of errors.

8. SPARQL Anything – user behaviours

Table 3 shows the major error categories, whilst the following subsections discuss these in more detail. As with Table 2, care needs to be taken in interpreting the numbers in the table, because of the great deal of assistance given to some participants. Moreover, it is not always possible to be precise about the nature of the problem; in particular between problems in understanding the nature of the triplification and the structure of the data.

In response to research question 1, as with YARRRML most of the problems were conceptual; these are discussed in Section 8.2 to 8.5. However, turning to research question 2, we did identify some syntactic errors, e.g. difficulties with the square brackets notation; we start by discussing these in Section 8.1.

In this section we consider research questions 3 and 4, i.e. what expertise is key to successful use of each tool, and are there use cases which favour one or other of the tools.

The two tools are quite different, and require different expertise and understanding. The essential requirements to use YARRRML are familiarity with path statements, e.g. JSONPath and XPath and to understand the role of the iterator. YARRRML is a subset of YAML, so some prior familiarity with YAML is useful. YARRRML is intended as a more human-readable alternative to RML. However, arguably it may be useful in debugging to at least be able to read RML. On the other hand, the essential requirements to use SPARQL Anything are familiarity with SPARQL syntax and semantics and to understand the particular triplification used. This means that some of the problems experienced by the two sets of participants seem quite different. However, in both cases the most fundamental problems have their roots in the same issues relating to the data. In particular, in our study, the need to negotiate hierarchical data created difficulties. For YARRRML, this meant that participants needed to understand how to use recursive descent. For SPARQL Anything, this meant that they had to understand how to construct a graph pattern that matched appropriately at various levels of the hierarchy.

How users find the advantages and disadvantages of the two tools will depend on their backgrounds. Those very familiar with JSONPath and XPath will have an advantage when starting to use YARRRML. Those very familiar with SPARQL will have an advantage when starting to use SPARQL Anything. However, an advantage of YARRRML over SPARQL Anything is that users of the former need only be familiar with the data and their required output RDF. Users of SPARQL Anything need also to be familiar with the triplification. On the other hand, once that triplification is understood, it is relatively easy for users to modify the SPARQL to make changes to the output, or simply to explore the data. Indeed, it is possible to explore the data without being fully aware of its structure, and of the triplification. One could, for instance, determine all the predicates in the triplification of a JSON file, thereby identifying all the names used in the file. Alternatively, with a triplification of XML, one could inspect the objects of all triples with predicates rdf:type to determine the tags used in the XML.

For YARRRML, the difference between JSON and XML resides in the difference between the JSONPath and XPath syntaxes. For SPARQL Anything, the difference is more fundamental, since XML tags are used to create class names. This not only creates a difficulty in moving between JSON and XML, but also makes for a greater complexity when dealing with XML, as we have noted in Section 8.1.

It may be that YARRRML has an advantage where the required RDF is specified once and for all. Here an approach which avoids the intermediate stage of a triplification may be preferred. On the other hand, SPARQL Anything may have an advantage where we are unsure precisely what form the final output should take, or want to explore the data. In this case, the overhead of understanding the triplification will be worthwhile. We summarize our comparison in Table 4.

Before presenting our recommendations and conclusions, it is relevant to make some comments about the limitations of our approach.

Unlike for a quantitative study, where one can estimate in advance the number of participants required to achieve a desired power for a statistical test, it is not possible in advance to anticipate the required number of participants for a qualitative study. For a grounded approach such as we used, a general practice is to continue until ‘saturation’ is reached, i.e. finish “when nothing further is being learned about the context.” [3]. For our study, and for both of the tools studied, it was clear that we had reached a point where we were seeing a repetition of the same kinds of problems, and nothing further was being learned.

However, the nature of the participant sample could be improved upon. Obtaining participants for a study such as this is always difficult; participants need a relevant background in order to make sense of what is being asked of them. As a result, we were not able to completely balance the prior knowledge of our participants against the two tools. Table 5 shows the median prior knowledge of both sets of participants with regard to SPARQL, SPARQL Anything, RML or R2RML, and YARRRML. The table shows that neither of the two sets of participants had much knowledge of the two specific technologies under trial, i.e. SPARQL Anything and YARRRML. Nor did they have much knowledge of RML or R2RML. They did have rather more knowledge of SPARQL. In fact, even the YARRRML participants had more knowledge of SPARQL than of RML or R2RML. Ideally, it would have been good to include more people in both of the studies with more knowledge of RML or R2RML. In each group there were three participants who claimed some prior knowledge of the appropriate specific technologies, i.e. YARRRML or SPARQL Anything. These participants seemed to display the same mistakes as those with no knowledge; although the small number of participants make it impossible to draw any significant statistical inferences.

The fact that neither of the sets of participants had much prior knowledge of the specific technologies meant that we were studying the learning experience. This explains why our participants made a considerable number of errors. It gives us no indication of what kinds of errors might persist amongst experienced users. We can only conjecture that more superficial errors, e.g. syntactic errors, would diminish relatively rapidly with experience. Whereas the more conceptual errors, e.g. understanding the use of the iterator and recursive descent in YARRRML, and understanding the triplification of complex data structure in SPARQL Anything, are likely to diminish more slowly.

Our questions used the description of an artwork held by the Tate Gallery. We did this to achieve ecological validity; the JSON file was only a slight modification of a file used in a working application, whilst the two XML files were created from the JSON file. We have already pointed out, in Section 2.3, that this resulted in a considerably more challenging study than the previous usability studies we have cited [6,15]. However, we have no evidence that the data structures were representative of JSON and XML applications generally. To find a representative application would have necessitated a survey of JSON and XML-based applications. Our data structure was hierarchical, and inevitably a number of our participants’ difficulties were concerned with negotiating hierarchies. However, there might be other, quite different difficulties present in real-life applications which we were not able to examine.

11. Recommendations

In Section 1 we described three goals for our study: to recommend rules and guidelines for users of YARRRML and SPARQL Anything; to make recommendations for future developments of YARRRML and SPARQL Anything to improve usability; and to recommend areas of investigation and development for mapping techniques generally. In this section we discuss the first two of these goals; the next section will discuss the third goal.

12. Conclusions and future directions

Our study compared two very different approaches for mapping data to RDF, using state-of-the-art examples of each. The differences between these two approaches are represented in the top and bottom process flows of Fig. 1. At the top, the YARRRML user maps directly from the data to the desired RDF graph. This requires an understanding of the syntax and semantics both of YARRRML, including how to merge data from separate sources, and of the path statement language, e.g. JSONPath or XPath. At the bottom, the SPARQL Anything user is presented with an automatically created triplification, which is a lossless representation of the original data. The user needs to understand that triplification, and its relationship to the original data. The second part of the process is then achieved using SPARQL, with which the user of RDF is likely to be familiar.

Some problems are common to the two approaches. Most significantly, participants had difficulty with the hierarchical structures in our files. For YARRRML, this manifested itself in difficulties using recursive descent, with participants unclear about its use and whether to place recursive descent in the iterator or another path statement. For SPARQL Anything, the analogous problem was failing to understand that a graph pattern can start anywhere, not necessarily the root of the document, and bind at a variety of levels within the hierarchy; thereby picking out data items at all levels. More trivially, both sets of participants had difficulties with JSON arrays, perhaps in part through not detecting them in the JSON.

However, many of the problems experienced were specific to the particular approaches. What they share is a need to thoroughly understand the data and the use of the underlying paradigms. For YARRRML, the use of individual path statements is relatively straightforward; the difficulty frequently lies in the relationship between the iterator and the subject and object path statements. In training users, the correct design of this relationship needs to be stressed, with examples of the common use cases. One way of viewing the iterator is as a mechanism to allow path statements to share a common beginning, and then ‘fork’. For SPARQL Anything, the difficulty is understanding and querying the triplification. Again, in training, emphasis on the various use cases is important.

Our study used real data to achieve a degree of ecological validity. However, we lack a clear view of the needs of the majority of users of mapping tools, e.g. which data formats they are predominantly interested in and what kind of data structures they are working with. Studying actual users, e.g. via surveys or focus groups, would enable the usability of future tools to be designed for the common use cases; perhaps accepting that the minority of ‘power users’ would require a greater degree of expertise to achieve their goals.

Our study was based on observing user behaviours, and in particular user errors. A future study would benefit from a more quantitative approach, e.g. considering the times participants take to respond and measuring cognitive load, e.g. using a tool such as NASA-TLX [16]. However, such a study would need to be based on sufficiently simple use cases that participants could complete without assistance. It would be useful, in such a study, to compare alternative triplifications. In particular, it would be valuable to consider an alternative triplification of XML which avoided creating classes from tags. It might be possible to use tags to create predicates, differentiating them from attribute names by the use of different namespaces.

Increased sophistication in the tools would aid users. An ideal would be tools which mirror the sophistication of a modern software development environment, in checking for ‘compile-time’ errors and making suggestions. We have made some recommendations in the context of YARRRML and SPARQL Anything. Where other tools are used, analogous compile-time features could be implemented.

A final question is whether there is an opportunity to bring together the two paradigms, incorporating the best features of each. One participant admitted to wanting to use JSONPath in SPARQL Anything, specifically to write [] xyz:creator.id ?creatorId rather than [] xyz:creator [xyz:id ?creatorId], although knowing it was wrong. This suggests a more radical approach in which users could directly query the data with path statements, rather than query a triplification. Such an approach would need to extend the syntax of path statements, to achieve an effect equivalent to that of the use of the iterator in YARRRML. The work reported in [4] is relevant here; the paper defines a “lightweight query language” to navigate through JSON. This opens up the possibility of incorporating such a JSON query language within SPARQL, and similarly incorporating XQuery to query XML.

In Table 6 we present a list of the research questions which we propose for future study.
