Effect of rehabilitation on the somatosensory evoked potentials and gait performance of hemiparetic stroke patients

1. Introduction

The sensorimotor function of the central nerve system (CNS) is important for balance reaction and ambulation and often impaired in hemiparetic stroke after the development of a CNS lesion [1]. Among the various sensory inputs, including visual, proprioceptive, and vestibular information, the somatosensory information, which provide joint position and kinesthetic movement sense, is the most essential for symmetrical balance and locomotor movement control [2]. Conventionally, clinical sensory measurement was used to detect the degree of sensory impairment in neurological patients such as those who had a stroke, spinal cord injury, and multiple sclerosis. However, due to measurement sensitivity and reliability issues, the somatosensory-evoked potential (SSEP) has been used recently to determine the sensory integrity associated with cutaneous and proprioceptive sensory function. SSEP measures the electrophysiological response of the nervous system to a standardized electrical sensory stimulation, which is measured along the sensory pathway (i.e., posterior tibial nerve) [3]. Neurophysiologically, the posterior tibial nerve stimulation elicits the large-diameter, fast-conducting Ia muscle afferent and group II cutaneous nerve fibers, with which orthodromic sensory stimulation generates the SSEP [3]. The neural activity from stimulation transmits sensory signals associated with proprioception and vibration that ascends the ipsilateral dorsal column and medial lemniscus pathways to the frontoparietal sensory motor cortex [4]. Hence, the post-stimulus latency of an SSEP peak characterizes neurological functional impairments as measured by peak waveform amplitude, conduction velocity (CV), and central conduction time (CCT), which result from the stimulation of a nerve [5]. Tibial nerve SSEP is generated by the primary somatosensory cortex, which subserves detecting the ischemic stroke events associated with anterior cerebral artery aneurysm. Therefore, it is clinically useful to monitor the ischemic insult associated with cerebral aneurysm surgery, or prognostic outcomes in balance and gait performance after stroke [6]. However, it is unclear how the SSEP can be used to predict or quantify the degree of the balance and gait function of stroke patients, although previous studies showed potential correlations between SSEP and gait recovery [7, 8]. The purpose of the present study was to determine the relationship between SSEP parameters and gait performance (timed up and go [TUG] test and 10-meter walking test [10MWT]) parameters in stroke patients. Our hypothesis was that an association exists between SSEP and gait performance parameters.

2. Materials and methods

2.1 Materials and procedure

A convenience sample of 17 adults with hemiparetic stroke (mean age 60.11 ± 8.83 years; 10 women; right hemiplegia: 10; left hemiplegia: 7) were recruited for the present study. The diagnosis of stroke was based on clinical history and examination results, and confirmed by using computed tomography or magnetic resonance imaging(supratentorial lesion: 12, infratentorial lesion: 5; infarction: 11, hemorrhage: 6). All the participants underwent a consistent rehabilitation exercise program for 45 minutes a day, 3–5 times a week over a 4-week period. The subjects who had a subacute hemiplegic stroke (post-stroke onset duration 3 months; mean months 1.82 ± 0.72 ) and could follow the instruction (Mini-Mental State Examination-Korea [MMSE-K] mean score 27.23 ± 1.56) were included. However, stroke patients with severe visual hemianopia, cognitive impairments, sensory neuropathy, or previous surgical history were excluded. The Electro Synergy system (Viasys Healthcare; San Diego, CA, USA) was used to examine the baseline SSEP parameters prior to rehabilitation. A bar electrode was used to stimulate the paretic side posterior tibial nerve. The cathode was positioned in the middle site between the medial border of the Achilles tendon and medial malleolus posterior border, and stimulated the posterior tibial nerve at 30 mA. The anode was located 3 cm distally from the cathode. The signals were recorded with fine-needle electrodes by inserting a reference electrode in the Fz and the active electrode in Cz as per the international 10–20 system [8]. Two repetitive stimuli were produced with a frequency of 2.3 per second for 250 pulses and were averaged. Band filter width was set to 20–2000 Hz. SSEP was considered normal if P37 was 41.7 ms and abnormal if it was ⩾ 41.7 ms [9]. Based on the baseline SSEP data, 8 patients were classified into the normal sensory response group (NSG) and 9 patients into the abnormal sensory group (ASG; Fig. 1). The clinical test included the standardized TUG test and 10MWT. The TUG test and 10MWT are reliable and valid measurement tools to assess dynamic standing balance and gait speed in older adults [10, 11]. The tests require performing tasks that consist of standing up from a chair, walking 3 m, returning to the chair, and sitting down and checking the time to complete the test [12]. A previous study suggested that all healthy community-dwelling subjects aged 65–84 years performed the test in 20 seconds [13]. In the 10MWT, each patient was asked to walk as quickly as possible [14].

OPEN IN VIEWER

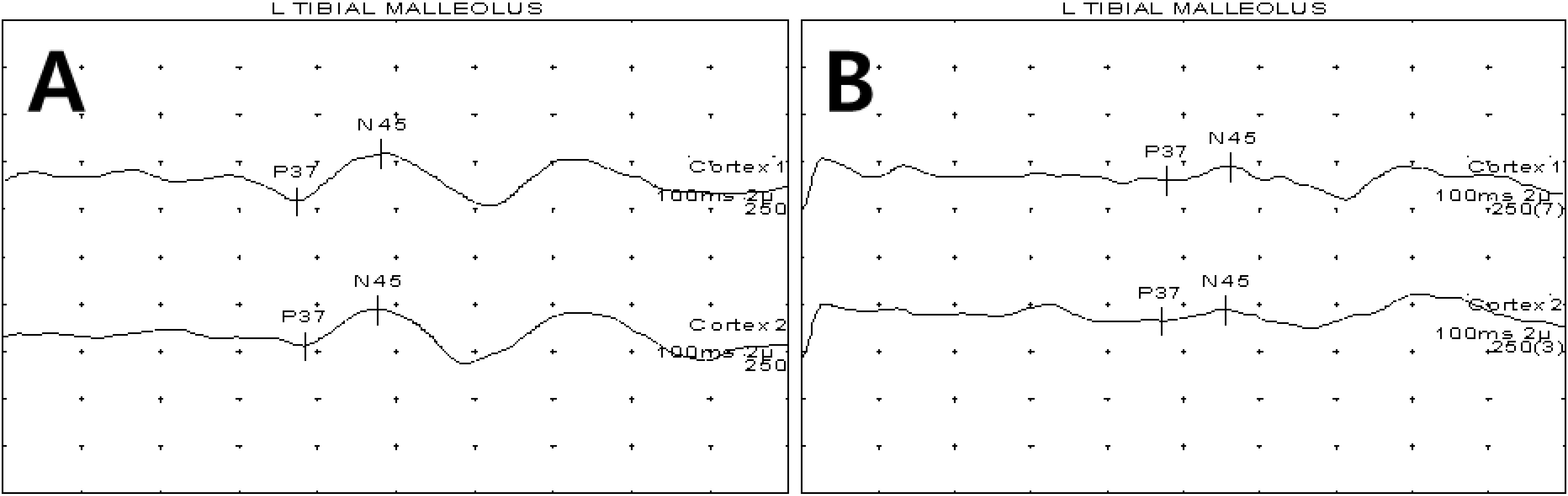

Figure 1.

Examples of SSEP graphs for patients with normal (A) and abnormal SSEPs (B). SSEP data were classified into (A) a normal sensory group (normal latency; P37 41.7 ms) and (B) an abnormal sensory group (delayed latency; P37 ⩾ 41.7 ms). SSEP: somatosensory-evoked potential.

3. Results

4. Discussion

The present study demonstrated the importance of the clinical contribution of the baseline sensory function of individuals who had a hemiparetic stroke to their gait performance and recovery after stroke rehabilitation. As anticipated, the individuals who had an intact or preserved sensory function showed greater improvements in gait speed and performance measures than those who had impaired sensory function. Moreover, the correlation analysis showed a strong relationship between the SSEP and TUG and 10MWT, suggesting a predictive relationship between the sensory integrity and gait outcome variables. These findings are consistent with those of a previous study [15] that examined the relationship between the integrity of the tibial nerve SSEP and the extent of recovery of motor function in terms of Fugl-Meyer assessment (FMA) score. Kim and colleagues [15] reported that individuals with higher or normal sensory functions showed greater recovery of motor function assessed by FMA score than those with impaired sensory function after stroke rehabilitation.

Functional locomotor recovery in hemiparetic stroke has been attributed to multiple factors, including sensorimotor dysfunction, muscle imbalance, asymmetric or unilateral muscle weakness, spasticity, and movement coordination [16]. Among these factors, sensorimotor dysfunction influences muscle imbalance and movement coordination, which consist of postural control and locomotion [17]. Altered somatosensory input (joint position sense and proprioception) transmitted from the involved limb to the primary motor cortex via ascending pathways can generate inappropriate motor output to the spinal cord via descending pathways [18], which convey locomotor output signals through alpha and gamma motor neurons, which innervate the lower extremity muscles for walking [19]. Somatosensory proprioception has been identified as an important afferent input for the efficient locomotor control and recovery, as it is involved in the feedback motor control mechanism in the gait and posture in stroke rehabilitation [20]. In fact, the increasing gait speed between SSEP and walking function in the present study further support this notion. Lastly, one limitation of the present study is that the results should be interpreted with caution when generalizing our findings to chronic hemiparetic populations. Future research should be conducted with a larger sample size to increase the experimental robustness and generalizability of our findings.

5. Conclusion

The present study demonstrated the importance of the clinical contribution of the baseline sensory function of individuals who had a hemiparetic stroke to their gait performance and recovery after stroke rehabilitation. As anticipated, the individuals who had an intact or preserved sensory function showed greater improvements in gait speed and performance measures than those with impaired sensory function. These results suggest that the degree of posterior tibial nerve damage can contribute to gait performance and speed. Clinically, this study provides important insight for increasing gait performance.
