Application of nonlinear analysis for the assessment of gait in patients with Parkinson’s disease

Abstract

BACKGROUND:

Gait can be affected by diseases such as Parkinson’s disease (PD), which lead to alterations like shuffle gait or loss of balance. PD diagnosis is based on subjective measures to generate a score using the Unified Parkinson’s Disease Rating Scale (UPDRS). To improve clinical assessment accuracy, gait analysis can utilise linear and nonlinear methods. A nonlinear method called the Lyapunov exponent (LE) is being used to identify chaos in dynamic systems. This article presents an application of LE for diagnosing PD.

OBJECTIVE:

The objectives were to use the largest Lyapunov exponents (LaLyEx), sample entropy (SampEn) and root mean square (RMS) to assess the gait of subjects diagnosed with PD; to verify the applicability of these parameters to distinguish between people with PD and healthy controls (CO); and to differentiate subjects within the PD group according to the UPDRS assessment.

METHODS:

The subjects were divided into the CO group ( $n=$ 12) and the PD group ( $n=$ 14). The PD group was also divided according to the UPDRS score: UPDRS 0 ( $n=$ 7) and UPDRS 1 ( $n=$ 7). Kinematic data of lower limbs were measured using inertial measurement units (IMU) and nonlinear parameters (LaLyEx, SampEn and RMS) were calculated.

RESULTS:

There were significant differences between the CO and PD groups for RMS, SampEn and the LaLyEx. After dividing the PD group according to the UPDRS score, there were significant differences in LaLyEx and RMS.

CONCLUSIONS:

The selected parameters can be used to distinguish people with PD from CO subjects, and separate people with PD according to the UPDRS score.

Keywords

Gait IMU Parkinson disease nonlinear analysis

1. Background

Human movement is a complex process that requires the interoperability of all systems in the human body. Gait is one of the important functions of the human movement apparatus. When a person’s gait is disrupted, they experience many difficulties. Gait analysis can help identify human gait disorders and diagnose or quantify the severity of the diseases or help select appropriate medications or rehabilitation program.

Gait can be affected by various injuries and diseases. Each disease affects gait differently, so analysing gait features is important. Conditions such as Parkinson’s disease (PD) and multiple sclerosis damage the locomotor system. PD gait is characterised by major motor symptoms such as leg shuffle, instability at the beginning of gait, shortened stride length and reduced speed. PD is not curable, so the main task while performing diagnostics is to detect it at an early stage [1]. A proper diagnosis of the disease would help select the right treatment. Therefore, gait analysis and research on quantitative parameters in PD diagnostics are performed continuously. PD diagnosis is based on measures derived from visual observations by neurologists who generate a score using the Unified Parkinson’s Disease Rating Scale (UPDRS). This scale consists of four parts: first, assess reasoning, behaviour, and mood; second, evaluate how daily life activities are performed; third, motor task research, which covers 14 areas such as speech, rest tremor, leg mobility etc.; fourth, examine complications caused by drug treatment [2].

Many tools and methods are used to record gait, such as a video camera systems, inertial measurement unit (IMU) sensors [3], force plates [4], electromyogram (EMG) [5] and electric goniometers, which record spatiotemporal parameters. IMUs are widely employed because the sensors are small and portable; there are three types: accelerometer, gyroscope, and magnetometer.

Gait can be analysed using several methods, both linear and nonlinear. Linear methods usually analyse spatiotemporal parameters, which determine parameters such as step length, time, joint amplitudes, rhythm and other kinematic parameters. These parameters and the linear method are used extensively in clinical practice to diagnose and to monitor neurogenerative diseases [6, 7]. Kinematic parameters provide the necessary information, but kinematics alone does not provide a complete description of movement without the knowledge of various dynamic parameters [8].

Even though human gait is a cyclic and repetitive movement, there is some degree of variability expressed in irregular fluctuations over time. Therefore, due to the complexity of gait patterns it can be considered a chaotic system, and nonlinear methods suitable for chaos analysis can be applied to its analysis. The methods used for chaos analysis are considered nonlinear, and the recorded gait data represent a time series. Nonlinear methods applied onto the time series allow obtaining quantitative measures of motion variability [9]. Methods such as the Hurst exponent and the Lyapunov exponent (LE) provide useful information about the dynamic system and are used in clinical trials to analyse biological signals [10].

The human body as a dynamic system in motion possesses a number of active degrees of freedom, and analysis of one of its variables changing in time via nonlinear analysis allows determining the characteristic quantities related to degrees of freedom such as the largest Lyapunov exponent (LaLyEx) [11]. LaLyEx calculation has been mostly applied to study a single joint affected by osteoarthritis [12] and to assess a person’s balance while standing [13]. Another important application of LE is in the analysis of knee movement in the sagittal plane [14]. Most of the studies have used LaLyEx for only one joint or segment or for the more affected side. No research has been performed using LE and LaLyEx on two lower extremity joints (hip, knee on both sides) and it is desired to evaluate diseases that involve limb motor action dysfunction with respect to the LaLyEx parameter based on clinical evaluations. LaLyEx was used analysed young and elderly individuals [15]. Liu et al. [16] used LaLyEx to analyse relationship between nonlinear dynamic character and individuals standing balance. Nessler et al. [17] used nonlinear time series analysis to examine the variability of multiple kinematic variable of human locomotion. Gouwanda et al. [18] used Maximum Lyapunov Exponent to investigate how knee and ankle brace affects a person’s natural dynamic gait stability. Yang and Wu [13] showed potential of LaLyEx measure the balance control of human standing.

Several nonlinear parameters have been used in the development of diagnostic systems or for the quantitative evaluation of movements. Each of the nonlinear parameters can be adapted to a specific registered signal. Quantitative information about the motion performed can be gathered by nonlinear parameters such as sample entropy (SampEn) and root mean square (RMS). These quantitative parameters have been widely used in experimental studies and clinical practice [15, 16]; they can be applied to time series data recorded from various sensors.

Entropy measures the level of regularity of a time series; high values indicate reduction of regularity [17] and can be interpreted as knowledge about lost information in the time series data. The SampEn algorithm is sensitive to input parameters such as $m$ (length of the data segment being compared), $r$ (similarity criterion) and $N$ (length of data) [18]. Entropy calculations have been used to distinguish between old and young people [19]. One of the applications is the development of an entropy-based system to monitor PD [20]. Huijben et al. [21] used three-axis acceleration sensors mounted on the lumbar L5 vertebra of the spine and calculated RMS and SampEn. They estimated that RMS values differ depending on the walking speed. SampEn has been applied to the frequency analysis of various biological signals such as electrocardiography (ECG), to detect heart rate [22] and various cardiac pathologies; respiratory measures, to determine the complexity of respiratory patterns during surgery to assist in the prognosis and to evaluate the effect of different anaesthetic drugs; electroencephalography (EEG), to detect epilepsy; gait; and to discriminate among foot types for proper footwear selection [23]. SampEn can be sensitive to changes in conditions during walking [24].

The main objectives of the study was to use LaLyEx, SampEn and RMS to assess PDimpaired gait; to verify the applicability of these parameters to separate PD and healthy control (CO) groups from each other; and to differentiate the subjects within the PD group based on the UPDRS. After verifying these parameters, they could be included in a clinical decision support system for PD diagnostics.

2. Methods

2.1 Subjects and biomedical experiment setup

Biomechanical data were collected from two groups consisting of patients diagnosed with PD and healthy control volunteers. The demographic data of the subjects are presented in Table 1. The biomedical experiment was performed in cooperation with a neurologist in the Santara Clinics, neurology department. The inclusion criteria for both groups were: $\geqslant$ 18 years of age, does not have a neurological or other neurodegenerative disease, does not possess injuries that affect movements and can walk without assistance. The protocol for the biomedical experiment was approved by the local bioethics commission. Each of the subjects gave their written informed consent before participating. A clinical investigation according to the UDPRS was performed prior to motion registration. Clinical evaluation was performed by neurologists according to the UDPRS recommendations.

Table 1
Demographic and clinical characteristics of the subjects

Group	Age (mean $\pm$ SD)	Total UPDRS score (mean $\pm$ SD)	UPDRS III score	$n$
PD	60.26 $\pm$ 11.21	38.17 $\pm$ 14.43	26.57 $\pm$ 8.45	14
CO	57.83 $\pm$ 7.58	NA	NA	12
UDPRS 0	63 $\pm$ 9.21	43.14 $\pm$ 17.46	25.29 $\pm$ 8.99	7
UPDRS 1	64.43 $\pm$ 7.85	50.83 $\pm$ 19.19	35.16 $\pm$ 11.46	7

IMU sensors were used to record the subjects’ gait data (Shimmer Research, Dublin, Ireland) [25]. The sensors were placed on the right and left shank and thigh. Each subject was asked to walk at their selected comfortable speed and abilities a marked distance of 5 m. The task was repeated three times.

2.2 Experimental data processing

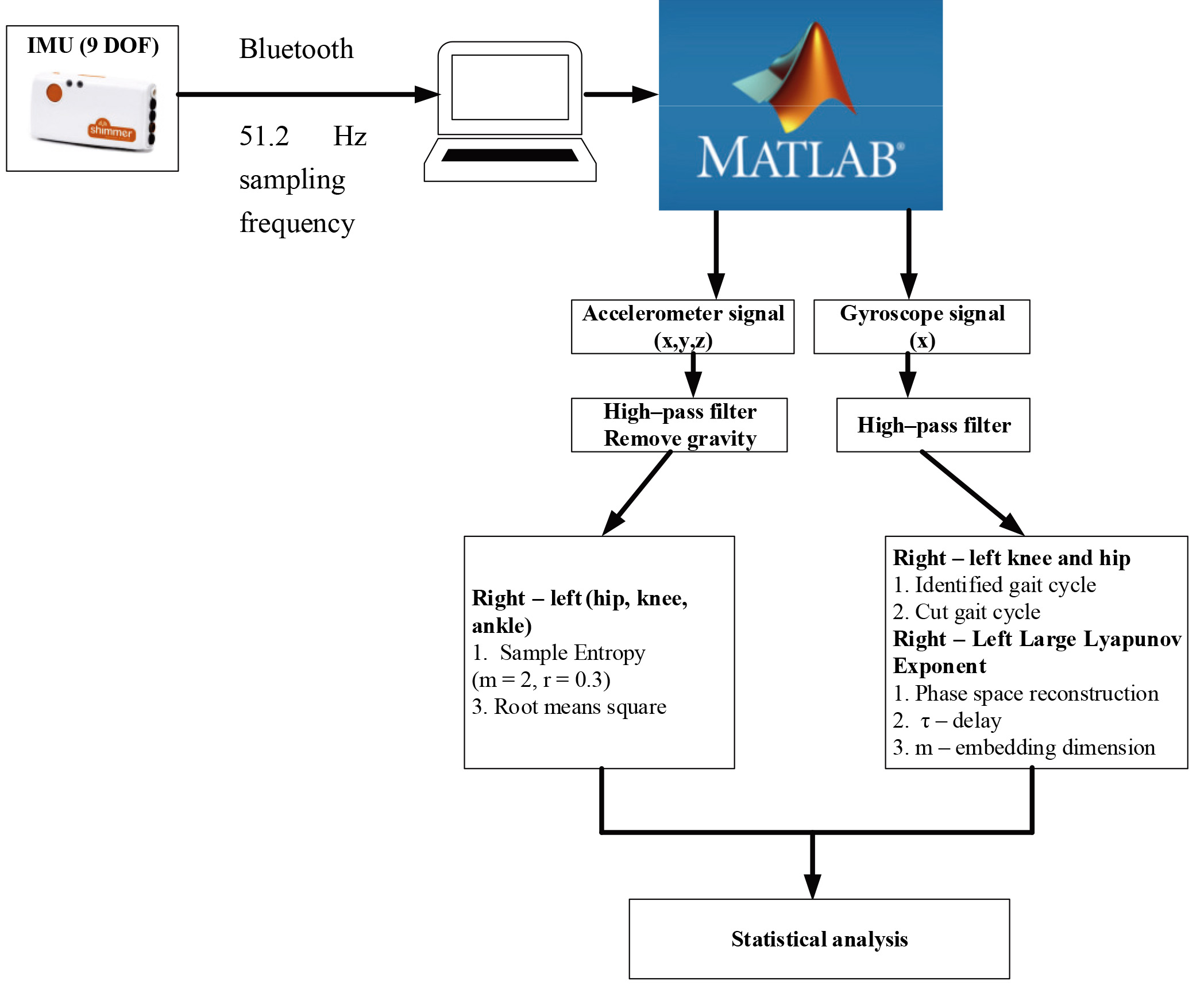

Raw data were processed using MATLAB software (Mathworks Inc., 2020, USA). Three parameters were selected for nonlinear analysis of the lower extremity: LaLyEx, SampEn and RMS (Fig. 1).

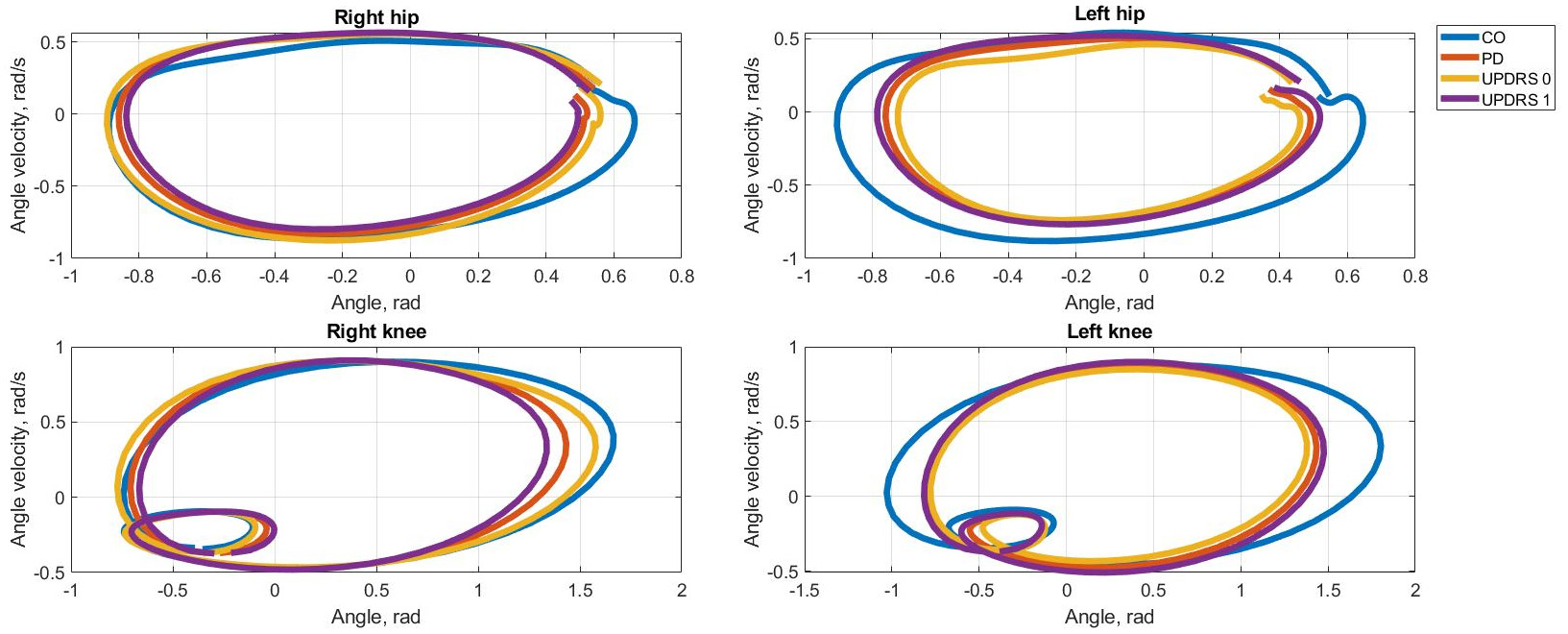

Phase plane plots are used to characterize the kinematics of the dynamics system and provide a better understanding of the steady state dynamics (Fig. 2).

The Madgwick AHRS algorithm was used to determine the orientation of the sensors [26]. Two signals were selected for data processing, namely acceleration and angular velocity. The pre-processing for each is described below.

Gravity components were removed from the acceleration signal and high-pass filtered with a cut-off frequency of 1 Hz with a first order Butterworth filter. From this signal, RMS for each segment and each axis was calculated (all-time series). RMS defined as:

$\displaystyle x_{\textit{RMS}}=\sqrt{\frac{1}{N}\mathop{\sum}\limits_{n=1}^{N}% |{x_{n}}|^{2}}$ (1)

SampEn was calculated for each joint and each axis separately. The following values were used to calculate SampEn with parameters $m=$ 2 and $r=$ 0.3 [20]. SampEn defined as

$\displaystyle\textit{SampEn}({m,r,N})=-ln\frac{A^{m}(r)}{B^{m}(r)}$ (2)

Where $m$ , $r$ and $N$ are the template size (i.e., the length of template vector), tolerance size and the length of time series, respectively.

The angular velocity signal was filtered using a fifth-order low-pass Butterworth filter and a cut-off frequency of 5 Hz. By having curves of angular velocity of the thigh in the sagittal plane, it is possible to find characteristic points of gait phases (swing, step, stride, etc.) [27].

The next step was the calculation of LaLyEx, which measures exponential divergence between two trajectories in phase space. The phase space reconstruction defined as:

$\displaystyle X_{1,i}^{r}=({x_{1,i},x_{1,i+\tau_{1}},\ldots,x_{1,i({m_{1}-1})% \tau_{1}}}),i=1,2,\ldots,N-({m_{1}-1})\tau_{1},$ (3)

where $N$ is the time series length, $\tau_{1}$ is the lag and $m_{1}$ is the embedding dimension for $X_{1}$ .

Phase space reconstruction computes the reconstruction for each time series as

$\displaystyle X_{1,i}^{r}=({X_{1,i}^{r},X_{2,i}^{r},\ldots X_{s,i}^{r}}),i=1,2% ,\ldots,N-({\max\{{m_{1}}\}-1})\max\{{\tau_{1}}\})$ (4)

where $S$ is number of measurements, and $N$ is the length of the time series.

The two other important parameters required to calculate LaLyEx are $\tau$ , the delay, and $m_{1}$ , the embedding dimension. These parameters must be determine before calculating LaLyEx.

$\tau$ phase in space reconstruction is calculated using the average mutual information (AMI) method [28]. During reconstruction, a time delay is determined by the local minima of AMI. AMI is defined as:

$\displaystyle\textit{AMI}(T)=\mathop{\sum}\limits_{i=1}^{N}p({x_{i},x_{i+T}})% \log_{2}\left[{\frac{px_{i},x_{i+T}}{p({x_{i}})p({x_{i+T}})}}\right],$ (5)

where $N$ is the time-series length and $T=$ 1 is MaxLag.

The embedding dimension phase space reconstruction is calculated by applying the false nearest neighbour (FNN) algorithm [28]. For a point at dimension $d$ , the point $X_{1}^{r}$ , and its nearest point $X_{i}^{r\ast}$ in the reconstructed phase space $\{{X_{i}^{r}}\},i=1:N$ , are false neighbours if:

$\displaystyle\sqrt{\frac{R_{i}^{2}({d+1})-R_{i}^{2}(d)}{R_{i}^{2}(d)}>\textit{% Distance Threshold}},$ (6)

where $R_{i}^{2}(d)=||X_{i}^{r}-X_{i}^{r\ast}||^{2}$ is the distance metric. LaLyEx was calculated using the angular velocity data of the right, left hip, and knee joint about $x$ axis.

The estimated embedding dimension $d$ is the smallest value that satisfies the condition $p_{\textit{fnn}}<$ PercentFalseNeighbors where, $p_{\textit{fnn}}$ is the ratio of FNN points to total number of points in the reconstructed phase space.

2.3 Statistical analysis

Separate one-way analysis of variances (ANOVA) were applied to determine a significant difference in the RMS, SampEn and LaLyEx metrics. This test was used to evaluate the null hypothesis that the calculation parameters were the same between PD and CO groups, as well as patients with PD classified according to the UPDRS score. A significant difference was considered when $p<$ 0.05.

3. Results and discussion

Nonlinear analysis parameters were calculated for each subject and statistical analysis was performed. There were significant differences between the PD and CO groups (Table 2). After dividing the PD group according to the UPDRS score – 0, normal (no problems), and 1, a slight problem (independent walking with minor gait impairment – there were) significant differences (Table 3).

Table 2
Significant differences between the PD and CO groups

Parameter	Joint and axis	PD (mean $\pm$ SD)	CO (mean $\pm$ SD)	$p$
RMS	Left hip x-axis	3.725 $\pm$ 1.349	3.295 $\pm$ 0.881	0.0022
	Right knee y-axis	3.228 $\pm$ 0.819	3.428 $\pm$ 0.885	0.0133
	Left knee y-axis	3.326 $\pm$ 0.807	3.229 $\pm$ 0.716	0.011
	Right ankle x-axis	5.588 $\pm$ 1.274	3.916 $\pm$ 0.974	0.0011
	Left ankle x-axis	5.549 $\pm$ 1.272	3.586 $\pm$ 1.789	0.0033
	Left ankle y-axis	8.138 $\pm$ 1.955	5.833 $\pm$ 3.078	$<$ 0.001
Sample entropy	Left hip y-axis	0.615 $\pm$ 0.246	0.655 $\pm$ 0.089	0.0003
	Right knee y-axis	0.466 $\pm$ 0.177	0.514 $\pm$ 0.087	0.0009
	Left knee y-axis	0.483 $\pm$ 0.175	0.559 $\pm$ 0.078	$<$ 0.001
Large Lyapunov exponent	Right hip	0.385 $\pm$ 0.117	0.276 $\pm$ 0.133	0.0364
	Left hip	0.428 $\pm$ 0.12	0.35 $\pm$ 0.1	0.0438
	Right knee	0.283 $\pm$ 0.085	0.188 $\pm$ 0.134	0.0397
	Left knee	0.242 $\pm$ 0.07	0.183 $\pm$ 0.047	0.0228

Table 3

Significant differences between the UDPRS 0 and UDPRS 1 groups

Parameter	Joint and axis	UDPRS 0 (mean $\pm$ SD)	UDPRS 1 (mean $\pm$ SD)	$p$
RMS	Right ankle x-axis	4.814 $\pm$ 1.015	6.361 $\pm$ 1.045	0.0158
	Right ankle y-axis	6.607 $\pm$ 1.831	9.041 $\pm$ 1.324	0.0147
	Right ankle z-axis	5.901 $\pm$ 0.756	7.144 $\pm$ 0.835	0.0129
Large Lyapunov exponent	Right knee	0.139 $\pm$ 0.048	0.238 $\pm$ 0.086	0.0208

RMS, SampEn and LaLyEx were selected for nonlinear gait analysis, which allowed us to distinguish PD and CO groups as well as to separate subjects with PD according to the UDPRS score.

LaLyEx allowed the study groups to be separated according to the calculated values for two joints (right and left hip and knee). LaLyEx for an unstable system that has a high amount of divergence will be positive with a large value ( $>$ 0.5) [29]. The values of both groups were positive and the higher LaLyEx values in the PD group indicate lower stability during gait. From the obtained results, the greatest instability is in the hip joint. Considering the UPDRS score, there was only a significant difference in the right knee joint: a higher LaLyEx was obtained in the UPDRS 1 group. Based on the obtained results, LaLyEx is suited to distinguish between PD and CO groups rather than to separate subjects with PD according to the UPDRS score. Therefore, this parameter does not allow one to assess the severity of PD.

RMS values between the PD and CO groups were obtained only for the left hip x-axis, the right knee y-axis, the left knee y-axis, the right ankle x-axis and the left ankle y-axis. There were higher values in the PD group, an outcome that underscores gait is more intense than in the CO group. After dividing the PD group according to the UPDRS score, there was a significant difference between UPDRS 0 and UPDRS 1 at the right ankle in all axes (x, y and z). There were higher values in the UDPRS 1 group.

There were significant SampEn differences in the sagittal plane of the right and left knee and left hip joints. The PD group had lower SampEn values, indicating that subjects in this group tend to be more likely to fall. There were no significant differences when dividing the PD group according to the UPDRS score. Therefore, it can be concluded that this parameter is more suitable for separating subjects diagnosed with PD from healthy controls than separating subjects with PD according to the disease rating scale.

4. Conclusions

The selected parameters can be used to distinguish between PD and control groups as well as to separate subjects with PD according to the assessment of the severity using the UPDRS score. The selected parameter will be included in the diagnostic system, which will quantify PD motor disorder based on UPDRS recommendations. The obtained results allow to state that RMS better separates both PD vs CO and UPDRS 0 and UPDRS 1 groups. SampEN and LaLyEx resulta are more appropriate for PD and CO groups, than for assessing disease severity based UPDRS. LaLyEx values are higher in the PD groups than in CO, so this parameter allowed to distinguish PD vs CO groups in the hip and knee joints. This result suggest that hip and knee joints are more damaged in PD group and have greater chaos during gait than in the CO group. SampEn lower values in PD group of knee joints predict disorder and a higher probability of falling in motions. No statically significant differences were found in UPDRS 0 and UPDRS group indicating that fall prediction when gait rates 0 and 1 is difficult and this parameter is not appropriate.

Footnotes

Conflict of interest

None to report.
