A comprehensive skills catalogue for the raw materials sector and the structure of raw materials education worldwide

Abstract

The raw materials sector is undergoing significant structural changes. Skills required by emerging technologies and ever more challenging mineral deposits are changing quicker than todays’ workforce can update them. Education mainly focusses on “classical” raw materials related topics (geology, mining and mineral processing), whereas there are deficiencies in emerging and non-technical skills like communication and management. There is a strong need for both sides to understand the necessities and constraints of the respective other partner in this business. This paper generates a knowledge base for future analysis of raw materials education, identifying currently taught skills and the structure of higher education. A definition of skills, knowledge and teaching areas is presented, leading to a comprehensive “skills catalogue”. It builds the basis for an inventory of raw materials education worldwide.

Keywords

Raw materials education mining geology skills knowledge competencies career workforce

Introduction – skills shortages in raw material industries in the twenty-first century

Mineral resources and mineral raw materials industries are facing skills shortages in many countries. This problem has been recognised as one of the significant challenges facing the sector (Ernst & Young 2016, 2018, 2019). They ranked skills shortages as the overall number 1 risk faced by the global mining industry, and the future of workforce as number 2 risk for 2020. At the same time, the global demand for raw materials is increasing, the value chains based on mineral raw materials are becoming increasingly complex, and concerns on the security and sustainability of supply of some raw materials are boosting research on recycling and substitution of critical raw materials. On top of this changing environment, the extractive and recycling industry's technological advances, cyclicity and demographics are snowballing skills’ shortages.

Technological advances

An increasing number of modern mining operations are highly automated, and equipment operators have largely replaced hands-on miners. Today's mining companies are looking for graduates and technical specialists with not only mining knowledge but also the ability to use sophisticated technology and computing techniques, operating in challenging environments. The same is happening in the recycling sector. As industrial societies began to demand increasing varieties of raw materials to build up sophisticated equipment and devices, recycling of metals and minerals became much more complex. In the last 30 years, recycling took a leap forward, from basic scrap collection into a mix of operations supported by materials engineering and inverse manufacturing, fostered by the principles of the circular economy and eco-design.

This is in line with a recent analysis made by Ernst and Young (2019) that revealed the following impacts of technological developments on the workforce across the minerals value chain:

Robotics and automation through drones, autonomous vehicles and remote-controlled operational systems will redesign traditional occupations such as drill operators, surveyors and field geologists, and increase demand for remote vehicle operators and geologists with greater skills in contemporary data and digital technologies;

There will be increasing demand for data and digital literacy skills across all phases of the minerals value chain that will redesign most occupations as the human-to-machine interface evolves and becomes more prevalent. These skills can be expected to increase in demand into the future and play an important role in enhancing decision-making and optimising everyday work;

Cloud computing, information sharing and big data continue to change the nature of work and enable integrated operating centres so more work can be performed remotely and more flexibly. This trend will accelerate within the sector and increasingly take employees away from hazardous on-site events.

With increasing technological innovation, one can expect more blind disruptors- those things that will hit society (and the minerals value chain) unexpectedly, with an immediate impact.

Cyclicity

Cyclicity in commodity prices provokes an inconsistent supply and demand for skills. Mining is a high capital investment industry, extremely sensitive to economic cycles and primarily governed by the international commodities market. Regardless of location, all mines are competing on the cost of production and efficiency of the project capital. Demand and supply can change rapidly and, as a result, job security and long-term viability of individual mines is always an issue. Cyclicity in commodity prices also affects recycling operations and metals processing, and the industry has therefore recently seen rapid increases and decreases in the number of people it employs.

Cyclicity results in skills shortages and demographic gaps followed by retrenchments and over-capacity on a recurring basis (Jeffrey et al. 2019). This is mainly caused by the time required for training and education, creating a lag in trained staff becoming available to the raw materials sector. In the start of an upturn, staff are not available, but the sector becomes attractive for new entrants who start relevant education and training programmes. Unfortunately, 2–5 years later as they emerge, the peak has passed, and these new graduates find it difficult to find jobs in a declining market. The cyclicity in the sector has caused endemic skills shortages and then oversupply that lags the commodity cycles and results in elevated costs and loss of experience from the sector.

Demographics

Company retrenchment in many countries in the 2012–2017 commodities downturn caused a ‘demographic gap’ in the raw materials sector, worsened by lack of recruitment during the 1980s and 1990s in similar downturns. In addition, increasing global competition for talent and migration are challenging the sectors ability to retain local talent and attracting talent from elsewhere. This is a real issue in mining and recycling, that is becoming critical in Europe (Jeffrey et al. 2019), as senior staff retire and there are few mid-career staff available to replace them.

Miners, metal producers and recyclers need global talent to cope with the above-mentioned tendencies affecting the supply of resources (Summa 2008; American Geological Institute (AGI) 2012), that is well-trained professionals in the raw materials sector (geologists, mining engineers, metallurgical specialists, materials engineers, managers for mining facilities, managers for recycling plants, foremen, drillers, etc.). This calls for a better alignment between the sector specificities, its needs, and the functioning forms of education, validation and certification of knowledge, skills and competencies.

The same is happening on the secondary raw materials or recycling sector. As industrial societies began to demand increasing quantities of raw materials to build up sophisticated equipment and devices, recycling of metals and minerals became much more complex. In the last 30 years, recycling took a huge leap forward, from basic scrap collection into a mix of operations supported by reverse engineering and materials engineering, under the framework of circular economy.

Alongside policy development, the EU has been financing research projects (e.g. Cobalt; Euro Ages) to evaluate the EU education and training offer in the raw materials sector. The Bologna process has also served to define the education which will result in the needed skills for professionals (Tuning project. http://www.unideusto.org/tuningeu/). These projects provided a detailed overview of mining education and training in Europe, and have led to the conclusion that most geoscience education and training programmes in Europe are not focused towards mineral exploration or extractive industries, nor responding to the demand of recycling-related study programmes. According with data collected, despite the international dimension of geoscience, vocational and technical training on raw materials in Europe is carried out traditionally at national levels, in national languages and mostly in the mining regions. This indifference towards mining is confirmed by the decline in the numbers of both starting and graduating students of mining engineering in Europe (Society of Mining Professors (SOMP) 2015). In addition, the decline of undergraduate programmes on primary and secondary raw materials in Europe (and in North America) corresponds to a shift to Asia, South and Central America (IIED 2019).

It is also relevant to highlight some outcomes from the Raw Materials Scoreboard (European Innovation Partnership on Raw Materials and European Commission 2016). The 2016 report includes a chapter on knowledge and skills that concludes:

Talent shortage is recognised to be a significant problem in the raw materials sector.

The mining industry (considering exploration, mining and processing) suffers from an ageing work force, and young graduates are often attracted to other sectors.

There are indicators that the number of educational programmes relevant to raw materials is in decline.

In order to having a long-lasting view and outlook on the training offered in the raw materials sector, in a specific professional area, it is of vital interest to analyse the current state of the art, trends and available offers. Specifically, it is important to develop common metrics and reference points for future quality assurance and recognition of training. When dealing with a truly internationally operating industry, like the raw materials industry, it will be very important to develop a comprehensive competency model for employment across the primary and secondary raw materials sector and across all continents and national borders.

As a starting point, it is necessary to carefully assess and describe the existing training/education programmes. This can in the future be built on by combining the results of the exercise with future needs and industrial developments.

The aim of this paper is to provide an overview of the status of the technical and vocational training offered for raw materials professionals including, but not limited to, geology, mining, processing, recycling, health, safety and environment on a worldwide basis. It includes the development of a mapping methodology (e.g. desk and online research, surveys, interviews with programme leaders) and the definition of a skills list for the raw materials sector. It also includes the definition of a coherent system of skills used by the raw materials sector and will report on the skills identified as the critical skills for raw materials education.

Skills catalogue

The objective of this catalogue is to build a hierarchical logical structure, from the training domain (where the skills are acquired) to the professional domain (where the skills are applied). Thus, the mining sector was scanned globally, identifying all the potential jobs domains generally needed in mining operations, disregarding the specific profession that practices them (usually several professionals develop the same functions). From the job descriptions profiles found, the skills needed to perform such jobs have been described in detail.

This system can then be used to locate specific subjects available in the different training centres or programmes that can provide such skills or learning outcomes. This way, the evaluation works on both ways, from the job domain, or from the knowledge domain, and potential users will be able to define precisely their needs and training requirements.

The skills catalogue presented here is focused focused on the exploration, exploitation and processing stages of the mining and recycling industries. The skills catalogue is based on the skills needed for the industry on a graduate and postgraduate level. The focus is not on technician skills (e.g. drillers, supervisors) but on learning outcomes above the degree level.

Definitions

In order to understand the logic structure of the catalogue, at first the different terms employed in the training and professional domains must be defined in this context, so that a common understanding is provided when using a particular word.

Mining and extractive industry

Mining is defined from a global perspective, as the techniques associated with minerals extraction from the ground and the processes to obtain a substance of economic value. In this context, the skills catalogue includes ore dressing, metallurgy and recycling. The concept ‘mining’ includes all kind of mineral and rock extraction (underground and open pit), dredging, metals, salts (from drilling and sea), quarries and pits for aggregates.

Skills

There is a clear need to understand the differences between skills and competencies. Therefore, the European multilingual classification of Skills, Competencies, Qualifications and Occupations (ESCO) establishes ‘essential skills and competencies’ (EMPL 2018a).

E.g. the definition of skill from the Cambridge Dictionary (Cambridge Dictionary 2019), states that a skill is ‘an ability to do an activity or job well, especially because you have practised it’. Skill is thus, an ability usually acquired by practise. This definition is very relevant as links the knowledge gained with the practical use of such knowledge.

The Collins dictionary (Collins Online Dictionary 2019) establishes two types of nouns:

Countable nouns: ‘A skill is a type of work or activity which requires special training and knowledge.’

Uncountable noun: ‘A skill is the knowledge and ability that you to do something well.’

This is probably the reason why according to ESCO there is no distinction between skills and competencies (EMPL 2018b). The ESCO skills pillar distinguishes between the skills/competencies concept and the knowledge concept. This is done by indicating skill types.

Competencies

Weinert (2001) defines competencies as the ‘necessary prerequisites for meeting complex demands’. In a more generalised approach they can be considered as ‘things’ that an individual must demonstrate, to be effective in a job, role, function, task, or duty. These ‘things’ include job-relevant behaviour (what a person says or does that results in good or poor performance), motivation (how a person feels about a job, organisation, or geographic location), and technical knowledge/skills (what a person knows/demonstrates regarding facts, technologies, a profession, procedures, a job, an organisation, etc.). Competencies are identified through the study of jobs and roles. Competence is then, the ability to do something successfully or efficiently.

Knowledge: In this context knowledge is the facts, information, and skills acquired through experience or education; the theoretical or practical understanding of a subject.

Capacities: Also in this context, the capacities of a subject for something, is his/her ability to do it.

Subject: A branch of knowledge studied or taught in a school, college, university or professional training that provides a certain knowledge.

Course: A prescribed number of instruction periods or classes in a particular field of study.

Programme: Significant long-term training activity which comprises of a series of courses, and usually has a flexible time and cost budget.

Qualification: A pass of an examination or an official completion of a course, especially one conferring status as a recognised practitioner of a profession or activity. An official record showing that a subject has finished a training course or has the necessary skills, etc. An ability, characteristic, or experience that makes a subject suitable for a particular job or activity:

Learning outcomes

Learning outcomes are statements that describe the knowledge or skills students (or trainees) should acquire by the end of a specific assignment, class, course, or programme, and help students understand why that knowledge and those skills will be useful to them (Centre for Teaching Support & Innovation 2019). They focus on the context and potential applications of knowledge and skills, help students connect learning in various contexts, and help guide assessment and evaluation. Good learning outcomes emphasise the application and integration of knowledge. Instead of focusing on coverage of material, learning outcomes articulate how students will be able to employ the material, both in the context of the class and more broadly. Learning outcomes are thus statements of what a learner is expected to know, understand and/or be able to demonstrate after completion of a process of learning.

Profession: A paid occupation, especially one that involves prolonged training and a formal qualification.

Scoping

It is important to consider here the scope of the list of skills. The professions whose skills are defined, which definition or type of training and professional skills are addressed, etc. We have to define the degree of detail in which the whole exercise will be performed.

For the mining skills catalogue we do not exclude the graduate skills. The Australian MEA framework (Mining Education Australia MEA 2015) which has been used as the basis of the skills catalogue is for undergraduate level education. However, the major aim of this paper is to build up a catalogue of training centres focused on post graduate university education. In a later stage it can be discussed to include the training performed by private companies and institutions (such as geological surveys) if such training is available to any potential student.

Regarding the university training this paper evaluates the two professions more closely related to mineral raw materials, which are mainly geologists and mining engineers. Other areas might be subject for future research but would have been too extensive for the scope of the presented study.

The T-shaped professionals

There is a new kind of skilled professional named ‘T shaped’ which is now been demanded in twenty-first century organisations. The concept, which is also applied in the Raw Materials sector, is being introduced by T-Dore Consortium (2017): ‘T-shaped professionals are characterized by their deep disciplinary knowledge in at least one substance area and capability to cross the boundaries between disciplines.’ Although the concept of T-shaped managers was first introduced by Hansen and Oetinger (2001) in opposition to the I shape professionals (see also tsummit.org). T-shaped professionals are already in high demand for their ability to innovate, build relationships, advance research and strengthen their organisations.

This kind of T-shaped champion must fulfil some requirements, such as being capable of new systemic innovations in areas of waste reduction, recycling, material efficiency and residue utilisation. However, it provides also a deep understanding of the raw materials system and value chain, in particular a holistic understanding of the raw materials value chain. It is essential to highlight that the importance of these requirements is shared by academia, research and industry, but currently many graduates are educated to be productive in one field. This report indicates that employers are placing increasing importance on skills that go beyond a single discipline. Some barriers to the development of this kind of T-shaped champions have been identified:

Researchers receive a strong focus on technical excellence but very little in so called ‘soft’ skills like e.g. social interaction, community relations and leadership

Lack of practical training and co-operation with companies

Lack of improvement of employability skills in technical universities. Sometimes universities are creating non employable graduates

Few policies support collaboration between universities, research centres and industry.

New skills and sustainability of the catalogue

Over the last 150 years, mining skills have not undergone major structural changes except in their contents. Those changes have only dealt with training in technical skills but often not quite in transversal or humanistic competencies. Many classical mining schools reoriented their studies towards management and civil engineering after the European mining crisis in the 1970s.

Regarding new subjects and teaching changes, it is worth mentioning some important milestones at the end of the twentieth century:

Introduction of the environmental concepts. Environmental impact studies and specific regulations for the closure of mines from the 1980s. Initially there was a lot of reluctance and it was difficult to introduce these concepts in the industrial sectors. However the inclusion of environmental aspects in the business plan of companies and as a skill is already a consolidated reality;

Computing, new technologies and the internet. Since the 1990s these are indispensable skills in technical studies and these are fully consolidated;

Advances in robotics and automation. An emerging skill that usually learnt at the workplace.

Social aspect in mining and industry, licensing and public awareness. Many mining projects in Europe (in particular) having passed all the technical, legal and environmental filters, are being blocked by social disconformity. It can be said, without a doubt, that the social license to operate (and everything related to NIMBY – not in my backyard) is the Achilles heel of the extractive industry in Europe and many countries of the world; thus it has become a very relevant emerging skill.

Methodology

Starting point for the catalogue

It is important to make this skills catalogue as simple as possible so it can be practical to be used as a search engine and a global database. The simplicity of the catalogue is a compromise between minimalism in the programming of menus and subsequent surveys, but at the same time in covering the disciplines that are named in very different ways in different places of the world.

For structuring such a catalogue one might consider either just one level of breakdown, or several levels of breakdown making sub-menus or sub-categories, focused on the different subjects that are studied in the training plans, having a place in a dropdown menu. Table 1 includes a non-exhaustive list of the graduated professions involved in mining. But as roles in mining are very varied, and can be practised by several professions, the skills needed are thus shared among professions and better represented in the job definition, which is included afterwards. The skills catalogue is drafted using the job roles definition.

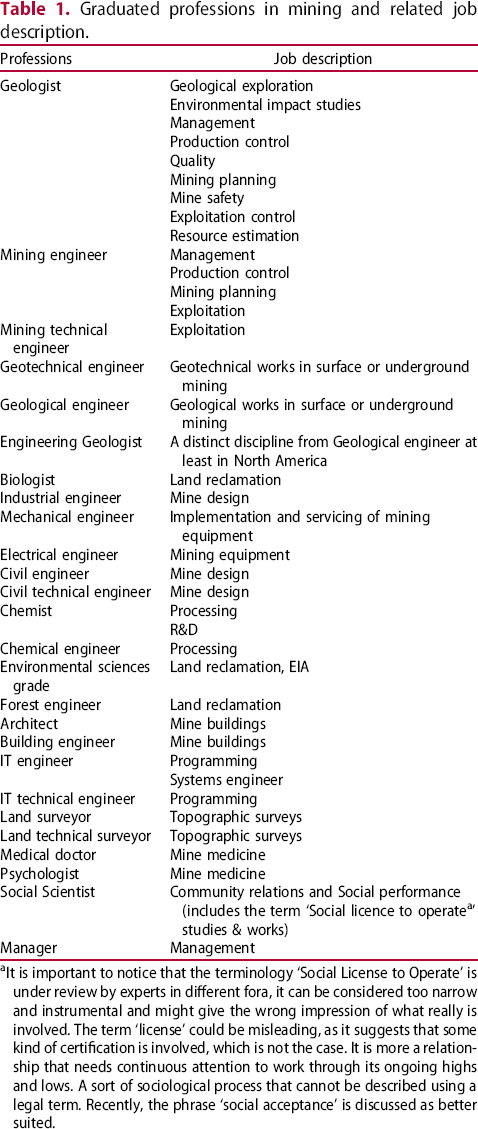

Table 1

Graduated professions in mining and related job description.

Professions	Job description
Geologist	Geological exploration
	Environmental impact studies
	Management
	Production control
	Quality
	Mining planning
	Mine safety
	Exploitation control
	Resource estimation
Mining engineer	Management
	Production control
	Mining planning
	Exploitation
Mining technical engineer	Exploitation
Geotechnical engineer	Geotechnical works in surface or underground mining
Geological engineer	Geological works in surface or underground mining
Engineering Geologist	A distinct discipline from Geological engineer at least in North America
Biologist	Land reclamation
Industrial engineer	Mine design
Mechanical engineer	Implementation and servicing of mining equipment
Electrical engineer	Mining equipment
Civil engineer	Mine design
Civil technical engineer	Mine design
Chemist	Processing
Chemist	R&D
Chemical engineer	Processing
Environmental sciences grade	Land reclamation, EIA
Forest engineer	Land reclamation
Architect	Mine buildings
Building engineer	Mine buildings
IT engineer	Programming
IT engineer	Systems engineer
IT technical engineer	Programming
Land surveyor	Topographic surveys
Land technical surveyor	Topographic surveys
Medical doctor	Mine medicine
Psychologist	Mine medicine
Social Scientist	Community relations and Social performance (includes the term ‘Social licence to operate^a’ studies & works)
Manager	Management

^aIt is important to notice that the terminology ‘Social License to Operate’ is under review by experts in different fora, it can be considered too narrow and instrumental and might give the wrong impression of what really is involved. The term ‘license’ could be misleading, as it suggests that some kind of certification is involved, which is not the case. It is more a relationship that needs continuous attention to work through its ongoing highs and lows. A sort of sociological process that cannot be described using a legal term. Recently, the phrase ‘social acceptance’ is discussed as better suited.

The starting point, presented in this paper, focusses on the two professions most linked to the world of mining, that is the ‘classical’ geologist and mining engineer (in some countries considered civil engineer of mines), as well as engineering geologist and geological engineer. The skills may be later completed at a later stage with other related professions.

One of the most comprehensive documents regarding skills in the mining sector (extractive industries) is Mining Education Australia MEA (2015). We have used this document as basis, and added other professions and jobs such as geologists and the list of skills of ESCO of geologists and mining engineers. The latter presents some limitations which have been completed with a desktop search of skills for ‘mining engineer’.

The presented approach completes these two ‘classical professions’ with a list of seven careers related to the mining sector (Table 2).

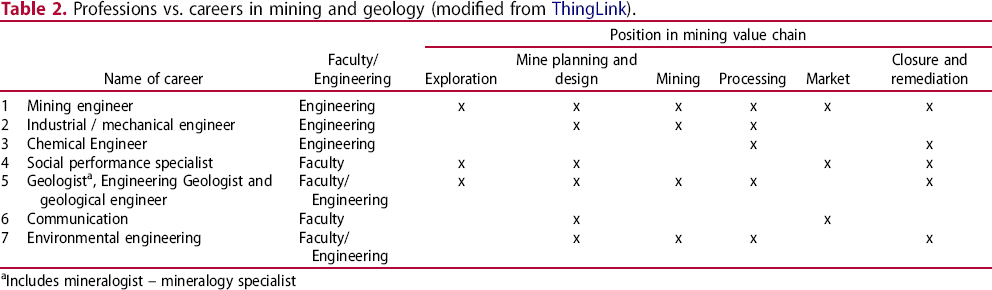

Table 2

Professions vs. careers in mining and geology (modified from ThingLink).

	Name of career	Faculty/Engineering	Position in mining value chain
	Name of career	Faculty/Engineering	Exploration	Mine planning and design	Mining	Processing	Market	Closure and remediation
1	Mining engineer	Engineering	x	x	x	x	x	x
2	Industrial / mechanical engineer	Engineering		x	x	x
3	Chemical Engineer	Engineering				x		x
4	Social performance specialist	Faculty	x	x			x	x
5	Geologist^a, Engineering Geologist and geological engineer	Faculty/ Engineering	x	x	x	x		x
6	Communication	Faculty		x			x
7	Environmental engineering	Faculty/ Engineering		x	x	x		x

^aIncludes mineralogist – mineralogy specialist

The skills and questionnaire approach

The skills catalogue developed in this study defines two levels: skills and knowledge. Although these two terms might be quite confusing since the only difference seems to be that skills are associated with practising and knowledge with experience. Skills are often assigned to the mining job area while knowledge to the learning outcomes. The exhaustive table of skills includes both and keeps the ‘academic domain’ of subjects for a potential further questionnaire in the future. This discrimination might be less encyclopaedically supported, but it is used as a working template for the survey, being a compromise between completeness and ease of filling in the data.

The survey has been designed with a tree-like structure which contains a first choice of the main professions; then the education programme is directed to and followed by, the mining job areas covered by the graduates of the profession (Figure 1). The mining job areas are subdivided in sub-areas addressing the job area in more detail. Subsequently the survey supplies a broad selection of learning outcomes to tick which provide the basis of professional practice. The survey strictly accords to the skills-catalogue reducing individual denotations and classifications by the respondents as far as possible; this reduces the effect of distorted assessment while transforming the reply of the respondents into entries of a database.

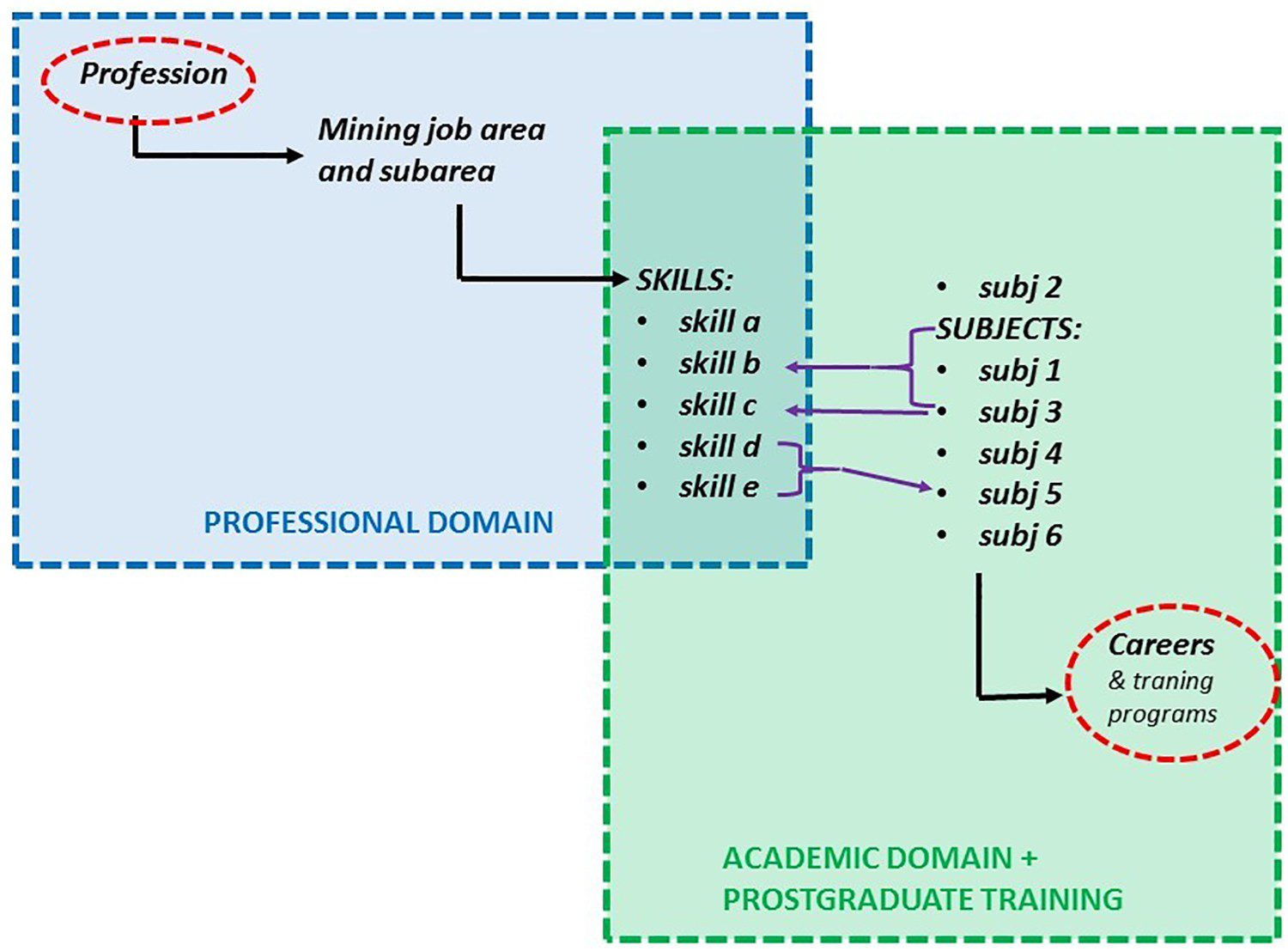

Figure 1

From profession to careers scheme, through skills and subjects.

In the questionnaire in the level of knowledge and learning outcomes tick boxes are opened indicating whether it covers that particular subject (Figure 2). Therefore, it was important to reach a consensus on which are the subjects that will be included in each knowledge. The entries of the Skills/Knowledge and learning outcomes can be formulated as topics of the academic programme. In the questionnaire, only specific knowledge and subjects are included. Core subjects such as chemistry, technical drawing, programming, etc., are not included.

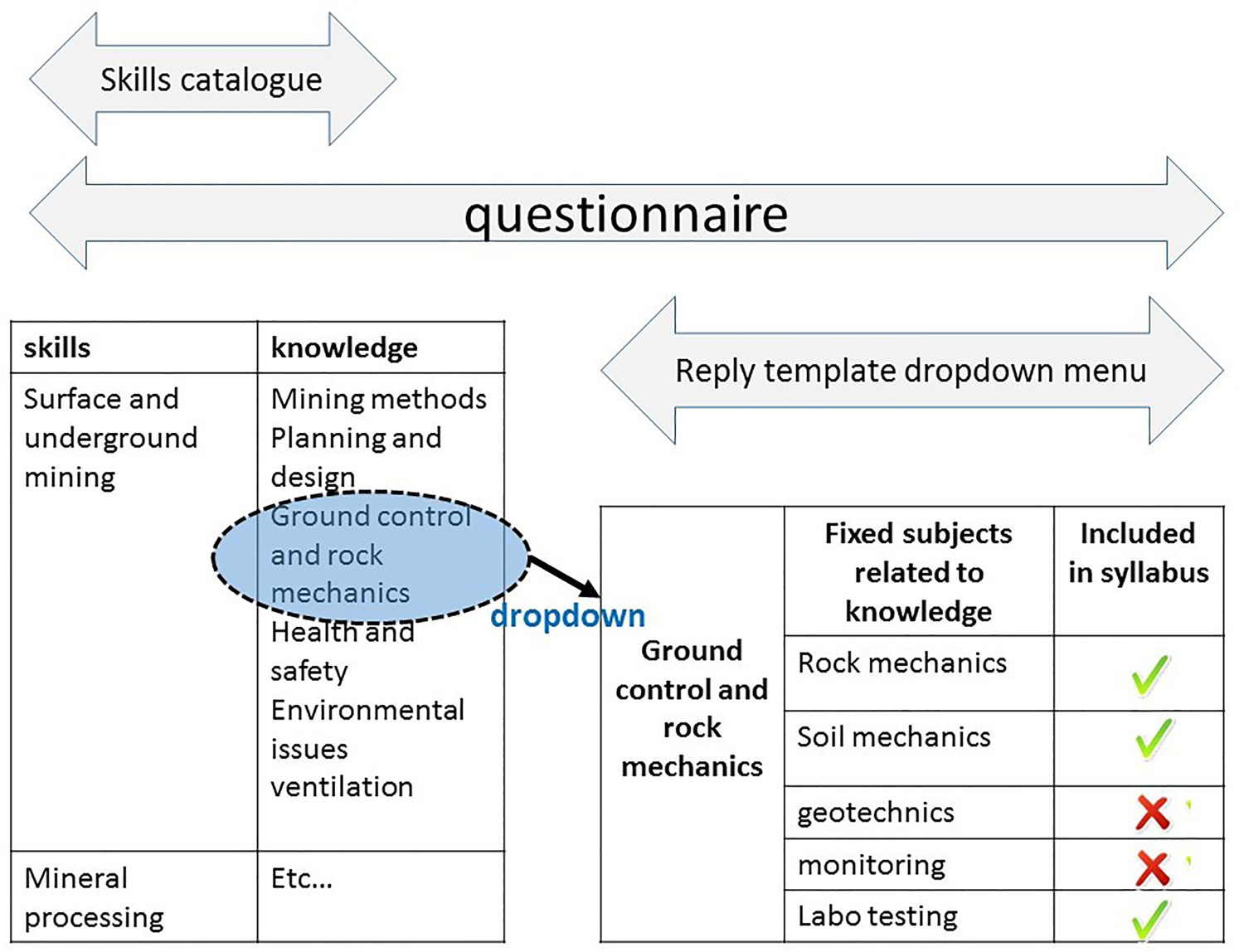

Figure 2

Skills catalogue and questionary scheme – example.

The skills catalogue is intimately linked to a questionnaire subsequently used for acquiring the data from relevant stakeholders. The main problem faced was that the skills catalogue should be well aligned with the questionnaire to be filled. It should be comprehensive enough to have all the skills required but also easy to fill in. Finally, this condensed skills catalogue was implemented in an online-survey tool (with an English and a Spanish version). The survey was designed in a way that it could be completed in 15–20 min. The survey was then distributed via personal contacts to different educators, email distribution lists of suitable professional bodies (e.g. Society of Mining Professors, European Federation of Geologists and others),, and shared via social media platforms.

Results and discussion

Response rate and quality of data

All in all the survey attracted 233 different responses, representing 193 unique institutions from 92 countries worldwide (Figure 3). Please note that this only includes full answers (until the last page of the questionnaire) and that only partly filled questionnaires are not considered here. From the total amount of 442 starters of the survey, 192 did not proceed further than page one of four, 16 stopped at page two, only one stopped at page three and 233 completed the entire survey. We estimate that the total worldwide amount of institutions teaching raw materials related topics is between 600 and 1000. Hence, this survey covered roughly 20% of all institutions, in the worst-case scenario, making it quite comprehensive and unique.

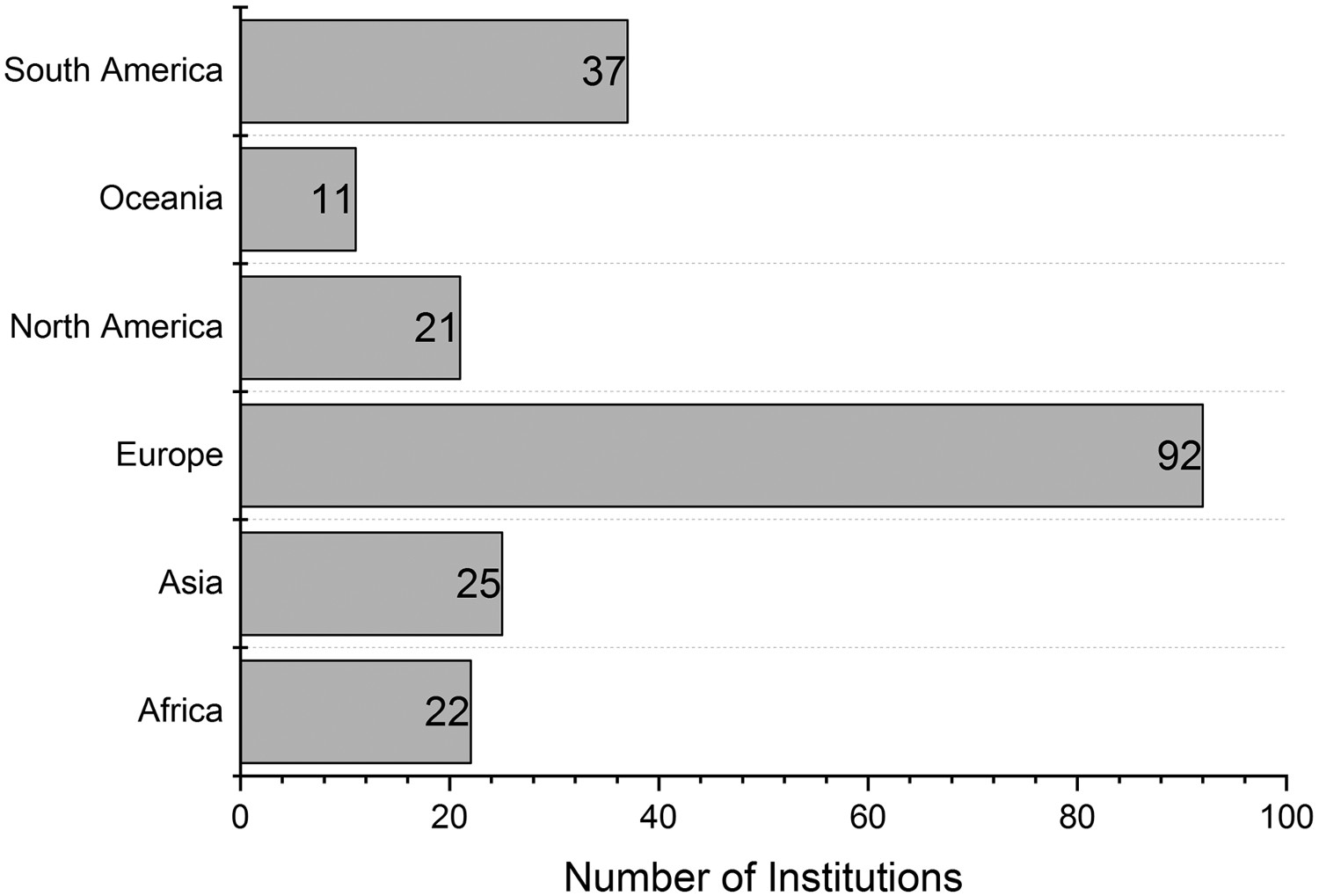

Figure 3

Representation of the continent-wise distribution of respondents to the survey. Note that some institutions (mainly Russian) are represented twice (in Europe and in Asia).

However, several black spots can easily be identified. Despite the fact that the mining industry is stronger in Australia, China, North and South America, European institutions are leading in our survey (92 institutions). Although Australia and South America are widely covered, there is a massive gap in Northern America. Unfortunately, only few US and even fewer Canadian or Chinese institutions have responded to this survey.

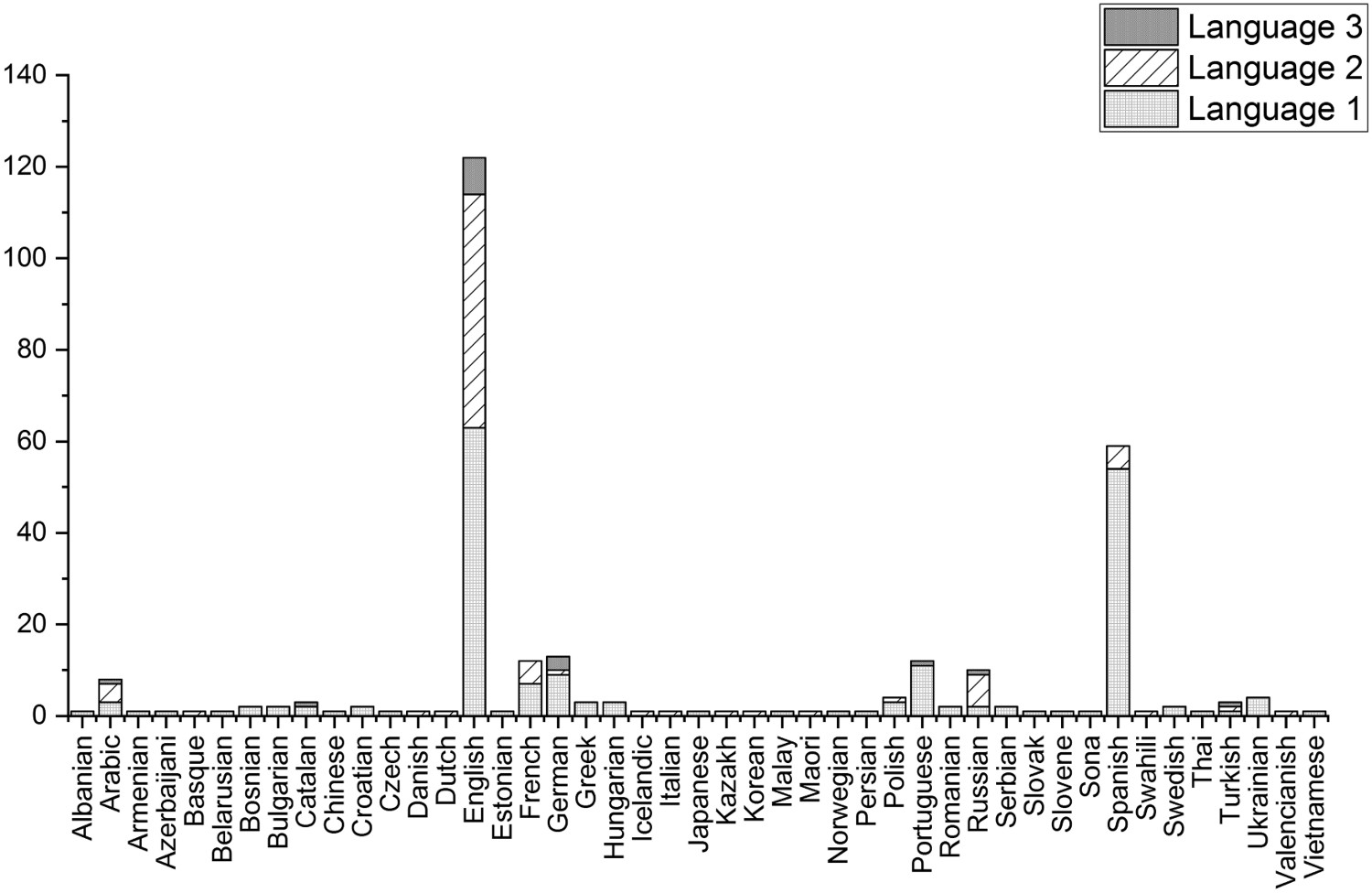

The survey asked for a series of demographic data from the recipients, ranging from name to job position and email address. This information helped to identify potential problems with the data, e.g. estimating how trustworthy the results are, and allowed to ask follow-up questions to respondents. In this context, e.g. the answer of a professor has a higher ranking than that of a student. It could theoretically happen that even two professors of the same institution provide different answers because they understand the questions or the curricula differently. In case of doubt, this can only be solved with personal contacts. In the present survey, double-listings of institutions happened exclusively in order to distinguish between different programmes so no programme is listed twice. All personally sensitive information was deleted. Hence, the results provide a high degree of completeness and are believed to be trustworthy. The associated dataset can found in Hartlieb et al. (2020).

First insights into raw materials education worldwide

Teaching areas and skills

The survey reveals that the teaching areas of Geology, Exploration and Resources has, by far, the widest coverage amongst the represented institutions, followed by Mining Methods, Mining Geomechanics, and Mineral Production (176, 132, 115, and 100 respective answers or 92, 69, 60 and 54% of the represented institutions). On the other side of the spectrum, only 42 of these institutions deal with the social impact of raw materials related activities and only 55 teach business management (22 and 29%, respectively; Figure 4).

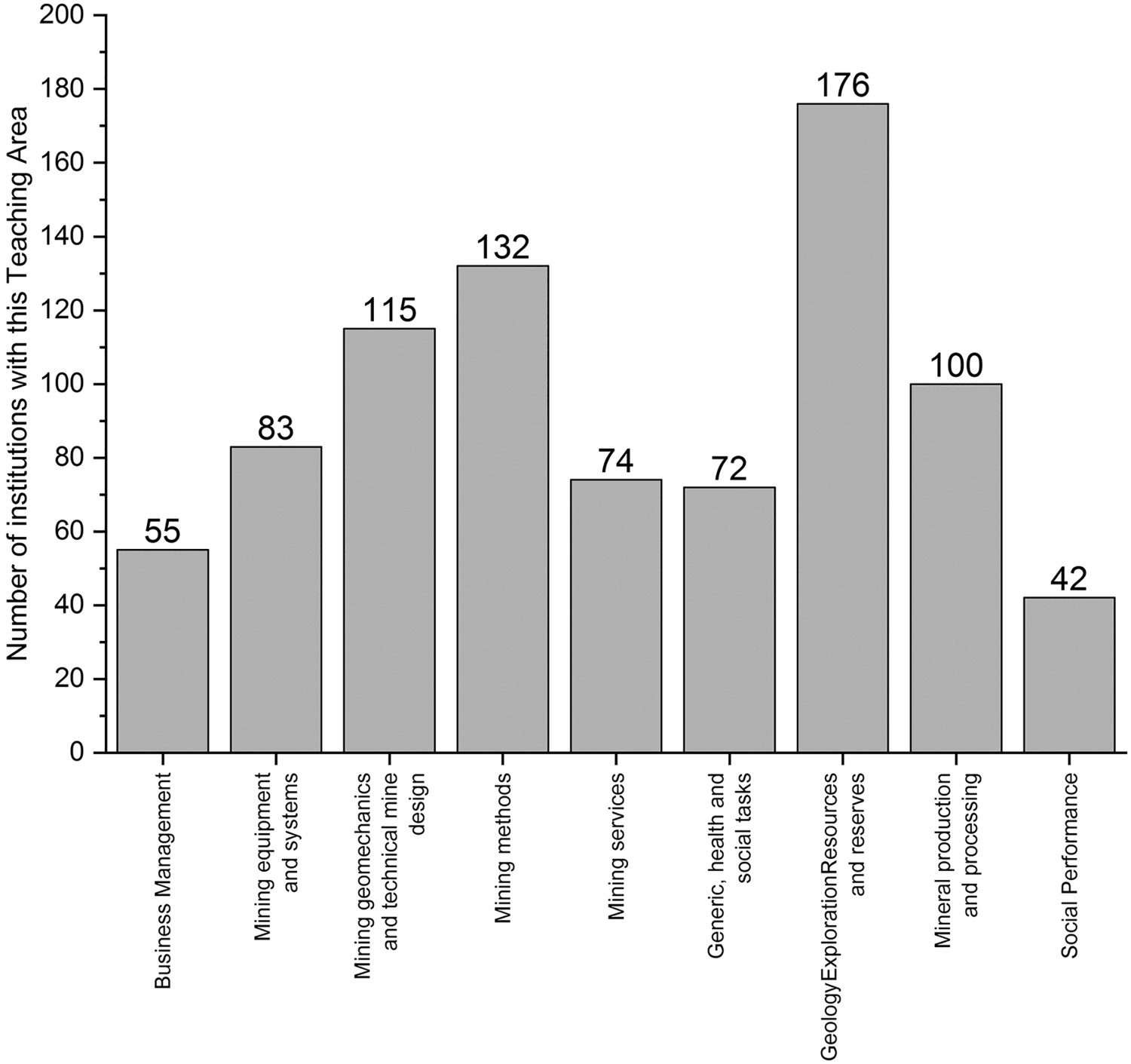

Figure 4

Statistical analysis of the different teaching areas. Geology, Exploration and Resources is taught at 176 institutions, whereas Social performance is only taught at 42.

Drilling down into these data leads to the results shown in Table 3. The table shows how often different skills can be acquired in certain business areas. E.g. skill ‘1.1.1 Analyses the market to predict future demand / supply trends’ which is part of the teaching area ‘business management’ can be acquired in 11 different programmes. Similar to the representation of teaching areas (Figure 4) the number of skills that can be under the teaching area ‘Social Performance’ are the fewest in the entire spectrum, ranging from 7 to 21, with ‘Business Management’ having only few more (ranging from 9 to 24). On the higher end of this spectrum are all skills acquired in ‘Geology’, ranging from 26 to 89, ‘Mining geomechanics’ and ‘Mining Systems’.

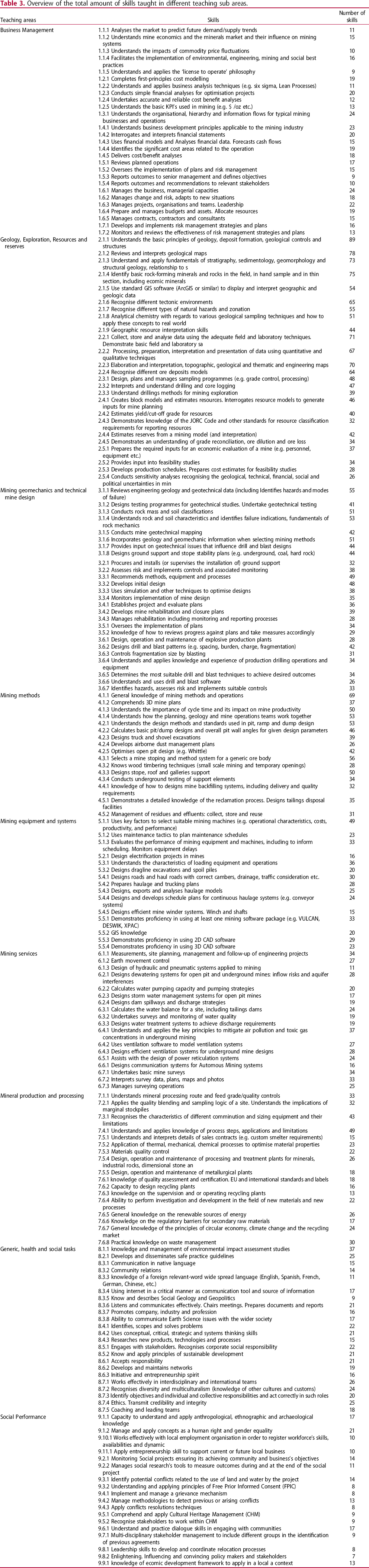

Table 3

Overview of the total amount of skills taught in different teaching sub areas.

Teaching areas	Skills	Number of skills
Business Management	1.1.1 Analyses the market to predict future demand/supply trends	11
	1.1.2 Understands mine economics and the minerals market and their influence on mining systems	15
	1.1.3 Understands the impacts of commodity price fluctuations	10
	1.1.4 Facilitates the implementation of environmental, engineering, mining and social best practices	16
	1.1.5 Understands and applies the ‘license to operate’ philosophy	9
	1.2.1 Completes first-principles cost modelling	19
	1.2.2 Understands and applies business analysis techniques (e.g. six sigma, Lean Processes)	11
	1.2.3 Conducts simple financial analyses for optimisation projects	20
	1.2.4 Undertakes accurate and reliable cost benefit analyses	12
	1.2.5 Understands the basic KPI's used in mining (e.g. $ /oz etc.)	13
	1.3.1 Understands the organisational, hierarchy and information flows for typical mining businesses and operations	24
	1.4.1 Understands business development principles applicable to the mining industry	23
	1.4.2 Interrogates and interprets financial statements	20
	1.4.3 Uses financial models and Analyses financial data. Forecasts cash flows	15
	1.4.4 Identifies the significant cost areas related to the operation	19
	1.4.5 Delivers cost/benefit analyses	18
	1.5.1 Reviews planned operations	17
	1.5.2 Oversees the implementation of plans and risk management	15
	1.5.3 Reports outcomes to senior management and defines objectives	9
	1.5.4 Reports outcomes and recommendations to relevant stakeholders	10
	1.6.1 Manages the business, managerial capacities	24
	1.6.2 Manages change and risk, adapts to new situations	18
	1.6.3 Manages projects, organisations and teams. Leadership	22
	1.6.4 Prepare and manages budgets and assets. Allocate resources	19
	1.6.5 Manages contracts, contractors and consultants	15
	1.7.1 Develops and implements risk management strategies and plans	16
	1.7.2 Monitors and reviews the effectiveness of risk management strategies and plans	13
Geology, Exploration, Resources and reserves	2.1.1 Understands the basic principles of geology, deposit formation, geological controls and structures	89
	2.1.2 Reviews and interprets geological maps	78
	2.1.3 Understand and apply fundamentals of stratigraphy, sedimentology, geomorphology and structural geology, relationship to s	73
	2.1.4 Identify basic rock-forming minerals and rocks in the field, in hand sample and in thin section, including ecomic minerals	75
	2.1.5 Use standard GIS software (ArcGIS or similar) to display and interpret geographic and geologic data	54
	2.1.6 Recognise different tectonic environments	65
	2.1.7 Recognise different types of natural hazards and zonation	55
	2.1.8 Analytical chemistry with regards to various geological sampling techniques and how to apply these concepts to real world	51
	2.1.9 Geographic resource interpretation skills	44
	2.2.1 Collect, store and analyse data using the adequate field and laboratory techniques. Demonstrate basic field and laboratory sa	71
	2.2.2 Processing, preparation, interpretation and presentation of data using quantitative and qualitative techniques	67
	2.2.3 Elaboration and interpretation, topographic, geological and thematic and engineering maps	70
	2.2.4 Recognise different ore deposits models	64
	2.3.1 Design, plans and manages sampling programmes (e.g. grade control, processing)	48
	2.3.2 Interprets and understand drilling and core logging	47
	2.3.3 Understand drillings methods for mining exploration	39
	2.4.1 Creates block models and estimates resources. Interrogates resource models to generate inputs for mine planning	46
	2.4.2 Estimates yield/cut-off grade for resources	40
	2.4.3 Demonstrates knowledge of the JORC Code and other standards for resource classification requirements for reporting resources	32
	2.4.4 Estimates reserves from a mining model (and interpretation)	42
	2.4.5 Demonstrates an understanding of grade reconciliation, ore dilution and ore loss	34
	2.5.1 Prepares the required inputs for an economic evaluation of a mine (e.g. personnel, equipment etc.)	37
	2.5.2 Provides input into feasibility studies	34
	2.5.3 Develops production schedules. Prepares cost estimates for feasibility studies	28
	2.5.4 Conducts sensitivity analyses recognising the geological, technical, financial, social and political uncertainties in min	26
Mining geomechanics and technical mine design	3.1.1 Reviews engineering geology and geotechnical data (including Identifies hazards and modes of failure)	55
	3.1.2 Designs testing programmes for geotechnical studies. Undertake geotechnical testing	41
	3.1.3 Conducts rock mass and soil classifications	51
	3.1.4 Understands rock and soil characteristics and identifies failure indications, fundamentals of rock mechanics	53
	3.1.5 Conducts mine geotechnical mapping	42
	3.1.6 Incorporates geology and geomechanic information when selecting mining methods	51
	3.1.7 Provides input on geotechnical issues that influence drill and blast designs	44
	3.1.8 Designs ground support and stope stability plans (e.g. underground, coal, hard rock)	44
	3.2.1 Procures and installs (or supervises the installation of) ground support	32
	3.2.2 Assesses risk and implements controls and associated monitoring	38
	3.3.1 Recommends methods, equipment and processes	49
	3.3.2 Develops initial design	48
	3.3.3 Uses simulation and other techniques to optimise designs	38
	3.3.4 Monitors implementation of mine design	35
	3.4.1 Establishes project and evaluate plans	36
	3.4.2 Develops mine rehabilitation and closure plans	39
	3.4.3 Manages rehabilitation including monitoring and reporting processes	28
	3.5.1 Oversees the implementation of plans	34
	3.5.2 knowledge of how to reviews progress against plans and take measures accordingly	29
	3.6.1 Design, operation and maintenance of explosive production plants	28
	3.6.2 Designs drill and blast patterns (e.g. spacing, burden, charge, fragmentation)	42
	3.6.3 Controls fragmentation size by blasting	31
	3.6.4 Understands and applies knowledge and experience of production drilling operations and equipment	34
	3.6.5 Determines the most suitable drill and blast techniques to achieve desired outcomes	34
	3.6.6 Understands and uses drill and blast software	26
	3.6.7 Identifies hazards, assesses risk and implements suitable controls	33
Mining methods	4.1.1 General knowledge of mining methods and operations	69
	4.1.2 Comprehends 3D mine plans	37
	4.1.3 Understands the importance of cycle time and its impact on mine productivity	50
	4.1.4 Understands how the planning, geology and mine operations teams work together	53
	4.2.1 Understands the design methods and standards used in pit, ramp and dump design	53
	4.2.2 Calculates basic pit/dump designs and overall pit wall angles for given design parameters	46
	4.2.3 Designs truck and shovel excavations	39
	4.2.4 Develops airborne dust management plans	26
	4.2.5 Optimises open pit design (e.g. Whittle)	42
	4.3.1 Selects a mine stoping and method system for a generic ore body	56
	4.3.2 Knows wood timbering techniques (small scale mining and temporary openings)	28
	4.3.3 Designs stope, roof and galleries support	50
	4.3.4 Conducts underground testing of support elements	34
	4.4.1 knowledge of how to designs mine backfilling systems, including delivery and quality requirements	32
	4.5.1 Demonstrates a detailed knowledge of the reclamation process. Designs tailings disposal facilities	35
	4.5.2 Management of residues and effluents: collect, store and reuse	31
Mining equipment and systems	5.1.1 Uses key factors to select suitable mining machines (e.g. operational characteristics, costs, productivity, and performance)	49
	5.1.2 Uses maintenance tactics to plan maintenance schedules	23
	5.1.3 Evaluates the performance of mining equipment and machines, including to inform scheduling. Monitors equipment delays	33
	5.2.1 Design electrification projects in mines	16
	5.3.1 Understands the characteristics of loading equipment and operations	36
	5.3.2 Designs dragline excavations and spoil piles	20
	5.4.1 Designs roads and haul roads with correct cambers, drainage, traffic consideration etc.	30
	5.4.2 Prepares haulage and trucking plans	28
	5.4.3 Designs, exports and analyses haulage models	25
	5.4.4 Designs and develops schedule plans for continuous haulage systems (e.g. conveyor systems)	24
	5.4.5 Designs efficient mine winder systems. Winch and shafts	15
	5.5.1 Demonstrates proficiency in using at least one mining software package (e.g. VULCAN, DESWIK, XPAC)	33
	5.5.2 GIS knowledge	20
	5.5.3 Demonstrates proficiency in using 2D CAD software	29
	5.5.4 Demonstrates proficiency in using 3D CAD software	23
Mining services	6.1.1 Measurements, site planning, management and follow-up of engineering projects	34
	6.1.2 Earth movement control	27
	6.1.3 Design of hydraulic and pneumatic systems applied to mining	11
	6.2.1 Designs dewatering systems for open pit and underground mines: inflow risks and aquifer interferences	28
	6.2.2 Calculates water pumping capacity and pumping strategies	20
	6.2.3 Designs storm water management systems for open pit mines	17
	6.2.4 Designs dam spillways and discharge strategies	19
	6.3.1 Calculates the water balance for a site, including tailings dams	24
	6.3.2 Undertakes surveys and monitoring of water quality	19
	6.3.3 Designs water treatment systems to achieve discharge requirements	19
	6.4.1 Understands and applies the key principles to mitigate air pollution and toxic gas concentrations in underground mining	37
	6.4.2 Uses ventilation software to model ventilation systems	27
	6.4.3 Designs efficient ventilation systems for underground mine designs	28
	6.5.1 Assists with the design of power reticulation systems	24
	6.6.1 Designs communication systems for Automous Mining systems	16
	6.7.1 Undertakes basic mine surveys	34
	6.7.2 Interprets survey data, plans, maps and photos	33
	6.7.3 Manages surveying operations	25
Mineral production and processing	7.1.1 Understands mineral processing route and feed grade/quality controls	33
	7.2.1 Applies the quality blending and sampling logic of a site. Understands the implications of marginal stockpiles	32
	7.3.1 Recognises the characteristics of different comminution and sizing equipment and their limitations	43
	7.4.1 Understands and applies knowledge of process steps, applications and limitations	49
	7.5.1 Understands and interprets details of sales contracts (e.g. custom smelter requirements)	15
	7.5.2 Application of thermal, mechanical, chemical processes to optimise material properties	23
	7.5.3 Materials quality control	22
	7.5.4 Design, operation and maintenance of processing and treatment plants for minerals, industrial rocks, dimensional stone an	26
	7.5.5 Design, operation and maintenance of metallurgical plants	18
	7.6.1 knowledge of quality assessment and certification. EU and international standards and labels	18
	7.6.2 Capacity to design recycling plants	16
	7.6.3 knowledge on the supervision and or operating recycling plants	13
	7.6.4 Ability to perform investigation and development in the field of new materials and new processes	22
	7.6.5 General knowledge on the renewable sources of energy	26
	7.6.6 Knowledge on the regulatory barriers for secondary raw materials	17
	7.6.7 General knowledge of the principles of circular economy, climate change and the recycling market	24
	7.6.8 Practical knowledge on waste management	30
Generic, health and social tasks	8.1.1 knowledge and management of environmental impact assessment studies	37
	8.2.1 Develops and disseminates safe practice guidelines	25
	8.3.1 Communication in native language	15
	8.3.2 Community relations	14
	8.3.3 knowledge of a foreign relevant-word wide spread language (English, Spanish, French, German, Chinese, etc.)	11
	8.3.4 Using internet in a critical manner as communication tool and source of information	17
	8.3.5 Know and describes Social Geology and Geopolitics	9
	8.3.6 Listens and communicates effectively. Chairs meetings. Prepares documents and reports	21
	8.3.7 Promotes company, industry and profession	16
	8.3.8 Ability to communicate Earth Science issues with the wider society	17
	8.4.1 Identifies, scopes and solves problems	22
	8.4.2 Uses conceptual, critical, strategic and systems thinking skills	21
	8.4.3 Researches new products, technologies and processes	15
	8.5.1 Engages with stakeholders. Recognises corporate social responsibility	22
	8.5.2 Know and apply principles of sustainable development	21
	8.6.1 Accepts responsibility	21
	8.6.2 Develops and maintains networks	19
	8.6.3 Initiative and entrepreneurship spirit	16
	8.7.1 Works effectively in interdisciplinary and international teams	26
	8.7.2 Recognises diversity and multiculturalism (knowledge of other cultures and customs)	24
	8.7.3 Identify objectives and individual and collective responsibilities and act correctly in such roles	20
	8.7.4 Ethics. Transmit credibility and integrity	25
	8.7.5 Coaching and leading teams	18
Social Performance	9.1.1 Capacity to understand and apply anthropological, ethnographic and archaeological knowledge	17
	9.1.2 Manage and apply concepts as a human right and gender equality	21
	9.10.1 Works effectively with local employment organisation in order to register workforce's skills, availabilities and dynamic	10
	9.11.1 Apply entrepreneurship skill to support current or future local business	10
	9.2.1 Monitoring Social projects ensuring its achieving community and business's objectives	14
	9.2.2 Manages social research's tools to measure outcomes during and at the end of the social project	11
	9.3.1 Identify potential conflicts related to the use of land and water by the project	14
	9.3.2 Understanding and applying principles of Free Prior Informed Consent (FPIC)	8
	9.4.1 Implement and manage a grievance mechanism	8
	9.4.2 Manage methodologies to detect previous or arising conflicts	13
	9.4.3 Apply conflicts resolutions techniques	8
	9.5.1 Comprehend and apply Cultural Heritage Management (CHM)	9
	9.5.2 Recognise stakeholders to work within CHM	9
	9.6.1 Understand and practice dialogue skills in engaging with communities	17
	9.7.1 Multi-disciplinary stakeholder management to include different groups in the identification of previous agreements	9
	9.8.1 Leadership skills to develop and coordinate relocation processes	8
	9.8.2 Enlightening. Influencing and convincing policy makers and stakeholders	7
	9.9.1 knowledge of ecomic development framework to apply in a local a context	13

Language

Language is probably the most important factor in acquiring the skills listed above. Be it as primary or secondary (sometimes-tertiary) language. Many programmes offer parts of their courses in the mother tongue (mainly the basics) and the courses that are more advanced or specific programmes in a foreign language. It is apparent that English is by far the most common teaching language in world, followed by Spanish (Figure 5). In total 122 institutions state that they are at least partly teaching in English. What's interesting about this is the fact that although 71 name English as their primary teaching language, only 40 of the respective institutions are in an English native speaking country. Others range from Finland to Belgium and from Colombia to Japan. Fifty-nine institutions teach in Spanish. Some languages like Italian, Danish or Korean are only used as secondary language.

Figure 5

Teaching language by abundance (primary, secondary and and tertiary langauge).

Conclusions

This paper presents a new concept for assessing raw materials education and comparing the results worldwide. Rather than analysing the individual curricula and listing the subjects taught at different institutions, an approach was chosen to identify the skills and knowledge that students acquire because of their studies. This leads to a much better understanding of the capacities of the students, which will be the future workforce of the industry. Furthermore, this makes individual study programmes comparable on a global basis.

A skills catalogue has been developed for the raw materials sector, mainly dealing with skills necessary for identifying and extracting primary resources but also for dealing with secondary raw materials. The catalogue is organised in a cascade of three different levels of hierarchy: Job areas, Job sub areas and Skills. All in all the catalogue represents 315 individual skills organised in nine job areas: ‘Business Management’, ‘Geology, Exploration, Resources and Reserves’, ‘Mining geomechanics and technical mine design’, ‘Mining Methods’, ‘Mining Equipment and Systems’, ‘Mining Services’, ‘Mineral Production and Processing’, ‘Social performance’ and ‘Recycling and secondary mineral raw materials. Circular Economy’.

A shortened version of this skills catalogue was transferred into an online questionnaire and distributed to raw materials educators worldwide. The survey has provided good coverage of 199 individual institutions from 92 countries. Amongst the main results we conclude that most of the ‘soft skills’ in business management and social aspects around raw materials education seem to be fairly underrepresented compared to technical skills.

The results of this study provide the basis for future considerations on raw materials education. It will be important to assess the future needs of the mining industry and bridge the gaps that are apparent from the present study.

Footnotes

Acknowledgements

This project has received funding from the European Union's Horizon 2020 research and innovation programme under Grant Agreement No 776642. The authors furthermore wish to thank all the people who responded to our survey and provided this unique dataset.

Disclosure statement

No potential conflict of interest was reported by the author(s).

References

American Geological Institute (AGI). 2012. Critical needs for the twenty-first century. the role of the geosciences. [accessed 2019 Oct 17]. https://www.americangeosciences.org/sites/default/files/CriticalNeeds2012.pdf.

Cambridge Dictionary. 2019. Cambridge Dictionary | English Dictionary, Translations & Thesaurus. [accessed 2019 Sep 30]. https://dictionary.cambridge.org/.

Centre for Teaching Support & Innovation. 2019. What are learning outcomes? [accessed 2019 Oct 16]. https://teaching.utoronto.ca/teaching-support/course-design/developing-learning-outcomes/what-are-learning-outcomes/.

Cobalt. COBALT > Home. [accessed 2019 Sep 30]. https://www.cobalt-fp7.eu/.

Collins Online Dictionary. 2019. Collins Online Dictionary | Definitions, Thesaurus and Translations. [accessed 2019 Sep 30]. https://www.collinsdictionary.com/.

Dowling

, Mining Education Australia. 2015. A graduate capability framework for the mining engineering degree programme; a guide for MEA universities. Final version, October 2015 (unpublished).

EMPL DG. 2018a. ESCO – European Commission. [accessed 2019 Sep 30]. https://ec.europa.eu/esco/portal/home, updated on 4/26/2018.

EMPL DG. 2018b. ESCO - Skills/competences - European Commission. [accessed 2019 Sep 30]. https://ec.europa.eu/esco/portal/skill, updated on 4/26/2018.

Ernst & Young (Ed.). 2016. Top 10 business risks facing mining and metals, 2016–2017. [accessed 2017 Feb 27]. http://www.ey.com/Publication/vwLUAssets/EY-business-risks-in-mining-and-metals-2016-2017/%24FILE/EY-business-risks-in-mining-and-metals-2016-2017.pdf.

10.

Ernst & Young (Ed.). 2018. Top 10 business risks facing mining and metals in 2019–20. [accessed 2019 Sep 30]. https://www.ey.com/en_gl/mining-metals/10-business-risks-facing-mining-and-metals.

11.

Ernst & Young (Ed.). 2019. Top 10 business risks and opportunities — 2020. [accessed 2019 Oct 17]. https://assets.ey.com/content/dam/ey-sites/ey-com/en_gl/topics/mining-metals/mining-metals-pdfs/ey-top-10-business-risks-and-opportunities-2020.pdf?download.

12.

Euro Ages. Euro-ages – home. [accessed 2019 Sep 30]. http://www.euro-ages.eu/.

13.

European Innovation Partnership on Raw Materials; European Commission (Eds.). 2016. Raw materials scoreboard.

14.

Hansen

, Oetinger

BV.

2001. Introducing T-shaped managers. knowledge management's next generation. Harvard Business Review. 79 (3): 106 – 165.

15.

Hartlieb

, Correia

, Jorda Bordehore

, Regueiro y Gonzalez-Barros

, Vidović

, Wenighofer

2020. Data for: a comprehensive skills catalogue for the raw materials sector and the structure of raw materials education worldwide: Mendeley (1), 2020. https://data.mendeley.com/datasets/sp3dvhr8y3/1.

16.

IIED. 2019. Mining, Minerals and Sustainable Development (MMSD). [accessed 2019 Sep 30]. https://www.iied.org/mining-minerals-sustainable-development-mmsd.

17.

Jeffrey

, Hameed

, McFarlane

2019. Analysis of education and outreach. Operational Report – Intraw Project.

18.

Society of Mining Professors (SOMP). 2015. Survey on international mining engineering programs.

19.

Summa

2008. The 21st century geoscience workforce: global opportunities and challenges in the energy industry. Joint Meeting of The Geological Society of America, Soil Science Society of America, American Society of Agronomy, Crop Science Society of America, Gulf Coast Association of Geological Societies with the Gulf Coast Section of SEPM, 2008.

20.

T-Dore Consortium. 2017. Required knowledge and skills of raw materials sector T-shaped innovation champions and barriers in their development. [accessed 2019 Oct 1]. https://www.vtt.fi/sites/TDore/results.

21.

ThingLink. 7 carreras ligadas a la minería by Universia. [accessed 2019 Sep 30]. https://www.thinglink.com/scene/562754907724054530?buttonSource=viewLimits.

22.

Weinert

FE.

2001. Concept of competence: a conceptual clarification. In: Rychen

, Salganik

, editors. Defining and selecting key competencies. Seatlte (WA): Hogrefe & Huber ; p. 45 – 65.
