Adaptive consensus algorithms for heterogeneous first-order multi-agent systems with diverse nominal velocities

Abstract

The consensus problem of heterogeneous first-order multi-agent systems with diverse nominal velocities is investigated in this paper, and three adaptive consensus algorithms are constructed by introducing an adaptive variable into the usual consensus algorithm. Under fixed interconnection topology, consensus criteria are obtained for the three algorithms. Moreover, delay-dependent consensus criteria are also presented for the three algorithms in synchronously coupled form under identical input delay and communication delay. Numerical examples are presented to illustrate the validity of our theoretical results.

Keywords

Heterogeneous multi-agent systems adaptive consensus algorithm input delay communication delay

Introduction

Recently, the consensus behaviour of distributed multiple autonomous dynamic agents has attracted much attention for its broad engineering applications, e.g. formation control of unmanned aerial vehicles, air traffic control and congestion control in the Internet, and has been extensively studied in various research fields including physics, computer simulation, and control theory, etc.

The consensus problem, which requires the outputs of several distributed autonomous agents to reach a common agreement, has been analysed mainly for homogeneous multi-agent systems, such as the identical single integrators called first-order multi-agent systems (Jadbabaie et al., 2003; Olfti-Saber and Murray, 2004; Ren, 2007; Sun et al., 2008) and the identical double integrators called second-order multi-agent systems (Cepeda-Gomez and Olgac, 2012; Hong et al., 2007; Ren and Atkins, 2007; Qin et al., 2011; Yu et al., 2010). Various consensus criteria have been obtained for the agents achieving asymptotic consensus under fixed topology or switching topologies.

Because the dynamics of agents coupled with each other are always different for various restrictions in real engineering applications, the consensus problem of the heterogeneous multi-agent system, which consists of agents with distinct dynamics, has interested many researchers in recent years.

Lee and Spong (2006) investigated the consensus problem of heterogeneous multiple dynamic agents, which were described by strictly stable linear systems, with diverse communication delays, and gained delay-independent consensus conditions in distributed form according to the spectral radius theorem. Liu and Liu (2011, 2013) and Zheng and Wang (2012) studied a simple heterogeneous multi-agent systems composed of first-order agents and second-order agents, and obtained consensus conditions for the agents under fixed or switching topologies. Hu et al. (2014) considered a heterogeneous multi-agent system consisting of Euler–Lagrange agents and double-integrator agents, and proposed a group consensus protocol with time-varying estimators of uncertain parameters. Based on algebraic graph theory and Barbalat’s lemma, sufficient convergence conditions were obtained (Hu et al., 2014). For heterogeneous multi-agent systems composed of single integrators, double integrators and nonlinear Euler–Lagrange agents, Liu et al. (2014) designed a stationary consensus algorithm and obtained the consensus criteria with some assumptions on exactly known parameters.

For heterogeneous linear multi-agent systems with parameter uncertainties, Kim et al. (2011) used the internal model principle to construct a distributed consensus algorithm based on output information to solve the output consensus seeking problem under some assumptions. Zhu (2014) investigated a class of heterogeneous linear multi-agent systems with a directed ring topology and solved the synchronization problem by using harmonic control. Dong et al. (2014) considered the leader-following output consensus tracking control of heterogeneous linear multi-agent systems, and proposed a distributed state feedback and an output feedback control, according to the internal model principle and the distributed estimation. Tian and Zhang (2012) studied the consensus problem for heterogeneous linear multi-agent systems with unknown communication delays, and adopted a distributed consensus algorithm with devisable self-delays, which were not assigned to equal the corresponding communication delays. In addition, a simple adaptive adjustment algorithm was also presented for online adjusting of the self-delays if the communication delays were unknown (Tian and Zhang, 2012). Moreover, Muenz et al. (2012) investigated a heterogeneous linear multi-agent system with unknown but bounded self-delays and communication delays. By analysing the convex sets of the frequency-domain feedback matrix, set-valued consensus conditions, which are robust and scalable to arbitrary scale topologies and arbitrary bounded time delays, have been obtained for the linear agents under synchronously coupled and asynchronously coupled consensus algorithms (Muenz et al., 2012).

The current literature on heterogeneous multi-agent systems has mainly focused on analysing the consensus algorithms, which have designs based on the agents’ states or outputs directly, but there has been little attention to the design of compensating for the distinct agents’ dynamics to make a heterogeneous multi-agent system become a homogeneous multi-agent system.

In this paper, we investigate a class of heterogeneous linear first-order agents, in which the agents have diverse non-zero nominal velocities. Three consensus algorithms in different forms are designed as the usual distributed consensus algorithm accompanied with an adaptive variable determined by the coordination control part based on local neighbouring agents’ states. Firstly, consensus criteria are presented for the three algorithms under fixed interconnection topology. Then, delay-dependent consensus criteria are also obtained for our proposed algorithms in synchronously coupled form under identical input delay and communication delay.

Problem formulation

The first-order agent’s dynamic is given by

\overset{\cdot}{x_{i}} (t) = α_{i} + u_{i} (t), i = 1, 2, \dots, n

(1)

where α_i ∈ R is a constant and denotes the nominal velocity of each agent and x_i ∈ R and u_i ∈ R are the state and input of agent i, respectively. In general, we say that the first-order dynamic agents (1) converge to a consensus asymptotically, if the agents’ states under arbitrary initial values satisfy

lim_{t \to \infty} (x_{i} (t) - x_{j} (t)) = 0, i, j = 1, 2, \dots, n

(1)

The interconnection topology of the multi-agent system (1) is usually described as a digraph. Each agent is considered as a node, while an information flow between neighbouring agents is regarded as a directed edge.

A digraph $G = (V, E, A)$ of order n is composed of a set of vertices $V = {1, \dots, n}$ , a set of edges $E \subseteq V \times V$ and a weighted adjacency matrix A = [a_ij] ∈ Rⁿ^×n with a_ij ≥ 0. The node indexes belong to a finite index set $I = {1, 2, \dots, n}$ . Let edge of $G$ be denoted by $e_{ij} = (i, j) \in E$ , i.e. e_ij is a directed edge from i to j and assume that $a_{ij} > 0 \Leftrightarrow e_{ij} \in E$ and a_ii = 0 for all $i \in I$ . The set of neighbours of node i is denoted by $N_{i} = {j \in V : (i, j) \in E}$ . The degree matrix is defined as $D = diag {\sum_{j = 1}^{n} a_{ij}, i \in I}$ , and the Laplacian matrix is defined as L = D − A.

If there is a path in $G$ from one node i to another node j, then j is said to be reachable from i; if not, then j is said to be not reachable from i. If a node is reachable from every other node in the digraph, then we say it is globally reachable. An undirected graph is connected if it contains a globally reachable node.

For the first-order multi-agent system (1), the usual consensus algorithm is given by

u_{i} (t) = κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)), i \in I

(2)

where κ > 0, N_i denotes the agent i’s neighbours, and a_ij > 0 is the adjacency element of A in the digraph $G = (V, E, A)$ .

Remark 1. The closed-loop form of (1) with (2) is given by

{\overset{\cdot}{x}}_{i} (t) = α_{i} + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)), i \in I

(3)

which is regarded as the linearized model of Kuramoto oscillators (Izhikevich and Kuramoto, 2006) when the errors between neighbouring oscillators approach zero; however, consensus seeking on ${\overset{\cdot}{x}}_{i}$ has been extensively studied for Kuramoto oscillators, but the consensus problem about x_i of system (3) has not, to the best of our knowledge, attracted researchers’ attention. Obviously, it can be proved by contradiction that the agents in system (3) cannot achieve an asymptotic consensus if each agent has a different nominal velocity. In this paper, we will propose adaptive consensus algorithms in the light of three strategies, which make the original heterogeneous multi-agent system become a homogeneous multi-agent system asymptotically by compensating for the agents’ diverse dynamics.

Different to the existing adaptive consensus algorithms, where the coupling weights are subjected to adaptive rules (Li et al., 2013), we design a new consensus algorithm by adding an adaptive variable plus the usual consensus algorithm (2) as follows

\begin{matrix} u_{i} (t) & = z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} (α_{j} + z_{j} (t) - α_{i} - z_{i} (t)), i \in I \end{matrix}

(4)

where κ > 0, γ > 0, a_ij > 0, j ∈ N_i and z_i is an added variable. The algorithm (4) requires that each agent’s nominal velocity is known and transmitted to its neighbours together with the adaptive variable.

For linear time-invariant multi-agent systems, the design concept of decentralized observers has been widely adopted to estimate unknown variables (Li et al., 2011). When α_i in equation (1) is unknown, we modify the consensus algorithm (4) by introducing a parameter estimator, as defined in Wu and Lu (2003), for each agent by using the agent’s self input and output

\begin{matrix} u_{i} (t) & = z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{β}}_{i} (t) & = - η β_{i} (t) - η^{2} x_{i} (t) - η u_{i} (t) \\ {\hat{α}}_{i} (t) & = β_{i} (t) + η x_{i} (t) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} ({\hat{α}}_{j} + z_{j} (t) - {\hat{α}}_{i} - z_{i} (t)), i \in I \end{matrix}

(5)

where κ > 0, γ > 0, η > 0, a_ij > 0, j ∈ N_i, and ${\hat{α}}_{i}$ estimates α_i.

Besides equations (4) and (5), the dynamics of the adaptive variable are also determined by the coordination control parts of agents’ states

\begin{matrix} u_{i} (t) = z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{z}}_{i} (t) = γ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)), i \in I \end{matrix}

(6)

where κ > 0, γ > 0, a_ij > 0 and j ∈ N_i.

In addition, we make the following assumption on the interconnection topology.

Assumption 1. The interconnection topology of multi-agent system (1) has a globally reachable node.

Under Assumption 1, we obtain that zero is a simple eigenvalue of L, i.e. rank (L) = n − 1 and the other eigenvalues all have positive real parts (Lin et al., 2005). Moreover, the eigenvalues of L are denoted as $λ_{i}, i \in I$ , and we let λ₁ = 0 and λ_i≠ 0,i = 2,…,n.

Consensus analysis

Consensus algorithm without time delay

Firstly, we analyse the consensus criterion for multi-agent system (1) under (4)

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) = α_{i} + z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)), \\ {\overset{\cdot}{z}}_{i} (t) = γ \sum_{j \in N_{i}} a_{ij} (α_{j} + z_{j} (t) - α_{i} - z_{i} (t)), i \in I . \end{matrix}

(7)

Theorem 1. Under Assumption 1, the agents in system (7) achieve an asymptotic consensus.

Proof. System (7) is reformulated in a multi-variable form as

[\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{v} \end{matrix}] = [\begin{matrix} - κ L & I \\ 0 & - γ L \end{matrix}] [\begin{matrix} x \\ v \end{matrix}]

(8)

where x = [x₁,x₂,…,x_n]^T, v = [v₁,v₂,…,v_n]^T and v_i = α_i+z_i. Evidently, the characteristic equation of system (8) is given as

det (sI - [\begin{matrix} - κ L & I \\ 0 & - γ L \end{matrix}]) = 0

(9)

i.e.

det (sI + κ L) \times det (sI + γ L) = 0

Under Assumption 1, equation (9) has two roots at s = 0 whose geometric multiplicity is one and the other roots of equation (9) which have negative real parts. Since $\overset{\cdot}{v} = - γ Lv$ in (8), we get ${lim}_{t \to \infty} v_{i} (t) = c, i \in I$ from Lemma 2.6 in Ren and Beard (2008), i.e. $v_{i}, i \in I$ converges to a stationary consensus asymptotically. According to Lemma 4 in our previous paper (Liu and Liu, 2013), we obtain ${lim}_{t \to \infty} x_{i} (t) = c_{2 i} t + c_{3 i}, i \in I$ because the roots of equation (9) lie on the open left half of the complex plane except for two roots at s = 0. Thus, we obtain

lim_{t \to \infty} \frac{d (C_{2} t + C_{3})}{dt} = lim_{t \to \infty} (C - κ L (C_{2} t + C_{3}))

(10)

where C = [c,…,c]^T, C₂ = [c₂₁,…,c_2n]^T and C₃ = [c₃₁,…,c_3n]^T. Since equation (10) holds for arbitrary t, we get LC₂ = 0 and LC₃ = 0, i.e. C₂ = [c₂,c₂,…,c₂]^T and C₃ = [c₃,c₃,…,c₃]^T; hence, the agents (7) converge to a consensus asymptotically.

Then, the closed-loop system of (1) and (5) is given by

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) & = α_{i} + z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{β}}_{i} (t) & = - η β_{i} (t) - η^{2} x_{i} (t) - η u_{i} (t) \\ {\hat{α}}_{i} (t) & = β_{i} (t) + η x_{i} (t) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} ({\hat{α}}_{j} + z_{j} (t) - {\hat{α}}_{i} - z_{i} (t)), i \in I \end{matrix}

(11)

Theorem 2. The agents (11) under Assumption 1 achieve an asymptotic consensus.

Proof. Let $e_{i} = {\hat{a}}_{i} - a_{i}$ , the system (11) can be rewritten as

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) = α_{i} + z_{i} (t) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{z}}_{i} (t) = γ \sum_{j \in N_{i}} a_{ij} (α_{j} + z_{j} (t) - α_{i} - z_{i} (t)) + γ \sum_{j \in N_{i}} a_{ij} (e_{j} (t) - e_{i} (t)) \\ {\overset{\cdot}{e}}_{i} (t) = - η e_{i} (t), i \in I \end{matrix}

(12)

The system (12) is reformulated in a multi-variable form as

[\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{v} \\ \overset{\cdot}{e} \end{matrix}] = [\begin{matrix} - κ L & I & 0 \\ 0 & - γ L & - γ L \\ 0 & 0 & - η I \end{matrix}] [\begin{matrix} x \\ v \\ e \end{matrix}]

(13)

where x = [x₁,x₂,…,x_n]^T, e = [e₁,e₂,…,e_n]^T, v = [v₁,v₂,…,v_n]^T and v_i = α_i+z_i. Then, the characteristic equation of system (13) is given by

det (sI - [\begin{matrix} - κ L & I & 0 \\ 0 & - γ L & - γ L \\ 0 & 0 & - η I \end{matrix}]) = 0

(14)

i.e.

(s + η)^{n} det (sI + κ L) \times det (sI + γ L) = 0

(15)

Using Assumption 1, the roots of equation (14) lie in the open left half of the complex plane, except for two roots at s = 0 whose geometric multiplicity is one. Similar to the proof of Theorem 1, we prove that ${lim}_{t \to \infty} e_{i} (t) = 0, {lim}_{t \to \infty} v_{i} (t) = c, {lim}_{t \to \infty} x_{i} (t) = c_{2} t + c_{3}, i \in I$ , i.e. the agents in equation (11) converge to a consensus asymptotically.

Remark 2. Equation (15) illustrates that algorithm (5), with parameter estimation, satisfies the so-called separation principle in linear system theory, i.e. algorithm (5) with a stable parameter estimator has the same consensus convergence properties as algorithm (4). Thus, the consensus conditions for system (7) can be directly extended to system (11) with a stable parameter estimator.

Finally, the closed-loop form of (1) with (6) is formulated as

\begin{matrix} {\overset{\cdot}{x}}_{i} = α_{i} + z_{i} + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t) - x_{i} (t)) \\ {\overset{\cdot}{z}}_{i} = γ \sum_{j \in N_{i}} a_{ij} (x_{j} - x_{i}), i \in I \end{matrix}

(16)

Before presenting our result, we first introduce the following useful lemma.

Lemma 1. (Parks and Hahn, 1993) Consider a quadratic equation with complex coefficients

s^{2} + (ξ_{1} + j δ_{1}) s + ξ_{2} + j δ_{2} = 0

where ξ₁, δ₁, ξ₂ and δ₂ are real constants. Then, the equation has its roots on the open left half of the complex plane if and only if

ξ_{1} > 0

and

ξ_{1}^{2} ξ_{2} + ξ_{1} δ_{1} δ_{2} > δ_{2}^{2}

hold simultaneously.

Theorem 3. Using Assumption 1, the agents in system (16) achieve an asymptotic consensus, if and only if

κ^{2} {Re}^{3} (λ_{i}) + κ^{2} Re (λ_{i}) {Im}^{2} (λ_{i}) > γ {Im}^{2} (λ_{i})

(17)

where λ_i,i = 2,…,n, are the non-zero eigenvalues of L.

Proof. System (16) is reformulated in a multi-variable form as

[\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{v} \end{matrix}] = [\begin{matrix} - κ L & I \\ - γ L & 0 \end{matrix}] [\begin{matrix} x \\ v \end{matrix}]

(18)

where x = [x₁,x₂,…,x_n]^T, v = [v₁,v₂,…,v_n]^T and v_i = α_i+z_i. By taking Laplace transforms, the characteristic equation of system (17) about x is given by

det (s^{2} I + (s κ + γ) L) = 0

(19)

Under Assumption 1, equation (19) is equivalent to

s^{2} Π_{i = 2}^{n} det (s^{2} + (s κ + γ) (Re (λ_{i}) + jIm (λ_{i}))) = 0

Thus, it is easily proved from Lemma 1 that if and only if (17) holds the roots of equation (19) all lie in the open left half of the complex plane, except for two roots at s = 0, of which the geometric multiplicity is one. Thus, we obtain lim_t→∞x_i = d_i₀t+d_i₁ and lim_t→∞v_i = d_i₂t+d_i₃, where d_0i ∈ R,d_1i ∈ R,d_2i ∈ R,d_3i ∈ R. From equation (18), we get

\begin{matrix} lim_{t \to \infty} \frac{d (D_{0} t + D_{1})}{dt} = lim_{t \to \infty} (- κ L (D_{0} t + D_{1}) + D_{2} t + D_{3}) \\ lim_{t \to \infty} \frac{d (D_{2} t + D_{3})}{dt} = lim_{t \to \infty} (- γ L (D_{0} t + D_{1})) \end{matrix}

where D₀ = [d₀₁,…,d_0n]^T, D₁ = [d₁₁,…,d_1n]^T, D₂ = [d₂₁,…,d_2n]^T and D₃ = [d₃₁,…,d_3n]^T. Since the above equations hold for arbitrary t, we prove that D₂ = 0, D₀ = D₃ = [d₀,d₀,…,d₀]^T and D₁ = [d₁,d₁,…,d₁]^T; hence, the agents in equation (16) converge to a consensus asymptotically.

Remark 3. The difference between algorithms (4) and (6) yields different consensus convergence conditions. Evidently, algorithm (6) cannot be robust to any interconnection topology satisfying Assumption 1, but algorithm (4) drives the agents to reach asymptotic consensus under the arbitrary interconnection topology meeting Assumption 1.

Consensus algorithm with time delays

In this section, we analyse the delay effect of our proposed algorithms with identical input delay and communication delay. Obviously, algorithms (4) and (5) have the same delay robustness for the separation principle. From Remark 3, we intuitively conclude that algorithm (6) bears smaller time delay than algorithms (4) and (5).

The dynamics of the agents in equation (7) under time delays are given by

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) & = α_{i} + z_{i} (t - T) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t - T - τ) - x_{i} (t - T - τ)) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} (α_{j} + z_{j} (t - τ) - α_{i} - z_{i} (t - τ)), i \in I \end{matrix}

(20)

where T > 0 and τ > 0 are the input and communication delay, respectively.

Theorem 4. Under Assumption 1, the agents in equation (20) achieve asymptotic consensus if and only if

T + τ < min_{i \in I, λ_{i} \neq 0} \frac{1}{κ | λ_{i} |} (\frac{π}{2} - | \arctan (\frac{Im (λ_{i})}{Re (λ_{i})}) |)

(21)

and

τ < min_{i \in I, λ_{i} \neq 0} \frac{1}{γ | λ_{i} |} (\frac{π}{2} - | \arctan (\frac{Im (λ_{i})}{Re (λ_{i})}) |)

(22)

where λ_i,i = 2,…,n, are the non-zero eigenvalues of L.

Proof. System (20) is reformulated in a multi-variable form as

\begin{matrix} [\begin{matrix} \overset{\cdot}{x} (t) \\ \overset{\cdot}{v} (t) \end{matrix}] = & [\begin{matrix} 0 & I \\ 0 & 0 \end{matrix}] [\begin{matrix} x (t - T) \\ v (t - T) \end{matrix}] + [\begin{matrix} 0 & 0 \\ 0 & - γ L \end{matrix}] [\begin{matrix} x (t - τ) \\ v (t - τ) \end{matrix}] \\ + [\begin{matrix} - κ L & 0 \\ 0 & 0 \end{matrix}] [\begin{matrix} x (t - T - τ) \\ v (t - T - τ) \end{matrix}] \end{matrix}

(23)

where x = [x₁,x₂,…,x_n]^T, v = [v₁,v₂,…,v_n]^T and v_i = α_i+z_i. Evidently, the characteristic equation of system (23) is given by

\begin{matrix} det (sI - [\begin{matrix} 0 & I \\ 0 & 0 \end{matrix}] e^{- sT} - [\begin{matrix} 0 & 0 \\ 0 & - γ L \end{matrix}] e^{- s τ} \\ - [\begin{matrix} - κ L & 0 \\ 0 & 0 \end{matrix}] e^{- s (T + τ)}) = 0 \end{matrix}

i.e.

det (sI + κ L e^{- s (T + τ)}) \times det (sI + γ L e^{- s τ}) = 0

which equals

det (sI + κ L e^{- s (T + τ)}) = 0

det (sI + γ L e^{- s τ}) = 0

Hence, under Assumption 1, Theorem 4 is proved in the same way as in Liu and Tian (2008, Theorem 1).

The multi-agent system (11) under time delays becomes

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) & = α_{i} + z_{i} (t - T) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t - T - τ) - x_{i} (t - T - τ)) \\ {\overset{\cdot}{β}}_{i} (t) & = - η β_{i} (t) - η^{2} x_{i} (t) - η u_{i} (t - T) \\ {\hat{α}}_{i} (t) & = β_{i} (t) + η x_{i} (t) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} ({\hat{α}}_{j} + z_{j} (t - τ) - {\hat{α}}_{i} - z_{i} (t - τ)), i \in I \end{matrix}

(24)

According to Remark 2, we obtain the following consensus criterion for system (24).

Theorem 5. The agents in equation (24) under Assumption 1 achieve an asymptotic consensus if and only if

T + τ < min_{i \in I, λ_{i} \neq 0} \frac{1}{κ | λ_{i} |} (\frac{π}{2} - | \arctan (\frac{Im (λ_{i})}{Re (λ_{i})}) |)

(25)

and

τ < min_{i \in I, λ_{i} \neq 0} \frac{1}{γ | λ_{i} |} ((\frac{π}{2} - | \arctan (\frac{Im (λ_{i})}{Re (λ_{i})}) |) r

(26)

where λ_i,i = 2,…,n, are the non-zero eigenvalues of L.

With time delays, the multi-agent system (16) becomes

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) & = α_{i} + z_{i} (t - T) + κ \sum_{j \in N_{i}} a_{ij} (x_{j} (t - T - τ) - x_{i} (t - T - τ)) \\ {\overset{\cdot}{z}}_{i} (t) & = γ \sum_{j \in N_{i}} a_{ij} (x_{j} (t - τ) - x_{i} (t - τ)), i \in I \end{matrix}

(27)

Theorem 6. With Assumption 1, the agents (27) achieve an asymptotic consensus if and only if

T + τ < min_{i \in I, λ_{i} \neq 0} {\frac{φ_{i 1}}{ϕ_{i 1}}}

(28)

where 0 ≤ φ_i₁ < 2π, which satisfies $\cos φ_{i 1} = [Re (λ_{i}) γ - Im (λ_{i}) ϕ_{i 1} κ] / ϕ_{i 1}^{2}$ and

\begin{matrix} \sin ϕ_{i 1} & = [Re (λ_{i}) φ_{i 1} κ + Im (λ_{i}) γ] / φ_{i 1}^{2}, φ_{i 1} \\ = \sqrt{\frac{| λ_{i} |^{2} κ^{2} + \sqrt{| λ_{i} |^{4} κ^{4} + 4 | λ_{i} |^{2} γ^{2}}}{2}} \end{matrix}

and λ_i,i = 2,…,n, are the non-zero eigenvalues of Laplacian matrix L.

Proof. Reformulate system (27) as

\begin{matrix} [\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{v} \end{matrix}] = & [\begin{matrix} 0 & I \\ 0 & 0 \end{matrix}] [\begin{matrix} x (t - T) \\ v (t - T) \end{matrix}] + [\begin{matrix} 0 & 0 \\ - γ L & 0 \end{matrix}] [\begin{matrix} x (t - τ) \\ v (t - τ) \end{matrix}] \\ + [\begin{matrix} - κ L & 0 \\ 0 & 0 \end{matrix}] [\begin{matrix} x (t - T - τ) \\ v (t - T - τ) \end{matrix}] \end{matrix}

(29)

where x = [x₁,x₂,…,x_n]^T, v = [v₁,v₂,…,v_n]^T and v_i = α_i+z_i, and the characteristic equation of system (29) is given by

\begin{matrix} det (sI & - [\begin{matrix} 0 & I \\ 0 & 0 \end{matrix}] e^{- sT} - [\begin{matrix} 0 & 0 \\ - γ L & 0 \end{matrix}] e^{- s τ} \\ - [\begin{matrix} - κ L & 0 \\ 0 & 0 \end{matrix}] e^{- s (T + τ)}) = 0 \end{matrix}

i.e.

det (s^{2} I + (s κ + γ) L e^{- s (T + τ)}) = 0

(30)

which is equivalent to

s^{2} Π_{i = 2}^{n} (s^{2} + (s κ + γ) λ_{i} e^{- s (T + τ)}) = 0

(31)

Obviously, equation (30) is the characteristic equation of the homogeneous second-order multi-agent system under the dynamical consensus algorithm, which is composed of the agents’ position and velocity coordination control parts, under identical input delay or identical communication delay in synchronously coupled form (Yu et al., 2010). Hence, from Yu et al. (2010, Theorem 2), the roots of equation (30) lie on the open left half of the complex plane except for two roots at s = 0, whose geometric multiplicity is one, if and only if equation (28) holds. The proof of Theorem 6 is now complete.

Remark 4. The consensus criteria in the theorems above of heterogeneous first-order multi-agent systems with our proposed algorithms are obtained by directly referring to some current works (Liu and Tian, 2008; Ren and Beard, 2008; Yu et al., 2010), but our new adaptive consensus algorithms provide a new design idea to solve the consensus problem of heterogeneous multi-agent systems.

Simulation

Consider a multi-agent network of six agents given by equation (1), and the interconnection topology is described in Figure 1. Obviously, the topology has more than one globally reachable node, and the edges’ weights are a₁₂ = 0.4, a₂₃ = 0.3, a₂₅ = 0.5, a₃₄ = 0.6, a₄₂ = 0.7, a₅₄ = 1.1, a₅₆ = 1.2 and a₆₁ = 0.6. For the diverse first-order agents in equation (1), nominal velocities are chosen as a₁ = 0.7, a₂ = −1.0, a₃ = 0.1, a₄ = 1.4, a₅ = 0.3 and a₆ = 0.5. By computation, the eigenvalues of Laplacian matrix are: λ₁ = 0, λ₂ = 2.1487, λ₃ = 1.0711+j0.3394, λ₄ = 1.0711 − j0.3394, λ₅ = 0.5092 and λ₆ = 0.6. In addition, we choose κ = 3.5 and γ = 1 for our three proposed consensus algorithms.

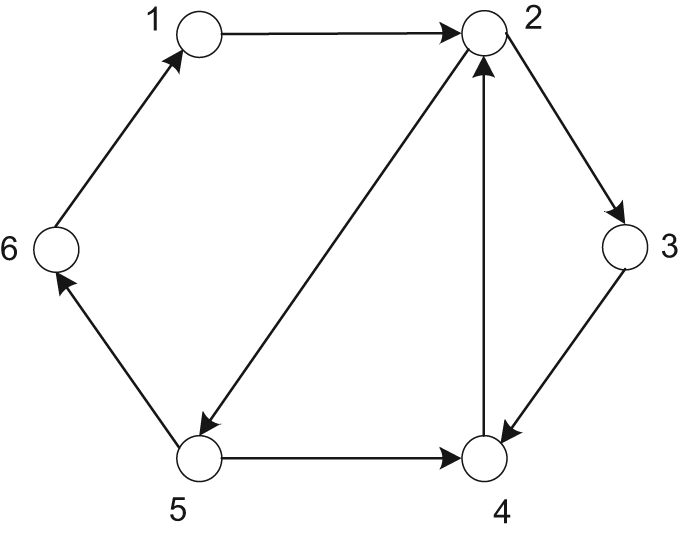

Figure 1.

Interconnection topology of six agents.

Firstly, we illustrate that the agents in equation (3) under the usual consensus algorithm (2) with κ = 3.5 and γ = 1 cannot achieve asymptotic consensus (see Figure 2), but the multi-agent system (7) converges to a consensus asymptotically (see Figure 3). With κ = 3.5 and γ = 1, moreover, the multi-agent system (12) under stable estimators with η = 1 reaches an asymptotic consensus, and the estimation also converges to the corresponding agent’s nominal velocity (see Figure 4). With κ = 3.5 and γ = 1, the inequality (17) holds, so the agents in equation (16) converge to a consensus asymptotically (see Figure 5); however, condition (17) cannot hold for arbitrary positive control parameters κ and γ, and Figure 6 shows that the agents in system (16) diverged when κ = 3.5 and γ = 150.

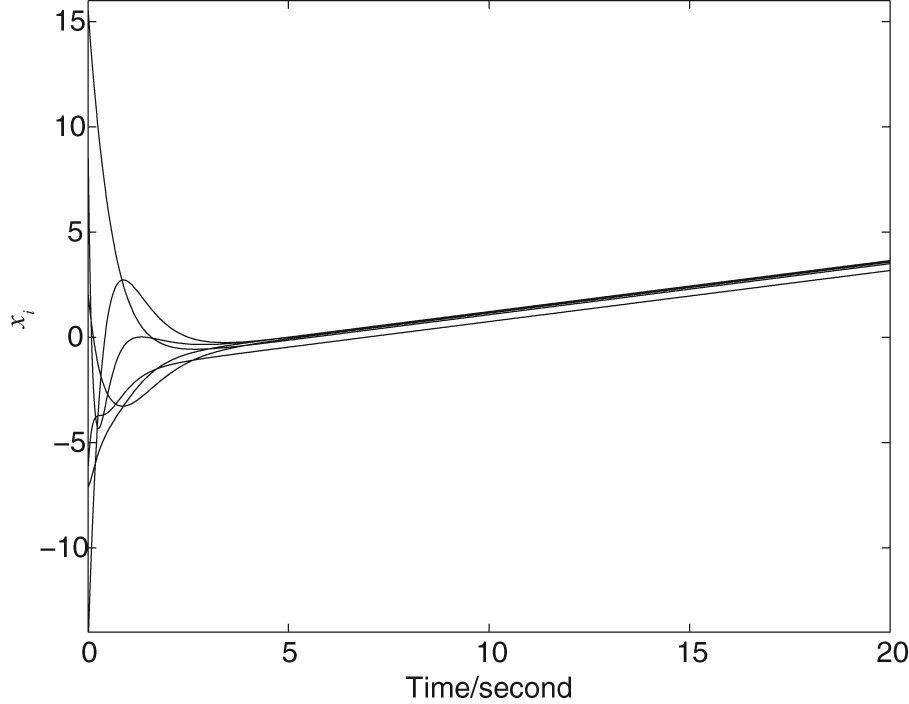

Figure 2.

Agents’ states under the usual consensus algorithm without the adaptive variable.

Figure 3.

Consensus convergence of agents’ states and trajectories of adaptive variables for system (7).

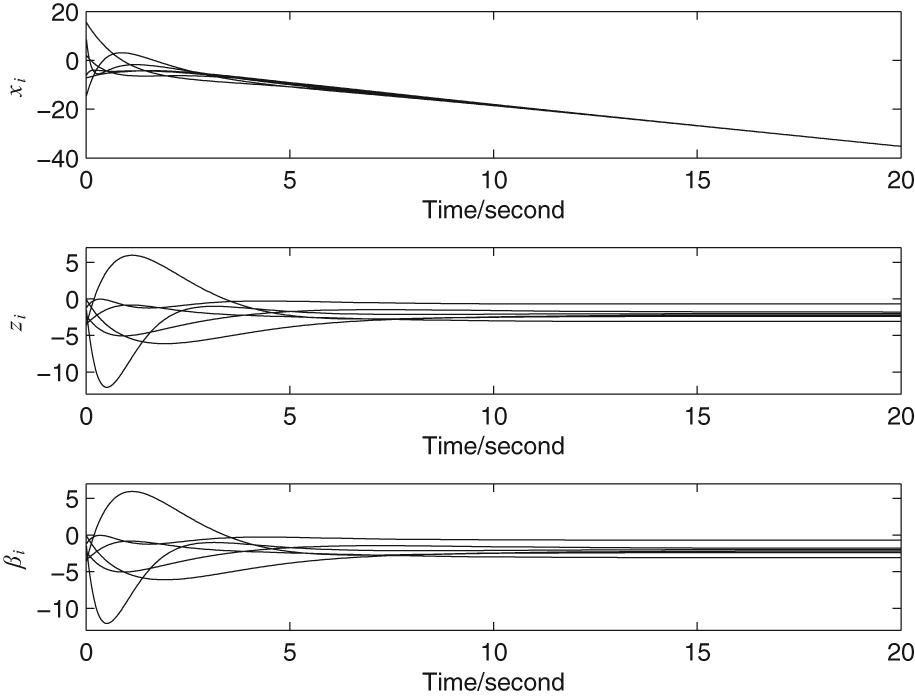

Figure 4.

States consensus convergence and trajectories of adaptive variables and parameters estimations for system (11).

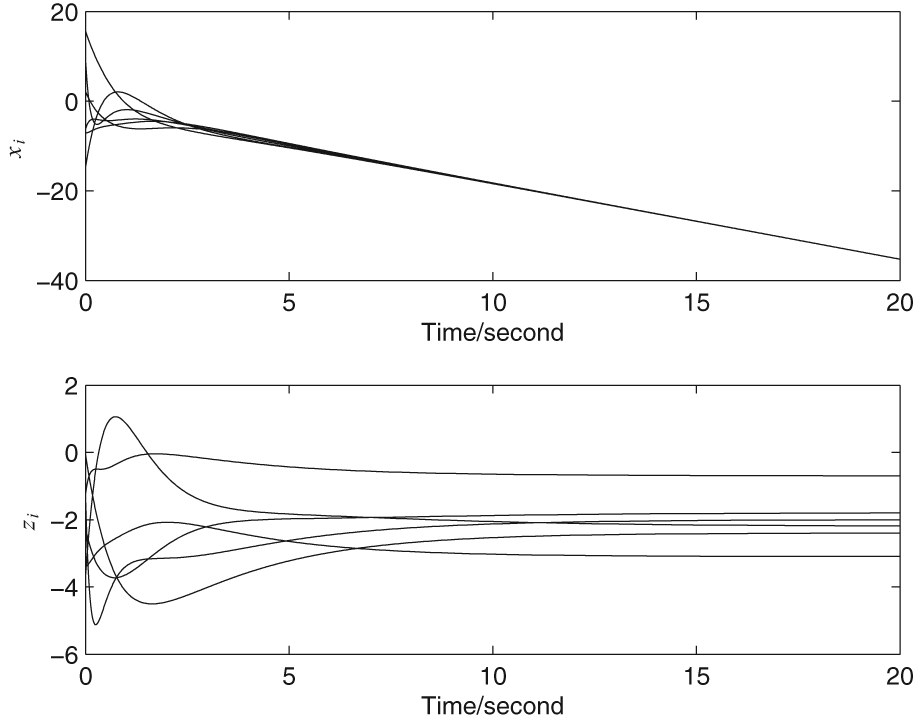

Figure 5.

Consensus convergence of agents’ states and trajectories of adaptive variables for system (16).

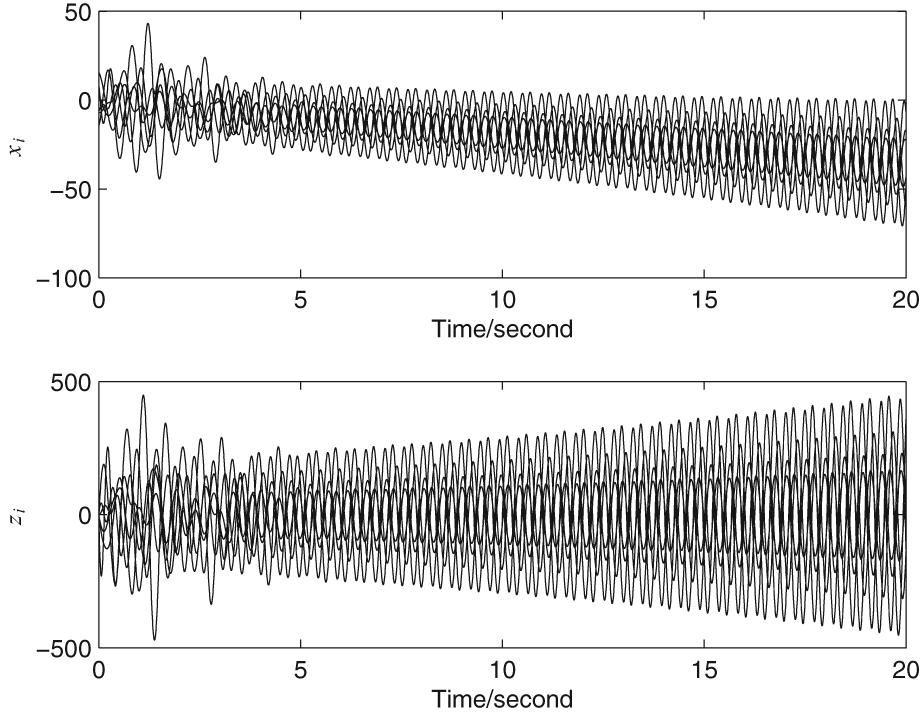

Figure 6.

Divergence of agents’ states and adaptive variables for system (16).

Then, we compute the delay bound of our proposed algorithms with the same interconnection topology and coupling weights as above. With κ = 3.5, γ = 1 and η = 1, the delay bounds of systems (20) and (24) are given by T+τ < 0.2089 s, from Theorems 4 and 5. Additionally, the delay bound of system (27) is T+τ < 0.2037 s from Theorem 6.

Conclusion

In this paper we have proposed three adaptive consensus algorithms to solve the consensus problem of heterogeneous first-order multi-agent systems with diverse nominal velocities. The first algorithm is constructed by introducing an adaptive variable, which is determined by the errors of neighbouring agents’ nominal velocities accompanied with the adaptive variables, into the usual consensus algorithm with an assumption that the nominal velocities are measured and exchanged between neighbouring agents. When the nominal velocity of each agent cannot be detected, the second algorithm is designed by introducing a parameter estimator of nominal velocity to the first algorithm. An adaptive variable of the last algorithm is determined by the errors of neighbouring agents’ states. Consensus criteria are obtained for our three algorithms under fixed interconnection topology, and the delay-dependent consensus criteria are also presented for the three algorithms in synchronously coupled form under identical input and communication delay. Although our main results have been obtained by directly referring to recent literature, the consensus algorithms in this paper show a new design idea of the adaptive consensus algorithm for solving the consensus problem of heterogeneous multi-agent systems.
