New Trends of Warthin Tumor Management: A Systematic Review of Nonsurgical Modalities

Search Strategy and Data Sources

For this review, comprehensive research was conducted in several databases to find relevant studies that evaluated nonsurgical approaches to the management of WT. The systemic search was conducted in PubMed, Web of Science, Cochrane, and Embase libraries databases. The keyword included: Warthin tumor, adenolymphoma, cystadenolymphoma, papillary cystadenoma lymphomatosum, and lymphomatous adenoma. Furthermore, the search also included keywords indicative of conservative nonsurgical treatment such as MWA, RFA, and ethanol sclerotherapy. For the current search, case reports, case series, cohort, case control, and clinical trials were included. All the articles were inspected and filtered to include articles on nonsurgical management. All age groups of both genders and various demographic characteristics were included in the study. Studies including the comparison between surgical and nonsurgical modalities or reports of non-salivary gland neoplasms were included as well. Articles published before the year 2012, non-English, and mixed methodology articles were excluded from the systematic review. Nonsurgical approaches that were investigated included MWA, radiofrequency, ultrasound-guided ethanol sclerotherapy (UGES), and conservative management.

Data Collection Process

All the matched articles from database searches were transferred to the reference manager (EndNote, 20 Thomson Reuters) with the exclusion of duplicate and non-English titles. Thereafter, endnote file was transferred to Rayyan, a web base software to expedite the initial screening of the search results. ¹⁷ The further process was divided into 3 stages: (1) selection of studies based on title and abstract that was eligible for inclusion in the review; (2) thorough analysis of the eligible articles keeping in view the aim of the review; (3) further search was refined based on exclusion and inclusion criteria and data were obtained in form of notes regarding the intervention used in studies, the number of participants, and the methods used.

Flow Diagram

The study design adheres to the PRISMA flow diagram and protocol, ¹⁸ outlining the systematic approach from identifying relevant articles to selecting articles that meet the eligibility criteria for further analysis (Figure 1).

OPEN IN VIEWER

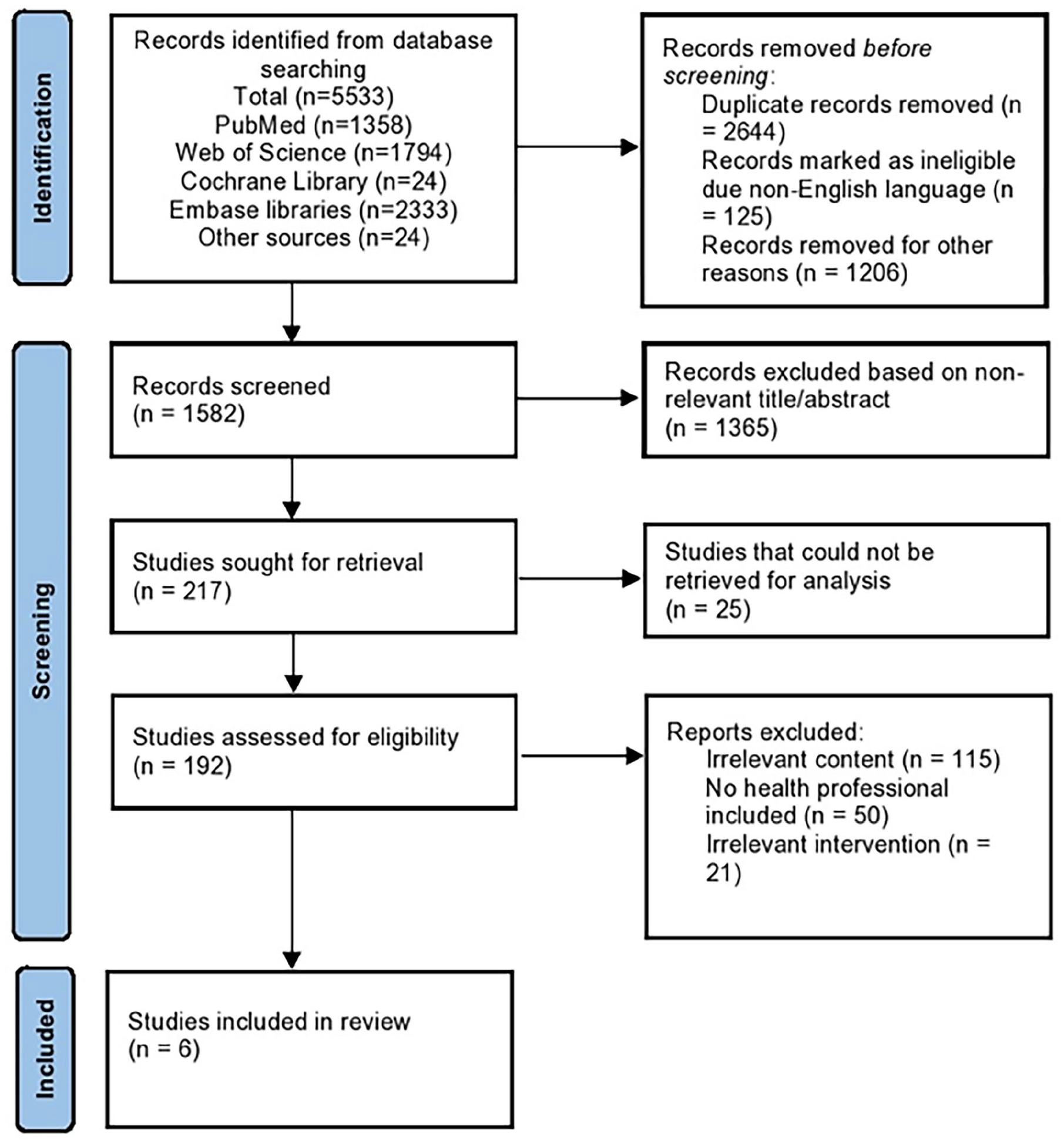

Figure 1.

PRISMA flow diagram for systematic review. PRISMA, Preferred Reporting Items for Systematic Reviews and Meta-Analyses.

Assessment of Methodological Quality

All included articles underwent assessment to ensure the quality of analysis aligned with the research methodology. Discrepancies in viewpoints were addressed through discussions or review by another evaluator. The Joanna Briggs Institute (JBI) critical appraisal tools^19-21 were utilized as a dependable resource to assess different study designs such as randomized controle trials, systematic reviews, and observational studies. A summary of the comprehensive analysis results was compiled and presented in Table 1.

OPEN IN VIEWER

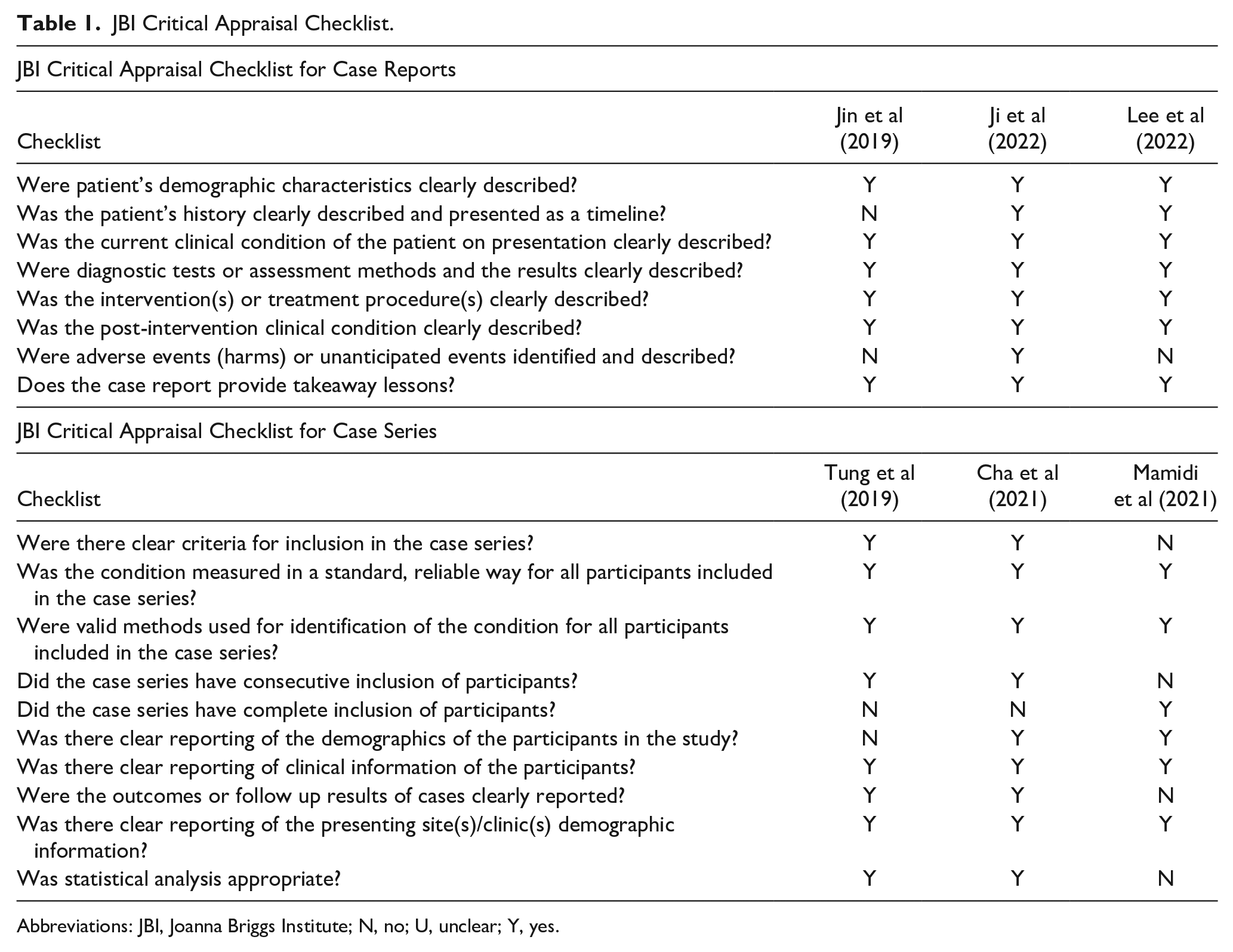

Table 1.

JBI Critical Appraisal Checklist.

JBI Critical Appraisal Checklist for Case Reports
Checklist	Jin et al (2019)	Ji et al (2022)	Lee et al (2022)
Were patient’s demographic characteristics clearly described?	Y	Y	Y
Was the patient’s history clearly described and presented as a timeline?	N	Y	Y
Was the current clinical condition of the patient on presentation clearly described?	Y	Y	Y
Were diagnostic tests or assessment methods and the results clearly described?	Y	Y	Y
Was the intervention(s) or treatment procedure(s) clearly described?	Y	Y	Y
Was the post-intervention clinical condition clearly described?	Y	Y	Y
Were adverse events (harms) or unanticipated events identified and described?	N	Y	N
Does the case report provide takeaway lessons?	Y	Y	Y
JBI Critical Appraisal Checklist for Case Series
Checklist	Tung et al (2019)	Cha et al (2021)	Mamidi et al (2021)
Were there clear criteria for inclusion in the case series?	Y	Y	N
Was the condition measured in a standard, reliable way for all participants included in the case series?	Y	Y	Y
Were valid methods used for identification of the condition for all participants included in the case series?	Y	Y	Y
Did the case series have consecutive inclusion of participants?	Y	Y	N
Did the case series have complete inclusion of participants?	N	N	Y
Was there clear reporting of the demographics of the participants in the study?	N	Y	Y
Was there clear reporting of clinical information of the participants?	Y	Y	Y
Were the outcomes or follow up results of cases clearly reported?	Y	Y	N
Was there clear reporting of the presenting site(s)/clinic(s) demographic information?	Y	Y	Y
Was statistical analysis appropriate?	Y	Y	N

Abbreviations: JBI, Joanna Briggs Institute; N, no; U, unclear; Y, yes.

Included Studies

The literature search provided 5533 potentially relevant articles from PubMed (n = 1358), Web of Science (n = 1794), Cochrane Library (n = 24), and Embase (n = 2333) databases whereas 24 articles were selected from the references area of the relevant articles. After the exclusion of duplicate studies and non-English publications, only 1582 records were further analyzed. Based on keywords and abstracts, 1365 publications were removed from the scope of this review. Of the residual corpus of literature, a thorough assessment was performed to identify the 6 most relevant studies for inclusion in the scope of the current review.

Study Characteristics

In the review, a collective of 21 cases were analyzed from 6 case studies and series, all involving male individuals with an average age of 67. Two cases originated from China, 17 from Taiwan, and 3 from the United States. Among included studies, 2 studies investigated the efficacy of MWA,^22,23 2 assessed the safety and efficacy of RFA,^24,25 and 2 evaluated the safety and efficacy of UGES for WT management.^26,27 The results of the extensive examination of the studies included were summarized and exhibited in Table 2.

OPEN IN VIEWER

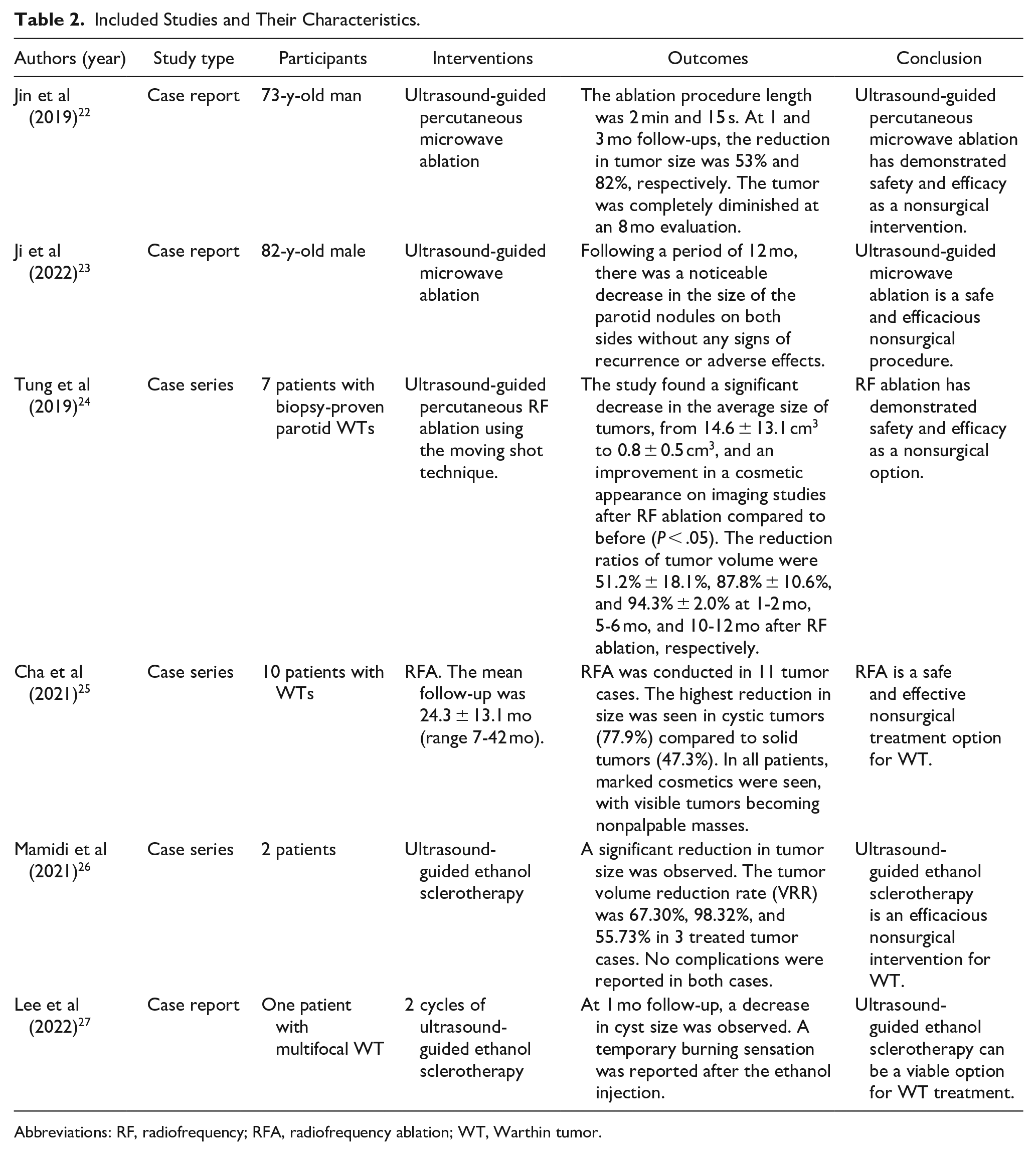

Table 2.

Included Studies and Their Characteristics.

Authors (year)	Study type	Participants	Interventions	Outcomes	Conclusion
Jin et al (2019) 22	Case report	73-y-old man	Ultrasound-guided percutaneous microwave ablation	The ablation procedure length was 2 min and 15 s. At 1 and 3 mo follow-ups, the reduction in tumor size was 53% and 82%, respectively. The tumor was completely diminished at an 8 mo evaluation.	Ultrasound-guided percutaneous microwave ablation has demonstrated safety and efficacy as a nonsurgical intervention.
Ji et al (2022) 23	Case report	82-y-old male	Ultrasound-guided microwave ablation	Following a period of 12 mo, there was a noticeable decrease in the size of the parotid nodules on both sides without any signs of recurrence or adverse effects.	Ultrasound-guided microwave ablation is a safe and efficacious nonsurgical procedure.
Tung et al (2019) 24	Case series	7 patients with biopsy-proven parotid WTs	Ultrasound-guided percutaneous RF ablation using the moving shot technique.	The study found a significant decrease in the average size of tumors, from 14.6 ± 13.1 cm3 to 0.8 ± 0.5 cm3, and an improvement in a cosmetic appearance on imaging studies after RF ablation compared to before (P < .05). The reduction ratios of tumor volume were 51.2% ± 18.1%, 87.8% ± 10.6%, and 94.3% ± 2.0% at 1-2 mo, 5-6 mo, and 10-12 mo after RF ablation, respectively.	RF ablation has demonstrated safety and efficacy as a nonsurgical option.
Cha et al (2021) 25	Case series	10 patients with WTs	RFA. The mean follow-up was 24.3 ± 13.1 mo (range 7-42 mo).	RFA was conducted in 11 tumor cases. The highest reduction in size was seen in cystic tumors (77.9%) compared to solid tumors (47.3%). In all patients, marked cosmetics were seen, with visible tumors becoming nonpalpable masses.	RFA is a safe and effective nonsurgical treatment option for WT.
Mamidi et al (2021) 26	Case series	2 patients	Ultrasound-guided ethanol sclerotherapy	A significant reduction in tumor size was observed. The tumor volume reduction rate (VRR) was 67.30%, 98.32%, and 55.73% in 3 treated tumor cases. No complications were reported in both cases.	Ultrasound-guided ethanol sclerotherapy is an efficacious nonsurgical intervention for WT.
Lee et al (2022) 27	Case report	One patient with multifocal WT	2 cycles of ultrasound-guided ethanol sclerotherapy	At 1 mo follow-up, a decrease in cyst size was observed. A temporary burning sensation was reported after the ethanol injection.	Ultrasound-guided ethanol sclerotherapy can be a viable option for WT treatment.

Abbreviations: RF, radiofrequency; RFA, radiofrequency ablation; WT, Warthin tumor.

Microwave Ablation

Two studies were identified in the literature that discussed MWA for the treatment of WT.^22,23 A study by Jin et al described the successful use of ultrasound-guided percutaneous MWA in the treatment of a parotid gland WT. MWA was carried out using a power output of 30 W, with the microwave antenna inserted into the parathyroid adenoma under ultrasound guidance. The moving-shot ablation technique, combined with ultrasound-guided stratified conformal ablation, was applied. The ablation area’s extent was determined by the echogenic alteration around the antenna, and the process continued until the tumor was completely encompassed by the vaporized region.

During the MWA procedure, there is a potential risk of harming crucial structures in the parotid gland and its surroundings, including the facial nerve, parotid duct, and skin, which could lead to postoperative complications like facial palsy, salivary fistula, gustatory sweating syndrome, insensible earlobe, and skin burns. To address these concerns, they implemented strategies such as injecting saline around the tumor to safeguard adjacent tissues, consistently applying ice saline at the puncture site to prevent skin burns. Moreover, they utilized a moving-shot ablation technique alongside ultrasound-guided stratified conformal ablation to target the tumor effectively while minimizing harm to surrounding healthy tissues. The procedure was performed without any complications and resulted in a significant reduction in tumor volume at both 1 and 3 month follow-ups, with complete resolution of the tumor at 8 months and no recurrence at 2 years. Based on these findings, the authors concluded that MWA is a viable nonsurgical option in patients for which surgery is not a suitable option. ²² Similarly, Ji et al also reported a case of walnut-sized WT in an 82-year-old male patient. The tumor was confirmed by core-needle biopsy as adenolymphoma. The patient underwent ultrasound-guided MWA. At the 12 month evaluation, the volume of WT was significantly reduced without any observable complications. ²³ The literature search revealed that MWA can be an option in patients who are older and have multiple underlying comorbidities such as cirrhosis and renal insufficiency. The findings of both case reports are promising; however, further investigation of this approach in larger patient cohorts is required to establish its efficacy and safety profile.

Radiofrequency Ablation

RFA is a minimally invasive medical procedure used to treat a range of pathological conditions by using high-frequency alternating current to generate thermal energy to destroy targeted tissue. ²⁸ This technique utilizes radiofrequency waves to create a field of high-energy electrical current that is delivered via a small, specialized electrode to the affected area. The electrical current causes the tissue to heat up rapidly, leading to cellular destruction through coagulation necrosis which ultimately results in the eradication of abnormal tissue without the need for invasive surgical procedures. ²⁹ The procedure is typically performed under local anesthesia and requires only a small incision to allow the insertion of the electrode into the target tissue. Two case series were found in the literature search.^24,25 Tung et al reported a case series of 7 patients with biopsy-confirmed parotid WTs who underwent ultrasound-guided percutaneous RFA under local anesthesia where an electrode was inserted through the posterior-inferior aspect of the mandibular angle, parallel to the maximum diameter axis of the WT. The tumor was divided into several ablation units, with each unit being sequentially treated by moving the electrode tip back and forth, from bottom to top. The ablated area’s size was gauged by the echogenic alterations surrounding the electrode. The ablation process ceased once the entire tumor compartment displayed transient hyperechoic zones. The procedures were completed without any adverse events or complications. Only one patient experienced parotitis with hematoma 12 days after the RFA procedure. Ablation was limited to the tumor capsule without extending into the surrounding parotid gland tissue. Focusing on ablating tissue within the tumor capsule as extensively as possible can aid in reducing tumor size and lowering the risk of facial nerve damage. In addition, the RFA procedure was performed with patients awake, allowing the operator to promptly address any discomfort or paresthesia by adjusting the needle’s position. These factors likely contributed to the absence of facial palsy in the study participants. At 10 to 12 months after RFA, all tumors showed significant reduction, with a mean volume reduction of 94.3% ± 2.0%. ²⁴ In another case series, Cha et al investigated the long-term efficacy of RFA in WTs. They followed up 10 patients for 24 ± 13.1 months. Their findings showed that cystic tumors demonstrated a higher reduction rate in tumor size compared to solid tumors at 1 month (77.9% vs 47.3%) and at 6 months (95.1% vs 80.6%). In their study, all residual tumors were located in the superficial lobes and depicted no increase in size. ²⁵

Ultrasound-Guided Ethanol Sclerotherapy

UGES is a minimally invasive therapeutic technique that involves the injection of ethanol into targeted blood vessels under the guidance of real-time ultrasound imaging. ³⁰ The ethanol injection causes sclerosis of the blood vessel, leading to its permanent closure and subsequent resolution of the associated symptoms. The use of ethanol as a sclerosing agent in this technique has several advantages, including its rapid and complete absorption by the body, low cost, and wide availability. ³¹ Mamidi et al assessed the efficacy of UGES for the management of WT. They reported that their 2 cases demonstrated a significantly reduced size of WTs including 67.30%, 98.32%, and 55.73% in 3 WT masses. No complication was observed during the management of the patients. ²³ In another case study by Lee et al, they represent a case of WT that was managed with partial parotidectomy and 2 cycles of UGES. At 1 month follow-up, a decrease in cyst size was observed; however, temporary burning sensation was reported after ethanol injection. ²⁷
