Exercise training programs to improve hand rim wheelchair propulsion capacity: a systematic review

Abstract

Objective:

An adequate wheelchair propulsion capacity is required to perform daily life activities. Exercise training may be effective to gain or improve wheelchair propulsion capacity. This review investigates whether different types of exercise training programs are effective in improving wheelchair propulsion capacity.

Data sources:

PubMed and EMBASE databases were searched from their respective inceptions in October 2013.

Review methods:

Exercise training studies with at least one outcome measure regarding wheelchair propulsion capacity were included. In this study wheelchair propulsion capacity includes four parameters to reflect functional wheelchair propulsion: cardio-respiratory fitness (aerobic capacity), anaerobic capacity, muscular fitness and mechanical efficiency. Articles were not selected on diagnosis, training type or mode. Studies were divided into four training types: interval, endurance, strength, and mixed training. Methodological quality was rated with the PEDro scale, and the level of evidence was determined.

Results:

The 21 included studies represented 249 individuals with spinal-cord injury (50%), various diagnoses like spina bifida (4%), cerebral palsy (2%), traumatic injury, (3%) and able-bodied participants (38%). All interval training studies found a significant improvement of 18-64% in wheelchair propulsion capacity. Three out of five endurance training studies reported significant effectiveness. Methodological quality was generally poor and there were only two randomised controlled trials.

Conclusion:

Exercise training programs seem to be effective in improving wheelchair propulsion capacity. However, there is remarkably little research, particularly for individuals who do not have spinal-cord injury.

Keywords

Exercise physical fitness wheelchair physical training physical capacity

Introduction

Increasing physical activity level is associated with a lower risk of developing cardiovascular diseases.¹ Compared to able-bodied individuals, manual wheelchair users have reduced physical activity^2,3 and physical fitness levels.⁴ This has a major impact on their daily life activities, social participation, and overall quality of life.^5–7 The intensity of wheelchair propulsion in daily life may not put sufficient stress on the cardiovascular system to induce positive health effects.⁸ Hence, breaking through the vicious cycle of deconditioning in manual wheelchair users may require exercise training, i.e. a type of physical activity consisting of standardized, planned, structured, and repetitive bodily movement intended to improve or maintain one or more components of physical fitness.⁹

Improving physical fitness may also result in reduced relative effort in daily activities. Since manual wheelchair users’ primary means of mobility is through hand rim wheelchair propulsion, exercise training should aim to improve their physical fitness levels in such a way that hand rim wheelchair propulsion has the greatest impact in daily life. The capacity for hand rim wheelchair propulsion is referred to as wheelchair propulsion capacity. Since both long and short bouts of activity are important in daily life,¹⁰ wheelchair propulsion capacity is divided into endurance and sprint capacity.

Optimized wheelchair propulsion capacity requires cardio-respiratory fitness (aerobic capacity), anaerobic capacity and muscular fitness (Figure 1).¹¹ In addition, these physiological parameters need to be translated into functional wheelchair propulsion. Besides physical fitness, mechanical efficiency is also important for wheelchair propulsion capacity. Power output during hand rim wheelchair propulsion is regarded as the outcome measure most closely related to wheelchair propulsion capacity.¹² Other ‘integrated’ outcome measures for wheelchair propulsion capacity are the results of wheelchair propulsion tests in practical situations field tests.

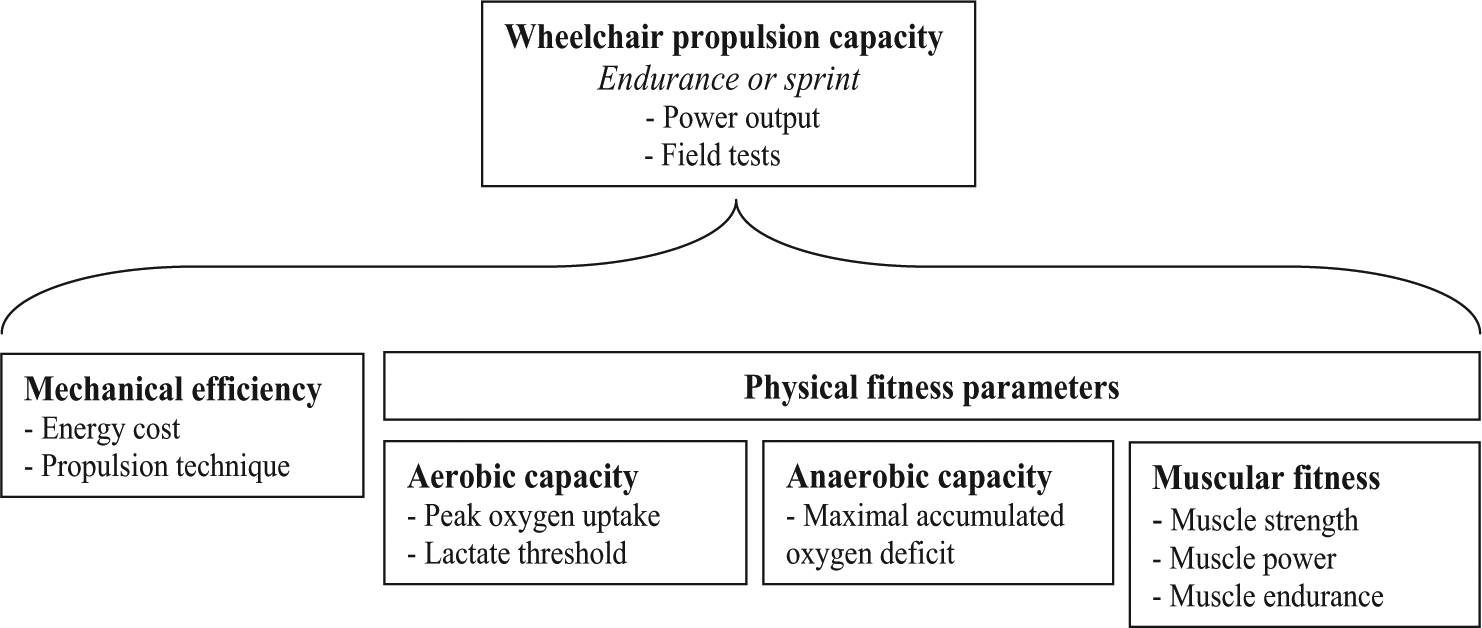

Figure 1.

Schematic relationship of wheelchair propulsion capacity and underlying parameters.^17,57

Valent et al (2007)¹³ reviewed studies on the effect of upper-body exercise and reported that no conclusions could be drawn because of the overall low quality of studies. They focused on persons with spinal-cord injury only. Training of wheelchair propulsion capacity might be beneficial for more diagnostic groups, and knowledge on training effects in able-bodied subjects might provide more insight in the potential effects for persons with disabilities. In addition, exercise training should have its effect on daily life wheelchair propulsion. The focus of the present review will therefore be on integrated wheelchair propulsion outcome measures instead of specifically types of training or bodily related outcome measures. Moreover, several years have passed since the last review. Therefore, the present review aims to systematically review the literature on the effectiveness of training programs in improving hand rim wheelchair propulsion capacity, including various groups and all types of training programs.

Methods

The PubMed and EMBASE databases were searched from their respective inceptions until October 2013. Search terms included subject headings and text words based on the concepts of ‘exercise’ or ‘physical’ and ‘wheelchair’ with the following constraints: english language and human. Inclusion criteria were: standardized and clearly described exercise training, and at least one outcome measure regarding endurance or sprint wheelchair propulsion capacity. Articles were not selected on type or mode of exercise; training could be either with or without wheelchair. Titles and abstracts of the electronic searches were scrutinized by one author (MZ). References of included studies were screened to find articles that might have been missed. Included articles were read in full by two independent reviewers (MZ and OV), both trained in exercise physiology and rehabilitation. They recorded details of the study design, participants, intervention program, training type, outcome measures, results, and conclusions. Where key information was not reported, efforts were made to contact the authors to obtain further details.

Exercise training programs were divided into five predetermined categories: aerobic exercise training, subdivided into interval and endurance training; anaerobic exercise training; strength training; and mixed training. Aerobic exercise training was defined as training aimed at improving the function of the cardio-respiratory system.¹⁴There are roughly two ways of training the cardio-respiratory system: interval and endurance training. Interval training involves bursts of high-intensity work interspersed with periods of low-intensity exercise.¹⁵ Endurance exercise training was defined as repetitive, aerobic exercise of large muscles at a constant intensity level for a prolonged period of time (>10 min).^14,16 Anaerobic exercise training refers to exercise that requires bursts of maximal intensity work over short periods of time (<30s).¹⁴ Strength training was defined as a structured repetitive exercise, inducing an overload to increase strength, power, or muscular endurance.¹⁴ Mixed training is a combination of interval, endurance, anaerobic, and/or strength training, or a training that does not fit the definition of a specific training type. All studies used different prescribed exercise intensities. Low intensity was defined as <40% heart rate reserve, <64% peak heart rate or maximal tolerated power, moderate intensity as 40-60% heart rate reserve, 64-76% peak heart rate or maximal tolerated power, and high intensity as >60% heart rate reserve, >76% peak heart rate or maximal tolerated power.¹⁶

Outcome measures were divided into endurance and sprint wheelchair propulsion capacity. Both are performance measures of wheelchair exercise including all parameters (Figure 1), recording for example power output, speed, or velocity. Endurance wheelchair propulsion capacity refers to the ability of the body to sustain prolonged wheelchair exercise, and reflects the cardiorespiratory system.¹⁷ Sprint wheelchair propulsion capacity refers to the ability of the neuromuscular system to produce the greatest possible impulse over a given distance or time period up to 30 seconds.¹⁸

Methodological quality

The methodological quality of the studies was rated using the PEDro scale, based on the Delphi list developed by Verhagen et al.,¹⁹ which consists of eight criteria for internal validity and two statistical criteria. Points were only awarded when a criterion was clearly satisfied and reported.

Evidence level

The ideal method to determine the efficacy of an intervention is through a randomised controlled trial, a design that ensures that any differences in outcome variables are indeed attributable to the exercise training. To evaluate how to interpret outcome variables of different studies, the levels of evidence were classified by means of a grading system developed by the Oxford Centre of Evidence-Based Medicine.²⁰ This classification system consists of five levels. Going from the highest to the lowest level of evidence, these are: 1) randomised controlled trial(s) (n>100), 2) randomised controlled trial, 3) cohort study, 4) clinical controlled trials or case series, and 5) case study.

Results

Searching the PubMed and EMBASE databases in October 2013 initially resulted in 1158 articles. On the basis of title and abstract, we excluded 1114 studies. Another 23 studies turned out not to meet the inclusion criteria after the full text had been read. Reference screening of the included studies did not result in additional studies. A total of 21 studies were eventually included and divided in different training types (Figure 2). No studies were found on anaerobic training. The studies represented 249 individuals; 50% (n=126) diagnosed with spinal cord injury, 38% (n=94) were able-bodied participants and 12% (n=29) were patients diagnosed other than spinal-cord injury. Other diagnoses included spina bifida (4%), cerebral palsy (2%), traumatic injury (3%), amputees (1%), polio (1%), and bilateral tarsal tunnel syndrome (1%).

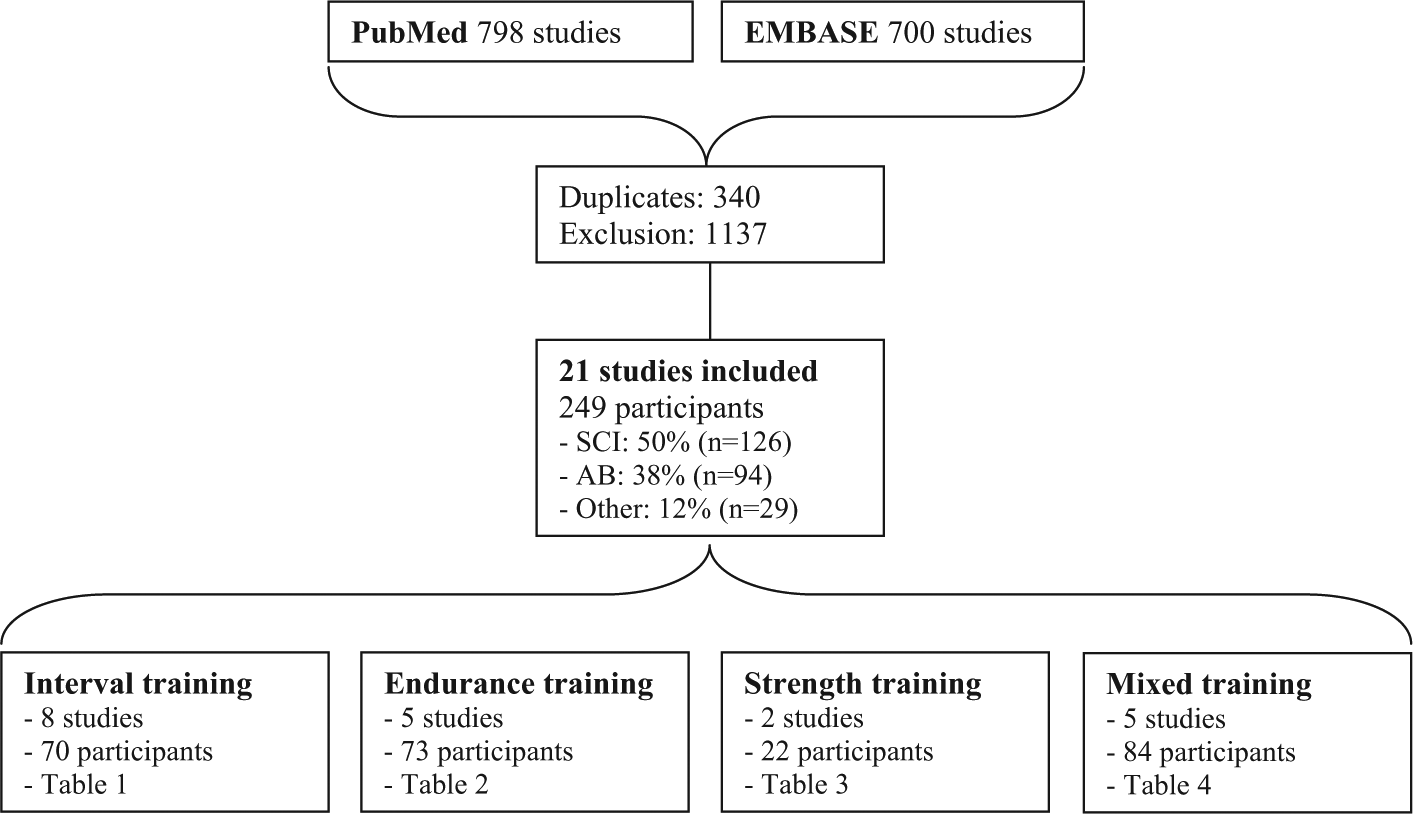

Figure 2.

Flowchart for selection of eligible articles.

Interval training

Table 1 lists eight interval training studies,^21–28 of which three included a control group,^26–28 though none were randomised controlled trials. Four studies included participants with spinal-cord injury,^21,22,24,25 and three included healthy ambulatory participants.^26–28 The number of interval sessions ranged from three to nine sets per training, high-intensity intervals ranged from high intensity to maximal and low-intensity intervals from rest to moderate intensity. All training and test sessions were implemented on a wheelchair ergometer.

Table 1.

Interval training.

	Study			Subjects				Intervention program				Results
		Evidence level	PEDroscore	N	Agemean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Wheelchair propulsion capacity		Other parameters
		Evidence level	PEDroscore	N	Agemean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Endurance	Sprint	Other parameters
Spinal-cord injured	Bougenot et al. 2003²¹	IV Case series	2/10	7	35±13	7/0	SCI	6 weeks	3x p/w 45 min	WERG	9 sets: - 4 min at VT - 1 min at MTP	+19.5% MTP (W)*,¹ WERG	–	+15.5% VO_2peak (ml/kg/min)*,¹
	Tordi et al. 2001²²	IV Case series	2/10	5	27±8	5/0	SCI	4 weeks	3x p/w 30 min	WERG	6 sets: - 4 min at 50% MTP - 1 min at 80% MTP	+22.2% MTP (W)*,¹ WERG	–	+14.3% VO_2peak (ml/kg/min),¹ +9.3% ME , #
	Yim et al. 1993²⁴	IV Case series	2/10	11	31±8	11/0	SCI	5 weeks	3x p/w 45 min	WERG	3 sets: - 10 min 80% HR_peak - 5 min rest	-17.8% 100-meter time (s)*,¹ WERG	–	+39.5%, +24.4% total work of shoulder flexors,¹ and extensors,¹ (ft-lbs) +15.5%, +14.5% total work of elbow flexors and extensors (ft-lbs)
Other patients	Le Foll-de Moro et al. 2005²⁵	IV Case series	1/10	6	29±14	5/1	SCI	6 weeks	3x p/w 30 min	WERG	6 sets: - 4 min 50% MTP - 1 min 80% MTP	+34.3% MTP (W)*,¹ WERG	–	+36.0% VO_2peak (l/min)*,¹
	Miles et al. 1982²³	IV Case series	2/10	8	25±4	8/0	SCI, CP, polio, (traumatic) injury	6 weeks	3x p/w 45 min	WERG	2 sets: - 10 min 80% HRR - 5 min rest 4 sets: - 2 min 95% HRR - 2 min rest	+30.7% MTP (W)*,¹ WERG	–	+26.0% VO_2peak (l/min),¹ +6.8% ME #,,¹
	Tordi et al. 1998²⁶	IV CCT	5/10	5	27±11	5/0	AB	6 weeks	3x p/w 45 min	WERG	9 sets: - 4 min at VT - 1 min at MTP	+66.0% MTP (W)**,² WERG	–	+35.0% VO_2peak (ml/min)**,²
				5	22±3	5/0	AB	Control	Control		No training	0.0% MTP (W)WERG		0.0% VO_2peak (ml/min)
Able-bodied subjects	Glaser et al. 1981²⁷	IVCCT	3/10	7	21±3	0/7	AB	5 weeks	2x p/w22 min	WERG	3 sets:- 4 min 80% HR_peak - 2 min relief period	+48.5% training power output (kpm)*,¹WERG	–	+14.6% ME #,*,¹
				6	22±2	0/6	AB	Control	Control		No training	–		+2.7% ME #
	Tordi et al. 2001²⁸	IVCCT	5/10	5	23±7	5/0	AB	6 weeks	3x p/w45 min	WERG	9 sets:- 4 min at VT- 1 min at MTP	+63.6% MTP (W)**,¹WERG	–	+29.3% VO_2peak (ml/kg/min)**,¹
				5	23±7	5/0	AB	Control	Control		No training	0.0% MTP (W)WERG	–	0.0% VO_2peak (ml/kg/min)

N, number of participants; SD, standard deviation; M/F, Male/Female, CCT, clinical controlled trial; SCI, spinal cord injury; CP, cerebral palsy; PP, post polio; AB, able-bodied; WERG, wheelchair ergometer; VT, ventilatory threshold; MTP, maximal tolerated power; HRR, heart rate reserve; HR, heart rate,; VO2, oxygen uptake; ME, mechanical efficiency.

Bold, significant difference, *(p = 0.05), **(p = 0.01), 1significance level compared with baseline, 2significance level compared with control group.

ME is calculated with the formula: ‘submaximal power output’/’submaximal oxygen uptake’. The calculated difference is the averaged relative improvement of ME.

All studies measuring endurance wheelchair propulsion capacity found a significant improvement in the experimental group, ranging from 18-34% in participants with disabilities ^21–25 and 49-66% in able-bodied participants.^26–28 No study reported sprint wheelchair propulsion capacity. All studies that measured mechanical efficiency^23,23,27 or peak oxygen uptake ^{21–23,25,26,28} reported significant improvements of 7-15% and 14-36%, respectively.

Endurance training

Table 2 lists the results of five studies examining the effects of endurance training.^29–33 Three studies included a control group,^29,32–34 one of them being a randomised controlled trial.³² Three studies trained experienced wheelchair users, all diagnosed with spinal-cord injury,^29–31 and four trained men only.^30–33 Training intensity ranged from 30 to 80% heart rate reserve or 75 to 85% peak heart rate, and exercise training was executed during arm crank exercise³⁰ or wheelchair propulsion on either a wheelchair treadmill,^32,33 wheelchair ergometer,²⁹ or indoor track.³¹

Table 2.

Endurance training.

	Study			Subjects				Intervention program				Results
		Evidence level	PEDro score	N	Age mean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Wheelchair propulsion capacity		Other parameters
		Evidence level	PEDro score	N	Age mean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Endurance	Sprint
Spinal-cord injured	Hooker et al. 1989²⁹	IVCCT	4/10	6	31±4	3/3	SCI	8 weeks	3x p/w20 min	WERG	Moderate intensity50-60%HRR	+24.0% MTP (W)¹WERG	–	+10.3% VO_2peak (ml/kg/min)¹ +4.1% ME#,¹
				5	30±5	3/2	SCI	8 weeks	3x p/w20 min	WERG	High intensity 70-80%HRR	+13.3% MTP (W)¹WERG	–	+12.0% VO_2peak (ml/kg/min)¹ +5.3% ME#
	DiCarlo et al. 1988³⁰	IVcase series	2/10	8	24±4	8/0	SCI	8 weeks	3x p/w 15-35 min	Arm cranking	Moderate intensity 50-60% HRR	+78.0% 12 minute wheelchair test (km)*,¹ FIELD	–	+94.2% VO_2peak (ml/kg/min)*,¹
	Whiting et al. 1983³¹	Vcase study	1/10	2	21&33	2/0	SCI	8 weeks	3x p/w20 min	indoor track	High intensity 75-85% HR_max	+33.3% MTP (kg·m/min)¹ WERG	–	+8.6% VO_2peak (l/min)¹ +31.2% ME#,¹
Able-bodied subjects	Van der Woude et al. 1999³²	IIRCT	5/10	9	23±3	9/0	AB	7 weeks	3x p/w30 min	WT	Moderate intensity50%HRR	+29.8% MTP (W)**,² WERG	+16.4% P30 (W)**,²WERG	+5.0% VO2peak (l/min)²+13.4% ME² +11.9% Fiso-stroke (N)2
				10	23±3	10/0	AB	7 weeks	3x p/w30 min	WT	High intensity70%HRR	+42.2% MTP (W)**,² WERG	+15.2% P30 (W)**,² WERG	+9.7% VO2peak (l/min)*,² +19.1% ME²+14.0% Fiso-stroke (N)2
				8	22±2	8/0	AB	Control	Control		No training	-0.9% MTP (W)WERG	+5.3% P30 (W) WERG	-3.4% VO2peak (l/min)+9.(% ME -0.3% F_iso-stroke (N)
	Van den Berg et al. 2010³³	IVCCT	4/10	10	23±2	10/0	AB	7 weeks	3x p/w30 min	WT	Low intensity30%HRR	+34.0% MTP (W)**,² WERG	+31.0% P30 (W)**,² WERG	-2.2% VO_2peak (ml//kg/min)²+20.2% ME**,²+4.9% F_iso-stroke (N)²
				15	23±2	15/0	AB	Control	Control		No training	+0.2% MTP (W) WERG	+7.9% P30 WERG	+6.3% VO_2peak (ml/kg/min) +0.6% ME +5.3% F_iso-stroke (N)

N, number of participants; SD, standard deviation; M/F, male/female; CCT, clinical controlled trial; RCT, randomized controlled trial; SCI, spinal cord injury; AB, able-bodied; WERG, wheelchair ergometer; FIELD, field test; WT, wheelchair on treadmill; HRR, heart rate reserve; HR, heart rate; MTP, maximal tolerated power; VO₂, oxygen uptake; ME, mechanical efficiency; P30, peak anaerobic output (30 seconds).

Bold, significant difference, *(p = 0.05), **(p = 0.01), ¹significance level compared with baseline, ²significance level compared with control group.

ME is calculated with the formula: ‘submaximal power output’/’submaximal oxygen uptake’. The calculated difference is the averaged relative improvement of ME.

Three studies, of which two trained able-bodied participants, reported a significant positive effect on endurance outcome measures with an improvement of 30-78%.^30,32,33 Both studies training able-bodied participants found significant improvements in sprint capacity; 15 and 31% in 30-second power output.^32,33 Significant improvements in peak oxygen uptake of 94% and 10% were only found in two studies.^30,32 Mechanical efficiency was measured in four studies,^29,31–33 only one of which, with able-bodied participants, found a significant increase of 20%.³³

Strength training

Two strength training studies were included (Table 3).^35,36 No randomised controlled trial was performed. The studies differed in training duration, frequency, strength exercises and participants: children with cerebral palsy and spina bifida³⁶ compared to male adults with and without spinal-cord injury.³⁵

Table 3.

Strength training.

Study			Subjects				Intervention program				Results
	Evidence level	PEDro score	N	Age mean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Wheelchair propulsion capacity		Other parameters
	Evidence level	PEDro score	N	Age mean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Endurance	Sprint	Other parameters
O’Connell et al. 1995³⁶	IVcase series	2/10	6	10±5	NS	CP, SB	9 weeks	3x p/w30 min	Circuit training	3 sets- 8 upper-body exercises– 6-RM- 30 seconds rest	+29.0% 12 minute wheelchair test (m)*,¹ FIELD	-20.2% 50-meter sprint time (s)¹ FIELD	+181.8% on average in all 8 exercises (kg)*,¹
Turbanski et al. 2010³⁵	IVCCT	3/10	8	33±11	8/0	SCI	8 weeks	2x p/w	Bench press	5 sets- 10-12 x 80% 1-RM- 3-5 minutes rest	–	-1.8% 10-meter sprint time (s)¹FIELD	+66.5% SE (reps),¹+30.8% static F_max (N),¹+39.3% dynamic 1RM (kg)**,¹
			8	25±2	8/0	AB	8 weeks	2x p/w	Bench press	5 sets- 10-12 x 80% 1-RM- 3-5 minutes rest	–	–	+56.5% SE (reps),¹+12.8% static F_max (N),¹+15.3%dynamic 1RM (kg)**,¹

N, number of participants; SD, standard deviation; M/F, male/female; CCT, clinical controlled trial; NS, not specified; CP, cerebral palsy; SB, spina bifida; SCI, spinal cord injury; AB, able-bodied; RM, repetition maximum; FIELD, field test; SE, strength endurance.

Bold, significant difference, *(p = 0.05), **(p = 0.01), ¹significance level compared with baseline.

A significant improvement was found in endurance capacity during a field test.³⁶ Both studies reported sprint wheelchair propulsion capacity, but strength training did not improve sprint performance. However, a significant improvement was found in the strength exercises that were trained.^35,36

Mixed training

Table 4 lists the characteristics of six mixed training studies.^37–42 Three studies included a control group,^39,41,42 one of them being an randomised controlled trial.⁴¹ Participants had a variety of diagnoses: spinal-cord injury, spina bifida, trauma, polio, and cerebral palsy. With one exception,³⁸ all studies trained experienced wheelchair users or even wheelchair athletes.^41,42 Three exercise programs consisted of a combination of strength and endurance training,^37–39 one study used wheelchair exercise to exhaustion,⁴⁰ and two studies investigated respiratory muscle training.^41,42 Exercise training programs lasted between six weeks and 10 months and involved one to 14 training sessions each week.

Table 4.

Mixed training.

Study			Subjects				Intervention program				Results
	Evidence level	PEDro score	N	Agemean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Wheelchair propulsion capacity		Other parameters
	Evidence level	PEDro score	N	Agemean±SD	M/F	Participants	Duration	Frequency	Modality	Training Intensity	Endurance	Sprint	Other parameters
Rodgers et al. 2001³⁷	IVcase series	2/10	19	44±11	16/3	SCI, SB, MT	6 weeks	3x p/w60 min	Strength, stretching, rowing	5 sets- 5 upper-body exercises- 75% max Rowing (30 min 60%HRR)	+14.6% MTP (W)*,¹ WERG	–	+7.6% VO_2peak (ml/min)¹+6.7% ME¹-2.9% F_{dynamic-stroke} (N)¹+123.3% on average in all exercises (pounds)**,¹
Lakomy et al. 1996³⁸	Vcase study	1/10	1	42	1/0	AB	10 months	6x p/w1/2 a day	Strength, WT, swimming	Weight training, wheelchair propulsion, swimming	+63.0% 10 km time trial speed (m/s)¹ FIELD (road)	–	+12.9% VO_2peak (l/min)¹+20.1% ME (VO₂ at constant speed)¹
Keyser et al. 2003³⁹	IVcase series	2/10	20	43±10	15/4	SCI, SB, CP (no upper-limb impairment)	12 weeks	3x p/w25 min	Elastic bands	8-12 x resisted stroke pushes20 min wheelchair propulsion exercise with elastic bands	+0.0% MTP (W)¹ WERG +30.0% endurance time of 60%MTP (min)*,¹ WERG	–	-1.0% VO_2peak (ml/min)¹ +1.8% ME¹
Keyser et al. 2003³⁹			7	36±7	5/2	SCI, SB, CP(upper limb impairment)	12 weeks	3x p/w25 min	Elastics bands	8-12 x resisted stroke pushes20 min wheelchair propulsion exercise with elastic bands	+14.7% MTP (W)¹ WERG+52.9% endurance time of 60% MTP (min)¹ WERG	–	+0.6% VO_2peak (ml/min)¹ -7.0% ME¹
Gass et al. 1980⁴⁰	IV Case series	1/10	9	34±11	NS	SCI	7 weeks	5x p/w	WT	5 min 2,5 km/hevery 5 min increase in slope to depletion	+52.6% maximal exercise test time (s)*,¹ WT	–	+33.7% VO_2peak (ml/ /kg/min)**,¹
Mueller et al. 2008⁴¹	IIRCT	6/10	6	29±11	4/2	athletes (SCI)	6 weeks	5x p/w30 min	Respiratory training	Respiratory muscle endurance test65-75% MVV	-11.1% 10 km time trial (min)² WT	–	-2.2% VO_2peak (ml/kg/min)²+338.5% respiratory muscle endurance (min)*,²
			6	28±10	5/1	athletes (SCI)	6 weeks	Control		No training	-0.4% 10 km time trial (min) WT	–	-2.6% VO_2peak (ml/kg/min)+53.5% respiratory muscle endurance (min)
Goosey-Tolfrey et al. 2010⁴²	IV case series	5/10	8	28±5	4/4	athletes (SCI, SB, polio)	6 week	2x a day	Respiratory training	30 dynamic inspiratory efforts 50% MIP	–	-0.8% fifteen 20-meter sprint time (s)² FIELD	–
Goosey-Tolfrey et al. 2010⁴²			8	30±11	4/4	athletes (SCI, SB, polio)	6 weeks	1x a day	Respiratory training	60 slow breaths 15% MIP	–	+0.7% fifteen 20-meter sprint time (s) FIELD	–

N, number of participants; SD, standard deviation; M/F, male/female; RCT, randomised controlled trial; NS, not specified; SCI, spinal cord injury; SB, spina bifida; MT, multi trauma; AB, able-bodied; CP, cerebral palsy; HRR, heart rate reserve; VO₂, oxygen uptake; ME, mechanical efficiency; MTP, maximal tolerated power; WERG, wheelchair ergometer; FIELD, field test; WT, wheelchair on treadmill; MVV, maximal voluntary ventilation; MIP, maximum inspiratory pressure.

Bold, significant difference *(p = 0.05), **(p = 0.01), ¹significance level compared with baseline, ²significance level compared with control group.

ME is calculated with the formula: ‘submaximal power output’/’submaximal oxygen uptake’. The calculated difference is the averaged relative improvement of ME.

Endurance wheelchair propulsion capacity improved significantly, by 30-53% in terms of endurance time^39,40 and by 15% in terms of maximal tolerated power.³⁷ A case study reported an increase of 63% in 10-km time trial.³⁸ One study reported a significant improvement in sub-maximal endurance time, but found no increase in maximal tolerated power.³⁹ No difference was found in sprint capacity.⁴²

Methodological quality

Tables 1 -4 report the methodological quality as assessed with the PEDro scale. The median score was two out of 10, and no study scored more than six points, indicating generally poor methodological quality. Only two out of 21 studies were randomised controlled trials,^32,41 but these studies could not ensure concealed allocation and blinding of subjects, therapists or assessors. Most studies had positive scores on criteria eight and 11, indicating that more than 85% of the subjects completed the intervention and the effect of treatment was measured.

Evidence level

Two out of 21 studies obtained their results at the second highest level of evidence that of small sample size randomised controlled trial.^32,41 Another five studies were controlled clinical trials.^{26–28,33,42} The majority of studies (57%, n=12) consisted of observational studies comparing post-training results with baseline values, and two articles reported on case studies.

Discussion

Although the evidence base is weak, the present review does support exercise training programs as being beneficial for improving wheelchair propulsion capacity. The vast majority of participants involved had a spinal-cord injury or were able-bodied individuals. It is surprising that there were only two proper randomised controlled trials.^32,41 Furthermore, only five out of 21 studies reported between-group differences.^{26,32,33,41,42} The majority of studies were case series or even case studies, indicating changes over time that can be due to any factor, such as exposure to the test protocol, natural recovery, season or learning effects.⁴³ Studies without between-group differences do not provide sufficient evidence for the effectiveness of exercise training.

Arm cranking, an outcome measure used in many studies, requires a continuous pushing and pulling movement instead of the intermittent propelling pattern of wheelchair propulsion. Moreover, arm cranking exercise has a higher peak power output and mechanical efficiency.^44,45 Considering the concept of specificity of exercise, wheelchair propulsion exercise is more appropriate. It improves the capability in using a manual wheelchair, as shown in this review by improvements in mechanical efficiency. The focus in the current review was specifically on wheelchair propulsion, being the primary means of mobility in wheelchair users. So, studies that used arm cranking as an outcome measure were not included. Twenty studies included in the review by Valent et al.¹³ were therefore not included in the current review. The other focus of the current review, including not only individuals with spinal-cord injury, resulted in 12% of participants involved having a other diagnosis and 38% able-bodied participants. This does not represent the wheelchair using population, and therefore more research is needed.

The intervention programs in the included studies varied in terms of duration, frequency, and intensity. The American College of Sports Medicine (ACSM) guidelines for wheelchair users with paraplegia recommend 3-5 exercise sessions a week lasting 20-60 minutes each, at moderate to vigorous exercise intensities, to increase aerobic capacity⁴⁶, the most important physiological parameter. This suggests target heart rates between 50 and 80% of peak heart rate.⁴⁶ Therefore, strength training programs fall out of the scope in this comparison. Except for both respiratory muscle training programs,^41,42 all interventions met the ACSM guidelines for increasing aerobic capacity. The ACSM guidelines for wheelchair users only account for the physical fitness parameters. Therefore it seems reasonable to assume that respiratory muscle training was not effective in improving wheelchair propulsion capacity, since physiological parameters or mechanical efficiency during wheelchair propulsion were not trained.

Inclusion of all types and modes of training programs as well as all diagnoses provided a nice overview, but did not result in potential training guidelines. However, despite our finding that no randomised controlled trial had been performed for interval training, this type of training seems to have the highest potential to improve endurance wheelchair propulsion capacity. All participants in seven intervention studies improved significantly in terms of endurance capacity and peak oxygen uptake, whereas the participants in endurance and mixed training programs showed both endurance capacity and peak oxygen uptake improvement only in two out of five and one out of five studies, respectively. This cautious conclusion supports the findings of Helgerud et al.⁴⁷ and Gibala et al.⁴⁸ who found that high-intensity interval training is significantly more effective in improving peak oxygen uptake than performing the same (or more) total work during continuous aerobic exercise training. However, more research is needed to find out whether this also holds for wheelchair exercise.

Assuming that exercise intensity is the most important factor in improving aerobic capacity in healthy subjects, rather than exercise frequency and duration,¹⁷ it is remarkable that studies training at moderate²⁹ or high^29,31 intensity found no significant improvements, while a study training at low intensity³³ did. The positive training effect was found in able-bodied participants. Despite that this group had similar peak power outputs compared to individuals with paraplegia, this suggest that training effects are achieved at lower intensities in able-bodied individuals.⁴⁹ Able-bodied participants gained the most effect at the start of the intervention in improving mechanical efficiency.⁵⁰ In contrast, despite of the similar training guidelines,¹⁶ and baseline measurements⁴⁹ the effect of interval and endurance training in individuals with disabilities was lower compared to able-bodied participants. The limiting factor for improving peak oxygen uptake in individuals with a disability is generally a lack of active muscle mass.⁵¹ Resistance training or electrical induced resistance training can increase muscle mass ^52,53 and might have a positive effect on peak oxygen uptake.

Only six out of 21 studies investigated sprint wheelchair propulsion capacity. Significant improvements in sprint capacity in able-bodied participants may again represent an overestimation of the effects in experienced wheelchair users.^32,33 The improved strength in single- and multiple-joint exercises after strength training was not translated into an improvement in sprint capacity.^35,36 Although there is a correlation between muscle strength and the force imparted to the hand rim, increased force does not necessarily lead to more effective hand rim force or propulsion cadence.⁵⁴ This suggests that improving not only muscle strength, but also propulsion technique is important. Future research should use exercise programs incorporating both muscle strength exercises specifically designed to improve hand-rim propulsion and functional, effective propulsion technique training.

In wheelchair users with a spinal-cord injury, aerobic capacity accounts for 69% of maximal tolerated power during wheelchair propulsion.⁵⁵ This makes peak oxygen uptake an important physical fitness parameter. All studies in which peak oxygen uptake improved significantly also found improved endurance capacity. The same pattern holds for mechanical efficiency; when mechanical efficiency improved significantly, endurance capacity improved as well. A highly significant relation between mechanical efficiency and maximal tolerated power supports this finding.⁵⁶ Both peak oxygen uptake and mechanical efficiency are good predictive physical fitness parameters for wheelchair propulsion capacity. In the study by DiCarlo et al. ³⁰ peak oxygen uptake values improved by no less than 94.2%, from 12.1 to 23.5 mL O₂/kg/min. Baseline measurements indicated very low aerobic capacities, and the very large effect may be explained by the relative notation of peak oxygen uptake in combination with increased muscle mass and weight loss.

Our findings must be interpreted in light of certain limitations. First, the search might have missed some studies. We have looked at outcome measures specifically performed during hand rim wheelchair propulsion and therefore training studies with outcome measures on endurance or sprint capacity during hand cycling have been missed. Second, there have been no studies on this topic with a high level of evidence and with good methodological quality. Without between-group analyses, changes over time can be due to any factor.⁴³ Moreover, in view of the low levels of evidence, low methodological quality and heterogeneity of both study sample and interventions, it was inappropriate to pool the data of the studies included. Third, a plethora of different not equally divided diagnoses makes it difficult to interpret the results. Several studies were even conducted among healthy ambulatory subjects. Hence, further investigations are required to assess whether our results are generalizable to other diagnoses and medical conditions. Fourth, the studies in our review predominantly included male participants. It is unclear whether the same effects would be observed in women. Fifth, not all training types were equally represented. We could only include two studies on strength training, and no studies investigating the effects of anaerobic training. This is surprising, since for manual wheelchair users, most of the motor activities in daily life are of short duration¹⁰ and produce a relatively high physical strain on the individual. Finally, there was only one training study that focused on children using a wheelchair. Although long-term effects of training are not known, one can only assume that an early introduction to wheelchair training would be beneficial for children’s future health and function.

There is a need for randomised controlled trials involving manual wheelchair users, particularly including people who do not have spinal-cord injury. Future research should also focus on the effects of interval training, since, based on the low-quality evidence, this seems to be the training type that has the greatest potential. In addition, there is a need for studies investigating the effects of exercise training in children using a wheelchair.

Clinical messages

Exercise training programs seems to be beneficial for improving wheelchair propulsion capacity, except for respiratory muscle training.

Interval training is the most promising training type.

There is an urgent need for research into the immediate and long-term benefits of exercise training in wheelchair using patients, particularly including people who do not have spinal-cord injury.

Footnotes

Acknowledgements

We are grateful to Paulien Wiersma for her contribution to the literature search and to Svenja Leferink for checking table information with corresponding articles.

Conflict of interest

None declared.

Funding

This work was supported by the Phelps Foundation (2012004) and ZonMw (525001005).
