Vibration characteristics of a functionally graded polymer nanocomposite shaft-disk rotor reinforced with graphene nanoplatelets

Abstract

In this paper, a rotating functionally graded (FG) polymer nanocomposite shaft-disk assembly reinforced with graphene nanoplatelets (GPLs) resting on elastic supports is modelled and its vibration behaviours are analysed. The effective material properties of the shaft and disk are assumed to vary along their radius directions and determined via the Halpin–Tsai model together with the rule of mixture. Different non-uniform and uniform distributions of GPLs in the rotating assembly are taken into account. In accordance with the finite element (FE) method, the modelling and free vibration analysis of the nanocomposite shaft-disk rotor system is conducted. To verify the present analysis, both the theoretical and experimental methods are employed. A comprehensive parametric study on the effects of the graphene nanoplatelets (GPL) weight fraction, GPL distribution pattern, length-to-thickness ratio and length-to-width ratio of GPLs, shaft length, elastic support stiffness and rotating speed on the free vibration results are investigated, which gives effective ways to achieve improved mechanical performance of a rotating nanocomposite disk-shaft assembly.

Keywords

Graphene nanoplatelets shaft-disk assembly finite element method rotation free vibration

Introduction

Rotating shaft-disk assemblies are diffusely put into use in rotary machines, such as gas turbines, aeroengines and so on. As an important research content, its vibration behaviour has been investigated by lots of research.^1–11 By adopting the experimental and numerical methods, Venkatachalam et al.¹² investigated vibration performance of orthotropic shaft-disk assembly. Heydari et al.¹³ examined the effects of disk location and disk size on the critical speeds and natural frequencies of a shaft-disk rotor. Considering the nonlinear stiffness and damping, AI-Solihat et al.¹⁴ studied the force transmissibility and frequency response of a shaft–disk rotor. Tuzzi et al.¹⁵ studied the coupled vibration between shaft bending and disk zero nodal diameter modes in a flexible system. By employing the IHB method, Ri et al.¹⁶ conducted nonlinear vibration analysis of a shaft-disk assembly combined reduced model.

Traditional uniform metal materials are no longer suitable because modern rotary machines have higher requirements on structural stiffness. Due to the outstanding mechanical performance, GPL reinforced material takes the cake. A larger number of scholars have paid attention to the GPL reinforced structures.^17–21 By employing the FE method, Zhao et al.²² studied the bending and vibration performance of a GPL reinforced trapezoidal plate. Based on the first order shear deformation theory, Reddy et al.²³ presented the free vibration of GPL reinforced plates under different boundary conditions. Feng et al.²⁴ studied the nonlinear vibration of FG-GPL reinforced beams. By using the element-free IMLS-Ritz method, Guo et al.²⁵ studied the free vibration of laminated quadrilateral plates reinforced by GPLs. Song et al.²⁶ investigated the nonlinear vibration of edge-cracked beams reinforced with GPLs. Wang et al.²⁷ conducted nonlinear free vibration analysis of dielectric beams with GPLs under electrical field. Thai et al.²⁸ developed an NURBS formulation based on the four-variable refined plate theory for vibration analysis of GPL reinforced plates. Wang et al.²⁹ studied nonlinear vibrations of porous GPL reinforced cylindrical shells.

To sum up, few research focus on vibrations of a slender shaft coupled with a thick disk assembly reinforced with GPL. It is very important to study the vibration characteristics of the functionally graded rotating shaft-disk assembly reinforced with GPLs, where the material poetries are changing along the radial directions. According to the finite element (FE) method, the modelling and vibration analysis of the nanocomposite rotor are conducted in this paper. The effects of material and structural parameters on the natural frequency are examined in detail.

Theoretical formulations

Physical model and material property

The dynamic model of a rotating shaft-disk assembly resting on elastic supports is shown in Figure 1. The structure parameters of the assembly are: shaft length l_S, shaft radius r_S, disk radius r_D and disk thickness h_D. In addition, the rotor is made of polymer matrix and GPL nanofillers, where the material parameters are varying along the blade thickness direction, disk thickness direction and shaft radius direction.

Figure 1.

Rotating shaft-disk assembly resting on elastic supports.

On the basis of the Halpin-Tsai model,³⁰ the effective Young’s modulus is obtained as

E = \frac{3}{8} (\frac{1 + ξ_{l} \frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{l}} V_{GPL}}{1 - \frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{l}} V_{GPL}}) E_{m} + \frac{5}{8} (\frac{1 + ξ_{w} \frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{w}} V_{GPL}}{1 - \frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{w}} V_{GPL}}) E_{m}

(1)

where E_GPL and E_M are Young’s modulus of GPLs and the polymer matrix, respectively.

For characterizing the geometry and dimension of GPL nanofillers, ξ_l and ξ_w are determined by

{\begin{cases} ξ_{l} = \frac{l_{GPL}}{h_{GPL}} \\ ξ_{w} = \frac{w_{GPL}}{h_{GPL}} \end{cases}

(2)

in which l_GPL, w_GPL and h_GPL are the average length, width and thickness of GPLs, respectively.

Moreover, according to the rule of mixture, the effective mass density and Poisson’s ratio are

{\begin{cases} ρ = V_{GPL} ρ_{GPL} + (1 - V_{GPL}) ρ_{M} \\ ν = V_{GPL} ν_{GPL} + (1 - V_{GPL}) ν_{M} \end{cases}

(3)

where ρ_GPL and ρ_M are the mass density of GPLs and the polymer matrix, respectively; ν_GPL and ν_M are Poisson’s ratio of GPLs and the polymer matrix, respectively.

The GPL volume fraction V_GPL takes the form of

V_{GPL} = \frac{W_{GPL}}{W_{GPL} + ρ_{GPL} (1 - W_{GPL}) / ρ_{M}}

(4)

where W_GPL is the GPL weight fraction on basis of three different GPL distribution patterns, given by

W_{GPL} = {\begin{cases} \frac{r}{r_{S / D}} λ_{1} W_{0} Pattern X \\ λ_{2} W_{0} Pattern U \\ (1 - \frac{r}{r_{S / D}}) λ_{3} W_{0} Pattern O \end{cases}

(5)

in which W₀ is the GPL characteristic value; λ₁, λ₂ and λ₃ are the GPL weight fraction indices calculated by the total content of GPLs (g_GPL) as shown in Table 1.

Table 1.

Variation of graphene nanoplatelet weight fraction indices.

g_GPL, %	λ ₁	λ ₂	λ ₃
0.00	0.00	0.00	0.00
0.50	1.50	0.50	0.75
1.00	3.00	1.00	1.50

As depicted in Figure 2, three different GPL distribution patterns, including uniform and non-uniform distributions, are taken into account. Figure 2(a) shows the positive parabolic GPL distribution, where the GPL weight fraction is zero at the mid-plane and is maximum at the surfaces; Figure 2(b) displays the uniform GPL distribution, where the GPL weight fraction remains constant along the radius direction; Figure 2(c) plots the negative parabolic GPL distribution, where the GPL weight fraction is zero at the surfaces and is maximum at the mid-plane.

Figure 2.

Graphene nanoplatelet distribution patterns in the shaft-disk rotor system.

Finite element implementation

The element displacements are

{\begin{cases} u \\ v \\ w \end{cases}} = \sum_{i = 1}^{8} N_{i} {\begin{cases} u_{i} \\ v_{i} \\ w_{i} \end{cases}}

(6)

in which (u_i, v_i, w_i) are the node displacements.

The shape function N_i is

{\begin{cases} N_{1} = \frac{1}{8} (1 - x^{*}) (1 - y^{∗}) (1 - z^{∗}) \\ N_{2} = \frac{1}{8} (1 - x^{∗}) (1 + y^{∗}) (1 - z^{∗}) \\ N_{3} = \frac{1}{8} (1 - x^{∗}) (1 + y^{∗}) (1 + z^{∗}) \\ N_{4} = \frac{1}{8} (1 - x^{∗}) (1 - y^{∗}) (1 + z^{∗}) \\ N_{5} = \frac{1}{8} (1 + x^{∗}) (1 - y^{∗}) (1 - z^{∗}) \\ N_{6} = \frac{1}{8} (1 + x^{∗}) (1 + y^{∗}) (1 - z^{∗}) \\ N_{7} = \frac{1}{8} (1 + x^{∗}) (1 + y^{∗}) (1 + z^{∗}) \\ N_{8} = \frac{1}{8} (1 + x^{∗}) (1 - y^{∗}) (1 + z^{∗}) \end{cases}

(7)

where (x^*, y^*, z^*) are the element coordinates.

The relationship between strain and stress is

δ = {\begin{cases} δ_{x} \\ δ_{y} \\ δ_{z} \\ τ_{x y} \\ τ_{y z} \\ τ_{z x} \end{cases}} = D {\begin{cases} ε_{x} \\ ε_{y} \\ ε_{z} \\ γ_{x y} \\ γ_{y z} \\ γ_{z x} \end{cases}} = Dε

(8)

in which, (ε_x, ε_y, ε_z), (γ_xy, γ_yz, γ_zx), (δ_x, δ_y, δ_z) and (τ_xy, τ_yz, τ_zx) are the normal strains, shear strains, normal stresses and shear stresses, respectively.

The stiffness matrix D is expressed as

D = \frac{E}{1 + υ} [\begin{matrix} \frac{1 - υ}{1 - 2 υ} & \frac{υ}{1 - 2 υ} & \frac{υ}{1 - 2 υ} & 0 & 0 & 0 \\ \frac{υ}{1 - 2 υ} & \frac{1 - υ}{1 - 2 υ} & \frac{υ}{1 - 2 υ} & 0 & 0 & 0 \\ \frac{υ}{1 - 2 υ} & \frac{υ}{1 - 2 υ} & \frac{1 - υ}{1 - 2 υ} & 0 & 0 & 0 \\ 0 & 0 & 0 & \frac{1}{2} & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{1}{2} & 0 \\ 0 & 0 & 0 & 0 & 0 & \frac{1}{2} \end{matrix}]

(9)

Based on the geometrical relationship, one can get

ε = {\begin{cases} \frac{\partial u}{\partial x} \\ \frac{\partial u}{\partial y} \\ \frac{\partial w}{\partial z} \\ \frac{\partial u}{\partial y} + \frac{\partial v}{\partial x} \\ \frac{\partial v}{\partial z} + \frac{\partial u}{\partial y} \\ \frac{\partial u}{\partial z} + \frac{\partial w}{\partial x} \end{cases}} = [\begin{matrix} \frac{\partial}{\partial x} & 0 & 0 \\ 0 & \frac{\partial}{\partial y} & 0 \\ 0 & 0 & \frac{\partial}{\partial z} \\ \frac{\partial}{\partial y} & \frac{\partial}{\partial x} & 0 \\ 0 & \frac{\partial}{\partial z} & \frac{\partial}{\partial y} \\ \frac{\partial}{\partial z} & 0 & \frac{\partial}{\partial x} \end{matrix}] {\begin{cases} u \\ v \\ w \end{cases}}

(10)

Considering the expressions

ϕ = {u v w}^{T} = {φ_{u} φ_{v} φ_{w}}^{T}

(11)

and submitting equation (11) into equation (10) gives

ε = Bϕ

(12)

where (φ_u φ_v φ_w) are the node displacement vectors.

The geometric matrix B is

B = [\begin{matrix} \frac{\partial}{\partial x} & 0 & 0 \\ 0 & \frac{\partial}{\partial y} & 0 \\ 0 & 0 & \frac{\partial}{\partial z} \\ \frac{\partial}{\partial y} & \frac{\partial}{\partial x} & 0 \\ 0 & \frac{\partial}{\partial z} & \frac{\partial}{\partial y} \\ \frac{\partial}{\partial z} & 0 & \frac{\partial}{\partial x} \end{matrix}] [\begin{matrix} N \end{matrix} \begin{matrix} N \end{matrix} \begin{matrix} N \end{matrix}]

(13)

in which N = {N₁, N₂,…, N₈}.

The deformation energy and kinetic energy are

{\begin{cases} T = ρ \int_{V} \frac{1}{2} δ^{T} N^{T} Nδ d V \\ U = \int_{V} \frac{1}{2} δ^{T} ε d V = \int_{V} \frac{1}{2} φ^{T} B^{T} DBϕ d V \end{cases}

(14)

Setting

{\begin{cases} \frac{\partial T}{\partial ϕ} = Mϕ \\ \frac{\partial U}{\partial ϕ} = Kϕ \end{cases}

(15)

and submitting equation (14) into equation (15) yields

{\begin{cases} M = ρ \int_{V} N^{T} N d V \\ K = \int_{V} B^{T} DB d V \end{cases}

(16)

where M and K are the mass matrix and stiffness matrix, respectively.

Solving the following eigenvalue problem

Kϕ−Μ \ddot{φ} =0

(17)

gives the natural frequencies ω.

In addition, the forward and backward travelling wave frequency are considered as ω_f and ω_b, respectively, in the form of

{\begin{cases} ω_{b} = ω + Ω \\ ω_{f} = | ω - Ω | \end{cases}

(18)

Comparative study

Table 2 gives the natural frequency of shaft-disk assembly with different total numbers of elements (1540, 4410, 6260, and 7720). It can be found that the free vibration results can be convergent with element number 6260.

Table 2.

First four natural frequencies (rad/s) of the spinning annular plate with different element numbers by finite element (FE) method (Ω = 500 rad/s).

Element number	Frequency (Hz)
1540	154.16
4410	208.35
6260	296.81
6720	298.07

Before the vibration characteristic analysis, the comparative verification investigation should be conducted first, where the experimental and theoretical methods are adopted together. In this section, the homogeneous material rotor is employed as an example. Unless otherwise stated, the length, diameter and weight of the shaft are 500 mm, 10 mm and 375g, respectively; the diameter, thickness and weight of the disk are 78 mm, 20 mm and 660 g, respectively; the materials of the shaft and disk are Steel No. 45 and carbon alloy steel, respectively; the distance between the two bearings is 440 mm.

Experimental analysis

The rotor test system is composed of three parts: rotor test platform, measuring system and software analysis system which are shown in Figure 3. National Instruments and Lab VIEW virtual instrument technology are used in this paper. The shaft is supported by two bearings which are used by external lubricating oil supply. The rated current and output power of the motor are 2.5 A and 250W. The rotor speed can be infinitely variable, and the maximum rate of rise can be reached 800 rpm/min. The measuring system are composed of five eddy current displacement sensors, one vibration velocity magnetoelectric sensor, one vibration acceleration sensor, one rotary speed photoelectric sensor and eight-channel vibration data analyser. The diameter and sensitivity of sensor probe are 8 mm and 8 mV/mm. They are installed on sensor brackets by non-contact mode and used with preamplifier. The distance of displacement sensors is 1 mm.

Figure 3.

The disk-shaft rotor system: 1. Foundation support, 2. Oiler, 3. Bearing, 4. Eddy current displacement sensor, 5. Displacement sensor preamplifier, 6. Shaft, 7. Disk, 8. Speed sensor, 9. Vibration data analyzer, 10. Coupler, 11. Motor, 12. Speed governor, 13. Computer.

Theoretical analysis

According to Jeffcott rotor, the rotating shaft-disk assembly is modelled as shown in Figure 4. To describe the motion of the rotor, three coordinate systems are established, where o-xyz is the fixed coordinate system; o’-xyz and o’-ξηζ are the reference coordinate systems. The included angles (α, β, and φ) and relations between coordinates are depicted in Figure 5.

Figure 4.

Theoretical model of shaft-disk rotor system.

Figure 5.

The relations between the three coordinate systems.

As shown in Figure 6, the moments (M_x, M_y) and the forces (F_x, F_y) are acted on the rotor, where a and b are the distances between supports and the disk. The resulted displacements are

{\begin{cases} x_{M} = - \frac{M_{x} z (l^{3} - 3 b^{2} - z^{2})}{6 l E I} = - \frac{M_{x} a b (a - b)}{3 l E I} \\ x_{F} = \frac{F_{x} b z (l^{3} - z^{2} - b^{2})}{6 l E I} = \frac{F_{x} a^{2} b^{2}}{3 l E I} \end{cases}

(19)

Figure 6.

The relations between the three coordinate systems.

The deflection and deflection angle are

{\begin{cases} x = \frac{F_{x} a^{2} b^{2}}{3 l E I} - \frac{M_{x} a b (a - b)}{3 l E I} \\ α = \frac{F_{x} a b (a - b)}{3 l E I} + \frac{M_{x} (a^{2} - a b + b^{2})}{3 l E I} \end{cases}

(20)

Thus, the moment and force can be obtained as

{\begin{array}{l} F_{x} = 3 l E I (\frac{a^{2} - a b + b^{2}}{a^{3} b^{3}} x + \frac{a - b}{a^{2} b^{2}} α) = k_{11} x + k_{12} α \\ M_{x} = 3 l E I (\frac{a - b}{a^{2} b^{2}} x + \frac{1}{a b} α) = k_{21} x + k_{22} α \end{array}

(21)

where

{\begin{array}{l} k_{11} = \frac{F_{x}}{x} = 3 l E I (\frac{a^{2} - a b + b^{2}}{a^{3} b^{3}}) \\ \begin{array}{l} k_{12} = \frac{F_{x}}{α} = k_{21} = \frac{M_{x}}{x} = 3 l E I (\frac{a - b}{a^{2} b^{2}}) \\ k_{22} = \frac{M_{x}}{α} = \frac{3 l E I}{a b} \end{array} \end{array}

(22)

Similar, the moment and force in the other direction are given by

{\begin{cases} F_{y} = k_{11} y + k_{12} β \\ M_{y} = - k_{21} y - k_{22} β \end{cases}

(23)

Based on the motion theory of mass center, the equations of motion can be determined by

{\begin{matrix} m \ddot{x} + k_{11} x + k_{12} α = 0 \\ m \ddot{y} + k_{11} y + k_{12} β = 0 \end{matrix}

(24)

Due to the rotationally symmetric motion, equation (24) can be expressed as

{\begin{array}{l} - m ω^{2} r + k_{11} r + k_{12} θ = 0 \\ (J_{p} \frac{Ω}{ω} - J_{d}) ω^{2} θ + k_{21} r + k_{22} θ = 0 \end{array}

(25)

Equation (25) can be given in the matrix form of

[\begin{matrix} k_{11} - m ω^{2} & k_{12} \\ k_{21} & J_{p} Ω ω - J_{d} ω^{2} + k_{22} \end{matrix}] {\begin{matrix} r \\ θ \end{matrix}} = 0

(26)

For non-zero solution condition, one has

| \begin{matrix} k_{11} - m ω^{2} & k_{12} \\ k_{21} & J_{p} Ω ω - J_{d} ω^{2} + k_{22} \end{matrix} | = 0

(27)

The frequency equation can be obtained as

(k_{11} - m ω^{2}) (J_{p} ω Ω - J_{d} ω^{2} + k_{22}) - k_{12} k_{21} = 0

(28)

The natural frequency ω can be calculated by solving equation (27). In addition, the backward travelling wave frequency ω_b and forward travelling wave frequency ω_f of the rotor are given by

{\begin{cases} ω_{b} = ω + Ω \\ ω_{f} = | ω - Ω | \end{cases}

(29)

Comparative verification

Table 3 lists the comparison of the present FE, theoretical and the experimental results. It can be seen obviously that the FE results have well agreement with the experimental results comparing to the theoretical results. This is because the theoretical method is with rigid model, while the FE method is with elastic model. It can be told that the present model and vibration analysis in this paper is accurate enough.

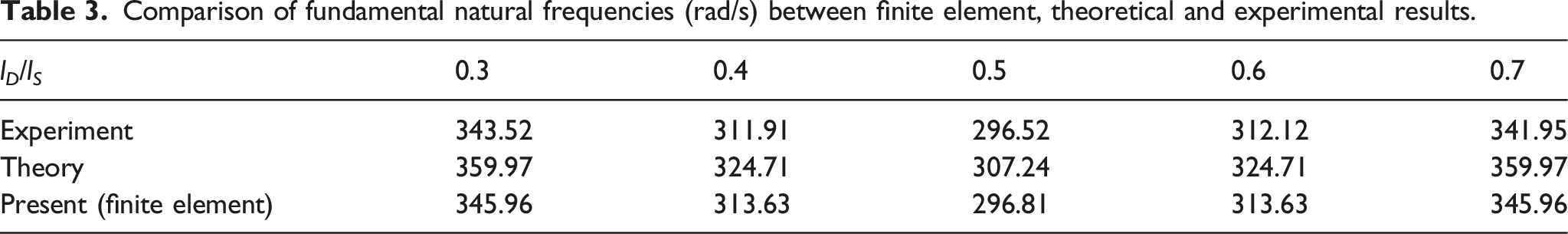

Table 3.

Comparison of fundamental natural frequencies (rad/s) between finite element, theoretical and experimental results.

l_D/l_S	0.3	0.4	0.5	0.6	0.7
Experiment	343.52	311.91	296.52	312.12	341.95
Theory	359.97	324.71	307.24	324.71	359.97
Present (finite element)	345.96	313.63	296.81	313.63	345.96

Results and discussion

In this section, the effects of rotating speed, material parameters and bearing stiffness on the foundational natural frequency are examined in graphical form. Unless otherwise stated, the structure parameters are same as the ones in Comparative Study; the material parameters are E_GPL = 1050 Gpa, E_M = 130 Gpa, ν_GPL = 0.186, ν_M = 0.34, ρ_GPL = 1062.5 kg/m³, ρ_M = 8960 kg/m³, g_GPL = 1%, l_GPL/h_GPL = 10, and l_GPL/w_GPL = 2. In addition, GPL distribution pattern X is taken into account if not specified in the following analysis.

Figure 7 shows the variation of foundational natural frequency of the shaft-disk rotor system with different GPL weight fractions. The solid line and the dotted line represent the backward and forward travelling wave frequency, respectively. As can be seen, the backward travelling wave frequency increases significantly, while the forward travelling wave frequency decreases dramatically. Moreover, it is obvious that an increase in GPL weight fraction from 0% to 1% results in increased natural frequency. This indicates that dispersing more GPLs into the polymer matrix has an evident advantage in improving the mechanical performance of the rotor.

Figure 7.

Natural frequency versus rotating speed for different graphene nanoplatelet weight fractions.

Figure 8 depicts the variation of foundational natural frequency of the shaft-disk rotor system with different GPL distribution patterns. It can be seen that Pattern X provides the highest natural frequency among the three distributions, while Pattern O gives the smallest one. This tells that the better reinforcing effect occurs when more GPLs are scheduled around the surfaces of the disk and shaft in the case of the same total GPL content.

Figure 8.

Natural frequency versus rotating speed for different graphene nanoplatelet distribution patterns.

Figure 9 depicts the variation of foundational natural frequency of the shaft-disk rotor system with different GPL length-to-thickness ratios. The observation is that the natural frequency rises markedly with the increase of the GPL length-to-thickness ratio. For the same content of GPLs, the greater GPL length-to-thickness ratio represents that each GPL has less single graphene layers. This implies that the rotor reinforced with thinner GPLs has greater structural stiffness.

Figure 9.

Natural frequency versus rotating speed for different graphene nanoplatelet length-to-thickness ratios.

Variation of foundational natural frequency of the shaft-disk rotor system with different GPL length-to-width ratios is presented in Figure 10, where the GPL length remains constant. Results show that the natural frequency decreases with the increase of the GPL length-to-width ratio because of better load transfer capability. Actually, a smaller value of GPL length-to-width ratio denotes that each GPL has a larger surface area. This illustrates that adding more GPLs with larger surface areas into the polymer matrix is an effective way to improve the vibrational behaviour of the rotor.

Figure 10.

Natural frequency versus rotating speed for different graphene nanoplatelet length-to-width ratios.

To sum up, the influences of material parameters on the foundation forward and backward travelling natural frequencies are examined. Moreover, the effects of structure parameters on the forward and backward travelling natural frequencies are also investigated in the following analysis. Since these results exhibit quite similar trend, only those concerning the backward travelling natural frequencies are displayed in Figure 7–10.

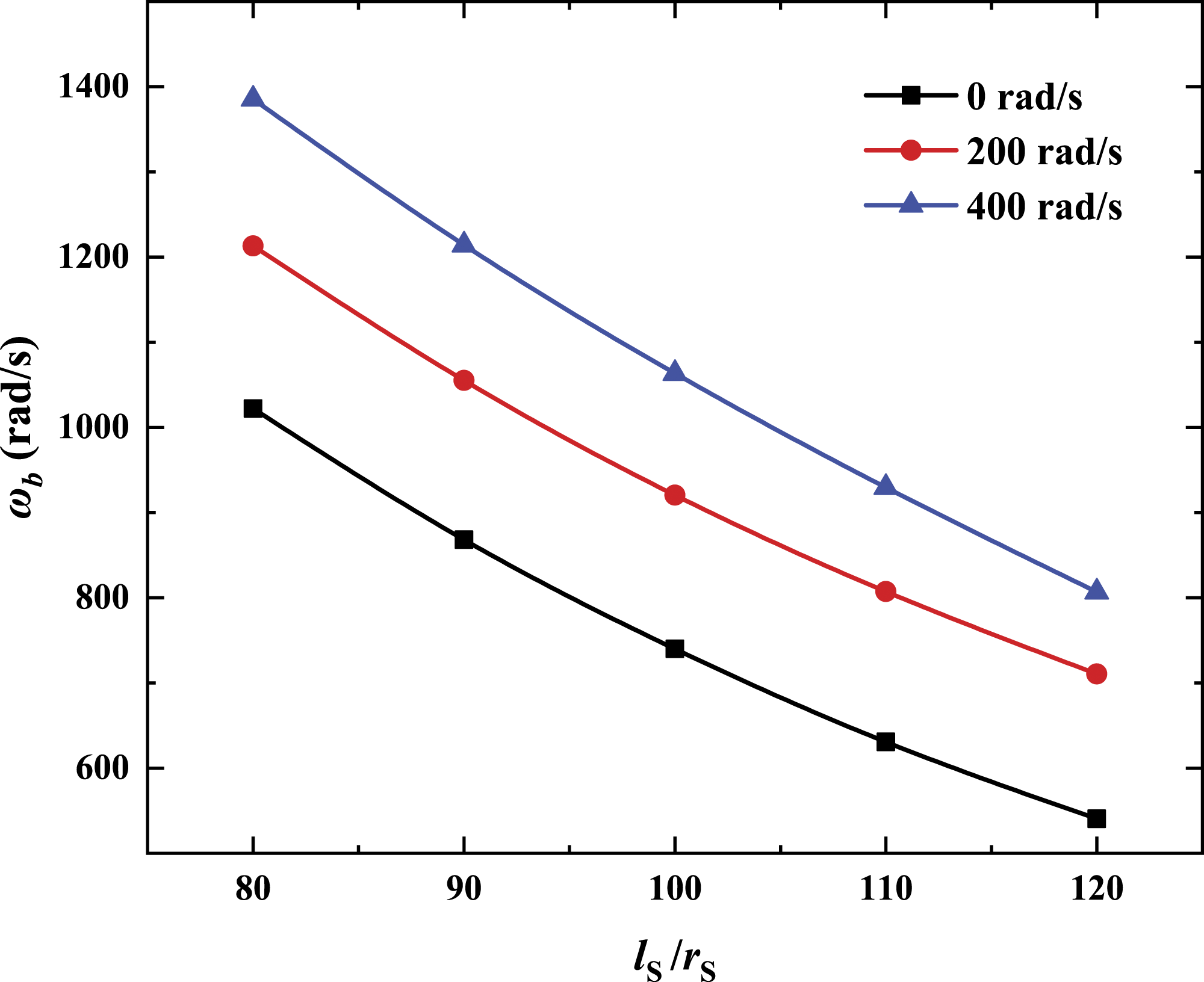

Figure 11 plots the variation of backward travelling wave frequency of the shaft-disk rotor system with shaft length-to-radius ratio, where the shaft radius remains constant. One can see that an increase in the shaft length leads to significant reduction in the natural frequency. It is worth noting that shorter shaft or more supports can make the rotor to achieve better mechanical behaviour.

Figure 11.

Natural frequency versus shaft length-to-radius ratio for different rotating speeds.

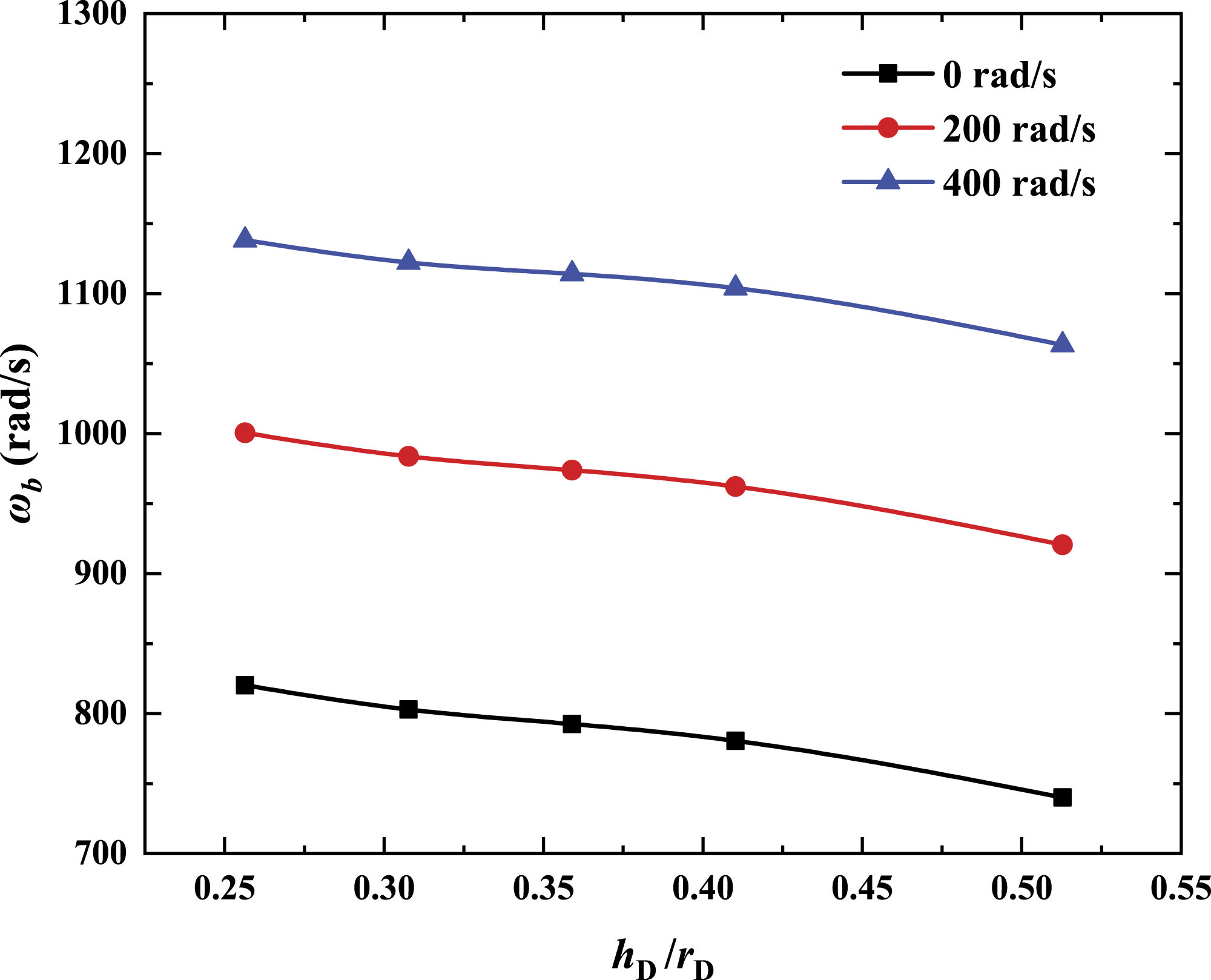

Figure 12 gives the variation of backward travelling wave frequency of the shaft-disk rotor system with disk thickness-to-radius ratio, where the disk radius remains constant. It can be clearly seen that the decreasing of disk thickness gives rise to the natural frequency. This indicates that the rotating assembly with a thicker disk has stronger structural stiffness.

Figure 12.

Natural frequency versus disk thickness-to-radius ratio for different rotating speeds.

Figure 13 displays the variation of backward travelling wave frequency of the shaft-disk rotor system with support stiffness. As can be seen, the natural frequency rises visibly with increase of support stiffness from 10³ (N/m) to 10⁴ (N/m). In addition, the variation tends to be converged when the support stiffness is larger than 10⁵ (N/m) because this support can be regard as simple support. It can be told that greater support stiffness should be designed in engineering application.

Figure 13.

Natural frequency versus support stiffness for different rotating speeds.

Conclusions

This paper studies the vibration behavior of a rotating GPL reinforced shaft-disk assembly resting on elastic supports. The effective material properties are considered to vary along the radius directions of the shaft and disk. The modelling and free vibration analysis of the rotor are conducted by employing the finite element method. Both the theoretical and experimental methods are adopted to verify the accuracy of the present analysis. The effects of the rotating speed, GPL distribution pattern, GPL weight fraction, length-to-width ratio and length-to-thickness ratio of GPLs, shaft length-to-radius ratio, disk thickness-to-radius ratio and support stiffness are discussed in detail. Some interesting conclusions can be draw as follows:

1) Dispersing more GPLs into the polymer matrix has a evident advantage in improving the mechanical performance of the rotor; 2) Better reinforcing effect occurs when more GPLs are scheduled around the surfaces of the disk and shaft; 3) The rotor reinforced with thinner GPLs has greater structural stiffness; 4) Adding more GPLs with larger surface areas into the polymer matrix is an effective way to improve the vibrational behavior of the rotor; 5) Shorter shaft or more supports can make the rotor to achieve better mechanical behavior; 6) The rotating assembly with a thicker disk has stronger structural stiffness; and 7) Greater support stiffness should be designed in engineering application.
