The long-term results of treating radial neck fractures in children with the Metaizeau technique

Abstract

Purpose:

Radial neck fractures in children are rare, representing less than 1% of all pediatric fractures. While conservative treatments are often sufficient, displaced fractures may require closed or open reduction. The Metaizeau technique is widely accepted for closed reduction and internal fixation. This study aims to assess the long-term functional and radiological outcomes of this technique and identify any complications that may arise.

Methods:

This retrospective study analyzed 22 pediatric patients treated with the Metaizeau technique for proximal radius fractures between 2005 and 2018. Data on demographics, preoperative radiographs, and postoperative complications were reviewed. Outcomes were evaluated using radiographic and functional measures, including grip strength, the Mayo elbow performance score (MEPS), and the Tibone and Stolz classification.

Results:

The mean age at the time of injury was 9.9 years, with a mean follow-up period of 139 months (range: 72–213 months). Patients were classified as Judet type 3 (n = 9), type 4a (n = 9), or type 4b (n = 4). The functional outcomes showed a mean MEPS score of 99 (range: 90–100), with 86% of patients achieving excellent results according to the Tibone and Stolz classification. Excellent outcomes were recorded in 100% of type 3, 77.7% of type 4a, and 75% of type 4b cases. Documented complications included one case of radioulnar synostosis and two cases of heterotopic ossification.

Conclusions:

The Metaizeau technique represents an efficacious treatment option for pediatric radial neck fractures, offering favorable long-term functional and radiological outcomes with a low complication rate. Long-term follow-up data further support the reliability of this technique.

Types of Studies:

Level IV.

Keywords

radial neck fractures internal fixation Metaizeau technique pediatric elbow trauma closed reduction of fracture

Introduction

Pediatric elbow injuries are relatively common, but radial neck fractures, although they constitute 1% of all pediatric fractures, have an important place in pediatric elbow injuries.^1,2 These injuries predominantly affect children aged 4–14 years, with the highest incidence occurring between ages 8 and 10.^3,4 The typical mechanism involves a valgus force causing impaction at the radiocapitellar joint, usually from a fall onto an outstretched hand while the forearm is supinated and the elbow extended.⁵

Radial neck fractures are categorized anatomically into two types: metaphyseal fractures, which are more common, and epiphyseal separation fractures. The treatment approach depends on the fracture’s angulation, displacement, and patient age. Mildly angulated fractures are often managed with immobilization, while more displaced fractures may require closed or open reduction.^6,7 When there is significant displacement, conservative management may be inadequate, making surgical intervention necessary. In cases of displaced radial neck fractures with angulation exceeding 30°, surgical intervention is recommended. This is consistent with the classification of Judet type 3 and 4 fractures.^8,9

A variety of surgical techniques have been employed, including percutaneous joystick reduction with Kirschner wires (K-wires) and open reduction, with or without internal fixation. However, the Metaizeau technique, introduced in 1980, popularized the use of elastic stable intramedullary nailing for stabilization.^6,7 The Metaizeau technique supports bone healing through minimally invasive fixation, avoiding direct interference with the physis and reducing the risk of growth disturbances while promoting early functional recovery.

While previous research has largely focused on short- to mid-term outcomes or comparing different techniques, this study seeks to evaluate the long-term functional and radiological results of the Metaizeau technique for treating pediatric radial neck fractures.

Materials and methods

This retrospective study was approved by the institutional ethics review board (approval number: 4487) and conducted in accordance with the Declaration of Helsinki. Prior to their inclusion in the study, all patients or their guardians provided informed consent. The medical records of patients presenting with radial neck fractures between 2005 and 2018 were reviewed retrospectively.

The study included patients who were 15 years of age or younger at the time of injury, had a minimum follow-up period of 5 years, and had both initial and follow-up radiological imaging available for evaluation. Patients with incomplete data, polytrauma, or an age greater than 15 years were excluded, as were patients lacking adequate radiological images. Radiographs were classified according to the Judet classification (Table 1), and only patients classified as Judet type 3 or 4 were included, while types 1 and 2 were excluded from the analysis (Figure 1). Patients treated with a method other than the Metaizeau technique (open or direct percutaneous reduction, etc.) were excluded from the study.

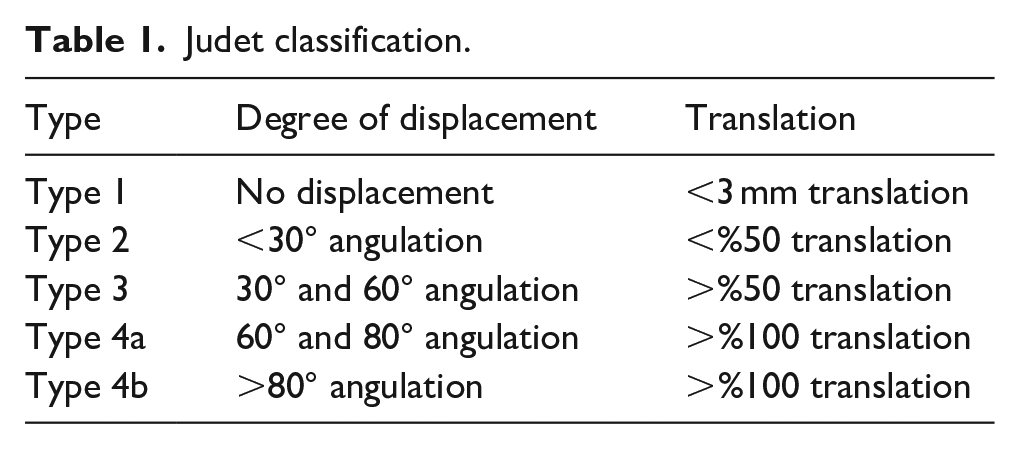

Table 1.

Judet classification.

Type	Degree of displacement	Translation
Type 1	No displacement	<3 mm translation
Type 2	<30° angulation	<%50 translation
Type 3	30° and 60° angulation	>%50 translation
Type 4a	60° and 80° angulation	>%100 translation
Type 4b	>80° angulation	>%100 translation

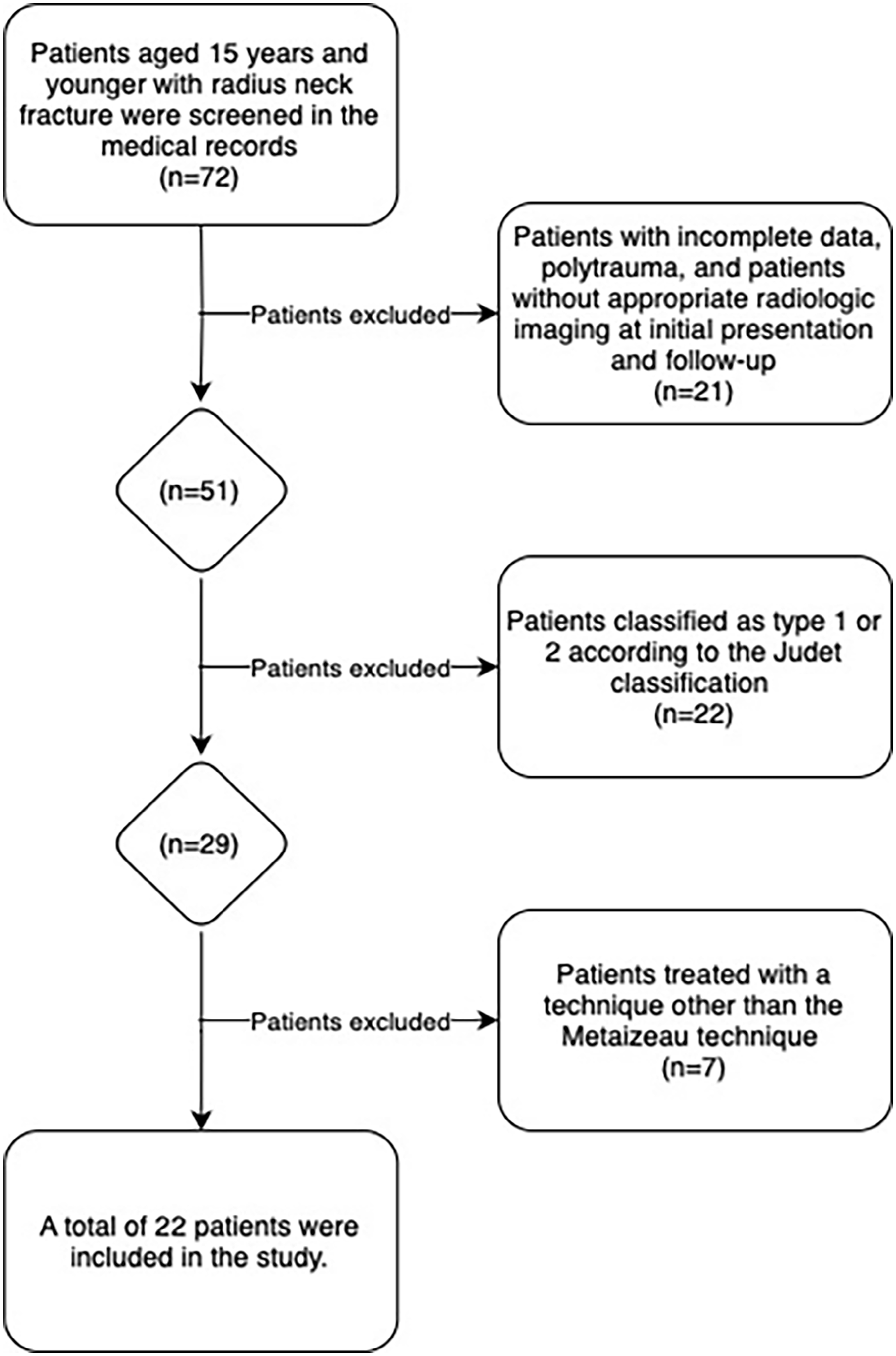

Figure 1.

Study flow chart of patients screened, excluded, and included.

Demographic data, including age, gender, side of injury, and follow-up duration, were collected and analyzed. Preoperative and postoperative radiographs and functional status at final follow-up were evaluated (Figures 2 and 3). Functional outcomes were measured using a range of motion and grip strength, as well as the Mayo elbow performance score (MEPS) and Tibone and Stolz scores (Tables 2 and 3). Postoperative complications were also documented.

Figure 2.

Functional images of our 22-year-old patient, who underwent surgery at the age of 10 for a radii neck fracture treated with the Metaizeau technique.

Figure 3.

Preoperative and postoperative radiographs of our patient with radii neck fracture treated with the Metaizeau technique.

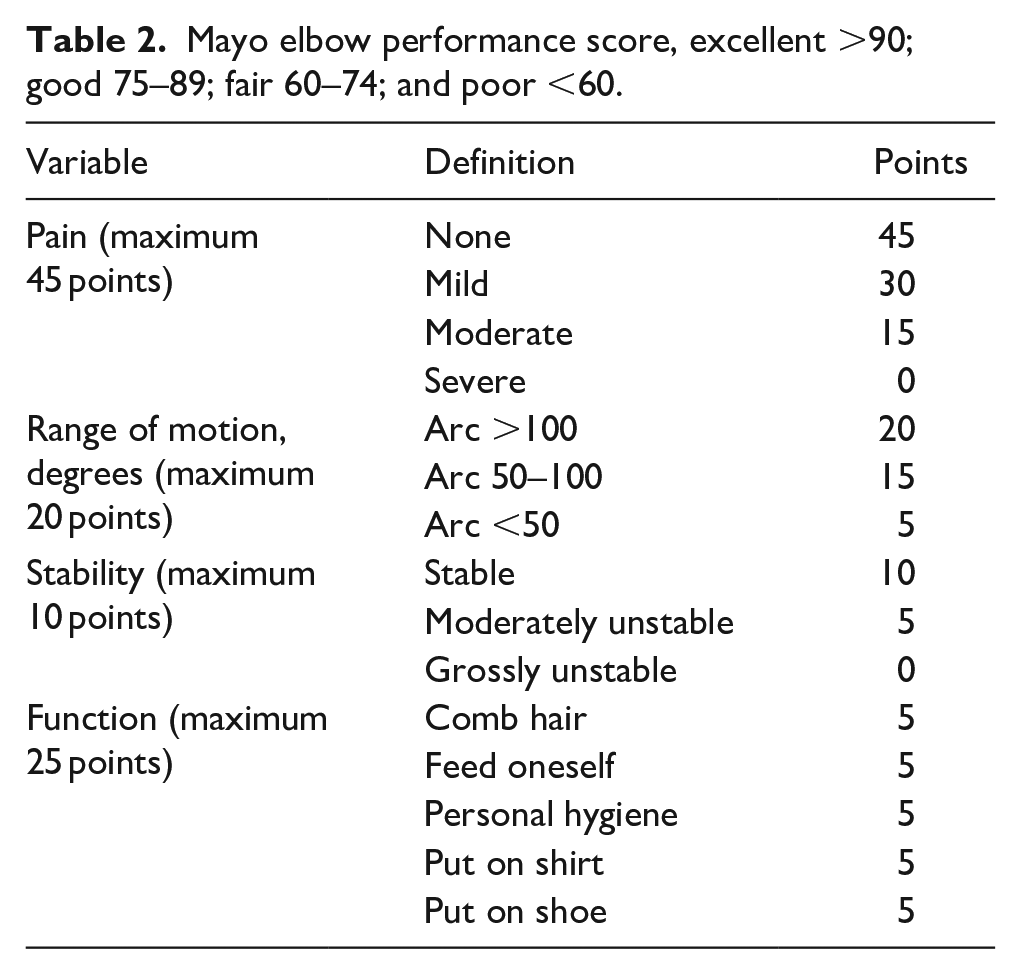

Table 2.

Mayo elbow performance score, excellent >90; good 75–89; fair 60–74; and poor <60.

Variable	Definition	Points
Pain (maximum 45 points)	None	45
	Mild	30
	Moderate	15
	Severe	0
Range of motion, degrees (maximum 20 points)	Arc >100	20
	Arc 50–100	15
	Arc <50	5
Stability (maximum 10 points)	Stable	10
	Moderately unstable	5
	Grossly unstable	0
Function (maximum 25 points)	Comb hair	5
	Feed oneself	5
	Personal hygiene	5
	Put on shirt	5
	Put on shoe	5

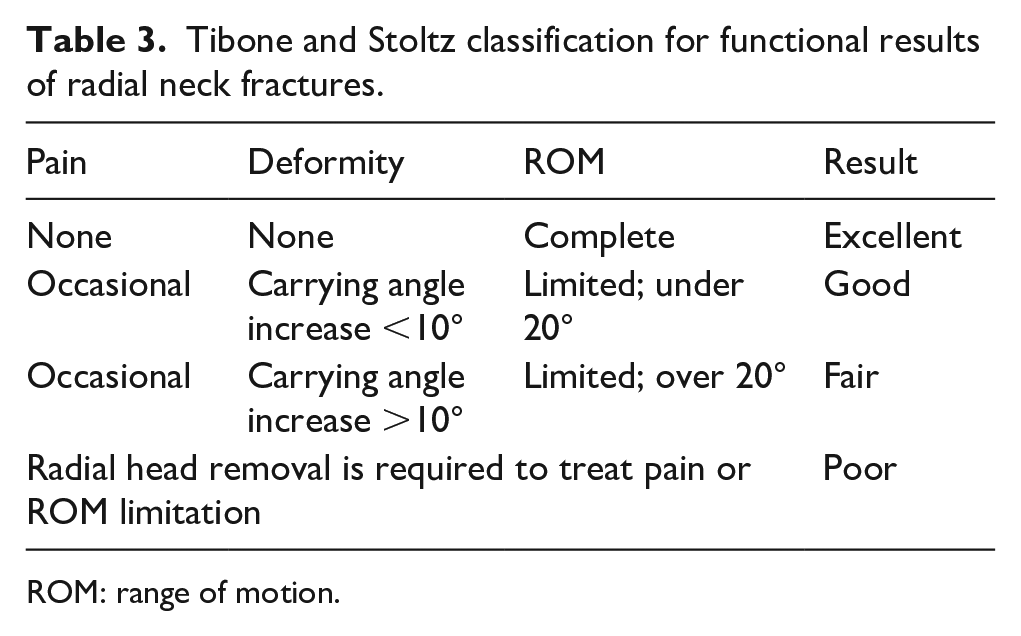

Table 3.

Tibone and Stoltz classification for functional results of radial neck fractures.

Pain	Deformity	ROM	Result
None	None	Complete	Excellent
Occasional	Carrying angle increase <10°	Limited; under 20°	Good
Occasional	Carrying angle increase >10°	Limited; over 20°	Fair
Radial head removal is required to treat pain or ROM limitation			Poor

ROM: range of motion.

Descriptive data, including preoperative radiographic findings and postoperative functional outcomes, were expressed as numbers, percentages, means, and ranges (minimum–maximum). All radiological evaluations were performed by orthopedic surgeons and classified using the Judet system. Statistical analysis was conducted using SPSS software version 29 (IBM Corporation, New York, NY, USA).

Results

A total of 22 patients were included in the study. All surgeries were performed with closed reduction using the Metaizeau technique. In all patients, intramedullary K-wire was removed in an average of 6–8 weeks. The mean age at the time of injury was 9.9 years (range: 5–15 years), with the cohort comprising 13 males and 9 females. The majority of patients (64%) sustained fractures on the left elbow, while 36% had right elbow fractures. The average angulation of the fractures was 62.13° (range: 35°–86°). All patients underwent surgery within the first 24 h using the Metaizeau technique.⁹ The average follow-up duration was 139 months (range: 72–213).

Table 4 presents a summary of the number of patients, mean age, and mean fracture angles of fracture types according to the Judet classification. When evaluating all patients, regardless of demographic characteristics or fracture type, the functional assessment yielded a mean MEPS of 98 (range: 80–100). According to the Tibone and Stolz classification, 86% of patients achieved excellent results. The average grip strength on the injured side was 73.8 kg (range: 50–98), while on the uninjured side, it was 75.8 kg (range: 52–102). Only four patients experienced movement limitations, specifically in extension, supination, and pronation, with maximum limitations of 10° in extension and supination, and 30° in pronation (Table 5).

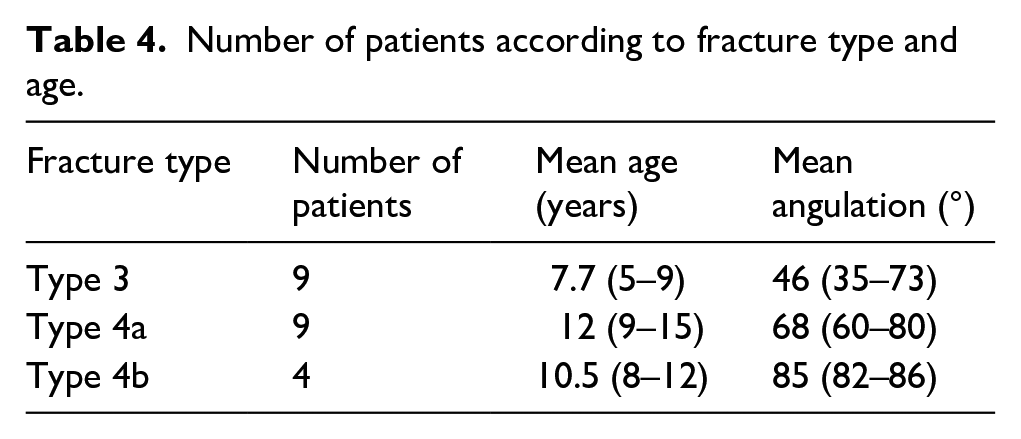

Table 4.

Number of patients according to fracture type and age.

Fracture type	Number of patients	Mean age (years)	Mean angulation (°)
Type 3	9	7.7 (5–9)	46 (35–73)
Type 4a	9	12 (9–15)	68 (60–80)
Type 4b	4	10.5 (8–12)	85 (82–86)

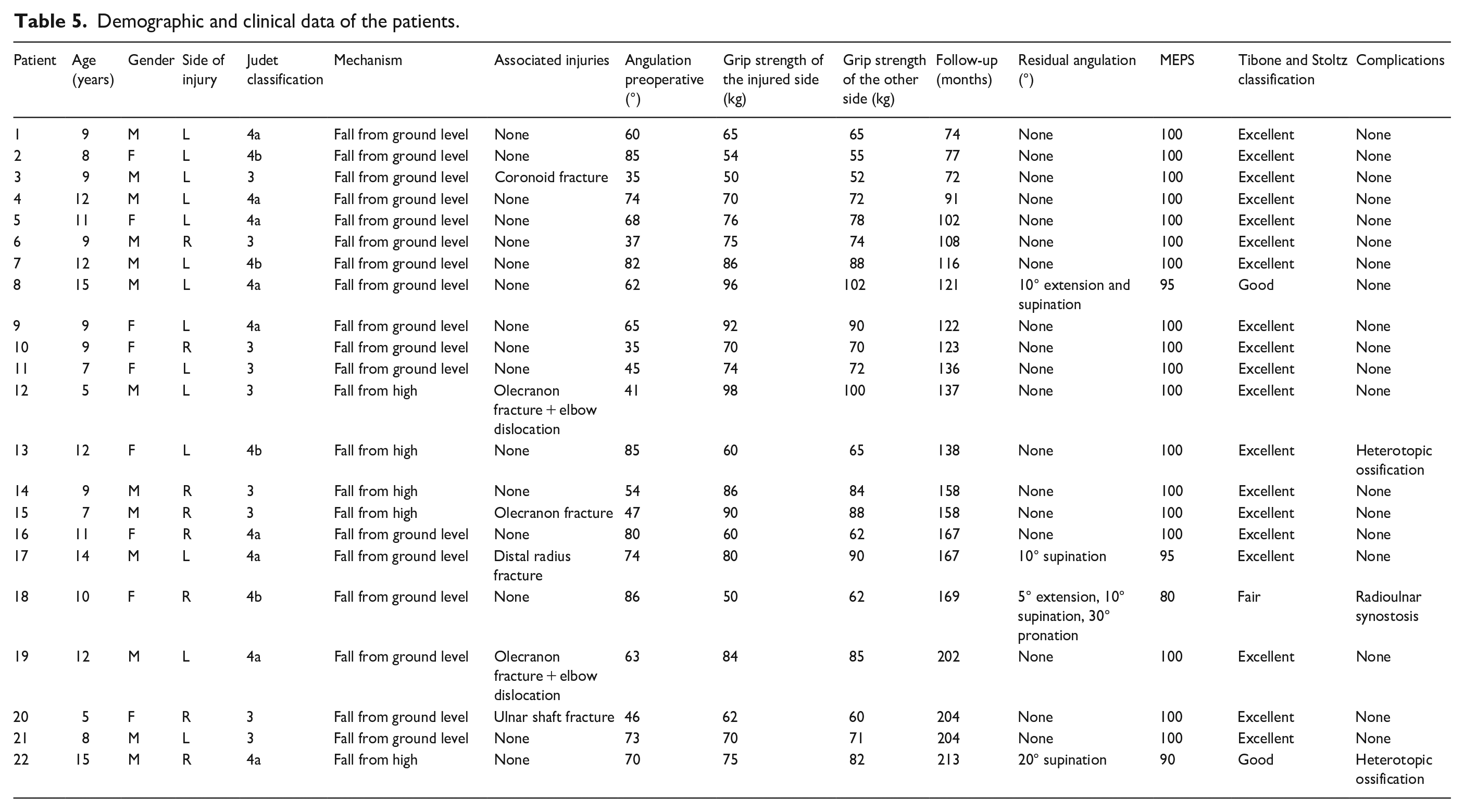

Table 5.

Demographic and clinical data of the patients.

Patient	Age (years)	Gender	Side of injury	Judet classification	Mechanism	Associated injuries	Angulation preoperative (°)	Grip strength of the injured side (kg)	Grip strength of the other side (kg)	Follow-up (months)	Residual angulation (°)	MEPS	Tibone and Stoltz classification	Complications
1	9	M	L	4a	Fall from ground level	None	60	65	65	74	None	100	Excellent	None
2	8	F	L	4b	Fall from ground level	None	85	54	55	77	None	100	Excellent	None
3	9	M	L	3	Fall from ground level	Coronoid fracture	35	50	52	72	None	100	Excellent	None
4	12	M	L	4a	Fall from ground level	None	74	70	72	91	None	100	Excellent	None
5	11	F	L	4a	Fall from ground level	None	68	76	78	102	None	100	Excellent	None
6	9	M	R	3	Fall from ground level	None	37	75	74	108	None	100	Excellent	None
7	12	M	L	4b	Fall from ground level	None	82	86	88	116	None	100	Excellent	None
8	15	M	L	4a	Fall from ground level	None	62	96	102	121	10° extension and supination	95	Good	None
9	9	F	L	4a	Fall from ground level	None	65	92	90	122	None	100	Excellent	None
10	9	F	R	3	Fall from ground level	None	35	70	70	123	None	100	Excellent	None
11	7	F	L	3	Fall from ground level	None	45	74	72	136	None	100	Excellent	None
12	5	M	L	3	Fall from high	Olecranon fracture + elbow dislocation	41	98	100	137	None	100	Excellent	None
13	12	F	L	4b	Fall from high	None	85	60	65	138	None	100	Excellent	Heterotopic ossification
14	9	M	R	3	Fall from high	None	54	86	84	158	None	100	Excellent	None
15	7	M	R	3	Fall from high	Olecranon fracture	47	90	88	158	None	100	Excellent	None
16	11	F	R	4a	Fall from ground level	None	80	60	62	167	None	100	Excellent	None
17	14	M	L	4a	Fall from ground level	Distal radius fracture	74	80	90	167	10° supination	95	Excellent	None
18	10	F	R	4b	Fall from ground level	None	86	50	62	169	5° extension, 10° supination, 30° pronation	80	Fair	Radioulnar synostosis
19	12	M	L	4a	Fall from ground level	Olecranon fracture + elbow dislocation	63	84	85	202	None	100	Excellent	None
20	5	F	R	3	Fall from ground level	Ulnar shaft fracture	46	62	60	204	None	100	Excellent	None
21	8	M	L	3	Fall from ground level	None	73	70	71	204	None	100	Excellent	None
22	15	M	R	4a	Fall from high	None	70	75	82	213	20° supination	90	Good	Heterotopic ossification

The most common complication observed was heterotopic ossification in two patients, while one patient developed radioulnar synostosis (Figure 4). It is noteworthy that none of the complications frequently cited in the literature, such as posterior interosseous nerve palsy, avascular necrosis of the radial head, malunion, or nonunion, were observed in this study. Patients who experienced complications were all classified as Judet type 4a or type 4b and exhibited lower functional outcomes. The patient with radioulnar synostosis had 5° of extension, 10° of supination, and 30° of pronation limitation, and his MEPS was 80. One patient with heterotopic ossification had 20° of supination limitation, and his MEPS was 90, while no limitation was observed in the other patient, and his MEPS was 100.

Figure 4.

Elbow radiographs of a patient with radioulnar synostosis.

Discussion

The findings of this study suggest that long-term radiological and functional outcomes of pediatric radial neck fractures treated with the Metaizeau technique are highly favorable. With an average follow-up period of 12 years across 22 patients, this study represents one of the most comprehensive follow-up evaluations of this technique to date. Consistently positive outcomes, regardless of patient demographics or fracture type, highlight the reliability and efficacy of the Metaizeau technique as a preferred method for treating pediatric radial neck fractures.

Pediatric radial neck fractures are uncommon, and there is ongoing debate regarding the optimal angulation threshold for surgical intervention. Insufficient treatment can lead to complications and restricted elbow mobility. It can be reasonably deduced that fractures with angulation of less than 30° (Judet types 1 and 2) can be managed effectively with short-term immobilization, which often leads to a positive prognosis and satisfactory functional outcomes.^7,10 Fractures with angulation greater than 60° (Judet type 4) typically necessitate surgical intervention, while the management of fractures with angulation between 30° and 60° (Judet type 3) remains a subject of debate, with no clear consensus on the optimal treatment approach.^7,11
–14 The majority of studies in the existing literature recommend surgical intervention over conservative treatment, particularly in cases of angulated fractures exceeding 30° (Judet types 3 and 4).^15
–21 It has been reported that surgical treatment has the potential to provide better radiological and functional outcomes in such severe fractures and is superior in terms of optimal bone healing and functional recovery in the long term.^{15
–18,20,21}

The long-term functional outcomes of surgical treatment of Judet type 3 and 4 fractures were found to be quite favorable in our study, with a mean MEPS of 98. According to the MEPS, 95% of patients achieved excellent outcomes, while 86% achieved excellent outcomes according to the Tibone and Stoltz classification. In one study, the Métaizeau technique yielded MEPS of 95.2 and 68% excellent results in patients who underwent surgery.¹⁹ In another study, the Métaizeau technique yielded 95% excellent results.²⁰ In patients who underwent surgery with the Métaizeau technique using K-wires or titanium elastic nails, the mean MEPS was found to be 89.50 and 92.83.²² The results of this study were found to be superior to those documented in the existing literature regarding the surgical treatment of Judet type 3 and 4 fractures.^19,20,22 The discrepancy between our findings and those previously documented in the literature may be attributed to a number of factors, including the younger average age of our patient cohort, the extended follow-up period, and the consistent application of the Metaizeau technique. Previous studies have indicated that younger patients (<10 years) tend to achieve better outcomes, while older age has been associated with poorer functional results, irrespective of fracture type.^21,23,24

The mean age of the patient cohort was 9.9 years, with 45% of patients being 10 years of age or older. All patients who did not achieve excellent outcomes were also in this older age group. Among these patients, 10% demonstrated good results according to the MEPS, 30% achieved good outcomes based on the Tibone and Stoltz classification, and 30% experienced complications. These findings are consistent with existing literature; however, our functional outcomes surpass those reported in studies focusing on short- and mid-term results.

Various surgical techniques, both with and without fixation, and utilizing either open or closed approaches, have been widely discussed in the literature. A review of the literature reveals that open methods are frequently linked to inferior radiological and functional outcomes, along with an elevated risk of complications, including avascular necrosis of the radial head.^14,17,19,21 Comparisons between open and closed techniques have demonstrated that closed methods are both reliable and effective, offering better outcomes in terms of radiological and functional recovery.¹⁹ Numerous studies have evaluated different closed surgical techniques in comparison to the Metaizeau technique; however, no single approach has consistently demonstrated superiority in radiological and functional outcomes.^{21,22,25
–27} Nevertheless, case–control studies have indicated that the Metaizeau technique produces favorable short- and mid-term outcomes, with a reduced incidence of complications in comparison to alternative techniques.^{10,15,16,18,20,26} In our study, the long-term outcomes of the Metaizeau technique were assessed, and our functional results, as well as complication rates, were superior to those reported in the existing literature.

Since this study focused on long-term outcomes, all patients had completed their rehabilitation, returned to daily activities, and reached. Therefore, the results presented here likely represent a comprehensive evaluation of the Metaizeau technique. A variety of complications have been documented in the medical literature related to the surgical management of radial neck fractures. These include radioulnar synostosis, avascular necrosis, heterotopic ossification, posterior interosseous nerve injury, elbow stiffness, nonunion, and malunion.^{19,21,23,28,29} The occurrence of these complications has typically been associated with more invasive surgical techniques. Nevertheless, severe complications such as avascular necrosis of the radial head and radioulnar synostosis are infrequently observed.^21,23,28

In this study, complications included heterotopic ossification in two patients and radioulnar synostosis in one patient. Radioulnar synostosis was the most significant complication affecting functional outcomes, as it was the only complication that limited supination, pronation, and extension.²⁹

The primary limitation of this study is the relatively modest sample size, which is largely attributable to the scarcity of radial neck fractures. Furthermore, the retrospective design of the study, reliance on previously recorded patient data, and the fact that it was conducted at a single institution may limit the generalizability of the findings. In addition, the long-term results of a single technique were described and we were unable to compare the results with a control group using another technique.

Conclusions

The Metaizeau technique represents an efficacious treatment option for pediatric radial neck fractures, delivering optimal radiological and functional outcomes with a minimal incidence of complications. The positive results observed in long-term follow-up reinforce the technique’s reliability and effectiveness. To further validate the efficacy of the Metaizeau technique, future studies should focus on larger patient cohorts and extended follow-up periods.
