Abstract
Precipitation takes place when the austenite stainless steel is heated to a high temperature. This is found significantly different when the electropulsing is implemented during the heat treatment. Considerable less number density and much smaller particle size of precipitates are formed in the sample treated with electropulsing. Electropulsing helps to dissolve precipitates. The effect is not due to Ohm heat. Instead, it is attributed to the electric current induced change of thermodynamic sequences of the phases and the electric current accelerated mass diffusion.
Introduction
Precipitates are typically small particles, consist of high solute composition, and are formed in supersaturated alloys. 1 Coarsening of precipitates can give rise to the loss of strength, localisation of stress, initiation of crack, creeping and many other detrimental effects.2,3 This takes place frequently in engineering alloys implemented at an elevated temperature especially after long durations. 4 Examples include the stainless steel implemented in nuclear engineering as reactor vessels, boilers and piping systems, 5 and creep resistant steel used as turbine blades in power plant.3,4
Normally, the precipitates have different electrical conductivities from the steel matrix. The different configurations of the precipitates in steel affect the electrical current distribution in the whole system. The different current distributions correspond to various system free energies.6,7 It is suggested that electric current may affect the formation of object with different electrical conductivities from that of matrix. This may provide a possibility to use electric current to affect the formation of precipitates. Pulsed electric current, as an instantaneously high energy input method, can affect the precipitation process, grain boundary migration and phase transformations in some alloys.7–10 Experimental results show that the dissolution rate of b-Mg17Al12 phase in aged Mg–9Al–1Zn alloy can be enhanced, 9 the migration rate of grain boundaries in α-Ti alloy can be accelerated 10 and the evolution of cementite in pearlite is promoted by electric current. 7
The primary aim of this work was to explore the possibility of using electrical current to dissolve precipitates in 316L stainless steel instantly using its non-thermal effect so that the stainless steels implemented in the earlier mentioned environments can have their microstructure and properties recovered in situ rather than be replaced.
Experimental
Fe–10.45Ni–16.68Cr–2.02Mo (at.-) is a typical 316L stainless steel. Its phase diagram is calculated using Thermo_Calc 3.1 and TCFE7 commercial database, as illustrated in Fig. 1. The alloy is in fully austenite crystal structure when the temperature is between 1125.15 and 1495.88 K. Precipitation tends to take place when the temperature is lower than 1125.15 K. In engineering manufacturing, the steel is quenched from 1273.15 K to ambient temperature to avoid precipitation. The mobility of Ni, Cr and Mo is extremely low at ambient temperature which prevents the precipitation from taking place. However, precipitation takes place when the steel is in service at elevated temperatures. The purpose of this experiment is to prove if electric current can be used to dissolve precipitates at the elevated temperatures.

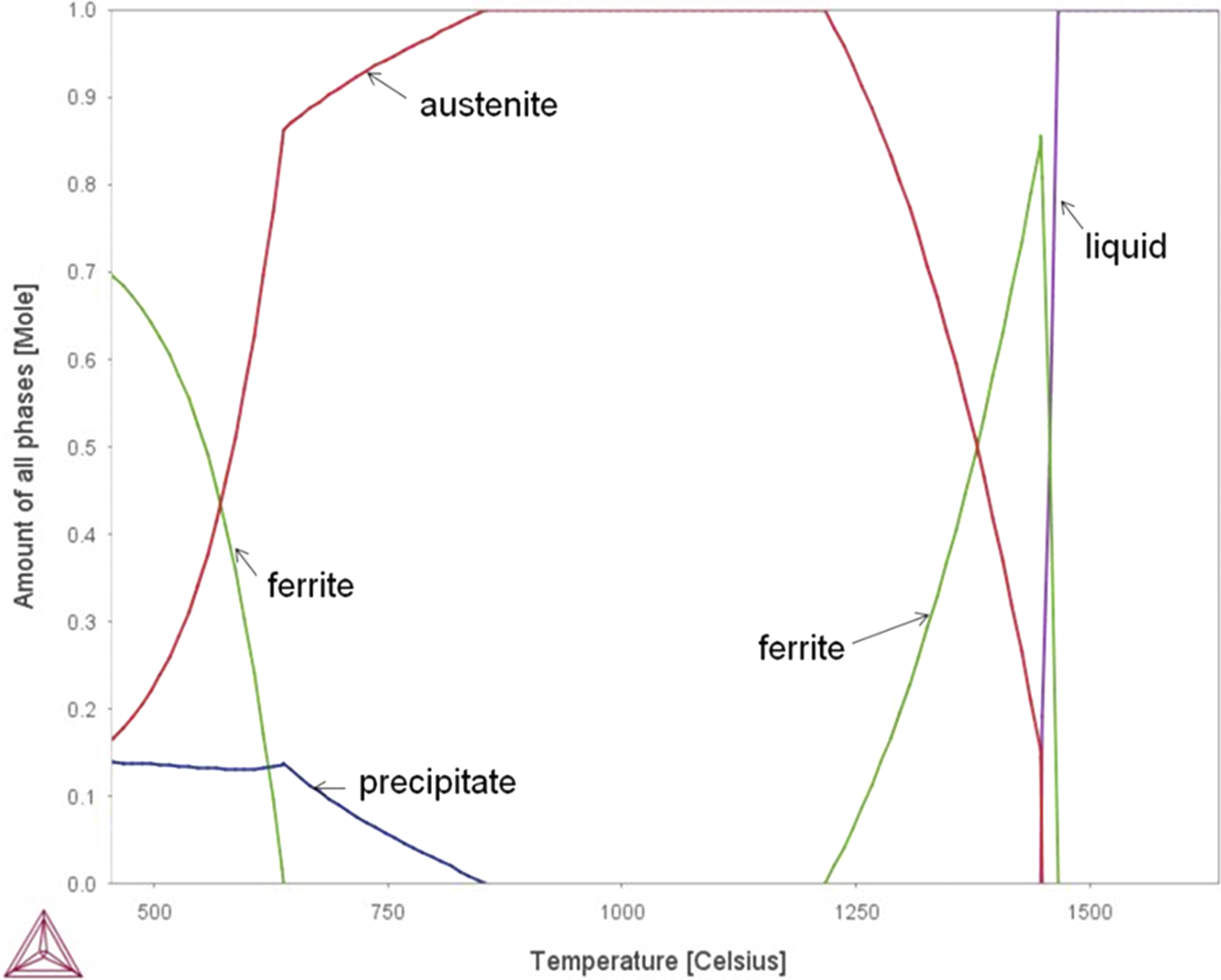

Phase diagram of Fe–10.45Ni–16.68Cr–2.02Mo (at.-) alloys calculated by Thermo_Calc with TCFE7 database
A fully austenitic hot rolled steel plate was received, cold rolled from 3.0 to 0.5 mm in thickness, and cut into oblong shaped specimens with their longest edge perpendicular to the rolling direction. A pair of samples were heated by radiative heating in an electric furnace at 1023.15 K for 60 min and then quenched into cold water. During annealing, one of the samples was connected to an electropulse generator using copper wire. The pulse generator provides pulsed electric current to the sample. Each pulse lasts 60 μs and the current density is 6.3 × 107 A m− 2. There is only one pulse in each second. The electric power consumption in this treatment is 0.0028 W. Both samples in the furnace were exposed to the same annealing conditions. The Joule heat is negligible. After the treatment, both samples were quenched into cold water simultaneously. The quenched samples were moulded, mechanically ground, polished and etched with a solution made by 20 mL hydrochloric acid, 10 mL nitric acid and 20 mL glycerine. The microstructure characterisations were carried out using scanning electron microscopy and focused ion beam secondary ion mass spectrometry. For the TEM observation, specimens were mechanically polished to a thickness of approximately 30 μm, punched to the disc specimens with 3 mm in diameter by a brass cutter. The disc specimens were electrically polished using a mixture solution (30 mL perchloric acid and 270 mL acetic acid) at 15°C and observed by TEM operated at an acceleration voltage of 200 kV. The electrical conductivity of specimens with and without pulsed electric current was measured by a microhmmeter (DO5000 series).
Results and discussion
Figure 2a shows a bright field image of the steel without pulsed electric current. A high frequency of precipitates was observed both along the grain boundaries and within the grains. These precipitates appear as dark particle in the image. One of the particles is selected randomly for the diffraction examination. According to the lattice parameters and crystal structure demonstrated in Fig. 2b and c, the precipitate particle is χ-phase and the matrix is austenite. It is possible that other precipitates are with other structures. χ-phase is an intermetallic compound belonging to the tetrahedrally close packed phases. It has a chemical composition of Fe36Cr12Mo10 and with a complex cubic structure that is frequently found in austenitic stainless steels underwent a long time treatment at the moderate temperature.11–13 The characterisation from the electropulsed steel also confirmed the present of χ-phase in the annealing.

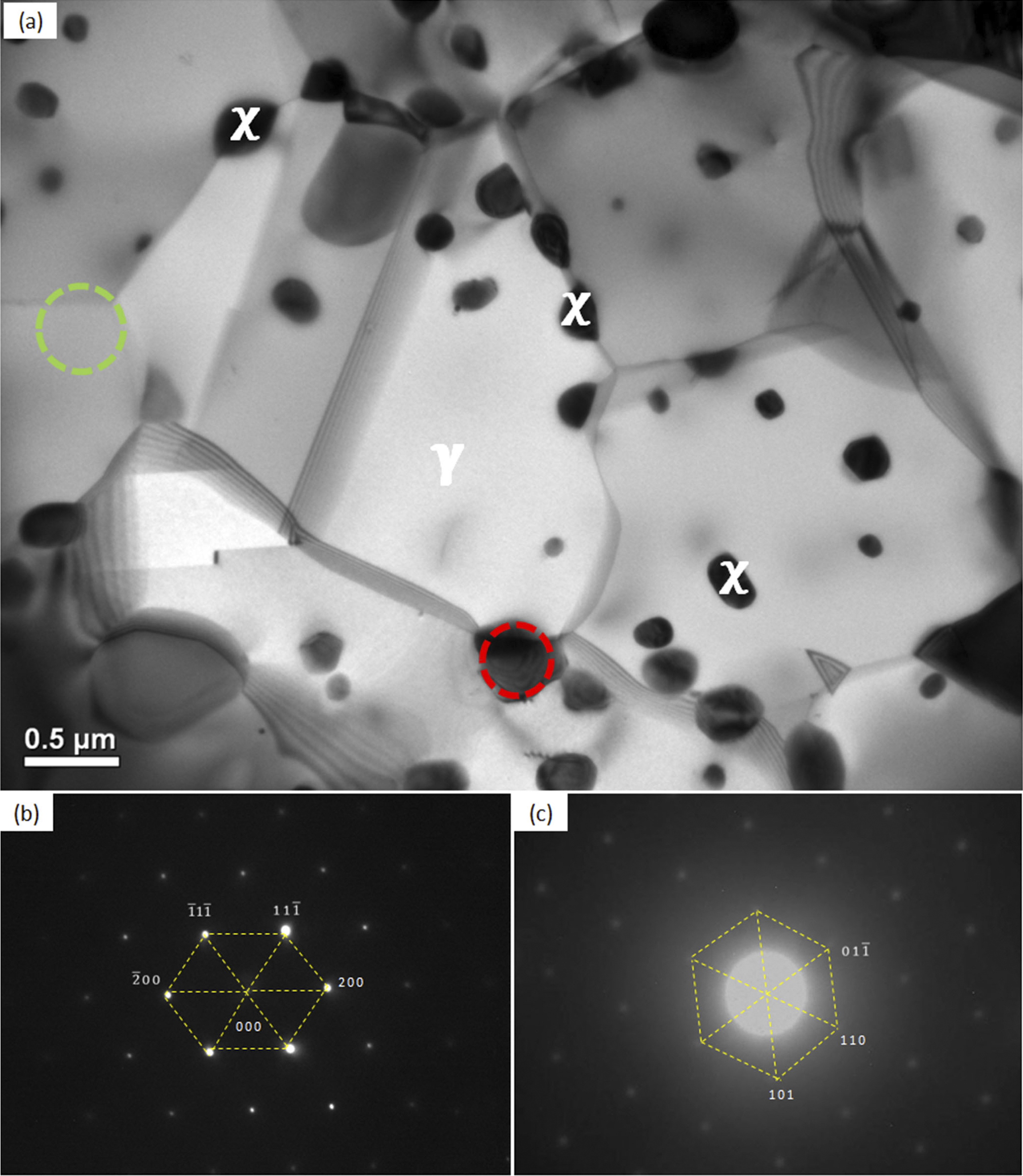

a bright field image by TEM; b selected area diffraction pattern of austenitic matrix; and c diffraction pattern of χ-phase precipitation, where selected area diffractions for austenite and χ-phase precipitation are marked by circles
Figure 3a, c and e illustrates the distribution of precipitates in the sample without electropulsing treatment. The particles are distributed randomly. Some of them are indicated by the arrows. The precipitates distribution in the sample with electropulsing treatment is presented in Fig. 3b, d and f. The average size of the precipitates in electropulsed sample is much smaller than that of without electropulsing treatment. In order to better characterise the size and number distribution with and without electropulsing treatments, further statistical analysis by means of histograms and peaks fitting using Lorentzian has been carried out. Individual precipitate particles with equivalent circular diameter are measured. The results are presented in Fig. 3g and h, respectively. The particle in the steel without electropulsing has a wide variation in size (between 43 nm and 330 nm), but the size distribution mainly concentrates in approximately 143 nm according to Lorentzian fitting (see Fig. 3g). In the case of electropulsed steel, the particles are dispersed with the varied size of 25–105 nm, and its distribution mainly concentrates in 25 nm (Fig. 3h). Furthermore, the number density of particles in the electropulsed steel (∼1.51 × 106 per unit area) is 3.7 times smaller than that of the steel without electropulsing treatment (∼5.63 × 106 per unit area). Therefore, not only the size but also the number density of particles is dramatically reduced by electropulsing. It indicates that the precipitates are dissolved by electropulsing significantly.

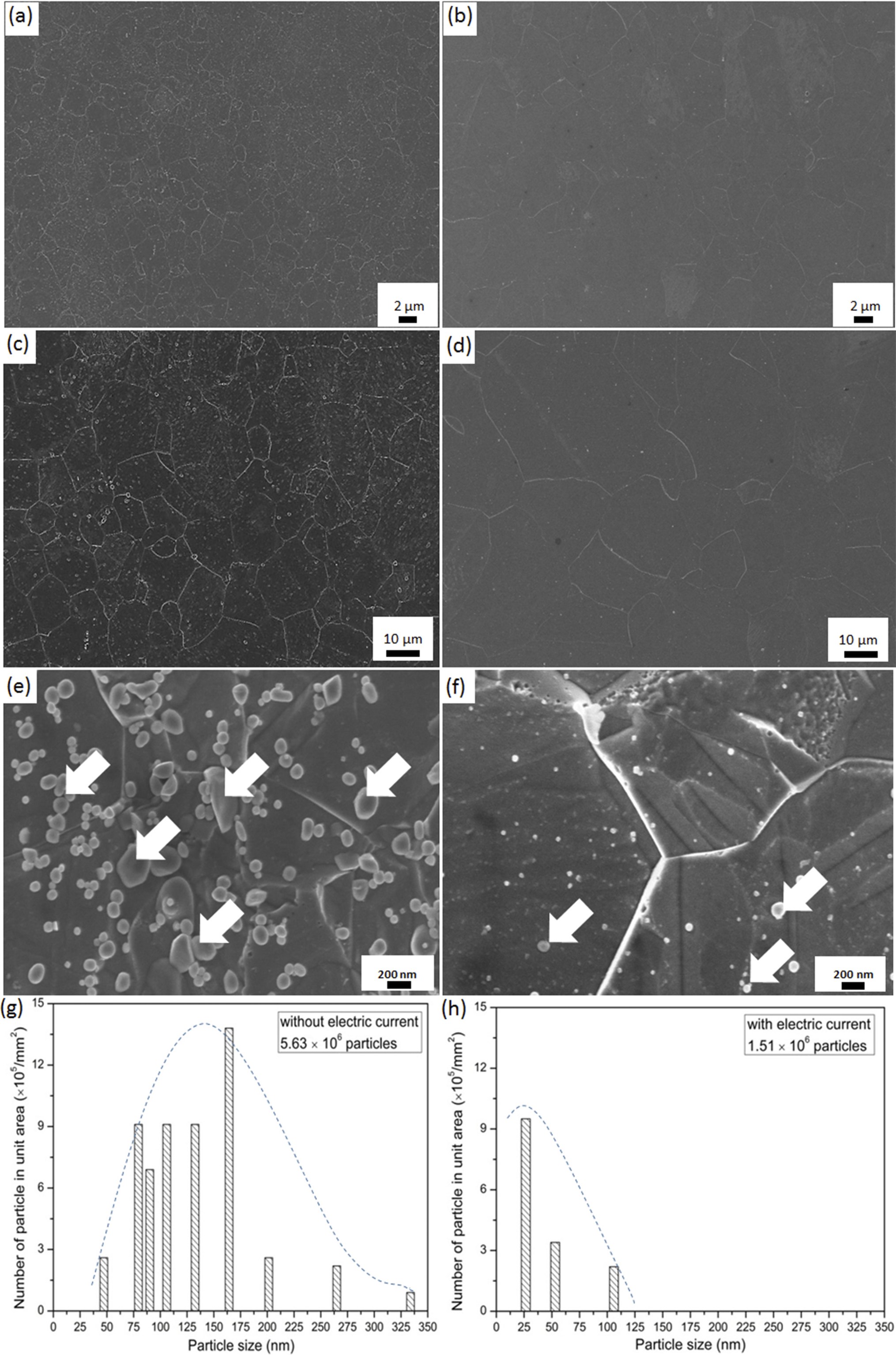

a, c and e distribution of precipitates in sample without pulsed electric current treatment; b, d and f distribution of precipitates with pulsed electric current treatment; g and f number distributions of precipitates without and with pulsed electric current treatments, respectively
Molybdenum atoms occupy the largest atomic sites in the χ-phase structure. 11 The detection of Mo distribution will help to understand the effect of electropulsing on the solute segregation. Focused ion beam secondary ion mass spectrometry is an analytical technique that can provide parts per million (ppm) to parts per billion (ppb) sensitivity for most solutes when relatively large areas of analysis are available. Therefore, it can provide good depth resolution for the molybdenum distribution, which is better than using energy dispersive spectrometry. Figure 4 exhibits the micrograph and chemical mapping of molybdenum in the samples without and with electropulsing treatments, respectively. For the steel without electropulsing treatment, as demonstrated in Fig. 4a, precipitates are randomly dispersed in the matrix and molybdenum elements are mainly concentrated on these particles. Most precipitates are disappeared by electropulsing treatment and molybdenum distribution is almost homogenously in the matrix, as shown in Fig. 4b. The mapping analysis by SIMS suggests that pulsed electric current diminished solute precipitation. This also indicates the dissolution of precipitates.

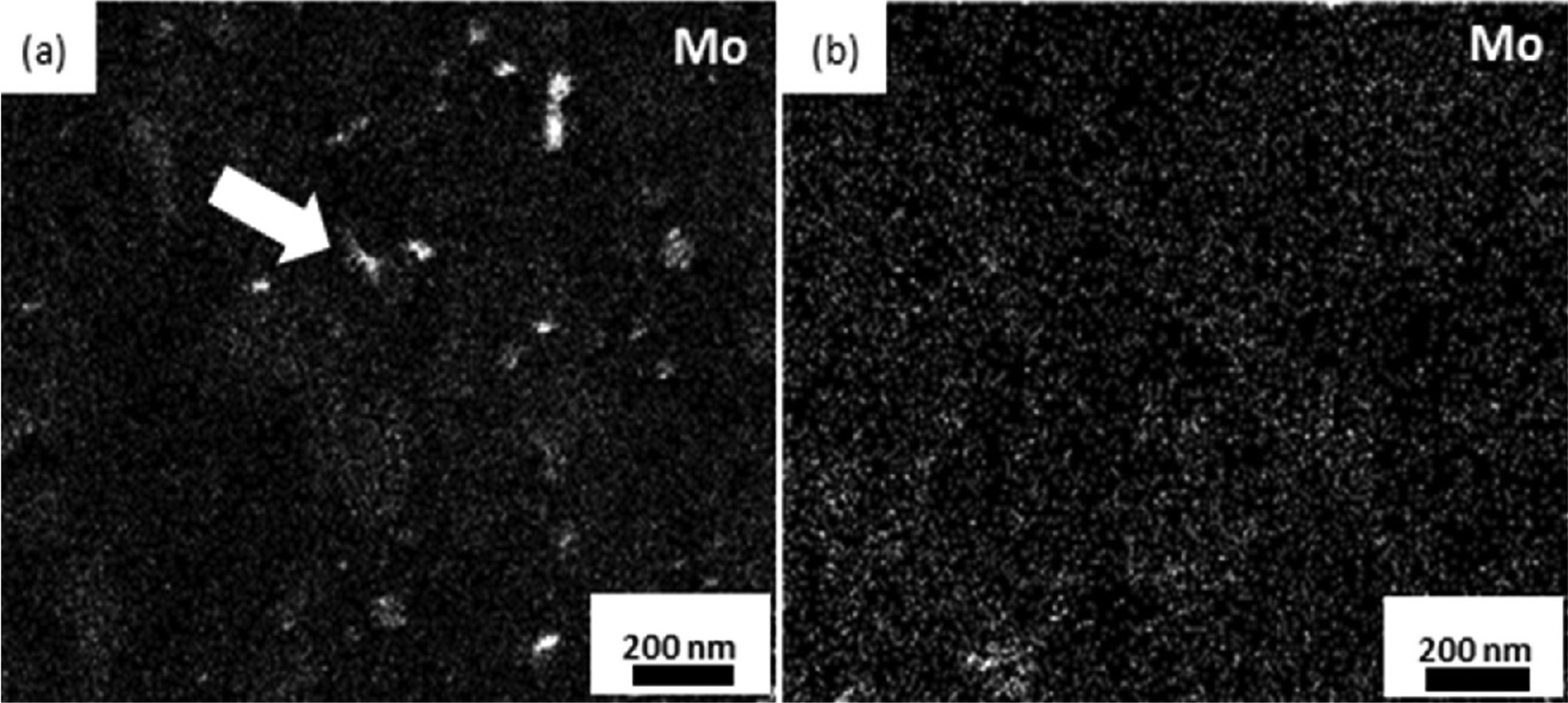

Focused ion beam secondary ion mass spectrometry images for molybdenum mapping in samples a without and b with pulsed electric current treatment, respectively
Since the thermal effect affects the microstructural evolution,7–10 the temperature raised by each electric current pulse has been calculated. Each pulse causes 6.5 × 10− 3 K temperature rising when the pulse duration is 60 μs. The pulse in the present experiment is with 1 Hz frequency. It means that the maximum temperature rising rate due to applying electric current is 6.5 × 10− 3 K s− 1. The Joule heating is hence negligible in the present work. The observed effect of electric current on the precipitation evollution must be due to athermal effect. Usually, electric current promotes the solute diffusion, dislocation migration and interface kinetics.7–10 The drift electrons driven by the applied electrical potential are scattered unevenly around defects.
14
The uneven distribution of electrons around the defects causes anisotropic shielding effect to the electromagnetic forces between an atom and its neighbours. This brings the kinetic barrier down. The mobility of a substitutional atom is expressed generally as
In order to understand the effects of pulsed electric current on the precipitation in 316L stainless steel, a schematic diagram is plotted in Fig. 5. The electric current streamline distribution will be different if the conductivity of precipitate is different from that of matrix. This alternation of the electric current distribution leads to change of system free energy. Thus the system free energy in Fig. 5a can be significantly different from that in Fig. 5b. The system free energy of a steel specimen consists of three terms, namely the chemical free energy of the bulk phases (ΔGchem), interface free energy (ΔGsurf) and the free energy associated to the passing electric current (ΔGelec). The system free energy change in microstructural evolutions (ΔG) is represented as
. Microstructural evolutions happens when
ΔGsurf ≤ 0. For the specimen with electric current treatment, the precipitates will dissolve when
. The latter is obtainable from the expression of
and
are current density distributions before and after the applying electric current, respectively. r and r′ are two different positions inside the specimen. The calculation of ΔGelec requires the distribution of current density. The latter requires the electrical conductivity of all phases before and after the microstructure evolution. Previously it has been observed the segregation of Pb to grain boundaries in Cu–Zn alloys under pulsed electric current due to the change of Gibbs free energy associated to the discrepancy of electrical conductivities.
15
In the present work, the microstructure evolution toward increasing the system electrical conductivity is promoted by electropulsing. Our measurement shows that the bulk electric conductivity of unelectropulsed specimen is 1.82 × 106 s m− 1, while that of the pulsed specimen is 2.21 × 106 s m− 1. The electrical conductivity of specimen is increased by 21.4 after electric current treatment. This is in agreement with the theoretical and experimental prediction. In the case of χ-phase precipitation, equation (4) can be calculated when the relationships between the chemical compositions of all phases in the steel and their electrical conductivity are established. This experiment proves that electric current has not only retarded the growth of precipitates but also dissolved the formed precipitates. The results cannot be explained merely by PEC retarding precipitation growth. Each pulse lasts 60 μs whereas the pulse frequency is 1 Hz, so only a minor fraction of the total time experiences PEC and correspondingly little net effect would be expected. Therefore, we conclude that electropulsing dissolves the precipitates.

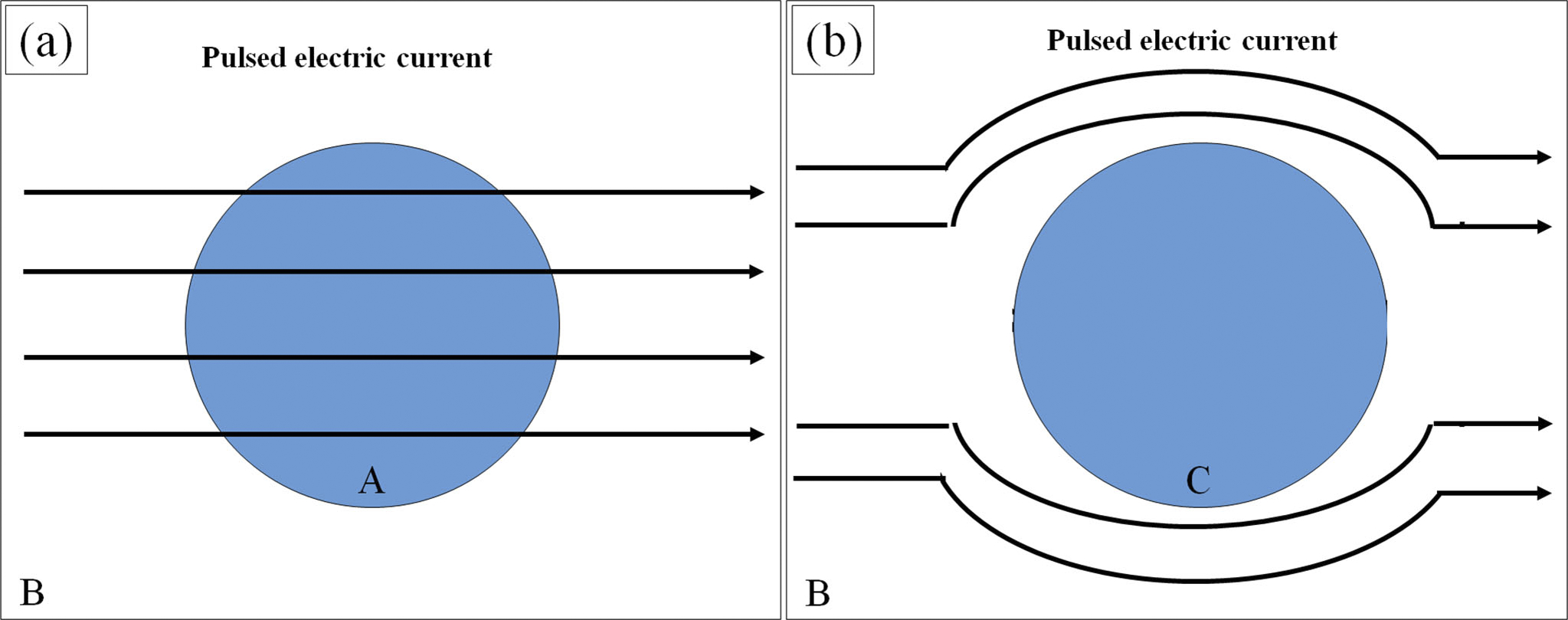

Schematic diagram for electric current streamlines in matrix containing spherical precipitate with a same electrical conductivities as that of matrix and b smaller electrical conductivities than that of matrix
Conclusion
In summary, this work has shown that the precipitates in 316L stainless steels can be dissolved by the electropulsing. Different sizes and number densities of precipitates cause different electric current distributions. The corresponding system free energy is changed by the passing electric current. The electropulsing accelerated kinetics allows to dissolve precipitate that formed in a relative long duration between pulses.
Acknowledgements
This work was financially supported by the Royal Academy of Engineering, EPSRC (Grant No. EP/J011460/1) and TATA Steel at United Kingdom.
