Treatment of oromandibular dystonia with botulinum toxin A improves apnea in a teenager with quadriplegic cerebral palsy: A case report

1 Abbreviations

OnabotulinumtoxinA (BoNT-A), Cerebral Palsy (CP), Obstructive Sleep Apnea (OSA), Lateral Pterygoids (LPts), Gross Motor Function Classification (GMFCS), Single Event Multi-Level Chemoneurolysis (SEMLC), Continuous Positive Airway Pressure (CPAP)

1 Case Report

This report describes a 15-year-old female with mixed tone quadriplegic cerebral palsy (CP), Gross Motor Function Classification System (GMFCS) IV [1], in the setting of hypoxic ischemic brain injury due to respiratory failure at birth (with brain MRI findings of ischemic injury of the thalami, cerebral white matter, parts of the cerebral cortex, and cerebellar white matter). She had oromandibular dystonia (OMD), and obstructive sleep apnea (OSA) and presented with decreased apneic episodes after receiving onabotulinumtoxinA (BoNT-A) injections to the muscles of mastication. She experienced OMD and had difficulty with both mouth opening and closing. She also had dystonia affecting her trunk and arms, and both dystonia and spasticity in her legs. Oral baclofen had been trialed, but had the side effect of sedation and was discontinued. No other enteral medications were trialed due to concerns about side effects of medications. As noted in Fig. 1 and Table 1, she began receiving single event multi-level chemoneurolysis (SEMLC) with BoNT-A and phenol to all four limbs for tone management at age eight. To address difficulty with mouth closing, the bilateral lateral pterygoid muscles (LPts) were added to the second round of SEMLC. She received ten sets of injections to the LPts over 3.5 years, with improvement in mouth closing ability leading to more effective communication and ease with eating. She then developed more difficulty with mouth opening and BoNT-A was applied to the bilateral masseter and temporalis muscles, not including the LPts.

OPEN IN VIEWER

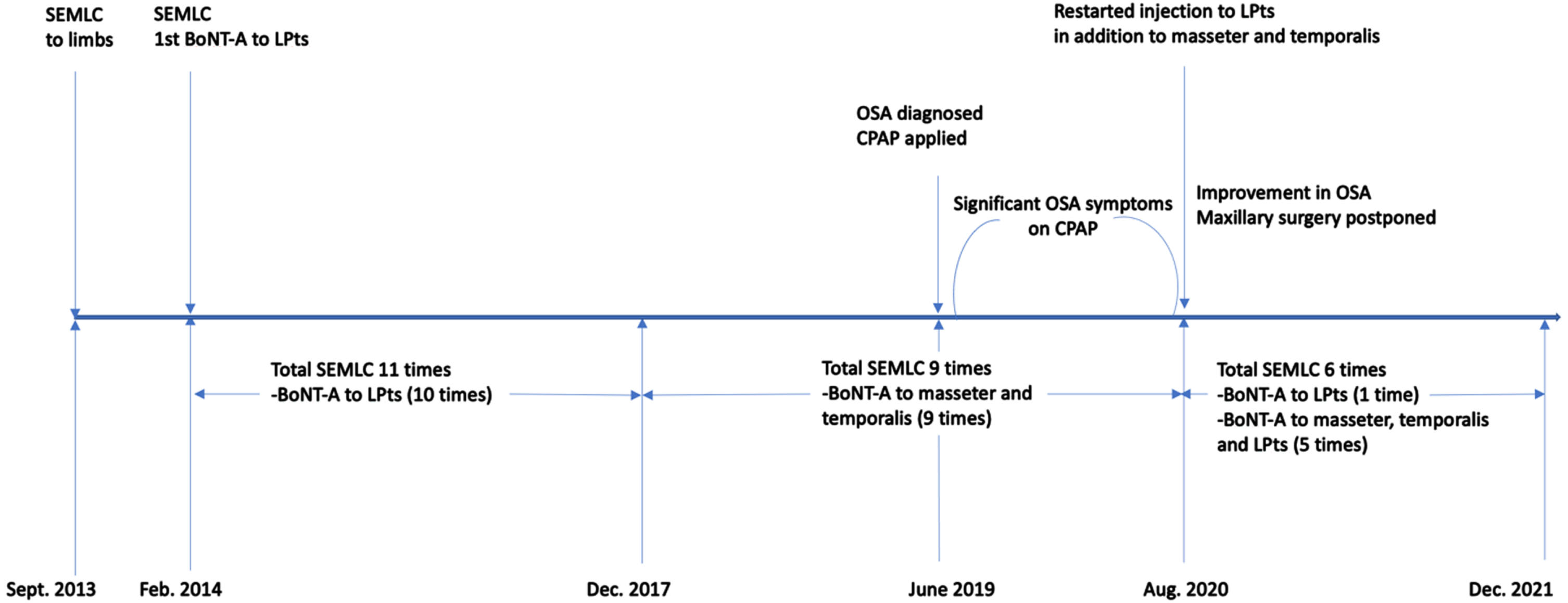

Fig. 1

Timeline of chemodenervation. SEMLC: Single Event Multi-Level Chemoneurolysis; LPts: Lateral Pterygoids; BoNT-A: OnabotulinumtoxinA; OSA: Obstructive Sleep Apnea; CPAP: Continuous Positive Airway Pressure.

At age 14 she was diagnosed with OSA and started on continuous positive airway pressure (CPAP) after her 7th BoNT-A injections to the masseter and temporalis muscles (Fig. 1). She had 3–7 episodes of apnea nightly, lasting 20 seconds as per her CPAP machine recorded logs. She was also noted to have micrognathia and retrognathia. While undergoing consultation for surgical management of OSA in the setting of her jaw abnormalities, she had two rounds of BoNT-A injections to the bilateral masseter and temporalis muscles without improvement in apneic episodes. After discussion with her surgeon, BoNT-A injections were suggested for both antagonist and agonist muscles of her jaw to manage dystonia and potentially OSA. However, her mother felt that the BoNT-A effect on dystonia of the masseter and temporalis was still present. Thus, she had injections to the LPts alone with a significant decrease in apneic events (Fig. 1, Table 1, Table 2). Her caregiver reported zero apneic episodes over three weeks and 1-2 episodes per night thereafter. Three months post-injections, when BoNT-A began to wear off, her apneic events increased to about three per night.

For her next treatment, she received BoNT-A injections to all three muscles of mastication including the bilateral LPts, temporalis, and masseter muscles. She again had fewer apneic episodes, averaging once nightly for two months. Thus, after her initial injections to the LPts, she received a total of five rounds of BoNT-A injections to these three muscles. (See Fig. 1, Table 1, and Table 2 for a timeline and procedural details.) Over this time period, she was able to decrease her CPAP setting from 30 cmH2O to 5 cmH2O. Her surgical intervention to improve jaw structure for OSA was postponed, and her apneic events decreased to fewer than three per night. There were no noted adverse events from her BoNT-A injections.

OMD is a significant concern in children with dystonic and/or spastic CP as it can impair eating, speaking, and/or breathing [2]. Additionally, there is a higher prevalence of OSA in children with CP due to adeno-tonsillar hypertrophy, micrognathia, and/or abnormal neuromuscular control [3, 4]. Though botulinum toxin has a well-known use for treatment of OMD [5, 6], and there is a case report of use of BoNT-A in a 51-year-old with OMD resulting in improvement of his OSA and symptoms [7], the efficacy of BoNT-A in treatment OMD in children with CP and its effect on OSA is not well studied.

The muscles of mastication addressed include the masseter, medial and lateral pterygoids, and the temporalis. The masseter and medial pterygoid muscles elevate and protrude the mandible, and the temporalis elevates and retracts the mandible. The LPts assist with mandibular depression and protrusion. If these muscles are dystonic, the dystonia can contribute to structural and functional problems of the mouth such as micrognathia, retrognathia, OSA, and/or eating and speaking difficulties – all of which this patient experienced. After BoNT-A injections to the chewing muscles there was improvement in many of these problems, most notably the decrease in her CPAP setting and frequency of apneic episodes. It is important to note she had the greatest improvement in her OSA after she received BoNT-A injections to both her mouth opening and closing muscles. The authors believe this is why the initial addition of injections to the LPts, while there was still a presumed effect on the masseters and temporalis, may have assisted with improvement in OSA, ultimately leading to the decision to treat all three muscles.

Treating both agonist and antagonist muscles when managing OMD is important since muscle co-contraction is a frequent problem in dystonic CP that can also affect concurrent OSA. Although CPAP and oral appliances are the usual treatment options for OSA, surgical interventions are often necessary, and may even be used initially in those with structural jaw problems, like this patient. Therefore, in patients with CP, the use of BoNT-A to treat OMD may, in turn, improve OSA, and subsequently decrease the need for surgery, by improving the coordination of agonist and antagonist muscles of mastication.
