Multiple Treatments of Pediatric Constraint-Induced Movement Therapy (pCIMT): A Clinical Cohort Study

Study Design and Enrollment

The design was a clinical series of 28 children whose families sought multiple treatments of pCIMT at a neuromotor research clinic that provided ACQUIREc therapy. The research clinic had institutional review board approval to collect pre- and posttreatment assessment data, daily clinical notes, and video documentation on all participants. Parents voluntarily granted written permission for their children to participate in this study to document the progression and effects of pCIMT. The clinic did not specifically solicit or recommend additional pCIMT treatments after the first treatment. Rather, when parents inquired about additional treatments, staff shared clinical experiences and peer-reviewed research findings known at the time. This study presents findings based on an entire cohort—that is, all children whose parents sought repeated pCIMT treatments over an 8-yr period of the clinic’s operations.

Children were screened individually for suitability (e.g., stable health, asymmetry between functional abilities of the two sides of the body, no frequent uncontrolled seizures) for pCIMT. The clinic did not exclude children with a diagnosis of quadriplegia or with comorbid conditions such as intellectual disabilities, autism spectrum disorder, challenging behaviors, or seizure disorders, but children with fragile health conditions (e.g., tube fed or dependent on respiratory assistance) were excluded.

pCIMT Intervention Protocol

The clinic administered ACQUIREc, the only manual-based version of pCIMT (DeLuca et al., 2007). ACQUIREc involves construction of a full arm-to-fingers lightweight cast worn continuously during the first 18 treatment days of a 20- or 21-day treatment over 4 wk. After cast removal, the last few days of therapy focus on bimanual therapy activities to promote integration of improved and new skills obtained earlier in treatment. All therapists in the clinic were formally trained in ACQUIREc, received active supervision from senior therapists, and maintained systematic daily progress notes.

Key components of pCIMT involve the use of a constraint, in this case a cast, shaping and repetitive task practice during treatment activities for many hours a day, many days a week, and for multiple weeks. Shaping and repetitive practice with reinforcement are grounded in learning theory, have a long history of efficacy, and were included in the development of CIMT for adults and children (Ramey & DeLuca, 2013; Woodbury, Fritz, Blanton, & Wolf, 2013). The amount of shaping versus massed or repetitive practice to include in pCIMT is often debated; for ACQUIREc, the primary emphasis is on shaping UE use and skills to be functional in the child’s overall repertoire, with repetitive practice used to increase automaticity and ease of performing new skills and to encourage their use in a variety of situations (i.e., to promote generalization and maintenance), and in this study involved 6 hr of daily therapy for 5 days/wk for 4 wk.

In ACQUIREc, therapists frequently and naturally transition between shaping and repetitive practice. What identifies shaping is the use of immediate and specifically informative feedback to the child through a process known as successive approximations—that is, the therapist helps the child advance to higher levels of performance in a given movement or activity (e.g., executing with greater consistency, accuracy, speed, strength, coordination, or complexity). Accordingly, ACQUIREc therapists are trained to approach all therapy and play activities as a means to accomplish shaping, which is success oriented. As needed, the therapist can use techniques such as direct facilitation, demonstration, and body stabilization for early task success.

After the child has shown progress in shaping, repetitive practice is important, and the therapist continues to use varied rewards (e.g., verbal praise, smiles, tangible tokens, offer of a favorite future activity) until the child reaches about 70%–80% competency at the current level. Once that competency level is reached, the therapist alters the task demands by withdrawing a small amount of support (e.g., when facilitation or verbal guidance has been used), changing the task to make it more challenging, or both. Reinforcement drops out for accomplishments at the obtained competence level and then occurs only when the child makes new advances under the new requirements. The therapist shifts from shaping and repetitive practice focused on one set of skills to other sets (on the basis of multiple treatment goals) to maintain the child’s high level of engagement and enjoyment throughout the day, relying on a play-based format and self-help skills (e.g., eating, drinking, dressing, cleaning up) as these naturally occur, but with a primary focus on using shaping techniques as much as possible.

The other necessary components of pCIMT, as recently defined (Ramey et al., 2013), include treatment within the child’s natural environment and a transition package for after-treatment generalization. All are key elements within the manualized ACQUIREc therapy model. In addition, the last 3 days of treatment include the removal of the constraint to incorporate bimanual arm and hand use.

Functional Assessments

In this article, we present data from two primary functional outcome measures: the Emerging Behaviors Scale (EBS; DeLuca et al., 2007; Taub et al., 2004) and the Pediatric Motor Activity Log (PMAL; DeLuca et al., 2007; Taub et al., 2004). These tools were used in the first RCT of pCIMT (DeLuca et al., 2006; Taub et al., 2004) and can be used with a wide range of ages and ability levels. The EBS is used to document and count the number of skills a child displays from a set of 31 discrete UE activities, including movement patterns and functional abilities (e.g., wrist extension, finger isolation, finger feeding, pushing buttons). To qualify as a skill, the movement or behavior must be documented through at least two independent sources. For example, the behavior could be documented on a video recording and then independently documented as an item passed on a standardized assessment tool. (Many of the children received additional standardized assessments, but they varied as a function of the child’s age and baseline functional level.) As another example, a new skill could be recorded in the therapist’s daily log, documented during a standardized assessment, and reported in writing by the parent.

The PMAL is a standardized tool in which parents rate their children’s abilities using a 6-point Likert scale on the subscales Quality of Movement (0 = no use, 5 = age-typical or normal use) and Amount of Use (0 = never, 5 = very frequently) for each of 22 arm and hand activities (e.g., holding a cup or bottle, waving good-bye, pushing a button to activate a toy, throwing a ball, putting an arm through a sleeve of clothing). Wallen, Bundy, Pont, and Ziviani (2009) reported PMAL psychometrics, and a translated version of the scale has been developed (Uswatte et al., 2012). In this study we used the version of the PMAL developed by the original authors of the tool because of its widespread use in other studies (DeLuca et al., 2006, 2007; Ramey, Coker-Bolt, & DeLuca, 2013; Taub et al., 2004).

Data Analysis

Data entry and analysis occurred in multiple stages. Clinical records were reviewed to identify any children who did not complete the entire course of pCIMT or who showed possible negative treatment effects, to complete post hoc Manual Ability Classification System (MACS) level ratings for use of arms and hands during typical performance handling objects (Eliasson et al., 2006), and to extract demographic information. Next, scores on all outcome measures were analyzed using an omnibus multivariate analysis of variance (MANOVA) to determine significant effects of multiple treatments. Univariate analyses of variance (ANOVAs) were then completed to compare changes in EBS and PMAL scores. To determine whether significant changes occurred across treatments, repeated-measures ANOVAs were conducted on outcome scores separately for the 20 children who received two pCIMT treatments and the 8 children who received three pCIMT treatments, recognizing that differences might exist between these groups. Finally, each child’s scores on the EBS were examined individually across treatment sessions to estimate the effects of each treatment on the child’s overall repertoire (i.e., gain in skills).

Clinical Sample Characteristics

Table 1 presents demographic characteristics for the 28 children who received at least two treatments of pCIMT. The mean (M) interval between the first and second treatments was 13.2 mo (standard deviation [SD] = 6.7) for all 28 children and between the second and third treatments was 17.9 mo (SD = 9.8) for the 8 children who had three treatments. The majority (71%) had a primary diagnosis of CP; other diagnoses included stroke, acquired brain injury, and hemispherectomy. Most children functioned at MACS Level 3; levels range from 1 to 5 (higher numbers indicate greater impairment). Only 1 child had a MACS rating of 5, indicating that the child did not handle objects. This child was low functioning in multiple domains and had quadriplegia.

Outcomes

All 28 children completed the fully intended dosage level (6 hr/day of ACQUIREc therapy, 5 days/wk, for 4 consecutive weeks [20 or 21 days]). No child showed any negative effects of casting or high-intensity treatment. MANOVAs comparing change scores by treatment session showed statistical significance, F (6, 28) = 3.58, p = .003, indicating a differential response to the treatment sessions on at least one outcome measure. ANOVAs on EBS scores indicated a significant effect in favor of pCIMT Treatment 1, F (2, 28) = 11.67, p < .0001, with large gains in new behaviors after Treatment 1 (M = 13.2, SD = 4.2) and significant gains after Treatment 2 (M = 7.3, SD = 4.6) and Treatment 3 (M = 6.5, SD = 4.2). Analyses of PMAL subscale scores showed comparability of improvement across all three treatments, Quality of Movement, F (2, 28) = 0.8, p = .40, and Amount of Use, F (2, 28) = 2.8, p = .07, with significant benefits for all treatments.

All repeated-measures ANOVAs reached statistical significance, indicating the benefit of treatment across time. Figure 1 shows that the patterns of gains in EBS scores are virtually identical across the first two treatments for children in both groups. Notably, between subsequent treatments, children did decline somewhat, but their performance did not drop to their initial baseline scores (M decline = 7.04 skills).

OPEN IN VIEWER

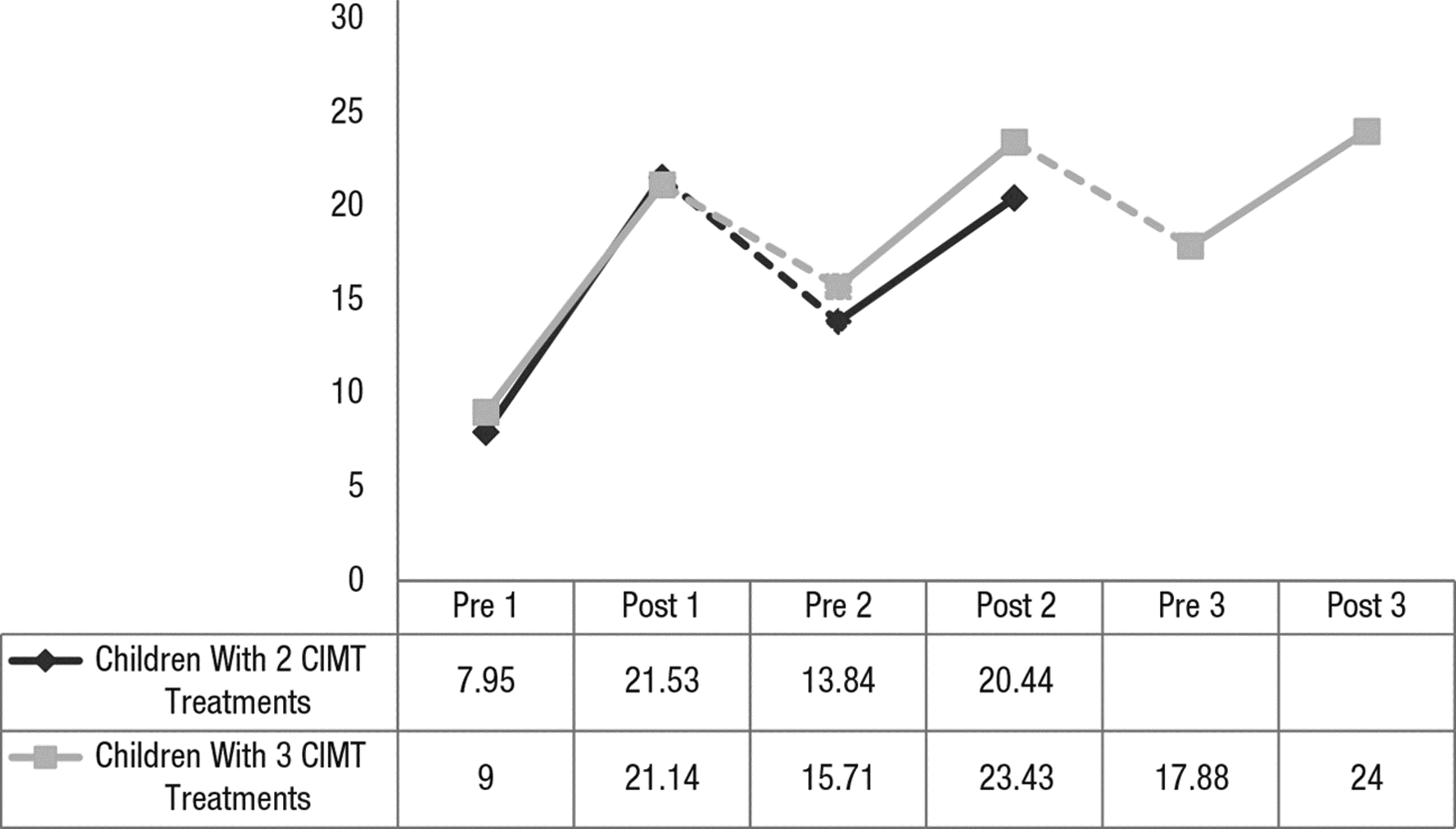

Figure 1.

Mean EBS scores across pCIMT treatments.

A clinically important concern is whether some children benefit more while other children benefit less or not at all from pCIMT. Figure 2 shows each child’s EBS scores pre– and post–Treatment 1 and final EBS scores after Treatment 2 for all 28 children and after Treatment 3 for 8 children. All 28 children showed significant gains in total EBS scores after Treatment 1, ranging from a low of 3 new skills to a high of 19. Twenty children (71%) developed at least 15 new skills after Treatment 1; only 2 children (7%) displayed gains of only 5 or fewer new skills. The majority of children (82%) demonstrated absolute gains on EBS from pretreatment to post–Treatment 2, and 63% demonstrated gains from pretreatment to post–Treatment 3, although the child’s final EBS score may not have exceeded that earned on a previous assessment occasion. Seventy-five percent of children showed some declines on EBS scores during the intertreatment interval, subsequent pCIMT treatments produced either partial recovery of these previously demonstrated skills or recovery plus acquisition of new skills to reach an even higher total score. See Figure 1 for further elaboration.

OPEN IN VIEWER

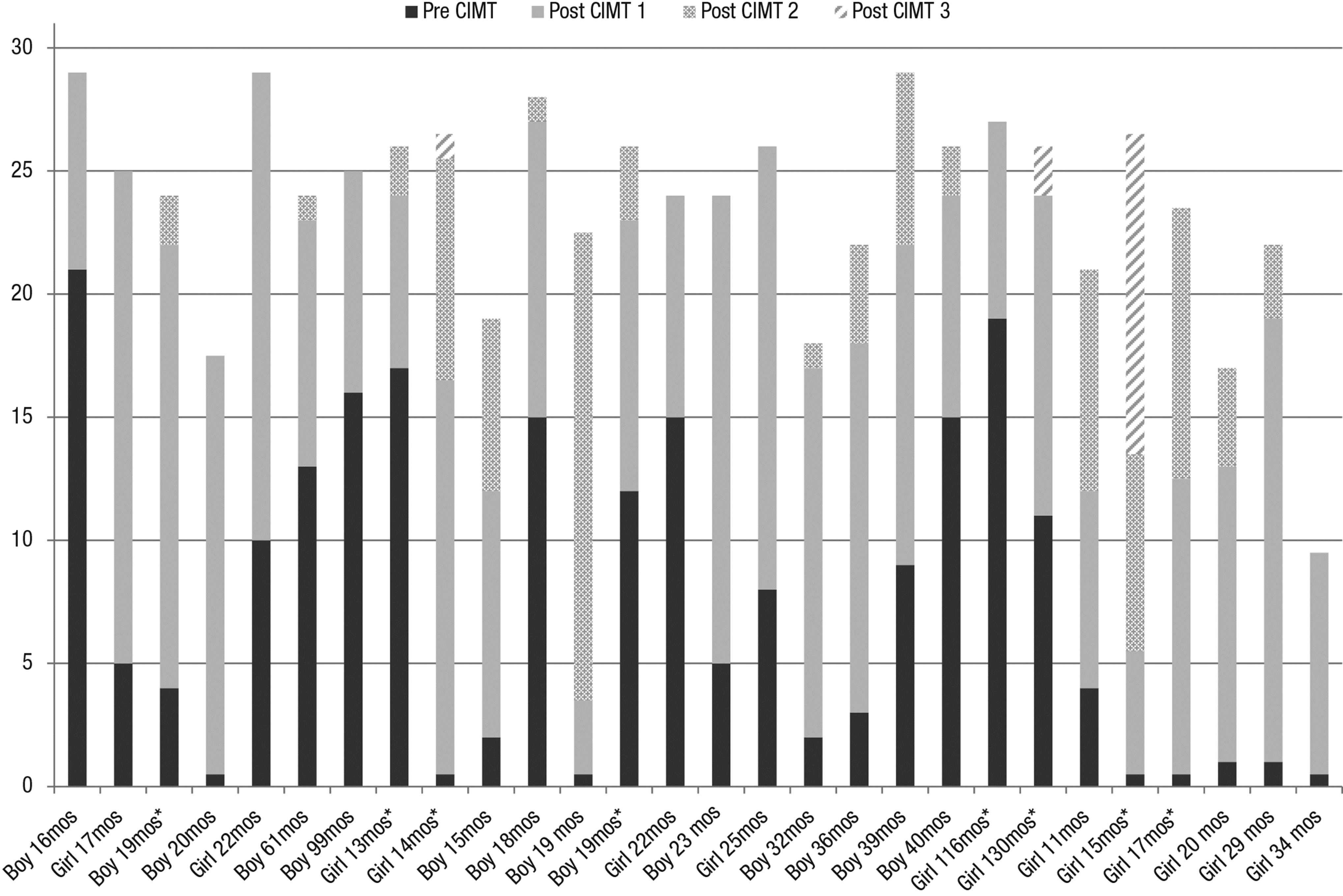

Figure 2.

Individual cumulative total EBS scores: two pCIMT treatments (n = 20) and three pCIMT treatments (n = 8).

Among the 10 children who did not show higher final EBS scores after Treatment 2, 8 had high post–Treatment 1 EBS scores—at least 24 out of a maximum 31. One child with a post–Treatment 1 score of 25 later had an identical score at pre– and post–Treatment 2. The other 7 children each showed some decline during the intertreatment interval and then showed significant reacquisition of skills after Treatment 2. Interestingly, these 8 children were among the 10 highest achievers in the clinical cohort.

We analyzed effects of gender, baseline EBS scores, MACS level, and age at which the child first received pCIMT on treatment responsiveness. None of these variables significantly predicted gains in skills. We note, however, that 24 children (86%) began treatment before age 40 mo, and only 3 were older than age 6 yr, perhaps limiting our power to detect significant age effects.

Figure 3 shows the PMAL subscale scores for Quality of Movement and Amount of Use. The children improved significantly and at comparable levels after each treatment. Some declines during the intertreatment intervals occurred, although the children maintained some of their benefits between treatments. Children who received three treatments showed higher PMAL scores at the end of Treatment 3 than those who received two treatments showed at the end of Treatment 2.

OPEN IN VIEWER

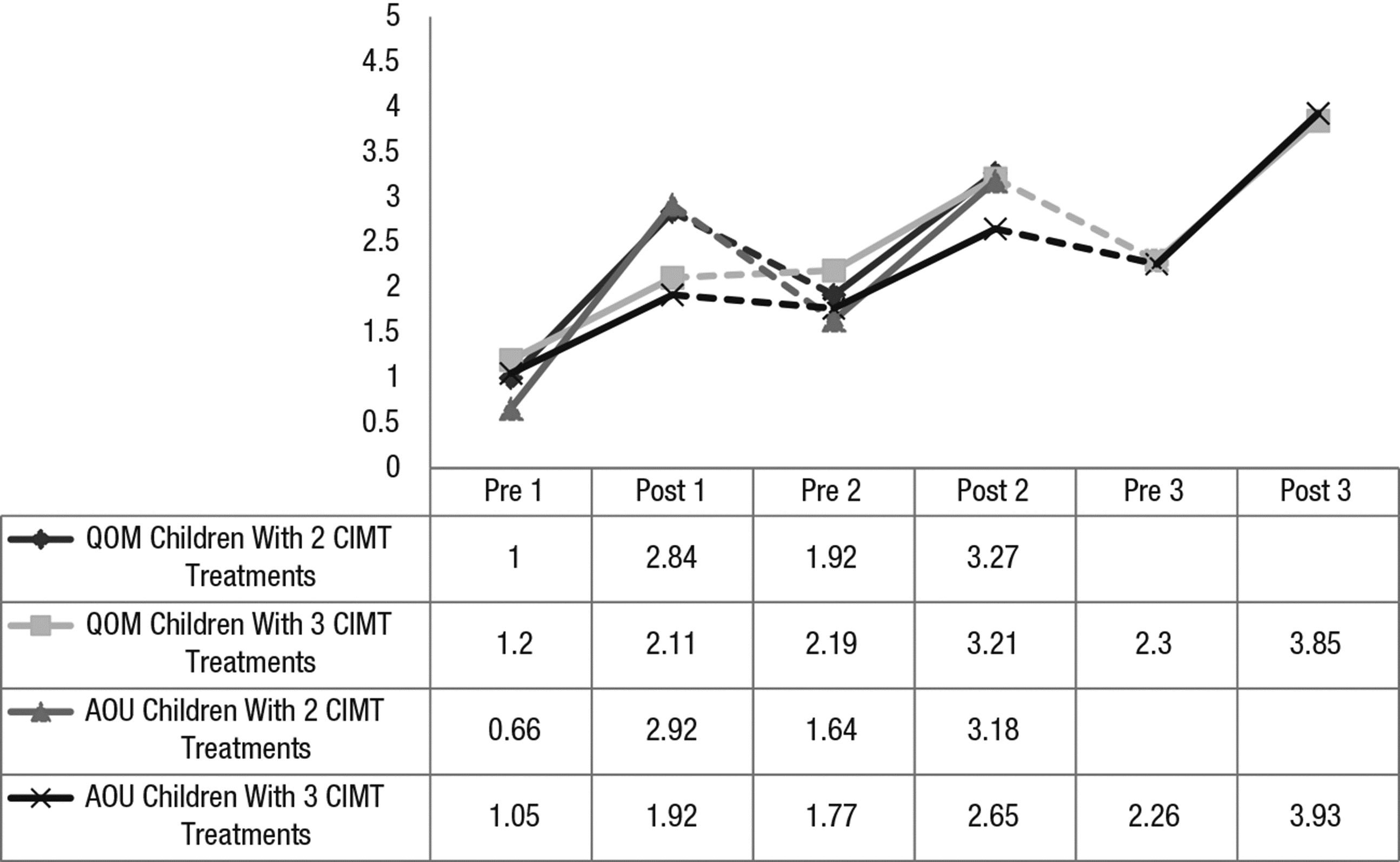

Figure 3.

Pediatric Motor Activity Log mean ratings across pCIMT treatments.

Limitations

This study has several limitations. The sample was from a single clinic that developed the signature form of pCIMT, ACQUIREc (DeLuca et al., 2013; Ramey, DeLuca, & Coker-Bolt, 2013). Because their parents sought this treatment, these children may not be adequately representative of all children with asymmetrical CP. The parents had requested subsequent treatments on the basis of the perceived value of pCIMT, and the time between pCIMT sessions was a function of each family’s choice and schedule. Accordingly, these parents appeared highly invested in their child’s neuromotor progress, which may have contributed, in part, to the treatment benefits observed. Accordingly, no conclusions can be drawn about the most appropriate intervals between pCIMT sessions. In fact, the large range of such intervals (4–40 mo) may have been a factor that limited the benefits of subsequent pCIMT for some children. This factor warrants future research on repeated courses of pCIMT and other intensive therapies (e.g., bimanual).

Longitudinal research will facilitate a better understanding of the natural variation in development of UE skills in children with unilateral or asymmetrical CP. Such information would allow future researchers to interpret the magnitude and types of gains for children at different ages, thus providing an adjusted and more accurate assessment of the effects of repeated high-intensity treatments such as pCIMT. Finally, this sample was young, mostly in the toddler to preschool age range. Despite these limitations, this study is the first relatively large-scale clinical cohort sample with prospective assessment data on the effects of repeated pCIMT treatments.
