Can you take the heat? – Geothermal energy in mining

Abstract

In 2013, there are less than 20 documented examples of operational geothermal systems on mine sites worldwide. This is surprising, since on remote mine sites, where fuels may have to be shipped in over great distances, heating and cooling from low-enthalpy geothermal sources may have a significant advantage in operational cost over conventional energy sources.

A review of factors affecting the feasibility of geothermal systems on mining projects has been undertaken, and has identified the possible configurations of geothermal systems suitable for the exploration, operational and closure phases of mine development. The geothermal opportunities associated with abandoned or legacy mines are also discussed. The potential categories of heat reservoirs associated with mine sites are: natural ground; backfilled workings; mine waste; dewatering pumping; and flooded workings/pit lakes.

The potentially lower operational costs for heating and cooling must be offset against the capital cost of a geothermal system. The focus for mine operators should therefore be on identifying at feasibility stage those projects where conditions are favourable for geothermal systems, the potential risks are understood, the economics are likely to be beneficial, and geothermal systems can be established while minimising additional capital costs.

Keywords

Energy Geothermal Minewater

Introduction

The use of geothermal technologies to extract heat energy from the sub-surface environment, to provide heating and cooling or to generate electricity, is well established outside of the mining industry, yet to date it has seen relatively little uptake within the sector. As it relies on the same blend of geological and engineering skills which mining demands, this omission is rather puzzling, and begs the question whether it represents a considered rejection or merely oversight. In appropriate geological settings, with the correct engineering, geothermal energy can be an economic source of low carbon energy, able to displace traditional fossil fuel-based energy sources, either for use within a mine, for supply to living quarters or working areas on mine sites or for sale to third parties. This paper examines the proposition that the mining industry is ripe for a significant expansion of geothermal energy use.

Conventionally, geothermal heat energy in soils and rock (and associated geofluids such as groundwater or brine) is exploited via drilled wells, via buried “ground collectors” (typically looped heat-exchange pipework), from pumped groundwater or from surface water bodies such as lakes. Unfortunately, while the unit cost per generated kilowatt hour can be significantly less than that of comparable traditional energy sources, a geothermal system typically requires significant up-front capital cost to construct the necessary geothermal wells or ground collectors. This capital expenditure is required before a single kilowatt hour of energy can be generated, and is probably one of the factors why geothermal systems have not been implemented in a wider range of settings and by a wider range or organisations.

However, in the case of the mining industry, much of the work required to establish geothermal infrastructure is already undertaken for other purposes. The mining industry routinely: constructs major structures that penetrate the subsurface (open pits and underground roadways); pumps groundwater as part of dewatering operations; and may leave behind artificial water features (pit lakes or flooded workings). An obvious opportunity is to use these engineered features associated with mine sites, where the capital and operational costs are already committed, to exploit heat energy from geothermal sources. Over the last decade, there have been considerable theoretical and academic studies of the potential for the exploitation of geothermal energy via mine infrastructure (see for example: Malolepszy et al., 2005; Digges La Touche and Preene, 2011; Parker, 2011; Wieber et al., 2012). However, based on published information, to date only a very small number of mining-related geothermal systems have been implemented worldwide (Table 1). Additionally, the authors are aware of several proposed projects to harness geothermal energy from mines (one of the most notable of which is the scheme to provide energy to the city of Yellowknife in the Northwest Territories of Canada; Ghomshei, 2007), but many of these are in early stages of development or have become stalled or have even been abandoned. Undoubtedly, the effects of the global financial crisis may have played a part in restricting the investment available for such schemes, but it is also possible that technical and environmental factors, as well as the perceived risks, have influenced the lack of uptake of mining geothermal systems.

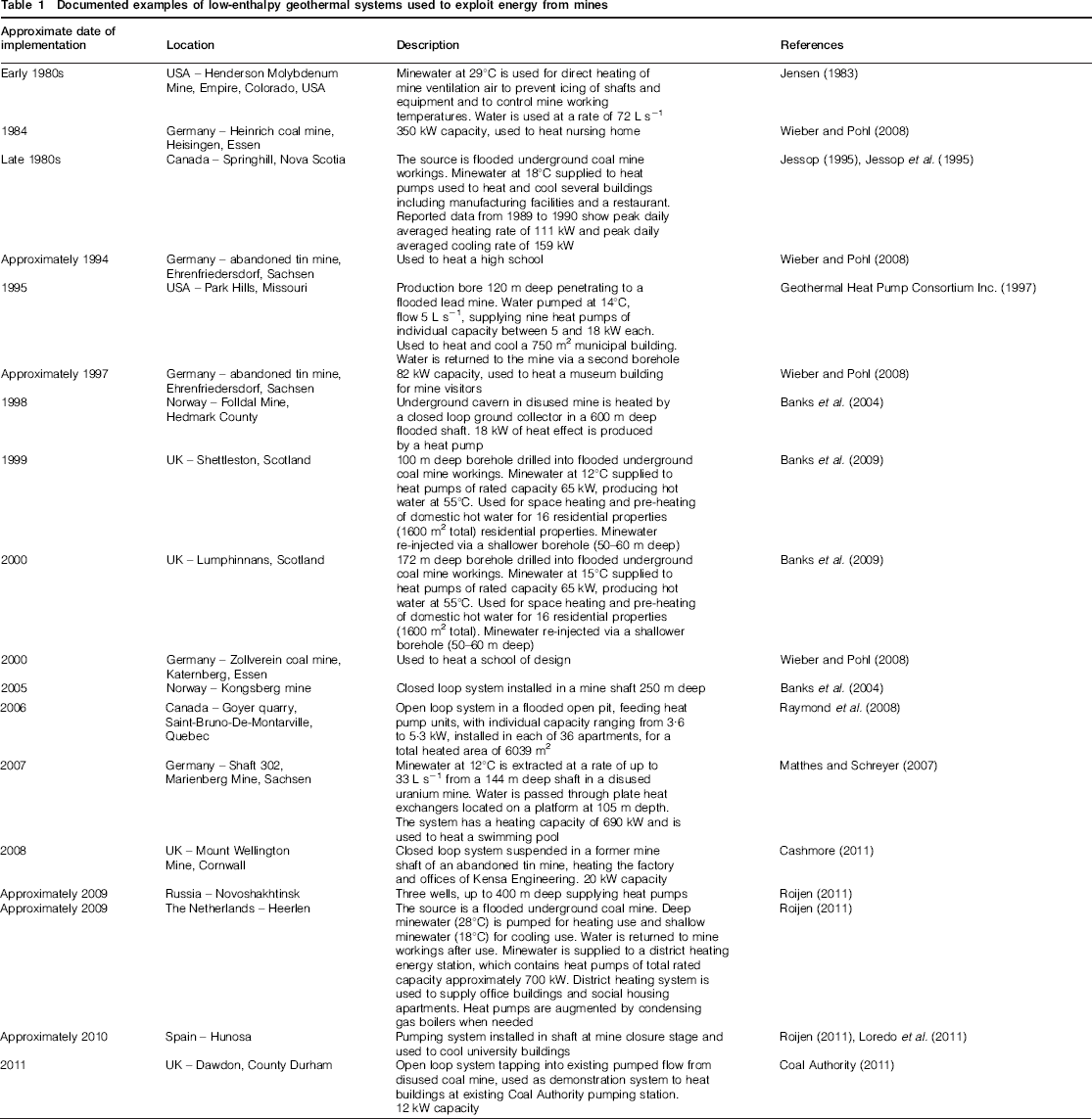

Table 1

Documented examples of low-enthalpy geothermal systems used to exploit energy from mines

Approximate date of implementation	Location	Description	References
Early 1980s	USA – Henderson Molybdenum Mine, Empire, Colorado, USA	Minewater at 29°C is used for direct heating of mine ventilation air to prevent icing of shafts and equipment and to control mine working temperatures. Water is used at a rate of 72 L s⁻¹	Jensen (1983)
1984	Germany – Heinrich coal mine, Heisingen, Essen	350 kW capacity, used to heat nursing home	Wieber and Pohl (2008)
Late 1980s	Canada – Springhill, Nova Scotia	The source is flooded underground coal mine workings. Minewater at 18°C supplied to heat pumps used to heat and cool several buildings including manufacturing facilities and a restaurant. Reported data from 1989 to 1990 show peak daily averaged heating rate of 111 kW and peak daily averaged cooling rate of 159 kW	Jessop (1995), Jessop et al. (1995)
Approximately 1994	Germany – abandoned tin mine, Ehrenfriedersdorf, Sachsen	Used to heat a high school	Wieber and Pohl (2008)
1995	USA – Park Hills, Missouri	Production bore 120 m deep penetrating to a flooded lead mine. Water pumped at 14°C, flow 5 L s⁻¹, supplying nine heat pumps of individual capacity between 5 and 18 kW each. Used to heat and cool a 750 m² municipal building. Water is returned to the mine via a second borehole	Geothermal Heat Pump Consortium Inc. (1997)
Approximately 1997	Germany – abandoned tin mine, Ehrenfriedersdorf, Sachsen	82 kW capacity, used to heat a museum building for mine visitors	Wieber and Pohl (2008)
1998	Norway – Folldal Mine, Hedmark County	Underground cavern in disused mine is heated by a closed loop ground collector in a 600 m deep flooded shaft. 18 kW of heat effect is produced by a heat pump	Banks et al. (2004)
1999	UK – Shettleston, Scotland	100 m deep borehole drilled into flooded underground coal mine workings. Minewater at 12°C supplied to heat pumps of rated capacity 65 kW, producing hot water at 55°C. Used for space heating and pre-heating of domestic hot water for 16 residential properties (1600 m² total) residential properties. Minewater re-injected via a shallower borehole (50–60 m deep)	Banks et al. (2009)
2000	UK – Lumphinnans, Scotland	172 m deep borehole drilled into flooded underground coal mine workings. Minewater at 15°C supplied to heat pumps of rated capacity 65 kW, producing hot water at 55°C. Used for space heating and pre-heating of domestic hot water for 16 residential properties (1600 m² total). Minewater re-injected via a shallower borehole (50–60 m deep)	Banks et al. (2009)
2000	Germany – Zollverein coal mine, Katernberg, Essen	Used to heat a school of design	Wieber and Pohl (2008)
2005	Norway – Kongsberg mine	Closed loop system installed in a mine shaft 250 m deep	Banks et al. (2004)
2006	Canada – Goyer quarry, Saint-Bruno-De-Montarville, Quebec	Open loop system in a flooded open pit, feeding heat pump units, with individual capacity ranging from 3·6 to 5·3 kW, installed in each of 36 apartments, for a total heated area of 6039 m²	Raymond et al. (2008)
2007	Germany – Shaft 302, Marienberg Mine, Sachsen	Minewater at 12°C is extracted at a rate of up to 33 L s⁻¹ from a 144 m deep shaft in a disused uranium mine. Water is passed through plate heat exchangers located on a platform at 105 m depth. The system has a heating capacity of 690 kW and is used to heat a swimming pool	Matthes and Schreyer (2007)
2008	UK – Mount Wellington Mine, Cornwall	Closed loop system suspended in a former mine shaft of an abandoned tin mine, heating the factory and offices of Kensa Engineering. 20 kW capacity	Cashmore (2011)
Approximately 2009	Russia – Novoshakhtinsk	Three wells, up to 400 m deep supplying heat pumps	Roijen (2011)
Approximately 2009	The Netherlands – Heerlen	The source is a flooded underground coal mine. Deep minewater (28°C) is pumped for heating use and shallow minewater (18°C) for cooling use. Water is returned to mine workings after use. Minewater is supplied to a district heating energy station, which contains heat pumps of total rated capacity approximately 700 kW. District heating system is used to supply office buildings and social housing apartments. Heat pumps are augmented by condensing gas boilers when needed	Roijen (2011)
Approximately 2010	Spain – Hunosa	Pumping system installed in shaft at mine closure stage and used to cool university buildings	Roijen (2011), Loredo et al. (2011)
2011	UK – Dawdon, County Durham	Open loop system tapping into existing pumped flow from disused coal mine, used as demonstration system to heat buildings at existing Coal Authority pumping station. 12 kW capacity	Coal Authority (2011)

On the premise that geothermal systems are not new and are not based on radical technologies, the current paper is intended to promote technology transfer from outside the mining industry by discussing the technologies used to exploit geothermal heat energy, and by identifying the conditions where the exploitation of geothermal energy may be feasible and economic. The engineering challenges, key risks and potential environmental impacts will be highlighted, and the possible future role of geothermal energy in mining will be discussed. As it is rare that mines access water hot enough (>85°C) to generate electricity using binary power plants, the focus of this paper is on lower-enthalpy systems which can be exploited (with or without the aid of heat pumps) for direct heating/cooling purposes.

Drivers for exploiting mining geothermal energy

There are three principal drivers for exploitation of geothermal energy:

Financial savings. All mining operations use heat energy, to a lesser or greater degree influenced by the local climate and the type of mining and processing operation. The energy costs associated with heating maybe substantial. Geothermal energy can potentially provide heat at lower unit costs than conventional fuels, thereby reducing operating costs.

Environmental benefits and corporate social responsibility (CSR). Geothermal systems are classified as low carbon energy sources. Typically heat from geothermal systems will be used to displace heat derived from conventional fossil fuel sources; use of geothermal energy will reduce carbon emissions, which is in line with typical CSR objectives.

Gaining benefit from closed and legacy mines. Flooded mine workings and open pits can be significant reservoirs of geothermal heat. If these heat reservoirs are exploited this can generate new revenue streams for mining companies, and potentially support the sustainable development of communities associated with closed mines.

It is important to realise that the geothermal potential and associated risks and challenges will be unique to each project – geothermal energy is not a panacea for all mining projects, viability will depend on diverse factors including geology and existing infrastructure. Where geothermal energy is being considered a feasibility study is likely to be required, addressing the factors outlined later in this paper.

Principles of low-enthalpy geothermal systems

In concept, low-enthalpy geothermal systems are very simple. Three interconnected elements are required to allow geothermal energy to be exploited (Fig. 1):

a open loop; b closed loop

A heat source or heat reservoir (a stratum of soil or rock, a geologic aquifer or a body of surface water such as a pit lake). To be exploitable, a heat reservoir typically needs to contain permeable pathways or connections (e.g. natural fissures and fractures or artificial features such as mine workings) and contain a mobile geofluid (most commonly groundwater, but also brine or – in high-enthalpy systems – steam).

A heat transfer or energy conversion system (heat exchangers, heat pumps or – in high-enthalpy systems – electrical generation equipment).

An energy load (i.e. a demand for the energy produced by the system).

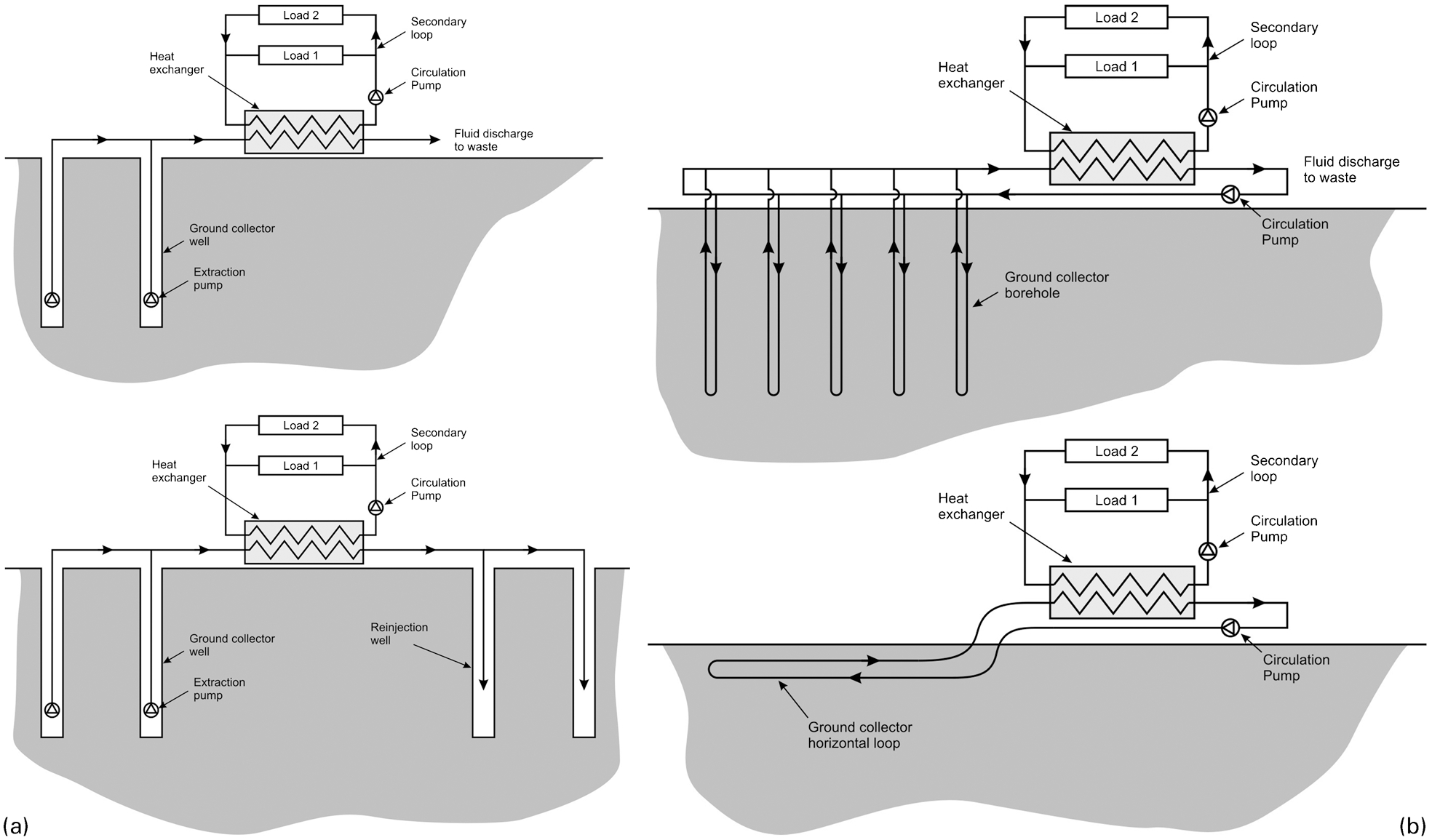

There are two principal types of geothermal systems – open loop and closed loop – differentiated by the type of infrastructure (termed the “ground collector”) used to extract heat from the ground and pass it to the heat transfer/energy conversion system.

Open loop systems (Fig. 1a) extract groundwater from the heat reservoir, via ground collectors which typically take the form of wells or intakes. The water is then passed through the heat transfer system before being disposed of (at different temperature to when it was extracted) either to waste or by re-injection into the source reservoir. If the water is re-injected it can allow an open loop system to operate as a zero net extraction system.

Closed loop systems (Fig. 1b) differ from open loop systems in that they do not extract groundwater from the heat reservoir. Instead, the ground collector takes the form of a loop of pipework in intimate contact with the heat reservoir through which a heat transfer fluid is circulated. As the heat transfer fluid travels through the ground collector it gains or loses energy from the reservoir. This heat energy is then passed to the heat transfer system at the surface.

Figure 1 shows a typical configuration whereby the groundwater from the heat reservoir is passed through a heat transfer system (typically a conventional heat exchanger) and heat energy is then circulated to the various heat demands via a secondary loop. This approach is adopted because the groundwater pumped from the reservoir may have a complex chemical composition, resulting in aggressive corrosion conditions, risk of chemical precipitation, or release of hazardous mine gases. The use of a secondary loop reduces the amount of equipment exposed to the aggressive groundwater and can allow the pumped groundwater to remain pressurised, thereby reducing the risk of degassing, chemical precipitation and clogging. The secondary loop can therefore circulate “clean water” and equipment connected to the loop can be designed for less onerous chemical conditions, saving capital costs.

Geothermal systems can also be categorised based on the temperature of the source reservoir. Higher temperature reservoirs (greater than about 85°C) have the potential to be exploited to produce electricity, while lower temperature reservoirs can only be exploited for heating (and indeed for cooling). The vast majority of mines will be in geological conditions where the reservoir temperatures are not high enough to allow electricity to be generated. However, occasionally hot fluids are generated in dewatering systems which may allow electricity generation; this is especially likely to occur in tectonically active regions. Williamson and Vogwill (2001) report that the Lihir gold mine in New Guinea had to manage water at temperatures of 90–100°C and Popielak et al. (2013) describe groundwater at 70–160°C in the Cerro Blanco underground mine in Guatemala.

A more complete background to geothermal systems used to generate electricity can be found in Dickson and Fanelli (2003). Geothermal systems used to provide heating and cooling are described in Banks (2012).

Key potential risks associated with low-enthalpy geothermal systems

There are a range of potential risks associated with low-enthalpy geothermal systems, the most significant of which are discussed below. The investigation of the relevant issues is a key part of the feasibility assessment described later in this paper.

(i)

Heat resource risk. Is the heat resource in the reservoir adequate in terms of the quantity of usable heat (in mega joules) and the quality of the heat (e.g. peak temperatures)? This risk can be quantified by relatively conventional programmes of hydrogeological drilling and modelling.

(ii)

Heat accessibility risk. Is there adequate hydraulic connectivity in the heat reservoir and do structures which can function as ground collectors already exist or can they easily be constructed with a high certainty of thermal output? By this measure, sites which already include dewatering pumping or flooded pits or workings have readily accessible and quantifiable heat and would be considered low risk.

(iii)

Environmental and regulatory risk. Is there a significant risk that a geothermal system may cause unacceptable environmental impacts or may be constrained by regulatory issues? Based on experience in other industries, this risk can typically be quantified and mitigated by good design and planning.

(iv)

Operational and heat continuity risk. Is there a significant risk that operational problems may reduce the system efficiency during its life, or even lead to interruption in heat supply? Examples of operational problems include system corrosion, encrustation or clogging due to aggressive minewater chemistry, or the risk of excessive reductions in heat reservoir temperature as a result of high heat extraction rates. This risk can be quantified by hydrogeological and geochemical modelling.

When assessing how these risks may be perceived within the mining industry, it is important to realise that broadly the same risks apply to geothermal applications in other industries. Over the last decade, there has been a significant increase in the uptake of low-enthalpy geothermal systems in commercial buildings (Wang et al., 2007). Property developers are little different to the mining industry in their desire to manage risk and reliably obtain adequate return on capital invested. The track record suggests these risks are not perceived as barriers, but instead act as a road map for studies and investigations for potential applications.

Factors affecting the feasibility of low-enthalpy geothermal systems

The stages in assessing the economic feasibility of a potential geothermal system on a mining project are little different to assessing the feasibility of extracting a mineral product, except the raw product to be extracted is heat, which is then processed (or converted) into usable forms of heating and cooling. The key steps are outlined below.

Identify and determine the size and key parameters of the heat reservoir

The feasibility of a mine-related geothermal system is dominated by the properties of the heat reservoir. If the reservoir does not have suitable properties then even the highest standards of engineering will be of little benefit to producing viable energy. Three key parameters must be considered: the presence of mobile groundwater; the total quantity of accessible heat; and peak temperatures available at the point of heat transfer or energy conversion. Pumping trials and numerical modelling can play an important role in assessing the values of these parameters on a specific site.

Presence of mobile groundwater

Although geothermal heat reservoirs can exist without mobile groundwater – the so called “hot dry rock” reservoirs (Brown et al., 2012) – in the vast majority of cases for a geothermal heat reservoir to be commercially exploitable, extraction or re-injection of fluids must induce significant groundwater flow. Outside of the mining industry, groundwater flow delivering heat to or from ground collectors is primarily through the natural permeable features (fractures, fissures, interconnected pore spaces) within the stratum, which are connected to the surface via ground collectors. The advantage of mining applications of geothermal systems is that workings (both underground and open pit) below groundwater level will provide enhanced permeability within the reservoir and may be suitable for use as ground collectors. Hydrogeological studies, often including numerical modelling and pumping tests, are a key element of any assessment of the potential for geothermal exploitation at a mine site.

Peak temperatures available at the point of heat transfer or energy conversion

The maximum temperature of the fluids that can be extracted from open loop systems or circulated in closed loop systems will determine the possible means of exploitation for energy supply

less than approximately 35°C: suitable for exploitation for heating and/or cooling by either heat pumps or direct use by heat exchangers; and

35 to approximately 85°C: suitable for exploitation for heating by direct use (heat exchangers).

The key temperature is the maximum available at the point of heat transfer (e.g. heat pump or heat exchanger), which may be lower than the observed static temperature in the geothermal reservoir, especially if groundwater is circulating rapidly in the reservoir and has little residence time to absorb heat before it is pumped to the surface.

Total quantity of recoverable energy

The total quantity of heat in joules potentially available from a geothermal reservoir is typically assessed by determining the effective volume of the heat reservoir, and calculating the heat that can be exchanged as a result of raising or lowering the reservoir temperature by ΔT. For systems that involve flowing fluid (such as pumped dewatering systems) the calculation is based on raising or lowering the temperature of the flowing fluid by ΔT. Methods of calculation are given in Appendix.

However, the total quantity of heat available does not tell the full story. It is important to determine the possible sustainable rates of heat extraction in watts, defined as joules per second. Geothermal reservoirs exist at their current temperatures in response to existing heat inputs and outputs which include solar flux on the ground surface, geothermal flux from depth and heat movements associated with natural groundwater flows. In most cases, the artificial extraction of heat at any commercially viable rate will affect the heat balance in the reservoir and over time, temperatures will fall. The greater the rate of extraction the quicker reservoir temperatures will fall.

Falls in reservoir temperatures are important for two principal reasons. First, there will be a “cutoff temperature” below which the selected heat transfer technology will not operate efficiently. High rates of heat extraction may result in the cutoff temperature being reached in early years of operation, curtailing the life of the usable heat resource. Second, any significant temperature reductions in the reservoir temperature increase the risk of adverse environmental effects.

Understand the market for, and value of, the energy which can potentially be extracted

Without a viable end use there can be no demand and any extracted energy has no value. An essential step in feasibility studies is the identification of end uses, which may be on the mine site or off-site. It is important to realise modern technology, including heat pumps, can allow heat energy extracted from mines to be used for both heating and for cooling. Therefore, geothermal systems are relevant to mine sites in cold, temperate and hot climates.

Determine the necessary engineering infrastructure

Once a geothermal heat reservoir has been identified and matched to a potential market for heating/cooling, it is necessary to determine the infrastructure required to extract the proposed rates of heat. Infrastructure may include:

Ground collectors. In some cases (for example flooded mine shafts, or existing dewatering systems) heat energy can be exploited from mine sites without the need for the construction of ground collectors. However, some schemes will require the construction of new ground collectors in the form of wells or closed loop circulation systems. The selection and sizing of ground collectors is fundamental to the design of geothermal systems.

Pumping infrastructure. Almost without exception, pumping of fluids is an essential part of the operation of geothermal systems. This can be either extraction of groundwater from wells and shafts or circulation of heat transfer fluid through closed loop ground collectors. Optimisation of pumping systems is important to reduce operating costs and minimise parasitic loads, which increase operating costs and reduce net energy output.

Water disposal infrastructure. Open loop systems produce a waste stream of groundwater that is either disposed of to surface water or by re-injection and recirculation into the geothermal reservoir. Where the flow rate of water to be disposed of is greater than for the conventional mine operation, there will be a requirement for infrastructure to allow the fluid to be transferred without causing flooding or other environmental impacts.

This stage of project development may require field trials to help support the sizing and location of the required infrastructure.

Identify the potential for significant environmental impacts

Just as the development of a new mineral extraction must consider the potential for environmental impacts (both positive and negative), so the development of a geothermal scheme must also consider environmental impacts. It also important to recognise that there may be positive environmental effects in terms of facilitating, for example, new employment opportunities, improving local communities by improving availability of heating/cooling, and reduction in carbon emissions.

Assess the overall feasibility of a geothermal system

The above aspects of a potential geothermal scheme need to be combined to allow the feasibility and economic viability to be assessed. The design of the ground collectors and pumping infrastructure will have a major influence on the CAPEX and OPEX. As described elsewhere in this paper, each application of geothermal energy on mining projects will effectively be unique. It is therefore difficult to generalise on likely CAPEX and OPEX costs. Outside of the mining industry, data on low-enthalpy geothermal systems indicates CAPEX in the range US$2000–US$3300 per kilowatt installed capacity (excluding end user heat distribution systems) and OPEX in the range US$0·08–US$0·11 per kilowatt hour of heat delivered (2013 costs). As a starting point these could be used to provide order of magnitude cost estimates at early feasibility stage.

The anticipated energy yield and market value will allow the project cash flow to be estimated. Of course financial assessment is only one criterion to determine whether a scheme should be developed. Geothermal schemes have the potential to reduce the consumption of conventional energy sources, and hence reduce carbon emissions. Therefore, there may also be regulatory drivers or CSR requirements, which may temper a purely financial assessment.

Possible configurations of low-enthalpy geothermal systems in the mining industry

Potential heat reservoirs

Several configurations of geothermal systems are possible on mine sites, tapping into different types of heat reservoir. In practice, certain heat reservoirs are more likely to be exploitable at given phases of a mining project – exploration, operation and closure – and may have different levels of perceived risk associated with them. Based on a review of the current mining geothermal applications, there is also significant potential to harness geothermal energy from “legacy” mines – older abandoned mines or mines where closure was not managed in line with modern aspirations. Potential applications are summarised in Table 2.

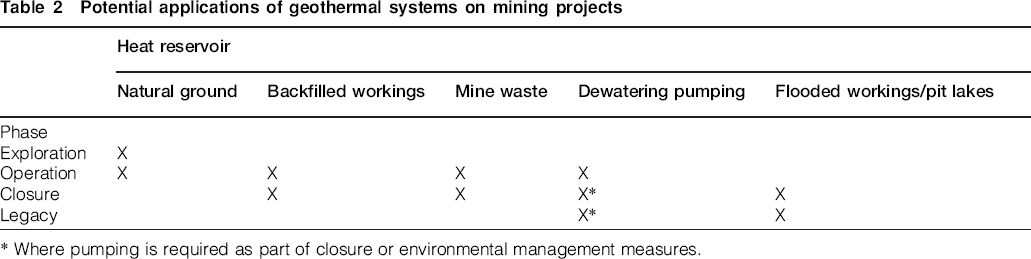

Table 2

Potential applications of geothermal systems on mining projects

	Heat reservoir
	Natural ground	Backfilled workings	Mine waste	Dewatering pumping	Flooded workings/pit lakes
Phase
Exploration	X
Operation	X	X	X	X
Closure		X	X	X	X
Legacy				X	X

Where pumping is required as part of closure or environmental management measures.

It is possible to install open loop or closed loop ground collectors in natural ground as shown on Fig. 1. Such systems are little different to those applied widely outside the mining industry. Natural ground may have particular potential to provide heating and cooling to exploration camps, by making use of the exploration rigs to drill closed loop ground collectors. Conventional ground collectors can also be installed to extract heat from mine waste dumps, including the heat generated by geochemical reactions therein (Banks et al., 2004).

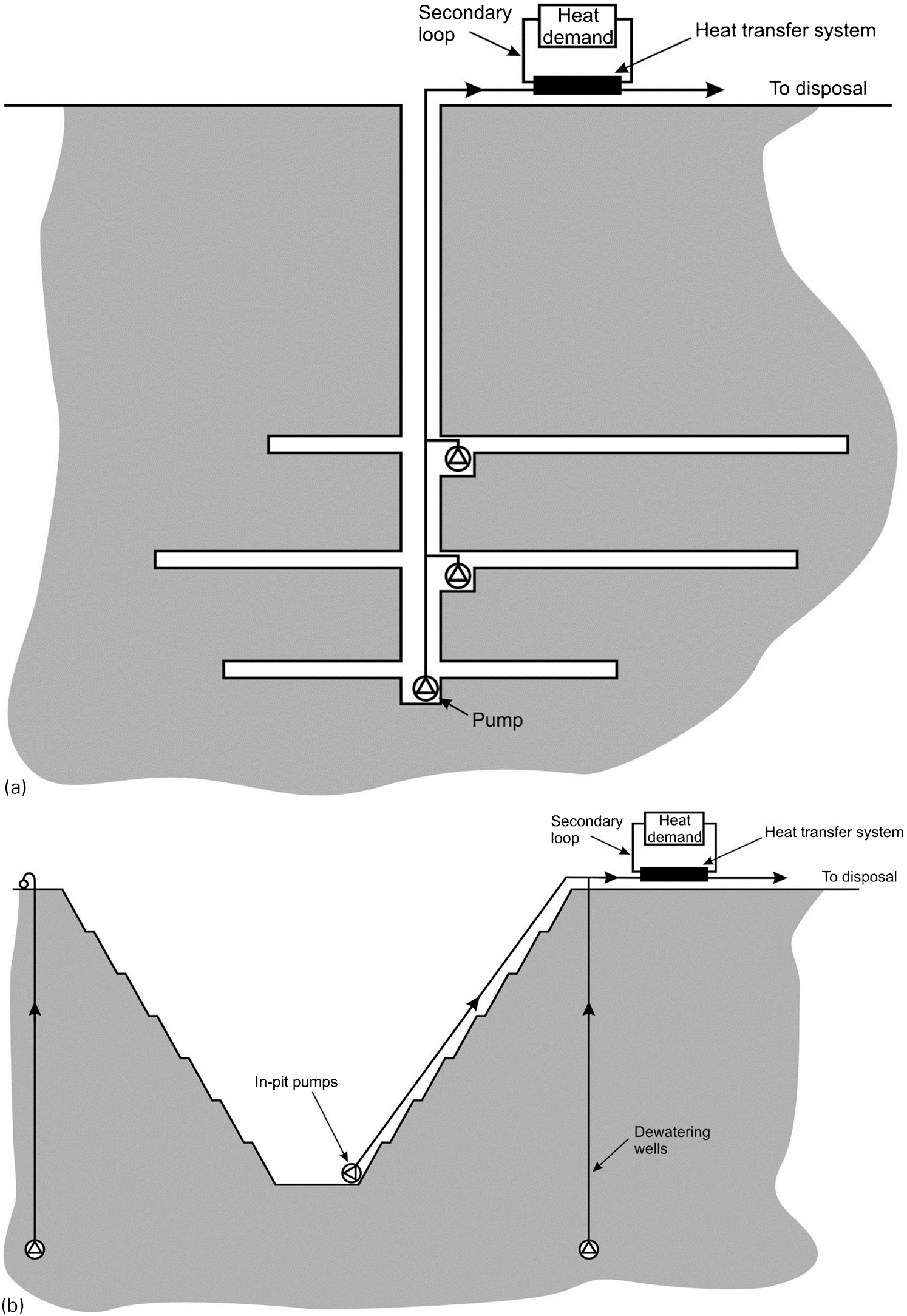

Where dewatering pumping is carried out for underground or open pit mines (Fig. 2), either during operation or as part of a managed closure regime, it is a fairly straightforward modification to pass the water through a heat transfer system configured to form an open loop geothermal system.

a underground mines; b open pit mines

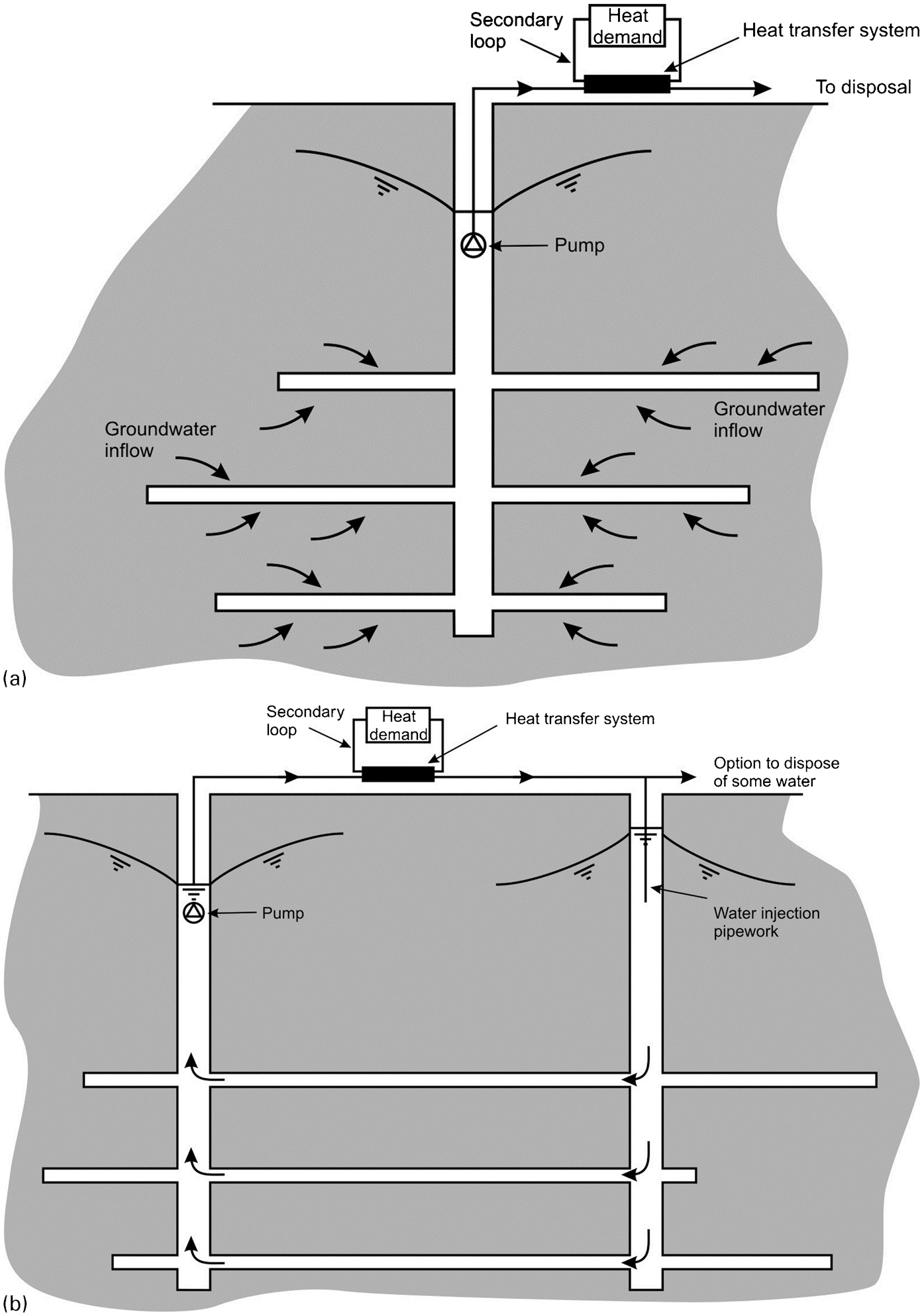

The review of existing mining geothermal systems summarised in Table 1 indicates that by far the most common application to date is the extraction of heat from flooded underground mine workings. Where there is a net abstraction of water, for example where pumping is used to control rebound of regional groundwater levels following closure, the water can be pumped out, passed through a heat transfer system and then disposed of to the surface water environment (Fig. 3a). Where there is no requirement for net pumping of water, and an interconnected set of mine workings exists, it is possible to recirculate water through the workings, effectively using the mine workings as a huge ground collector (Fig. 3b). Figure 3 shows the simplest arrangement for pumping from flooded underground mines, where pumps are installed directly in existing shafts; older shafts may be unstable and it may be necessary to install a perforated “well liner” within the shaft to provide a clear and protected vertical void into which the pump can be installed. If the shafts are inaccessible, have collapsed or have been backfilled, the experience of the operational geothermal system at Heerlen in The Netherlands shows that it is possible to successfully drill boreholes into flooded roadways to extract/re-inject water (Roijen, 2011).

a pumping to waste; b pumping and re-injection

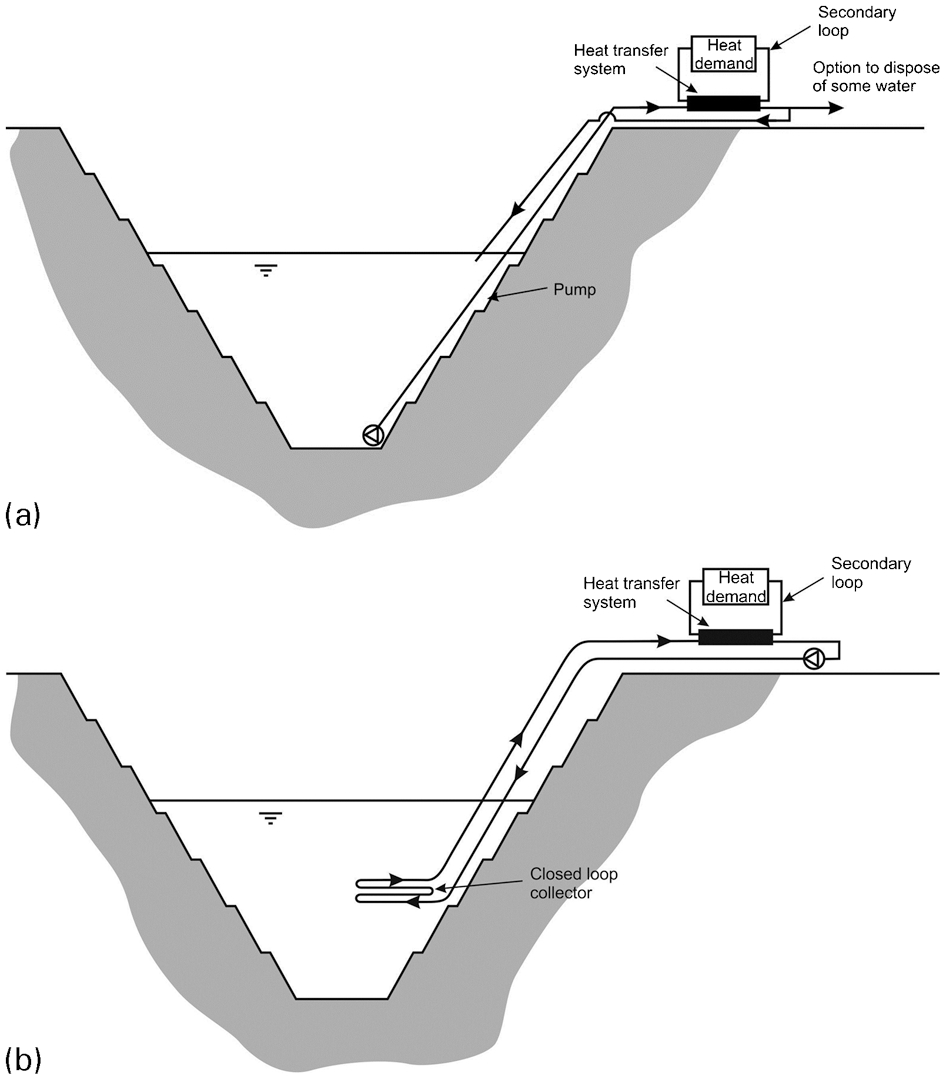

Pit lakes formed post-closure in open pit mines can also form a large heat reservoir, which can be exploited by either open loop or closed loop systems (Fig. 4).

a open loop; b closed loop

Potential environmental impacts from mining geothermal systems

Geothermal systems can cause a range of environmental impacts, as shown in Table 3. In most cases the potential negative impacts can be mitigated by appropriate design. Further background on environmental impacts is given by Younger (2006).

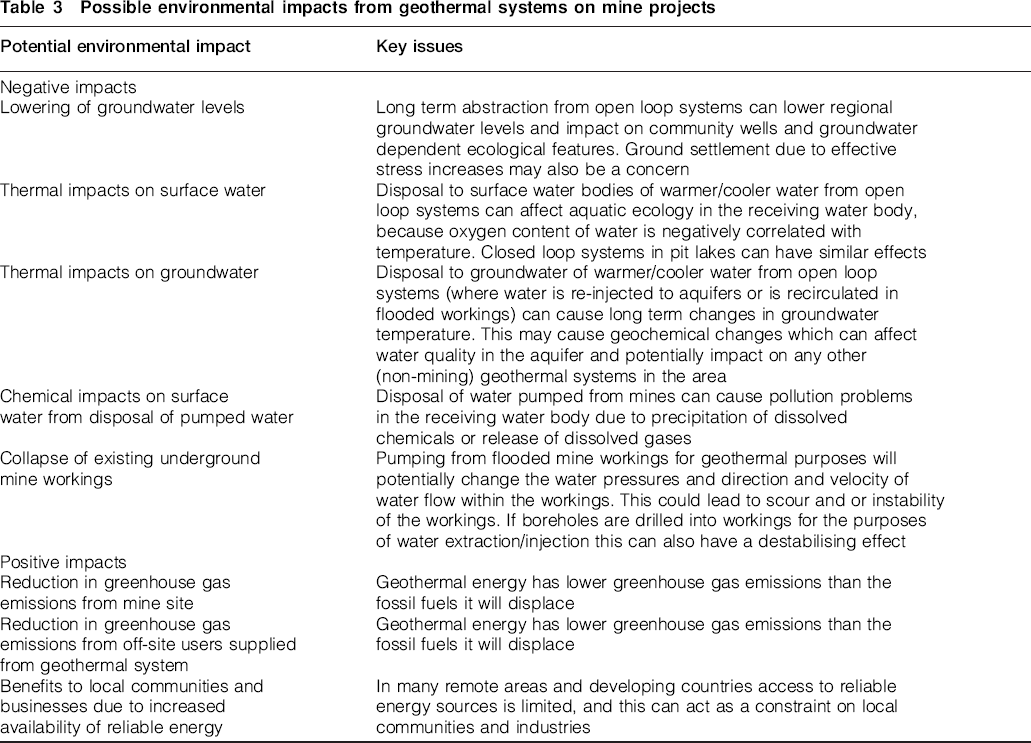

Table 3

Possible environmental impacts from geothermal systems on mine projects

Potential environmental impact	Key issues
Negative impacts
Lowering of groundwater levels	Long term abstraction from open loop systems can lower regional groundwater levels and impact on community wells and groundwater dependent ecological features. Ground settlement due to effective stress increases may also be a concern
Thermal impacts on surface water	Disposal to surface water bodies of warmer/cooler water from open loop systems can affect aquatic ecology in the receiving water body, because oxygen content of water is negatively correlated with temperature. Closed loop systems in pit lakes can have similar effects
Thermal impacts on groundwater	Disposal to groundwater of warmer/cooler water from open loop systems (where water is re-injected to aquifers or is recirculated in flooded workings) can cause long term changes in groundwater temperature. This may cause geochemical changes which can affect water quality in the aquifer and potentially impact on any other (non-mining) geothermal systems in the area
Chemical impacts on surface water from disposal of pumped water	Disposal of water pumped from mines can cause pollution problems in the receiving water body due to precipitation of dissolved chemicals or release of dissolved gases
Collapse of existing underground mine workings	Pumping from flooded mine workings for geothermal purposes will potentially change the water pressures and direction and velocity of water flow within the workings. This could lead to scour and or instability of the workings. If boreholes are drilled into workings for the purposes of water extraction/injection this can also have a destabilising effect
Positive impacts
Reduction in greenhouse gas emissions from mine site	Geothermal energy has lower greenhouse gas emissions than the fossil fuels it will displace
Reduction in greenhouse gas emissions from off-site users supplied from geothermal system	Geothermal energy has lower greenhouse gas emissions than the fossil fuels it will displace
Benefits to local communities and businesses due to increased availability of reliable energy	In many remote areas and developing countries access to reliable energy sources is limited, and this can act as a constraint on local communities and industries

Potential energy demands

During the exploration and operation phases, the most obvious use for heat energy is on the mine site itself. Most mine sites will contain site offices, accommodation buildings, equipment garages and workshops, which may require heating or cooling. On-site heat demand will be near to the source (and so will not require transmission over great distances), and will typically be under the control of the operator. As a result the practicalities and commercial relationships will be straightforward.

In cold climates, in addition to mine camps, applications can include direct heating and ventilation air heating for portals, head houses, and other areas and systems prone to icing. Conversely, cooling may be needed for mine camps in many parts of the world or to chill ventilation air through deep hard rock mines to control working temperatures. Based on experience in other industries, and the likely energy scale of energy demand on mine sites, geothermal systems on mine sites are unlikely to be deployed to provide 100% of the heat energy to a given site. The most effective deployment is when geothermal systems are configured to supply part of the baseload heat demand of the site, with supplementary conventional systems operated to meet peak demands.

Allocating a potential value to on-site use of heat is straightforward, as the heat simply displaces the running cost of existing gas/electric/oil heaters or chillers in these applications. Based on experience with geothermal systems outside of the mining industry, heat energy from geothermal sources can have significantly lower unit costs compared to traditional fossil fuel sources.

The potential for off-site heat demand will vary significantly from site to site. Importantly, off-site demand will potentially continue to exist after the end of mine operations and following closure. The location of the potential heat demand has a significant influence on the feasibility of off-site use because it is difficult to transfer low-grade heat energy (typically in the form of warm water) over long distances unless it is transmitted by well-engineered district heating systems. These allow a relatively small number of heat sources to feed into a heat network (typically comprising buried insulated pipes used to circulate warm water). It is relatively unusual for active mine sites to be located in densely populated areas, however, there are often significant communities nearby and there may be opportunities to provide heat to properties via district heating systems. Other potential heat uses are agricultural such as for glasshouse heating, produce drying, fish farm heating and other large-scale uses of low temperature heat. Understanding the value of heat that can be provided to off-site users is more complicated as it will largely be dependent on the market value of heat in the locality, which may be variable with location and with the temperature of the supplied heat and can be difficult to accurately determine.

Commercial aspects

Where mine operators use heat from ground energy systems to meet on-site demand, the commercial situation is straightforward as the heat energy from the ground energy system will replace heat from conventional sources used by the mine operator. However, where the operator intends to harness heat energy and export it to supply off-site demand the commercial situation may be more complex. While the sale of energy would potentially provide a new income stream, the downside is that there would be a need for commercial arrangements with those buying the energy, and systems for metering and billing are likely to be necessary. Where closed or legacy mines are exploited for heat energy, these arrangements would have to continue after mining operations have ceased. In practice, it may be appropriate for the mine operator to become part of, or develop a relationship with, an “energy supply company” (EsCo) to manage the sale and distribution of energy.

Conclusion

In 2013, there are less than 20 documented examples of operational mining geothermal systems worldwide. This is surprising, since the wide and increasing use of geothermal systems outside of the mining industry has proven that geothermal systems are reliable and can compete with, and often undercut, the costs of conventional fuels. On remote mine sites, where fuels may have to be shipped in over great distances, geothermal energy may have a significant advantage in operational cost. The potentially lower operational cost needs to be offset against the capital cost of setting up a geothermal system. The focus for mine operators should therefore be on identifying at feasibility stage those projects where conditions are favourable for geothermal systems, where the potential risks are understood, and where the economics are likely to be beneficial.

Almost all of the case histories listed in Table 1 are of the flooded underground workings type, at the closure or legacy stage of mine development. By definition, these systems must be supplying off-site energy demands, beyond the mine itself. This highlights that geothermal systems offer both a potential new revenue stream for mine operators and a chance to contribute to CSR targets by supplying nearby communities with low carbon energy.

It is clear that, there is a huge potential to use geothermal technology to exploit the heat energy in mines at all stages from exploration through to closure and beyond, by providing low carbon heat energy to displace some use of fossil fuels. The challenge for mine operators (and those responsible for legacy mines) is to identify, investigate and prioritise those mines sites where geothermal systems can be most effectively developed.
